btr0btr.h File Reference

#include "univ.i"
#include "dict0dict.h"
#include "data0data.h"
#include "page0cur.h"
#include "mtr0mtr.h"
#include "btr0types.h"
#include "btr0btr.ic"

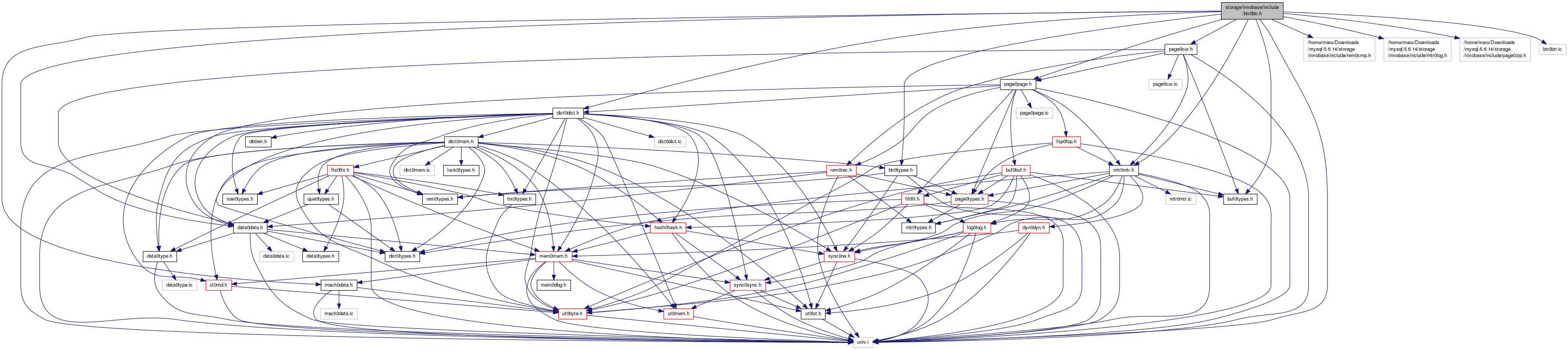

Include dependency graph for btr0btr.h:

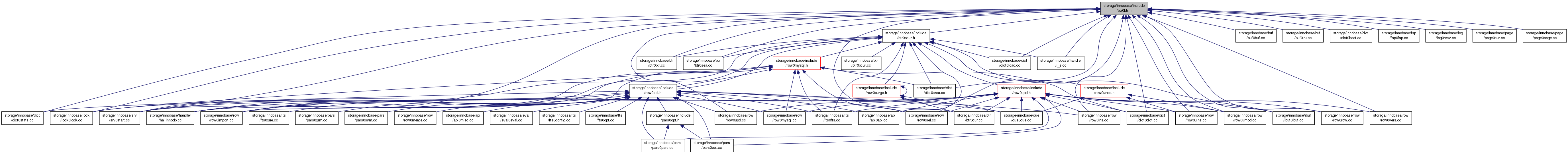

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	BTR_PAGE_MAX_REC_SIZE   (UNIV_PAGE_SIZE / 2 - 200)
#define	BTR_MAX_LEVELS   100
	Maximum depth of a B-tree in InnoDB.
#define	BTR_INSERT   512
#define	BTR_ESTIMATE   1024
#define	BTR_IGNORE_SEC_UNIQUE   2048
#define	BTR_DELETE_MARK   4096
#define	BTR_DELETE   8192
#define	BTR_ALREADY_S_LATCHED   16384
#define	BTR_LATCH_MODE_WITHOUT_FLAGS(latch_mode)
#define	btr_assert_not_corrupted(block, index)
#define	btr_blob_dbg_add_blob(rec, field_no, page, index, ctx)   ((void) 0)
#define	btr_blob_dbg_set_deleted_flag(rec, index, offsets, del)   ((void) 0)
#define	btr_blob_dbg_owner(rec, index, offsets, i, val)   ((void) 0)
#define	btr_blob_dbg_assert_empty(index, page_no)   ((void) 0)
#define	btr_block_get(space, zip_size, page_no, mode, idx, mtr)   btr_block_get_func(space,zip_size,page_no,mode,__FILE__,__LINE__,mtr)
#define	btr_page_get(space, zip_size, page_no, mode, idx, mtr)   buf_block_get_frame(btr_block_get(space,zip_size,page_no,mode,idx,mtr))
#define	btr_page_get_level(page, mtr)   btr_page_get_level_low(page)
#define	btr_insert_on_non_leaf_level(f, i, l, t, m)   btr_insert_on_non_leaf_level_func(f,i,l,t,__FILE__,__LINE__,m)
#define	BTR_N_LEAF_PAGES   1
#define	BTR_TOTAL_SIZE   2

Enumerations
enum	btr_latch_mode {   BTR_SEARCH_LEAF = RW_S_LATCH, BTR_MODIFY_LEAF = RW_X_LATCH, BTR_NO_LATCHES = RW_NO_LATCH, BTR_MODIFY_TREE = 33,   BTR_CONT_MODIFY_TREE = 34, BTR_SEARCH_PREV = 35, BTR_MODIFY_PREV = 36 }

Functions
UNIV_INTERN void	btr_corruption_report (const buf_block_t *block, const dict_index_t *index) UNIV_COLD __attribute__((nonnull))
UNIV_INTERN page_t *	btr_root_get (const dict_index_t *index, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN dberr_t	btr_root_adjust_on_import (const dict_index_t *index) __attribute__((nonnull
UNIV_INTERN ulint	btr_height_get (dict_index_t *index, mtr_t *mtr) __attribute__((nonnull
UNIV_INLINE buf_block_t *	btr_block_get_func (ulint space, ulint zip_size, ulint page_no, ulint mode, const char *file, ulint line, mtr_t *mtr)

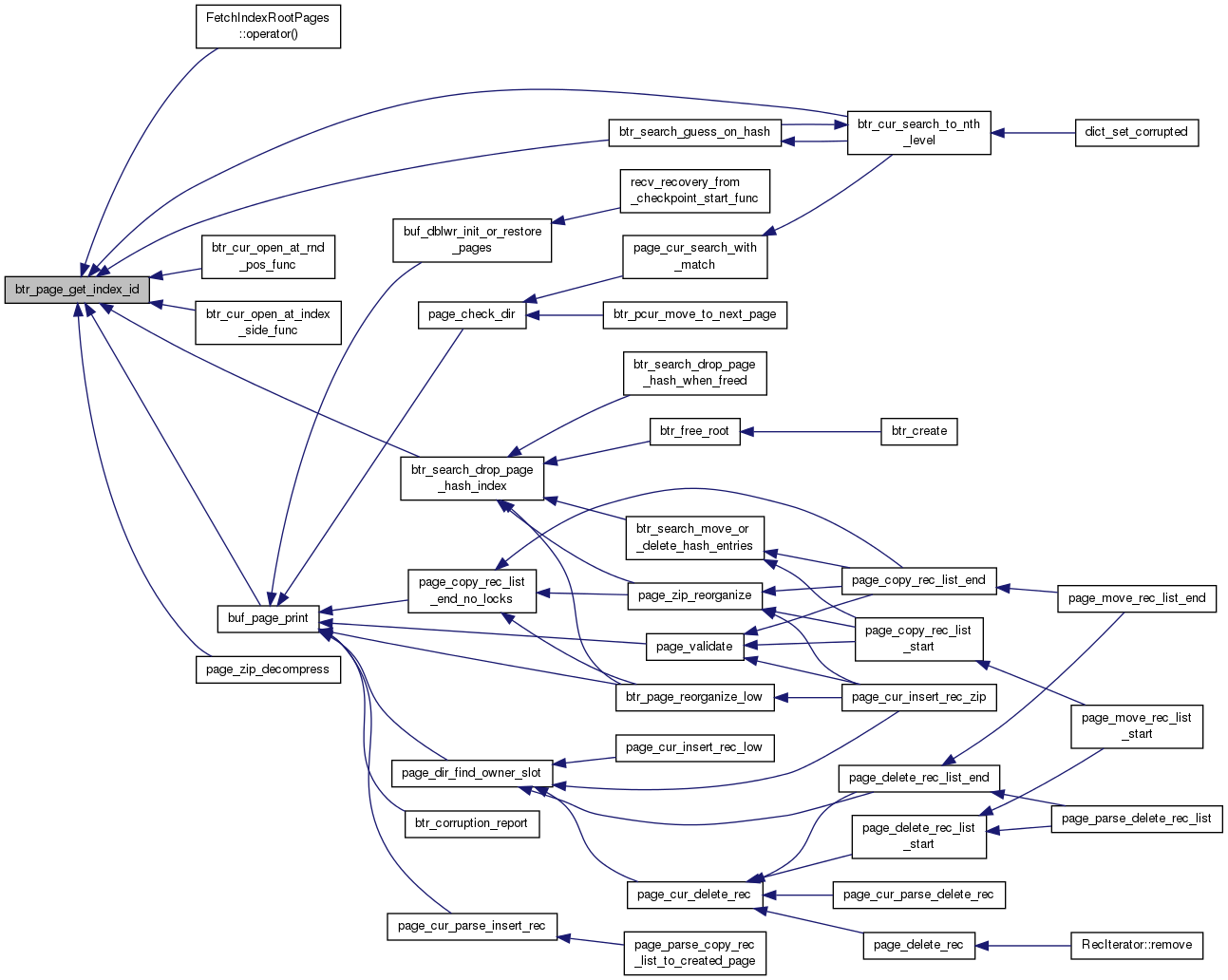

UNIV_INLINE index_id_t	btr_page_get_index_id (const page_t *page) __attribute__((nonnull
UNIV_INLINE ulint	btr_page_get_level_low (const page_t *page) __attribute__((nonnull

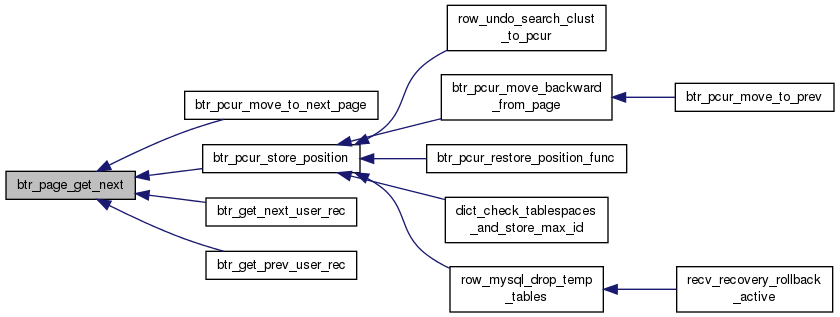

UNIV_INLINE ulint	btr_page_get_next (const page_t *page, mtr_t *mtr) __attribute__((nonnull
UNIV_INLINE ulint	btr_page_get_prev (const page_t *page, mtr_t *mtr) __attribute__((nonnull
UNIV_INTERN rec_t *	btr_get_prev_user_rec (rec_t *rec, mtr_t *mtr) __attribute__((nonnull
UNIV_INTERN rec_t *	btr_get_next_user_rec (rec_t *rec, mtr_t *mtr) __attribute__((nonnull

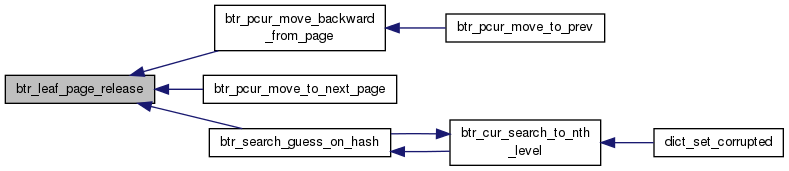

UNIV_INLINE void	btr_leaf_page_release (buf_block_t *block, ulint latch_mode, mtr_t *mtr) __attribute__((nonnull))
UNIV_INLINE ulint	btr_node_ptr_get_child_page_no (const rec_t *rec, const ulint *offsets) __attribute__((nonnull
UNIV_INTERN ulint	btr_create (ulint type, ulint space, ulint zip_size, index_id_t index_id, dict_index_t *index, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN void	btr_free_but_not_root (ulint space, ulint zip_size, ulint root_page_no)
UNIV_INTERN void	btr_free_root (ulint space, ulint zip_size, ulint root_page_no, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN rec_t *	btr_root_raise_and_insert (ulint flags, btr_cur_t *cursor, ulint **offsets, mem_heap_t **heap, const dtuple_t *tuple, ulint n_ext, mtr_t *mtr) __attribute__((nonnull
UNIV_INTERN bool	btr_page_reorganize_low (bool recovery, ulint z_level, page_cur_t *cursor, dict_index_t *index, mtr_t *mtr) __attribute__((nonnull
UNIV_INTERN bool	btr_page_reorganize (page_cur_t *cursor, dict_index_t *index, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN ibool	btr_page_get_split_rec_to_left (btr_cur_t *cursor, rec_t **split_rec) __attribute__((nonnull
UNIV_INTERN ibool	btr_page_get_split_rec_to_right (btr_cur_t *cursor, rec_t **split_rec) __attribute__((nonnull
UNIV_INTERN rec_t *	btr_page_split_and_insert (ulint flags, btr_cur_t *cursor, ulint **offsets, mem_heap_t **heap, const dtuple_t *tuple, ulint n_ext, mtr_t *mtr) __attribute__((nonnull
UNIV_INTERN void	btr_insert_on_non_leaf_level_func (ulint flags, dict_index_t *index, ulint level, dtuple_t *tuple, const char *file, ulint line, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN void	btr_set_min_rec_mark (rec_t *rec, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN void	btr_node_ptr_delete (dict_index_t *index, buf_block_t *block, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN ibool	btr_compress (btr_cur_t *cursor, ibool adjust, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN void	btr_discard_page (btr_cur_t *cursor, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN byte *	btr_parse_set_min_rec_mark (byte *ptr, byte *end_ptr, ulint comp, page_t *page, mtr_t *mtr) __attribute__((nonnull(1
UNIV_INTERN byte *	btr_parse_page_reorganize (byte *ptr, byte *end_ptr, dict_index_t *index, bool compressed, buf_block_t *block, mtr_t *mtr) __attribute__((nonnull(1
UNIV_INTERN ulint	btr_get_size (dict_index_t *index, ulint flag, mtr_t *mtr) __attribute__((nonnull
UNIV_INTERN buf_block_t *	btr_page_alloc (dict_index_t *index, ulint hint_page_no, byte file_direction, ulint level, mtr_t *mtr, mtr_t *init_mtr) __attribute__((nonnull
UNIV_INTERN void	btr_page_free (dict_index_t *index, buf_block_t *block, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN void	btr_page_free_low (dict_index_t *index, buf_block_t *block, ulint level, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN ibool	btr_index_rec_validate (const rec_t *rec, const dict_index_t *index, ibool dump_on_error) __attribute__((nonnull
UNIV_INTERN bool	btr_validate_index (dict_index_t *index, const trx_t *trx) __attribute__((nonnull(1)

Variables
UNIV_INTERN dberr_t	warn_unused_result
UNIV_INLINE index_id_t	pure

Detailed Description

The B-tree

Created 6/2/1994 Heikki Tuuri

Definition in file btr0btr.h.

Macro Definition Documentation

#define BTR_ALREADY_S_LATCHED   16384

In the case of BTR_SEARCH_LEAF or BTR_MODIFY_LEAF, the caller is

already holding an S latch on the index tree

Definition at line 98 of file btr0btr.h.

#define btr_assert_not_corrupted	(		block,
			index
	)

Value:

if ((ibool) !!page_is_comp(buf_block_get_frame(block))  \
            != dict_table_is_comp((index)->table)) {            \
                btr_corruption_report(block, index);            \
                ut_error;                                       \
        }

Assert that a B-tree page is not corrupted.

Parameters

block	buffer block containing a B-tree page
index	the B-tree index

Definition at line 122 of file btr0btr.h.

#define btr_block_get	(		space,
			zip_size,
			page_no,
			mode,
			idx,
			mtr
	)		btr_block_get_func(space,zip_size,page_no,mode,__FILE__,__LINE__,mtr)

Gets a buffer page and declares its latching order level.

Parameters

space	tablespace identifier
zip_size	compressed page size in bytes or 0 for uncompressed pages
page_no	page number
mode	latch mode
idx	index tree, may be NULL if not the insert buffer tree
mtr	mini-transaction handle

Returns

the block descriptor

Definition at line 287 of file btr0btr.h.

#define BTR_DELETE   8192

Try to purge the record at the searched position using the insert/delete

buffer when the record is not in the buffer pool.

Definition at line 94 of file btr0btr.h.

#define BTR_DELETE_MARK   4096

Try to delete mark the record at the searched position using the

insert/delete buffer when the record is not in the buffer pool.

Definition at line 90 of file btr0btr.h.

#define BTR_ESTIMATE   1024

This flag ORed to btr_latch_mode says that we do the search in query

optimization

Definition at line 81 of file btr0btr.h.

#define BTR_IGNORE_SEC_UNIQUE   2048

This flag ORed to BTR_INSERT says that we can ignore possible

UNIQUE definition on secondary indexes when we decide if we can use the insert buffer to speed up inserts

Definition at line 86 of file btr0btr.h.

#define BTR_INSERT   512

If this is ORed to btr_latch_mode, it means that the search tuple

will be inserted to the index, at the searched position. When the record is not in the buffer pool, try to use the insert buffer.

Definition at line 77 of file btr0btr.h.

#define BTR_LATCH_MODE_WITHOUT_FLAGS

(

latch_mode

)

Value:

((latch_mode) & ~(BTR_INSERT                    \
                          | BTR_DELETE_MARK             \
                          | BTR_DELETE                  \
                          | BTR_ESTIMATE                \
                          | BTR_IGNORE_SEC_UNIQUE       \
                          | BTR_ALREADY_S_LATCHED))

Definition at line 100 of file btr0btr.h.

#define BTR_MAX_LEVELS   100

Maximum depth of a B-tree in InnoDB.

Note that this isn't a maximum as such; none of the tree operations avoid producing trees bigger than this. It is instead a "max depth that other code must work with", useful for e.g. fixed-size arrays that must store some information about each level in a tree. In other words: if a B-tree with bigger depth than this is encountered, it is not acceptable for it to lead to mysterious memory corruption, but it is acceptable for the program to die with a clear assert failure.

Definition at line 52 of file btr0btr.h.

#define btr_page_get	(		space,
			zip_size,
			page_no,
			mode,
			idx,
			mtr
	)		buf_block_get_frame(btr_block_get(space,zip_size,page_no,mode,idx,mtr))

Gets a buffer page and declares its latching order level.

Parameters

space	tablespace identifier
zip_size	compressed page size in bytes or 0 for uncompressed pages
page_no	page number
mode	latch mode
idx	index tree, may be NULL if not the insert buffer tree
mtr	mini-transaction handle

Returns

the uncompressed page frame

Definition at line 298 of file btr0btr.h.

#define BTR_PAGE_MAX_REC_SIZE   (UNIV_PAGE_SIZE / 2 - 200)

Maximum record size which can be stored on a page, without using the

special big record storage structure

Definition at line 41 of file btr0btr.h.

Enumeration Type Documentation

enum btr_latch_mode

Latching modes for btr_cur_search_to_nth_level().

Enumerator:

BTR_SEARCH_LEAF	Search a record on a leaf page and S-latch it.
BTR_MODIFY_LEAF	(Prepare to) modify a record on a leaf page and X-latch it.
BTR_NO_LATCHES	Obtain no latches.
BTR_MODIFY_TREE	Start modifying the entire B-tree.
BTR_CONT_MODIFY_TREE	Continue modifying the entire B-tree.
BTR_SEARCH_PREV	Search the previous record.
BTR_MODIFY_PREV	Modify the previous record.

Definition at line 55 of file btr0btr.h.

Function Documentation

UNIV_INLINE buf_block_t* btr_block_get_func	(	ulint	space,
		ulint	zip_size,
		ulint	page_no,
		ulint	mode,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

Gets a buffer page and declares its latching order level. in/out: mini-transaction

Parameters

space	in: space id
zip_size	in: compressed page size in bytes or 0 for uncompressed pages
page_no	in: page number
mode	in: latch mode
file	in: file name
line	in: line where called

UNIV_INTERN ibool btr_compress	(	btr_cur_t *	cursor,
		ibool	adjust,
		mtr_t *	mtr
	)

Tries to merge the page first to the left immediate brother if such a brother exists, and the node pointers to the current page and to the brother reside on the same page. If the left brother does not satisfy these conditions, looks at the right brother. If the page is the only one on that level lifts the records of the page to the father page, thus reducing the tree height. It is assumed that mtr holds an x-latch on the tree and on the page. If cursor is on the leaf level, mtr must also hold x-latches to the brothers, if they exist.

Returns

TRUE on success

Parameters

cursor	in/out: cursor on the page to merge or lift; the page must not be empty: when deleting records, use btr_discard_page() if the page would become empty
adjust	in: TRUE if should adjust the cursor position even if compression occurs
mtr	in/out: mini-transaction

UNIV_INTERN void btr_corruption_report	(	const buf_block_t *	block,
		const dict_index_t *	index
	)

Report that an index page is corrupted.

Parameters

block	in: corrupted block
index	in: index tree

Definition at line 66 of file btr0btr.cc.

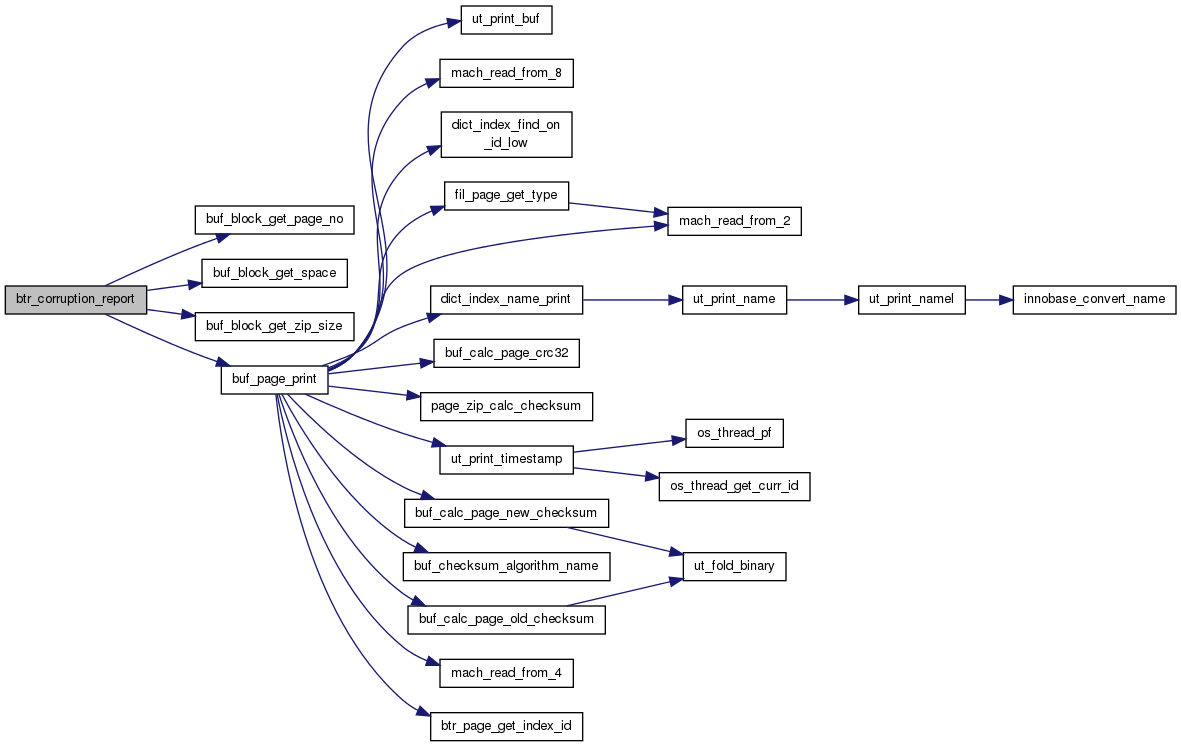

Here is the call graph for this function:

UNIV_INTERN ulint btr_create	(	ulint	type,
		ulint	space,
		ulint	zip_size,
		index_id_t	index_id,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Creates the root node for a new index tree.

Returns

page number of the created root, FIL_NULL if did not succeed

Parameters

type	in: type of the index
space	in: space where created
zip_size	in: compressed page size in bytes or 0 for uncompressed pages
index_id	in: index id
index	in: index
mtr	in: mini-transaction handle

Definition at line 1527 of file btr0btr.cc.

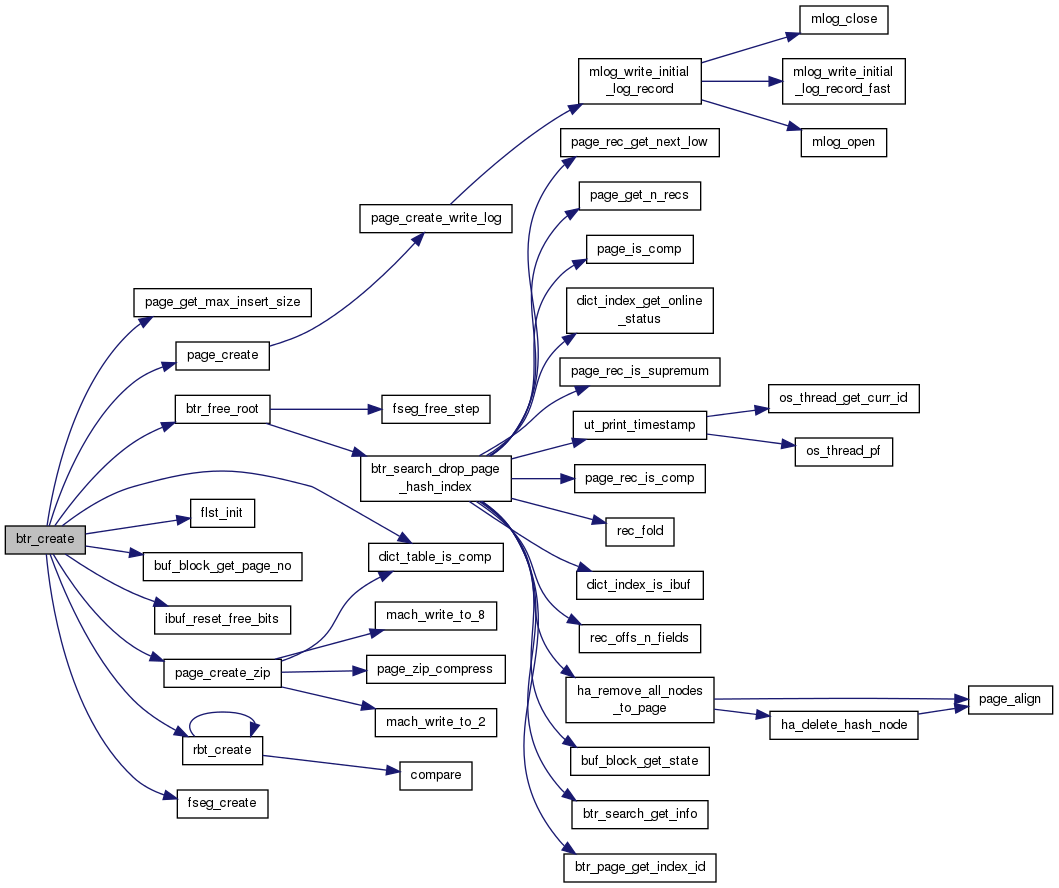

Here is the call graph for this function:

UNIV_INTERN void btr_discard_page	(	btr_cur_t *	cursor,
		mtr_t *	mtr
	)

Discards a page from a B-tree. This is used to remove the last record from a B-tree page: the whole page must be removed at the same time. This cannot be used for the root page, which is allowed to be empty.

Parameters

cursor	in: cursor on the page to discard: not on the root page
mtr	in: mtr

UNIV_INTERN void btr_free_but_not_root	(	ulint	space,
		ulint	zip_size,
		ulint	root_page_no
	)

Frees a B-tree except the root page, which MUST be freed after this by calling btr_free_root. in: root page number

Frees a B-tree except the root page, which MUST be freed after this by calling btr_free_root.

Parameters

space	in: space where created
zip_size	in: compressed page size in bytes or 0 for uncompressed pages
root_page_no	in: root page number

Definition at line 1658 of file btr0btr.cc.

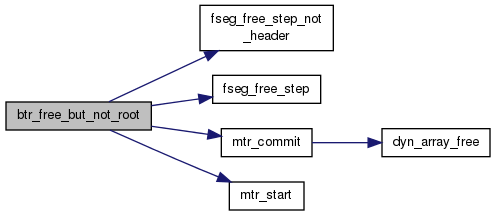

Here is the call graph for this function:

UNIV_INTERN void btr_free_root	(	ulint	space,
		ulint	zip_size,
		ulint	root_page_no,
		mtr_t *	mtr
	)

Frees the B-tree root page. Other tree MUST already have been freed.

Parameters

space	in: space where created
zip_size	in: compressed page size in bytes or 0 for uncompressed pages
root_page_no	in: root page number
mtr	in/out: mini-transaction

Definition at line 1716 of file btr0btr.cc.

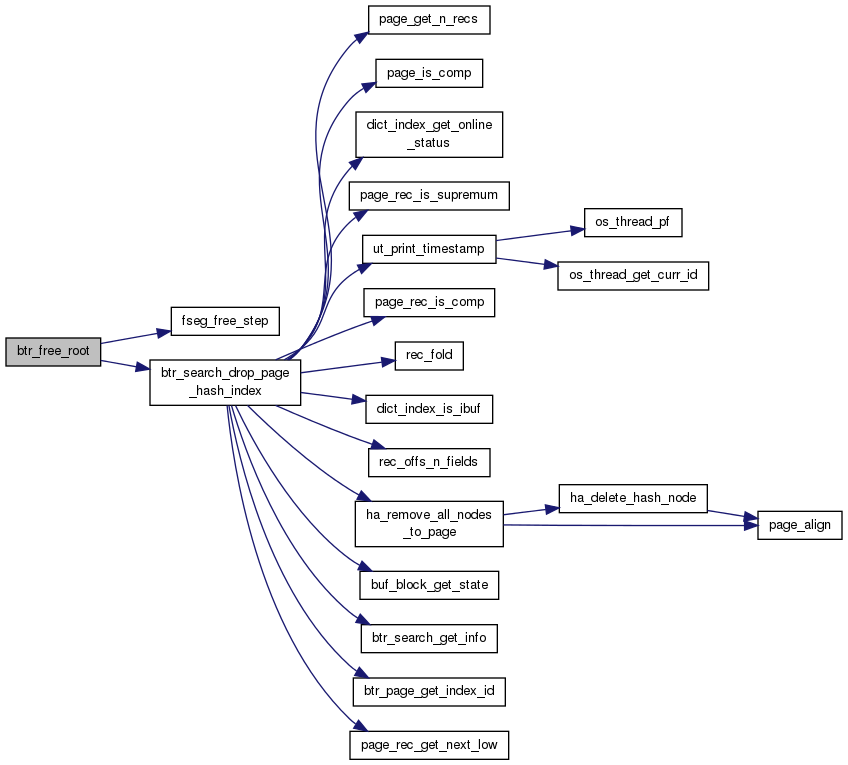

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN rec_t* btr_get_next_user_rec	(	rec_t *	rec,
		mtr_t *	mtr
	)

Gets pointer to the next user record in the tree. It is assumed that the caller has appropriate latches on the page and its neighbor.

Returns

next user record, NULL if there is none

Parameters

rec	in: record on leaf level
mtr	in: mtr holding a latch on the page, and if needed, also to the next page

UNIV_INTERN rec_t* btr_get_prev_user_rec	(	rec_t *	rec,
		mtr_t *	mtr
	)

Gets pointer to the previous user record in the tree. It is assumed that the caller has appropriate latches on the page and its neighbor.

Returns

previous user record, NULL if there is none

Parameters

rec	in: record on leaf level
mtr	in: mtr holding a latch on the page, and if needed, also to the previous page

UNIV_INTERN ulint btr_get_size	(	dict_index_t *	index,
		ulint	flag,
		mtr_t *	mtr
	)

Gets the number of pages in a B-tree.

Returns

number of pages, or ULINT_UNDEFINED if the index is unavailable

Parameters

index	in: index
flag	in: BTR_N_LEAF_PAGES or BTR_TOTAL_SIZE
mtr	in/out: mini-transaction where index is s-latched

UNIV_INTERN ulint btr_height_get	(	dict_index_t *	index,
		mtr_t *	mtr
	)

Gets the height of the B-tree (the level of the root, when the leaf level is assumed to be 0). The caller must hold an S or X latch on the index.

Returns

tree height (level of the root)

Parameters

index	in: index tree
mtr	in/out: mini-transaction

UNIV_INTERN ibool btr_index_rec_validate	(	const rec_t *	rec,
		const dict_index_t *	index,
		ibool	dump_on_error
	)

Checks the size and number of fields in a record based on the definition of the index.

Returns

TRUE if ok

Parameters

rec	in: index record
index	in: index
dump_on_error	in: TRUE if the function should print hex dump of record and page on error

UNIV_INTERN void btr_insert_on_non_leaf_level_func	(	ulint	flags,
		dict_index_t *	index,
		ulint	level,
		dtuple_t *	tuple,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

Inserts a data tuple to a tree on a non-leaf level. It is assumed that mtr holds an x-latch on the tree.

Parameters

flags	in: undo logging and locking flags
index	in: index
level	in: level, must be > 0
tuple	in: the record to be inserted
file	in: file name
line	in: line where called
mtr	in: mtr

UNIV_INLINE void btr_leaf_page_release	(	buf_block_t *	block,
		ulint	latch_mode,
		mtr_t *	mtr
	)

Releases the latch on a leaf page and bufferunfixes it.

Parameters

block	in: buffer block
latch_mode	in: BTR_SEARCH_LEAF or BTR_MODIFY_LEAF
mtr	in: mtr

Here is the caller graph for this function:

UNIV_INTERN void btr_node_ptr_delete	(	dict_index_t *	index,
		buf_block_t *	block,
		mtr_t *	mtr
	)

Deletes on the upper level the node pointer to a page.

Parameters

index	in: index tree
block	in: page whose node pointer is deleted
mtr	in: mtr

UNIV_INLINE ulint btr_node_ptr_get_child_page_no	(	const rec_t *	rec,
		const ulint *	offsets
	)

Gets the child node file address in a node pointer. NOTE: the offsets array must contain all offsets for the record since we read the last field according to offsets and assume that it contains the child page number. In other words offsets must have been retrieved with rec_get_offsets(n_fields=ULINT_UNDEFINED).

Returns

child node address

Parameters

rec	in: node pointer record
offsets	in: array returned by rec_get_offsets()

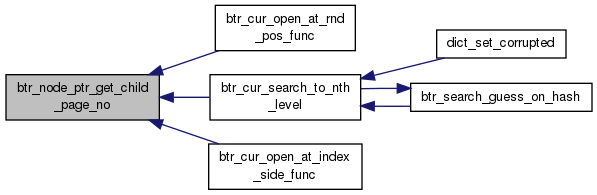

Here is the caller graph for this function:

UNIV_INTERN buf_block_t* btr_page_alloc	(	dict_index_t *	index,
		ulint	hint_page_no,
		byte	file_direction,
		ulint	level,
		mtr_t *	mtr,
		mtr_t *	init_mtr
	)

Allocates a new file page to be used in an index tree. NOTE: we assume that the caller has made the reservation for free extents!

Return values

NULL	if no page could be allocated
block,rw_lock_x_lock_count(&block->lock)	== 1 if allocation succeeded (init_mtr == mtr, or the page was not previously freed in mtr)
block	(not allocated or initialized) otherwise

Parameters

index	in: index tree
hint_page_no	in: hint of a good page
file_direction	in: direction where a possible page split is made
level	in: level where the page is placed in the tree
mtr	in/out: mini-transaction for the allocation
init_mtr	in/out: mini-transaction for x-latching and initializing the page

UNIV_INTERN void btr_page_free	(	dict_index_t *	index,
		buf_block_t *	block,
		mtr_t *	mtr
	)

Frees a file page used in an index tree. NOTE: cannot free field external storage pages because the page must contain info on its level.

Parameters

index	in: index tree
block	in: block to be freed, x-latched
mtr	in: mtr

Definition at line 1312 of file btr0btr.cc.

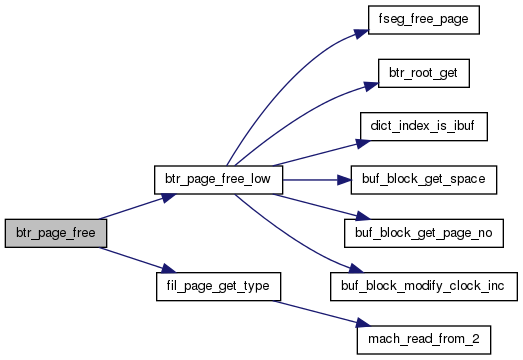

Here is the call graph for this function:

UNIV_INTERN void btr_page_free_low	(	dict_index_t *	index,
		buf_block_t *	block,
		ulint	level,
		mtr_t *	mtr
	)

Frees a file page used in an index tree. Can be used also to BLOB external storage pages, because the page level 0 can be given as an argument.

Frees a file page used in an index tree. Can be used also to (BLOB) external storage pages, because the page level 0 can be given as an argument.

Parameters

index	in: index tree
block	in: block to be freed, x-latched
level	in: page level
mtr	in: mtr

Definition at line 1261 of file btr0btr.cc.

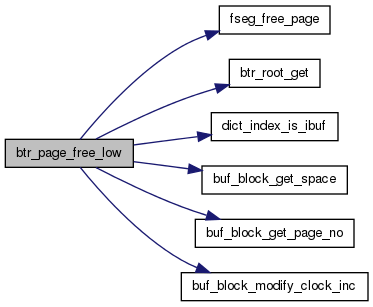

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE index_id_t btr_page_get_index_id

(

const page_t *

page

)

Gets the index id field of a page.

Returns

index id

Parameters

page	in: index page

Here is the caller graph for this function:

UNIV_INLINE ulint btr_page_get_level_low

(

const page_t *

page

)

Gets the node level field in an index page.

Returns

level, leaf level == 0

Parameters

page	in: index page

UNIV_INLINE ulint btr_page_get_next	(	const page_t *	page,
		mtr_t *	mtr
	)

Gets the next index page number.

Returns

next page number

Parameters

page	in: index page
mtr	in: mini-transaction handle

Here is the caller graph for this function:

UNIV_INLINE ulint btr_page_get_prev	(	const page_t *	page,
		mtr_t *	mtr
	)

Gets the previous index page number.

Returns

prev page number

Parameters

page	in: index page
mtr	in: mini-transaction handle

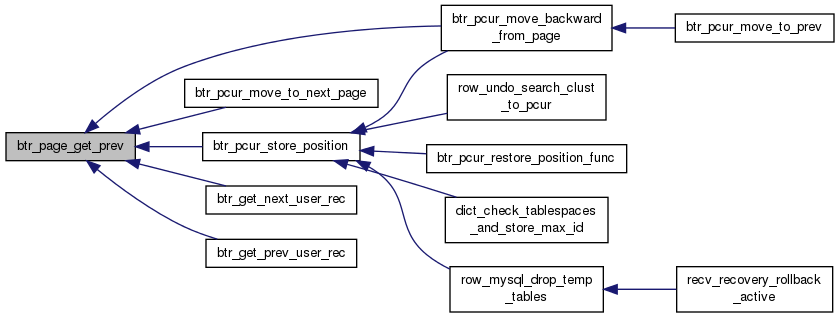

Here is the caller graph for this function:

UNIV_INTERN ibool btr_page_get_split_rec_to_left	(	btr_cur_t *	cursor,
		rec_t **	split_rec
	)

Decides if the page should be split at the convergence point of inserts converging to left.

Returns

TRUE if split recommended

Parameters

cursor	in: cursor at which to insert
split_rec	out: if split recommended, the first record on upper half page, or NULL if tuple should be first

UNIV_INTERN ibool btr_page_get_split_rec_to_right	(	btr_cur_t *	cursor,
		rec_t **	split_rec
	)

Decides if the page should be split at the convergence point of inserts converging to right.

Returns

TRUE if split recommended

Parameters

cursor	in: cursor at which to insert
split_rec	out: if split recommended, the first record on upper half page, or NULL if tuple should be first

UNIV_INTERN bool btr_page_reorganize	(	page_cur_t *	cursor,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Reorganizes an index page.

IMPORTANT: On success, the caller will have to update IBUF_BITMAP_FREE if this is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit(). On uncompressed pages, IBUF_BITMAP_FREE is unaffected by reorganization.

Return values

true	if the operation was successful
false	if it is a compressed page, and recompression failed

Parameters

cursor	in/out: page cursor
index	in: the index tree of the page
mtr	in/out: mini-transaction

UNIV_INTERN bool btr_page_reorganize_low	(	bool	recovery,
		ulint	z_level,
		page_cur_t *	cursor,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Reorganizes an index page.

IMPORTANT: On success, the caller will have to update IBUF_BITMAP_FREE if this is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit(). On uncompressed pages, IBUF_BITMAP_FREE is unaffected by reorganization.

Return values

true	if the operation was successful
false	if it is a compressed page, and recompression failed

Parameters

recovery	in: true if called in recovery: locks should not be updated, i.e., there cannot exist locks on the page, and a hash index should not be dropped: it cannot exist
z_level	in: compression level to be used if dealing with compressed page
cursor	in/out: page cursor
index	in: the index tree of the page
mtr	in/out: mini-transaction

UNIV_INTERN rec_t* btr_page_split_and_insert	(	ulint	flags,
		btr_cur_t *	cursor,
		ulint **	offsets,
		mem_heap_t **	heap,
		const dtuple_t *	tuple,
		ulint	n_ext,
		mtr_t *	mtr
	)

Splits an index page to halves and inserts the tuple. It is assumed that mtr holds an x-latch to the index tree. NOTE: the tree x-latch is released within this function! NOTE that the operation of this function must always succeed, we cannot reverse it: therefore enough free disk space (2 pages) must be guaranteed to be available before this function is called.

Returns

inserted record

Parameters

flags	in: undo logging and locking flags
cursor	in: cursor at which to insert; when the function returns, the cursor is positioned on the predecessor of the inserted record
offsets	out: offsets on inserted record
heap	in/out: pointer to memory heap that can be emptied, or NULL
tuple	in: tuple to insert
n_ext	in: number of externally stored columns
mtr	in: mtr

UNIV_INTERN byte* btr_parse_page_reorganize	(	byte *	ptr,
		byte *	end_ptr,
		dict_index_t *	index,
		bool	compressed,
		buf_block_t *	block,
		mtr_t *	mtr
	)

Parses a redo log record of reorganizing a page.

Returns

end of log record or NULL

Parameters

ptr	in: buffer
end_ptr	in: buffer end
index	in: record descriptor
compressed	in: true if compressed page
block	in: page to be reorganized, or NULL
mtr	in: mtr or NULL

UNIV_INTERN byte* btr_parse_set_min_rec_mark	(	byte *	ptr,
		byte *	end_ptr,
		ulint	comp,
		page_t *	page,
		mtr_t *	mtr
	)

Parses the redo log record for setting an index record as the predefined minimum record.

Returns

end of log record or NULL

Parameters

ptr	in: buffer
end_ptr	in: buffer end
comp	in: nonzero=compact page format
page	in: page or NULL
mtr	in: mtr or NULL

UNIV_INTERN dberr_t btr_root_adjust_on_import

(

const dict_index_t *

index

)

Checks and adjusts the root node of a tree during IMPORT TABLESPACE.

Returns

error code, or DB_SUCCESS

Parameters

index

in: index tree

UNIV_INTERN page_t* btr_root_get	(	const dict_index_t *	index,
		mtr_t *	mtr
	)

Gets the root node of a tree and x-latches it.

Returns

root page, x-latched

Parameters

index	in: index tree
mtr	in: mtr

Definition at line 756 of file btr0btr.cc.

Here is the caller graph for this function:

UNIV_INTERN rec_t* btr_root_raise_and_insert	(	ulint	flags,
		btr_cur_t *	cursor,
		ulint **	offsets,
		mem_heap_t **	heap,
		const dtuple_t *	tuple,
		ulint	n_ext,
		mtr_t *	mtr
	)

Makes tree one level higher by splitting the root, and inserts the tuple. It is assumed that mtr contains an x-latch on the tree. NOTE that the operation of this function must always succeed, we cannot reverse it: therefore enough free disk space must be guaranteed to be available before this function is called.

Returns

inserted record

Parameters

flags	in: undo logging and locking flags
cursor	in: cursor at which to insert: must be on the root page; when the function returns, the cursor is positioned on the predecessor of the inserted record
offsets	out: offsets on inserted record
heap	in/out: pointer to memory heap that can be emptied, or NULL
tuple	in: tuple to insert
n_ext	in: number of externally stored columns
mtr	in: mtr

UNIV_INTERN void btr_set_min_rec_mark	(	rec_t *	rec,
		mtr_t *	mtr
	)

Sets a record as the predefined minimum record.

Parameters

rec	in/out: record
mtr	in: mtr

UNIV_INTERN bool btr_validate_index	(	dict_index_t *	index,
		const trx_t *	trx
	)

Checks the consistency of an index tree.

Returns

TRUE if ok

Parameters

index	in: index
trx	in: transaction or 0
