#include "univ.i"
#include "mem0mem.h"
#include "dyn0dyn.h"
#include "buf0types.h"
#include "sync0rw.h"
#include "ut0byte.h"
#include "mtr0types.h"
#include "page0types.h"
#include "log0log.h"
#include "mtr0mtr.ic"

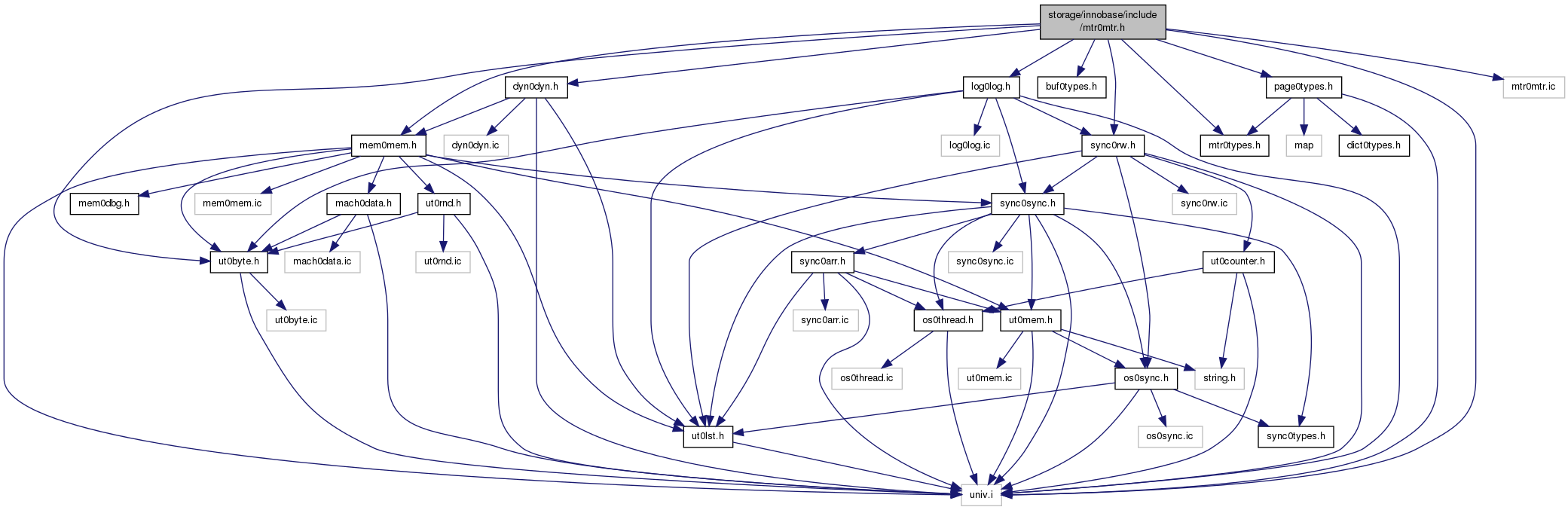

Include dependency graph for mtr0mtr.h:

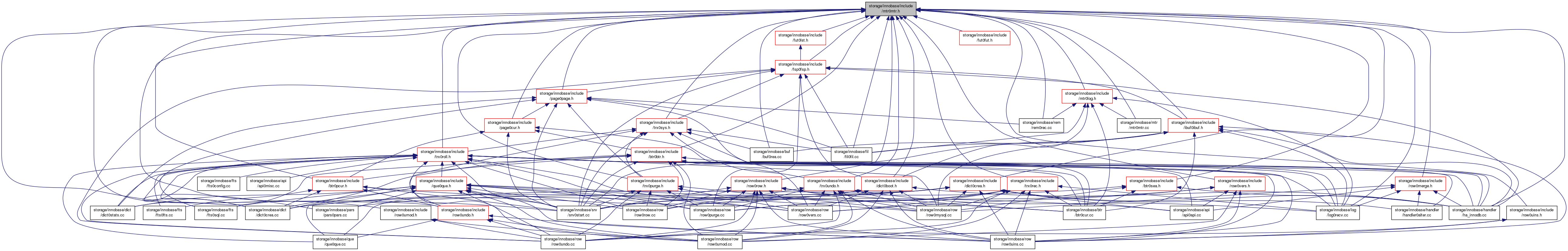

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	mtr_memo_slot_t
struct	mtr_t

Macros
#define	MTR_LOG_ALL
#define	MTR_LOG_NONE 22 /* log no operations */
#define	MTR_LOG_NO_REDO 23 /* Don't generate REDO */
#define	MTR_LOG_SHORT_INSERTS
#define	MTR_MEMO_PAGE_S_FIX RW_S_LATCH
#define	MTR_MEMO_PAGE_X_FIX RW_X_LATCH
#define	MTR_MEMO_BUF_FIX RW_NO_LATCH
#define	MTR_MEMO_S_LOCK 55
#define	MTR_MEMO_X_LOCK 56
#define	mtr_s_lock(B, MTR)
#define	mtr_x_lock(B, MTR)
#define	MTR_BUF_MEMO_SIZE 200 /* number of slots in memo */
#define	MTR_ACTIVE 12231
#define	MTR_COMMITTING 56456
#define	MTR_COMMITTED 34676
Log item types
The log items are declared 'byte' so that the compiler can warn if val and type parameters are switched in a call to mlog_write_ulint. NOTE! For 1 - 8 bytes, the flag value must give the length also!
#define	MLOG_SINGLE_REC_FLAG 128
#define	MLOG_1BYTE (1)
#define	MLOG_2BYTES (2)
#define	MLOG_4BYTES (4)
#define	MLOG_8BYTES (8)
#define	MLOG_REC_INSERT ((byte)9)
#define	MLOG_REC_CLUST_DELETE_MARK ((byte)10)
#define	MLOG_REC_SEC_DELETE_MARK ((byte)11)
#define	MLOG_REC_UPDATE_IN_PLACE ((byte)13)
#define	MLOG_REC_DELETE ((byte)14)
#define	MLOG_LIST_END_DELETE ((byte)15)
#define	MLOG_LIST_START_DELETE ((byte)16)
#define	MLOG_LIST_END_COPY_CREATED ((byte)17)
#define	MLOG_PAGE_REORGANIZE ((byte)18)
#define	MLOG_PAGE_CREATE ((byte)19)
#define	MLOG_UNDO_INSERT ((byte)20)
#define	MLOG_UNDO_ERASE_END ((byte)21)
#define	MLOG_UNDO_INIT ((byte)22)
#define	MLOG_UNDO_HDR_DISCARD ((byte)23)
#define	MLOG_UNDO_HDR_REUSE ((byte)24)
#define	MLOG_UNDO_HDR_CREATE ((byte)25)
#define	MLOG_REC_MIN_MARK ((byte)26)
#define	MLOG_IBUF_BITMAP_INIT ((byte)27)
#define	MLOG_INIT_FILE_PAGE ((byte)29)
#define	MLOG_WRITE_STRING ((byte)30)
#define	MLOG_MULTI_REC_END ((byte)31)
#define	MLOG_DUMMY_RECORD ((byte)32)
#define	MLOG_FILE_CREATE ((byte)33)
#define	MLOG_FILE_RENAME ((byte)34)
#define	MLOG_FILE_DELETE ((byte)35)
#define	MLOG_COMP_REC_MIN_MARK ((byte)36)
#define	MLOG_COMP_PAGE_CREATE ((byte)37)
#define	MLOG_COMP_REC_INSERT ((byte)38)
#define	MLOG_COMP_REC_CLUST_DELETE_MARK ((byte)39)
#define	MLOG_COMP_REC_SEC_DELETE_MARK ((byte)40)
#define	MLOG_COMP_REC_UPDATE_IN_PLACE ((byte)41)
#define	MLOG_COMP_REC_DELETE ((byte)42)
#define	MLOG_COMP_LIST_END_DELETE ((byte)43)
#define	MLOG_COMP_LIST_START_DELETE ((byte)44)
#define	MLOG_COMP_LIST_END_COPY_CREATED ((byte)45)
#define	MLOG_COMP_PAGE_REORGANIZE ((byte)46)
#define	MLOG_FILE_CREATE2 ((byte)47)
#define	MLOG_ZIP_WRITE_NODE_PTR ((byte)48)
#define	MLOG_ZIP_WRITE_BLOB_PTR ((byte)49)
#define	MLOG_ZIP_WRITE_HEADER ((byte)50)
#define	MLOG_ZIP_PAGE_COMPRESS ((byte)51)
#define	MLOG_ZIP_PAGE_COMPRESS_NO_DATA ((byte)52)
#define	MLOG_ZIP_PAGE_REORGANIZE ((byte)53)
#define	MLOG_BIGGEST_TYPE ((byte)53)
Flags for MLOG_FILE operations
(stored in the page number parameter, called log_flags in the functions). The page number parameter was originally written as 0.
#define	MLOG_FILE_FLAG_TEMP 1

Functions
UNIV_INLINE void	mtr_start (mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN void	mtr_commit (mtr_t *mtr) __attribute__((nonnull))
UNIV_INLINE ulint	mtr_set_savepoint (mtr_t *mtr)
UNIV_INLINE void	mtr_release_s_latch_at_savepoint (mtr_t mtr, ulint savepoint, rw_lock_t lock)
UNIV_INLINE ulint	mtr_get_log_mode (mtr_t *mtr)
UNIV_INLINE ulint	mtr_set_log_mode (mtr_t *mtr, ulint mode)
UNIV_INTERN ulint	mtr_read_ulint (const byte ptr, ulint type, mtr_t mtr)
UNIV_INLINE void	mtr_s_lock_func (rw_lock_t lock, const char file, ulint line, mtr_t *mtr)
UNIV_INLINE void	mtr_x_lock_func (rw_lock_t lock, const char file, ulint line, mtr_t *mtr)
UNIV_INTERN bool	mtr_memo_release (mtr_t mtr, void object, ulint type) __attribute__((nonnull))
UNIV_INLINE dyn_array_t *	mtr_get_log (mtr_t *mtr)
UNIV_INLINE void	mtr_memo_push (mtr_t mtr, void object, ulint type)

Detailed Description

Mini-transaction buffer

Created 11/26/1995 Heikki Tuuri

Definition in file mtr0mtr.h.

Macro Definition Documentation

#define MLOG_1BYTE (1)

one byte is written

Definition at line 69 of file mtr0mtr.h.

#define MLOG_2BYTES (2)

2 bytes ...

Definition at line 70 of file mtr0mtr.h.

#define MLOG_4BYTES (4)

4 bytes ...

Definition at line 71 of file mtr0mtr.h.

#define MLOG_8BYTES (8)

8 bytes ...

Definition at line 72 of file mtr0mtr.h.

#define MLOG_BIGGEST_TYPE ((byte)53)

biggest value (used in assertions)

Definition at line 187 of file mtr0mtr.h.

#define MLOG_COMP_LIST_END_COPY_CREATED ((byte)45)

copy compact record list end to a new created index page

Definition at line 166 of file mtr0mtr.h.

#define MLOG_COMP_LIST_END_DELETE ((byte)43)

delete compact record list end on index page

Definition at line 162 of file mtr0mtr.h.

#define MLOG_COMP_LIST_START_DELETE ((byte)44)

delete compact record list start on index page

Definition at line 164 of file mtr0mtr.h.

#define MLOG_COMP_PAGE_CREATE ((byte)37)

create a compact index page

Definition at line 141 of file mtr0mtr.h.

#define MLOG_COMP_PAGE_REORGANIZE ((byte)46)

reorganize an index page

Definition at line 171 of file mtr0mtr.h.

#define MLOG_COMP_REC_CLUST_DELETE_MARK ((byte)39)

mark compact clustered index record deleted

Definition at line 144 of file mtr0mtr.h.

#define MLOG_COMP_REC_DELETE ((byte)42)

delete a compact record from a page

Definition at line 160 of file mtr0mtr.h.

#define MLOG_COMP_REC_INSERT ((byte)38)

compact record insert

Definition at line 143 of file mtr0mtr.h.

#define MLOG_COMP_REC_MIN_MARK ((byte)36)

mark a compact index record as the predefined minimum record

Definition at line 137 of file mtr0mtr.h.

#define MLOG_COMP_REC_SEC_DELETE_MARK ((byte)40)

mark compact secondary index record deleted; this log record type is redundant, as MLOG_REC_SEC_DELETE_MARK is independent of the record format.

Definition at line 148 of file mtr0mtr.h.

#define MLOG_COMP_REC_UPDATE_IN_PLACE ((byte)41)

update of a compact record, preserves record field sizes

Definition at line 156 of file mtr0mtr.h.

#define MLOG_DUMMY_RECORD ((byte)32)

dummy log record used to pad a log block full

Definition at line 129 of file mtr0mtr.h.

#define MLOG_FILE_CREATE ((byte)33)

log record about an .ibd file creation

Definition at line 131 of file mtr0mtr.h.

#define MLOG_FILE_CREATE2 ((byte)47)

log record about creating an .ibd file, with format

Definition at line 172 of file mtr0mtr.h.

#define MLOG_FILE_DELETE ((byte)35)

log record about an .ibd file deletion

Definition at line 135 of file mtr0mtr.h.

#define MLOG_FILE_FLAG_TEMP 1

identifies TEMPORARY TABLE in MLOG_FILE_CREATE, MLOG_FILE_CREATE2

Definition at line 194 of file mtr0mtr.h.

#define MLOG_FILE_RENAME ((byte)34)

log record about an .ibd file rename

Definition at line 133 of file mtr0mtr.h.

#define MLOG_IBUF_BITMAP_INIT ((byte)27)

initialize an ibuf bitmap page

Definition at line 108 of file mtr0mtr.h.

#define MLOG_INIT_FILE_PAGE ((byte)29)

this means that a file page is taken into use and the prior contents of the page should be ignored: in recovery we must not trust the lsn values stored to the file page

Definition at line 114 of file mtr0mtr.h.

#define MLOG_LIST_END_COPY_CREATED ((byte)17)

copy record list end to a new created index page

Definition at line 86 of file mtr0mtr.h.

#define MLOG_LIST_END_DELETE ((byte)15)

delete record list end on index page

Definition at line 82 of file mtr0mtr.h.

#define MLOG_LIST_START_DELETE ((byte)16)

delete record list start on index page

Definition at line 84 of file mtr0mtr.h.

#define MLOG_MULTI_REC_END ((byte)31)

if a single mtr writes several log records, this log record ends the sequence of these records

Definition at line 125 of file mtr0mtr.h.

#define MLOG_PAGE_CREATE ((byte)19)

create an index page

Definition at line 91 of file mtr0mtr.h.

#define MLOG_PAGE_REORGANIZE ((byte)18)

reorganize an index page in ROW_FORMAT=REDUNDANT

Definition at line 88 of file mtr0mtr.h.

#define MLOG_REC_CLUST_DELETE_MARK ((byte)10)

mark clustered index record deleted

Definition at line 74 of file mtr0mtr.h.

#define MLOG_REC_DELETE ((byte)14)

delete a record from a page

Definition at line 80 of file mtr0mtr.h.

#define MLOG_REC_INSERT ((byte)9)

record insert

Definition at line 73 of file mtr0mtr.h.

#define MLOG_REC_MIN_MARK ((byte)26)

mark an index record as the predefined minimum record

Definition at line 104 of file mtr0mtr.h.

#define MLOG_REC_SEC_DELETE_MARK ((byte)11)

mark secondary index record deleted

Definition at line 76 of file mtr0mtr.h.

#define MLOG_REC_UPDATE_IN_PLACE ((byte)13)

update of a record, preserves record field sizes

Definition at line 78 of file mtr0mtr.h.

#define MLOG_SINGLE_REC_FLAG 128

if the mtr contains only one log record for one page, i.e., write_initial_log_record has been called only once, this flag is ORed to the type of that first log record

Definition at line 63 of file mtr0mtr.h.

#define MLOG_UNDO_ERASE_END ((byte)21)

erase an undo log page end

Definition at line 94 of file mtr0mtr.h.

#define MLOG_UNDO_HDR_CREATE ((byte)25)

create an undo log header

Definition at line 102 of file mtr0mtr.h.

#define MLOG_UNDO_HDR_DISCARD ((byte)23)

discard an update undo log header

Definition at line 98 of file mtr0mtr.h.

#define MLOG_UNDO_HDR_REUSE ((byte)24)

reuse an insert undo log header

Definition at line 100 of file mtr0mtr.h.

#define MLOG_UNDO_INIT ((byte)22)

initialize a page in an undo log

Definition at line 96 of file mtr0mtr.h.

#define MLOG_UNDO_INSERT ((byte)20)

insert entry in an undo log

Definition at line 92 of file mtr0mtr.h.

#define MLOG_WRITE_STRING ((byte)30)

write a string to a page

Definition at line 123 of file mtr0mtr.h.

#define MLOG_ZIP_PAGE_COMPRESS ((byte)51)

compress an index page

Definition at line 182 of file mtr0mtr.h.

#define MLOG_ZIP_PAGE_COMPRESS_NO_DATA ((byte)52)

compress an index page without logging it's image

Definition at line 183 of file mtr0mtr.h.

#define MLOG_ZIP_PAGE_REORGANIZE ((byte)53)

reorganize a compressed page

Definition at line 185 of file mtr0mtr.h.

#define MLOG_ZIP_WRITE_BLOB_PTR ((byte)49)

write the BLOB pointer of an externally stored column on a compressed page

Definition at line 177 of file mtr0mtr.h.

#define MLOG_ZIP_WRITE_HEADER ((byte)50)

write to compressed page header

Definition at line 180 of file mtr0mtr.h.

#define MLOG_ZIP_WRITE_NODE_PTR ((byte)48)

write the node pointer of a record on a compressed non-leaf B-tree page

Definition at line 174 of file mtr0mtr.h.

#define MTR_LOG_ALL

Value:

21 /* default mode: log all operations

modifying disk-based data */

Definition at line 40 of file mtr0mtr.h.

#define MTR_LOG_SHORT_INSERTS

Value:

24 /* inserts are logged in a shorter

form */

Definition at line 46 of file mtr0mtr.h.

#define mtr_s_lock	(	B,
		MTR
	)

Value:

mtr_s_lock_func((B), __FILE__, __LINE__,\

(MTR))

This macro locks an rw-lock in s-mode.

Definition at line 269 of file mtr0mtr.h.

#define mtr_x_lock	(	B,
		MTR
	)

Value:

mtr_x_lock_func((B), __FILE__, __LINE__,\

(MTR))

This macro locks an rw-lock in x-mode.

Definition at line 273 of file mtr0mtr.h.

Function Documentation

UNIV_INTERN void mtr_commit ( mtr_t * mtr )

Commits a mini-transaction.

Parameters

mtr	in: mini-transaction

Definition at line 305 of file mtr0mtr.cc.

Here is the call graph for this function:

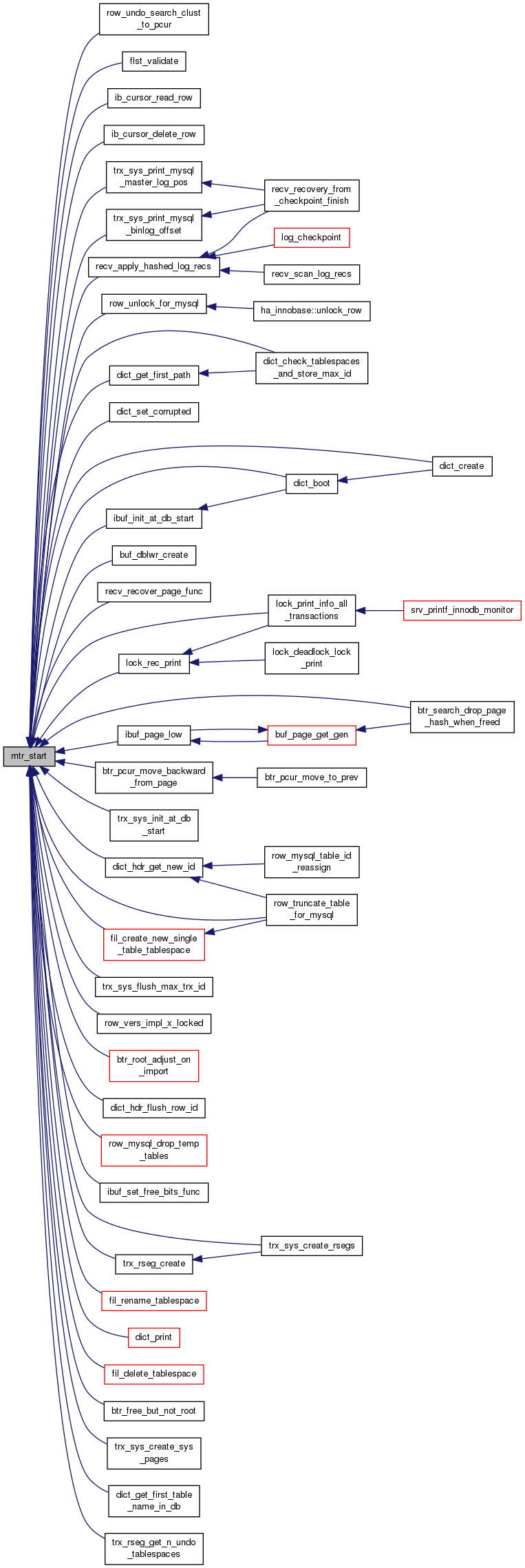

Here is the caller graph for this function:

UNIV_INLINE dyn_array_t* mtr_get_log ( mtr_t * mtr )

Returns the log object of a mini-transaction buffer.

Returns: log in: mini-transaction

UNIV_INLINE ulint mtr_get_log_mode ( mtr_t * mtr )

Gets the logging mode of a mini-transaction.

Returns: logging mode: MTR_LOG_NONE, ... in: mtr

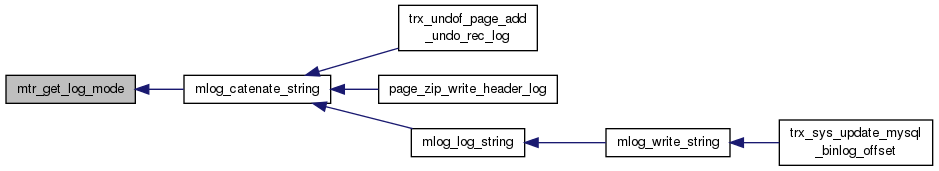

Here is the caller graph for this function:

UNIV_INLINE void mtr_memo_push	(	mtr_t *	mtr,
		void *	object,
		ulint	type
	)

Pushes an object to an mtr memo stack. in: object type: MTR_MEMO_S_LOCK, ...

Parameters

mtr	in: mtr
object	in: object

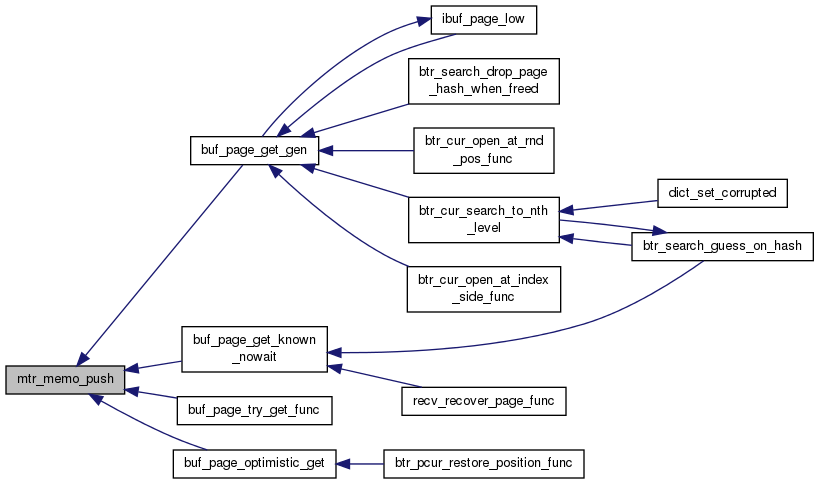

Here is the caller graph for this function:

UNIV_INTERN bool mtr_memo_release	(	mtr_t *	mtr,
		void *	object,
		ulint	type
	)

Releases an object in the memo stack.

Returns: true if released

Parameters

mtr	in/out: mini-transaction
object	in: object
type	in: object type: MTR_MEMO_S_LOCK, ...

Definition at line 349 of file mtr0mtr.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ulint mtr_read_ulint	(	const byte *	ptr,
		ulint	type,
		mtr_t *	mtr
	)

Reads 1 - 4 bytes from a file page buffered in the buffer pool.

Returns: value read in: mini-transaction handle

Parameters

ptr	in: pointer from where to read
type	in: MLOG_1BYTE, MLOG_2BYTES, MLOG_4BYTES

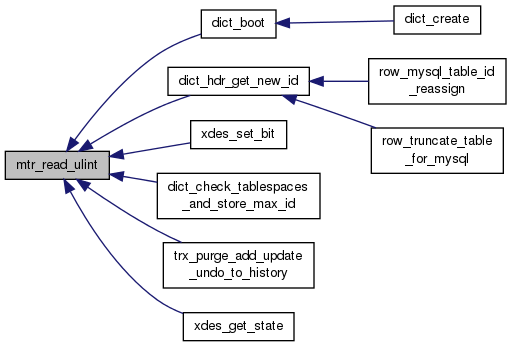

Here is the caller graph for this function:

UNIV_INLINE void mtr_release_s_latch_at_savepoint	(	mtr_t *	mtr,
		ulint	savepoint,
		rw_lock_t *	lock
	)

Releases the (index tree) s-latch stored in an mtr memo after a savepoint. in: latch to release

Parameters

mtr	in: mtr
savepoint	in: savepoint

Here is the caller graph for this function:

UNIV_INLINE void mtr_s_lock_func	(	rw_lock_t *	lock,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

NOTE! Use the macro above! Locks a lock in s-mode. in: mtr

Parameters

lock	in: rw-lock
file	in: file name
line	in: line number

UNIV_INLINE ulint mtr_set_log_mode	(	mtr_t *	mtr,
		ulint	mode
	)

Changes the logging mode of a mini-transaction.

Returns: old mode in: logging mode: MTR_LOG_NONE, ...

Parameters

mtr in: mtr

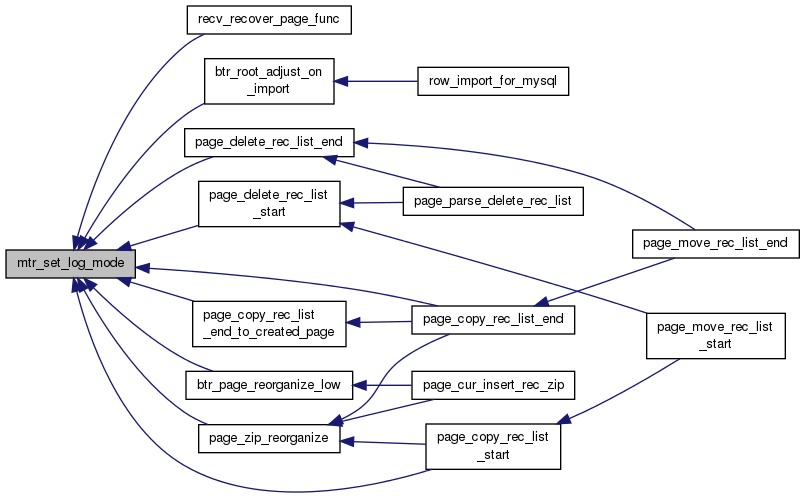

Here is the caller graph for this function:

UNIV_INLINE ulint mtr_set_savepoint ( mtr_t * mtr )

Sets and returns a savepoint in mtr.

Returns: savepoint in: mtr

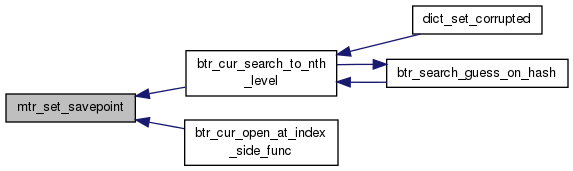

Here is the caller graph for this function:

UNIV_INLINE void mtr_start ( mtr_t * mtr )

Starts a mini-transaction.

Parameters

mtr	out: mini-transaction

Here is the caller graph for this function:

UNIV_INLINE void mtr_x_lock_func	(	rw_lock_t *	lock,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

NOTE! Use the macro above! Locks a lock in x-mode. in: mtr

Parameters

lock	in: rw-lock
file	in: file name
line	in: line number

Classes

Macros

Functions

Detailed Description

Macro Definition Documentation

Function Documentation
