#include "ibuf0ibuf.h"
#include "buf0buf.h"
#include "buf0rea.h"
#include "fsp0fsp.h"
#include "trx0sys.h"
#include "fil0fil.h"
#include "rem0rec.h"
#include "btr0cur.h"
#include "btr0pcur.h"
#include "btr0btr.h"
#include "row0upd.h"
#include "sync0sync.h"
#include "dict0boot.h"
#include "fut0lst.h"
#include "lock0lock.h"
#include "log0recv.h"
#include "que0que.h"
#include "srv0start.h"
#include "ha_prototypes.h"
#include "rem0cmp.h"

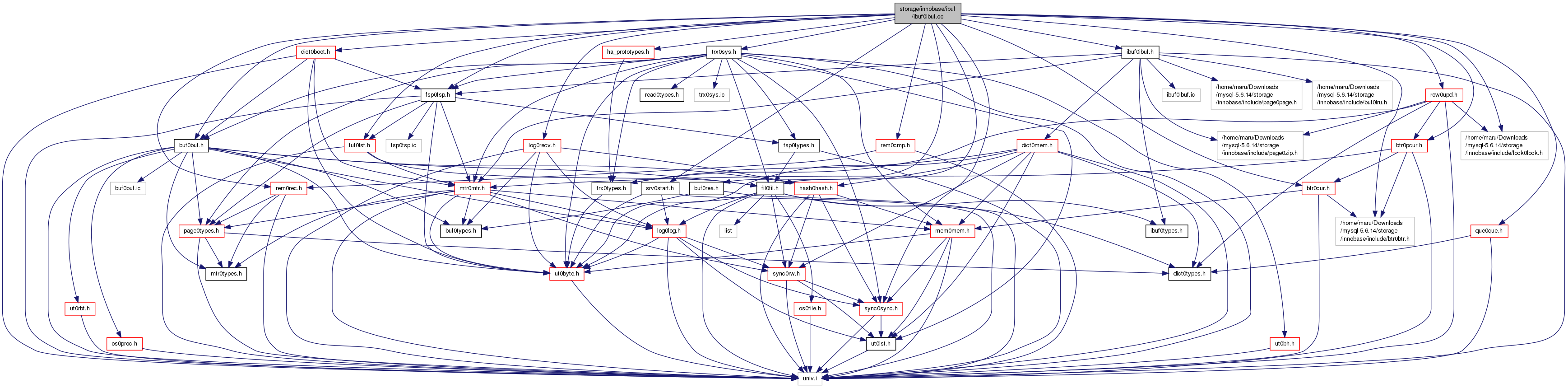

Include dependency graph for ibuf0ibuf.cc:

Macros
#define	IBUF_BITS_PER_PAGE 4
#define	IBUF_BITMAP PAGE_DATA
#define	IBUF_TABLE_NAME "SYS_IBUF_TABLE"
#define	IBUF_REC_FIELD_SPACE 0
#define	IBUF_REC_FIELD_MARKER 1
#define	IBUF_REC_FIELD_PAGE 2
#define	IBUF_REC_FIELD_METADATA 3 /* the metadata field */
#define	IBUF_REC_FIELD_USER 4 /* first user field */
#define	ibuf_get_volume_buffered_count(mtr, rec, hash, size, n_recs) ibuf_get_volume_buffered_count_func(rec,hash,size,n_recs)
#define	ibuf_get_entry_counter_low(mtr, rec, space, page_no) ibuf_get_entry_counter_low_func(rec,space,page_no)
#define	ibuf_get_entry_counter(space, page_no, rec, mtr, exact_leaf) ibuf_get_entry_counter_func(space,page_no,rec,exact_leaf)
Offsets to the per-page bits in the insert buffer bitmap
#define	IBUF_BITMAP_FREE 0
#define	IBUF_BITMAP_BUFFERED 2
#define	IBUF_BITMAP_IBUF 3

Variables
UNIV_INTERN ibuf_use_t	ibuf_use = IBUF_USE_ALL
UNIV_INTERN ibuf_t *	ibuf = NULL

Format of the IBUF_REC_FIELD_METADATA of an insert buffer record
The fourth column in the MySQL 5.5 format contains an operation type, counter, and some flags.
#define	IBUF_REC_INFO_SIZE 4
#define	IBUF_REC_OFFSET_COUNTER 0
#define	IBUF_REC_OFFSET_TYPE 2
#define	IBUF_REC_OFFSET_FLAGS 3
#define	IBUF_REC_COMPACT 0x1
#define	IBUF_MERGE_AREA 8UL
#define	IBUF_MERGE_THRESHOLD 4
#define	IBUF_MAX_N_PAGES_MERGED IBUF_MERGE_AREA
#define	IBUF_CONTRACT_ON_INSERT_NON_SYNC 0
#define	IBUF_CONTRACT_ON_INSERT_SYNC 5
#define	IBUF_CONTRACT_DO_NOT_INSERT 10
#define	ibuf_bitmap_page_get_bits(page, offset, zs, bit, mtr) ibuf_bitmap_page_get_bits_low(page, offset, zs, bit)
#define	ibuf_bitmap_get_map_page(space, page_no, zip_size, mtr)
#define	ibuf_rec_get_page_no(mtr, rec) ibuf_rec_get_page_no_func(rec)
#define	ibuf_rec_get_space(mtr, rec) ibuf_rec_get_space_func(rec)
#define	ibuf_rec_get_info(mtr, rec, op, comp, info_len, counter) ibuf_rec_get_info_func(rec,op,comp,info_len,counter)
#define	ibuf_rec_get_op_type(mtr, rec) ibuf_rec_get_op_type_func(rec)
#define	ibuf_build_entry_from_ibuf_rec(mtr, ibuf_rec, heap, pindex) ibuf_build_entry_from_ibuf_rec_func(ibuf_rec,heap,pindex)
#define	ibuf_rec_get_volume(mtr, rec) ibuf_rec_get_volume_func(rec)
#define	ibuf_get_merge_page_nos(contract, rec, mtr, ids, vers, pages, n_stored) ibuf_get_merge_page_nos_func(contract,rec,ids,vers,pages,n_stored)
UNIV_INLINE void	ibuf_enter (mtr_t *mtr)
UNIV_INLINE void	ibuf_exit (mtr_t *mtr)
UNIV_INLINE void	ibuf_btr_pcur_commit_specify_mtr (btr_pcur_t pcur, mtr_t mtr)
UNIV_INTERN void	ibuf_close (void)
UNIV_INTERN void	ibuf_init_at_db_start (void)
UNIV_INTERN void	ibuf_max_size_update (ulint new_val)
UNIV_INTERN void	ibuf_bitmap_page_init (buf_block_t block, mtr_t mtr)
UNIV_INTERN byte *	ibuf_parse_bitmap_init (byte ptr, byte end_ptr __attribute__((unused)), buf_block_t block, mtr_t mtr)
UNIV_INLINE ulint	ibuf_bitmap_page_get_bits_low (const page_t *page, ulint page_no, ulint zip_size, ulint bit)
UNIV_INLINE ulint	ibuf_bitmap_page_no_calc (ulint zip_size, ulint page_no)
UNIV_INLINE void	ibuf_set_free_bits_low (ulint zip_size, const buf_block_t block, ulint val, mtr_t mtr)
UNIV_INTERN void	ibuf_set_free_bits_func (buf_block_t *block, ulint val)
UNIV_INTERN void	ibuf_reset_free_bits (buf_block_t *block)
UNIV_INTERN void	ibuf_update_free_bits_low (const buf_block_t block, ulint max_ins_size, mtr_t mtr)
UNIV_INTERN void	ibuf_update_free_bits_zip (buf_block_t block, mtr_t mtr)
UNIV_INTERN void	ibuf_update_free_bits_for_two_pages_low (ulint zip_size, buf_block_t block1, buf_block_t block2, mtr_t *mtr)
UNIV_INLINE ibool	ibuf_fixed_addr_page (ulint space, ulint zip_size, ulint page_no)
UNIV_INTERN ibool	ibuf_page_low (ulint space, ulint zip_size, ulint page_no, const char file, ulint line, mtr_t mtr)
UNIV_INTERN ulint	ibuf_rec_get_counter (const rec_t *rec)
UNIV_INLINE ulint	ibuf_rec_get_size (const rec_t rec, const byte types, ulint n_fields, ulint comp)
UNIV_INLINE ibool	ibuf_data_enough_free_for_insert (void)
UNIV_INLINE ibool	ibuf_data_too_much_free (void)
UNIV_INTERN void	ibuf_free_excess_pages (void)

Detailed Description

Insert buffer

Created 7/19/1997 Heikki Tuuri

Definition in file ibuf0ibuf.cc.

Macro Definition Documentation

#define IBUF_BITMAP PAGE_DATA

The start address for an insert buffer bitmap page bitmap

Definition at line 38 of file ibuf0ibuf.cc.

#define IBUF_BITMAP_BUFFERED 2

TRUE if there are buffered changes for the page

Definition at line 249 of file ibuf0ibuf.cc.

#define IBUF_BITMAP_FREE 0

Bits indicating the amount of free space

Definition at line 247 of file ibuf0ibuf.cc.

#define ibuf_bitmap_get_map_page	(	space,
		page_no,
		zip_size,
		mtr
	)

Value:

ibuf_bitmap_get_map_page_func(space, page_no, zip_size, \

__FILE__, __LINE__, mtr)

Gets the ibuf bitmap page where the bits describing a given file page are stored.

Returns: bitmap page where the file page is mapped, that is, the bitmap page containing the descriptor bits for the file page; the bitmap page is x-latched

Parameters

space	in: space id of the file page
page_no	in: page number of the file page
zip_size	in: compressed page size in bytes; 0 for uncompressed pages
mtr	in: mini-transaction

Definition at line 875 of file ibuf0ibuf.cc.

#define IBUF_BITMAP_IBUF 3

TRUE if page is a part of the ibuf tree, excluding the root page, or is in the free list of the ibuf

Definition at line 251 of file ibuf0ibuf.cc.

#define ibuf_bitmap_page_get_bits	(	page,
		offset,
		zs,
		bit,
		mtr
	)	ibuf_bitmap_page_get_bits_low(page, offset, zs, bit)

Gets the desired bits for a given page from a bitmap page.

Parameters

page	in: bitmap page
offset	in: page whose bits to get
zs	in: compressed page size in bytes; 0 for uncompressed pages
bit	in: IBUF_BITMAP_FREE, IBUF_BITMAP_BUFFERED, ...
mtr	in: mini-transaction holding an x-latch on the bitmap page

Returns: value of bits

Definition at line 692 of file ibuf0ibuf.cc.

#define IBUF_BITS_PER_PAGE 4

Number of bits describing a single page

Definition at line 33 of file ibuf0ibuf.cc.

#define IBUF_CONTRACT_DO_NOT_INSERT 10

If the combined size of the ibuf trees exceeds ibuf->max_size by

this many pages, we start to contract it synchronous contract, but do not insert

Definition at line 326 of file ibuf0ibuf.cc.

#define IBUF_CONTRACT_ON_INSERT_NON_SYNC 0

If the combined size of the ibuf trees exceeds ibuf->max_size by this

many pages, we start to contract it in connection to inserts there, using non-synchronous contract

Definition at line 316 of file ibuf0ibuf.cc.

#define IBUF_CONTRACT_ON_INSERT_SYNC 5

If the combined size of the ibuf trees exceeds ibuf->max_size by this

many pages, we start to contract it in connection to inserts there, using synchronous contract

Definition at line 321 of file ibuf0ibuf.cc.

#define IBUF_MAX_N_PAGES_MERGED IBUF_MERGE_AREA

In ibuf_contract at most this number of pages is read to memory in one

batch, in order to merge the entries for them in the insert buffer

Definition at line 311 of file ibuf0ibuf.cc.

#define IBUF_MERGE_AREA 8UL

The area in pages from which contract looks for page numbers for merge

Definition at line 302 of file ibuf0ibuf.cc.

#define IBUF_MERGE_THRESHOLD 4

Inside the merge area, pages which have at most 1 per this number less

buffered entries compared to maximum volume that can buffered for a single page are merged along with the page whose buffer became full

Definition at line 307 of file ibuf0ibuf.cc.

#define IBUF_REC_COMPACT 0x1

Set in IBUF_REC_OFFSET_FLAGS if the user index is in COMPACT format or later

Definition at line 286 of file ibuf0ibuf.cc.

#define IBUF_REC_FIELD_MARKER 1

starting with 4.1, a marker consisting of 1 byte that is 0

Definition at line 259 of file ibuf0ibuf.cc.

#define IBUF_REC_FIELD_PAGE 2

starting with 4.1, the page number

Definition at line 261 of file ibuf0ibuf.cc.

#define IBUF_REC_FIELD_SPACE 0

in the pre-4.1 format, the page number. later, the space_id

Definition at line 257 of file ibuf0ibuf.cc.

#define IBUF_REC_INFO_SIZE 4

Combined size of info fields at the beginning of the fourth field

Definition at line 274 of file ibuf0ibuf.cc.

#define IBUF_REC_OFFSET_COUNTER 0

Operation counter

Definition at line 281 of file ibuf0ibuf.cc.

#define IBUF_REC_OFFSET_FLAGS 3

Additional flags

Definition at line 283 of file ibuf0ibuf.cc.

#define IBUF_REC_OFFSET_TYPE 2

Type of operation

Definition at line 282 of file ibuf0ibuf.cc.

#define IBUF_TABLE_NAME "SYS_IBUF_TABLE"

Table name for the insert buffer.

Definition at line 193 of file ibuf0ibuf.cc.

Function Documentation

UNIV_INLINE ulint ibuf_bitmap_page_get_bits_low	(	const page_t *	page,
		ulint	page_no,
		ulint	zip_size,
		ulint	bit
	)

Gets the desired bits for a given page from a bitmap page.

Returns: value of bits

Parameters

page	in: bitmap page
page_no	in: page whose bits to get
zip_size	in: compressed page size in bytes; 0 for uncompressed pages
bit	in: IBUF_BITMAP_FREE, IBUF_BITMAP_BUFFERED, ...

Definition at line 701 of file ibuf0ibuf.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void ibuf_bitmap_page_init	(	buf_block_t *	block,
		mtr_t *	mtr
	)

Initializes an ibuf bitmap page.

Parameters

block	in: bitmap page
mtr	in: mtr

Definition at line 620 of file ibuf0ibuf.cc.

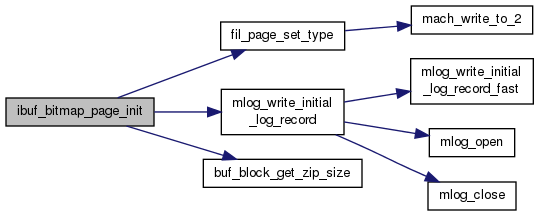

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE ulint ibuf_bitmap_page_no_calc	(	ulint	zip_size,
		ulint	page_no
	)

Calculates the bitmap page number for a given page number.

Returns: the bitmap page number where the file page is mapped

Parameters

zip_size	in: compressed page size in bytes; 0 for uncompressed pages
page_no	in: tablespace page number

Definition at line 819 of file ibuf0ibuf.cc.

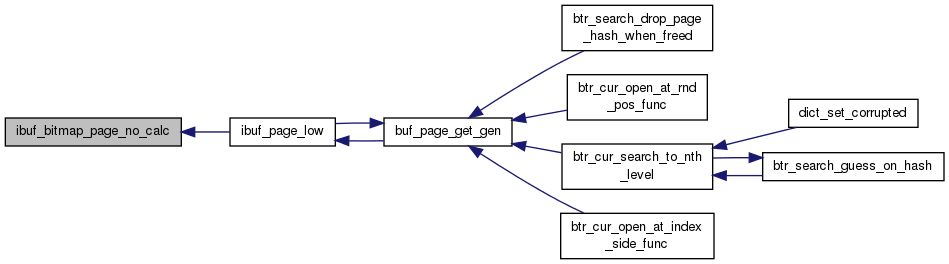

Here is the caller graph for this function:

UNIV_INLINE void ibuf_btr_pcur_commit_specify_mtr	(	btr_pcur_t *	pcur,
		mtr_t *	mtr
	)

Commits an insert buffer mini-transaction and sets the persistent cursor latch mode to BTR_NO_LATCHES, that is, detaches the cursor.

Parameters

pcur	in/out: persistent cursor
mtr	in/out: mini-transaction

Definition at line 365 of file ibuf0ibuf.cc.

Here is the call graph for this function:

UNIV_INTERN void ibuf_close ( void )

Closes insert buffer and frees the data structures.

Definition at line 463 of file ibuf0ibuf.cc.

UNIV_INLINE ibool ibuf_data_enough_free_for_insert ( void )

Checks if there are enough pages in the free list of the ibuf tree that we dare to start a pessimistic insert to the insert buffer.

Returns: TRUE if enough free pages in list

Definition at line 2021 of file ibuf0ibuf.cc.

UNIV_INLINE ibool ibuf_data_too_much_free ( void )

Checks if there are enough pages in the free list of the ibuf tree that we should remove them and free to the file space management.

Returns: TRUE if enough free pages in list

Definition at line 2041 of file ibuf0ibuf.cc.

Here is the caller graph for this function:

UNIV_INLINE void ibuf_enter ( mtr_t * mtr )

Sets the flag in the current mini-transaction record indicating we're inside an insert buffer routine.

Parameters

mtr	in/out: mini-transaction

Definition at line 339 of file ibuf0ibuf.cc.

Here is the caller graph for this function:

UNIV_INLINE void ibuf_exit ( mtr_t * mtr )

Sets the flag in the current mini-transaction record indicating we're exiting an insert buffer routine.

Parameters

mtr	in/out: mini-transaction

Definition at line 352 of file ibuf0ibuf.cc.

Here is the caller graph for this function:

UNIV_INLINE ibool ibuf_fixed_addr_page	(	ulint	space,
		ulint	zip_size,
		ulint	page_no
	)

Returns TRUE if the page is one of the fixed address ibuf pages.

Returns: TRUE if a fixed address ibuf i/o page

Parameters

space	in: space id
zip_size	in: compressed page size in bytes; 0 for uncompressed pages
page_no	in: page number

Definition at line 1136 of file ibuf0ibuf.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

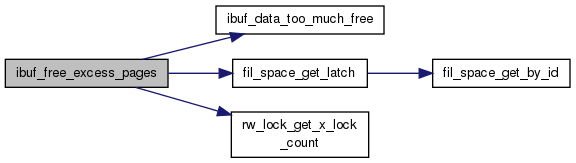

UNIV_INTERN void ibuf_free_excess_pages ( void )

Frees excess pages from the ibuf free list. This function is called when an OS thread calls fsp services to allocate a new file segment, or a new page to a file segment, and the thread did not own the fsp latch before this call.

Definition at line 2255 of file ibuf0ibuf.cc.

Here is the call graph for this function:

UNIV_INTERN void ibuf_init_at_db_start ( void )

Creates the insert buffer data structure at a database startup and initializes the data structures for the insert buffer.

Definition at line 506 of file ibuf0ibuf.cc.

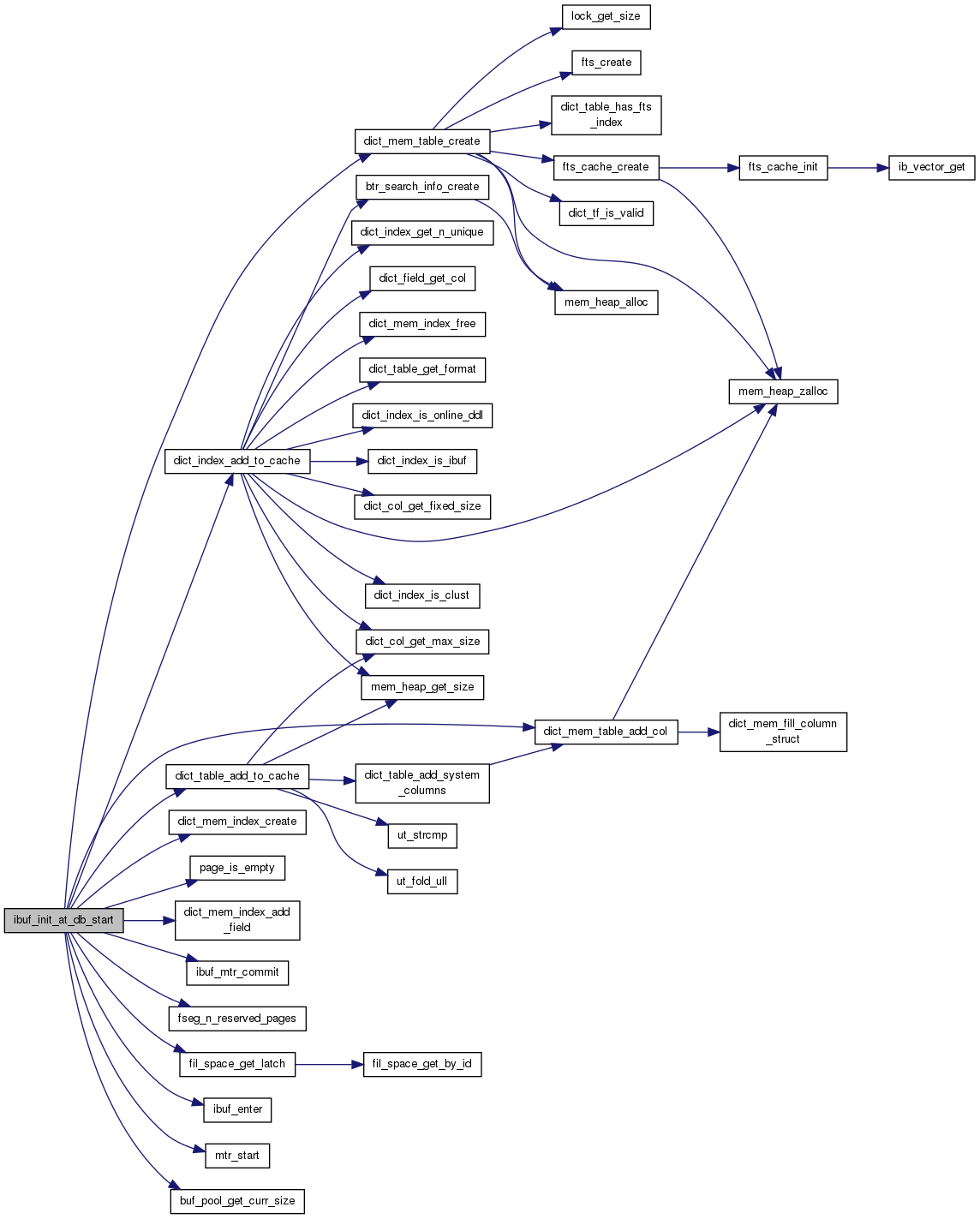

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void ibuf_max_size_update ( ulint new_val )

Updates the max_size value for ibuf.

Parameters

new_val in: new value in terms of percentage of the buffer pool size

Definition at line 602 of file ibuf0ibuf.cc.

Here is the call graph for this function:

UNIV_INTERN ibool ibuf_page_low	(	ulint	space,
		ulint	zip_size,
		ulint	page_no,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

Checks if a page is a level 2 or 3 page in the ibuf hierarchy of pages. Must not be called when recv_no_ibuf_operations==TRUE.

Returns: TRUE if level 2 or level 3 page

Parameters

space	in: space id
zip_size	in: compressed page size in bytes, or 0
page_no	in: page number
file	in: file name
line	in: line where called
mtr	in: mtr which will contain an x-latch to the bitmap page if the page is not one of the fixed address ibuf pages, or NULL, in which case a new transaction is created.

Definition at line 1153 of file ibuf0ibuf.cc.

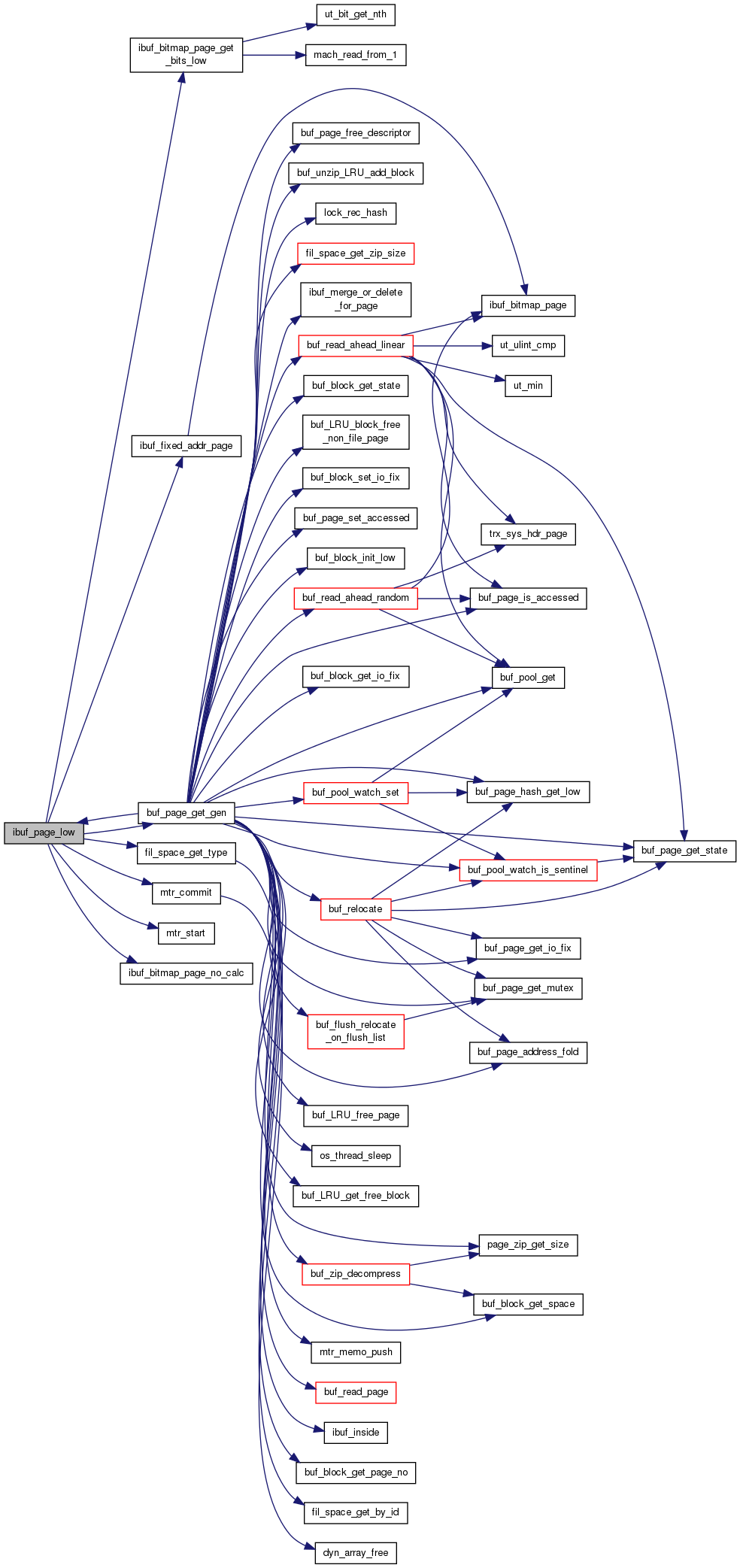

Here is the call graph for this function:

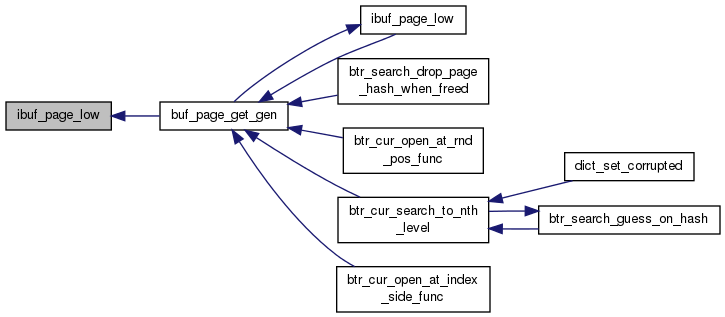

Here is the caller graph for this function:

UNIV_INTERN byte* ibuf_parse_bitmap_init	(	byte *	ptr,
		byte *end_ptr	__attribute__(unused),
		buf_block_t *	block,
		mtr_t *	mtr
	)

Parses a redo log record of an ibuf bitmap page init.

Returns: end of log record or NULL

Parameters

ptr	in: buffer
__attribute__	in: buffer end
block	in: block or NULL
mtr	in: mtr or NULL

Definition at line 657 of file ibuf0ibuf.cc.

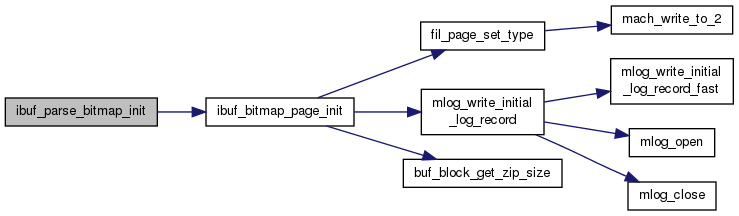

Here is the call graph for this function:

UNIV_INTERN ulint ibuf_rec_get_counter ( const rec_t * rec )

Read the first two bytes from a record's fourth field (counter field in new records; something else in older records).

Returns: "counter" field, or ULINT_UNDEFINED if for some reason it can't be read

Parameters

rec	in: ibuf record

Definition at line 1444 of file ibuf0ibuf.cc.

Here is the call graph for this function:

UNIV_INLINE ulint ibuf_rec_get_size	(	const rec_t *	rec,
		const byte *	types,
		ulint	n_fields,
		ulint	comp
	)

Get the data size.

Returns: size of fields

Parameters

rec	in: ibuf record
types	in: fields
n_fields	in: number of fields
comp	in: 0=ROW_FORMAT=REDUNDANT, nonzero=ROW_FORMAT=COMPACT

Definition at line 1682 of file ibuf0ibuf.cc.

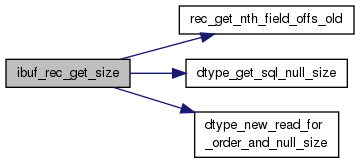

Here is the call graph for this function:

UNIV_INTERN void ibuf_reset_free_bits ( buf_block_t * block )

Resets the free bits of the page in the ibuf bitmap. This is done in a separate mini-transaction, hence this operation does not restrict further work to only ibuf bitmap operations, which would result if the latch to the bitmap page were kept. NOTE: The free bits in the insert buffer bitmap must never exceed the free space on a page. It is safe to decrement or reset the bits in the bitmap in a mini-transaction that is committed before the mini-transaction that affects the free space.

Parameters

block in: index page; free bits are set to 0 if the index is a non-clustered non-unique, and page level is 0

Definition at line 1003 of file ibuf0ibuf.cc.

Here is the caller graph for this function:

UNIV_INTERN void ibuf_set_free_bits_func	(	buf_block_t *	block,
		ulint	val
	)

Sets the free bit of the page in the ibuf bitmap. This is done in a separate mini-transaction, hence this operation does not restrict further work to only ibuf bitmap operations, which would result if the latch to the bitmap page were kept.

Parameters

block	in: index page of a non-clustered index; free bit is reset if page level is 0
val	in: value to set: < 4

Definition at line 929 of file ibuf0ibuf.cc.

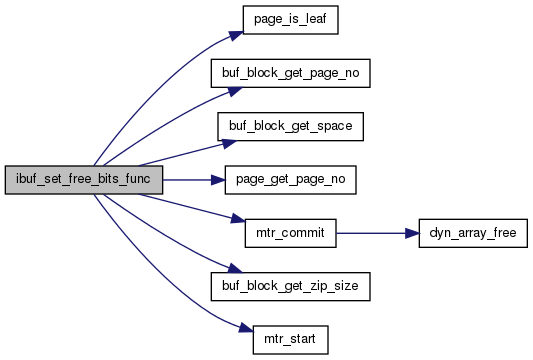

Here is the call graph for this function:

UNIV_INLINE void ibuf_set_free_bits_low	(	ulint	zip_size,
		const buf_block_t *	block,
		ulint	val,
		mtr_t *	mtr
	)

Sets the free bits of the page in the ibuf bitmap. This is done in a separate mini-transaction, hence this operation does not restrict further work to only ibuf bitmap operations, which would result if the latch to the bitmap page were kept.

Parameters

zip_size	in: compressed page size in bytes; 0 for uncompressed pages
block	in: index page; free bits are set if the index is non-clustered and page level is 0
val	in: value to set: < 4
mtr	in/out: mtr

Definition at line 886 of file ibuf0ibuf.cc.

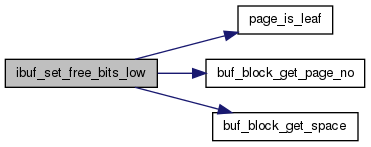

Here is the call graph for this function:

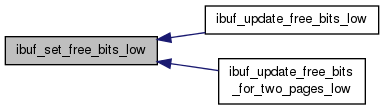

Here is the caller graph for this function:

UNIV_INTERN void ibuf_update_free_bits_for_two_pages_low	(	ulint	zip_size,
		buf_block_t *	block1,
		buf_block_t *	block2,
		mtr_t *	mtr
	)

Updates the free bits for the two pages to reflect the present state. Does this in the mtr given, which means that the latching order rules virtually prevent any further operations until mtr is committed. NOTE: The free bits in the insert buffer bitmap must never exceed the free space on a page. It is safe to set the free bits in the same mini-transaction that updated the pages.

Parameters

zip_size	in: compressed page size in bytes; 0 for uncompressed pages
block1	in: index page
block2	in: index page
mtr	in: mtr

Definition at line 1104 of file ibuf0ibuf.cc.

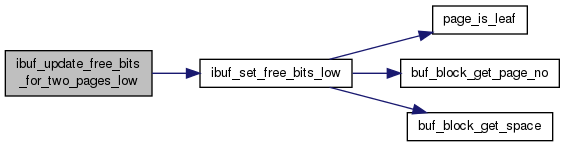

Here is the call graph for this function:

UNIV_INTERN void ibuf_update_free_bits_low	(	const buf_block_t *	block,
		ulint	max_ins_size,
		mtr_t *	mtr
	)

Updates the free bits for an uncompressed page to reflect the present state. Does this in the mtr given, which means that the latching order rules virtually prevent any further operations for this OS thread until mtr is committed. NOTE: The free bits in the insert buffer bitmap must never exceed the free space on a page. It is safe to set the free bits in the same mini-transaction that updated the page.

Parameters

block	in: index page
max_ins_size	in: value of maximum insert size with reorganize before the latest operation performed to the page
mtr	in/out: mtr

Definition at line 1022 of file ibuf0ibuf.cc.

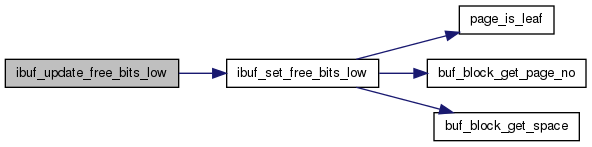

Here is the call graph for this function:

UNIV_INTERN void ibuf_update_free_bits_zip	(	buf_block_t *	block,
		mtr_t *	mtr
	)

Updates the free bits for a compressed page to reflect the present state. Does this in the mtr given, which means that the latching order rules virtually prevent any further operations for this OS thread until mtr is committed. NOTE: The free bits in the insert buffer bitmap must never exceed the free space on a page. It is safe to set the free bits in the same mini-transaction that updated the page.

Parameters

block	in/out: index page
mtr	in/out: mtr

Definition at line 1060 of file ibuf0ibuf.cc.

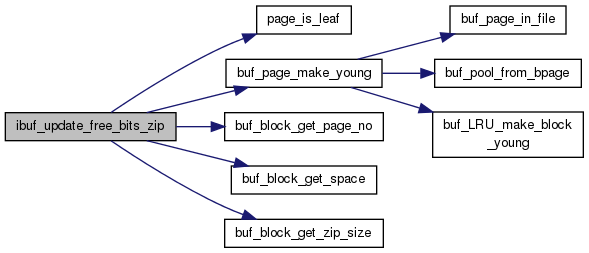

Here is the call graph for this function:

Variable Documentation

UNIV_INTERN ibuf_t* ibuf = NULL

The insert buffer control structure

Definition at line 204 of file ibuf0ibuf.cc.

UNIV_INTERN ibuf_use_t ibuf_use = IBUF_USE_ALL

Operations that can currently be buffered.

Definition at line 196 of file ibuf0ibuf.cc.

Macros

Variables

Format of the IBUF_REC_FIELD_METADATA of an insert buffer record

Detailed Description

Macro Definition Documentation

Function Documentation

Variable Documentation
