#include "btr0cur.h"
#include "row0upd.h"
#include "mtr0log.h"
#include "page0page.h"
#include "page0zip.h"
#include "rem0rec.h"
#include "rem0cmp.h"
#include "buf0lru.h"
#include "btr0btr.h"
#include "btr0sea.h"
#include "row0log.h"
#include "row0purge.h"
#include "trx0rec.h"
#include "trx0roll.h"
#include "que0que.h"
#include "row0row.h"
#include "srv0srv.h"
#include "ibuf0ibuf.h"
#include "lock0lock.h"
#include "zlib.h"

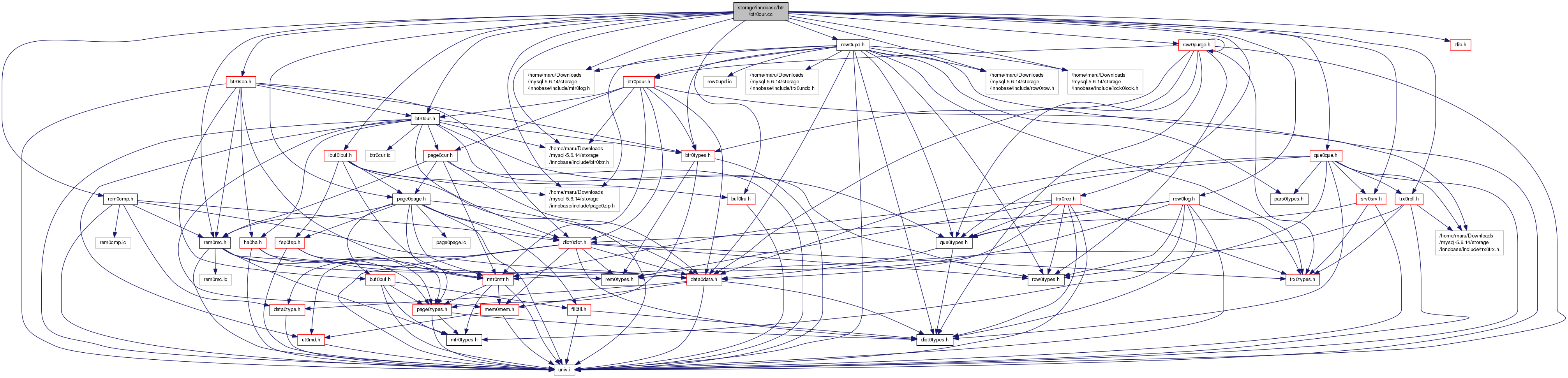

Include dependency graph for btr0cur.cc:

Macros
#define	BTR_CUR_PAGE_REORGANIZE_LIMIT (UNIV_PAGE_SIZE / 32)
#define	N_PAGES_READ_LIMIT 10
#define	btr_rec_get_field_ref(rec, offsets, n) ((rec) + btr_rec_get_field_ref_offs(offsets, n))

#define	BTR_BLOB_HDR_PART_LEN 0
#define	BTR_BLOB_HDR_NEXT_PAGE_NO 4
#define	BTR_BLOB_HDR_SIZE 8
#define	BTR_TABLE_STATS_FROM_SAMPLE(value, index, sample, ext_size, not_empty)

Enumerations
enum	btr_op_t { BTR_NO_OP = 0, BTR_INSERT_OP, BTR_INSERT_IGNORE_UNIQUE_OP, BTR_DELETE_OP, BTR_DELMARK_OP }

Functions
UNIV_INLINE void	btr_rec_set_deleted_flag (rec_t rec, page_zip_des_t page_zip, ulint flag)
UNIV_INTERN void	btr_cur_search_to_nth_level (dict_index_t index, ulint level, const dtuple_t tuple, ulint mode, ulint latch_mode, btr_cur_t cursor, ulint has_search_latch, const char file, ulint line, mtr_t *mtr)
UNIV_INTERN void	btr_cur_open_at_index_side_func (bool from_left, dict_index_t index, ulint latch_mode, btr_cur_t cursor, ulint level, const char file, ulint line, mtr_t mtr)
UNIV_INTERN void	btr_cur_open_at_rnd_pos_func (dict_index_t index, ulint latch_mode, btr_cur_t cursor, const char file, ulint line, mtr_t mtr)

Variables
UNIV_INTERN ulint	btr_cur_n_non_sea = 0
UNIV_INTERN ulint	btr_cur_n_sea = 0
UNIV_INTERN ulint	btr_cur_n_non_sea_old = 0
UNIV_INTERN ulint	btr_cur_n_sea_old = 0
const byte	field_ref_zero [BTR_EXTERN_FIELD_REF_SIZE]
static const dtuple_t *	tuple
static const dtuple_t ulint **	offsets
static const dtuple_t ulint mem_heap_t **	heap
static const dtuple_t ulint mem_heap_t ulint	n_ext

Detailed Description

The index tree cursor

All changes that row operations make to a B-tree or the records there must go through this module! Undo log records are written here of every modify or insert of a clustered index record.

                    NOTE!!!

To make sure we do not run out of disk space during a pessimistic insert or update, we have to reserve 2 x the height of the index tree many pages in the tablespace before we start the operation, because if leaf splitting has been started, it is difficult to undo, except by crashing the database and doing a roll-forward.

Created 10/16/1994 Heikki Tuuri

Definition in file btr0cur.cc.

Macro Definition Documentation

#define BTR_BLOB_HDR_NEXT_PAGE_NO 4

next BLOB part page no, FIL_NULL if none

Definition at line 116 of file btr0cur.cc.

#define BTR_BLOB_HDR_PART_LEN 0

The structure of a BLOB part header BLOB part len on this page

Definition at line 114 of file btr0cur.cc.

#define BTR_BLOB_HDR_SIZE 8

Size of a BLOB part header, in bytes

Definition at line 119 of file btr0cur.cc.

#define BTR_CUR_PAGE_REORGANIZE_LIMIT (UNIV_PAGE_SIZE / 32)

In the optimistic insert, if the insert does not fit, but this much space

can be released by page reorganize, then it is reorganized

Definition at line 109 of file btr0cur.cc.

#define BTR_TABLE_STATS_FROM_SAMPLE	(	value,
		index,
		sample,
		ext_size,
		not_empty
	)

Value:

(((value) * (ib_int64_t) index->stat_n_leaf_pages \

+ (sample) - 1 + (ext_size) + (not_empty)) / ((sample) + (ext_size)))

Estimated table level stats from sampled value.

Parameters

value	sampled stats
index	index being sampled
sample	number of sampled rows
ext_size	external stored data size
not_empty	table not empty

Returns: estimated table wide stats from sampled value

Definition at line 129 of file btr0cur.cc.

Enumeration Type Documentation

enum btr_op_t

Buffered B-tree operation types, introduced as part of delete buffering.

Enumerator:

BTR_NO_OP	Not buffered
BTR_INSERT_OP	Insert, do not ignore UNIQUE
BTR_INSERT_IGNORE_UNIQUE_OP	Insert, ignoring UNIQUE
BTR_DELETE_OP	Purge a delete-marked record
BTR_DELMARK_OP	Mark a record for deletion

Definition at line 74 of file btr0cur.cc.

Function Documentation

UNIV_INTERN void btr_cur_open_at_index_side_func	(	bool	from_left,
		dict_index_t *	index,
		ulint	latch_mode,
		btr_cur_t *	cursor,
		ulint	level,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

Opens a cursor at either end of an index.

Parameters

from_left	in: true if open to the low end, false if to the high end
index	in: index
latch_mode	in: latch mode
cursor	in/out: cursor
level	in: level to search for (0=leaf).
file	in: file name
line	in: line where called
mtr	in/out: mini-transaction

Definition at line 839 of file btr0cur.cc.

Here is the call graph for this function:

UNIV_INTERN void btr_cur_open_at_rnd_pos_func	(	dict_index_t *	index,
		ulint	latch_mode,
		btr_cur_t *	cursor,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

Positions a cursor at a randomly chosen position within a B-tree.

Parameters

index	in: index
latch_mode	in: BTR_SEARCH_LEAF, ...
cursor	in/out: B-tree cursor
file	in: file name
line	in: line where called
mtr	in: mtr

Definition at line 999 of file btr0cur.cc.

Here is the call graph for this function:

UNIV_INTERN void btr_cur_search_to_nth_level	(	dict_index_t *	index,
		ulint	level,
		const dtuple_t *	tuple,
		ulint	mode,
		ulint	latch_mode,
		btr_cur_t *	cursor,
		ulint	has_search_latch,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

Searches an index tree and positions a tree cursor on a given level. NOTE: n_fields_cmp in tuple must be set so that it cannot be compared to node pointer page number fields on the upper levels of the tree! Note that if mode is PAGE_CUR_LE, which is used in inserts, then cursor->up_match and cursor->low_match both will have sensible values. If mode is PAGE_CUR_GE, then up_match will a have a sensible value.

If mode is PAGE_CUR_LE , cursor is left at the place where an insert of the search tuple should be performed in the B-tree. InnoDB does an insert immediately after the cursor. Thus, the cursor may end up on a user record, or on a page infimum record.

Parameters

index	in: index
level	in: the tree level of search
tuple	in: data tuple; NOTE: n_fields_cmp in tuple must be set so that it cannot get compared to the node ptr page number field!
mode	in: PAGE_CUR_L, ...; Inserts should always be made using PAGE_CUR_LE to search the position!
latch_mode	in: BTR_SEARCH_LEAF, ..., ORed with at most one of BTR_INSERT, BTR_DELETE_MARK, BTR_DELETE, or BTR_ESTIMATE; cursor->left_block is used to store a pointer to the left neighbor page, in the cases BTR_SEARCH_PREV and BTR_MODIFY_PREV; NOTE that if has_search_latch is != 0, we maybe do not have a latch set on the cursor page, we assume the caller uses his search latch to protect the record!
cursor	in/out: tree cursor; the cursor page is s- or x-latched, but see also above!
has_search_latch	in: info on the latch mode the caller currently has on btr_search_latch: RW_S_LATCH, or 0
file	in: file name
line	in: line where called
mtr	in: mtr

Definition at line 359 of file btr0cur.cc.

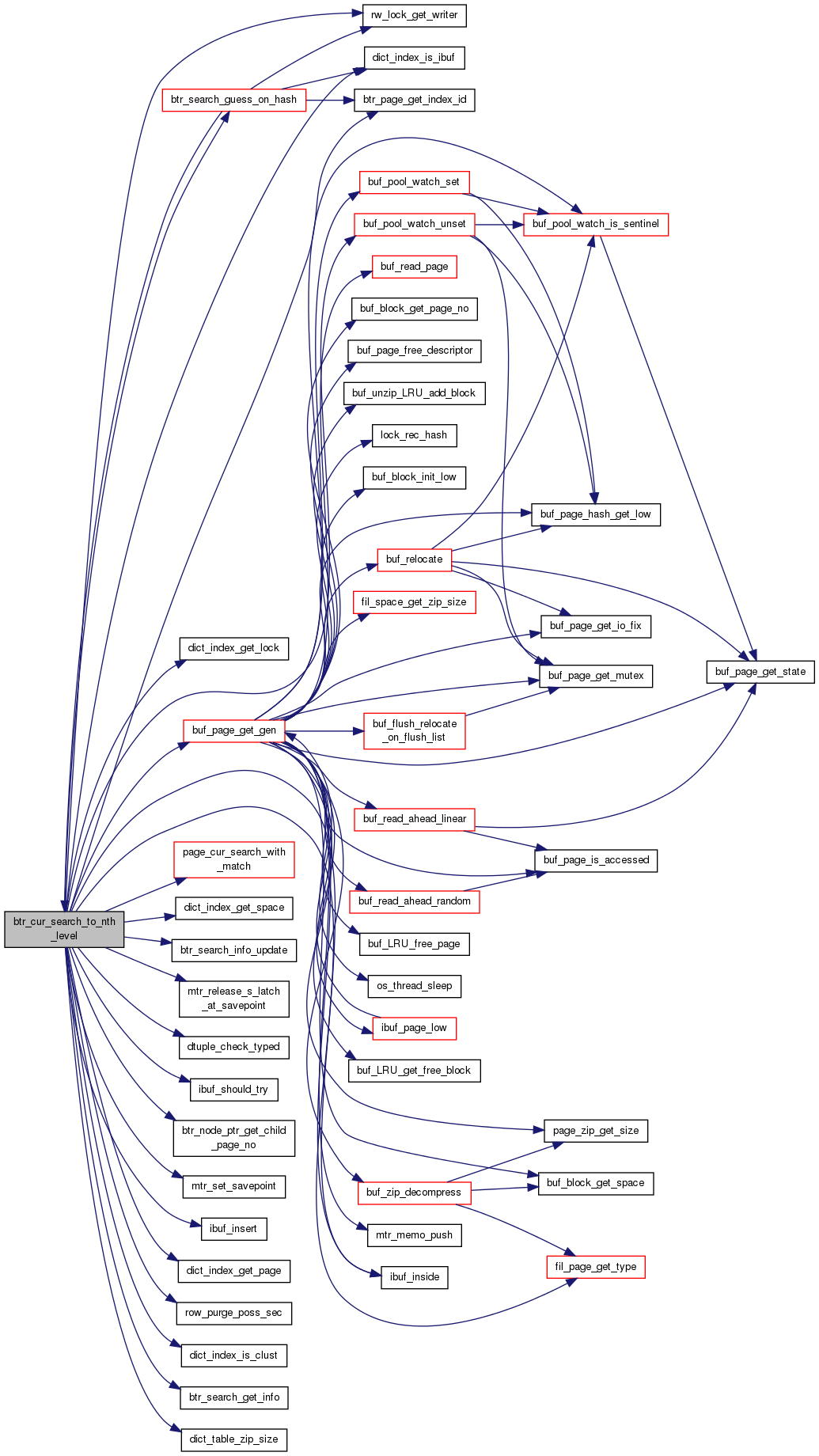

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE void btr_rec_set_deleted_flag	(	rec_t *	rec,
		page_zip_des_t *	page_zip,
		ulint	flag
	)

The following function is used to set the deleted bit of a record.

Parameters

rec	in/out: physical record
page_zip	in/out: compressed page (or NULL)
flag	in: nonzero if delete marked

Definition at line 220 of file btr0cur.cc.

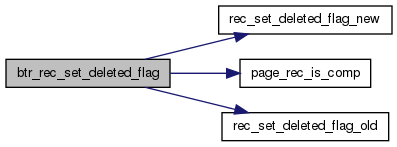

Here is the call graph for this function:

Variable Documentation

UNIV_INTERN ulint btr_cur_n_non_sea = 0

Number of searches down the B-tree in btr_cur_search_to_nth_level().

Definition at line 89 of file btr0cur.cc.

UNIV_INTERN ulint btr_cur_n_non_sea_old = 0

Old value of btr_cur_n_non_sea.  Copied by

srv_refresh_innodb_monitor_stats(). Referenced by srv_printf_innodb_monitor().

Definition at line 96 of file btr0cur.cc.

UNIV_INTERN ulint btr_cur_n_sea = 0

Number of successful adaptive hash index lookups in

btr_cur_search_to_nth_level().

Definition at line 92 of file btr0cur.cc.

UNIV_INTERN ulint btr_cur_n_sea_old = 0

Old value of btr_cur_n_sea.  Copied by

srv_refresh_innodb_monitor_stats(). Referenced by srv_printf_innodb_monitor().

Definition at line 100 of file btr0cur.cc.

const byte field_ref_zero[BTR_EXTERN_FIELD_REF_SIZE]

Initial value:

 {
        0, 0, 0, 0, 0,
        0, 0, 0, 0, 0,
        0, 0, 0, 0, 0,
        0, 0, 0, 0, 0,
}

A BLOB field reference full of zero, for use in assertions and tests.

Initially, BLOB field references are set to zero, in dtuple_convert_big_rec().

Definition at line 139 of file btr0cur.cc.

const dtuple_t ulint mem_heap_t** heap

in/out: pointer to memory heap, or NULL

Definition at line 1103 of file btr0cur.cc.

const dtuple_t ulint mem_heap_t ulint n_ext

in: number of externally stored columns

Definition at line 1103 of file btr0cur.cc.

const dtuple_t ulint** offsets

out: offsets on *rec

Definition at line 1103 of file btr0cur.cc.

const dtuple_t* tuple

< in: cursor on page after which to insert; cursor stays valid in: tuple to insert; the size info need not have been stored to tuple

Definition at line 1103 of file btr0cur.cc.
