#include "page0page.h"
#include "page0cur.h"
#include "page0zip.h"
#include "buf0buf.h"
#include "btr0btr.h"
#include "srv0srv.h"
#include "lock0lock.h"
#include "fut0lst.h"
#include "btr0sea.h"

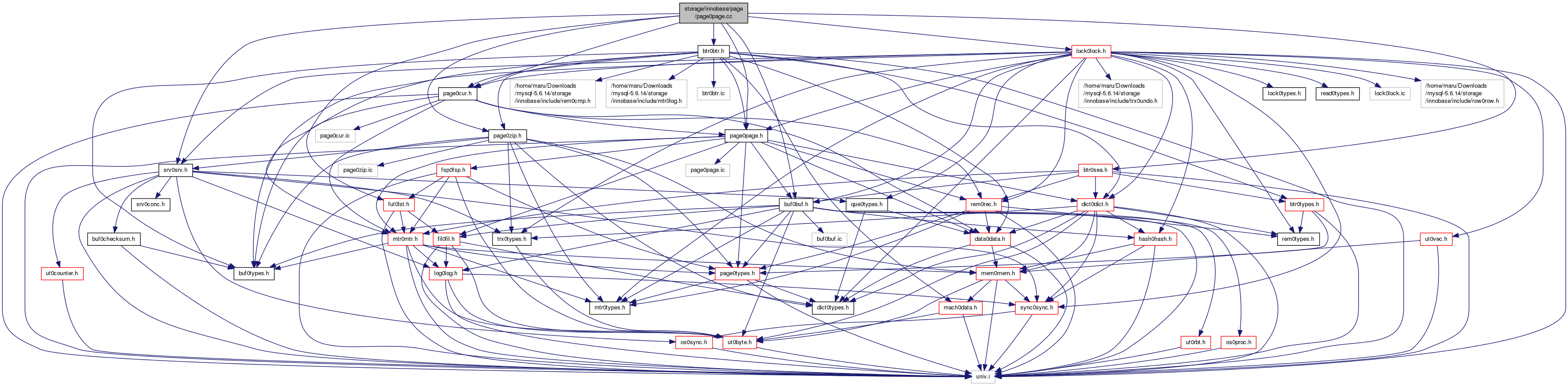

Include dependency graph for page0page.cc:

Functions
UNIV_INTERN ulint	page_dir_find_owner_slot (const rec_t *rec)

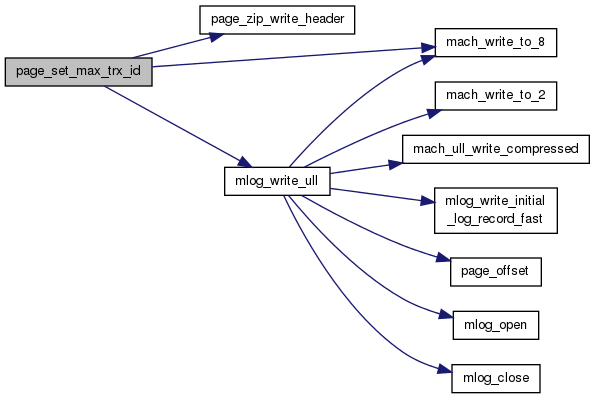

UNIV_INTERN void	page_set_max_trx_id (buf_block_t block, page_zip_des_t page_zip, trx_id_t trx_id, mtr_t *mtr)
UNIV_INTERN byte *	page_mem_alloc_heap (page_t page, page_zip_des_t page_zip, ulint need, ulint *heap_no)
UNIV_INLINE void	page_create_write_log (buf_frame_t frame, mtr_t mtr, ibool comp)

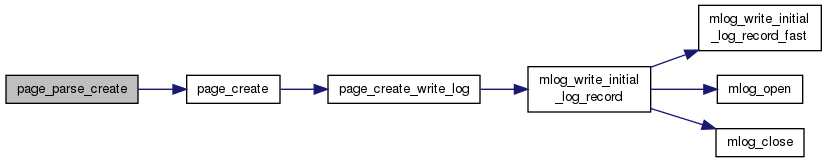

UNIV_INTERN byte *	page_parse_create (byte ptr, byte end_ptr __attribute__((unused)), ulint comp, buf_block_t block, mtr_t mtr)
UNIV_INTERN page_t *	page_create (buf_block_t block, mtr_t mtr, ulint comp)
UNIV_INTERN page_t *	page_create_zip (buf_block_t block, dict_index_t index, ulint level, trx_id_t max_trx_id, mtr_t *mtr)
UNIV_INTERN void	page_create_empty (buf_block_t block, dict_index_t index, mtr_t *mtr)
UNIV_INTERN void	page_copy_rec_list_end_no_locks (buf_block_t new_block, buf_block_t block, rec_t rec, dict_index_t index, mtr_t *mtr)
UNIV_INTERN rec_t *	page_copy_rec_list_end (buf_block_t new_block, buf_block_t block, rec_t rec, dict_index_t index, mtr_t *mtr)
UNIV_INTERN rec_t *	page_copy_rec_list_start (buf_block_t new_block, buf_block_t block, rec_t rec, dict_index_t index, mtr_t *mtr)
UNIV_INLINE void	page_delete_rec_list_write_log (rec_t rec, dict_index_t index, byte type, mtr_t *mtr)
UNIV_INTERN byte *	page_parse_delete_rec_list (byte type, byte ptr, byte end_ptr, buf_block_t block, dict_index_t index, mtr_t *mtr)
UNIV_INTERN void	page_delete_rec_list_end (rec_t rec, buf_block_t block, dict_index_t index, ulint n_recs, ulint size, mtr_t mtr)
UNIV_INTERN void	page_delete_rec_list_start (rec_t rec, buf_block_t block, dict_index_t index, mtr_t mtr)
UNIV_INTERN ibool	page_move_rec_list_end (buf_block_t new_block, buf_block_t block, rec_t split_rec, dict_index_t index, mtr_t *mtr)
UNIV_INTERN ibool	page_move_rec_list_start (buf_block_t new_block, buf_block_t block, rec_t split_rec, dict_index_t index, mtr_t *mtr)
UNIV_INLINE void	page_dir_delete_slot (page_t page, page_zip_des_t page_zip, ulint slot_no)
UNIV_INLINE void	page_dir_add_slot (page_t page, page_zip_des_t page_zip, ulint start)
UNIV_INTERN void	page_dir_split_slot (page_t page, page_zip_des_t page_zip, ulint slot_no)
UNIV_INTERN void	page_dir_balance_slot (page_t page, page_zip_des_t page_zip, ulint slot_no)

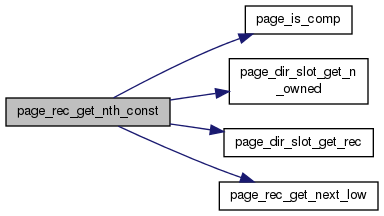

UNIV_INTERN const rec_t *	page_rec_get_nth_const (const page_t *page, ulint nth)
UNIV_INTERN ulint	page_rec_get_n_recs_before (const rec_t *rec)
UNIV_INTERN void	page_rec_print (const rec_t rec, const ulint offsets)
UNIV_INTERN ibool	page_rec_validate (const rec_t rec, const ulint offsets)
UNIV_INTERN void	page_check_dir (const page_t *page)

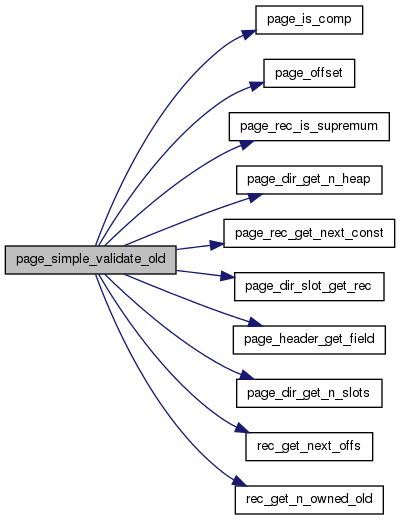

UNIV_INTERN ibool	page_simple_validate_old (const page_t *page)
UNIV_INTERN ibool	page_simple_validate_new (const page_t *page)
UNIV_INTERN ibool	page_validate (const page_t page, dict_index_t index)
UNIV_INTERN const rec_t *	page_find_rec_with_heap_no (const page_t *page, ulint heap_no)
UNIV_INTERN bool	page_delete_rec (const dict_index_t index, page_cur_t pcur, page_zip_des_t page_zip, const ulint offsets)

Detailed Description

Index page routines

Created 2/2/1994 Heikki Tuuri

Definition in file page0page.cc.

Function Documentation

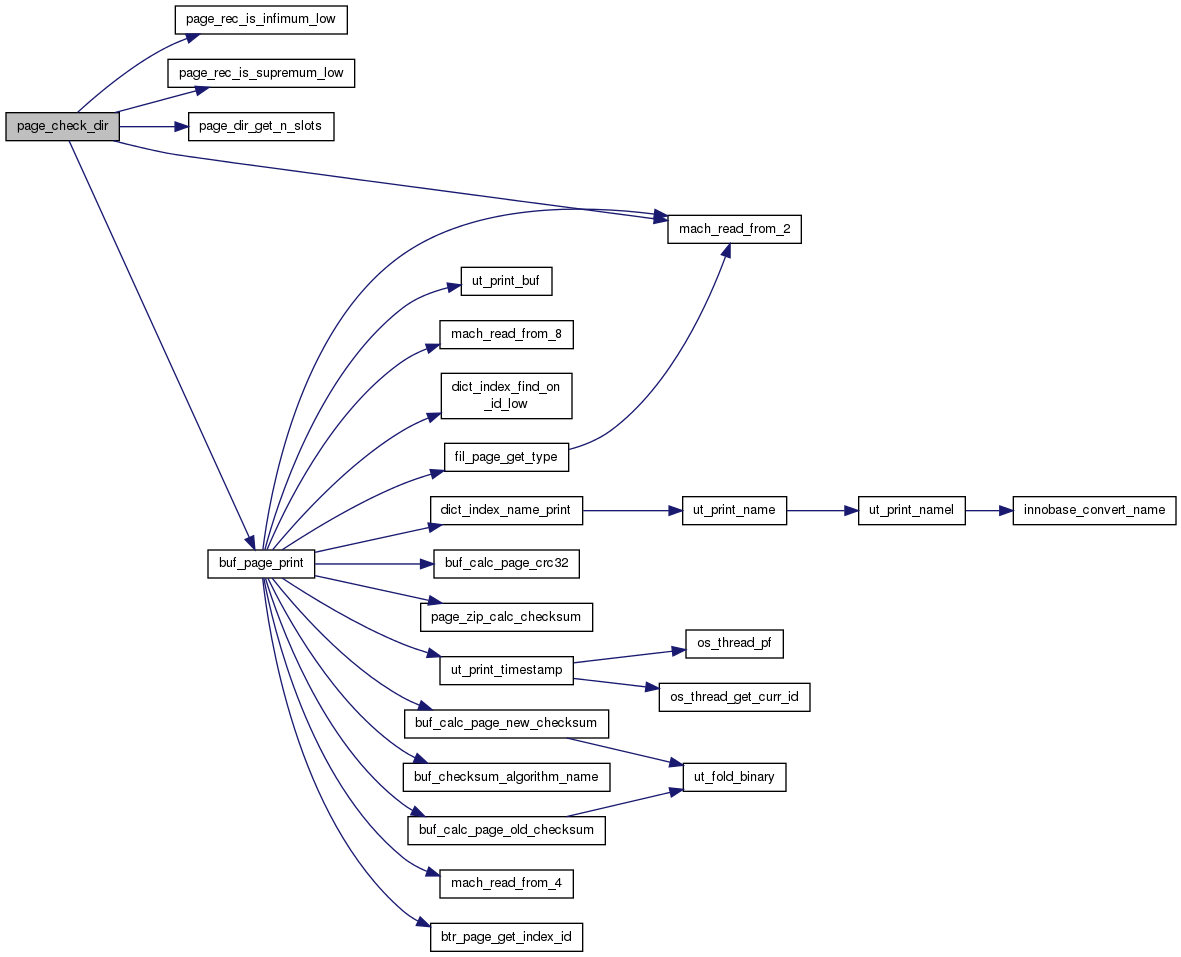

UNIV_INTERN void page_check_dir ( const page_t * page )

Checks that the first directory slot points to the infimum record and the last to the supremum. This function is intended to track if the bug fixed in 4.0.14 has caused corruption to users' databases.

Parameters

page	in: index page

Definition at line 1927 of file page0page.cc.

Here is the call graph for this function:

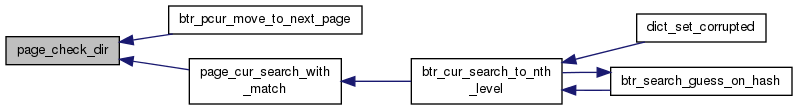

Here is the caller graph for this function:

UNIV_INTERN rec_t* page_copy_rec_list_end	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Copies records from page to new_page, from a given record onward, including that record. Infimum and supremum records are not copied. The records are copied to the start of the record list on new_page.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: pointer to the original successor of the infimum record on new_page, or NULL on zip overflow (new_block will be decompressed)

Parameters

new_block	in/out: index page to copy to
block	in: index page containing rec
rec	in: record on page
index	in: record descriptor
mtr	in: mtr

Definition at line 655 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

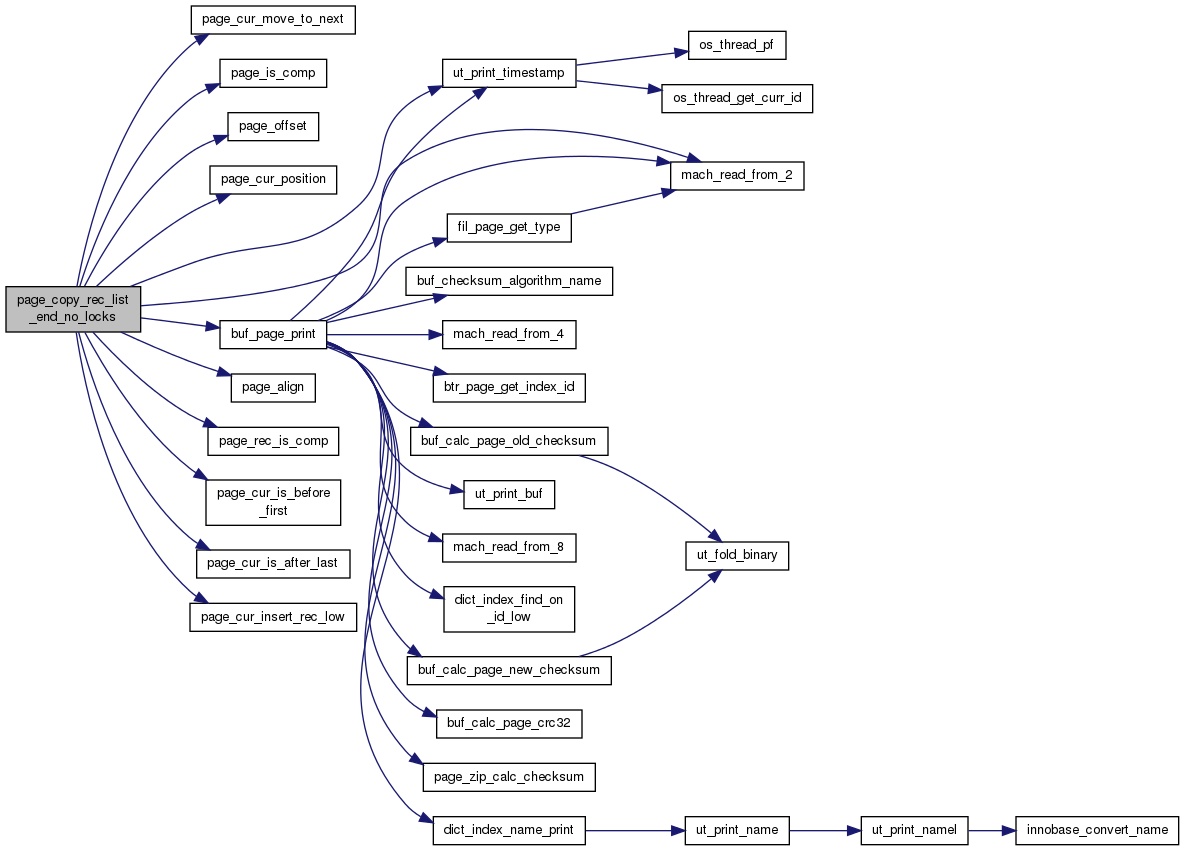

UNIV_INTERN void page_copy_rec_list_end_no_locks	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Differs from page_copy_rec_list_end, because this function does not touch the lock table and max trx id on page or compress the page.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Parameters

new_block	in: index page to copy to
block	in: index page of rec
rec	in: record on page
index	in: record descriptor
mtr	in: mtr

Definition at line 573 of file page0page.cc.

Here is the call graph for this function:

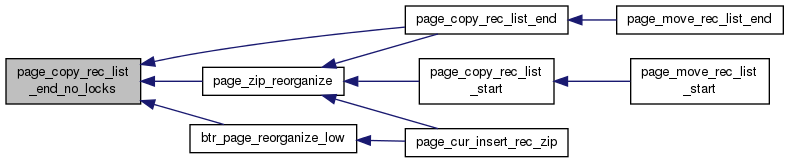

Here is the caller graph for this function:

UNIV_INTERN rec_t* page_copy_rec_list_start	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Copies records from page to new_page, up to the given record, NOT including that record. Infimum and supremum records are not copied. The records are copied to the end of the record list on new_page.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: pointer to the original predecessor of the supremum record on new_page, or NULL on zip overflow (new_block will be decompressed)

Parameters

new_block	in/out: index page to copy to
block	in: index page containing rec
rec	in: record on page
index	in: record descriptor
mtr	in: mtr

Definition at line 771 of file page0page.cc.

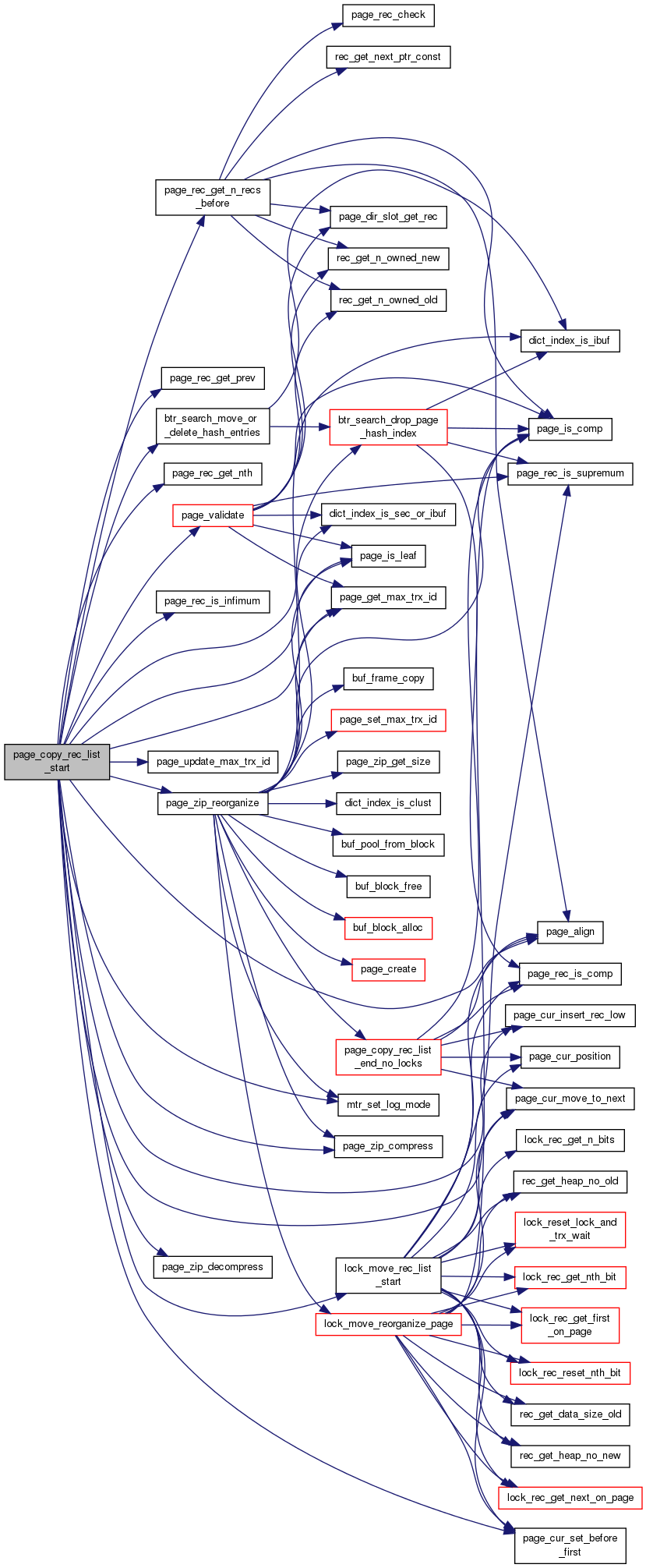

Here is the call graph for this function:

Here is the caller graph for this function:

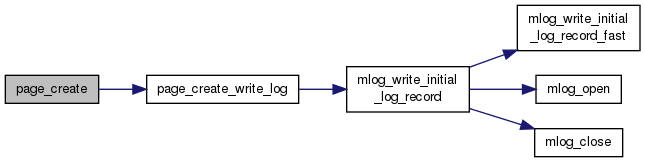

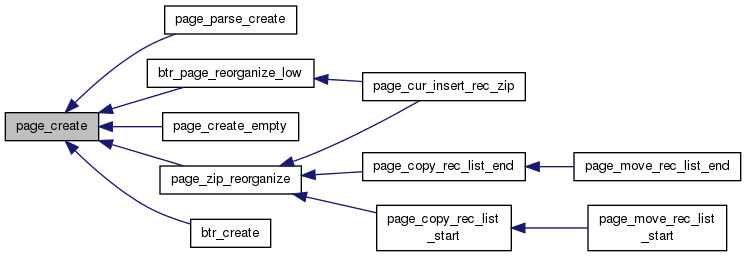

UNIV_INTERN page_t* page_create	(	buf_block_t *	block,
		mtr_t *	mtr,
		ulint	comp
	)

Create an uncompressed B-tree index page.

Returns: pointer to the page

Parameters

block	in: a buffer block where the page is created
mtr	in: mini-transaction handle
comp	in: nonzero=compact page format

Definition at line 481 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

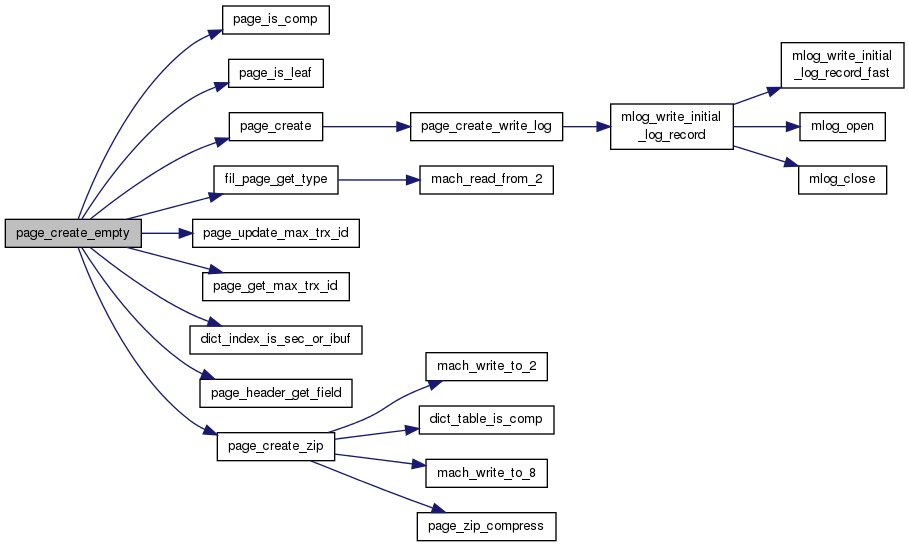

UNIV_INTERN void page_create_empty	(	buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Empty a previously created B-tree index page.

Parameters

block	in/out: B-tree block
index	in: the index of the page
mtr	in/out: mini-transaction

Definition at line 532 of file page0page.cc.

Here is the call graph for this function:

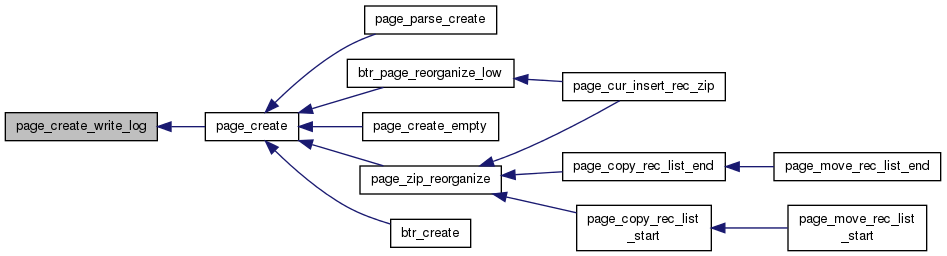

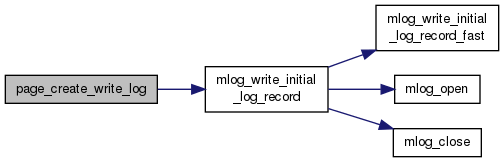

UNIV_INLINE void page_create_write_log	(	buf_frame_t *	frame,
		mtr_t *	mtr,
		ibool	comp
	)

Writes a log record of page creation.

Parameters

frame	in: a buffer frame where the page is created
mtr	in: mini-transaction handle
comp	in: TRUE=compact page format

Definition at line 284 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

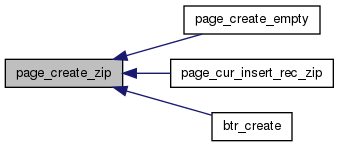

UNIV_INTERN page_t* page_create_zip	(	buf_block_t *	block,
		dict_index_t *	index,
		ulint	level,
		trx_id_t	max_trx_id,
		mtr_t *	mtr
	)

Create a compressed B-tree index page.

Returns: pointer to the page

Parameters

block	in/out: a buffer frame where the page is created
index	in: the index of the page
level	in: the B-tree level of the page
max_trx_id	in: PAGE_MAX_TRX_ID
mtr	in/out: mini-transaction

Definition at line 497 of file page0page.cc.

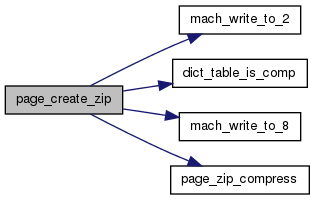

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN bool page_delete_rec	(	const dict_index_t *	index,
		page_cur_t *	pcur,
		page_zip_des_t *	page_zip,
		const ulint *	offsets
	)

Removes the record from a leaf page. This function does not log any changes. It is used by the IMPORT tablespace functions. The cursor is moved to the next record after the deleted one.

Returns: true if success, i.e., the page did not become too empty

Parameters

index	in: The index that the record belongs to
pcur	in/out: page cursor on record to delete
page_zip	in: compressed page descriptor
offsets	in: offsets for record

Definition at line 2733 of file page0page.cc.

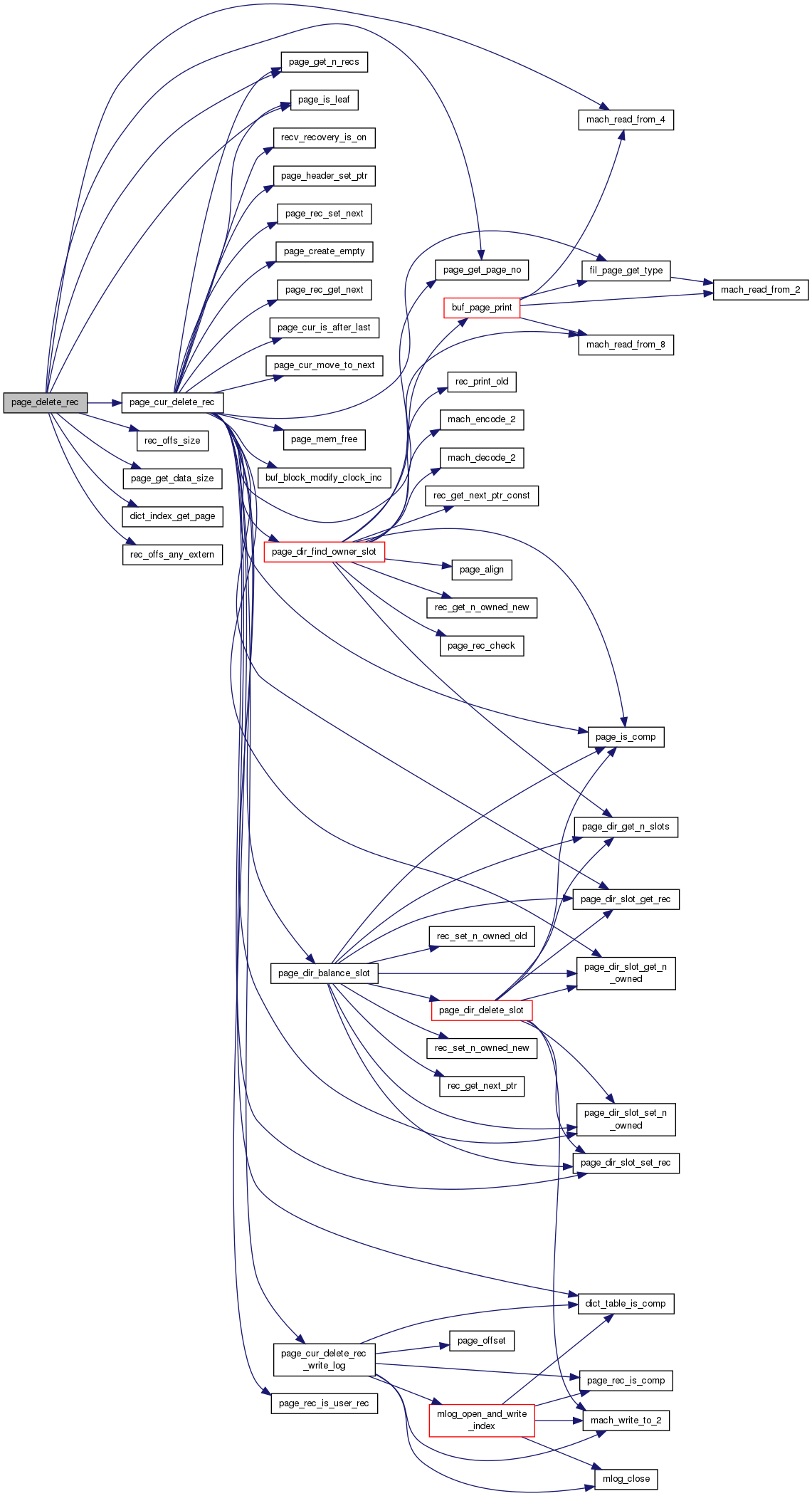

Here is the call graph for this function:

Here is the caller graph for this function:

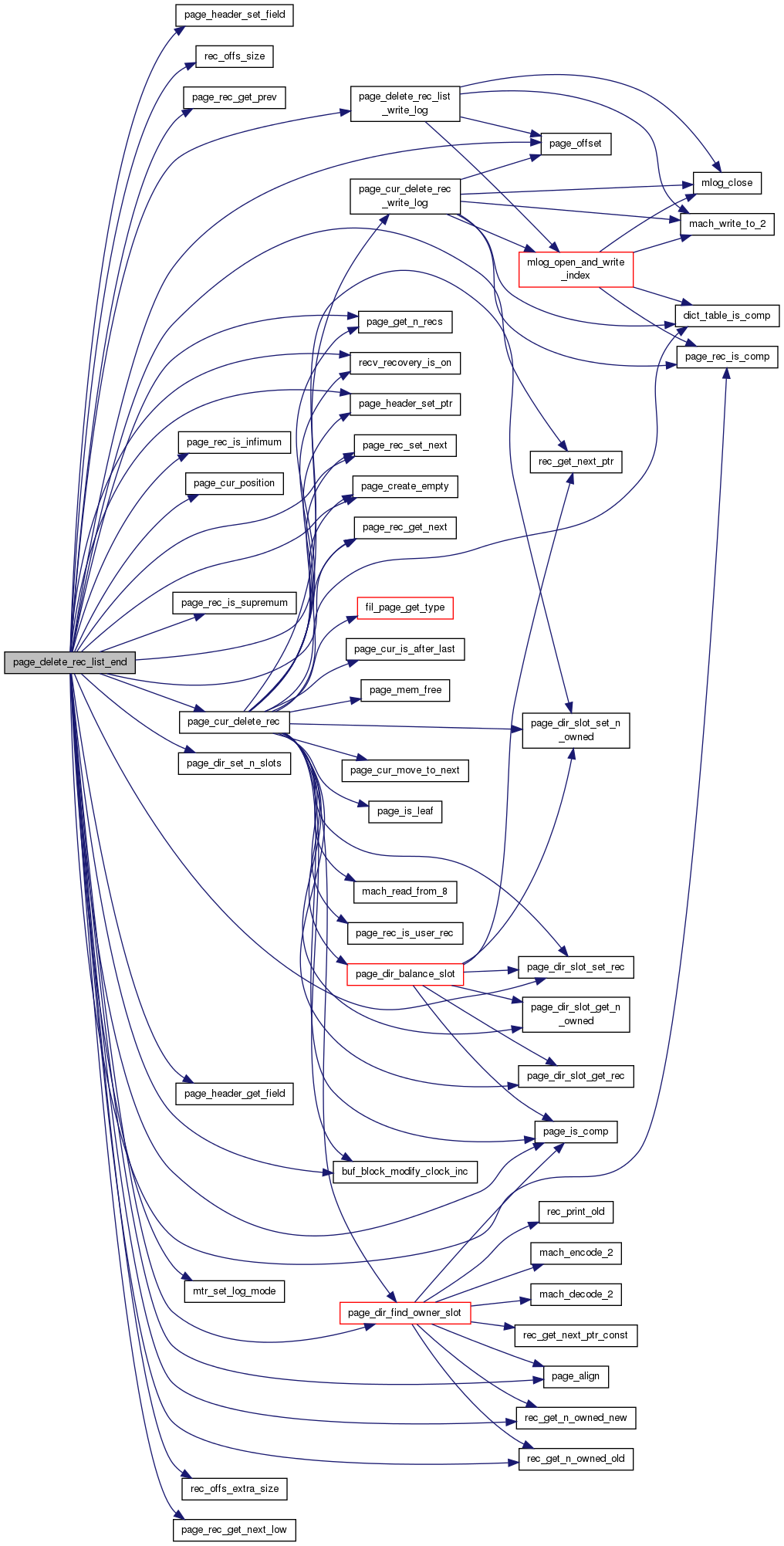

UNIV_INTERN void page_delete_rec_list_end	(	rec_t *	rec,
		buf_block_t *	block,
		dict_index_t *	index,
		ulint	n_recs,
		ulint	size,
		mtr_t *	mtr
	)

Deletes records from a page from a given record onward, including that record. The infimum and supremum records are not deleted.

Parameters

rec	in: pointer to record on page
block	in: buffer block of the page
index	in: record descriptor
n_recs	in: number of records to delete, or ULINT_UNDEFINED if not known
size	in: the sum of the sizes of the records in the end of the chain to delete, or ULINT_UNDEFINED if not known
mtr	in: mtr

Definition at line 977 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

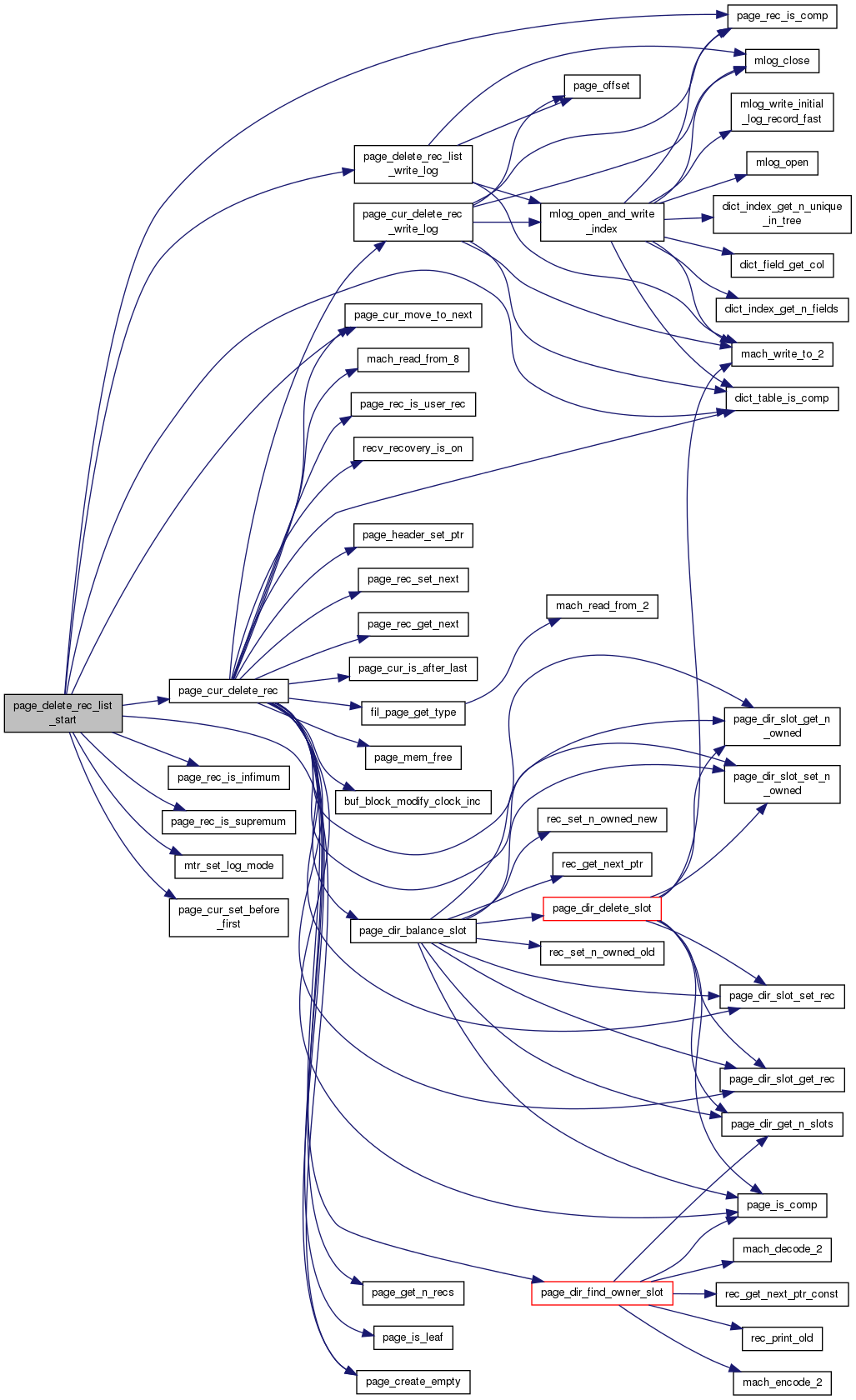

UNIV_INTERN void page_delete_rec_list_start	(	rec_t *	rec,
		buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Deletes records from page, up to the given record, NOT including that record. Infimum and supremum records are not deleted.

Parameters

rec	in: record on page
block	in: buffer block of the page
index	in: record descriptor
mtr	in: mtr

Definition at line 1183 of file page0page.cc.

Here is the call graph for this function:

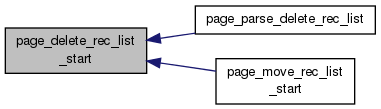

Here is the caller graph for this function:

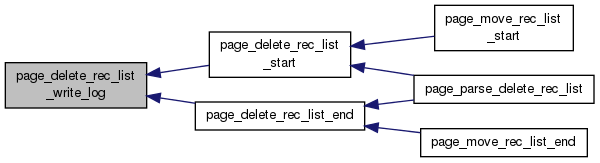

UNIV_INLINE void page_delete_rec_list_write_log	(	rec_t *	rec,
		dict_index_t *	index,
		byte	type,
		mtr_t *	mtr
	)

Writes a log record of a record list end or start deletion.

Parameters

rec	in: record on page
index	in: record descriptor
type	in: operation type: MLOG_LIST_END_DELETE, ...
mtr	in: mtr

Definition at line 891 of file page0page.cc.

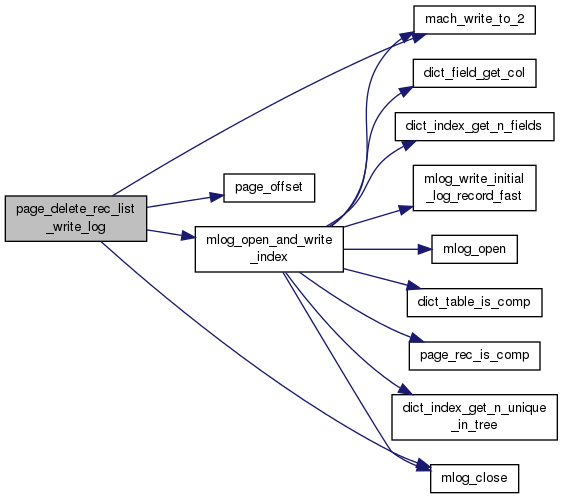

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE void page_dir_add_slot	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	start
	)

Used to add n slots to the directory. Does not set the record pointers in the added slots or update n_owned values: this is the responsibility of the caller.

Parameters

page	in/out: the index page
page_zip	in/out: comprssed page, or NULL
start	in: the slot above which the new slots are added

Definition at line 1404 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

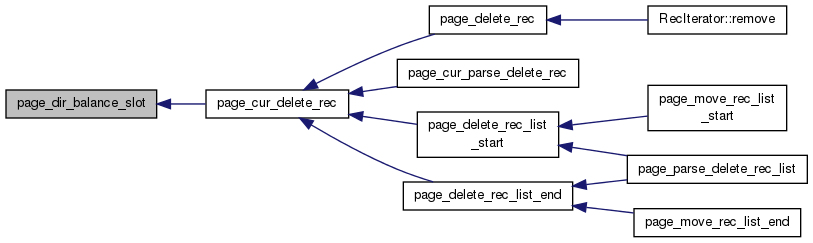

UNIV_INTERN void page_dir_balance_slot	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	slot_no
	)

Tries to balance the given directory slot with too few records with the upper neighbor, so that there are at least the minimum number of records owned by the slot; this may result in the merging of two slots.

Parameters

page	in/out: index page
page_zip	in/out: compressed page, or NULL
slot_no	in: the directory slot

Definition at line 1494 of file page0page.cc.

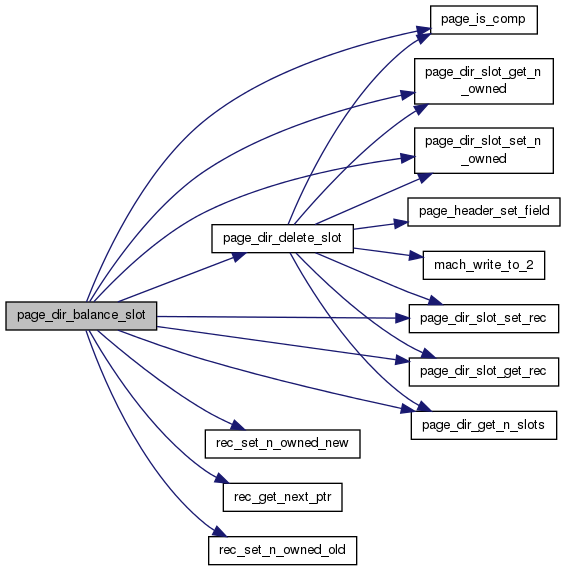

Here is the call graph for this function:

Here is the caller graph for this function:

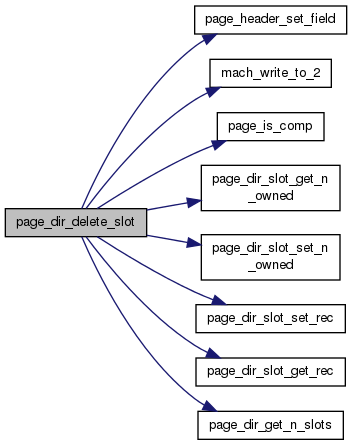

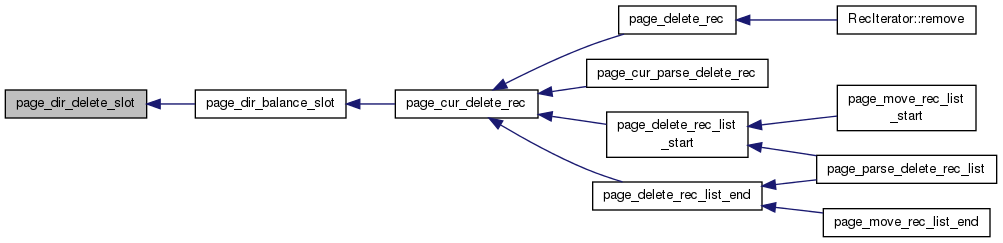

UNIV_INLINE void page_dir_delete_slot	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	slot_no
	)

Used to delete n slots from the directory. This function updates also n_owned fields in the records, so that the first slot after the deleted ones inherits the records of the deleted slots.

Parameters

page	in/out: the index page
page_zip	in/out: compressed page, or NULL
slot_no	in: slot to be deleted

Definition at line 1355 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

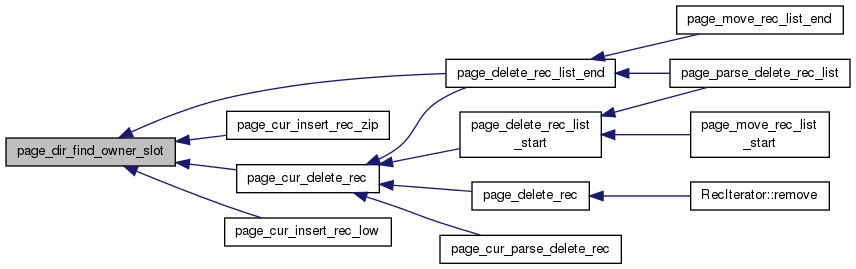

UNIV_INTERN ulint page_dir_find_owner_slot ( const rec_t * rec )

Looks for the directory slot which owns the given record.

Returns: the directory slot number

Parameters

rec	in: the physical record

Definition at line 92 of file page0page.cc.

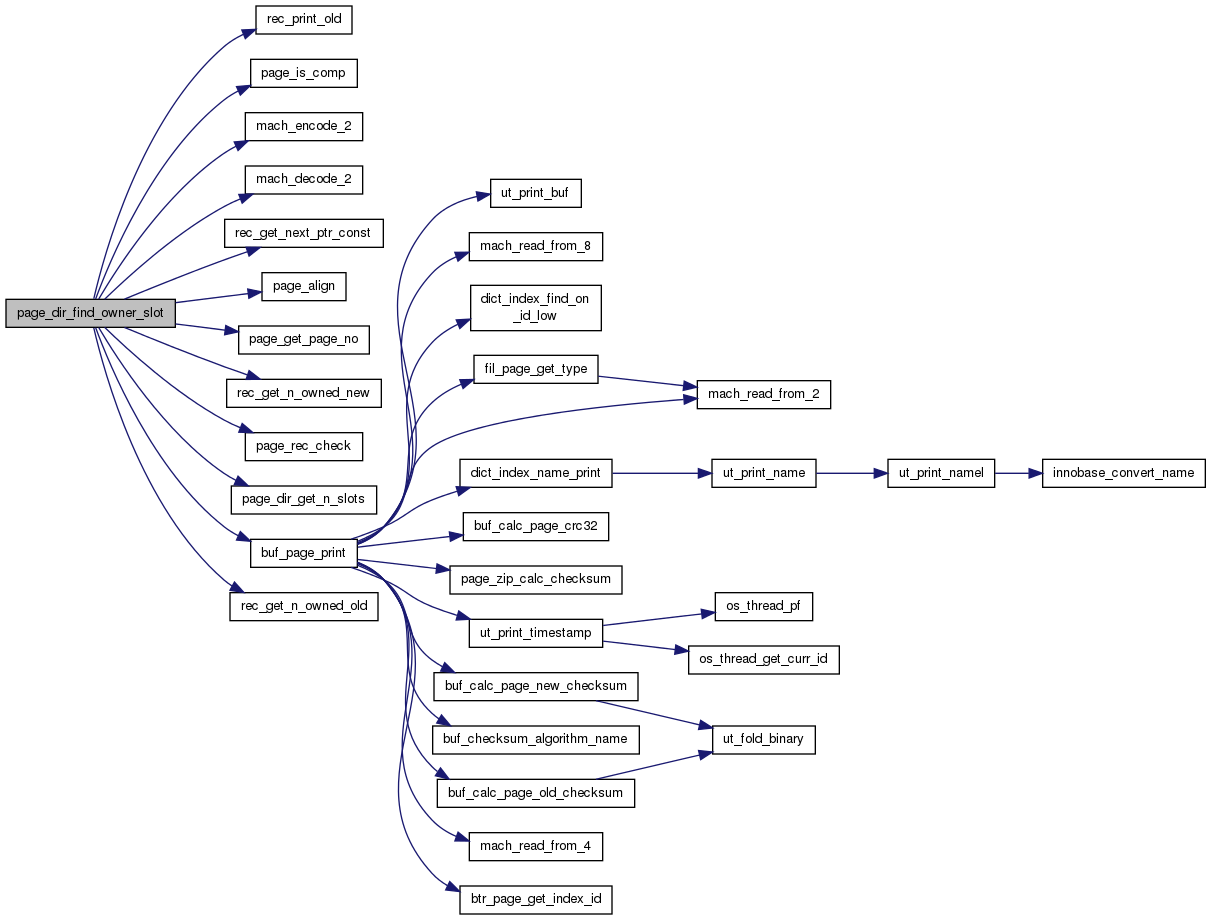

Here is the call graph for this function:

Here is the caller graph for this function:

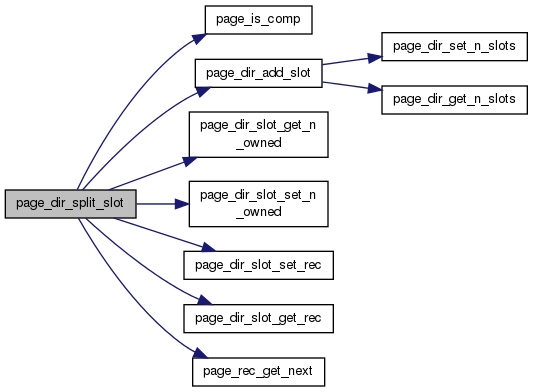

UNIV_INTERN void page_dir_split_slot	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	slot_no
	)

Splits a directory slot which owns too many records.

Parameters

page	in/out: index page
page_zip	in/out: compressed page whose uncompressed part will be written, or NULL
slot_no	in: the directory slot

Definition at line 1431 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN const rec_t* page_find_rec_with_heap_no	(	const page_t *	page,
		ulint	heap_no
	)

Looks in the page record list for a record with the given heap number.

Returns: record, NULL if not found

Parameters

page	in: index page
heap_no	in: heap number

Definition at line 2683 of file page0page.cc.

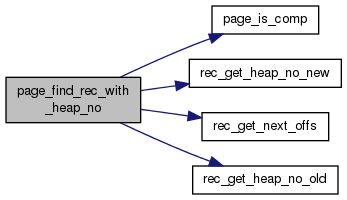

Here is the call graph for this function:

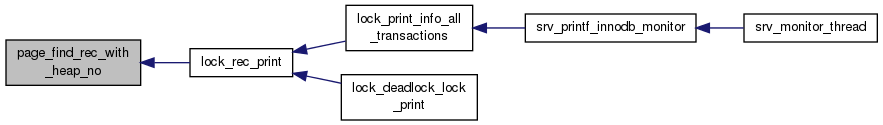

Here is the caller graph for this function:

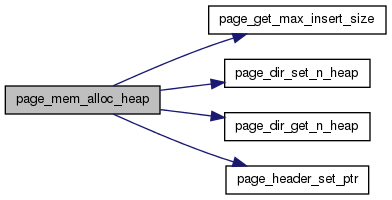

UNIV_INTERN byte* page_mem_alloc_heap	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	need,
		ulint *	heap_no
	)

Allocates a block of memory from the heap of an index page.

Returns: pointer to start of allocated buffer, or NULL if allocation fails

Parameters

page	in/out: index page
page_zip	in/out: compressed page with enough space available for inserting the record, or NULL
need	in: total number of bytes needed
heap_no	out: this contains the heap number of the allocated record if allocation succeeds

Definition at line 246 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool page_move_rec_list_end	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	split_rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Moves record list end to another page. Moved records include split_rec.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: TRUE on success; FALSE on compression failure (new_block will be decompressed)

Parameters

new_block	in/out: index page where to move
block	in: index page from where to move
split_rec	in: first record to move
index	in: record descriptor
mtr	in: mtr

Definition at line 1270 of file page0page.cc.

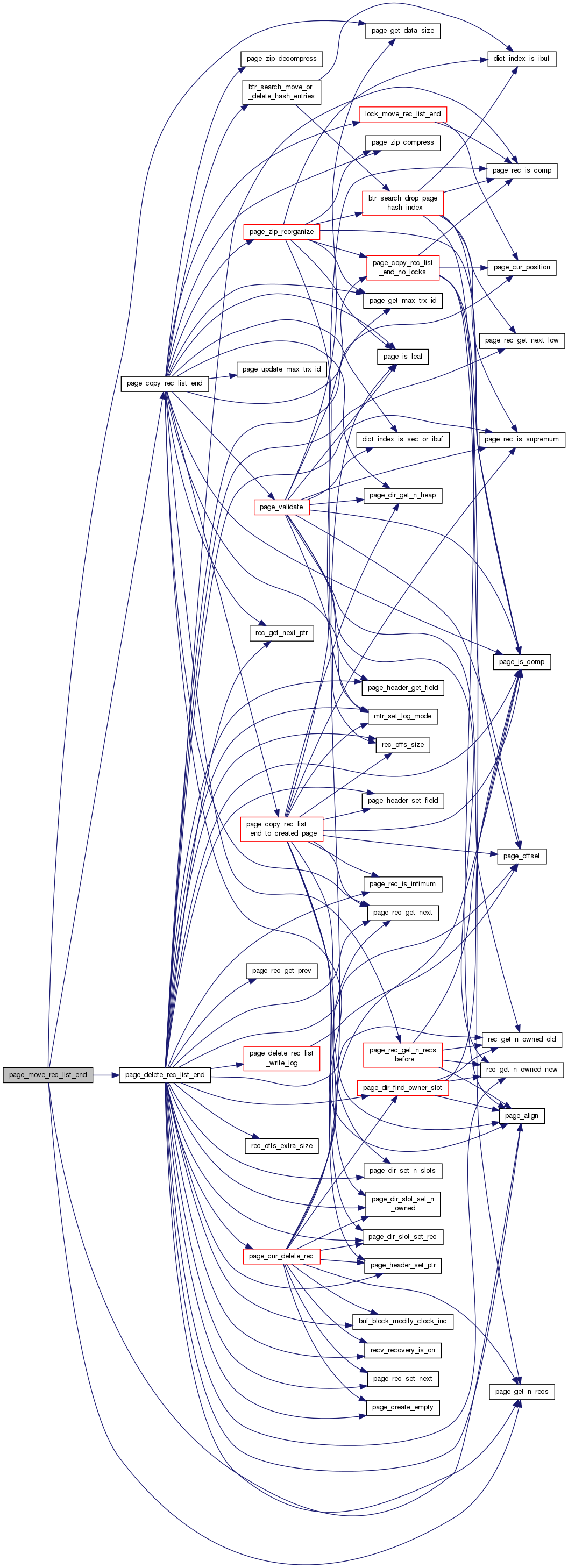

Here is the call graph for this function:

UNIV_INTERN ibool page_move_rec_list_start	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	split_rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Moves record list start to another page. Moved records do not include split_rec.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: TRUE on success; FALSE on compression failure

Parameters

new_block	in/out: index page where to move
block	in/out: page containing split_rec
split_rec	in: first record not to move
index	in: record descriptor
mtr	in: mtr

Definition at line 1330 of file page0page.cc.

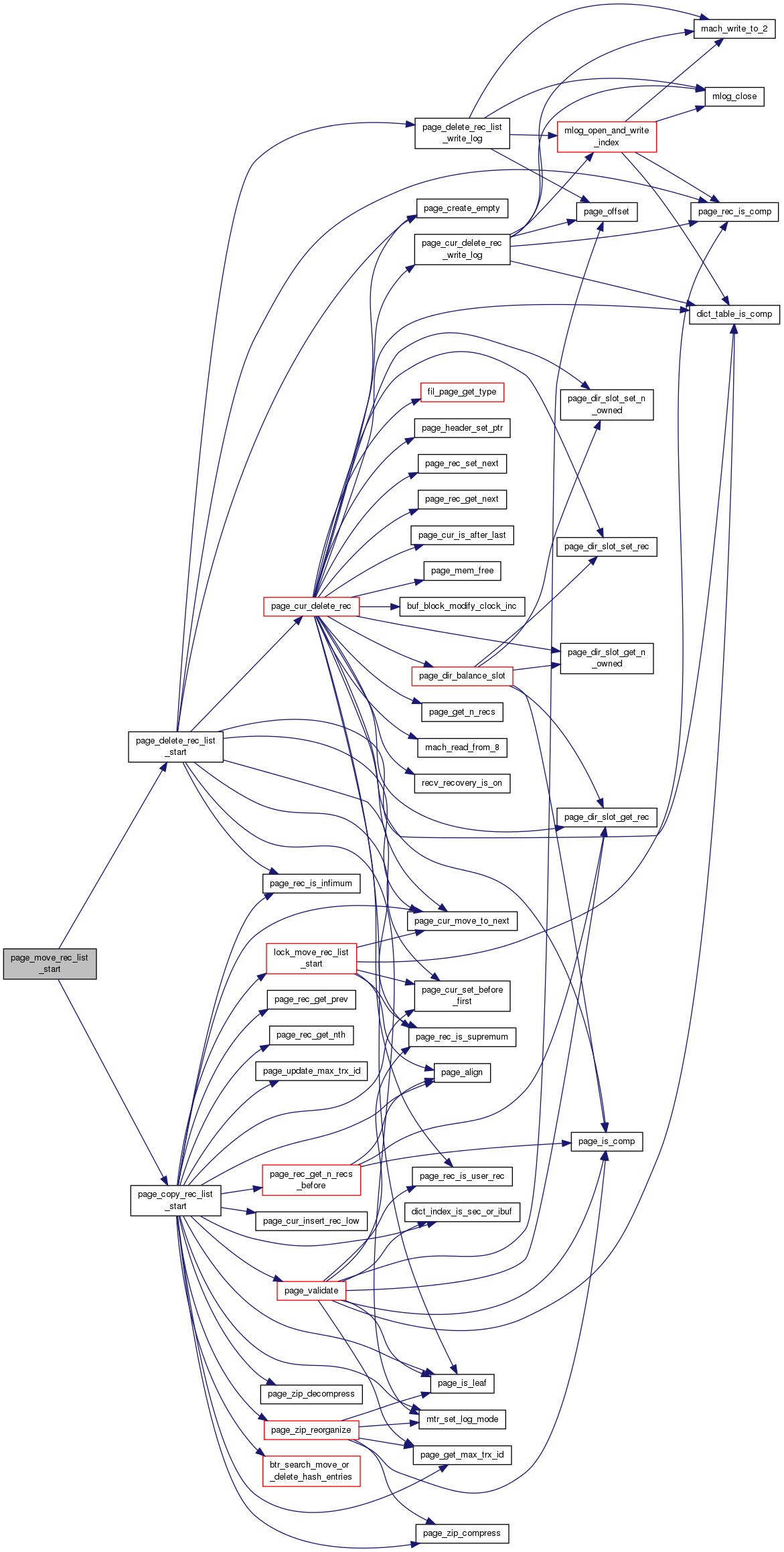

Here is the call graph for this function:

UNIV_INTERN byte* page_parse_create	(	byte *	ptr,
		byte *end_ptr	__attribute__(unused),
		ulint	comp,
		buf_block_t *	block,
		mtr_t *	mtr
	)

Parses a redo log record of creating a page.

Returns: end of log record or NULL

Parameters

ptr	in: buffer
__attribute__	in: buffer end
comp	in: nonzero=compact page format
block	in: block or NULL
mtr	in: mtr or NULL

Definition at line 304 of file page0page.cc.

Here is the call graph for this function:

UNIV_INTERN byte* page_parse_delete_rec_list	(	byte	type,
		byte *	ptr,
		byte *	end_ptr,
		buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Parses a log record of a record list end or start deletion.

Returns: end of log record or NULL

Parameters

type	in: MLOG_LIST_END_DELETE, MLOG_LIST_START_DELETE, MLOG_COMP_LIST_END_DELETE or MLOG_COMP_LIST_START_DELETE
ptr	in: buffer
end_ptr	in: buffer end
block	in/out: buffer block or NULL
index	in: record descriptor
mtr	in: mtr or NULL

Definition at line 921 of file page0page.cc.

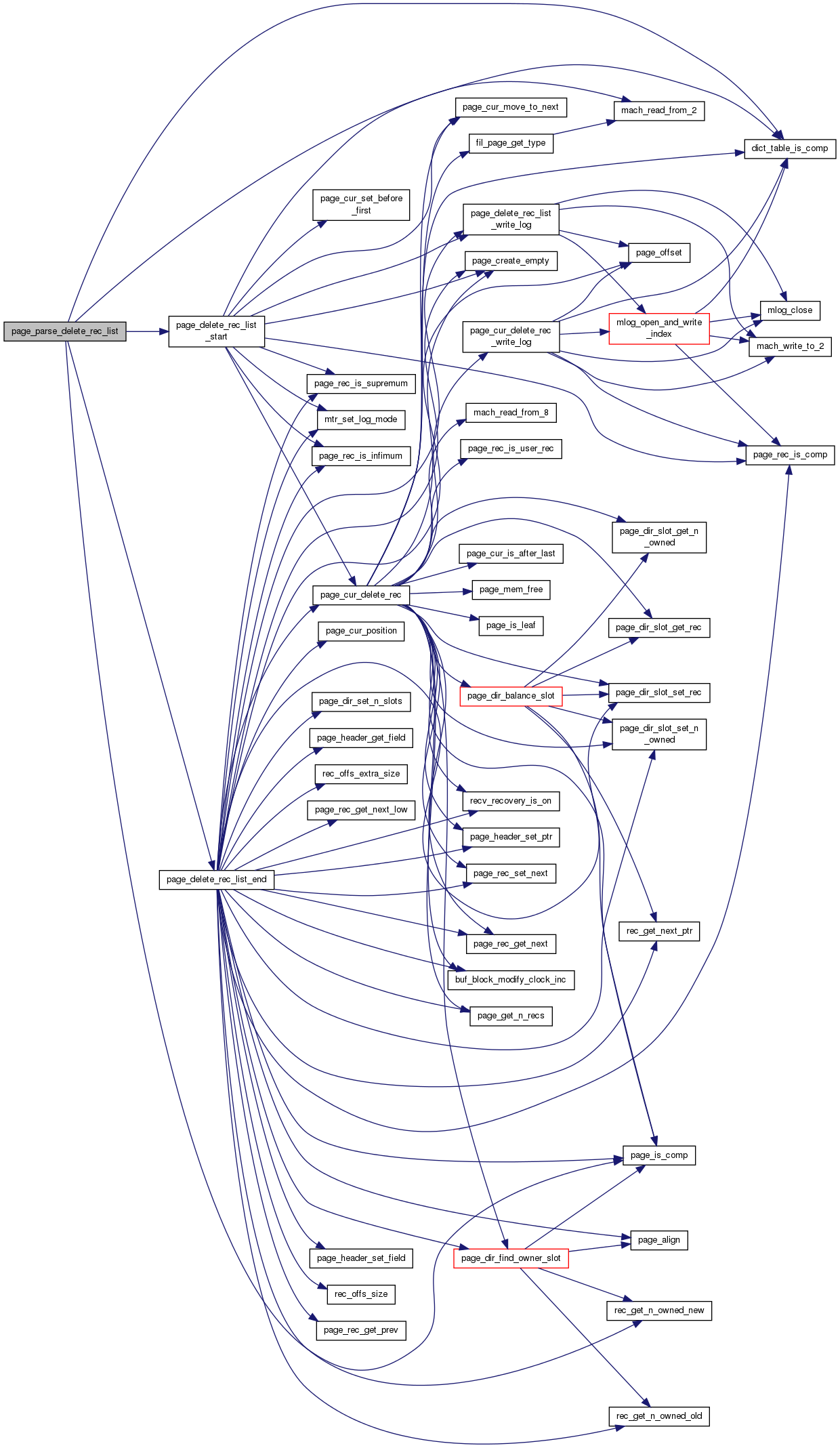

Here is the call graph for this function:

UNIV_INTERN ulint page_rec_get_n_recs_before ( const rec_t * rec )

Returns the number of records before the given record in chain. The number includes infimum and supremum records.

Returns: number of records

Parameters

rec	in: the physical record

Definition at line 1618 of file page0page.cc.

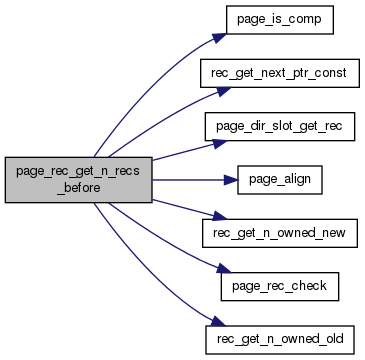

Here is the call graph for this function:

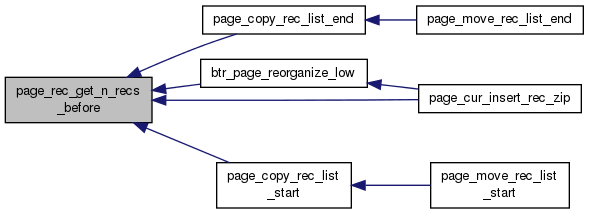

Here is the caller graph for this function:

UNIV_INTERN const rec_t* page_rec_get_nth_const	(	const page_t *	page,
		ulint	nth
	)

Returns the nth record of the record list. This is the inverse function of page_rec_get_n_recs_before().

Returns: nth record

Parameters

page	in: page
nth	in: nth record

Definition at line 1565 of file page0page.cc.

Here is the call graph for this function:

UNIV_INTERN void page_rec_print	(	const rec_t *	rec,
		const ulint *	offsets
	)

Prints record contents including the data relevant only in the index page context.

Parameters

rec	in: physical record
offsets	in: record descriptor

Definition at line 1683 of file page0page.cc.

Here is the call graph for this function:

UNIV_INTERN ibool page_rec_validate	(	const rec_t *	rec,
		const ulint *	offsets
	)

The following is used to validate a record on a page. This function differs from rec_validate as it can also check the n_owned field and the heap_no field.

Returns: TRUE if ok

Parameters

rec	in: physical record
offsets	in: array returned by rec_get_offsets()

Definition at line 1879 of file page0page.cc.

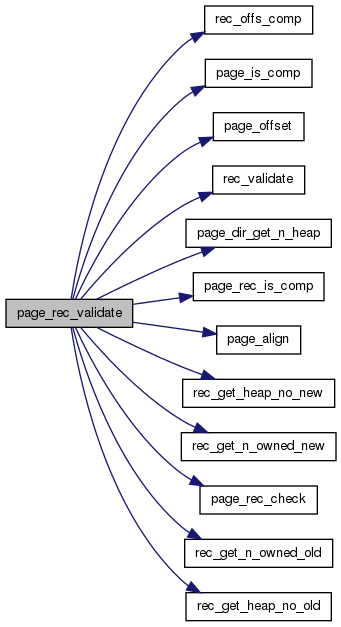

Here is the call graph for this function:

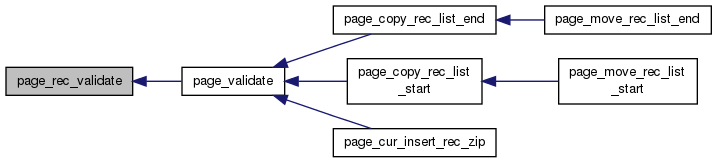

Here is the caller graph for this function:

UNIV_INTERN void page_set_max_trx_id	(	buf_block_t *	block,
		page_zip_des_t *	page_zip,
		trx_id_t	trx_id,
		mtr_t *	mtr
	)

Sets the max trx id field value.

Parameters

block	in/out: page
page_zip	in/out: compressed page, or NULL
trx_id	in: transaction id
mtr	in/out: mini-transaction, or NULL

Definition at line 210 of file page0page.cc.

Here is the call graph for this function:

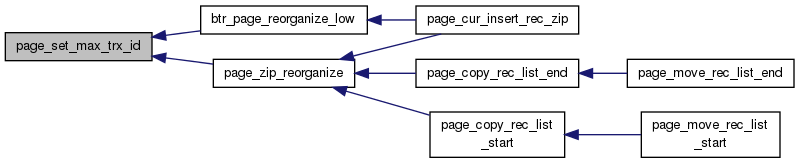

Here is the caller graph for this function:

UNIV_INTERN ibool page_simple_validate_new ( const page_t * page )

This function checks the consistency of an index page when we do not know the index. This is also resilient so that this should never crash even if the page is total garbage.

Returns: TRUE if ok

Parameters

page	in: index page in ROW_FORMAT!=REDUNDANT

Definition at line 2175 of file page0page.cc.

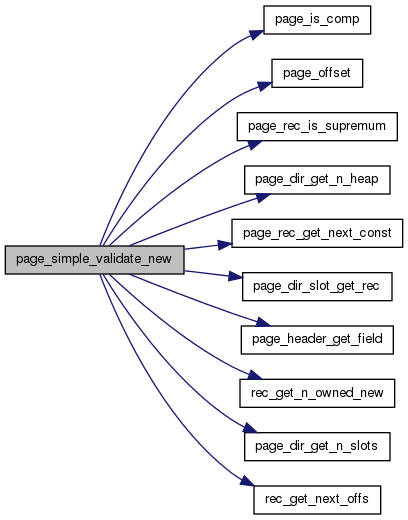

Here is the call graph for this function:

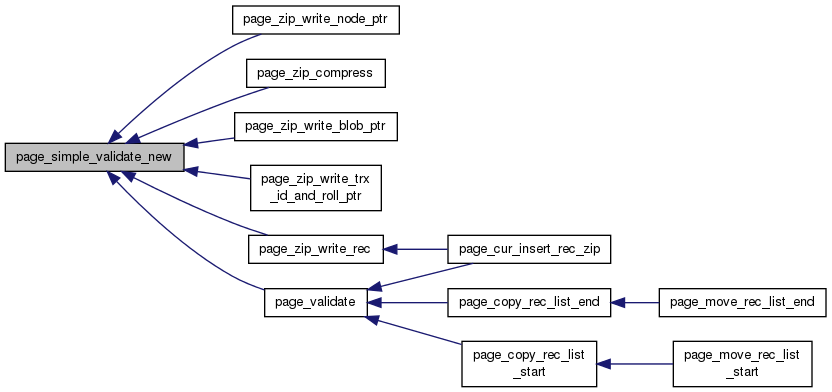

Here is the caller graph for this function:

UNIV_INTERN ibool page_simple_validate_old ( const page_t * page )

This function checks the consistency of an index page when we do not know the index. This is also resilient so that this should never crash even if the page is total garbage.
