log_event.h File Reference

Binary log event definitions. This includes generic code common to all types of log events, as well as specific code for each type of log event. More...

#include <my_bitmap.h>
#include "rpl_constants.h"
#include "table_id.h"
#include "log_event_old.h"

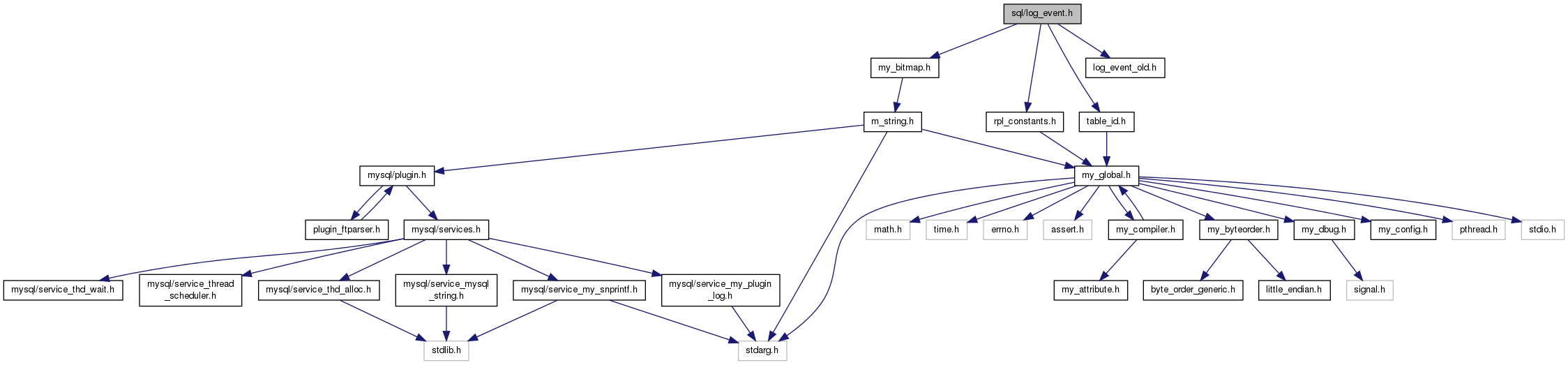

Include dependency graph for log_event.h:

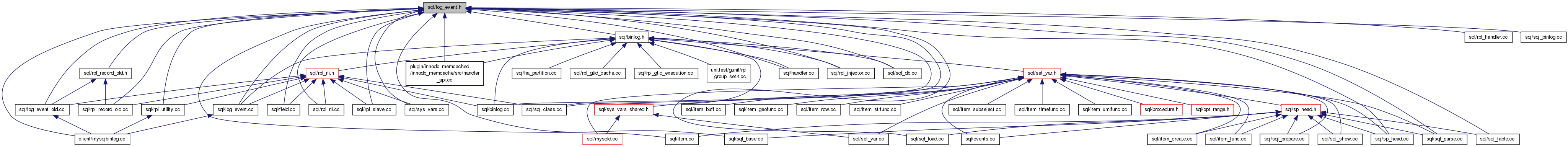

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	old_sql_ex
struct	sql_ex_info
class	Log_event
class	Query_log_event
class	Load_log_event
class	Start_log_event_v3
class	Format_description_log_event
class	Intvar_log_event
class	Rand_log_event
class	Xid_log_event
class	User_var_log_event
class	Stop_log_event
class	Rotate_log_event
class	Create_file_log_event
class	Append_block_log_event
class	Delete_file_log_event
class	Execute_load_log_event
class	Begin_load_query_log_event
class	Execute_load_query_log_event
class	Table_map_log_event
class	Rows_log_event
class	Write_rows_log_event
class	Update_rows_log_event
class	Delete_rows_log_event
class	Incident_log_event
class	Ignorable_log_event
class	Rows_query_log_event
class	Gtid_log_event
class	Previous_gtids_log_event

Macros
#define	PREFIX_SQL_LOAD   "SQL_LOAD-"
#define	TEMP_FILE_MAX_LEN   UUID_LENGTH+38
#define	ASSERT_OR_RETURN_ERROR(COND, ERRNO)   DBUG_ASSERT(COND)
#define	LOG_READ_EOF   -1
#define	LOG_READ_BOGUS   -2
#define	LOG_READ_IO   -3
#define	LOG_READ_MEM   -5
#define	LOG_READ_TRUNC   -6
#define	LOG_READ_TOO_LARGE   -7
#define	LOG_READ_CHECKSUM_FAILURE   -8
#define	LOG_EVENT_OFFSET   4
#define	BINLOG_VERSION   4
#define	ST_SERVER_VER_LEN   50
#define	DUMPFILE_FLAG   0x1
#define	OPT_ENCLOSED_FLAG   0x2
#define	REPLACE_FLAG   0x4
#define	IGNORE_FLAG   0x8
#define	FIELD_TERM_EMPTY   0x1
#define	ENCLOSED_EMPTY   0x2
#define	LINE_TERM_EMPTY   0x4
#define	LINE_START_EMPTY   0x8
#define	ESCAPED_EMPTY   0x10
#define	NUM_LOAD_DELIM_STRS   5
#define	LOG_EVENT_HEADER_LEN   19U /* the fixed header length */
#define	OLD_HEADER_LEN   13U /* the fixed header length in 3.23 */
#define	LOG_EVENT_MINIMAL_HEADER_LEN   19U
#define	QUERY_HEADER_MINIMAL_LEN   (4 + 4 + 1 + 2)
#define	QUERY_HEADER_LEN   (QUERY_HEADER_MINIMAL_LEN + 2)
#define	STOP_HEADER_LEN   0
#define	LOAD_HEADER_LEN   (4 + 4 + 4 + 1 +1 + 4)
#define	START_V3_HEADER_LEN   (2 + ST_SERVER_VER_LEN + 4)
#define	ROTATE_HEADER_LEN   8
#define	INTVAR_HEADER_LEN   0
#define	CREATE_FILE_HEADER_LEN   4
#define	APPEND_BLOCK_HEADER_LEN   4
#define	EXEC_LOAD_HEADER_LEN   4
#define	DELETE_FILE_HEADER_LEN   4
#define	NEW_LOAD_HEADER_LEN   LOAD_HEADER_LEN
#define	RAND_HEADER_LEN   0
#define	USER_VAR_HEADER_LEN   0
#define	FORMAT_DESCRIPTION_HEADER_LEN   (START_V3_HEADER_LEN+1+LOG_EVENT_TYPES)
#define	XID_HEADER_LEN   0
#define	BEGIN_LOAD_QUERY_HEADER_LEN   APPEND_BLOCK_HEADER_LEN
#define	ROWS_HEADER_LEN_V1   8
#define	TABLE_MAP_HEADER_LEN   8
#define	EXECUTE_LOAD_QUERY_EXTRA_HEADER_LEN   (4 + 4 + 4 + 1)
#define	EXECUTE_LOAD_QUERY_HEADER_LEN   (QUERY_HEADER_LEN + EXECUTE_LOAD_QUERY_EXTRA_HEADER_LEN)
#define	INCIDENT_HEADER_LEN   2
#define	HEARTBEAT_HEADER_LEN   0
#define	IGNORABLE_HEADER_LEN   0
#define	ROWS_HEADER_LEN_V2   10
#define	MAX_DBS_IN_EVENT_MTS   16
#define	OVER_MAX_DBS_IN_EVENT_MTS   254
#define	MAX_SIZE_LOG_EVENT_STATUS
#define	MAX_LOG_EVENT_HEADER
#define	MAX_MAX_ALLOWED_PACKET   1024*1024*1024
#define	EVENT_TYPE_OFFSET   4
#define	SERVER_ID_OFFSET   5
#define	EVENT_LEN_OFFSET   9
#define	LOG_POS_OFFSET   13
#define	FLAGS_OFFSET   17
#define	ST_BINLOG_VER_OFFSET   0
#define	ST_SERVER_VER_OFFSET   2
#define	ST_CREATED_OFFSET   (ST_SERVER_VER_OFFSET + ST_SERVER_VER_LEN)
#define	ST_COMMON_HEADER_LEN_OFFSET   (ST_CREATED_OFFSET + 4)
#define	SL_MASTER_PORT_OFFSET   8
#define	SL_MASTER_POS_OFFSET   0
#define	SL_MASTER_HOST_OFFSET   10
#define	Q_THREAD_ID_OFFSET   0
#define	Q_EXEC_TIME_OFFSET   4
#define	Q_DB_LEN_OFFSET   8
#define	Q_ERR_CODE_OFFSET   9
#define	Q_STATUS_VARS_LEN_OFFSET   11
#define	Q_DATA_OFFSET   QUERY_HEADER_LEN
#define	Q_FLAGS2_CODE   0
#define	Q_SQL_MODE_CODE   1
#define	Q_CATALOG_CODE   2
#define	Q_AUTO_INCREMENT   3
#define	Q_CHARSET_CODE   4
#define	Q_TIME_ZONE_CODE   5
#define	Q_CATALOG_NZ_CODE   6
#define	Q_LC_TIME_NAMES_CODE   7
#define	Q_CHARSET_DATABASE_CODE   8
#define	Q_TABLE_MAP_FOR_UPDATE_CODE   9
#define	Q_MASTER_DATA_WRITTEN_CODE   10
#define	Q_INVOKER   11
#define	Q_UPDATED_DB_NAMES   12
#define	Q_MICROSECONDS   13
#define	I_TYPE_OFFSET   0
#define	I_VAL_OFFSET   1
#define	RAND_SEED1_OFFSET   0
#define	RAND_SEED2_OFFSET   8
#define	UV_VAL_LEN_SIZE   4
#define	UV_VAL_IS_NULL   1
#define	UV_VAL_TYPE_SIZE   1
#define	UV_NAME_LEN_SIZE   4
#define	UV_CHARSET_NUMBER_SIZE   4
#define	L_THREAD_ID_OFFSET   0
#define	L_EXEC_TIME_OFFSET   4
#define	L_SKIP_LINES_OFFSET   8
#define	L_TBL_LEN_OFFSET   12
#define	L_DB_LEN_OFFSET   13
#define	L_NUM_FIELDS_OFFSET   14
#define	L_SQL_EX_OFFSET   18
#define	L_DATA_OFFSET   LOAD_HEADER_LEN
#define	R_POS_OFFSET   0
#define	R_IDENT_OFFSET   8
#define	CF_FILE_ID_OFFSET   0
#define	CF_DATA_OFFSET   CREATE_FILE_HEADER_LEN
#define	AB_FILE_ID_OFFSET   0
#define	AB_DATA_OFFSET   APPEND_BLOCK_HEADER_LEN
#define	EL_FILE_ID_OFFSET   0
#define	DF_FILE_ID_OFFSET   0
#define	TM_MAPID_OFFSET   0
#define	TM_FLAGS_OFFSET   6
#define	RW_MAPID_OFFSET   0
#define	RW_FLAGS_OFFSET   6
#define	RW_VHLEN_OFFSET   8
#define	RW_V_TAG_LEN   1
#define	RW_V_EXTRAINFO_TAG   0
#define	ELQ_FILE_ID_OFFSET   QUERY_HEADER_LEN
#define	ELQ_FN_POS_START_OFFSET   ELQ_FILE_ID_OFFSET + 4
#define	ELQ_FN_POS_END_OFFSET   ELQ_FILE_ID_OFFSET + 8
#define	ELQ_DUP_HANDLING_OFFSET   ELQ_FILE_ID_OFFSET + 12
#define	BINLOG_MAGIC   "\xfe\x62\x69\x6e"
#define	LOG_EVENT_BINLOG_IN_USE_F   0x1
#define	LOG_EVENT_THREAD_SPECIFIC_F   0x4
#define	LOG_EVENT_SUPPRESS_USE_F   0x8
#define	LOG_EVENT_ARTIFICIAL_F   0x20
#define	LOG_EVENT_RELAY_LOG_F   0x40
#define	LOG_EVENT_IGNORABLE_F   0x80
#define	LOG_EVENT_NO_FILTER_F   0x100
#define	LOG_EVENT_MTS_ISOLATE_F   0x200
#define	OPTIONS_WRITTEN_TO_BIN_LOG
#define	EXPECTED_OPTIONS   ((ULL(1) << 14) | (ULL(1) << 26) | (ULL(1) << 27) | (ULL(1) << 19))
#define	CHECKSUM_CRC32_SIGNATURE_LEN   4
#define	BINLOG_CHECKSUM_LEN   CHECKSUM_CRC32_SIGNATURE_LEN
#define	BINLOG_CHECKSUM_ALG_DESC_LEN   1 /* 1 byte checksum alg descriptor */
#define	LOG_EVENT_TYPES   (ENUM_END_EVENT-1)

Typedefs
typedef ulonglong	sql_mode_t
typedef struct st_db_worker_hash_entry	db_worker_hash_entry

Enumerations
enum	enum_binlog_checksum_alg { BINLOG_CHECKSUM_ALG_OFF = 0, BINLOG_CHECKSUM_ALG_CRC32 = 1, BINLOG_CHECKSUM_ALG_ENUM_END, BINLOG_CHECKSUM_ALG_UNDEF = 255 }
enum	Log_event_type {   UNKNOWN_EVENT = 0, START_EVENT_V3 = 1, QUERY_EVENT = 2, STOP_EVENT = 3,   ROTATE_EVENT = 4, INTVAR_EVENT = 5, LOAD_EVENT = 6, SLAVE_EVENT = 7,   CREATE_FILE_EVENT = 8, APPEND_BLOCK_EVENT = 9, EXEC_LOAD_EVENT = 10, DELETE_FILE_EVENT = 11,   NEW_LOAD_EVENT = 12, RAND_EVENT = 13, USER_VAR_EVENT = 14, FORMAT_DESCRIPTION_EVENT = 15,   XID_EVENT = 16, BEGIN_LOAD_QUERY_EVENT = 17, EXECUTE_LOAD_QUERY_EVENT = 18, TABLE_MAP_EVENT = 19,   PRE_GA_WRITE_ROWS_EVENT = 20, PRE_GA_UPDATE_ROWS_EVENT = 21, PRE_GA_DELETE_ROWS_EVENT = 22, WRITE_ROWS_EVENT_V1 = 23,   UPDATE_ROWS_EVENT_V1 = 24, DELETE_ROWS_EVENT_V1 = 25, INCIDENT_EVENT = 26, HEARTBEAT_LOG_EVENT = 27,   IGNORABLE_LOG_EVENT = 28, ROWS_QUERY_LOG_EVENT = 29, WRITE_ROWS_EVENT = 30, UPDATE_ROWS_EVENT = 31,   DELETE_ROWS_EVENT = 32, GTID_LOG_EVENT = 33, ANONYMOUS_GTID_LOG_EVENT = 34, PREVIOUS_GTIDS_LOG_EVENT = 35,   ENUM_END_EVENT }
enum	Int_event_type { INVALID_INT_EVENT = 0, LAST_INSERT_ID_EVENT = 1, INSERT_ID_EVENT = 2 }
enum	enum_load_dup_handling { LOAD_DUP_ERROR = 0, LOAD_DUP_IGNORE, LOAD_DUP_REPLACE }

Functions
char *	str_to_hex (char *to, const char *from, uint len)
int	append_query_string (THD *thd, const CHARSET_INFO *csinfo, String const *from, String *to)
bool	event_checksum_test (uchar *buf, ulong event_len, uint8 alg)
uint8	get_checksum_alg (const char *buf, ulong len)
bool	is_gtid_event (Log_event *evt)
ulong	version_product (const uchar *version_split)
void	do_server_version_split (char *version, uchar split_versions[3])
size_t	my_strmov_quoted_identifier (char *buffer, const char *identifier)
size_t	my_strmov_quoted_identifier_helper (int q, char *buffer, const char *identifier, uint length)

Variables
char	server_version [SERVER_VERSION_LENGTH]
TYPELIB	binlog_checksum_typelib

Detailed Description

Binary log event definitions. This includes generic code common to all types of log events, as well as specific code for each type of log event.

Definition in file log_event.h.
