#include <log_event.h>

Inheritance diagram for Load_log_event:

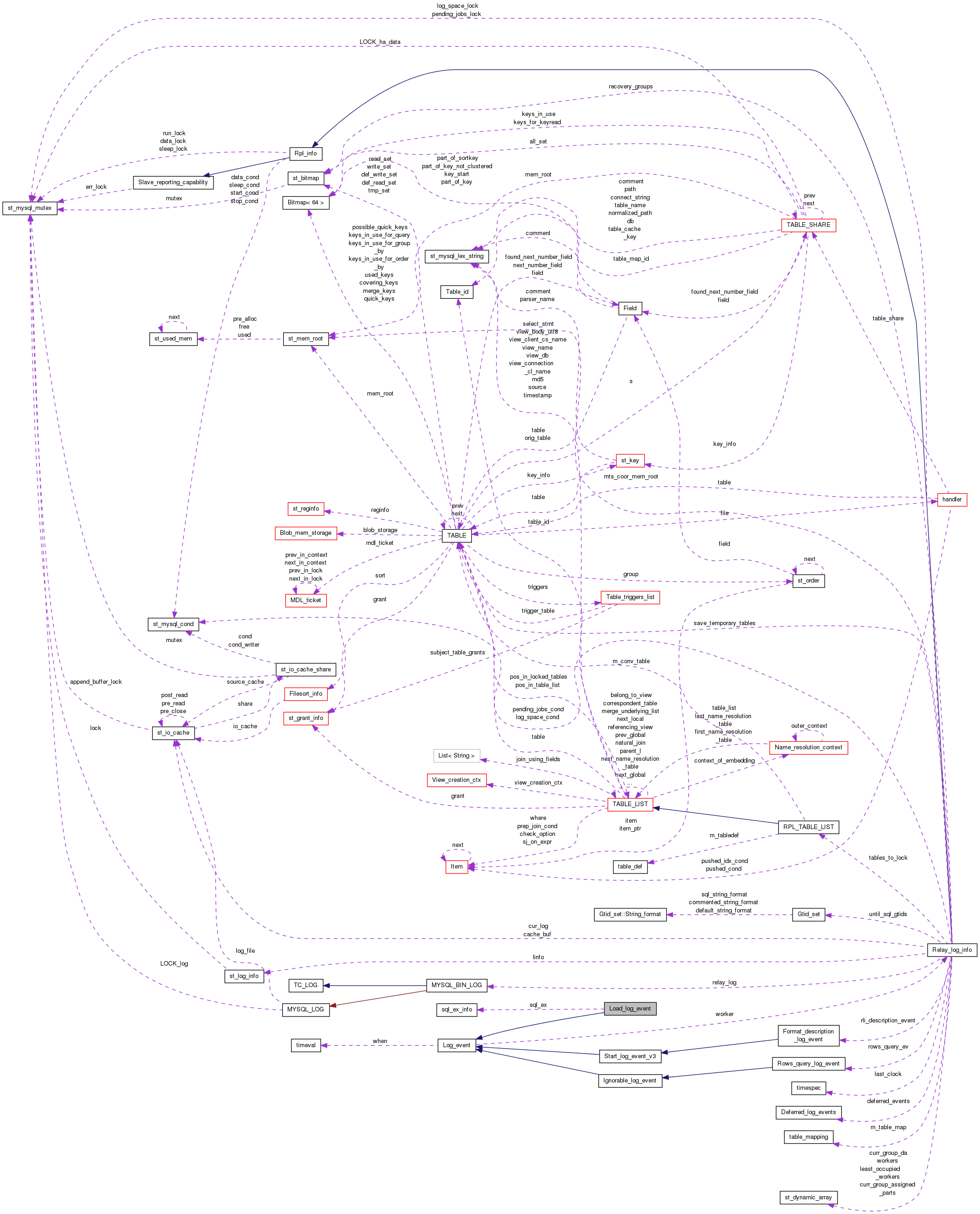

Collaboration diagram for Load_log_event:

Public Member Functions
uint	get_query_buffer_length ()
void	print_query (bool need_db, const char cs, char buf, char end, char fn_start, char **fn_end)
void	set_fname_outside_temp_buf (const char *afname, uint alen)
int	check_fname_outside_temp_buf ()
void	print (FILE file, PRINT_EVENT_INFO print_event_info)
void	print (FILE file, PRINT_EVENT_INFO print_event_info, bool commented)
	Load_log_event (const char buf, uint event_len, const Format_description_log_event description_event)
Log_event_type	get_type_code ()
bool	is_valid () const
int	get_data_size ()
Public Member Functions inherited from Log_event
	Log_event (enum_event_cache_type cache_type_arg=EVENT_INVALID_CACHE, enum_event_logging_type logging_type_arg=EVENT_INVALID_LOGGING)
void	print_timestamp (IO_CACHE file, time_t ts)
void	print_header (IO_CACHE file, PRINT_EVENT_INFO print_event_info, bool is_more)
void	print_base64 (IO_CACHE file, PRINT_EVENT_INFO print_event_info, bool is_more)
bool	wrapper_my_b_safe_write (IO_CACHE file, const uchar buf, ulong data_length)
void	set_artificial_event ()
void	set_relay_log_event ()
bool	is_artificial_event () const
bool	is_relay_log_event () const
bool	is_ignorable_event () const
bool	is_no_filter_event () const
bool	is_using_trans_cache () const
bool	is_using_stmt_cache () const
bool	is_using_immediate_logging () const
	Log_event (const char buf, const Format_description_log_event description_event)
void	register_temp_buf (char *buf)
void	free_temp_buf ()
const char *	get_type_str ()

Public Attributes
ulong	thread_id
ulong	slave_proxy_id
uint32	table_name_len
uint32	db_len
uint32	fname_len
uint32	num_fields
const char *	fields
const uchar *	field_lens
uint32	field_block_len
const char *	table_name
const char *	db
const char *	fname
uint32	skip_lines
sql_ex_info	sql_ex
bool	local_fname
bool	is_concurrent
Public Attributes inherited from Log_event
my_off_t	log_pos
char *	temp_buf
struct timeval	when
ulong	exec_time
ulong	data_written
uint32	server_id
uint32	unmasked_server_id
uint16	flags
ulong	slave_exec_mode
enum_event_cache_type	event_cache_type
enum_event_logging_type	event_logging_type
ha_checksum	crc
ulong	mts_group_idx
Relay_log_info *	worker
ulonglong	future_event_relay_log_pos
uint8	checksum_alg

Protected Member Functions
int	copy_log_event (const char buf, ulong event_len, int body_offset, const Format_description_log_event description_event)

Additional Inherited Members
Public Types inherited from Log_event
enum	enum_skip_reason { EVENT_SKIP_NOT, EVENT_SKIP_IGNORE, EVENT_SKIP_COUNT }
typedef unsigned char	Byte
Static Public Member Functions inherited from Log_event
static Log_event *	read_log_event (IO_CACHE file, const Format_description_log_event description_event, my_bool crc_check)
static void *	operator new (size_t size)
static void	operator delete (void *ptr, size_t)
static void *	operator new (size_t, void *ptr)
static void	operator delete (void , void )
static Log_event *	read_log_event (const char buf, uint event_len, const char error, const Format_description_log_event description_event, my_bool crc_check)
static const char *	get_type_str (Log_event_type type)
Protected Types inherited from Log_event
enum	enum_event_cache_type { EVENT_INVALID_CACHE = 0, EVENT_STMT_CACHE, EVENT_TRANSACTIONAL_CACHE, EVENT_NO_CACHE, EVENT_CACHE_COUNT }
enum	enum_event_logging_type { EVENT_INVALID_LOGGING = 0, EVENT_NORMAL_LOGGING, EVENT_IMMEDIATE_LOGGING, EVENT_CACHE_LOGGING_COUNT }

Detailed Description

This log event corresponds to a "LOAD DATA INFILE" SQL query on the following form:

 (1)    USE db;
 (2)    LOAD DATA [CONCURRENT] [LOCAL] INFILE 'file_name'
 (3)    [REPLACE | IGNORE]
 (4)    INTO TABLE 'table_name'
 (5)    [FIELDS
 (6)      [TERMINATED BY 'field_term']
 (7)      [[OPTIONALLY] ENCLOSED BY 'enclosed']
 (8)      [ESCAPED BY 'escaped']
 (9)    ]
(10)    [LINES
(11)      [TERMINATED BY 'line_term']
(12)      [LINES STARTING BY 'line_start']
(13)    ]
(14)    [IGNORE skip_lines LINES]
(15)    (field_1, field_2, ..., field_n)

Binary Format

The Post-Header consists of the following six components.

Post-Header for Load_log_event
Name	Format	Description
slave_proxy_id	4 byte unsigned integer	An integer identifying the client thread that issued the query. The id is unique per server. (Note, however, that two threads on different servers may have the same slave_proxy_id.) This is used when a client thread creates a temporary table local to the client. The slave_proxy_id is used to distinguish temporary tables that belong to different clients.
exec_time	4 byte unsigned integer	The time from when the query started to when it was logged in the binlog, in seconds.
skip_lines	4 byte unsigned integer	The number on line (14) above, if present, or 0 if line (14) is left out.
table_name_len	1 byte unsigned integer	The length of 'table_name' on line (4) above.
db_len	1 byte unsigned integer	The length of 'db' on line (1) above.
num_fields	4 byte unsigned integer	The number n of fields on line (15) above.

The Body contains the following components.

Body of Load_log_event
Name	Format	Description
sql_ex	variable length	Describes the part of the query on lines (3) and (5)–(13) above. More precisely, it stores the five strings (on lines) field_term (6), enclosed (7), escaped (8), line_term (11), and line_start (12); as well as a bitfield indicating the presence of the keywords REPLACE (3), IGNORE (3), and OPTIONALLY (7). The data is stored in one of two formats, called "old" and "new". The type field of Common-Header determines which of these two formats is used: type LOAD_EVENT means that the old format is used, and type NEW_LOAD_EVENT means that the new format is used. When MySQL writes a Load_log_event, it uses the new format if at least one of the five strings is two or more bytes long. Otherwise (i.e., if all strings are 0 or 1 bytes long), the old format is used. The new and old format differ in the way the five strings are stored. In the new format, the strings are stored in the order field_term, enclosed, escaped, line_term, line_start. Each string consists of a length (1 byte), followed by a sequence of characters (0-255 bytes). Finally, a boolean combination of the following flags is stored in 1 byte: REPLACE_FLAG==0x4, IGNORE_FLAG==0x8, and OPT_ENCLOSED_FLAG==0x2. If a flag is set, it indicates the presence of the corresponding keyword in the SQL query. In the old format, we know that each string has length 0 or Therefore, only the first byte of each string is stored. The order of the strings is the same as in the new format. These five bytes are followed by the same 1 byte bitfield as in the new format. Finally, a 1 byte bitfield called empty_flags is stored. The low 5 bits of empty_flags indicate which of the five strings have length 0. For each of the following flags that is set, the corresponding string has length 0; for the flags that are not set, the string has length 1: FIELD_TERM_EMPTY==0x1, ENCLOSED_EMPTY==0x2, LINE_TERM_EMPTY==0x4, LINE_START_EMPTY==0x8, ESCAPED_EMPTY==0x10. Thus, the size of the new format is 6 bytes + the sum of the sizes of the five strings. The size of the old format is always 7 bytes.
field_lens	num_fields 1 byte unsigned integers	An array of num_fields integers representing the length of each field in the query. (num_fields is from the Post-Header).
fields	num_fields null-terminated strings	An array of num_fields null-terminated strings, each representing a field in the query. (The trailing zero is redundant, since the length are stored in the num_fields array.) The total length of all strings equals to the sum of all field_lens, plus num_fields bytes for all the trailing zeros.
table_name	null-terminated string of length table_len+1 bytes	The 'table_name' from the query, as a null-terminated string. (The trailing zero is actually redundant since the table_len is known from Post-Header.)
db	null-terminated string of length db_len+1 bytes	The 'db' from the query, as a null-terminated string. (The trailing zero is actually redundant since the db_len is known from Post-Header.)
file_name	variable length string without trailing zero, extending to the end of the event (determined by the length field of the Common-Header)	The 'file_name' from the query.

Notes on Previous Versions

This event type is understood by current versions, but only generated by MySQL 3.23 and earlier.

Definition at line 2428 of file log_event.h.

Constructor & Destructor Documentation

Load_log_event::Load_log_event	(	const char *	buf,
		uint	event_len,
		const Format_description_log_event *	description_event
	)

Note: The caller must do buf[event_len] = 0 before he starts using the constructed event.

Definition at line 5979 of file log_event.cc.

Here is the call graph for this function:

Member Data Documentation

bool Load_log_event::is_concurrent

Indicates that this event corresponds to LOAD DATA CONCURRENT,

Note: Since Load_log_event event coming from the binary log lacks information whether LOAD DATA on master was concurrent or not, this flag is only set to TRUE for an auxiliary Load_log_event object which is used in mysql_load() to re-construct LOAD DATA statement from function parameters, for logging.

Definition at line 2471 of file log_event.h.

The documentation for this class was generated from the following files:

sql/log_event.h
sql/log_event.cc
