#include <log_event.h>

Inheritance diagram for Xid_log_event:

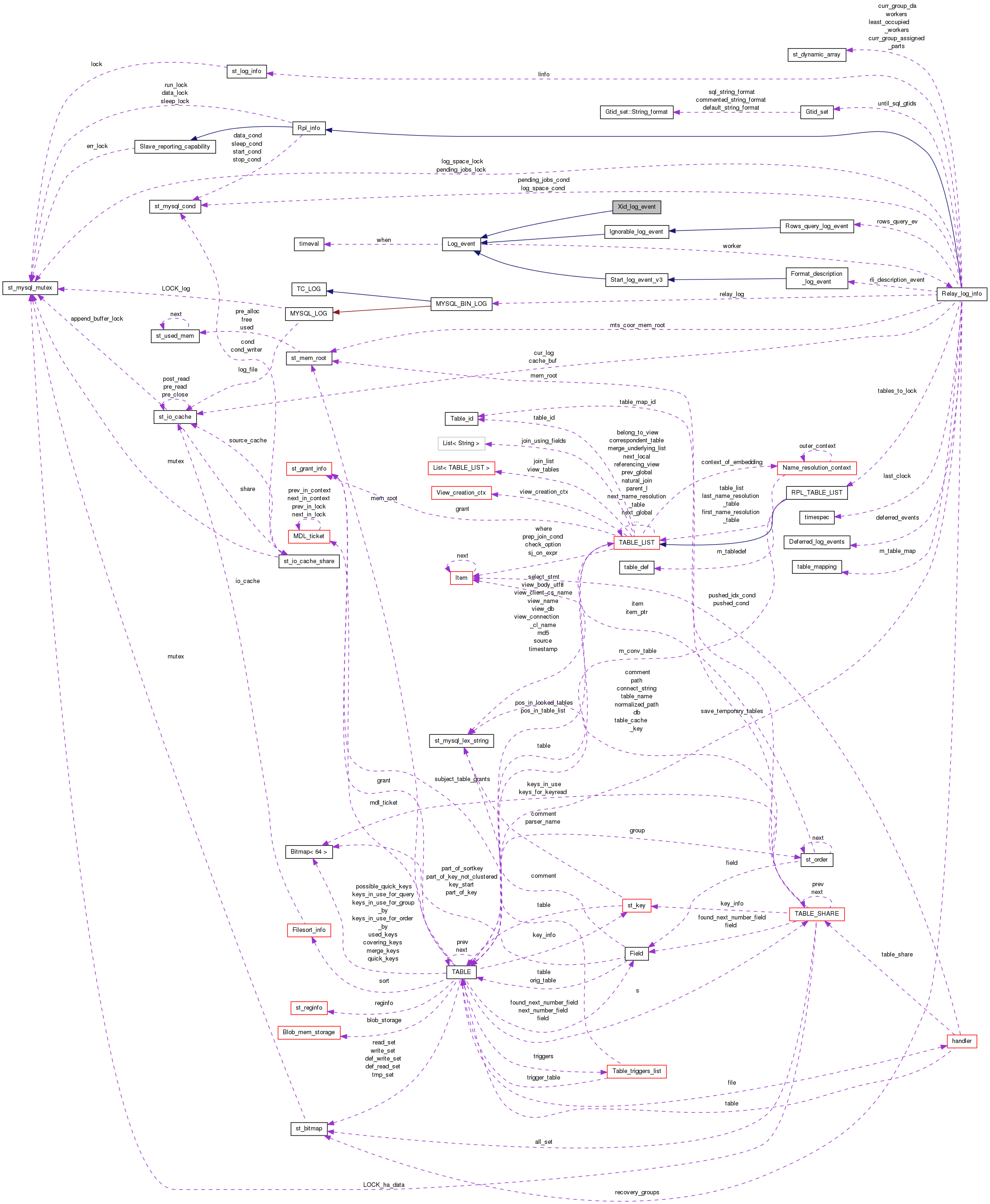

Collaboration diagram for Xid_log_event:

Public Member Functions
void	print (FILE file, PRINT_EVENT_INFO print_event_info)
	Xid_log_event (const char buf, const Format_description_log_event description_event)
Log_event_type	get_type_code ()
int	get_data_size ()
bool	is_valid () const
virtual bool	ends_group ()
Public Member Functions inherited from Log_event
	Log_event (enum_event_cache_type cache_type_arg=EVENT_INVALID_CACHE, enum_event_logging_type logging_type_arg=EVENT_INVALID_LOGGING)
void	print_timestamp (IO_CACHE file, time_t ts)
void	print_header (IO_CACHE file, PRINT_EVENT_INFO print_event_info, bool is_more)
void	print_base64 (IO_CACHE file, PRINT_EVENT_INFO print_event_info, bool is_more)
bool	wrapper_my_b_safe_write (IO_CACHE file, const uchar buf, ulong data_length)
void	set_artificial_event ()
void	set_relay_log_event ()
bool	is_artificial_event () const
bool	is_relay_log_event () const
bool	is_ignorable_event () const
bool	is_no_filter_event () const
bool	is_using_trans_cache () const
bool	is_using_stmt_cache () const
bool	is_using_immediate_logging () const
	Log_event (const char buf, const Format_description_log_event description_event)
void	register_temp_buf (char *buf)
void	free_temp_buf ()
const char *	get_type_str ()

Public Attributes
my_xid	xid
Public Attributes inherited from Log_event
my_off_t	log_pos
char *	temp_buf
struct timeval	when
ulong	exec_time
ulong	data_written
uint32	server_id
uint32	unmasked_server_id
uint16	flags
ulong	slave_exec_mode
enum_event_cache_type	event_cache_type
enum_event_logging_type	event_logging_type
ha_checksum	crc
ulong	mts_group_idx
Relay_log_info *	worker
ulonglong	future_event_relay_log_pos
uint8	checksum_alg

Additional Inherited Members
Public Types inherited from Log_event
enum	enum_skip_reason { EVENT_SKIP_NOT, EVENT_SKIP_IGNORE, EVENT_SKIP_COUNT }
typedef unsigned char	Byte
Static Public Member Functions inherited from Log_event
static Log_event *	read_log_event (IO_CACHE file, const Format_description_log_event description_event, my_bool crc_check)
static void *	operator new (size_t size)
static void	operator delete (void *ptr, size_t)
static void *	operator new (size_t, void *ptr)
static void	operator delete (void , void )
static Log_event *	read_log_event (const char buf, uint event_len, const char error, const Format_description_log_event description_event, my_bool crc_check)
static const char *	get_type_str (Log_event_type type)
Protected Types inherited from Log_event
enum	enum_event_cache_type { EVENT_INVALID_CACHE = 0, EVENT_STMT_CACHE, EVENT_TRANSACTIONAL_CACHE, EVENT_NO_CACHE, EVENT_CACHE_COUNT }
enum	enum_event_logging_type { EVENT_INVALID_LOGGING = 0, EVENT_NORMAL_LOGGING, EVENT_IMMEDIATE_LOGGING, EVENT_CACHE_LOGGING_COUNT }

Detailed Description

Logs xid of the transaction-to-be-committed in the 2pc protocol. Has no meaning in replication, slaves ignore it.

Binary Format

Definition at line 2885 of file log_event.h.

Xid_log_event::Xid_log_event	(	const char *	buf,
		const Format_description_log_event *	description_event
	)

Note: It's ok not to use int8store here, as long as xid_t::set(ulonglong) and xid_t::get_my_xid doesn't do it either. We don't care about actual values of xids as long as identical numbers compare identically

Definition at line 7159 of file log_event.cc.

The documentation for this class was generated from the following files:
