Class of operations for use in transactions. More...

#include <NdbOperation.hpp>

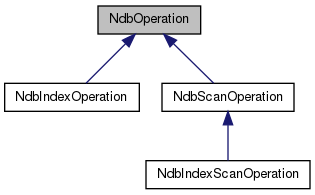

Inheritance diagram for NdbOperation:

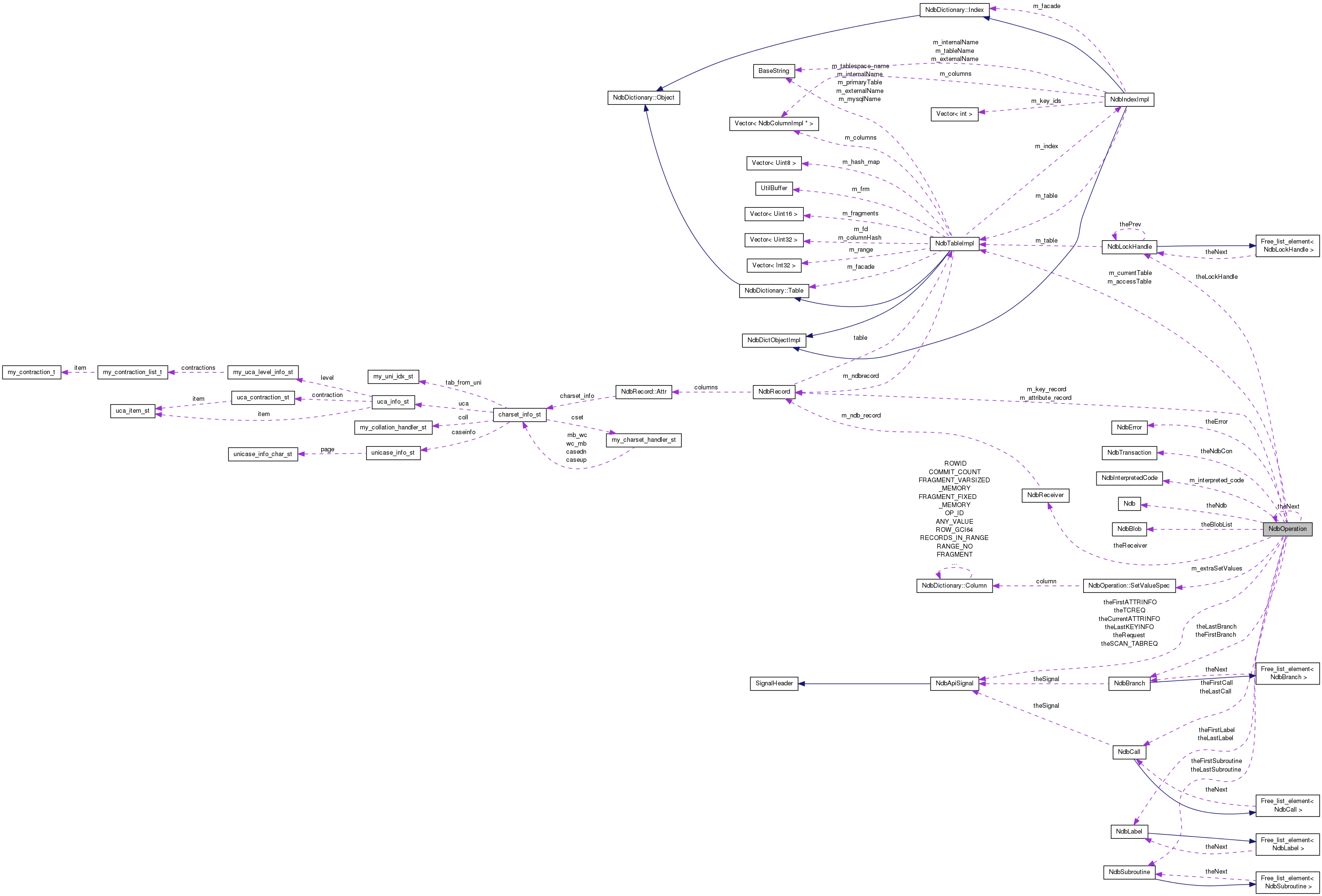

Collaboration diagram for NdbOperation:

Classes
struct	GetValueSpec
struct	OperationOptions
struct	SetValueSpec

Public Types
enum	OperationType { ReadRequest = 0, UpdateRequest = 1, InsertRequest = 2, DeleteRequest = 3, WriteRequest = 4, ReadExclusive = 5, RefreshRequest = 6, UnlockRequest = 7, OpenScanRequest, OpenRangeScanRequest, NotDefined2, NotDefined }

Public Member Functions
LockMode	getLockMode () const
AbortOption	getAbortOption () const
int	setAbortOption (AbortOption)
virtual NdbTransaction *	getNdbTransaction () const
void	setPartitionId (Uint32 id)
Uint32	getPartitionId () const
const NdbLockHandle *	getLockHandle () const
const NdbLockHandle *	getLockHandle ()
const NdbOperation *	next () const
const NdbRecAttr *	getFirstRecAttr () const
void *	getCustomData () const
void	setCustomData (void *p)
Define Interpreted Program Operation Type
virtual int	interpretedUpdateTuple ()
virtual int	interpretedDeleteTuple ()
Specify Search Conditions
int	equal (const char anAttrName, const char aValue, Uint32 len)
int	equal (const char anAttrName, const char aValue)
int	equal (const char *anAttrName, Int32 aValue)
int	equal (const char *anAttrName, Uint32 aValue)
int	equal (const char *anAttrName, Int64 aValue)
int	equal (const char *anAttrName, Uint64 aValue)
int	equal (Uint32 anAttrId, const char *aValue, Uint32 len)
int	equal (Uint32 anAttrId, const char *aValue)
int	equal (Uint32 anAttrId, Int32 aValue)
int	equal (Uint32 anAttrId, Uint32 aValue)
int	equal (Uint32 anAttrId, Int64 aValue)
int	equal (Uint32 anAttrId, Uint64 aValue)
Specify Attribute Actions for Operations

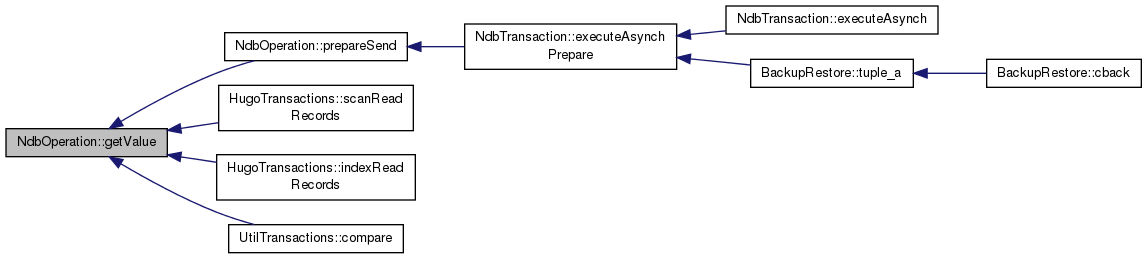

NdbRecAttr *	getValue (const char anAttrName, char aValue=0)
NdbRecAttr *	getValue (Uint32 anAttrId, char *aValue=0)
NdbRecAttr *	getValue (const NdbDictionary::Column , char val=0)
int	setValue (const char anAttrName, const char aValue, Uint32 len)
int	setValue (const char anAttrName, const char aValue)
int	setValue (const char *anAttrName, Int32 aValue)
int	setValue (const char *anAttrName, Uint32 aValue)
int	setValue (const char *anAttrName, Int64 aValue)
int	setValue (const char *anAttrName, Uint64 aValue)
int	setValue (const char *anAttrName, float aValue)
int	setValue (const char *anAttrName, double aValue)
int	setAnyValue (Uint32 aValue)
int	setOptimize (Uint32 options)
int	setValue (Uint32 anAttrId, const char *aValue, Uint32 len)
int	setValue (Uint32 anAttrId, const char *aValue)
int	setValue (Uint32 anAttrId, Int32 aValue)
int	setValue (Uint32 anAttrId, Uint32 aValue)
int	setValue (Uint32 anAttrId, Int64 aValue)
int	setValue (Uint32 anAttrId, Uint64 aValue)
int	setValue (Uint32 anAttrId, float aValue)
int	setValue (Uint32 anAttrId, double aValue)
virtual NdbBlob *	getBlobHandle (const char *anAttrName)
virtual NdbBlob *	getBlobHandle (Uint32 anAttrId)
virtual NdbBlob *	getBlobHandle (const char *anAttrName) const
virtual NdbBlob *	getBlobHandle (Uint32 anAttrId) const
Specify Interpreted Program Instructions
int	incValue (const char *anAttrName, Uint32 aValue)
int	incValue (const char *anAttrName, Uint64 aValue)
int	incValue (Uint32 anAttrId, Uint32 aValue)
int	incValue (Uint32 anAttrId, Uint64 aValue)
int	subValue (const char *anAttrName, Uint32 aValue)
int	subValue (const char *anAttrName, Uint64 aValue)
int	subValue (Uint32 anAttrId, Uint32 aValue)
int	subValue (Uint32 anAttrId, Uint64 aValue)
int	def_label (int labelNumber)
int	add_reg (Uint32 RegSource1, Uint32 RegSource2, Uint32 RegDest)
int	sub_reg (Uint32 RegSource1, Uint32 RegSource2, Uint32 RegDest)
int	load_const_u32 (Uint32 RegDest, Uint32 Constant)
int	load_const_u64 (Uint32 RegDest, Uint64 Constant)
int	load_const_null (Uint32 RegDest)
int	read_attr (const char *anAttrName, Uint32 RegDest)
int	write_attr (const char *anAttrName, Uint32 RegSource)
int	read_attr (Uint32 anAttrId, Uint32 RegDest)
int	write_attr (Uint32 anAttrId, Uint32 RegSource)
int	branch_ge (Uint32 RegLvalue, Uint32 RegRvalue, Uint32 Label)
int	branch_gt (Uint32 RegLvalue, Uint32 RegRvalue, Uint32 Label)
int	branch_le (Uint32 RegLvalue, Uint32 RegRvalue, Uint32 Label)
int	branch_lt (Uint32 RegLvalue, Uint32 RegRvalue, Uint32 Label)
int	branch_eq (Uint32 RegLvalue, Uint32 RegRvalue, Uint32 Label)
int	branch_ne (Uint32 RegLvalue, Uint32 RegRvalue, Uint32 Label)
int	branch_ne_null (Uint32 RegLvalue, Uint32 Label)
int	branch_eq_null (Uint32 RegLvalue, Uint32 Label)
int	branch_label (Uint32 Label)
int	branch_col_eq_null (Uint32 ColId, Uint32 Label)
int	branch_col_ne_null (Uint32 ColId, Uint32 Label)
int	branch_col_eq (Uint32 ColId, const void *val, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_ne (Uint32 ColId, const void *val, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_lt (Uint32 ColId, const void *val, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_le (Uint32 ColId, const void *val, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_gt (Uint32 ColId, const void *val, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_ge (Uint32 ColId, const void *val, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_like (Uint32 ColId, const void *, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_notlike (Uint32 ColId, const void *, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_and_mask_eq_mask (Uint32 ColId, const void *, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_and_mask_ne_mask (Uint32 ColId, const void *, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_and_mask_eq_zero (Uint32 ColId, const void *, Uint32 len, bool nopad, Uint32 Label)
int	branch_col_and_mask_ne_zero (Uint32 ColId, const void *, Uint32 len, bool nopad, Uint32 Label)
int	interpret_exit_ok ()
int	interpret_exit_nok (Uint32 ErrorCode)
int	interpret_exit_nok ()
int	interpret_exit_last_row ()
int	def_subroutine (int SubroutineNumber)
int	call_sub (Uint32 Subroutine)
int	ret_sub ()
Error Handling
const NdbError &	getNdbError () const
int	getNdbErrorLine ()
int	getNdbErrorLine () const
const char *	getTableName () const

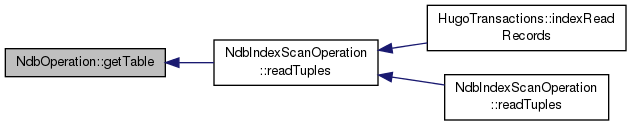

const NdbDictionary::Table *	getTable () const
Type	getType () const

Protected Types
enum	OperationStatus { Init, OperationDefined, TupleKeyDefined, GetValue, SetValue, ExecInterpretedValue, SetValueInterpreted, FinalGetValue, SubroutineExec, SubroutineEnd, WaitResponse, Finished, UseNdbRecord }
enum	OP_FLAGS { OF_NO_DISK = 0x1, OF_USE_ANY_VALUE = 0x2, OF_QUEUEABLE = 0x4, OF_DEFERRED_CONSTRAINTS = 0x8 }

Protected Member Functions
bool	needReply ()
int	init (const class NdbTableImpl , NdbTransaction aCon, bool useRec)
void	initInterpreter ()
	NdbOperation (Ndb *aNdb, Type aType=PrimaryKeyAccess)
void	next (NdbOperation *)
NdbOperation *	next ()
OperationStatus	Status ()
void	Status (OperationStatus)
void	NdbCon (NdbTransaction *)
virtual void	release ()
void	postExecuteRelease ()
void	setStartIndicator ()
int	doSendKeyReq (int processorId, GenericSectionPtr *secs, Uint32 numSecs)
int	doSend (int ProcessorId, Uint32 lastFlag)
virtual int	prepareSend (Uint32 TC_ConnectPtr, Uint64 TransactionId, AbortOption)
virtual void	setLastFlag (NdbApiSignal *signal, Uint32 lastFlag)
int	prepareSendInterpreted ()
int	initInterpretedInfo (const NdbInterpretedCode code, Uint32 &interpretedInfo, Uint32 stackSpace, Uint32 stackSpaceEntries, Uint32 &dynamicSpace)
void	freeInterpretedInfo (Uint32 *&dynamicSpace)
int	buildInterpretedProgramSignals (Uint32 aTC_ConnectPtr, Uint64 aTransId, Uint32 *attrInfoPtr, Uint32 remain, const NdbInterpretedCode code, Uint32 interpretedWorkspace, bool mainProgram, Uint32 &wordsWritten)
int	buildSignalsNdbRecord (Uint32 aTC_ConnectPtr, Uint64 aTransId, const Uint32 *read_mask)
int	prepareSendNdbRecord (AbortOption ao)
Uint32	fillTcKeyReqHdr (TcKeyReq *tcKeyReq, Uint32 connectPtr, Uint64 transId)
int	allocKeyInfo ()
int	allocAttrInfo ()
int	insertKEYINFO_NdbRecord (const char *value, Uint32 byteSize)
int	insertATTRINFOHdr_NdbRecord (Uint32 attrId, Uint32 attrLen)
int	insertATTRINFOData_NdbRecord (const char *value, Uint32 size)
int	receiveTCKEYREF (const NdbApiSignal *)
int	checkMagicNumber (bool b=true)
int	checkState_TransId (const NdbApiSignal *aSignal)
virtual int	equal_impl (const NdbColumnImpl , const char aValue)
virtual NdbRecAttr *	getValue_impl (const NdbColumnImpl , char aValue=0)
NdbRecAttr *	getValue_NdbRecord (const NdbColumnImpl tAttrInfo, char aValue)
int	setValue (const NdbColumnImpl anAttrObject, const char aValue)
NdbBlob *	getBlobHandle (NdbTransaction aCon, const NdbColumnImpl anAttrObject)
NdbBlob *	getBlobHandle (NdbTransaction aCon, const NdbColumnImpl anAttrObject) const
int	incValue (const NdbColumnImpl *anAttrObject, Uint32 aValue)
int	incValue (const NdbColumnImpl *anAttrObject, Uint64 aValue)
int	subValue (const NdbColumnImpl *anAttrObject, Uint32 aValue)
int	subValue (const NdbColumnImpl *anAttrObject, Uint64 aValue)
int	read_attr (const NdbColumnImpl *anAttrObject, Uint32 RegDest)
int	write_attr (const NdbColumnImpl *anAttrObject, Uint32 RegSource)
int	branch_reg_reg (Uint32 type, Uint32, Uint32, Uint32)
int	branch_col (Uint32 type, Uint32, const void *, Uint32, Uint32 Label)
int	branch_col_null (Uint32 type, Uint32 col, Uint32 Label)
NdbBlob *	linkInBlobHandle (NdbTransaction aCon, const NdbColumnImpl column, NdbBlob *&lastPtr)
int	getBlobHandlesNdbRecord (NdbTransaction aCon, const Uint32 mask)
int	getBlobHandlesNdbRecordDelete (NdbTransaction aCon, bool checkReadSet, const Uint32 mask)
int	insertATTRINFO (Uint32 aData)
int	insertATTRINFOloop (const Uint32 *aDataPtr, Uint32 aLength)
int	insertKEYINFO (const char *aValue, Uint32 aStartPosition, Uint32 aKeyLenInByte)
void	reorderKEYINFO ()
virtual void	setErrorCode (int aErrorCode) const
virtual void	setErrorCodeAbort (int aErrorCode) const
bool	isNdbRecordOperation ()
int	incCheck (const NdbColumnImpl *anAttrObject)
int	initial_interpreterCheck ()
int	intermediate_interpreterCheck ()
int	read_attrCheck (const NdbColumnImpl *anAttrObject)
int	write_attrCheck (const NdbColumnImpl *anAttrObject)
int	labelCheck ()
int	insertCall (Uint32 aCall)
int	insertBranch (Uint32 aBranch)
Uint32	ptr2int ()
Uint32	ptr2int () const
int	getKeyFromTCREQ (Uint32 *data, Uint32 &size)
int	getLockHandleImpl ()
int	prepareGetLockHandle ()
int	prepareGetLockHandleNdbRecord ()
virtual void	setReadLockMode (LockMode lockMode)
NdbRecAttr *	getVarValue (const NdbColumnImpl , char aBareValue, Uint16 *aLenLoc)
int	setVarValue (const NdbColumnImpl , const char aBareValue, const Uint16 &aLen)
Uint32	repack_read (Uint32 len)

Static Protected Member Functions
static int	handleOperationOptions (const OperationType type, const OperationOptions opts, const Uint32 sizeOfOptions, NdbOperation op)

Protected Attributes
void *	m_customData
Type	m_type
NdbReceiver	theReceiver
NdbError	theError
int	theErrorLine
Ndb *	theNdb
NdbTransaction *	theNdbCon
NdbOperation *	theNext
union {
NdbApiSignal * theTCREQ
NdbApiSignal * theSCAN_TABREQ
NdbApiSignal * theRequest
};
NdbApiSignal *	theFirstATTRINFO
NdbApiSignal *	theCurrentATTRINFO
Uint32	theTotalCurrAI_Len
Uint32	theAI_LenInCurrAI
NdbApiSignal *	theLastKEYINFO
class NdbLabel *	theFirstLabel
class NdbLabel *	theLastLabel
class NdbBranch *	theFirstBranch
class NdbBranch *	theLastBranch
class NdbCall *	theFirstCall
class NdbCall *	theLastCall
class NdbSubroutine *	theFirstSubroutine
class NdbSubroutine *	theLastSubroutine
Uint32	theNoOfLabels
Uint32	theNoOfSubroutines
Uint32 *	theKEYINFOptr
Uint32	keyInfoRemain
Uint32 *	theATTRINFOptr
Uint32	attrInfoRemain
class NdbTableImpl *	m_currentTable
class NdbTableImpl *	m_accessTable
Uint32	theTupleKeyDefined [NDB_MAX_NO_OF_ATTRIBUTES_IN_KEY][3]
Uint32	theTotalNrOfKeyWordInSignal
Uint32	theTupKeyLen
Uint8	theNoOfTupKeyLeft
OperationType	theOperationType
LockMode	theLockMode
OperationStatus	theStatus
Uint32	theMagicNumber
Uint32	theScanInfo
Uint32	theDistributionKey
Uint32	theSubroutineSize
Uint32	theInitialReadSize
Uint32	theInterpretedSize
Uint32	theFinalUpdateSize
Uint32	theFinalReadSize
Uint8	theStartIndicator
Uint8	theCommitIndicator
Uint8	theSimpleIndicator
Uint8	theDirtyIndicator
Uint8	theInterpretIndicator
Int8	theDistrKeyIndicator_
Uint8	m_flags
Uint8	_unused1
Uint16	m_tcReqGSN
Uint16	m_keyInfoGSN
Uint16	m_attrInfoGSN
const NdbRecord *	m_key_record
const char *	m_key_row
Uint32	m_keyinfo_length
const NdbRecord *	m_attribute_record
const char *	m_attribute_row
Uint32	m_unused_read_mask [(128+31)>>5]
const NdbInterpretedCode *	m_interpreted_code
const SetValueSpec *	m_extraSetValues
Uint32	m_numExtraSetValues
Uint32	m_any_value
NdbBlob *	theBlobList
Int8	m_abortOption
Int8	m_noErrorPropagation
NdbLockHandle *	theLockHandle
bool	m_blob_lock_upgraded

Friends
class	Ndb
class	NdbTransaction
class	NdbScanOperation
class	NdbScanReceiver
class	NdbScanFilter
class	NdbScanFilterImpl
class	NdbReceiver
class	NdbBlob
struct	Ndb_free_list_t< NdbOperation >

Define Standard Operation Type
enum	Type { PrimaryKeyAccess = 0, UniqueIndexAccess = 1, TableScan = 2, OrderedIndexScan = 3 }
enum	LockMode { LM_Read = 0, LM_Exclusive = 1, LM_CommittedRead = 2, LM_Dirty = 2, LM_SimpleRead = 3 }
enum	AbortOption { DefaultAbortOption = -1, AbortOnError = 0, AO_IgnoreError = 2 }
virtual int	insertTuple ()
virtual int	updateTuple ()
virtual int	writeTuple ()
virtual int	deleteTuple ()
virtual int	readTuple (LockMode)
virtual int	readTuple ()
virtual int	readTupleExclusive ()
virtual int	simpleRead ()
virtual int	dirtyRead ()
virtual int	committedRead ()
virtual int	dirtyUpdate ()
virtual int	dirtyWrite ()

Detailed Description

Class of operations for use in transactions.

Definition at line 45 of file NdbOperation.hpp.

Member Enumeration Documentation

enum NdbOperation::AbortOption

How should transaction be handled if operation fails.

If AO_IgnoreError, a failure in one operation will not abort the transaction, and NdbTransaction::execute() will return 0 (success). Use NdbOperation::getNdbError() to check for errors from individual operations.

If AbortOnError, a failure in one operation will abort the transaction and cause NdbTransaction::execute() to return -1.

Abort option can be set on execute(), or in the individual operation. Setting AO_IgnoreError or AbortOnError in execute() overrides the settings on individual operations. Setting DefaultAbortOption in execute() (the default) causes individual operation settings to be used.

For READ, default is AO_IgnoreError DML, default is AbortOnError CommittedRead does only support AO_IgnoreError

Enumerator:

DefaultAbortOption	Use default as specified by op-type.
AbortOnError	Abort transaction on failed operation.
AO_IgnoreError	Transaction continues on failed operation.

Definition at line 128 of file NdbOperation.hpp.

enum NdbOperation::LockMode

Lock when performing read

Enumerator:

LM_Read	Read with shared lock.
LM_Exclusive	Read with exclusive lock.
LM_CommittedRead	Ignore locks, read last committed value.
LM_SimpleRead	Read with shared lock, but release lock directly.

Definition at line 91 of file NdbOperation.hpp.

enum NdbOperation::OperationType

Type of operation

Enumerator:

ReadRequest	Read operation.
UpdateRequest	Update Operation.
InsertRequest	Insert Operation.
DeleteRequest	Delete Operation.
WriteRequest	Write Operation.
ReadExclusive	Read exclusive.
UnlockRequest	Unlock operation.
OpenScanRequest	Scan Operation.
OpenRangeScanRequest	Range scan operation.
NotDefined2	Internal for debugging.
NotDefined	Internal for debugging.

Definition at line 910 of file NdbOperation.hpp.

enum NdbOperation::Type

Different access types (supported by sub-classes of NdbOperation)

Enumerator:

PrimaryKeyAccess	Read, insert, update, or delete using pk.
UniqueIndexAccess	Read, update, or delete using unique index.
TableScan	Full table scan.
OrderedIndexScan	Ordered index scan.

Definition at line 68 of file NdbOperation.hpp.

Member Function Documentation

int NdbOperation::add_reg	(	Uint32	RegSource1,
		Uint32	RegSource2,
		Uint32	RegDest
	)

Interpreted program instruction: Add two registers into a third.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

RegSource1	First register.
RegSource2	Second register.
RegDest	Destination register where the result will be stored.

Returns: -1 if unsuccessful.

Definition at line 636 of file NdbOperationInt.cpp.

int NdbOperation::branch_col_and_mask_eq_mask	(	Uint32	ColId,
		const void *	mask,
		Uint32	len,
		bool	nopad,
		Uint32	Label
	)

Bitwise logical comparisons

These comparison types are only supported for the Bitfield type They can be used to test for bit patterns in bitfield columns The value passed is a bitmask which is bitwise-ANDed with the column data. Bitfields are passed in/out of NdbApi as 32-bit words with bits set from lsb to msb. The platform's endianness controls which byte contains the ls bits. x86= first(0th) byte. Sparc/PPC= last (3rd byte)

To set bit n of a bitmask to 1 from a Uint32* mask : mask[n >> 5] |= (1 << (n & 31))

The branch can be taken in 4 cases :

Column data AND Mask == Mask (all masked bits are set in data)
Column data AND Mask != Mask (not all masked bits are set in data)
Column data AND Mask == 0 (No masked bits are set in data)
Column data AND Mask != 0 (Some masked bits are set in data)

Definition at line 1229 of file NdbOperationInt.cpp.

int NdbOperation::branch_col_eq	(	Uint32	ColId,
		const void *	val,
		Uint32	len,
		bool	nopad,
		Uint32	Label
	)

Interpreted program instruction: branch after memcmp

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

ColId	column to check
val	search value
len	length of search value
nopad	force non-padded comparison for a Char column
Label	label to jump to

Returns: -1 if unsuccessful

Definition at line 1168 of file NdbOperationInt.cpp.

int NdbOperation::branch_col_eq_null	(	Uint32	ColId,
		Uint32	Label
	)

Interpreted program instruction: branch after memcmp

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

ColId	Column to check
Label	Label to jump to

Returns: -1 if unsuccessful

Definition at line 1283 of file NdbOperationInt.cpp.

int NdbOperation::branch_col_like	(	Uint32	ColId,
		const void *	val,
		Uint32	len,
		bool	nopad,
		Uint32	Label
	)

LIKE/NOTLIKE wildcard comparisons These instructions support SQL-style % and _ wildcards for (VAR)CHAR/BINARY columns only

The argument is always plain char format, even if the field is varchar (changed in 5.0.22).

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Definition at line 1213 of file NdbOperationInt.cpp.

int NdbOperation::branch_eq_null	(	Uint32	RegLvalue,
		Uint32	Label
	)

Interpreted program instruction: Jump to Label if RegLvalue is equal to NULL.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

RegLvalue	Value to check.
Label	Label to jump to.

Returns: -1 if unsuccessful.

Definition at line 892 of file NdbOperationInt.cpp.

int NdbOperation::branch_ge	(	Uint32	RegLvalue,
		Uint32	RegRvalue,
		Uint32	Label
	)

Interpreted program instruction: Define a search condition. Last two letters in the function name describes the search condition. The condition compares RegR with RegL and therefore appears to be reversed.

ge RegR >= RegL
gt RegR > RegL
le RegR <= RegL
lt RegR < RegL
eq RegR = RegL
ne RegR <> RegL

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

RegLvalue	left value.
RegRvalue	right value.
Label	the label to jump to.

Returns: -1 if unsuccessful.

Definition at line 830 of file NdbOperationInt.cpp.

int NdbOperation::branch_label ( Uint32 Label )

Interpreted program instruction: Jump to Label.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

Label Label to jump to.

Returns: -1 if unsuccessful.

Definition at line 906 of file NdbOperationInt.cpp.

int NdbOperation::branch_ne_null	(	Uint32	RegLvalue,
		Uint32	Label
	)

Interpreted program instruction: Jump to Label if RegLvalue is not NULL.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

RegLvalue	the value to check.
Label	the label to jump to.

Returns: -1 if unsuccessful.

Definition at line 878 of file NdbOperationInt.cpp.

int NdbOperation::call_sub ( Uint32 Subroutine )

Interpreted program instruction: Call a subroutine.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

Subroutine the subroutine to call.

Returns: -1 if unsuccessful.

Definition at line 978 of file NdbOperationInt.cpp.

int NdbOperation::committedRead ( )

virtual

Define the NdbOperation to be a standard operation of type committedRead. When calling NdbTransaction::execute, this operation read latest committed value of the record.

This means that if another transaction is updating the record, then the current transaction will not wait. It will instead use the latest committed value of the record.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 215 of file NdbOperationDefine.cpp.

Here is the caller graph for this function:

int NdbOperation::def_label ( int labelNumber )

Interpreted program instruction: Define a jump label in an interpreted operation.

Note: The labels are automatically numbered starting with 0. The parameter used by NdbOperation::def_label should match the automatic numbering to make it easier to debug the interpreted program.; For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

labelNumber Label number.

Returns: Label number, -1 if unsuccessful.

Here we set the address that the label should point to (jump address), the first 5 words are excluded since they are length specifications and not part of the data. We need to add 1 to the current ATTRINFO length since the last inserted item is not where we want to jump to. Later on we will update the branch items with this address, this is done in the NdbOperation::prepareSendInterpreted method.

Definition at line 496 of file NdbOperationInt.cpp.

int NdbOperation::def_subroutine ( int SubroutineNumber )

Interpreted program instruction: Define a subroutine in an interpreted operation.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

SubroutineNumber the subroutine number.

Returns: -1 if unsuccessful.

Definition at line 556 of file NdbOperationInt.cpp.

int NdbOperation::deleteTuple ( )

virtual

Define the NdbOperation to be a standard operation of type deleteTuple. When calling NdbTransaction::execute, this operation delete a tuple.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 94 of file NdbOperationDefine.cpp.

int NdbOperation::dirtyRead ( )

virtual

Define the NdbOperation to be a standard operation of type committedRead. When calling NdbTransaction::execute, this operation read latest committed value of the record.

This means that if another transaction is updating the record, then the current transaction will not wait. It will instead use the latest committed value of the record. dirtyRead is a deprecated name for committedRead

Returns: 0 if successful otherwise -1.

Deprecated:

Reimplemented in NdbIndexOperation.

Definition at line 206 of file NdbOperationDefine.cpp.

Here is the call graph for this function:

int NdbOperation::dirtyUpdate ( )

virtual

Define the NdbOperation to be a standard operation of type dirtyUpdate. When calling NdbTransaction::execute, this operation updates without two-phase commit.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 237 of file NdbOperationDefine.cpp.

int NdbOperation::dirtyWrite ( )

virtual

Define the NdbOperation to be a standard operation of type dirtyWrite. When calling NdbTransaction::execute, this operation writes without two-phase commit.

Returns: 0 if successful otherwise -1.

Definition at line 261 of file NdbOperationDefine.cpp.

int NdbOperation::equal	(	const char *	anAttrName,
		const char *	aValue,
		Uint32	len
	)

inline

Define a search condition with equality. The condition is true if the attribute has the given value. To set search conditions on multiple attributes, use several equals (then all of them must be satisfied for the tuple to be selected).

Note: For insertTuple() it is also allowed to define the search key by using setValue().; There are 10 versions of equal() with slightly different parameters.; If attribute has fixed size, value must include all bytes. In particular a Char must be native-blank padded. If attribute has variable size, value must start with 1 or 2 little-endian length bytes (2 if Long*).

Parameters

anAttrName	Attribute name
aValue	Attribute value.

Returns: -1 if unsuccessful.

Definition at line 1674 of file NdbOperation.hpp.

Here is the caller graph for this function:

NdbOperation::AbortOption NdbOperation::getAbortOption ( ) const

Get/set abort option

Definition at line 1049 of file NdbOperationDefine.cpp.

NdbBlob * NdbOperation::getBlobHandle ( const char * anAttrName )

virtual

This method replaces getValue/setValue for blobs. It creates a blob handle NdbBlob. A second call with same argument returns the previously created handle. The handle is linked to the operation and is maintained automatically.

See NdbBlob for details.

For NdbRecord operation, this method can be used to fetch the blob handle for an NdbRecord operation that references the blob, but extra blob columns can not be added with this call (it will return 0).

For reading with NdbRecord, the NdbRecord entry for each blob must reserve space in the row for sizeof(NdbBlob *). The blob handle will be stored there, providing an alternative way of obtaining the blob handle.

Reimplemented in NdbScanOperation.

Definition at line 395 of file NdbOperation.cpp.

LockMode NdbOperation::getLockMode ( ) const

inline

Return lock mode for operation

Definition at line 929 of file NdbOperation.hpp.

const NdbError & NdbOperation::getNdbError ( ) const

Get the latest error code.

Returns: error code.

Definition at line 59 of file Ndberr.cpp.

Here is the caller graph for this function:

int NdbOperation::getNdbErrorLine ( )

inline

Get the method number where the error occured.

Returns: method number where the error occured.

Definition at line 1564 of file NdbOperation.hpp.

NdbTransaction * NdbOperation::getNdbTransaction ( ) const

virtual

Get NdbTransaction object pointer for this operation

Reimplemented in NdbScanOperation.

Definition at line 546 of file NdbOperation.cpp.

const NdbDictionary::Table * NdbOperation::getTable ( ) const

Get table object for this operation Not supported for NdbRecord operation.

Definition at line 540 of file NdbOperation.cpp.

Here is the caller graph for this function:

const char * NdbOperation::getTableName ( ) const

Get table name of this operation. Not supported for NdbRecord operation.

Definition at line 534 of file NdbOperation.cpp.

Here is the call graph for this function:

NdbOperation::Type NdbOperation::getType ( ) const

inline

Get the type of access for this operation

Definition at line 1626 of file NdbOperation.hpp.

Here is the caller graph for this function:

NdbRecAttr * NdbOperation::getValue	(	const char *	anAttrName,
		char *	aValue = `0`
	)

Defines a retrieval operation of an attribute value. The NDB API allocate memory for the NdbRecAttr object that will hold the returned attribute value.

Note: Note that it is the applications responsibility to allocate enough memory for aValue (if non-NULL). The buffer aValue supplied by the application must be aligned appropriately. The buffer is used directly (avoiding a copy penalty) only if it is aligned on a 4-byte boundary and the attribute size in bytes (i.e. NdbRecAttr::attrSize times NdbRecAttr::arraySize is a multiple of 4).; There are two versions of NdbOperation::getValue with slightly different parameters.; This method does not fetch the attribute value from the database! The NdbRecAttr object returned by this method is not readable/printable before the transaction has been executed with NdbTransaction::execute.

Parameters

anAttrName	Attribute name
aValue	If this is non-NULL, then the attribute value will be returned in this parameter. If NULL, then the attribute value will only be stored in the returned NdbRecAttr object.

Returns: An NdbRecAttr object to hold the value of the attribute, or a NULL pointer (indicating error).

Definition at line 311 of file NdbOperation.cpp.

Here is the caller graph for this function:

int NdbOperation::incValue	(	const char *	anAttrName,
		Uint32	aValue
	)

Interpreted program instruction: Add a value to an attribute.

Note: Destroys the contents of registers 6 and 7. (The instruction uses these registers for its operation.); There are four versions of NdbOperation::incValue with slightly different parameters.; For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

anAttrName	Attribute name.
aValue	Value to add.

Returns: -1 if unsuccessful.

Definition at line 462 of file NdbOperation.cpp.

int NdbOperation::insertTuple ( )

virtual

Define the NdbOperation to be a standard operation of type insertTuple. When calling NdbTransaction::execute, this operation adds a new tuple to the table.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 31 of file NdbOperationDefine.cpp.

int NdbOperation::interpret_exit_last_row ( )

Interpreted program instruction:

abort the whole transaction.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Returns: -1 if unsuccessful.

Definition at line 936 of file NdbOperationInt.cpp.

int NdbOperation::interpret_exit_nok ( Uint32 ErrorCode )

Interpreted program instruction: Exit with Not Ok

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.; A method also exists without the error parameter.

Parameters

ErrorCode An error code given by the application programmer.

Returns: -1 if unsuccessful.

Definition at line 952 of file NdbOperationInt.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int NdbOperation::interpret_exit_ok ( )

Interpreted program instruction: Exit with Ok

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Returns: -1 if unsuccessful.

Definition at line 924 of file NdbOperationInt.cpp.

int NdbOperation::interpretedDeleteTuple ( )

virtual

Delete a tuple using an interpreted program.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 309 of file NdbOperationDefine.cpp.

int NdbOperation::interpretedUpdateTuple ( )

virtual

Update a tuple using an interpreted program.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 285 of file NdbOperationDefine.cpp.

int NdbOperation::load_const_null ( Uint32 RegDest )

Interpreted program instruction: Load NULL value into a register.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

RegDest Destination register.

Returns: -1 if unsuccessful.

Definition at line 752 of file NdbOperationInt.cpp.

int NdbOperation::load_const_u32	(	Uint32	RegDest,
		Uint32	Constant
	)

Interpreted program instruction: Load a constant into a register.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

RegDest	Destination register.
Constant	Value to load.

Returns: -1 if unsuccessful.

Definition at line 700 of file NdbOperationInt.cpp.

int NdbOperation::prepareSend	(	Uint32	TC_ConnectPtr,
		Uint64	TransactionId,
		AbortOption	ao
	)

protectedvirtual

A dirty read, can not abort the transaction

Set correct length on last KeyInfo signal

Definition at line 386 of file NdbOperationExec.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int NdbOperation::read_attr	(	const char *	anAttrName,
		Uint32	RegDest
	)

Interpreted program instruction: Read an attribute into a register.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

anAttrName	Attribute name.
RegDest	Destination register.

Returns: -1 if unsuccessful.

Definition at line 510 of file NdbOperation.cpp.

Here is the caller graph for this function:

int NdbOperation::read_attr	(	Uint32	anAttrId,
		Uint32	RegDest
	)

Interpreted program instruction: Read an attribute into a register.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

anAttrId	the attribute id.
RegDest	the destination register.

Returns: -1 if unsuccessful.

Definition at line 516 of file NdbOperation.cpp.

Here is the call graph for this function:

int NdbOperation::readTuple ( NdbOperation::LockMode lm )

virtual

Define the NdbOperation to be a standard operation of type readTuple. When calling NdbTransaction::execute, this operation reads a tuple.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 116 of file NdbOperationDefine.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int NdbOperation::readTuple ( )

virtual

Define the NdbOperation to be a standard operation of type readTuple. When calling NdbTransaction::execute, this operation reads a tuple.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 138 of file NdbOperationDefine.cpp.

Here is the caller graph for this function:

int NdbOperation::readTupleExclusive ( )

virtual

Define the NdbOperation to be a standard operation of type readTupleExclusive. When calling NdbTransaction::execute, this operation read a tuple using an exclusive lock.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 160 of file NdbOperationDefine.cpp.

Here is the caller graph for this function:

int NdbOperation::receiveTCKEYREF ( const NdbApiSignal * aSignal )

protected

If TCKEYCONF has arrived op has completed (maybe trans has completed)

Definition at line 1737 of file NdbOperationExec.cpp.

int NdbOperation::ret_sub ( )

Interpreted program instruction: End a subroutine.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Returns: -1 if unsuccessful.

Definition at line 992 of file NdbOperationInt.cpp.

void NdbOperation::setPartitionId ( Uint32 id )

Set/get partition key

Definition at line 524 of file NdbOperationSearch.cpp.

Here is the call graph for this function:

int NdbOperation::setValue	(	const char *	anAttrName,
		const char *	aValue,
		Uint32	len
	)

inline

Define an attribute to set or update in query.

To set a NULL value, use the following construct:

setValue("ATTR_NAME", (char*)NULL);

There are a number of NdbOperation::setValue methods that take a certain type as input (pass by value rather than passing a pointer). As the interface is currently implemented it is the responsibility of the application programmer to use the correct types.

The NDB API will however check that the application sends a correct length to the interface as given in the length parameter. The passing of char* as the value can contain any type or any type of array. If length is not provided or set to zero, then the API will assume that the pointer is correct and not bother with checking it.

Note: For insertTuple() the NDB API will automatically detect that it is supposed to use equal() instead.; For insertTuple() it is not necessary to use setValue() on key attributes before other attributes.; There are 14 versions of NdbOperation::setValue with slightly different parameters.; See note under equal() about value format and length.

Parameters

anAttrName	Name (or Id) of attribute.
aValue	Attribute value to set.

Returns: -1 if unsuccessful.

Definition at line 1748 of file NdbOperation.hpp.

Here is the caller graph for this function:

int NdbOperation::simpleRead ( )

virtual

Define the NdbOperation to be a standard operation of type simpleRead. When calling NdbTransaction::execute, this operation reads an existing tuple (using shared read lock), but releases lock immediately after read.

Note: Using this operation twice in the same transaction may produce different results (e.g. if there is another transaction which updates the value between the simple reads).

Note that simpleRead can read the value from any database node while standard read always read the value on the database node which is primary for the record.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 182 of file NdbOperationDefine.cpp.

Here is the caller graph for this function:

int NdbOperation::sub_reg	(	Uint32	RegSource1,
		Uint32	RegSource2,
		Uint32	RegDest
	)

Interpreted program instruction: Substract RegSource2 from RegSource1 and put the result in RegDest.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

RegSource1	First register.
RegSource2	Second register.
RegDest	Destination register where the result will be stored.

Returns: -1 if unsuccessful.

Definition at line 668 of file NdbOperationInt.cpp.

int NdbOperation::subValue	(	const char *	anAttrName,
		Uint32	aValue
	)

Interpreted program instruction: Subtract a value from an attribute in an interpreted operation.

Note: Destroys the contents of registers 6 and 7. (The instruction uses these registers for its operation.); There are four versions of NdbOperation::subValue with slightly different parameters.; For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

anAttrName	Attribute name.
aValue	Value to subtract.

Returns: -1 if unsuccessful.

Definition at line 486 of file NdbOperation.cpp.

int NdbOperation::updateTuple ( )

virtual

Define the NdbOperation to be a standard operation of type updateTuple. When calling NdbTransaction::execute, this operation updates a tuple in the table.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbIndexOperation.

Definition at line 52 of file NdbOperationDefine.cpp.

int NdbOperation::write_attr	(	const char *	anAttrName,
		Uint32	RegSource
	)

Interpreted program instruction: Write an attribute from a register.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

anAttrName	Attribute name.
RegSource	Source register.

Returns: -1 if unsuccessful.

Definition at line 522 of file NdbOperation.cpp.

Here is the caller graph for this function:

int NdbOperation::write_attr	(	Uint32	anAttrId,
		Uint32	RegSource
	)

Interpreted program instruction: Write an attribute from a register.

Note: For Scans and NdbRecord operations, use the NdbInterpretedCode interface.

Parameters

anAttrId	the attribute id.
RegSource	the source register.

Returns: -1 if unsuccessful.

Definition at line 528 of file NdbOperation.cpp.

Here is the call graph for this function:

int NdbOperation::writeTuple ( )

virtual

Define the NdbOperation to be a standard operation of type writeTuple. When calling NdbTransaction::execute, this operation writes a tuple to the table. If the tuple exists, it updates it, otherwise an insert takes place.

Returns: 0 if successful otherwise -1.

Definition at line 73 of file NdbOperationDefine.cpp.

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Ndb

friend

Reciver(s)

Definition at line 48 of file NdbOperation.hpp.

The documentation for this class was generated from the following files:

storage/ndb/include/ndbapi/NdbOperation.hpp
storage/ndb/src/ndbapi/Ndberr.cpp
storage/ndb/src/ndbapi/NdbOperation.cpp
storage/ndb/src/ndbapi/NdbOperationDefine.cpp
storage/ndb/src/ndbapi/NdbOperationExec.cpp
storage/ndb/src/ndbapi/NdbOperationInt.cpp
storage/ndb/src/ndbapi/NdbOperationSearch.cpp

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Define Standard Operation Type

Detailed Description

Member Enumeration Documentation

Member Function Documentation

Friends And Related Function Documentation
