#include <NdbDictionaryImpl.hpp>

Inheritance diagram for NdbColumnImpl:

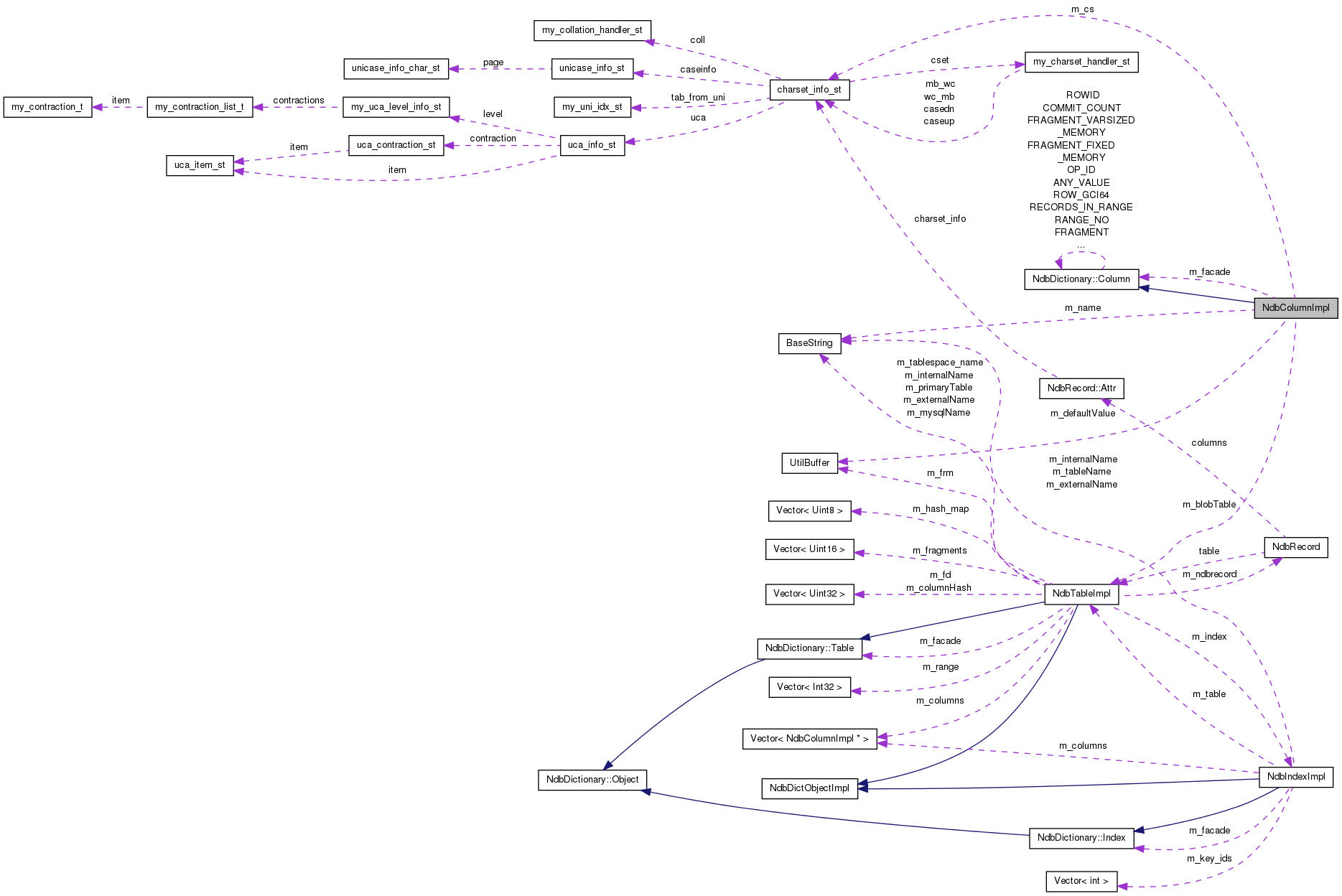

Collaboration diagram for NdbColumnImpl:

Public Member Functions
	NdbColumnImpl ()
	NdbColumnImpl (NdbDictionary::Column &)
NdbColumnImpl &	operator= (const NdbColumnImpl &)
void	init (Type t=Unsigned)
bool	getInterpretableType () const
bool	getCharType () const
bool	getStringType () const
bool	getBlobType () const
int	getBlobVersion () const
void	setBlobVersion (int blobVersion)
bool	equal (const NdbColumnImpl &) const
bool	get_var_length (const void *value, Uint32 &len) const
Public Member Functions inherited from NdbDictionary::Column
int	setDefaultValue (const char *)
int	setDefaultValue (const void *buf, unsigned int len)
const void *	getDefaultValue (unsigned int *len=0) const
const Table *	getBlobTable () const
void	setAutoIncrement (bool)
bool	getAutoIncrement () const
void	setAutoIncrementInitialValue (Uint64 val)
int	getSizeInBytes () const
int	isBindable (const Column &) const
const char *	getName () const
bool	getNullable () const
bool	getPrimaryKey () const
int	getColumnNo () const
int	getAttrId () const
bool	equal (const Column &column) const
Type	getType () const
int	getPrecision () const
int	getScale () const
int	getLength () const
CHARSET_INFO *	getCharset () const
int	getCharsetNumber () const
int	getInlineSize () const
int	getPartSize () const
int	getStripeSize () const
int	getSize () const
bool	getPartitionKey () const
bool	getDistributionKey () const
ArrayType	getArrayType () const
StorageType	getStorageType () const
bool	getDynamic () const
bool	getIndexSourced () const
	Column (const char *name="")
	Column (const Column &column)
	~Column ()
int	setName (const char *name)
void	setNullable (bool)
void	setPrimaryKey (bool)
void	setType (Type type)
void	setPrecision (int)
void	setScale (int)
void	setLength (int length)
void	setCharset (CHARSET_INFO *cs)
void	setInlineSize (int size)
void	setPartSize (int size)
void	setStripeSize (int size)
void	setPartitionKey (bool enable)
void	setDistributionKey (bool enable)
void	setArrayType (ArrayType type)
void	setStorageType (StorageType type)
void	setDynamic (bool)

Static Public Member Functions
static NdbColumnImpl &	getImpl (NdbDictionary::Column &t)
static const NdbColumnImpl &	getImpl (const NdbDictionary::Column &t)
static void	create_pseudo_columns ()
static void	destory_pseudo_columns ()
static NdbDictionary::Column *	create_pseudo (const char *)

Public Attributes
int	m_attrId
BaseString	m_name
NdbDictionary::Column::Type	m_type
int	m_precision
int	m_scale
int	m_length
int	m_column_no
CHARSET_INFO *	m_cs
bool	m_pk
bool	m_distributionKey
bool	m_nullable
bool	m_autoIncrement
Uint64	m_autoIncrementInitialValue
UtilBuffer	m_defaultValue
NdbTableImpl *	m_blobTable
Uint32	m_orgAttrSize
Uint32	m_attrSize
Uint32	m_arraySize
Uint32	m_arrayType
Uint32	m_storageType
bool	m_dynamic
bool	m_indexSourced
Uint32	m_keyInfoPos
int	m_blobVersion
NdbDictionary::Column *	m_facade

Additional Inherited Members
Public Types inherited from NdbDictionary::Column
enum	Type { Undefined = NDB_TYPE_UNDEFINED, Tinyint = NDB_TYPE_TINYINT, Tinyunsigned = NDB_TYPE_TINYUNSIGNED, Smallint = NDB_TYPE_SMALLINT, Smallunsigned = NDB_TYPE_SMALLUNSIGNED, Mediumint = NDB_TYPE_MEDIUMINT, Mediumunsigned = NDB_TYPE_MEDIUMUNSIGNED, Int = NDB_TYPE_INT, Unsigned = NDB_TYPE_UNSIGNED, Bigint = NDB_TYPE_BIGINT, Bigunsigned = NDB_TYPE_BIGUNSIGNED, Float = NDB_TYPE_FLOAT, Double = NDB_TYPE_DOUBLE, Olddecimal = NDB_TYPE_OLDDECIMAL, Olddecimalunsigned = NDB_TYPE_OLDDECIMALUNSIGNED, Decimal = NDB_TYPE_DECIMAL, Decimalunsigned = NDB_TYPE_DECIMALUNSIGNED, Char = NDB_TYPE_CHAR, Varchar = NDB_TYPE_VARCHAR, Binary = NDB_TYPE_BINARY, Varbinary = NDB_TYPE_VARBINARY, Datetime = NDB_TYPE_DATETIME, Date = NDB_TYPE_DATE, Blob = NDB_TYPE_BLOB, Text = NDB_TYPE_TEXT, Bit = NDB_TYPE_BIT, Longvarchar = NDB_TYPE_LONGVARCHAR, Longvarbinary = NDB_TYPE_LONGVARBINARY, Time = NDB_TYPE_TIME, Year = NDB_TYPE_YEAR, Timestamp = NDB_TYPE_TIMESTAMP }
enum	ArrayType { ArrayTypeFixed = NDB_ARRAYTYPE_FIXED, ArrayTypeShortVar = NDB_ARRAYTYPE_SHORT_VAR, ArrayTypeMediumVar = NDB_ARRAYTYPE_MEDIUM_VAR }
enum	StorageType { StorageTypeMemory = NDB_STORAGETYPE_MEMORY, StorageTypeDisk = NDB_STORAGETYPE_DISK, StorageTypeDefault = NDB_STORAGETYPE_DEFAULT }
Static Public Attributes inherited from NdbDictionary::Column
static const Column *	FRAGMENT = 0
static const Column *	FRAGMENT_FIXED_MEMORY = 0
static const Column *	FRAGMENT_VARSIZED_MEMORY = 0
static const Column *	ROW_COUNT = 0
static const Column *	COMMIT_COUNT = 0
static const Column *	ROW_SIZE = 0
static const Column *	RANGE_NO = 0
static const Column *	DISK_REF = 0
static const Column *	RECORDS_IN_RANGE = 0
static const Column *	ROWID = 0
static const Column *	ROW_GCI = 0
static const Column *	ROW_GCI64 = 0
static const Column *	ROW_AUTHOR = 0
static const Column *	ANY_VALUE = 0
static const Column *	COPY_ROWID = 0
static const Column *	LOCK_REF = 0
static const Column *	OP_ID = 0
static const Column *	OPTIMIZE = 0
static const Column *	FRAGMENT_EXTENT_SPACE = 0
static const Column *	FRAGMENT_FREE_EXTENT_SPACE = 0

Detailed Description

Column

Definition at line 75 of file NdbDictionaryImpl.hpp.

Constructor & Destructor Documentation

NdbColumnImpl::NdbColumnImpl ( )

Column

Definition at line 92 of file NdbDictionaryImpl.cpp.

Member Function Documentation

bool NdbColumnImpl::equal ( const NdbColumnImpl & col ) const

Equality/assign

Definition at line 303 of file NdbDictionaryImpl.cpp.

Here is the call graph for this function:

Member Data Documentation

Uint32 NdbColumnImpl::m_orgAttrSize

Internal types and sizes, and aggregates

Definition at line 109 of file NdbDictionaryImpl.hpp.

The documentation for this class was generated from the following files:

storage/ndb/src/ndbapi/NdbDictionaryImpl.hpp
storage/ndb/src/ndbapi/NdbDictionaryImpl.cpp
