Represents a column in an NDB Cluster table. More...

#include <NdbDictionary.hpp>

Inheritance diagram for NdbDictionary::Column:

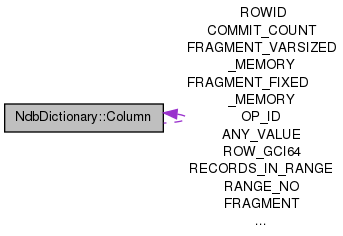

Collaboration diagram for NdbDictionary::Column:

Public Types
enum	Type { Undefined = NDB_TYPE_UNDEFINED, Tinyint = NDB_TYPE_TINYINT, Tinyunsigned = NDB_TYPE_TINYUNSIGNED, Smallint = NDB_TYPE_SMALLINT, Smallunsigned = NDB_TYPE_SMALLUNSIGNED, Mediumint = NDB_TYPE_MEDIUMINT, Mediumunsigned = NDB_TYPE_MEDIUMUNSIGNED, Int = NDB_TYPE_INT, Unsigned = NDB_TYPE_UNSIGNED, Bigint = NDB_TYPE_BIGINT, Bigunsigned = NDB_TYPE_BIGUNSIGNED, Float = NDB_TYPE_FLOAT, Double = NDB_TYPE_DOUBLE, Olddecimal = NDB_TYPE_OLDDECIMAL, Olddecimalunsigned = NDB_TYPE_OLDDECIMALUNSIGNED, Decimal = NDB_TYPE_DECIMAL, Decimalunsigned = NDB_TYPE_DECIMALUNSIGNED, Char = NDB_TYPE_CHAR, Varchar = NDB_TYPE_VARCHAR, Binary = NDB_TYPE_BINARY, Varbinary = NDB_TYPE_VARBINARY, Datetime = NDB_TYPE_DATETIME, Date = NDB_TYPE_DATE, Blob = NDB_TYPE_BLOB, Text = NDB_TYPE_TEXT, Bit = NDB_TYPE_BIT, Longvarchar = NDB_TYPE_LONGVARCHAR, Longvarbinary = NDB_TYPE_LONGVARBINARY, Time = NDB_TYPE_TIME, Year = NDB_TYPE_YEAR, Timestamp = NDB_TYPE_TIMESTAMP }
enum	ArrayType { ArrayTypeFixed = NDB_ARRAYTYPE_FIXED, ArrayTypeShortVar = NDB_ARRAYTYPE_SHORT_VAR, ArrayTypeMediumVar = NDB_ARRAYTYPE_MEDIUM_VAR }
enum	StorageType { StorageTypeMemory = NDB_STORAGETYPE_MEMORY, StorageTypeDisk = NDB_STORAGETYPE_DISK, StorageTypeDefault = NDB_STORAGETYPE_DEFAULT }

Public Member Functions
int	setDefaultValue (const char *)
int	setDefaultValue (const void *buf, unsigned int len)
const void *	getDefaultValue (unsigned int *len=0) const
const Table *	getBlobTable () const
void	setAutoIncrement (bool)
bool	getAutoIncrement () const
void	setAutoIncrementInitialValue (Uint64 val)
int	getSizeInBytes () const
int	getBlobVersion () const
void	setBlobVersion (int blobVersion)
int	isBindable (const Column &) const
General
const char *	getName () const
bool	getNullable () const
bool	getPrimaryKey () const
int	getColumnNo () const
int	getAttrId () const
bool	equal (const Column &column) const
Get Type Specifiers
Type	getType () const
int	getPrecision () const
int	getScale () const
int	getLength () const
CHARSET_INFO *	getCharset () const
int	getCharsetNumber () const
int	getInlineSize () const
int	getPartSize () const
int	getStripeSize () const
int	getSize () const
bool	getPartitionKey () const
bool	getDistributionKey () const
ArrayType	getArrayType () const
StorageType	getStorageType () const
bool	getDynamic () const
bool	getIndexSourced () const
Column creation
These operations should normally not be performed in an NbdApi program as results will not be visable in the MySQL Server
	Column (const char *name="")
	Column (const Column &column)
	~Column ()
int	setName (const char *name)
void	setNullable (bool)
void	setPrimaryKey (bool)
void	setType (Type type)
void	setPrecision (int)
void	setScale (int)
void	setLength (int length)
void	setCharset (CHARSET_INFO *cs)
void	setInlineSize (int size)
void	setPartSize (int size)
void	setStripeSize (int size)
void	setPartitionKey (bool enable)
void	setDistributionKey (bool enable)
void	setArrayType (ArrayType type)
void	setStorageType (StorageType type)
void	setDynamic (bool)

Static Public Attributes
static const Column *	FRAGMENT = 0
static const Column *	FRAGMENT_FIXED_MEMORY = 0
static const Column *	FRAGMENT_VARSIZED_MEMORY = 0
static const Column *	ROW_COUNT = 0
static const Column *	COMMIT_COUNT = 0
static const Column *	ROW_SIZE = 0
static const Column *	RANGE_NO = 0
static const Column *	DISK_REF = 0
static const Column *	RECORDS_IN_RANGE = 0
static const Column *	ROWID = 0
static const Column *	ROW_GCI = 0
static const Column *	ROW_GCI64 = 0
static const Column *	ROW_AUTHOR = 0
static const Column *	ANY_VALUE = 0
static const Column *	COPY_ROWID = 0
static const Column *	LOCK_REF = 0
static const Column *	OP_ID = 0
static const Column *	OPTIMIZE = 0
static const Column *	FRAGMENT_EXTENT_SPACE = 0
static const Column *	FRAGMENT_FREE_EXTENT_SPACE = 0

Friends
class	NdbRecAttr
class	NdbColumnImpl

Detailed Description

Represents a column in an NDB Cluster table.

Each column has a type. The type of a column is determined by a number of type specifiers. The type specifiers are:

Builtin type
Array length or max length
Precision and scale (not used yet)
Character set for string types
Inline and part sizes for blobs

Types in general correspond to MySQL types and their variants. Data formats are same as in MySQL. NDB API provides no support for constructing such formats. NDB kernel checks them however.

Definition at line 226 of file NdbDictionary.hpp.

Member Enumeration Documentation

enum NdbDictionary::Column::Type

The builtin column types

Enumerator:

Undefined	Undefined.
Tinyint	8 bit. 1 byte signed integer, can be used in array
Tinyunsigned	8 bit. 1 byte unsigned integer, can be used in array
Smallint	16 bit. 2 byte signed integer, can be used in array
Smallunsigned	16 bit. 2 byte unsigned integer, can be used in array
Mediumint	24 bit. 3 byte signed integer, can be used in array
Mediumunsigned	24 bit. 3 byte unsigned integer, can be used in array
Int	32 bit. 4 byte signed integer, can be used in array
Unsigned	32 bit. 4 byte unsigned integer, can be used in array
Bigint	64 bit. 8 byte signed integer, can be used in array
Bigunsigned	64 Bit. 8 byte signed integer, can be used in array
Float	32-bit float. 4 bytes float, can be used in array
Double	64-bit float. 8 byte float, can be used in array
Olddecimal	MySQL < 5.0 signed decimal, Precision, Scale.
Decimal	MySQL >= 5.0 signed decimal, Precision, Scale.
Char	Len. A fixed array of 1-byte chars.
Varchar	Length bytes: 1, Max: 255.
Binary	Len.
Varbinary	Length bytes: 1, Max: 255.
Datetime	Precision down to 1 sec (sizeof(Datetime) == 8 bytes )
Date	Precision down to 1 day(sizeof(Date) == 4 bytes )
Blob	Binary large object (see NdbBlob)
Text	Text blob.
Bit	Bit, length specifies no of bits.
Longvarchar	Length bytes: 2, little-endian.
Longvarbinary	Length bytes: 2, little-endian.
Time	Time without date.
Year	Year 1901-2155 (1 byte)
Timestamp	Unix time.

Definition at line 231 of file NdbDictionary.hpp.

Constructor & Destructor Documentation

NdbDictionary::Column::Column ( const char * name = "" )

Constructor

Parameters

name	Name of column

Definition at line 162 of file NdbDictionary.cpp.

Here is the call graph for this function:

NdbDictionary::Column::Column ( const Column & column )

Copy constructor

Parameters

column Column to be copied

Definition at line 168 of file NdbDictionary.cpp.

Member Function Documentation

bool NdbDictionary::Column::equal ( const Column & column ) const

Check if column is equal to some other column

Parameters

column Column to compare with

Returns: true if column is equal to some other column otherwise false.

Definition at line 400 of file NdbDictionary.cpp.

CHARSET_INFO * NdbDictionary::Column::getCharset ( ) const

For Char or Varchar or Text, get MySQL CHARSET_INFO. This specifies both character set and collation. See get_charset() etc in MySQL. (The cs is not "const" in MySQL).

Definition at line 257 of file NdbDictionary.cpp.

int NdbDictionary::Column::getCharsetNumber ( ) const

Returns mysql's internal number for the column's character set.

Definition at line 263 of file NdbDictionary.cpp.

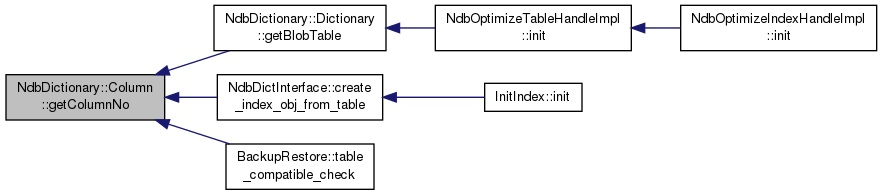

int NdbDictionary::Column::getColumnNo ( ) const

Get number of column (horizontal position within table)

Definition at line 390 of file NdbDictionary.cpp.

Here is the caller graph for this function:

bool NdbDictionary::Column::getDynamic ( ) const

Get if the column is dynamic (NULL values not stored)

Definition at line 452 of file NdbDictionary.cpp.

bool NdbDictionary::Column::getIndexSourced ( ) const

Determine if the column is defined relative to an Index This affects the meaning of the attrId, column no and primary key,

Definition at line 457 of file NdbDictionary.cpp.

int NdbDictionary::Column::getInlineSize ( ) const

For blob, get "inline size" i.e. number of initial bytes to store in table's blob attribute.

Definition at line 269 of file NdbDictionary.cpp.

int NdbDictionary::Column::getLength ( ) const

Get length for column Array length for column or max length for variable length arrays.

Definition at line 240 of file NdbDictionary.cpp.

Here is the caller graph for this function:

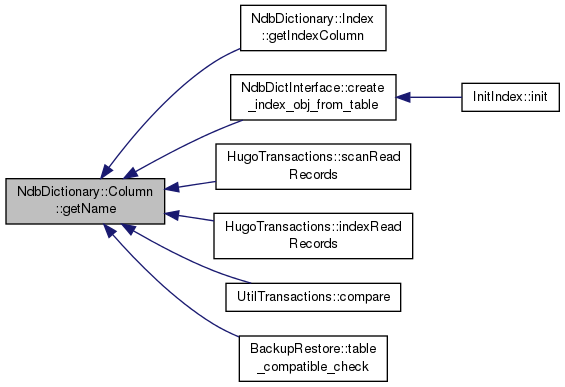

const char * NdbDictionary::Column::getName ( ) const

Get name of column

Returns: Name of the column

Definition at line 200 of file NdbDictionary.cpp.

Here is the caller graph for this function:

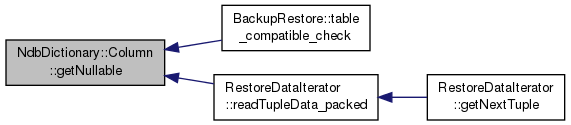

bool NdbDictionary::Column::getNullable ( ) const

Get if the column is nullable or not

Definition at line 309 of file NdbDictionary.cpp.

Here is the caller graph for this function:

bool NdbDictionary::Column::getPartitionKey ( ) const

Check if column is part of partition key

A partition key is a set of attributes which are used to distribute the tuples onto the NDB nodes. The partition key uses the NDB Cluster hashing function.

An example where this is useful is TPC-C where it might be good to use the warehouse id and district id as the partition key. This would place all data for a specific district and warehouse in the same database node.

Locally in the fragments the full primary key will still be used with the hashing algorithm.

Returns: true then the column is part of the partition key.

Definition at line 329 of file NdbDictionary.cpp.

int NdbDictionary::Column::getPartSize ( ) const

For blob, get "part size" i.e. number of bytes to store in each tuple of the "blob table". Can be set to zero to omit parts and to allow only inline bytes ("tinyblob").

Definition at line 281 of file NdbDictionary.cpp.

Here is the caller graph for this function:

int NdbDictionary::Column::getPrecision ( ) const

Get precision of column.

Note: Only applicable for decimal types

Definition at line 220 of file NdbDictionary.cpp.

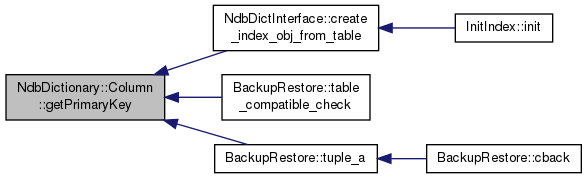

bool NdbDictionary::Column::getPrimaryKey ( ) const

Check if column is part of primary key

Definition at line 319 of file NdbDictionary.cpp.

Here is the caller graph for this function:

int NdbDictionary::Column::getScale ( ) const

Get scale of column.

Note: Only applicable for decimal types

Definition at line 230 of file NdbDictionary.cpp.

int NdbDictionary::Column::getSize ( ) const

Get size of element

Definition at line 299 of file NdbDictionary.cpp.

int NdbDictionary::Column::getStripeSize ( ) const

For blob, set or get "stripe size" i.e. number of consecutive parts to store in each node group.

Definition at line 293 of file NdbDictionary.cpp.

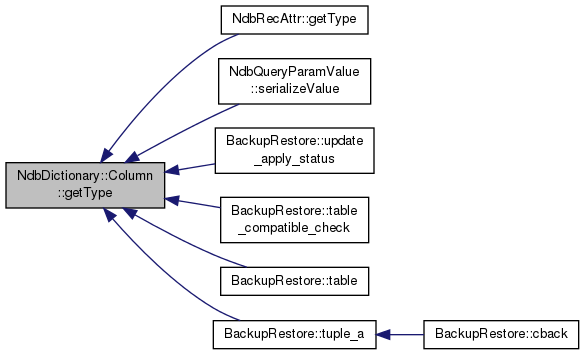

NdbDictionary::Column::Type NdbDictionary::Column::getType ( ) const

Get type of column

Definition at line 210 of file NdbDictionary.cpp.

Here is the caller graph for this function:

int NdbDictionary::Column::isBindable ( const Column & col ) const

0 = yes -1 = no

Definition at line 462 of file NdbDictionary.cpp.

void NdbDictionary::Column::setCharset ( CHARSET_INFO * cs )

For Char or Varchar or Text, get MySQL CHARSET_INFO. This specifies both character set and collation. See get_charset() etc in MySQL. (The cs is not "const" in MySQL).

Definition at line 251 of file NdbDictionary.cpp.

int NdbDictionary::Column::setDefaultValue ( const char * defaultValue )

Definition at line 361 of file NdbDictionary.cpp.

Here is the caller graph for this function:

void NdbDictionary::Column::setDynamic ( bool val )

Set whether column is dynamic.

Definition at line 447 of file NdbDictionary.cpp.

void NdbDictionary::Column::setInlineSize ( int size )

For blob, set "inline size" i.e. number of initial bytes to store in table's blob attribute. This part is normally in main memory. It can not currently be indexed.

Definition at line 245 of file NdbDictionary.cpp.

void NdbDictionary::Column::setLength ( int length )

Set length for column Array length for column or max length for variable length arrays.

Definition at line 235 of file NdbDictionary.cpp.

Here is the caller graph for this function:

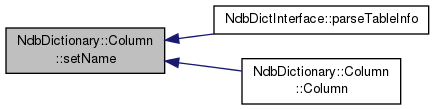

int NdbDictionary::Column::setName ( const char * name )

Set name of column

Parameters

name	Name of the column

Definition at line 195 of file NdbDictionary.cpp.

Here is the caller graph for this function:

void NdbDictionary::Column::setNullable ( bool val )

Set whether column is nullable or not

Definition at line 304 of file NdbDictionary.cpp.

Here is the caller graph for this function:

void NdbDictionary::Column::setPartitionKey ( bool enable )

Set partition key

See Also: getPartitionKey

Parameters

enable If set to true, then the column will be part of the partition key.

Definition at line 324 of file NdbDictionary.cpp.

void NdbDictionary::Column::setPartSize ( int size )

For blob, set "part size" i.e. number of bytes to store in each tuple of the "blob table". Can be set to zero to omit parts and to allow only inline bytes ("tinyblob").

Definition at line 275 of file NdbDictionary.cpp.

void NdbDictionary::Column::setPrecision ( int val )

Set precision of column.

Note: Only applicable for decimal types

Definition at line 215 of file NdbDictionary.cpp.

void NdbDictionary::Column::setPrimaryKey ( bool val )

Set that column is part of primary key

Definition at line 314 of file NdbDictionary.cpp.

Here is the caller graph for this function:

void NdbDictionary::Column::setScale ( int val )

Set scale of column.

Note: Only applicable for decimal types

Definition at line 225 of file NdbDictionary.cpp.

void NdbDictionary::Column::setStripeSize ( int size )

For blob, set "stripe size" i.e. number of consecutive parts to store in a fragment, before moving to another (random) fragment.

Striping may improve performance for large blobs since blob part operations are done in parallel. Optimal stripe size depends on the transport e.g. tcp/ip.

Example: Given part size 2048 bytes, set stripe size 8. This assigns i/o in 16k chunks to each fragment.

Blobs V1 required non-zero stripe size. Blobs V2 (created in version >= 5.1.x) have following behaviour:

Default stripe size is zero, which means no striping and also that blob part data is stored in the same node group as the primary table row. This is done by giving blob parts table same partition key as the primary table.

Definition at line 287 of file NdbDictionary.cpp.

void NdbDictionary::Column::setType ( Type type )

Set type of column

Parameters

type	Type of column

Note: setType resets all column attributes to (type dependent) defaults and should be the first method to call. Default type is Unsigned.

Definition at line 205 of file NdbDictionary.cpp.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

storage/ndb/include/ndbapi/NdbDictionary.hpp
storage/ndb/src/ndbapi/NdbDictionary.cpp
storage/ndb/src/ndbapi/NdbDictionaryImpl.cpp

Public Types

Public Member Functions

Static Public Attributes

Friends

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
