Main class for the management server. More...

#include <MgmtSrvr.hpp>

Inheritance diagram for MgmtSrvr:

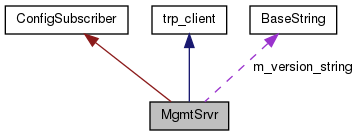

Collaboration diagram for MgmtSrvr:

Classes
class	Allocated_resources
struct	MgmtOpts
	Options used to control how the management server is started. More...
struct	nodeid_and_host

Public Types
enum	LogMode { In, Out, InOut, Off }

Public Member Functions
	MgmtSrvr (const MgmtSrvr &)
	MgmtSrvr (const MgmtOpts &)
bool	init ()
bool	start (void)
NodeId	getOwnNodeId () const
int	status (int nodeId, ndb_mgm_node_status status, Uint32 version, Uint32 mysql_version, Uint32 phase, bool systemShutdown, Uint32 dynamicId, Uint32 nodeGroup, Uint32 connectCount, const char **address)
int	stopNodes (const Vector< NodeId > &node_ids, int stopCount, bool abort, bool force, int stopSelf)
int	shutdownMGM (int stopCount, bool abort, int stopSelf)
int	shutdownDB (int *cnt=0, bool abort=false)
int	enterSingleUser (int *cnt=0, Uint32 singleuserNodeId=0)
int	exitSingleUser (int *cnt=0, bool abort=false)
int	start (int processId)
int	restartNodes (const Vector< NodeId > &node_ids, int stopCount, bool nostart, bool initialStart, bool abort, bool force, int stopSelf)
int	restartDB (bool nostart, bool initialStart, bool abort=false, int *stopCount=0)
int	startBackup (Uint32 &backupId, int waitCompleted=2, Uint32 input_backupId=0, Uint32 backuppoint=0)
int	abortBackup (Uint32 backupId)
int	performBackup (Uint32 *backupId)
int	setEventReportingLevelImpl (int processId, const EventSubscribeReq &ll)
int	setNodeLogLevelImpl (int processId, const SetLogLevelOrd &ll)
int	insertError (int processId, int errorNo)
int	setTraceNo (int processId, int traceNo)
int	setSignalLoggingMode (int processId, LogMode mode, const Vector< BaseString > &blocks)
int	setSignalLoggingMode (int processId, LogMode mode, BaseString &block)
int	startSignalTracing (int processId)
int	stopSignalTracing (int processId)
int	dumpState (int processId, const Uint32 args[], Uint32 argNo)
int	dumpState (int processId, const char *args)
bool	getNextNodeId (NodeId *_nodeId, enum ndb_mgm_node_type type) const
bool	alloc_node_id (NodeId _nodeId, enum ndb_mgm_node_type type, const struct sockaddr client_addr, SOCKET_SIZE_TYPE *client_addr_len, int &error_code, BaseString &error_string, int log_event=1, int timeout_s=20)
bool	change_config (Config &new_config, BaseString &msg)
const char *	getErrorText (int errorCode, char *buf, int buf_sz)
int	getPort () const
int	setDbParameter (int node, int parameter, const char *value, BaseString &)
int	setConnectionDbParameter (int node1, int node2, int param, int value, BaseString &msg)
int	getConnectionDbParameter (int node1, int node2, int param, int *value, BaseString &msg)
bool	transporter_connect (NDB_SOCKET_TYPE sockfd, BaseString &errormsg)
const char *	get_connect_address (Uint32 node_id)
void	get_connected_nodes (NodeBitmask &connected_nodes) const
SocketServer *	get_socket_server ()
void	updateStatus ()
int	createNodegroup (int nodes, int count, int ng)
int	dropNodegroup (int ng)
int	startSchemaTrans (SignalSender &ss, NodeId &out_nodeId, Uint32 transId, Uint32 &out_transKey)
int	endSchemaTrans (SignalSender &ss, NodeId nodeId, Uint32 transId, Uint32 transKey, Uint32 flags)
bool	get_packed_config (ndb_mgm_node_type nodetype, BaseString &buf64, BaseString &error)
bool	get_packed_config_from_node (NodeId nodeid, BaseString &buf64, BaseString &error)
void	print_config (const char section_filter=NULL, NodeId nodeid_filter=0, const char param_filter=NULL, NdbOut &out=ndbout)
bool	reload_config (const char *config_filename, bool mycnf, BaseString &msg)
void	show_variables (NdbOut &out=ndbout)
int	find_node_type (unsigned node_id, enum ndb_mgm_node_type type, const struct sockaddr *client_addr, NodeBitmask &nodes, NodeBitmask &exact_nodes, Vector< nodeid_and_host > &nodes_info, int &error_code, BaseString &error_string)
int	try_alloc (unsigned id, const char , enum ndb_mgm_node_type type, const struct sockaddr client_addr, Uint32 timeout_ms)
const char *	get_version_string (void) const
bool	request_events (NdbNodeBitmask nodes, Uint32 reports_per_node, Uint32 dump_type, Vector< SimpleSignal > &events)
Public Member Functions inherited from trp_client
virtual	~trp_client ()
virtual void	trp_deliver_signal (const NdbApiSignal *, const LinearSectionPtr ptr[3])=0
Uint32	open (class TransporterFacade *, int blockNo=-1)
void	close ()
void	start_poll ()
void	do_poll (Uint32)
void	complete_poll ()
void	wakeup ()
void	do_forceSend (int val=1)
int	raw_sendSignal (const NdbApiSignal *, Uint32 nodeId)
int	raw_sendSignal (const NdbApiSignal *, Uint32 nodeId, const LinearSectionPtr ptr[3], Uint32 secs)
int	raw_sendSignal (const NdbApiSignal *, Uint32 nodeId, const GenericSectionPtr ptr[3], Uint32 secs)
int	raw_sendFragmentedSignal (const NdbApiSignal *, Uint32 nodeId, const LinearSectionPtr ptr[3], Uint32 secs)
int	raw_sendFragmentedSignal (const NdbApiSignal *, Uint32 nodeId, const GenericSectionPtr ptr[3], Uint32 secs)
const trp_node &	getNodeInfo (Uint32 i) const
virtual void	recordWaitTimeNanos (Uint64 nanos)
void	lock ()
void	unlock ()
Uint32	getOwnNodeId () const
int	safe_sendSignal (const NdbApiSignal *, Uint32 nodeId)

Public Attributes
BaseString	m_version_string

Friends
class	Allocated_resources
class	MgmApiSession
class	Ndb_mgmd_event_service

Additional Inherited Members
Private Member Functions inherited from ConfigSubscriber
virtual void	config_changed (NodeId, const class Config *)=0

Detailed Description

Main class for the management server.

Definition at line 75 of file MgmtSrvr.hpp.

Member Enumeration Documentation

enum MgmtSrvr::LogMode

This enum specifies the different signal loggig modes possible to set with the setSignalLoggingMode method.

Definition at line 103 of file MgmtSrvr.hpp.

Member Function Documentation

bool MgmtSrvr::alloc_node_id	(	NodeId *	_nodeId,
		enum ndb_mgm_node_type	type,
		const struct sockaddr *	client_addr,
		SOCKET_SIZE_TYPE *	client_addr_len,
		int &	error_code,
		BaseString &	error_string,
		int	log_event = `1`,
		int	timeout_s = `20`
	)

Wait for config to get confirmed before allocating node id

set bit as reserved, release mutex, try-alloc reaquire mutex and clear bit if alloc failed

exact node tried in loop above

set bit as reserved, release mutex, try-alloc reaquire mutex and clear bit if alloc failed

Definition at line 3354 of file MgmtSrvr.cpp.

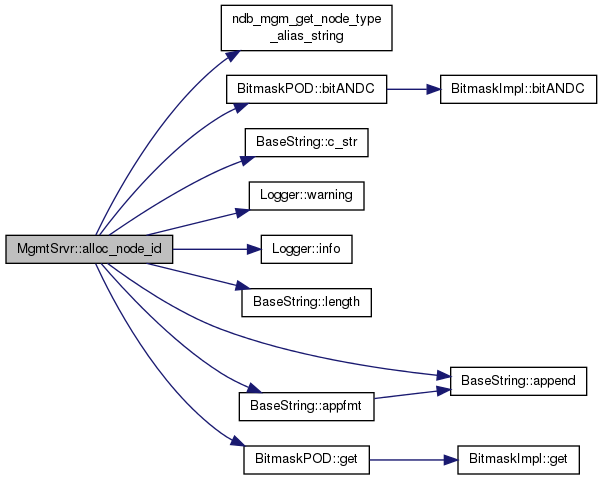

Here is the call graph for this function:

int MgmtSrvr::dumpState	(	int	processId,
		const Uint32	args[],
		Uint32	argNo
	)

Dump State

In order to make DUMP (almost) syncronous, make a syncronous request after the NDB_TAMPER

Definition at line 2871 of file MgmtSrvr.cpp.

int MgmtSrvr::enterSingleUser	(	int *	cnt = `0`,
		Uint32	singleuserNodeId = `0`
	)

Maintenance on the system

Definition at line 1649 of file MgmtSrvr.cpp.

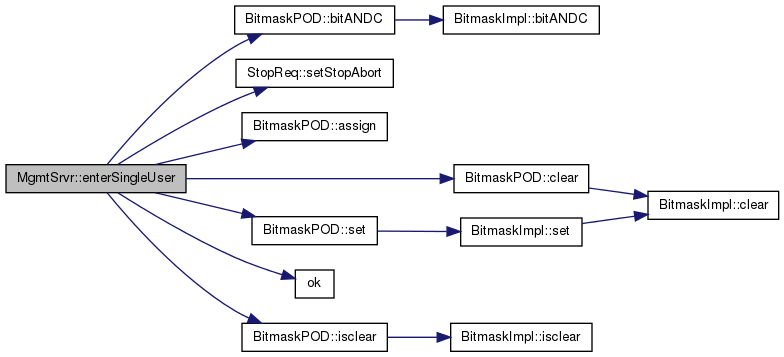

Here is the call graph for this function:

int MgmtSrvr::exitSingleUser	(	int *	cnt = `0`,
		bool	abort = `false`
	)

Resume from maintenance on the system

Definition at line 1986 of file MgmtSrvr.cpp.

const char * MgmtSrvr::getErrorText	(	int	errorCode,
		char *	buf,
		int	buf_sz
	)

Get error text

Parameters

errorCode,: Error code to get a match error text for.

Returns: The error text.

Definition at line 2907 of file MgmtSrvr.cpp.

bool MgmtSrvr::getNextNodeId	(	NodeId *	_nodeId,
		enum ndb_mgm_node_type	type
	)		const

Get next node id (node id gt than _nodeId) of specified type and save it in _nodeId

Returns: false if none found

Definition at line 3555 of file MgmtSrvr.cpp.

int MgmtSrvr::getPort ( ) const

inline

Returns the port number where MgmApiService is started

Returns: port number.

Definition at line 340 of file MgmtSrvr.hpp.

int MgmtSrvr::insertError	(	int	processId,
		int	errorNo
	)

Insert an error in a DB process.

Parameters

processId,:	Id of the DB process
errorNo,:	The error number. > 0.

Returns: 0 if succeeded, otherwise: as stated above, plus: INVALID_ERROR_NUMBER

In order to make NDB_TAMPER (almost) syncronous, make a syncronous request after the NDB_TAMPER

Definition at line 2348 of file MgmtSrvr.cpp.

int MgmtSrvr::restartDB	(	bool	nostart,
		bool	initialStart,
		bool	abort = `false`,
		int *	stopCount = `0`
	)

Restart all DB nodes

Here all nodes were correctly stopped, so we wait for all nodes to be contactable

Now we start all database nodes (i.e. we make them non-idle) We ignore the result we get from the start command.

Errors from this call are deliberately ignored. Maybe the user only wanted to restart a subset of the nodes. It is also easy for the user to check which nodes have started and which nodes have not.

Definition at line 1909 of file MgmtSrvr.cpp.

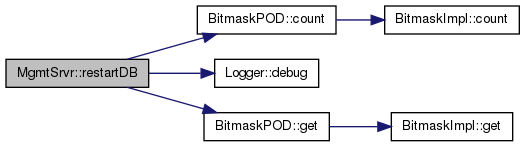

Here is the call graph for this function:

int MgmtSrvr::restartNodes	(	const Vector< NodeId > &	node_ids,
		int *	stopCount,
		bool	nostart,
		bool	initialStart,
		bool	abort,
		bool	force,
		int *	stopSelf
	)

Restart a list of nodes

Definition at line 1811 of file MgmtSrvr.cpp.

Here is the call graph for this function:

int MgmtSrvr::setDbParameter	(	int	node,
		int	parameter,
		const char *	value,
		BaseString &	msg
	)

Check parameter

Definition at line 3820 of file MgmtSrvr.cpp.

Here is the call graph for this function:

int MgmtSrvr::shutdownDB	(	int *	cnt = `0`,
		bool	abort = `false`
	)

shutdown the DB nodes

Definition at line 1629 of file MgmtSrvr.cpp.

Here is the call graph for this function:

int MgmtSrvr::start ( int processId )

Start DB process.

Parameters

processId,: Id of the DB process to start

Returns: 0 if succeeded, otherwise: as stated above, plus:

Definition at line 977 of file MgmtSrvr.cpp.

int MgmtSrvr::startBackup	(	Uint32 &	backupId,
		int	waitCompleted = `2`,
		Uint32	input_backupId = `0`,
		Uint32	backuppoint = `0`
	)

Backup functionallity

Definition at line 3591 of file MgmtSrvr.cpp.

Here is the call graph for this function:

int MgmtSrvr::status	(	int	nodeId,
		ndb_mgm_node_status *	status,
		Uint32 *	version,
		Uint32 *	mysql_version,
		Uint32 *	phase,
		bool *	systemShutdown,
		Uint32 *	dynamicId,
		Uint32 *	nodeGroup,
		Uint32 *	connectCount,
		const char **	address
	)

Get status on a node. address may point to a common area (e.g. from inet_addr) There is no guarentee that it is preserved across calls. Copy the string if you are not going to use it immediately.

Definition at line 2097 of file MgmtSrvr.cpp.

int MgmtSrvr::stopNodes	(	const Vector< NodeId > &	node_ids,
		int *	stopCount,
		bool	abort,
		bool	force,
		int *	stopSelf
	)

Stop a list of nodes

Definition at line 1572 of file MgmtSrvr.cpp.

Here is the call graph for this function:

int MgmtSrvr::try_alloc	(	unsigned	id,
		const char *	config_hostname,
		enum ndb_mgm_node_type	type,
		const struct sockaddr *	client_addr,
		Uint32	timeout_ms
	)

Make sure we're ready to accept connections from this node

Definition at line 3285 of file MgmtSrvr.cpp.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

storage/ndb/src/mgmsrv/MgmtSrvr.hpp
storage/ndb/src/mgmsrv/MgmtSrvr.cpp
