Inheritance diagram for TransporterFacade:

Collaboration diagram for TransporterFacade:

Classes
struct	ThreadData

Public Member Functions
	STATIC_CONST (MAX_NO_THREADS=4711)
	TransporterFacade (GlobalDictCache *cache)
int	start_instance (NodeId, const ndb_mgm_configuration *)
void	stop_instance ()
bool	configure (NodeId, const ndb_mgm_configuration *)
Uint32	open_clnt (trp_client *, int blockNo=-1)
int	close_clnt (trp_client *)
Uint32	get_active_ndb_objects () const
void	ext_set_max_api_reg_req_interval (Uint32 ms)
void	ext_update_connections ()
struct in_addr	ext_get_connect_address (Uint32 nodeId)
void	ext_forceHB ()
bool	ext_isConnected (NodeId aNodeId)
void	ext_doConnect (int aNodeId)
Uint32	getMinDbNodeVersion () const
NodeId	ownId () const
void	connected ()
void	doConnect (int NodeId)
void	reportConnected (int NodeId)
void	doDisconnect (int NodeId)
void	reportDisconnected (int NodeId)
NodeId	get_an_alive_node ()
void	trp_node_status (NodeId, Uint32 event)
void	for_each (trp_client clnt, const NdbApiSignal aSignal, const LinearSectionPtr ptr[3])
void	lock_mutex ()
void	unlock_mutex ()
void	forceSend (Uint32 block_number)
void	checkForceSend (Uint32 block_number)
TransporterRegistry *	get_registry ()
void	start_poll (trp_client *)
void	do_poll (trp_client *clnt, Uint32 wait_time)
void	complete_poll (trp_client *)
void	wakeup (trp_client *)
void	external_poll (Uint32 wait_time)
trp_client *	get_poll_owner (bool) const
trp_client *	remove_last_from_poll_queue ()
void	add_to_poll_queue (trp_client *clnt)
void	remove_from_poll_queue (trp_client *clnt)
void	hb_received (NodeId n)
void	set_auto_reconnect (int val)
int	get_auto_reconnect () const
void	deliver_signal (SignalHeader const header, Uint8 prio, Uint32 const signalData, LinearSectionPtr ptr[3])
int	checkJobBuffer ()
void	reportSendLen (NodeId nodeId, Uint32 count, Uint64 bytes)
void	reportReceiveLen (NodeId nodeId, Uint32 count, Uint64 bytes)
void	reportConnect (NodeId nodeId)
void	reportDisconnect (NodeId nodeId, Uint32 errNo)
void	reportError (NodeId nodeId, TransporterError errorCode, const char *info=0)
void	transporter_recv_from (NodeId node)
Uint32	get_bytes_to_send_iovec (NodeId node, struct iovec *dst, Uint32 max)
Uint32	bytes_sent (NodeId node, Uint32 bytes)
bool	has_data_to_send (NodeId node)
void	reset_send_buffer (NodeId node, bool should_be_empty)
Public Member Functions inherited from TransporterCallback
virtual void	lock_transporter (NodeId node)
virtual void	unlock_transporter (NodeId node)

Public Attributes
trp_client *	m_poll_owner
trp_client *	m_poll_queue_head
trp_client *	m_poll_queue_tail
NdbMutex *	theMutexPtr
GlobalDictCache *	m_globalDictCache

Friends
class	trp_client
class	ClusterMgr
class	ArbitMgr
class	Ndb_cluster_connection
class	Ndb_cluster_connection_impl
void *	runSendRequest_C (void *)
void *	runReceiveResponse_C (void *)

Detailed Description

Definition at line 44 of file TransporterFacade.hpp.

Member Function Documentation

Uint32 TransporterFacade::bytes_sent	(	NodeId	node,
		Uint32	bytes
	)

inlinevirtual

Called when data has been sent, allowing to free / reuse the space. Passes number of bytes sent.

Note that this may be less than the sum of all iovec::iov_len supplied (in case of partial send). In particular, one iovec entry may have been partially sent, and may not be freed until another call to bytes_sent() which covers the rest of its data.

Returns total amount of unsent data in send buffers for this node.

Like get_bytes_to_send_iovec(), this is called during performSend().

Implements TransporterCallback.

Definition at line 188 of file TransporterFacade.hpp.

int TransporterFacade::checkJobBuffer ( )

virtual

Report connection broken

Implements TransporterCallback.

Definition at line 147 of file TransporterFacade.cpp.

bool TransporterFacade::configure	(	NodeId	nodeId,
		const ndb_mgm_configuration *	conf
	)

Keep value it set before connect (overriding config)

Also setup Loopback Transporter

Definition at line 605 of file TransporterFacade.cpp.

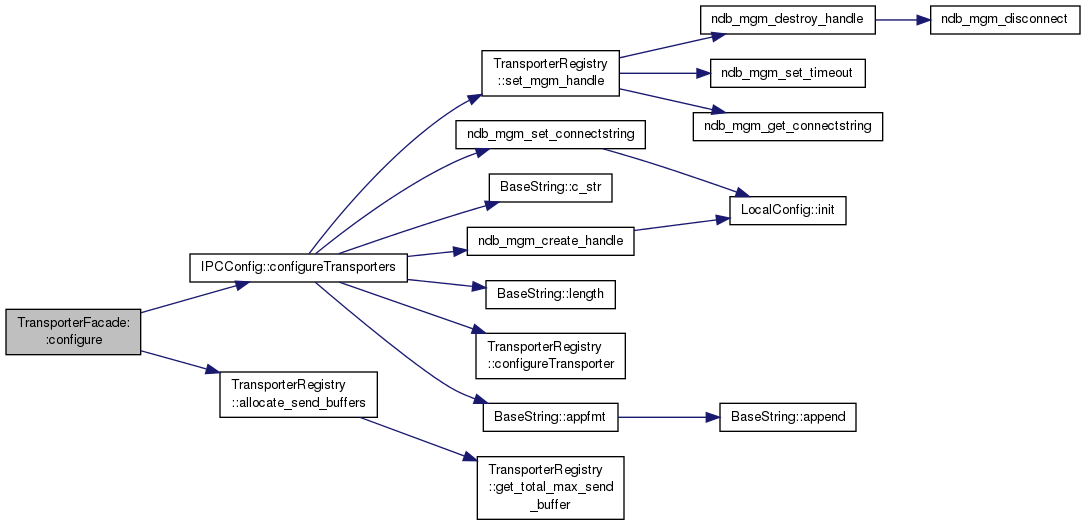

Here is the call graph for this function:

Here is the caller graph for this function:

void TransporterFacade::deliver_signal	(	SignalHeader *const	header,
		Uint8	prio,
		Uint32 *const	theData,
		LinearSectionPtr	ptr[3]
	)

virtual

The execute function : Handle received signal

Handle received signal immediately to avoid any unnecessary copying of data, allocation of memory and other things. Copying of data could be interesting to support several priority levels and to support a special memory structure when executing the signals. Neither of those are interesting when receiving data in the NDBAPI. The NDBAPI will thus read signal data directly as it was written by the sender (SCI sender is other node, Shared memory sender is other process and TCP/IP sender is the OS that writes the TCP/IP message into a message buffer).

Block number == 2047 is used to signal a signal that consists of multiple instances of the same signal. This is an effort to package the signals so as to avoid unnecessary communication overhead since TCP/IP has a great performance impact.

Since it contains at least two data packets we will first copy the signal data to safe place.

Set the data length of the signal and the receivers block reference and then call the API.

Implements TransporterCallback.

Definition at line 210 of file TransporterFacade.cpp.

Here is the call graph for this function:

void TransporterFacade::ext_set_max_api_reg_req_interval ( Uint32 ms )

These are functions used by ndb_mgmd

Definition at line 1990 of file TransporterFacade.cpp.

void TransporterFacade::for_each	(	trp_client *	clnt,
		const NdbApiSignal *	aSignal,
		const LinearSectionPtr	ptr[3]
	)

Send signal to each registered object

Definition at line 667 of file TransporterFacade.cpp.

Here is the caller graph for this function:

Uint32 TransporterFacade::get_bytes_to_send_iovec	(	NodeId	,
		struct iovec *	dst,
		Uint32
	)

inlinevirtual

ToDo: In current patch, these are not used, instead we use default implementations in TransporterRegistry. Ask upper layer to supply a list of struct iovec's with data to send to a node.

The call should fill in data from all threads (if any).

The call will write at most MAX iovec structures starting at DST.

Returns number of entries filled-in on success, -1 on error.

Will be called from the thread that does performSend(), so multi-threaded use cases must be prepared for that and do any necessary locking.

Implements TransporterCallback.

Definition at line 184 of file TransporterFacade.hpp.

bool TransporterFacade::has_data_to_send ( NodeId node )

inlinevirtual

Called to check if any data is available for sending with doSend().

Like get_bytes_to_send_iovec(), this is called during performSend().

Implements TransporterCallback.

Definition at line 192 of file TransporterFacade.hpp.

Uint32 TransporterFacade::open_clnt	(	trp_client *	clnt,
		int	blockNo = `-1`
	)

Register this block for sending/receiving signals block number to use, -1 => any blockNumber

Returns: BlockNumber or -1 for failure

Definition at line 733 of file TransporterFacade.cpp.

void TransporterFacade::reportConnect ( NodeId nodeId )

virtual

Report connection established

Implements TransporterCallback.

Definition at line 114 of file TransporterFacade.cpp.

void TransporterFacade::reportDisconnect	(	NodeId	nodeId,
		Uint32	error
	)

virtual

Report connection broken

Implements TransporterCallback.

Definition at line 126 of file TransporterFacade.cpp.

void TransporterFacade::reportError	(	NodeId	nodeId,
		TransporterError	errorCode,
		const char *	info = `0`
	)

virtual

Called by transporter code to report error

This is called from TransporterRegistry::update_connections(), which only runs from the receive thread.

Implements TransporterCallback.

Definition at line 66 of file TransporterFacade.cpp.

void TransporterFacade::reportReceiveLen	(	NodeId	nodeId,
		Uint32	count,
		Uint64	bytes
	)

virtual

Report average receive length in bytes (4096 last receives)

Implements TransporterCallback.

Definition at line 99 of file TransporterFacade.cpp.

void TransporterFacade::reportSendLen	(	NodeId	nodeId,
		Uint32	count,
		Uint64	bytes
	)

virtual

Report average send length in bytes (4096 last sends)

Implements TransporterCallback.

Definition at line 84 of file TransporterFacade.cpp.

void TransporterFacade::reset_send_buffer	(	NodeId	node,
		bool	should_be_empty
	)

inlinevirtual

Called to completely empty the send buffer for a node (ie. disconnect).

Can be called to check that no one has written to the sendbuffer since it was reset last time by using the "should_be_emtpy" flag

Implements TransporterCallback.

Definition at line 196 of file TransporterFacade.hpp.

int TransporterFacade::start_instance	(	NodeId	nodeId,
		const ndb_mgm_configuration *	conf
	)

Note that this function needs no locking since it is only called from the constructor of Ndb (the NdbObject)

Which is protected by a mutex

Definition at line 344 of file TransporterFacade.cpp.

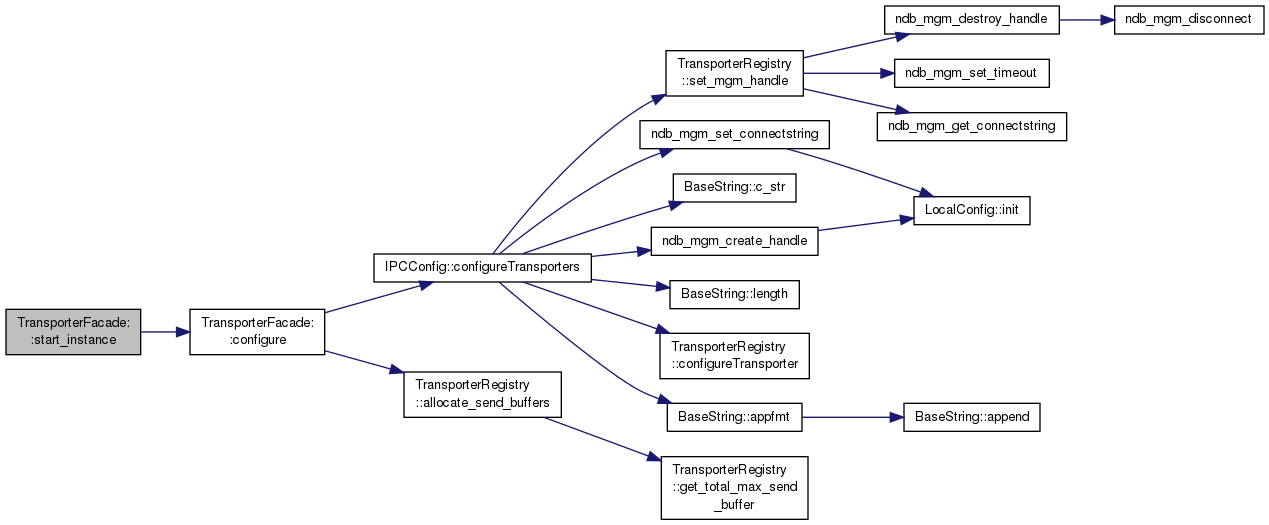

Here is the call graph for this function:

TransporterFacade::STATIC_CONST ( MAX_NO_THREADS = 4711 )

Max number of Ndb objects. (Ndb objects should not be shared by different threads.)

void TransporterFacade::stop_instance ( )

Note that this function need no locking since its only called from the destructor of Ndb (the NdbObject)

Which is protected by a mutex

Definition at line 397 of file TransporterFacade.cpp.

void TransporterFacade::transporter_recv_from ( NodeId node )

virtual

Called from transporter code after a successful receive from a node.

Used for heartbeat detection by upper layer.

Implements TransporterCallback.

Definition at line 134 of file TransporterFacade.cpp.

The documentation for this class was generated from the following files:

storage/ndb/src/ndbapi/TransporterFacade.hpp
storage/ndb/src/ndbapi/TransporterFacade.cpp
