#include <Backup.hpp>

Inheritance diagram for Backup:

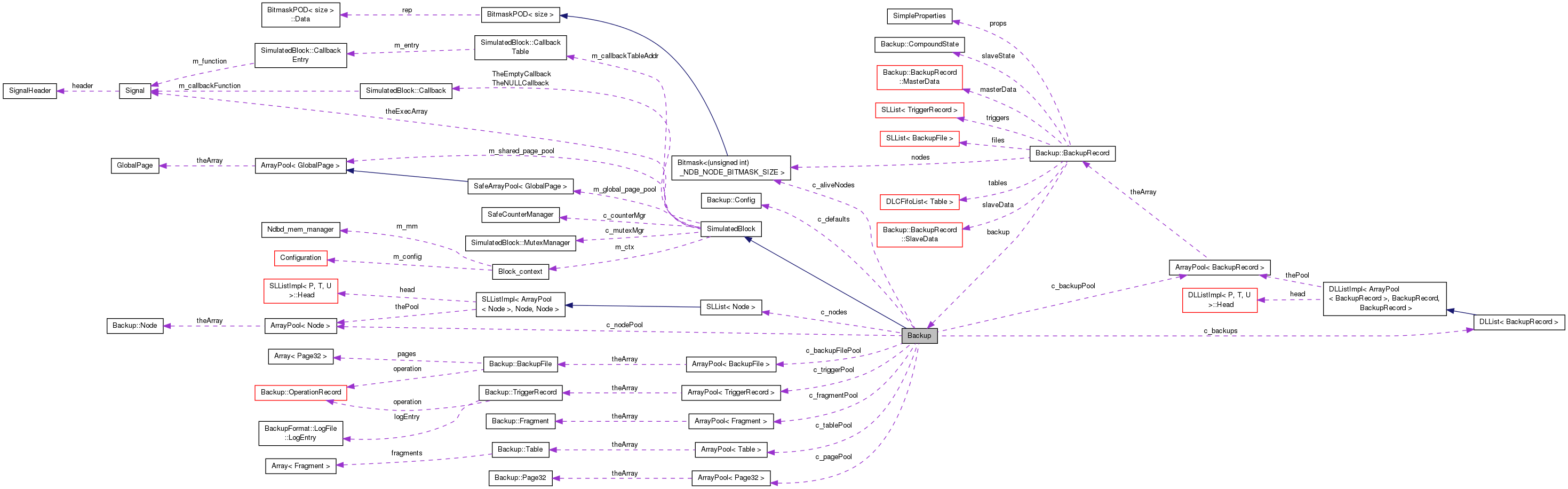

Collaboration diagram for Backup:

Classes
struct	BackupFile
struct	BackupRecord
class	CompoundState
struct	Config
struct	Fragment
struct	Node
struct	OperationRecord
struct	Page32
struct	Table
struct	TriggerRecord

Public Types
enum	State { INITIAL = 0, DEFINING = 1, DEFINED = 2, STARTED = 3, SCANNING = 4, STOPPING = 5, CLEANING = 6, ABORTING = 7 }
typedef Ptr< Node >	NodePtr
typedef Ptr< Page32 >	Page32Ptr
typedef Ptr< Fragment >	FragmentPtr
typedef Ptr< Table >	TablePtr
typedef Ptr< TriggerRecord >	TriggerPtr
typedef Ptr< BackupFile >	BackupFilePtr
typedef Ptr< BackupRecord >	BackupRecordPtr
Public Types inherited from SimulatedBlock
typedef void(SimulatedBlock::*	CallbackFunction )(class Signal *, Uint32 callbackData, Uint32 returnCode)

Public Member Functions

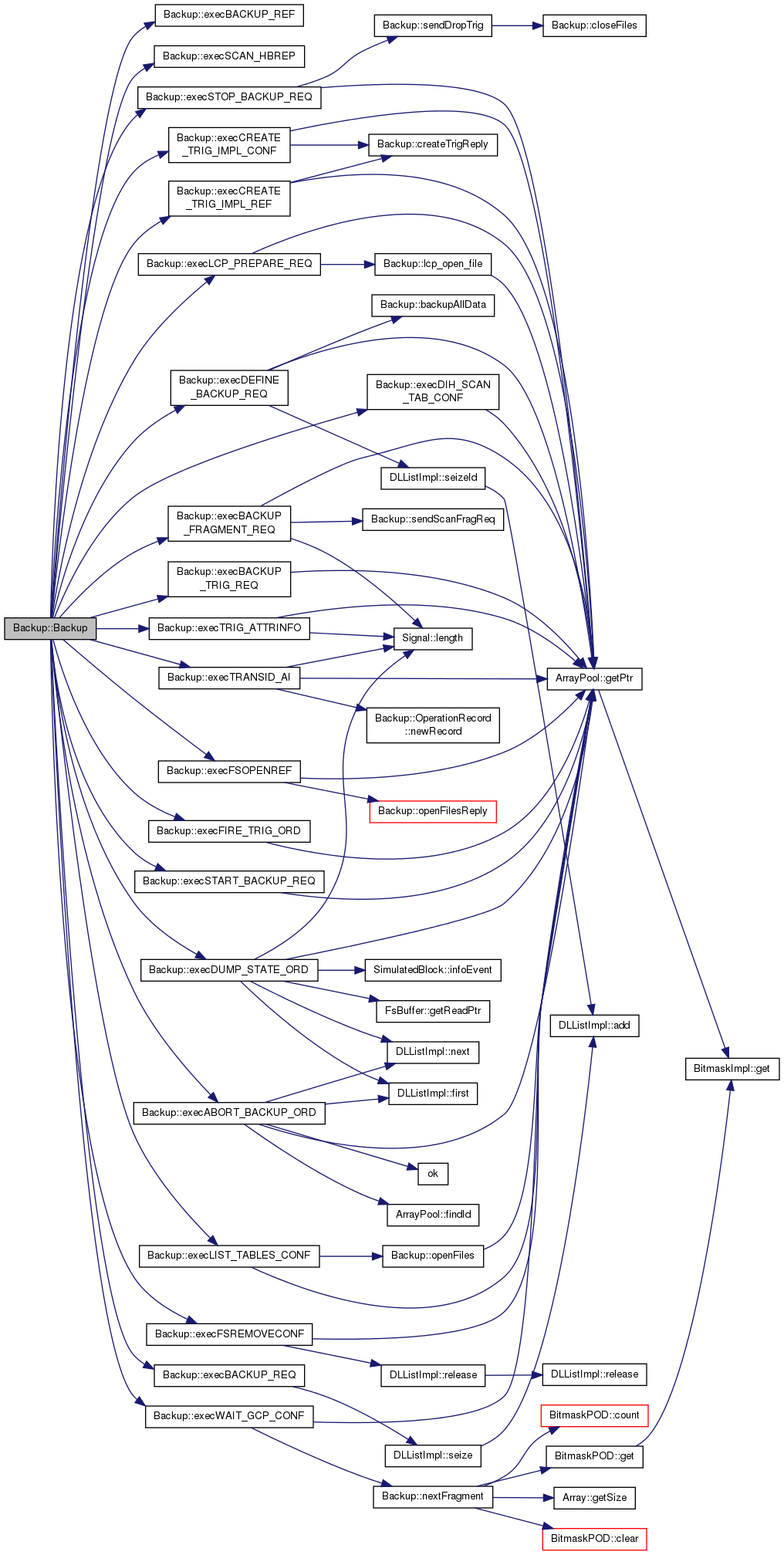

	Backup (Block_context &ctx, Uint32 instanceNumber=0)
	BLOCK_DEFINES (Backup)
	STATIC_CONST (NO_OF_PAGES_META_FILE=(2 *MAX_WORDS_META_FILE+BACKUP_WORDS_PER_PAGE-1)/BACKUP_WORDS_PER_PAGE)
void	checkFile (Signal *, BackupFilePtr)

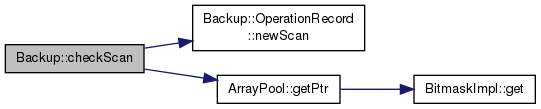

void	checkScan (Signal *, BackupFilePtr)
void	fragmentCompleted (Signal *, BackupFilePtr)
void	backupAllData (Signal *signal, BackupRecordPtr)
void	getFragmentInfo (Signal *, BackupRecordPtr, TablePtr, Uint32 fragNo)
void	getFragmentInfoDone (Signal *, BackupRecordPtr)
void	openFiles (Signal *signal, BackupRecordPtr ptr)
void	openFilesReply (Signal *, BackupRecordPtr ptr, BackupFilePtr)
void	closeFiles (Signal *, BackupRecordPtr ptr)
void	closeFile (Signal *, BackupRecordPtr, BackupFilePtr)
void	closeFilesDone (Signal *, BackupRecordPtr ptr)
void	sendDefineBackupReq (Signal *signal, BackupRecordPtr ptr)
void	defineBackupReply (Signal *signal, BackupRecordPtr ptr, Uint32 nodeId)

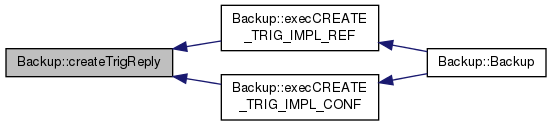

void	createTrigReply (Signal *signal, BackupRecordPtr ptr)
void	alterTrigReply (Signal *signal, BackupRecordPtr ptr)
void	startBackupReply (Signal *signal, BackupRecordPtr ptr, Uint32)
void	stopBackupReply (Signal *signal, BackupRecordPtr ptr, Uint32 nodeId)
void	defineBackupRef (Signal *, BackupRecordPtr, Uint32 errCode=0)
void	backupFragmentRef (Signal *signal, BackupFilePtr filePtr)

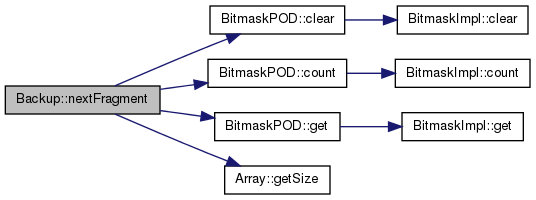

void	nextFragment (Signal *, BackupRecordPtr)
void	sendCreateTrig (Signal *, BackupRecordPtr ptr, TablePtr tabPtr)
void	createAttributeMask (TablePtr tab, Bitmask< MAXNROFATTRIBUTESINWORDS > &)
void	sendStartBackup (Signal *, BackupRecordPtr, TablePtr)
void	sendAlterTrig (Signal *, BackupRecordPtr ptr)
void	sendScanFragReq (Signal *, BackupRecordPtr, BackupFilePtr, TablePtr, FragmentPtr, Uint32 delay)
void	sendDropTrig (Signal *, BackupRecordPtr ptr)
void	sendDropTrig (Signal *signal, BackupRecordPtr ptr, TablePtr tabPtr)
void	dropTrigReply (Signal *, BackupRecordPtr ptr)
void	sendSignalAllWait (BackupRecordPtr ptr, Uint32 gsn, Signal *signal, Uint32 signalLength, bool executeDirect=false)
bool	haveAllSignals (BackupRecordPtr ptr, Uint32 gsn, Uint32 nodeId)
void	sendStopBackup (Signal *, BackupRecordPtr ptr)
void	sendAbortBackupOrd (Signal *signal, BackupRecordPtr ptr, Uint32 errCode)
void	sendAbortBackupOrdSlave (Signal *signal, BackupRecordPtr ptr, Uint32 errCode)
void	masterAbort (Signal *, BackupRecordPtr ptr)
void	masterSendAbortBackup (Signal *, BackupRecordPtr ptr)
void	slaveAbort (Signal *, BackupRecordPtr ptr)
void	abortFile (Signal *signal, BackupRecordPtr ptr, BackupFilePtr filePtr)
void	abortFileHook (Signal *signal, BackupFilePtr filePtr, bool scanDone)
bool	verifyNodesAlive (BackupRecordPtr, const NdbNodeBitmask &aNodeBitMask)
bool	checkAbort (BackupRecordPtr ptr)

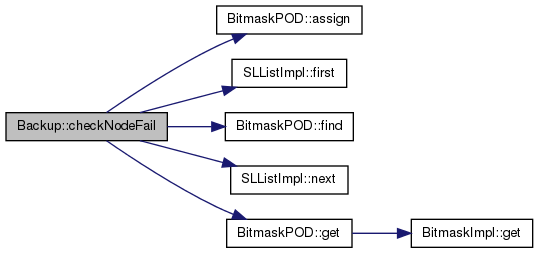

void	checkNodeFail (Signal *signal, BackupRecordPtr ptr, NodeId newCoord, Uint32 theFailedNodes[NdbNodeBitmask::Size])
void	masterTakeOver (Signal *signal, BackupRecordPtr ptr)
NodeId	getMasterNodeId () const
bool	findTable (const BackupRecordPtr &, TablePtr &, Uint32 tableId) const

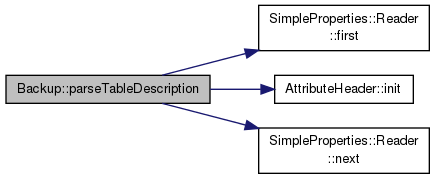

bool	parseTableDescription (Signal , BackupRecordPtr ptr, TablePtr, const Uint32 , Uint32)
bool	insertFileHeader (BackupFormat::FileType, BackupRecord , BackupFile )
void	sendBackupRef (Signal *signal, BackupRecordPtr ptr, Uint32 errorCode)
void	sendBackupRef (BlockReference ref, Uint32 flags, Signal *signal, Uint32 senderData, Uint32 errorCode)
void	dumpUsedResources ()
void	cleanup (Signal *, BackupRecordPtr ptr)
void	abort_scan (Signal *, BackupRecordPtr ptr)
void	removeBackup (Signal *, BackupRecordPtr ptr)
void	sendUtilSequenceReq (Signal *, BackupRecordPtr ptr, Uint32 delay=0)
void	initReportStatus (Signal *signal, BackupRecordPtr ptr)
void	checkReportStatus (Signal *signal, BackupRecordPtr ptr)
void	reportStatus (Signal *signal, BackupRecordPtr ptr, BlockReference ref=CMVMI_REF)
void	sendSTTORRY (Signal *)
void	createSequence (Signal *signal)
void	createSequenceReply (Signal , class UtilSequenceConf )
void	lcp_open_file (Signal *signal, BackupRecordPtr ptr)
void	lcp_open_file_done (Signal *, BackupRecordPtr)
void	lcp_close_file_conf (Signal *signal, BackupRecordPtr)
void	read_lcp_descriptor (Signal *, BackupRecordPtr, TablePtr)
bool	ready_to_write (bool ready, Uint32 sz, bool eof, BackupFile *fileP)
void	afterGetTabinfoLockTab (Signal *signal, BackupRecordPtr ptr, TablePtr tabPtr)
void	cleanupNextTable (Signal *signal, BackupRecordPtr ptr, TablePtr tabPtr)
BackupFormat::LogFile::LogEntry *	get_log_buffer (Signal *, TriggerPtr, Uint32)
	STATIC_CONST (UserBackupInstanceKey=1)
Uint32	instanceKey (BackupRecordPtr ptr)
Public Member Functions inherited from SimulatedBlock
void	executeFunction (GlobalSignalNumber gsn, Signal *signal)
Uint32	instance () const
SimulatedBlock *	getInstance (Uint32 instanceNumber)
void	addInstance (SimulatedBlock *b, Uint32 theInstanceNo)
virtual void	loadWorkers ()
void	assignToThread (ThreadContext ctx)
uint32	getThreadId () const
void	assertOwnThread ()
void	synchronize_threads_for_blocks (Signal *, const Uint32 blocks[], const Callback &, JobBufferLevel=JBB)
void	synchronize_path (Signal *, const Uint32 blocks[], const Callback &, JobBufferLevel=JBB)
virtual const char *	get_filename (Uint32 fd) const
EmulatedJamBuffer *	jamBuffer () const
void	ignoreMutexUnlockCallback (Signal *signal, Uint32 ptrI, Uint32 retVal)
virtual bool	getParam (const char param, Uint32 retVal)

Public Attributes
Uint32 *	c_startOfPages
NodeId	c_masterNodeId
SLList< Node >	c_nodes
NdbNodeBitmask	c_aliveNodes
DLList< BackupRecord >	c_backups
Config	c_defaults
Uint32	m_curr_disk_write_speed
Uint32	m_words_written_this_period
Uint32	m_overflow_disk_write
Uint32	m_reset_delay_used
NDB_TICKS	m_reset_disk_speed_time
Uint32	m_backup_report_frequency
ArrayPool< Table >	c_tablePool
ArrayPool< BackupRecord >	c_backupPool
ArrayPool< BackupFile >	c_backupFilePool
ArrayPool< Page32 >	c_pagePool
ArrayPool< Fragment >	c_fragmentPool
ArrayPool< Node >	c_nodePool
ArrayPool< TriggerRecord >	c_triggerPool
Public Attributes inherited from SimulatedBlock
MutexManager	c_mutexMgr
SafeCounterManager	c_counterMgr

Static Public Attributes
static const Uint32	validSlaveTransitionsCount
static const Uint32	validMasterTransitionsCount
static const State	validSlaveTransitions []
static const State	validMasterTransitions []
static const int	DISK_SPEED_CHECK_DELAY = 100

Protected Member Functions
void	execSTTOR (Signal *signal)
void	execREAD_CONFIG_REQ (Signal *signal)

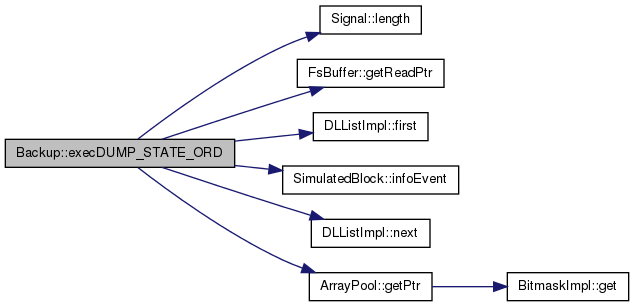

void	execDUMP_STATE_ORD (Signal *signal)
void	execREAD_NODESCONF (Signal *signal)
void	execNODE_FAILREP (Signal *signal)
void	execINCL_NODEREQ (Signal *signal)
void	execCONTINUEB (Signal *signal)
void	execBACKUP_REF (Signal *signal)
void	execBACKUP_CONF (Signal *signal)
void	execBACKUP_ABORT_REP (Signal *signal)
void	execBACKUP_COMPLETE_REP (Signal *signal)

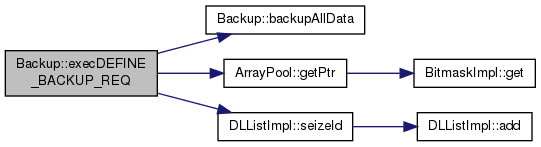

void	execDEFINE_BACKUP_REQ (Signal *signal)
void	execBACKUP_DATA (Signal *signal)
void	execSTART_BACKUP_REQ (Signal *signal)

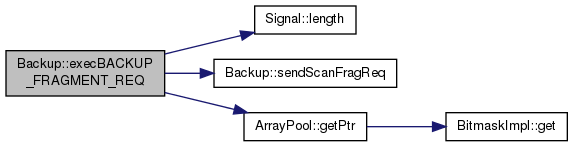

void	execBACKUP_FRAGMENT_REQ (Signal *signal)
void	execBACKUP_FRAGMENT_COMPLETE_REP (Signal *signal)
void	execSTOP_BACKUP_REQ (Signal *signal)
void	execBACKUP_STATUS_REQ (Signal *signal)

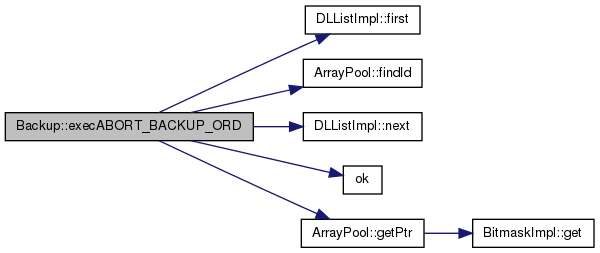

void	execABORT_BACKUP_ORD (Signal *signal)
void	execSCAN_HBREP (Signal *signal)

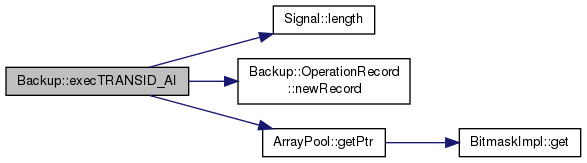

void	execTRANSID_AI (Signal *signal)
void	execSCAN_FRAGREF (Signal *signal)
void	execSCAN_FRAGCONF (Signal *signal)
void	execBACKUP_TRIG_REQ (Signal *signal)
void	execTRIG_ATTRINFO (Signal *signal)
void	execFIRE_TRIG_ORD (Signal *signal)
void	execLIST_TABLES_CONF (Signal *signal)
void	execGET_TABINFOREF (Signal *signal)
void	execGET_TABINFO_CONF (Signal *signal)
void	execCREATE_TRIG_IMPL_REF (Signal *signal)
void	execCREATE_TRIG_IMPL_CONF (Signal *signal)
void	execDROP_TRIG_IMPL_REF (Signal *signal)
void	execDROP_TRIG_IMPL_CONF (Signal *signal)
void	execDIH_SCAN_TAB_CONF (Signal *signal)
void	execDIH_SCAN_GET_NODES_CONF (Signal *signal)

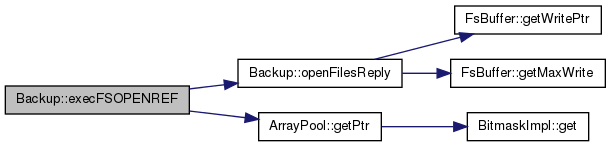

void	execFSOPENREF (Signal *signal)
void	execFSOPENCONF (Signal *signal)
void	execFSCLOSEREF (Signal *signal)
void	execFSCLOSECONF (Signal *signal)
void	execFSAPPENDREF (Signal *signal)
void	execFSAPPENDCONF (Signal *signal)
void	execFSREMOVEREF (Signal *signal)
void	execFSREMOVECONF (Signal *signal)
void	execBACKUP_REQ (Signal *signal)
void	execABORT_BACKUP_REQ (Signal *signal)
void	execDEFINE_BACKUP_REF (Signal *signal)
void	execDEFINE_BACKUP_CONF (Signal *signal)
void	execSTART_BACKUP_REF (Signal *signal)
void	execSTART_BACKUP_CONF (Signal *signal)
void	execBACKUP_FRAGMENT_REF (Signal *signal)
void	execBACKUP_FRAGMENT_CONF (Signal *signal)
void	execSTOP_BACKUP_REF (Signal *signal)
void	execSTOP_BACKUP_CONF (Signal *signal)
void	execBACKUP_STATUS_CONF (Signal *signal)
void	execUTIL_SEQUENCE_REF (Signal *signal)
void	execUTIL_SEQUENCE_CONF (Signal *signal)
void	execWAIT_GCP_REF (Signal *signal)

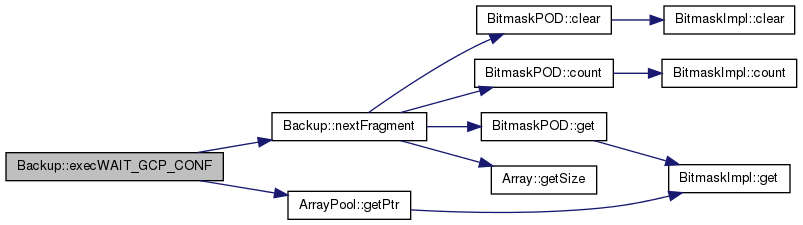

void	execWAIT_GCP_CONF (Signal *signal)
void	execBACKUP_LOCK_TAB_CONF (Signal *signal)
void	execBACKUP_LOCK_TAB_REF (Signal *signal)
void	execLCP_PREPARE_REQ (Signal *signal)
void	execLCP_FRAGMENT_REQ (Signal *)
void	execEND_LCPREQ (Signal *signal)
void	execDBINFO_SCANREQ (Signal *signal)
Protected Member Functions inherited from SimulatedBlock
	SimulatedBlock (BlockNumber blockNumber, struct Block_context &ctx, Uint32 instanceNumber=0)
void	addRecSignalImpl (GlobalSignalNumber g, ExecFunction fun, bool f=false)
void	installSimulatedBlockFunctions ()
void	initCommon ()
void	TheNULLCallbackFunction (class Signal *, Uint32, Uint32)
void	execute (Signal *signal, Callback &c, Uint32 returnCode)
void	sendSignal (BlockReference ref, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf) const
void	sendSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf) const
void	sendSignal (BlockReference ref, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections) const
void	sendSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections) const
void	sendSignal (BlockReference ref, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections) const
void	sendSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections) const
void	sendSignalNoRelease (BlockReference ref, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections) const
void	sendSignalNoRelease (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections) const
void	sendSignalWithDelay (BlockReference ref, GlobalSignalNumber gsn, Signal *signal, Uint32 delayInMilliSeconds, Uint32 length) const
void	sendSignalWithDelay (BlockReference ref, GlobalSignalNumber gsn, Signal signal, Uint32 delayInMilliSeconds, Uint32 length, SectionHandle sections) const
void	EXECUTE_DIRECT (Uint32 block, Uint32 gsn, Signal *signal, Uint32 len, Uint32 givenInstanceNo=ZNIL)
class SectionSegmentPool &	getSectionSegmentPool ()
void	release (SegmentedSectionPtr &ptr)
void	release (SegmentedSectionPtrPOD &ptr)
void	releaseSection (Uint32 firstSegmentIVal)
void	releaseSections (struct SectionHandle &)
bool	import (Ptr< SectionSegment > &first, const Uint32 *src, Uint32 len)
bool	import (SegmentedSectionPtr &ptr, const Uint32 *src, Uint32 len)
bool	appendToSection (Uint32 &firstSegmentIVal, const Uint32 *src, Uint32 len)
bool	dupSection (Uint32 &copyFirstIVal, Uint32 srcFirstIVal)
bool	writeToSection (Uint32 firstSegmentIVal, Uint32 offset, const Uint32 *src, Uint32 len)
void	handle_invalid_sections_in_send_signal (Signal *) const
void	handle_lingering_sections_after_execute (Signal *) const
void	handle_lingering_sections_after_execute (SectionHandle *) const
void	handle_invalid_fragmentInfo (Signal *) const
void	handle_send_failed (SendStatus, Signal *) const
void	handle_out_of_longsignal_memory (Signal *) const
void	sendRoutedSignal (RoutePath path[], Uint32 pathcnt, Uint32 dst[], Uint32 dstcnt, Uint32 gsn, Signal , Uint32 len, JobBufferLevel prio, SectionHandle handle=0)
bool	checkNodeFailSequence (Signal *)
bool	assembleFragments (Signal *signal)
bool	assembleDroppedFragments (Signal *signal)
	STATIC_CONST (FRAGMENT_WORD_SIZE=240)
void	sendFragmentedSignal (BlockReference ref, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections, Callback &=TheEmptyCallback, Uint32 messageSize=FRAGMENT_WORD_SIZE)
void	sendFragmentedSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections, Callback &=TheEmptyCallback, Uint32 messageSize=FRAGMENT_WORD_SIZE)
void	sendFragmentedSignal (BlockReference ref, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections, Callback &=TheEmptyCallback, Uint32 messageSize=FRAGMENT_WORD_SIZE)
void	sendFragmentedSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections, Callback &=TheEmptyCallback, Uint32 messageSize=FRAGMENT_WORD_SIZE)
Uint32	simBlockNodeFailure (Signal *signal, Uint32 failedNodeId, Callback &cb=TheEmptyCallback)
bool	sendFirstFragment (FragmentSendInfo &info, NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections, bool noRelease, Uint32 messageSize=FRAGMENT_WORD_SIZE)
bool	sendFirstFragment (FragmentSendInfo &info, NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections, Uint32 messageSize=FRAGMENT_WORD_SIZE)
void	sendNextSegmentedFragment (Signal *signal, FragmentSendInfo &info)
void	sendNextLinearFragment (Signal *signal, FragmentSendInfo &info)
BlockNumber	number () const
BlockReference	reference () const
NodeId	getOwnNodeId () const
void	refresh_watch_dog (Uint32 place=1)
void	update_watch_dog_timer (Uint32 interval)
void	progError (int line, int err_code, const char *extradata=NULL) const ATTRIBUTE_NORETURN
NewVARIABLE *	allocateBat (int batSize)
void	freeBat ()
BlockReference	calcInstanceBlockRef (BlockNumber aBlock)
BlockReference	calcInstanceBlockRef (BlockNumber aBlock, NodeId aNode)
void *	allocRecord (const char *type, size_t s, size_t n, bool clear=true, Uint32 paramId=0)
void *	allocRecordAligned (const char type, size_t s, size_t n, void *unaligned_buffer, Uint32 align=NDB_O_DIRECT_WRITE_ALIGNMENT, bool clear=true, Uint32 paramId=0)
void	deallocRecord (void *, const char type, size_t s, size_t n)
Uint32	allocChunks (AllocChunk dst[], Uint32arraysize, Uint32rg, Uint32pages, Uint32 paramId)
void	infoEvent (const char *msg,...) const ATTRIBUTE_FORMAT(printf
void void	warningEvent (const char *msg,...) const ATTRIBUTE_FORMAT(printf
void void const NodeState &	getNodeState () const
const NodeInfo &	getNodeInfo (NodeId nodeId) const
NodeInfo &	setNodeInfo (NodeId)
const NodeVersionInfo &	getNodeVersionInfo () const
NodeVersionInfo &	setNodeVersionInfo ()
Uint32	xfrm_key (Uint32 tab, const Uint32 src, Uint32 dst, Uint32 dstSize, Uint32 keyPartLen[MAX_ATTRIBUTES_IN_INDEX]) const
Uint32	xfrm_attr (Uint32 attrDesc, CHARSET_INFO cs, const Uint32 src, Uint32 &srcPos, Uint32 *dst, Uint32 &dstPos, Uint32 dstSize) const
Uint32	create_distr_key (Uint32 tableId, const Uint32 src, Uint32 dst, const Uint32 keyPaLen[MAX_ATTRIBUTES_IN_INDEX]) const
void	wakeup ()
void	setup_wakeup ()
void	execNDB_TAMPER (Signal *signal)
void	execNODE_STATE_REP (Signal *signal)
void	execCHANGE_NODE_STATE_REQ (Signal *signal)
void	execSIGNAL_DROPPED_REP (Signal *signal)
void	execCONTINUE_FRAGMENTED (Signal *signal)
void	execSTOP_FOR_CRASH (Signal *signal)
void	execAPI_START_REP (Signal *signal)
void	execNODE_START_REP (Signal *signal)
void	execSEND_PACKED (Signal *signal)
void	execLOCAL_ROUTE_ORD (Signal *)
Uint32	debugPrintFragmentCounts ()
void	fsRefError (Signal signal, Uint32 line, const char msg)
void	execFSWRITEREF (Signal *signal)
void	execFSREADREF (Signal *signal)
void	execFSSYNCREF (Signal *signal)
void	execute (Signal *signal, CallbackPtr &cptr, Uint32 returnCode)
const CallbackEntry &	getCallbackEntry (Uint32 ci)
void	sendCallbackConf (Signal *signal, Uint32 fullBlockNo, CallbackPtr &cptr, Uint32 returnCode)
void	execCALLBACK_CONF (Signal *signal)
void	ndbinfo_send_row (Signal *signal, const DbinfoScanReq &req, const Ndbinfo::Row &row, Ndbinfo::Ratelimit &rl) const
void	ndbinfo_send_scan_break (Signal *signal, DbinfoScanReq &req, const Ndbinfo::Ratelimit &rl, Uint32 data1, Uint32 data2=0, Uint32 data3=0, Uint32 data4=0) const
void	ndbinfo_send_scan_conf (Signal *signal, DbinfoScanReq &req, const Ndbinfo::Ratelimit &rl) const

Friends
class	BackupProxy
struct	OperationRecord
class	CompoundState
struct	BackupRecord

Additional Inherited Members
Static Public Member Functions inherited from SimulatedBlock
static bool	isMultiThreaded ()
static bool	isNdbMt ()
static bool	isNdbMtLqh ()
static Uint32	getLqhWorkers ()
static Uint32	getInstanceKey (Uint32 tabId, Uint32 fragId)
static Uint32	getInstanceFromKey (Uint32 instanceKey)
Protected Types inherited from SimulatedBlock
enum	CallbackFlags { CALLBACK_DIRECT = 0x0001, CALLBACK_ACK = 0x0002 }
enum	{ THE_NULL_CALLBACK = 0 }
typedef void(SimulatedBlock::*	ExecFunction )(Signal *signal)
Static Protected Member Functions inherited from SimulatedBlock
static const NewVARIABLE *	getBat (BlockNumber blockNo, Uint32 instanceNo)
static Uint16	getBatSize (BlockNumber blockNo, Uint32 instanceNo)
static BlockReference	calcTcBlockRef (NodeId aNode)
static BlockReference	calcLqhBlockRef (NodeId aNode)
static BlockReference	calcAccBlockRef (NodeId aNode)
static BlockReference	calcTupBlockRef (NodeId aNode)
static BlockReference	calcTuxBlockRef (NodeId aNode)
static BlockReference	calcDihBlockRef (NodeId aNode)
static BlockReference	calcQmgrBlockRef (NodeId aNode)
static BlockReference	calcDictBlockRef (NodeId aNode)
static BlockReference	calcNdbCntrBlockRef (NodeId aNode)
static BlockReference	calcTrixBlockRef (NodeId aNode)
static BlockReference	calcBackupBlockRef (NodeId aNode)
static BlockReference	calcSumaBlockRef (NodeId aNode)
static BlockReference	calcApiClusterMgrBlockRef (NodeId aNode)
static int	sortchunks (const void , const void )
Protected Attributes inherited from SimulatedBlock
ExecFunction	theExecArray [MAX_GSN+1]
Block_context	m_ctx
SafeArrayPool< GlobalPage > &	m_global_page_pool
ArrayPool< GlobalPage > &	m_shared_page_pool
CallbackTable *	m_callbackTableAddr
	ERROR_INSERT_VARIABLE
Static Protected Attributes inherited from SimulatedBlock
static Callback	TheEmptyCallback = {0, 0}
static Callback	TheNULLCallback

Detailed Description

Backup - This block manages database backup and restore

Definition at line 43 of file Backup.hpp.

Member Enumeration Documentation

enum Backup::State

State for BackupRecord

Definition at line 352 of file Backup.hpp.

Constructor & Destructor Documentation

Backup::Backup	(	Block_context &	ctx,
		Uint32	instanceNumber = `0`
	)

Testing

Definition at line 32 of file BackupInit.cpp.

Here is the call graph for this function:

Member Function Documentation

void Backup::afterGetTabinfoLockTab	(	Signal *	signal,
		BackupRecordPtr	ptr,
		TablePtr	tabPtr
	)

Done with all tables...

Fetch next table...

Definition at line 3669 of file Backup.cpp.

Here is the call graph for this function:

void Backup::backupAllData	(	Signal *	signal,
		BackupRecordPtr	ptr
	)

Get all tables from dict

Definition at line 3155 of file Backup.cpp.

Here is the caller graph for this function:

void Backup::checkNodeFail	(	Signal *	signal,
		BackupRecordPtr	ptr,
		NodeId	newCoord,
		Uint32	theFailedNodes[NdbNodeBitmask::Size]
	)

Master died...abort

I'm master for this backup

I abort myself as slave if not master

Definition at line 1109 of file Backup.cpp.

Here is the call graph for this function:

void Backup::checkScan	(	Signal *	signal,
		BackupFilePtr	filePtr
	)

Close scan

Definition at line 4508 of file Backup.cpp.

Here is the call graph for this function:

void Backup::closeFiles	(	Signal *	sig,
		BackupRecordPtr	ptr
	)

Close all files

Definition at line 5153 of file Backup.cpp.

Here is the caller graph for this function:

void Backup::createTrigReply	(	Signal *	signal,
		BackupRecordPtr	ptr
	)

Check finished with table

Next table

We've finished creating triggers.

send conf and wait

Definition at line 1908 of file Backup.cpp.

Here is the caller graph for this function:

void Backup::defineBackupReply	(	Signal *	signal,
		BackupRecordPtr	ptr,
		Uint32	nodeId
	)

Unlock mutexes

We've received GSN_DEFINE_BACKUP_CONF from all participants.

Our next step is to send START_BACKUP_REQ to all participants, who will then send CREATE_TRIG_REQ for all tables to their local DBTUP.

Definition at line 1693 of file Backup.cpp.

Here is the call graph for this function:

void Backup::execABORT_BACKUP_ORD ( Signal * signal )

protected

Requests sent to master

Only scans are actively aborted

Requests sent to slave

Definition at line 5336 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execBACKUP_FRAGMENT_REQ ( Signal * signal )

protected

Get backup record

Get file

Get table

Get fragment

Init operation

Check for space in buffer

Mark things as "in use"

Definition at line 4007 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execBACKUP_REF ( Signal * signal )

protected

Testing

Definition at line 867 of file Backup.cpp.

Here is the caller graph for this function:

void Backup::execBACKUP_REQ ( Signal * signal )

protected

Master functinallity

Seize a backup record

Definition at line 1301 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execBACKUP_TRIG_REQ ( Signal * signal )

protected

Trigger logging

Definition at line 4811 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execCREATE_TRIG_IMPL_CONF ( Signal * signal )

protected

Verify that I'm waiting for this conf

ptr.p->masterRef != reference() as slaves and masters have triggers now.

Definition at line 1848 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execCREATE_TRIG_IMPL_REF ( Signal * signal )

protected

Verify that I'm waiting for this ref

ptr.p->masterRef != reference() as slaves and masters have triggers now

Definition at line 1880 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execDEFINE_BACKUP_REQ ( Signal * signal )

protected

Signals sent from master

Signal sent from myself -> record already seized

Allocate files

Not implemented

Definition at line 2958 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execDIH_SCAN_TAB_CONF ( Signal * signal )

protected

DIH signals

Next table

Definition at line 3823 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execDUMP_STATE_ORD ( Signal * signal )

protected

Print records

Print size of records etc.

Handle LCP

Definition at line 475 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execFIRE_TRIG_ORD ( Signal * signal )

protected

dataPtr[0] : Primary key info dataPtr[1] : Before values dataPtr[2] : After values

Definition at line 4963 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execFSOPENREF ( Signal * signal )

protected

FS signals

Reimplemented from SimulatedBlock.

Definition at line 3313 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execFSREMOVECONF ( Signal * signal )

protected

Get backup record

Definition at line 5604 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execLCP_PREPARE_REQ ( Signal * signal )

protected

LCP

Definition at line 5628 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execLIST_TABLES_CONF ( Signal * signal )

protected

DICT signals

Definition at line 3171 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execSCAN_HBREP ( Signal * signal )

protected

The actual scan

Definition at line 4165 of file Backup.cpp.

Here is the caller graph for this function:

void Backup::execSTART_BACKUP_REQ ( Signal * signal )

protected

Start file threads...

Tell DBTUP to create triggers

Definition at line 3961 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execSTOP_BACKUP_REQ ( Signal * signal )

protected

At least one GCP must have passed

Get backup record

Destroy the triggers in local DBTUP we created

Definition at line 5118 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execTRANSID_AI ( Signal * signal )

protected

Unpack data

Definition at line 4171 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execTRIG_ATTRINFO ( Signal * signal )

protected

Backup is doing UNDO logging and don't need after values

Backup is doing REDO logging and don't need before values

Definition at line 4901 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::execWAIT_GCP_CONF ( Signal * signal )

protected

Backup is complete - begin cleanup STOP_BACKUP_REQ is sent to participants. They then drop the local triggers

Make sure that we got entire stopGCP

Definition at line 2114 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::lcp_open_file	(	Signal *	signal,
		BackupRecordPtr	ptr
	)

Lcp file

Definition at line 5725 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::lcp_open_file_done	(	Signal *	signal,
		BackupRecordPtr	ptr
	)

Start file thread

Definition at line 5768 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::nextFragment	(	Signal *	signal,
		BackupRecordPtr	ptr
	)

Finished with all tables

Definition at line 2177 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::openFiles	(	Signal *	signal,
		BackupRecordPtr	ptr
	)

Ctl file

Log file

Data file

Definition at line 3244 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::openFilesReply	(	Signal *	signal,
		BackupRecordPtr	ptr,
		BackupFilePtr	filePtr
	)

Mark files as "opened"

Check if all files have recived open_reply

Dont return FailedForBackupFilesAleadyExist cause this will make NdbBackup auto-retry with higher number :-)

Did open succeed for all files

Insert file headers

Start CTL file thread

Insert table list in ctl file

Start getting table definition data

Definition at line 3353 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool Backup::parseTableDescription	(	Signal *	signal,
		BackupRecordPtr	ptr,
		TablePtr	tabPtr,
		const Uint32 *	tabdescptr,
		Uint32	len
	)

LCP should not save disk attributes but only mem attributes

Initialize table object

Definition at line 3708 of file Backup.cpp.

Here is the call graph for this function:

void Backup::sendDefineBackupReq	(	Signal *	signal,
		BackupRecordPtr	ptr
	)

Sending define backup to all participants

Now send backup data

No data to send

Not implemented

Definition at line 1611 of file Backup.cpp.

void Backup::sendDropTrig	(	Signal *	signal,
		BackupRecordPtr	ptr
	)

Insert footers

Definition at line 2415 of file Backup.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Backup::sendScanFragReq	(	Signal *	,
		BackupRecordPtr	,
		BackupFilePtr	,
		TablePtr	,
		FragmentPtr	,
		Uint32	delay
	)

Start scan

Definition at line 4087 of file Backup.cpp.

Here is the caller graph for this function:

void Backup::sendStartBackup	(	Signal *	signal,
		BackupRecordPtr	ptr,
		TablePtr	tabPtr
	)

We use trigger Ids that are unique to BACKUP. These don't interfere with other triggers (e.g. from DBDICT) as there is a special case in DBTUP.

Consequently, backups during online upgrade won't work

Definition at line 1971 of file Backup.cpp.

Here is the caller graph for this function:

void Backup::startBackupReply	(	Signal *	signal,
		BackupRecordPtr	ptr,
		Uint32	nodeId
	)

Wait for GCP

Definition at line 2029 of file Backup.cpp.

Member Data Documentation

Uint32* Backup::c_startOfPages

Variables

Definition at line 548 of file Backup.hpp.

ArrayPool<Table> Backup::c_tablePool

Pools

Definition at line 574 of file Backup.hpp.

const Backup::State Backup::validSlaveTransitions

static

Initial value:

 {
  INITIAL,  DEFINING,
  DEFINING, DEFINED,
  DEFINED,  STARTED,
  STARTED,  STARTED,
  STARTED,  SCANNING,
  SCANNING, STARTED,
  STARTED,  STOPPING,
  STOPPING, CLEANING,
  CLEANING, INITIAL,

  INITIAL,  ABORTING,
  DEFINING, ABORTING,
  DEFINED,  ABORTING,
  STARTED,  ABORTING,
  SCANNING, ABORTING,
  STOPPING, ABORTING,
  CLEANING, ABORTING,
  ABORTING, ABORTING,

  ABORTING, INITIAL,
  INITIAL,  INITIAL
}

Definition at line 365 of file Backup.hpp.

const Uint32 Backup::validSlaveTransitionsCount

static

Initial value:

sizeof(Backup::validSlaveTransitions) / sizeof(Backup::State)

Definition at line 363 of file Backup.hpp.

The documentation for this class was generated from the following files:

storage/ndb/src/kernel/blocks/backup/Backup.hpp
storage/ndb/src/kernel/blocks/backup/Backup.cpp
storage/ndb/src/kernel/blocks/backup/BackupInit.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
