#include "univ.i"
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stdarg.h>
#include "api0api.h"
#include "api0misc.h"
#include "srv0start.h"
#include "dict0dict.h"
#include "btr0pcur.h"
#include "row0ins.h"
#include "row0upd.h"
#include "row0vers.h"
#include "trx0roll.h"
#include "dict0crea.h"
#include "row0merge.h"
#include "pars0pars.h"
#include "lock0types.h"
#include "row0sel.h"
#include "lock0lock.h"
#include "rem0cmp.h"
#include "ut0dbg.h"
#include "dict0priv.h"
#include "ut0ut.h"
#include "ha_prototypes.h"

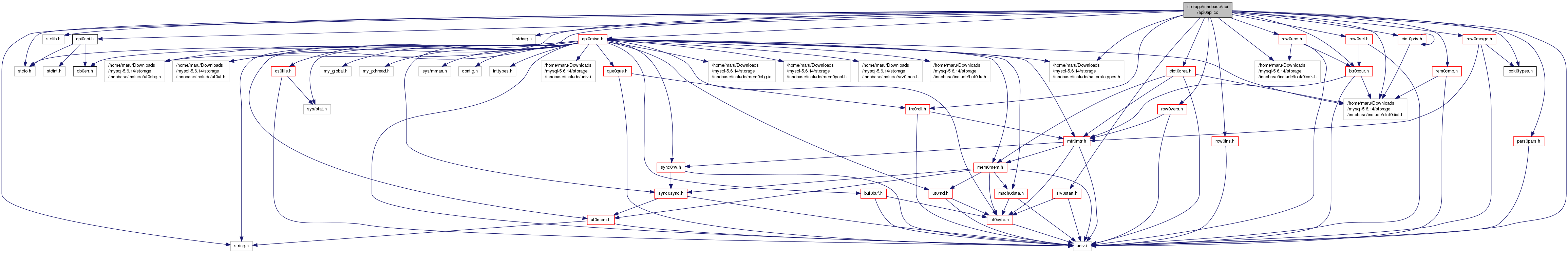

Include dependency graph for api0api.cc:

Classes
struct	ib_qry_grph_t
struct	ib_qry_node_t
struct	ib_qry_proc_t
struct	ib_cursor_t
struct	ib_col_t
struct	ib_key_col_t
struct	ib_index_def_t
struct	ib_table_def_t
struct	ib_tuple_t

Macros
#define	INNOBASE_WAKE_INTERVAL 32
#define	SRV_PATH_SEPARATOR '/'

Enumerations
enum	ib_tuple_type_t { TPL_TYPE_ROW, TPL_TYPE_KEY }
enum	ib_qry_type_t { QRY_NON, QRY_INS, QRY_UPD, QRY_SEL }

Functions
UNIV_INLINE ib_bool_t	ib_btr_cursor_is_positioned (btr_pcur_t *pcur)
UNIV_INTERN void *	ib_open_table_by_name (const char *name)
UNIV_INLINE void	ib_wake_master_thread (void)
UNIV_INLINE ulint	ib_get_max_row_len (dict_index_t *cluster)
UNIV_INTERN ib_err_t	ib_trx_start (ib_trx_t ib_trx, ib_trx_level_t ib_trx_level, void *thd)
UNIV_INTERN ib_trx_t	ib_trx_begin (ib_trx_level_t ib_trx_level)
UNIV_INTERN ib_trx_state_t	ib_trx_state (ib_trx_t ib_trx)
UNIV_INTERN ib_u64_t	ib_trx_get_start_time (ib_trx_t ib_trx)

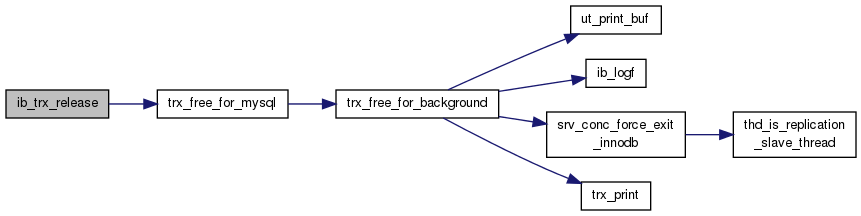

UNIV_INTERN ib_err_t	ib_trx_release (ib_trx_t ib_trx)
ib_err_t	ib_trx_commit (ib_trx_t ib_trx)
UNIV_INTERN ib_err_t	ib_trx_rollback (ib_trx_t ib_trx)
UNIV_INLINE const ib_index_def_t *	ib_table_find_index (ib_vector_t indexes, const char name)
UNIV_INLINE ulint	ib_col_get_prtype (const ib_col_t *ib_col)
UNIV_INLINE ulint	ib_col_get_mtype (const ib_col_t *ib_col)
UNIV_INLINE const ib_col_t *	ib_table_find_col (const ib_vector_t cols, const char name)
UNIV_INLINE const ib_key_col_t *	ib_index_find_col (ib_vector_t cols, const char name)
UNIV_INTERN ib_err_t	ib_table_name_check (const char *name)
UNIV_INLINE ib_index_def_t *	ib_find_clustered_index (ib_vector_t *indexes)
UNIV_INTERN ib_err_t	ib_cursor_open_table_using_id (ib_id_u64_t table_id, ib_trx_t ib_trx, ib_crsr_t *ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_open_index_using_id (ib_id_u64_t index_id, ib_trx_t ib_trx, ib_crsr_t *ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_open_index_using_name (ib_crsr_t ib_open_crsr, const char index_name, ib_crsr_t ib_crsr, int idx_type, ib_id_u64_t idx_id)
UNIV_INTERN ib_err_t	ib_cursor_open_table (const char name, ib_trx_t ib_trx, ib_crsr_t ib_crsr)
UNIV_INTERN void	ib_cursor_clear_trx (ib_crsr_t ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_reset (ib_crsr_t ib_crsr)

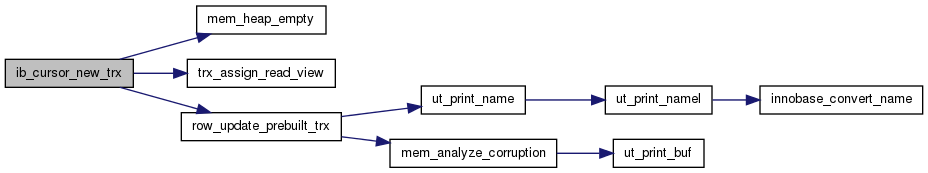

ib_err_t	ib_cursor_new_trx (ib_crsr_t ib_crsr, ib_trx_t ib_trx)
ib_err_t	ib_cursor_commit_trx (ib_crsr_t ib_crsr, ib_trx_t ib_trx)
UNIV_INTERN ib_err_t	ib_cursor_close (ib_crsr_t ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_close_table (ib_crsr_t ib_crsr)
UNIV_INLINE ib_err_t	ib_insert_row_with_lock_retry (que_thr_t thr, ins_node_t node, trx_savept_t *savept)
UNIV_INTERN ib_err_t	ib_cursor_insert_row (ib_crsr_t ib_crsr, const ib_tpl_t ib_tpl)
UNIV_INLINE upd_t *	ib_update_vector_create (ib_cursor_t *cursor)
UNIV_INLINE ib_err_t	ib_update_row_with_lock_retry (que_thr_t thr, upd_node_t node, trx_savept_t *savept)
UNIV_INLINE ib_err_t	ib_execute_update_query_graph (ib_cursor_t cursor, btr_pcur_t pcur)
UNIV_INTERN ib_err_t	ib_cursor_update_row (ib_crsr_t ib_crsr, const ib_tpl_t ib_old_tpl, const ib_tpl_t ib_new_tpl)

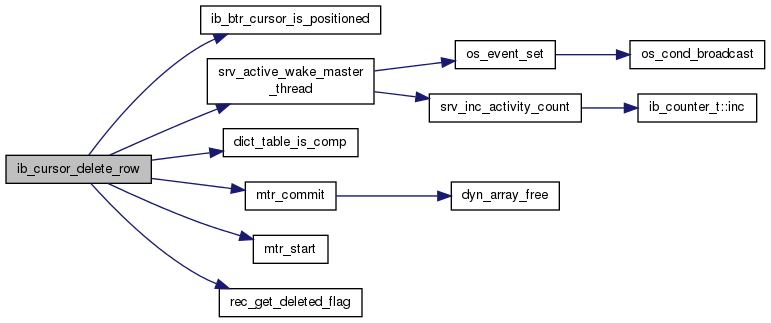

UNIV_INTERN ib_err_t	ib_cursor_delete_row (ib_crsr_t ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_read_row (ib_crsr_t ib_crsr, ib_tpl_t ib_tpl)
UNIV_INLINE ib_err_t	ib_cursor_position (ib_cursor_t *cursor, ib_srch_mode_t mode)
UNIV_INTERN ib_err_t	ib_cursor_first (ib_crsr_t ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_last (ib_crsr_t ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_next (ib_crsr_t ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_moveto (ib_crsr_t ib_crsr, ib_tpl_t ib_tpl, ib_srch_mode_t ib_srch_mode)
UNIV_INTERN void	ib_cursor_set_match_mode (ib_crsr_t ib_crsr, ib_match_mode_t match_mode)
UNIV_INLINE dfield_t *	ib_col_get_dfield (ib_tuple_t *tuple, ulint col_no)
UNIV_INLINE ib_err_t	ib_col_is_capped (const dtype_t *dtype)
UNIV_INTERN ib_err_t	ib_col_set_value (ib_tpl_t ib_tpl, ib_ulint_t col_no, const void *src, ib_ulint_t len, ib_bool_t need_cpy)
UNIV_INTERN ib_ulint_t	ib_col_get_len (ib_tpl_t ib_tpl, ib_ulint_t i)
UNIV_INLINE ib_ulint_t	ib_col_copy_value_low (ib_tpl_t ib_tpl, ib_ulint_t i, void *dst, ib_ulint_t len)
UNIV_INTERN ib_ulint_t	ib_col_copy_value (ib_tpl_t ib_tpl, ib_ulint_t i, void *dst, ib_ulint_t len)
UNIV_INLINE ib_col_attr_t	ib_col_get_attr (ulint prtype)
UNIV_INTERN const char *	ib_col_get_name (ib_crsr_t ib_crsr, ib_ulint_t i)
UNIV_INTERN const char *	ib_get_idx_field_name (ib_crsr_t ib_crsr, ib_ulint_t i)
UNIV_INLINE ib_ulint_t	ib_col_get_meta_low (ib_tpl_t ib_tpl, ib_ulint_t i, ib_col_meta_t *ib_col_meta)
UNIV_INLINE ib_err_t	ib_tuple_check_int (ib_tpl_t ib_tpl, ib_ulint_t i, ib_bool_t usign, ulint size)

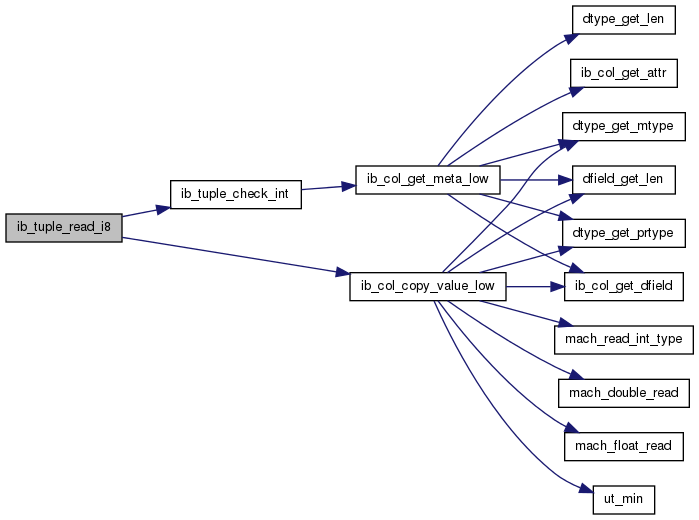

UNIV_INTERN ib_err_t	ib_tuple_read_i8 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_i8_t *ival)
UNIV_INTERN ib_err_t	ib_tuple_read_u8 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_u8_t *ival)
UNIV_INTERN ib_err_t	ib_tuple_read_i16 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_i16_t *ival)
UNIV_INTERN ib_err_t	ib_tuple_read_u16 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_u16_t *ival)
UNIV_INTERN ib_err_t	ib_tuple_read_i32 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_i32_t *ival)
UNIV_INTERN ib_err_t	ib_tuple_read_u32 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_u32_t *ival)
UNIV_INTERN ib_err_t	ib_tuple_read_i64 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_i64_t *ival)
UNIV_INTERN ib_err_t	ib_tuple_read_u64 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_u64_t *ival)
UNIV_INTERN const void *	ib_col_get_value (ib_tpl_t ib_tpl, ib_ulint_t i)
UNIV_INTERN ib_ulint_t	ib_col_get_meta (ib_tpl_t ib_tpl, ib_ulint_t i, ib_col_meta_t *ib_col_meta)
UNIV_INTERN ib_tpl_t	ib_tuple_clear (ib_tpl_t ib_tpl)
UNIV_INTERN ib_err_t	ib_tuple_get_cluster_key (ib_crsr_t ib_crsr, ib_tpl_t *ib_dst_tpl, const ib_tpl_t ib_src_tpl)
UNIV_INTERN ib_err_t	ib_tuple_copy (ib_tpl_t ib_dst_tpl, const ib_tpl_t ib_src_tpl)
UNIV_INTERN ib_tpl_t	ib_sec_search_tuple_create (ib_crsr_t ib_crsr)
UNIV_INTERN ib_tpl_t	ib_sec_read_tuple_create (ib_crsr_t ib_crsr)
UNIV_INTERN ib_tpl_t	ib_clust_search_tuple_create (ib_crsr_t ib_crsr)
UNIV_INTERN ib_tpl_t	ib_clust_read_tuple_create (ib_crsr_t ib_crsr)
UNIV_INTERN ib_ulint_t	ib_tuple_get_n_user_cols (const ib_tpl_t ib_tpl)
UNIV_INTERN ib_ulint_t	ib_tuple_get_n_cols (const ib_tpl_t ib_tpl)
UNIV_INTERN void	ib_tuple_delete (ib_tpl_t ib_tpl)
UNIV_INTERN ib_err_t	ib_table_get_id (const char table_name, ib_id_u64_t table_id)
UNIV_INTERN ib_err_t	ib_index_get_id (const char table_name, const char index_name, ib_id_u64_t *index_id)
UNIV_INTERN ib_bool_t	ib_cursor_is_positioned (const ib_crsr_t ib_crsr)
UNIV_INTERN ib_bool_t	ib_schema_lock_is_exclusive (const ib_trx_t ib_trx)
UNIV_INTERN ib_bool_t	ib_schema_lock_is_shared (const ib_trx_t ib_trx)
UNIV_INTERN ib_err_t	ib_cursor_lock (ib_crsr_t ib_crsr, ib_lck_mode_t ib_lck_mode)
UNIV_INTERN ib_err_t	ib_table_lock (ib_trx_t ib_trx, ib_id_u64_t table_id, ib_lck_mode_t ib_lck_mode)
UNIV_INTERN ib_err_t	ib_cursor_unlock (ib_crsr_t ib_crsr)
UNIV_INTERN ib_err_t	ib_cursor_set_lock_mode (ib_crsr_t ib_crsr, ib_lck_mode_t ib_lck_mode)
UNIV_INTERN void	ib_cursor_set_cluster_access (ib_crsr_t ib_crsr)
UNIV_INLINE ib_err_t	ib_tuple_write_int (ib_tpl_t ib_tpl, ulint col_no, const void *value, ulint value_len)
UNIV_INTERN ib_err_t	ib_tuple_write_i8 (ib_tpl_t ib_tpl, int col_no, ib_i8_t val)
UNIV_INTERN ib_err_t	ib_tuple_write_i16 (ib_tpl_t ib_tpl, int col_no, ib_i16_t val)
UNIV_INTERN ib_err_t	ib_tuple_write_i32 (ib_tpl_t ib_tpl, int col_no, ib_i32_t val)
UNIV_INTERN ib_err_t	ib_tuple_write_i64 (ib_tpl_t ib_tpl, int col_no, ib_i64_t val)
UNIV_INTERN ib_err_t	ib_tuple_write_u8 (ib_tpl_t ib_tpl, int col_no, ib_u8_t val)
UNIV_INTERN ib_err_t	ib_tuple_write_u16 (ib_tpl_t ib_tpl, int col_no, ib_u16_t val)
UNIV_INTERN ib_err_t	ib_tuple_write_u32 (ib_tpl_t ib_tpl, int col_no, ib_u32_t val)
UNIV_INTERN ib_err_t	ib_tuple_write_u64 (ib_tpl_t ib_tpl, int col_no, ib_u64_t val)
UNIV_INTERN void	ib_cursor_stmt_begin (ib_crsr_t ib_crsr)
UNIV_INTERN ib_err_t	ib_tuple_write_double (ib_tpl_t ib_tpl, int col_no, double val)
UNIV_INTERN ib_err_t	ib_tuple_read_double (ib_tpl_t ib_tpl, ib_ulint_t col_no, double *dval)

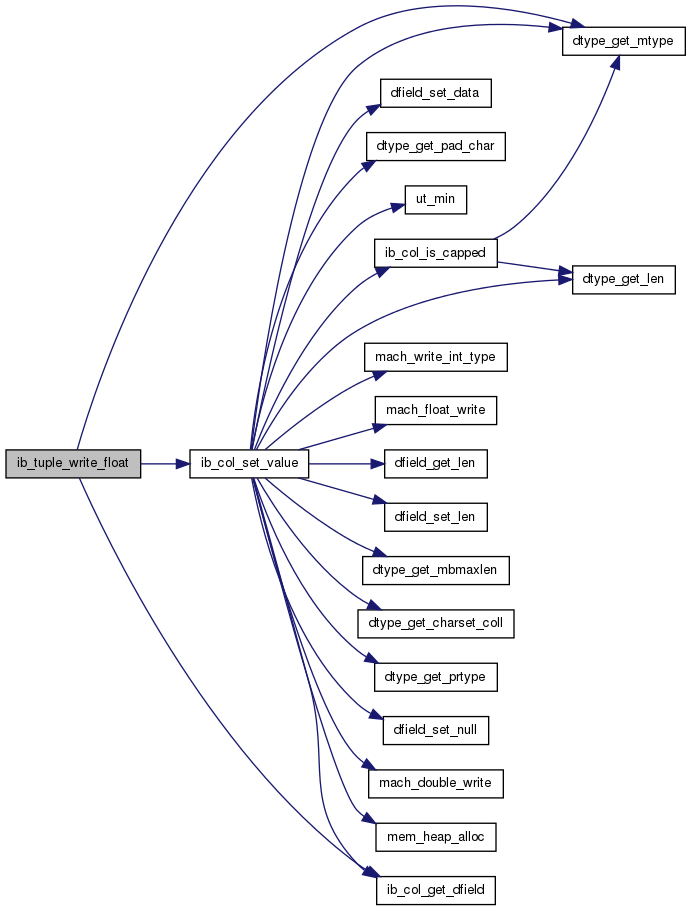

UNIV_INTERN ib_err_t	ib_tuple_write_float (ib_tpl_t ib_tpl, int col_no, float val)
UNIV_INTERN ib_err_t	ib_tuple_read_float (ib_tpl_t ib_tpl, ib_ulint_t col_no, float *fval)

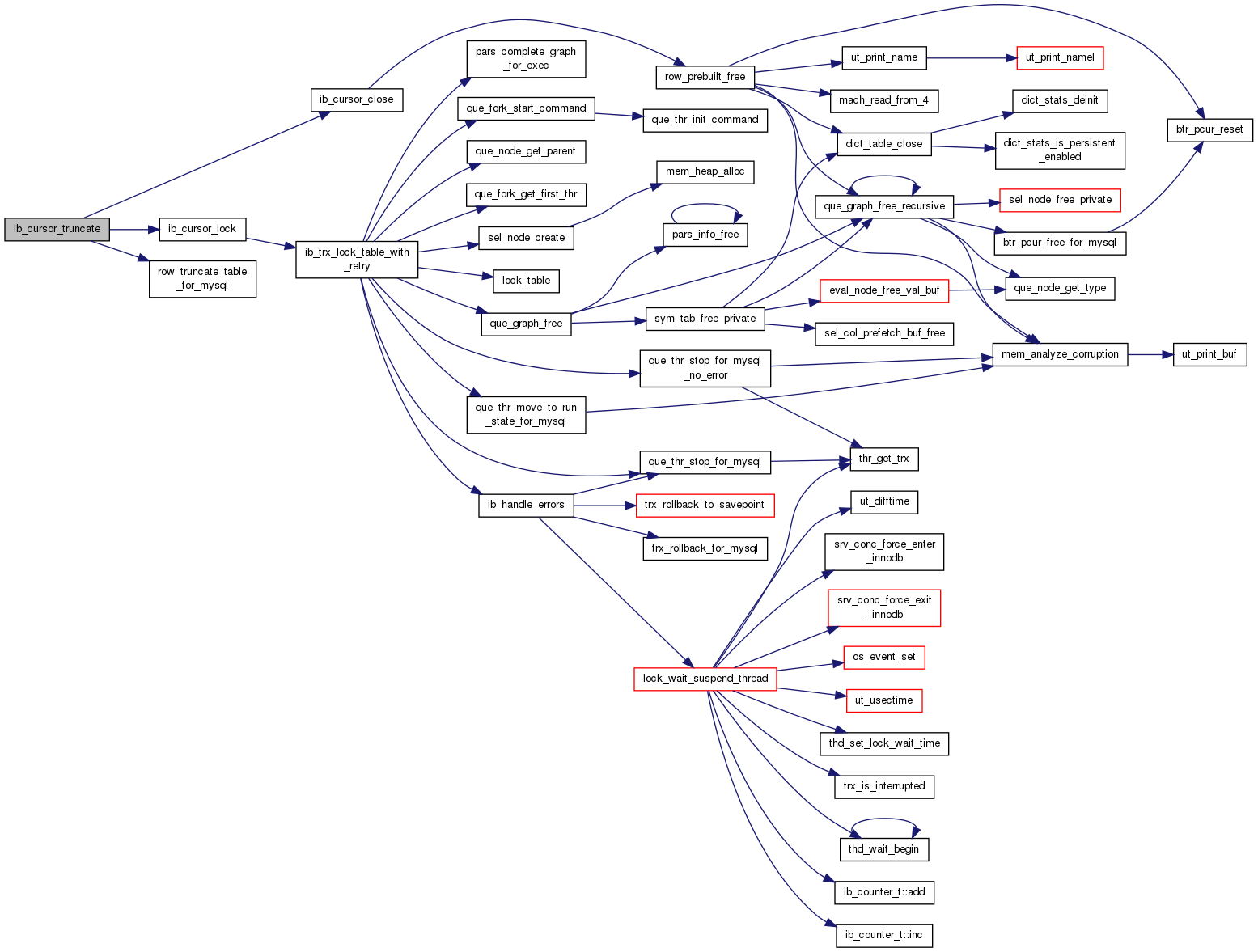

UNIV_INTERN ib_err_t	ib_cursor_truncate (ib_crsr_t ib_crsr, ib_id_u64_t table_id)
UNIV_INTERN ib_err_t	ib_table_truncate (const char table_name, ib_id_u64_t table_id)
UNIV_INTERN ib_err_t	ib_close_thd (void *thd)
UNIV_INTERN ib_trx_state_t	ib_cfg_trx_level ()
UNIV_INTERN ib_ulint_t	ib_cfg_bk_commit_interval ()
UNIV_INTERN int	ib_cfg_get_cfg ()

Variables
my_bool	ib_binlog_enabled = FALSE
my_bool	ib_mdl_enabled = FALSE
my_bool	ib_disable_row_lock = FALSE
ulong	ib_trx_level_setting = IB_TRX_READ_UNCOMMITTED
ulong	ib_bk_commit_interval = 0

Detailed Description

InnoDB Native API

2008-08-01 Created Sunny Bains 3/20/2011 Jimmy Yang extracted from Embedded InnoDB

Definition in file api0api.cc.

Macro Definition Documentation

#define INNOBASE_WAKE_INTERVAL 32

The following counter is used to convey information to InnoDB

about server activity: in selects it is not sensible to call srv_active_wake_master_thread after each fetch or search, we only do it every INNOBASE_WAKE_INTERVAL'th step.

Definition at line 212 of file api0api.cc.

Enumeration Type Documentation

enum ib_qry_type_t

Query types supported.

Enumerator:

QRY_NON	None/Sentinel
QRY_INS	Insert operation
QRY_UPD	Update operation
QRY_SEL	Select operation

Definition at line 81 of file api0api.cc.

enum ib_tuple_type_t

InnoDB tuple types.

Enumerator:

TPL_TYPE_ROW	Data row tuple
TPL_TYPE_KEY	Index key tuple

Definition at line 75 of file api0api.cc.

Function Documentation

UNIV_INLINE ib_bool_t ib_btr_cursor_is_positioned ( btr_pcur_t * pcur )

Check whether the Innodb persistent cursor is positioned.

Returns: IB_TRUE if positioned

Parameters

pcur	in: InnoDB persistent cursor

Definition at line 219 of file api0api.cc.

Here is the caller graph for this function:

UNIV_INTERN ib_ulint_t ib_cfg_bk_commit_interval ( )

Return configure value for background commit interval (in seconds)

Returns: background commit interval (in seconds)

Definition at line 3921 of file api0api.cc.

UNIV_INTERN int ib_cfg_get_cfg ( )

Get generic configure status

Returns: configure status

Definition at line 3932 of file api0api.cc.

UNIV_INTERN ib_trx_state_t ib_cfg_trx_level ( )

Return isolation configuration set by "innodb_api_trx_level"

Returns: trx isolation level

Definition at line 3910 of file api0api.cc.

UNIV_INTERN ib_err_t ib_close_thd ( void * thd )

Frees a possible InnoDB trx object associated with the current THD.

Returns: 0 or error number

Parameters

thd	in: handle to the MySQL thread of the user whose resources should be free'd

Definition at line 3895 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_tpl_t ib_clust_read_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple for table row operations.

Returns: own: Tuple for current table

Parameters

ib_crsr in: Cursor instance

Definition at line 3194 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_tpl_t ib_clust_search_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple used for table key operations.

Returns: own: Tuple for current table

Parameters

ib_crsr in: Cursor instance

Definition at line 3175 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

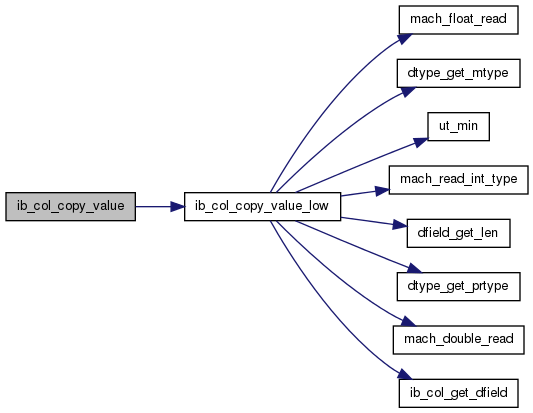

UNIV_INTERN ib_ulint_t ib_col_copy_value	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		void *	dst,
		ib_ulint_t	len
	)

Copy a column value from the tuple.

Returns: bytes copied or IB_SQL_NULL

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple
dst	out: copied data value
len	in: max data value len to copy

Definition at line 2625 of file api0api.cc.

Here is the call graph for this function:

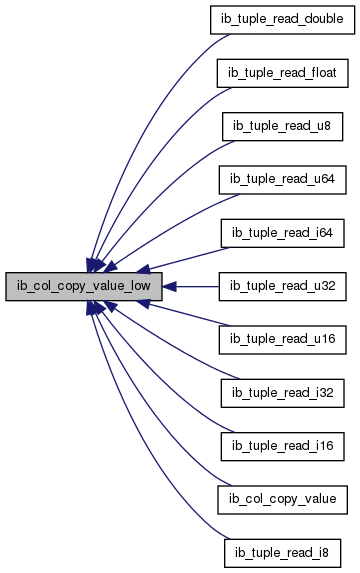

UNIV_INLINE ib_ulint_t ib_col_copy_value_low	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		void *	dst,
		ib_ulint_t	len
	)

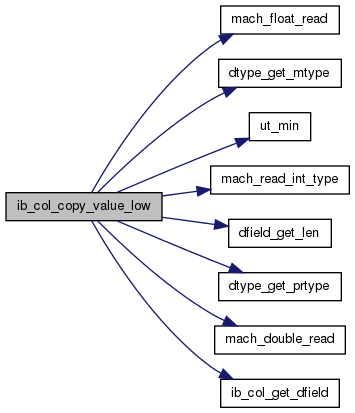

Copy a column value from the tuple.

Returns: bytes copied or IB_SQL_NULL

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple
dst	out: copied data value
len	in: max data value len to copy

Definition at line 2529 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE ib_col_attr_t ib_col_get_attr ( ulint prtype )

Get the InnoDB column attribute from the internal column precise type.

Returns: precise type in api format

Parameters

prtype in: column definition

Definition at line 2640 of file api0api.cc.

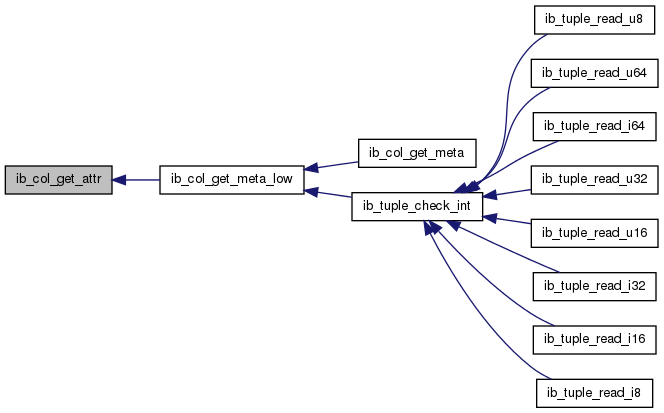

Here is the caller graph for this function:

UNIV_INLINE dfield_t* ib_col_get_dfield	(	ib_tuple_t *	tuple,
		ulint	col_no
	)

Get the dfield instance for the column in the tuple.

Returns: dfield instance in tuple

Parameters

tuple	in: tuple instance
col_no	in: col no. in tuple

Definition at line 2264 of file api0api.cc.

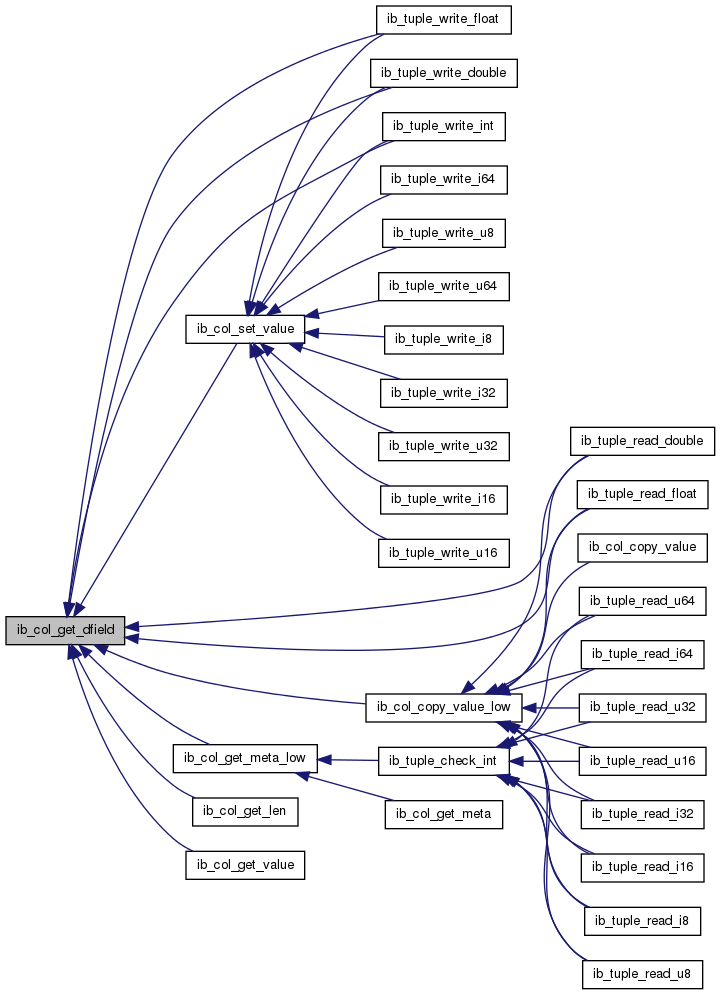

Here is the caller graph for this function:

UNIV_INTERN ib_ulint_t ib_col_get_len	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i
	)

Get the size of the data available in a column of the tuple.

Returns: bytes avail or IB_SQL_NULL

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple

Definition at line 2508 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_ulint_t ib_col_get_meta	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_col_meta_t *	ib_col_meta
	)

Get a column type, length and attributes from the tuple.

Returns: len of column data

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple
ib_col_meta	out: column meta data

Definition at line 2969 of file api0api.cc.

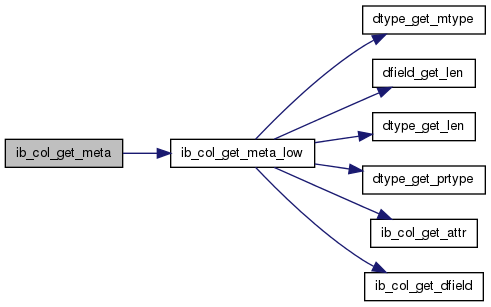

Here is the call graph for this function:

UNIV_INLINE ib_ulint_t ib_col_get_meta_low	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_col_meta_t *	ib_col_meta
	)

Get a column type, length and attributes from the tuple.

Returns: len of column data

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple
ib_col_meta	out: column meta data

Definition at line 2708 of file api0api.cc.

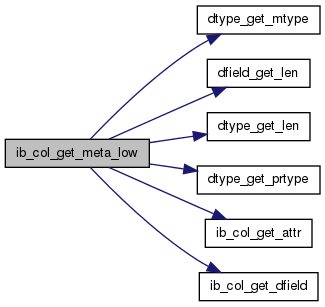

Here is the call graph for this function:

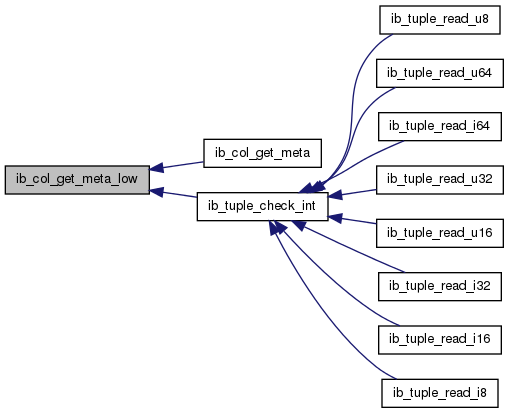

Here is the caller graph for this function:

UNIV_INLINE ulint ib_col_get_mtype ( const ib_col_t * ib_col )

Get the InnoDB internal main type from the schema column definition.

Returns: column main type

Parameters

ib_col in: column definition

Definition at line 747 of file api0api.cc.

UNIV_INTERN const char* ib_col_get_name	(	ib_crsr_t	ib_crsr,
		ib_ulint_t	i
	)

Get a column name from the tuple.

Returns: name of the column

Parameters

ib_crsr	in: InnoDB cursor instance
i	in: column index in tuple

Definition at line 2662 of file api0api.cc.

Here is the call graph for this function:

UNIV_INLINE ulint ib_col_get_prtype ( const ib_col_t * ib_col )

Get the InnoDB internal precise type from the schema column definition.

Returns: precise type in api format

Parameters

ib_col in: column definition

Definition at line 723 of file api0api.cc.

UNIV_INTERN const void* ib_col_get_value	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i
	)

Get a column value pointer from the tuple.

Returns: NULL or pointer to buffer

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple

Definition at line 2946 of file api0api.cc.

Here is the call graph for this function:

UNIV_INLINE ib_err_t ib_col_is_capped ( const dtype_t * dtype )

Predicate to check whether a column type contains variable length data.

Returns: DB_SUCCESS or error code

Parameters

dtype in: column type

Definition at line 2281 of file api0api.cc.

Here is the call graph for this function:

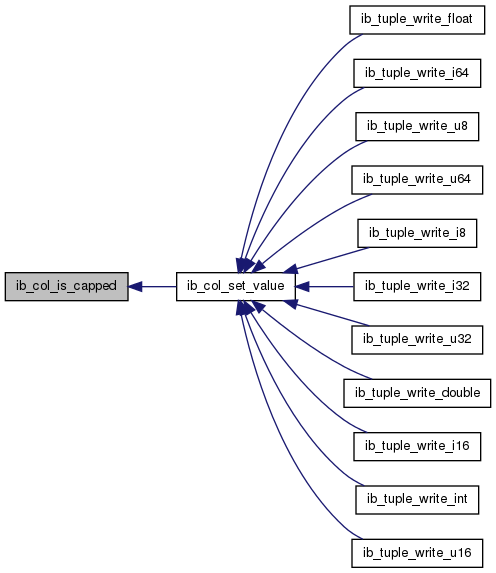

Here is the caller graph for this function:

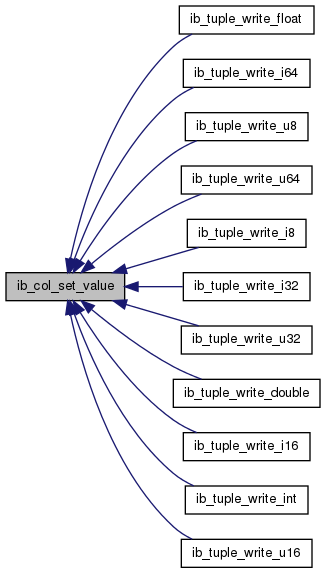

UNIV_INTERN ib_err_t ib_col_set_value	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	col_no,
		const void *	src,
		ib_ulint_t	len,
		ib_bool_t	need_cpy
	)

Set a column of the tuple. Make a copy using the tuple's heap.

Returns: DB_SUCCESS or error code

Parameters

ib_tpl	in: tuple instance
col_no	in: column index in tuple
src	in: data value
len	in: data value len
need_cpy	in: if need memcpy

Definition at line 2300 of file api0api.cc.

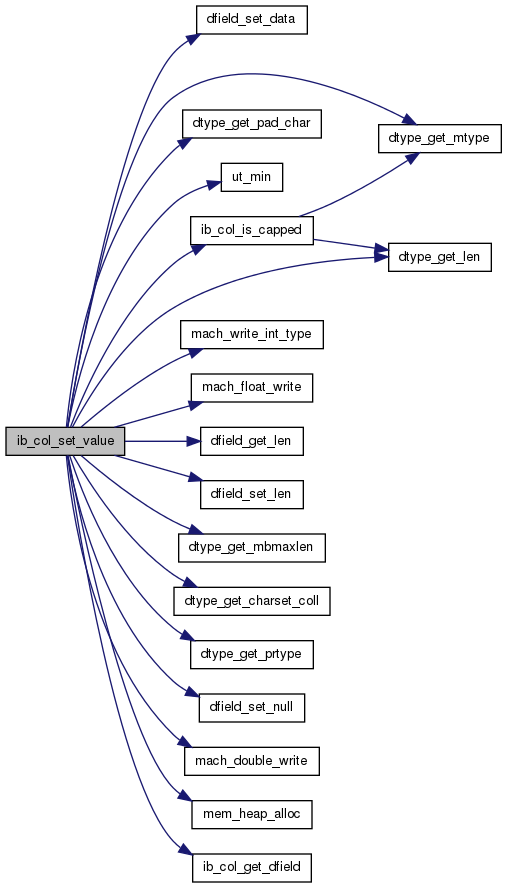

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void ib_cursor_clear_trx ( ib_crsr_t ib_crsr )

set a cursor trx to NULL

Parameters

ib_crsr in/out: InnoDB cursor

Definition at line 1299 of file api0api.cc.

UNIV_INTERN ib_err_t ib_cursor_close ( ib_crsr_t ib_crsr )

Close an InnoDB table and free the cursor.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in,own: InnoDB cursor

Definition at line 1388 of file api0api.cc.

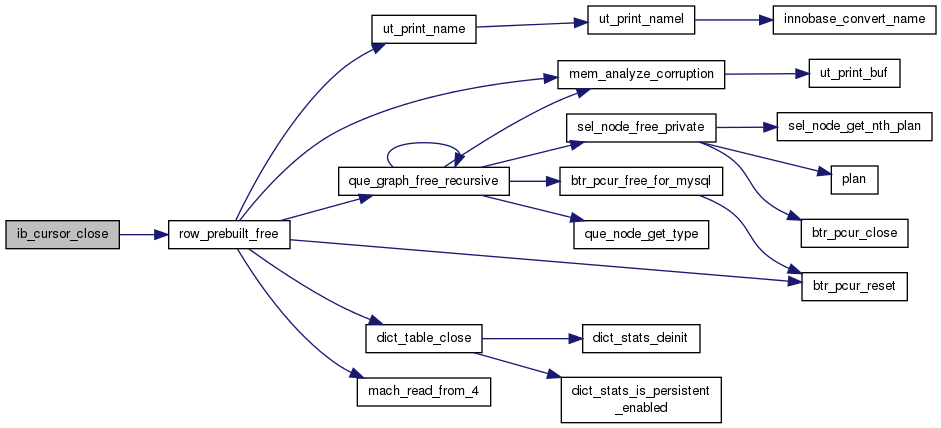

Here is the call graph for this function:

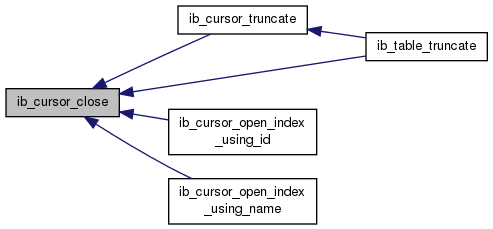

Here is the caller graph for this function:

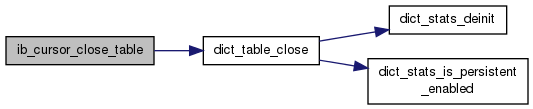

UNIV_INTERN ib_err_t ib_cursor_close_table ( ib_crsr_t ib_crsr )

Close the table, decrement n_ref_count count.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in,own: InnoDB cursor

Definition at line 1426 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_commit_trx	(	ib_crsr_t	ib_crsr,
		ib_trx_t	ib_trx
	)

Commit the transaction in a cursor

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_trx	in: transaction

Definition at line 1367 of file api0api.cc.

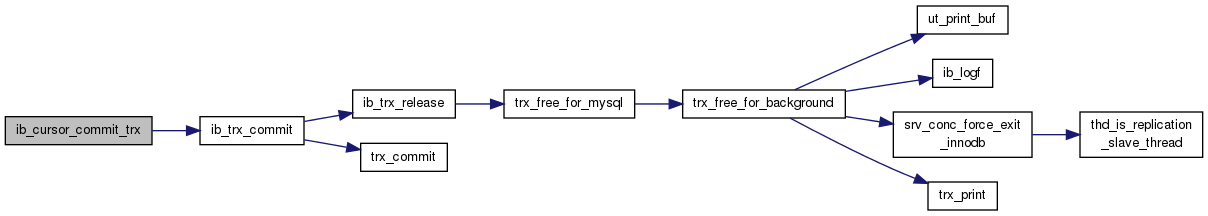

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_delete_row ( ib_crsr_t ib_crsr )

Delete a row in a table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 1995 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_first ( ib_crsr_t ib_crsr )

Move cursor to the first record in the table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 2152 of file api0api.cc.

Here is the call graph for this function:

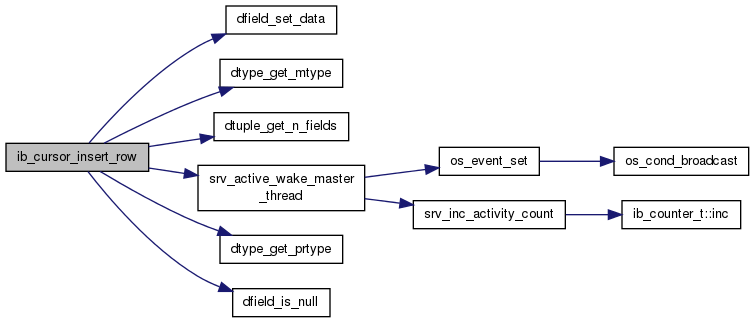

UNIV_INTERN ib_err_t ib_cursor_insert_row	(	ib_crsr_t	ib_crsr,
		const ib_tpl_t	ib_tpl
	)

Insert a row to a table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in/out: InnoDB cursor instance
ib_tpl	in: tuple to insert

Definition at line 1562 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_bool_t ib_cursor_is_positioned ( const ib_crsr_t ib_crsr )

Check if cursor is positioned.

Returns: IB_TRUE if positioned

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 3336 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ib_err_t ib_cursor_last ( ib_crsr_t ib_crsr )

Move cursor to the last record in the table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 2166 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_lock	(	ib_crsr_t	ib_crsr,
		ib_lck_mode_t	ib_lck_mode
	)

Set the Lock an InnoDB cursor/table.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_lck_mode	in: InnoDB lock mode

Definition at line 3380 of file api0api.cc.

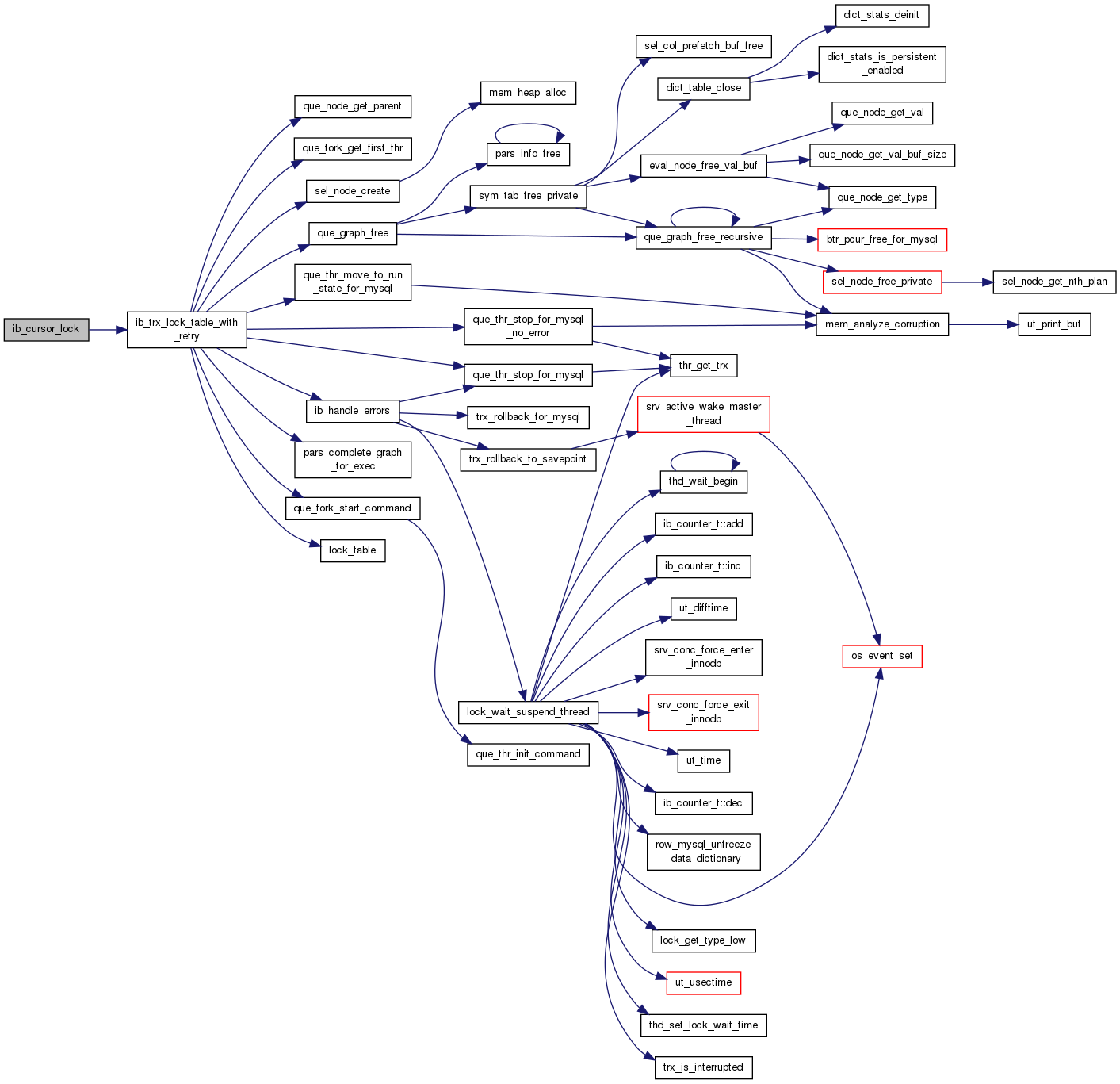

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ib_err_t ib_cursor_moveto	(	ib_crsr_t	ib_crsr,
		ib_tpl_t	ib_tpl,
		ib_srch_mode_t	ib_srch_mode
	)

Search for key.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in: InnoDB cursor instance
ib_tpl	in: Key to search for
ib_srch_mode	in: search mode

Definition at line 2203 of file api0api.cc.

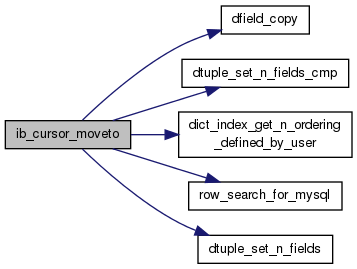

Here is the call graph for this function:

ib_err_t ib_cursor_new_trx	(	ib_crsr_t	ib_crsr,
		ib_trx_t	ib_trx
	)

update the cursor with new transactions and also reset the cursor

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_trx	in: transaction

Definition at line 1339 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_next ( ib_crsr_t ib_crsr )

Move cursor to the next user record in the table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 2180 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_open_index_using_id	(	ib_id_u64_t	index_id,
		ib_trx_t	ib_trx,
		ib_crsr_t *	ib_crsr
	)

Open an InnoDB index and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

index_id	in: index id of index to open
ib_trx	in: Current transaction handle can be NULL
ib_crsr	out: InnoDB cursor

Definition at line 1117 of file api0api.cc.

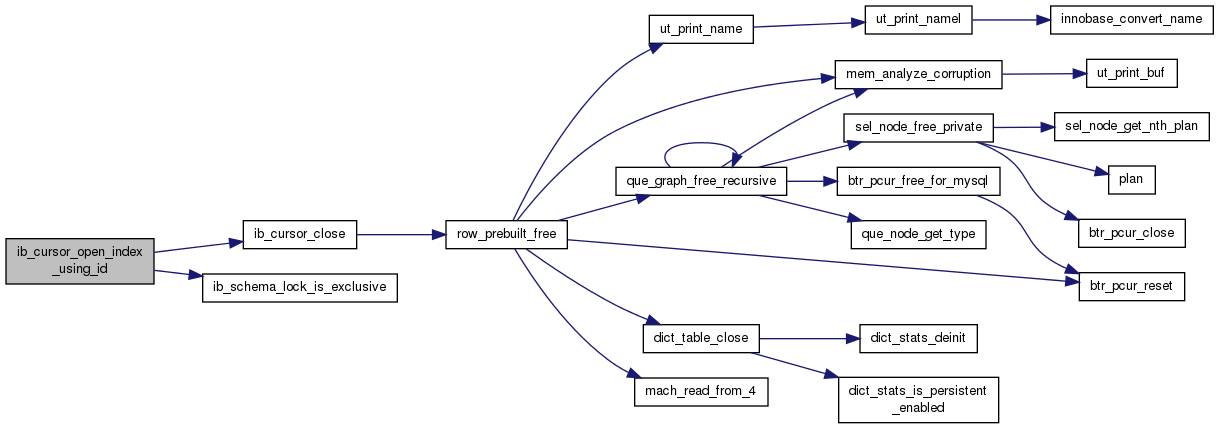

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_open_index_using_name	(	ib_crsr_t	ib_open_crsr,
		const char *	index_name,
		ib_crsr_t *	ib_crsr,
		int *	idx_type,
		ib_id_u64_t *	idx_id
	)

Open an InnoDB secondary index cursor and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

ib_open_crsr	in: open/active cursor
index_name	in: secondary index name
ib_crsr	out,own: InnoDB index cursor
idx_type	out: index is cluster index
idx_id	out: index id

Definition at line 1166 of file api0api.cc.

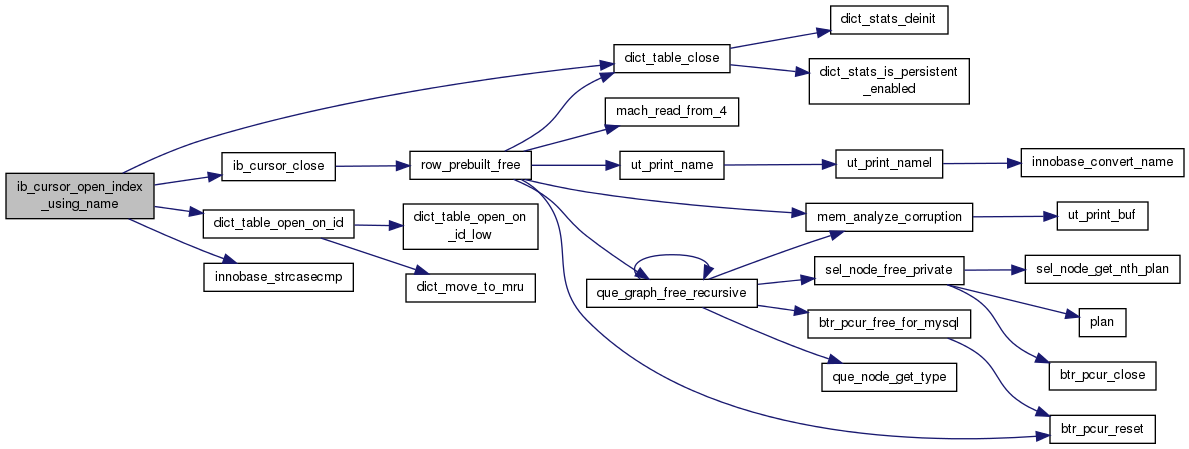

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_open_table	(	const char *	name,
		ib_trx_t	ib_trx,
		ib_crsr_t *	ib_crsr
	)

Open an InnoDB table and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

name	in: table name
ib_trx	in: Current transaction handle can be NULL
ib_crsr	out,own: InnoDB cursor

Definition at line 1234 of file api0api.cc.

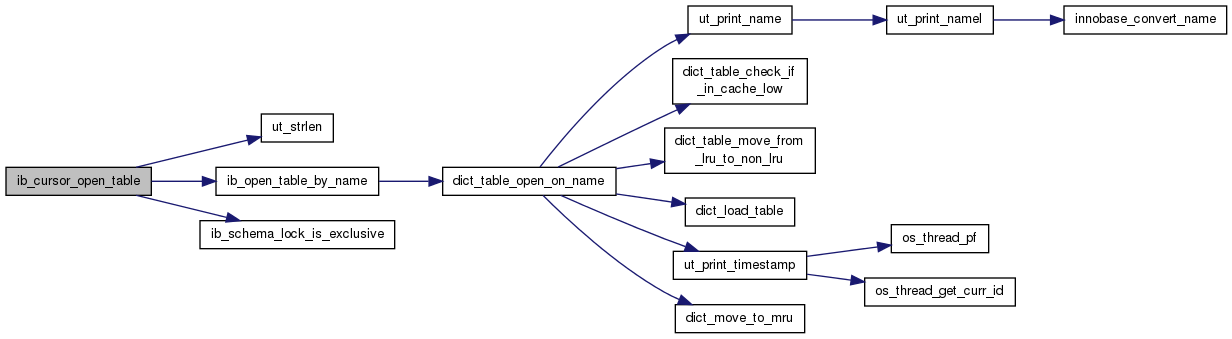

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_open_table_using_id	(	ib_id_u64_t	table_id,
		ib_trx_t	ib_trx,
		ib_crsr_t *	ib_crsr
	)

Open an InnoDB table and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

table_id	in: table id of table to open
ib_trx	in: Current transaction handle can be NULL
ib_crsr	out,own: InnoDB cursor

Definition at line 1085 of file api0api.cc.

Here is the call graph for this function:

UNIV_INLINE ib_err_t ib_cursor_position	(	ib_cursor_t *	cursor,
		ib_srch_mode_t	mode
	)

Move cursor to the first record in the table.

Returns: DB_SUCCESS or err code

Parameters

cursor	in: InnoDB cursor instance
mode	in: Search mode

Definition at line 2124 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ib_err_t ib_cursor_read_row	(	ib_crsr_t	ib_crsr,
		ib_tpl_t	ib_tpl
	)

Read current row.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in: InnoDB cursor instance
ib_tpl	out: read cols into this tuple

Definition at line 2056 of file api0api.cc.

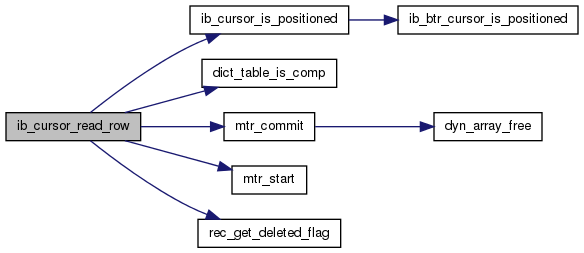

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_cursor_reset ( ib_crsr_t ib_crsr )

Reset the cursor.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in/out: InnoDB cursor

Definition at line 1313 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN void ib_cursor_set_cluster_access ( ib_crsr_t ib_crsr )

Set need to access clustered index record.

Parameters

ib_crsr in/out: InnoDB cursor

Definition at line 3500 of file api0api.cc.

UNIV_INTERN ib_err_t ib_cursor_set_lock_mode	(	ib_crsr_t	ib_crsr,
		ib_lck_mode_t	ib_lck_mode
	)

Set the Lock mode of the cursor.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_lck_mode	in: InnoDB lock mode

Definition at line 3471 of file api0api.cc.

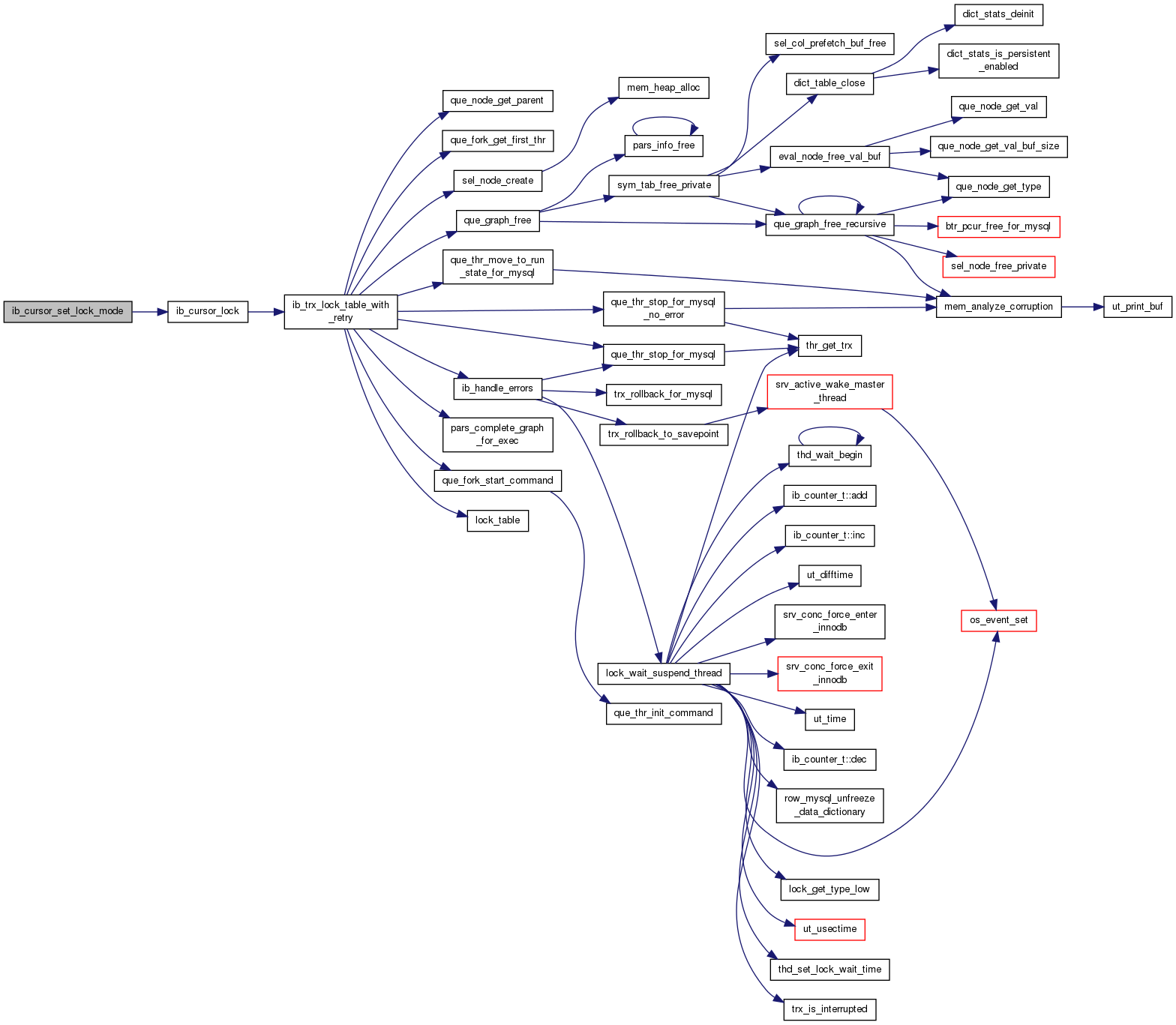

Here is the call graph for this function:

UNIV_INTERN void ib_cursor_set_match_mode	(	ib_crsr_t	ib_crsr,
		ib_match_mode_t	match_mode
	)

Set the cursor search mode.

Parameters

ib_crsr	in: Cursor instance
match_mode	in: ib_cursor_moveto match mode

Definition at line 2249 of file api0api.cc.

UNIV_INTERN void ib_cursor_stmt_begin ( ib_crsr_t ib_crsr )

Inform the cursor that it's the start of an SQL statement.

Parameters

ib_crsr in: cursor

Definition at line 3667 of file api0api.cc.

UNIV_INTERN ib_err_t ib_cursor_truncate	(	ib_crsr_t *	ib_crsr,
		ib_id_u64_t *	table_id
	)

Truncate a table. The cursor handle will be closed and set to NULL on success.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr	in/out: cursor for table to truncate
table_id	out: new table id

Definition at line 3784 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ib_err_t ib_cursor_unlock ( ib_crsr_t ib_crsr )

Unlock an InnoDB table.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr in/out: InnoDB cursor

Definition at line 3449 of file api0api.cc.

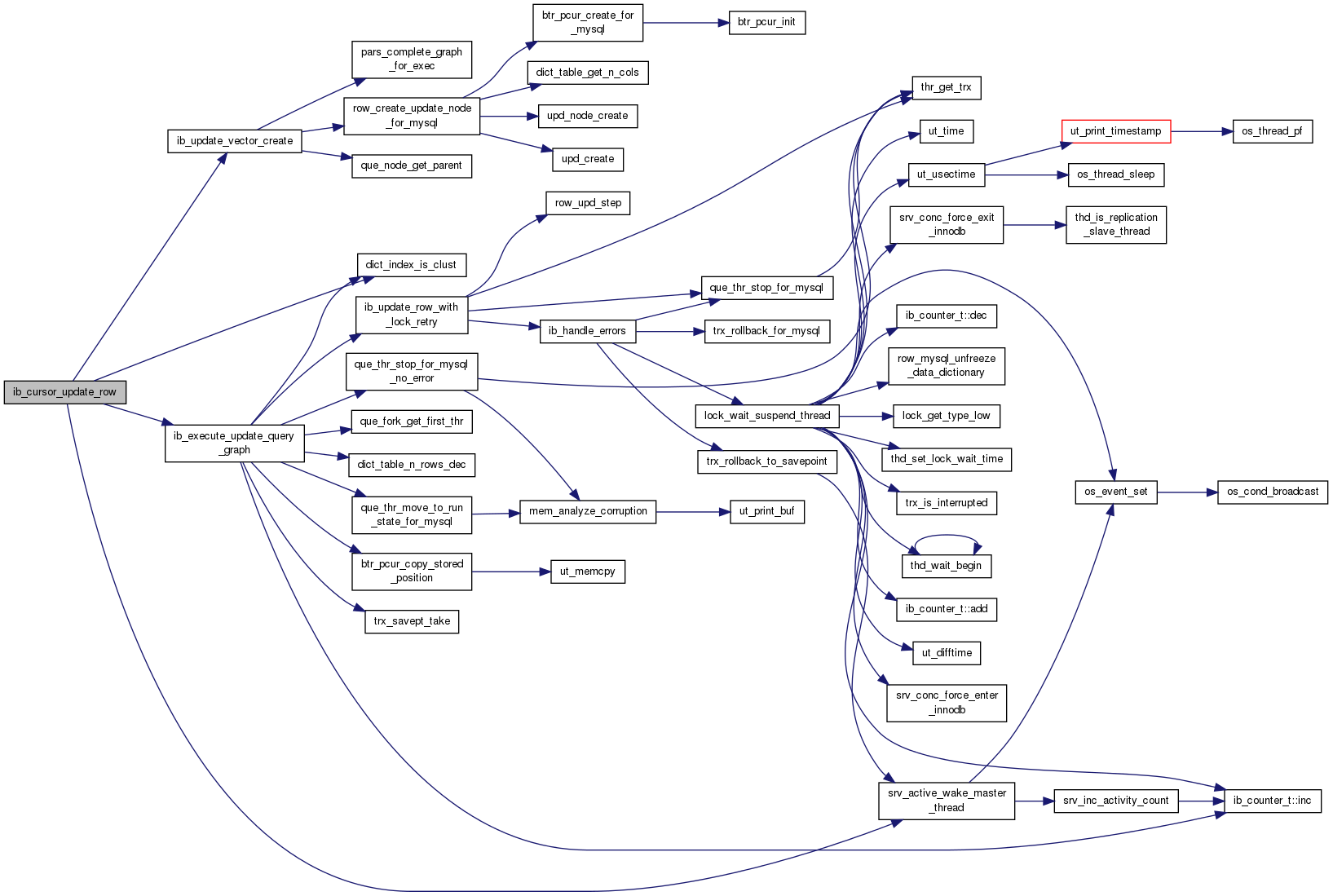

UNIV_INTERN ib_err_t ib_cursor_update_row	(	ib_crsr_t	ib_crsr,
		const ib_tpl_t	ib_old_tpl,
		const ib_tpl_t	ib_new_tpl
	)

Update a row in a table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in: InnoDB cursor instance
ib_old_tpl	in: Old tuple in table
ib_new_tpl	in: New tuple to update

Definition at line 1883 of file api0api.cc.

Here is the call graph for this function:

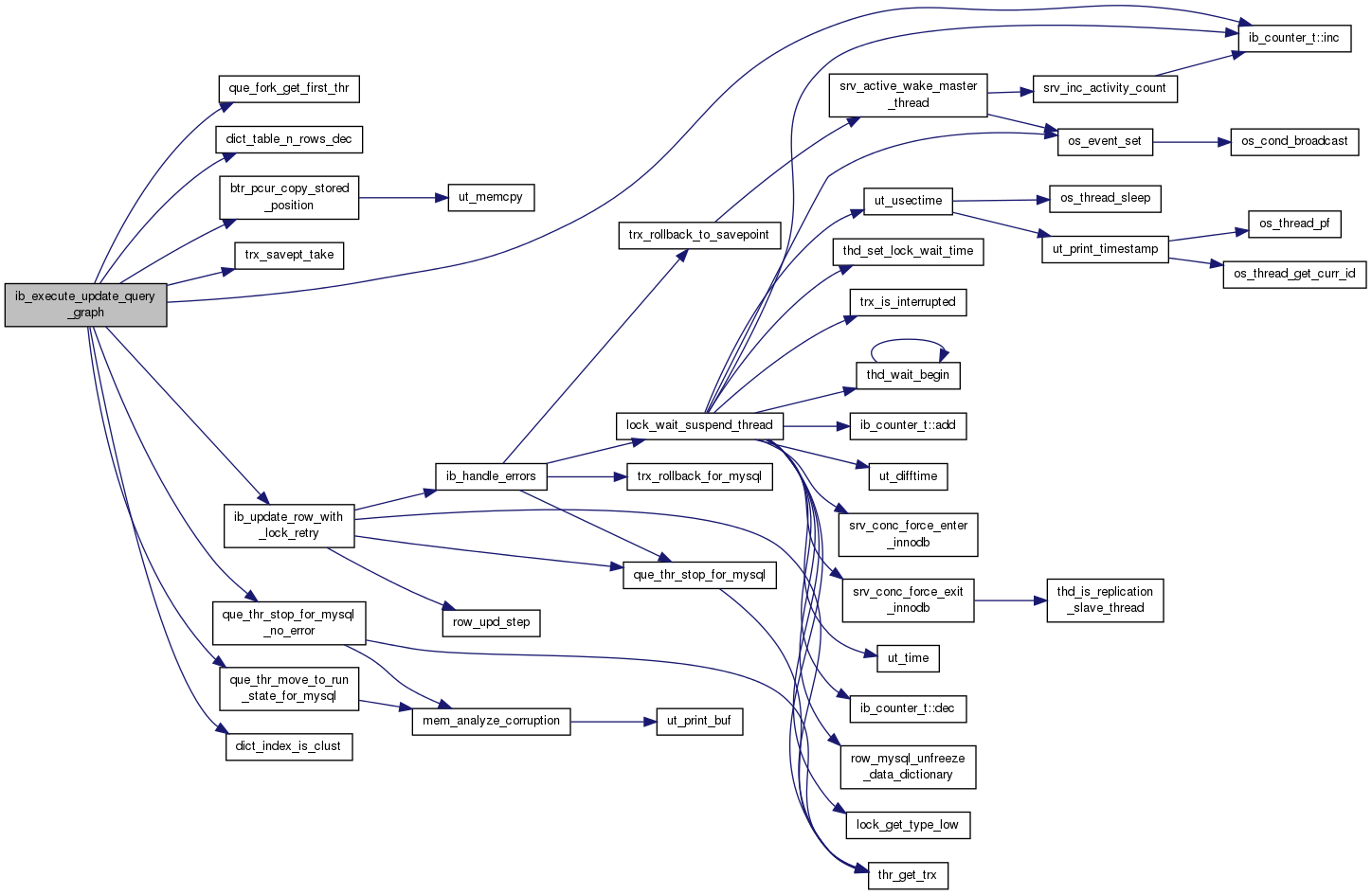

UNIV_INLINE ib_err_t ib_execute_update_query_graph	(	ib_cursor_t *	cursor,
		btr_pcur_t *	pcur
	)

Does an update or delete of a row.

Returns: DB_SUCCESS or err code

Parameters

cursor	in: Cursor instance
pcur	in: Btree persistent cursor

Definition at line 1823 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE ib_index_def_t* ib_find_clustered_index ( ib_vector_t * indexes )

Get an index definition that is tagged as a clustered index.

Returns: cluster index schema

Parameters

indexes in: index defs. to search

Definition at line 934 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN const char* ib_get_idx_field_name	(	ib_crsr_t	ib_crsr,
		ib_ulint_t	i
	)

Get an index field name from the cursor.

Returns: name of the field

Parameters

ib_crsr	in: InnoDB cursor instance
i	in: column index in tuple

Definition at line 2683 of file api0api.cc.

UNIV_INLINE ulint ib_get_max_row_len ( dict_index_t * cluster )

Calculate the max row size of the columns in a cluster index.

Returns: max row length

Parameters

cluster in: cluster index

Definition at line 326 of file api0api.cc.

Here is the call graph for this function:

UNIV_INLINE const ib_key_col_t* ib_index_find_col	(	ib_vector_t *	cols,
		const char *	name
	)

Find a column in the the column list with the same name.

Returns: col. def. if found else NULL

Parameters

cols	in: column list head
name	in: column name to find

Definition at line 787 of file api0api.cc.

Here is the call graph for this function:

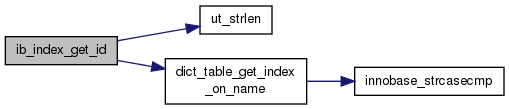

UNIV_INTERN ib_err_t ib_index_get_id	(	const char *	table_name,
		const char *	index_name,
		ib_id_u64_t *	index_id
	)

Get an index id.

Returns: DB_SUCCESS if found

Parameters

table_name	in: find index for this table
index_name	in: index to find
index_id	out: index id if found

Definition at line 3283 of file api0api.cc.

Here is the call graph for this function:

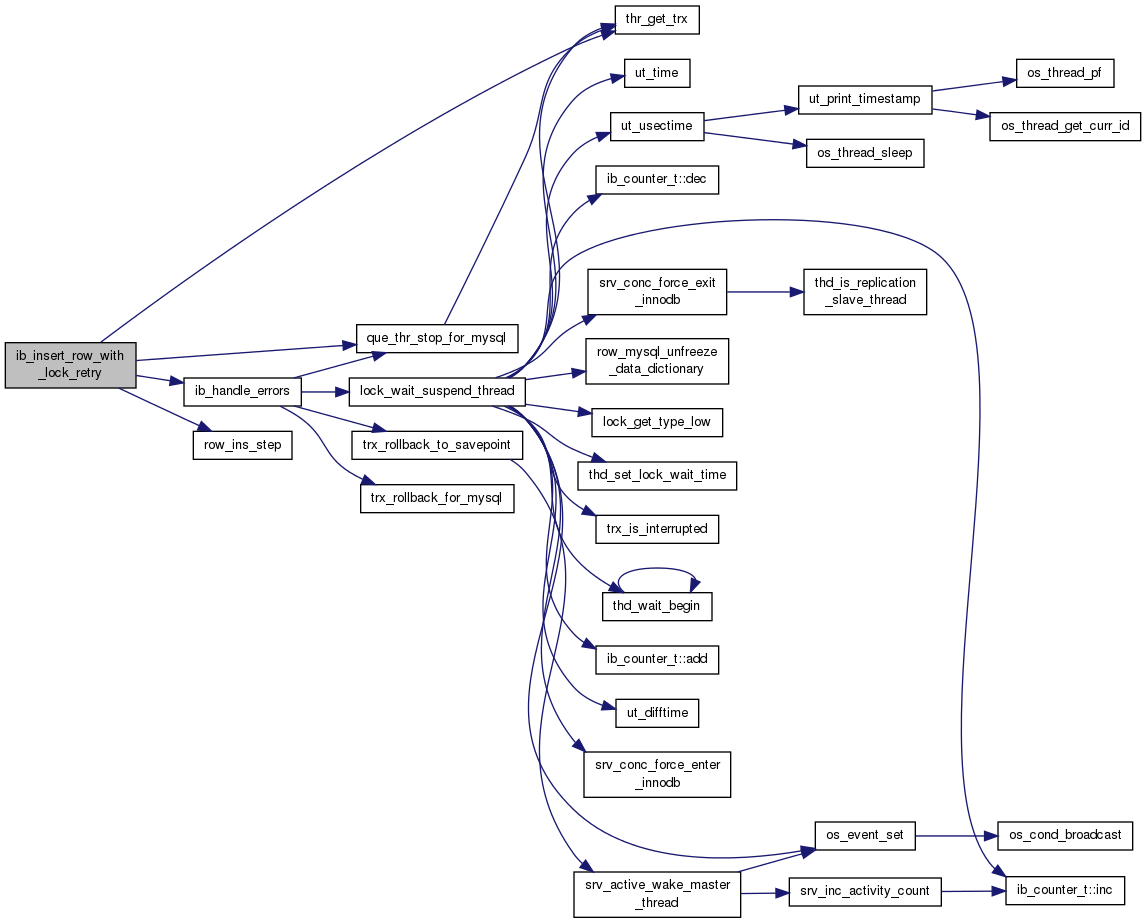

UNIV_INLINE ib_err_t ib_insert_row_with_lock_retry	(	que_thr_t *	thr,
		ins_node_t *	node,
		trx_savept_t *	savept
	)

Run the insert query and do error handling.

Returns: DB_SUCCESS or error code

Parameters

thr	in: insert query graph
node	in: insert node for the query
savept	in: savepoint to rollback to in case of an error

Definition at line 1444 of file api0api.cc.

Here is the call graph for this function:

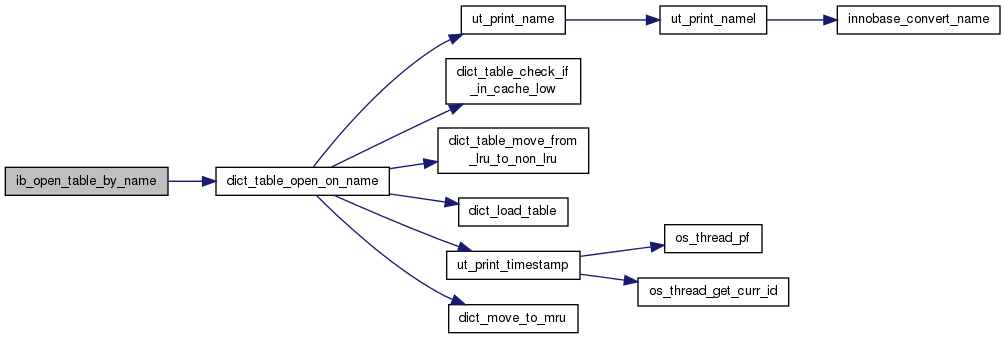

UNIV_INTERN void* ib_open_table_by_name ( const char * name )

Open a table using the table name, if found then increment table ref count.

Returns: table instance if found

Parameters

name	in: table name to lookup

Definition at line 266 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

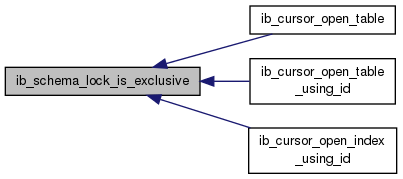

UNIV_INTERN ib_bool_t ib_schema_lock_is_exclusive ( const ib_trx_t ib_trx )

Checks if the data dictionary is latched in exclusive mode.

Returns: TRUE if exclusive latch

Parameters

ib_trx in: transaction

Definition at line 3352 of file api0api.cc.

Here is the caller graph for this function:

UNIV_INTERN ib_bool_t ib_schema_lock_is_shared ( const ib_trx_t ib_trx )

Checks if the data dictionary is latched in shared mode.

Returns: TRUE if shared latch

Parameters

ib_trx in: transaction

Definition at line 3366 of file api0api.cc.

UNIV_INTERN ib_tpl_t ib_sec_read_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple used for index/table search.

Returns: own: Tuple for current index

Parameters

ib_crsr in: Cursor instance

Definition at line 3158 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_tpl_t ib_sec_search_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple used for index/table search.

Returns: own: Tuple for current index

Parameters

ib_crsr in: Cursor instance

Definition at line 3141 of file api0api.cc.

Here is the call graph for this function:

UNIV_INLINE const ib_col_t* ib_table_find_col	(	const ib_vector_t *	cols,
		const char *	name
	)

Find a column in the the column vector with the same name.

Returns: col. def. if found else NULL

Parameters

cols	in: column list head
name	in: column name to find

Definition at line 761 of file api0api.cc.

Here is the call graph for this function:

UNIV_INLINE const ib_index_def_t* ib_table_find_index	(	ib_vector_t *	indexes,
		const char *	name
	)

Find an index definition from the index vector using index name.

Returns: index def. if found else NULL

Parameters

indexes	in: vector of indexes
name	in: index name

Definition at line 698 of file api0api.cc.

Here is the call graph for this function:

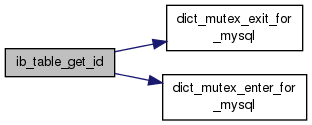

UNIV_INTERN ib_err_t ib_table_get_id	(	const char *	table_name,
		ib_id_u64_t *	table_id
	)

Get a table id. This function will acquire the dictionary mutex.

Returns: DB_SUCCESS if found

Parameters

table_name	in: table to find
table_id	out: table id if found

Definition at line 3262 of file api0api.cc.

Here is the call graph for this function:

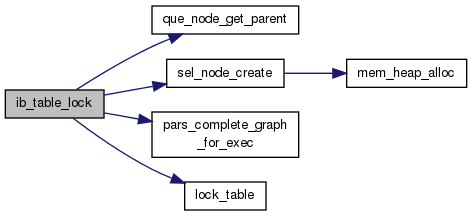

UNIV_INTERN ib_err_t ib_table_lock	(	ib_trx_t	ib_trx,
		ib_id_u64_t	table_id,
		ib_lck_mode_t	ib_lck_mode
	)

Set the Lock an InnoDB table using the table id.

Returns: DB_SUCCESS or error code

Parameters

ib_trx	in/out: transaction
table_id	in: table id
ib_lck_mode	in: InnoDB lock mode

Definition at line 3399 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_table_name_check ( const char * name )

Check whether the table name conforms to our requirements. Currently we only do a simple check for the presence of a '/'.

Returns: DB_SUCCESS or err code

Parameters

name	in: table name to check

Definition at line 887 of file api0api.cc.

Here is the call graph for this function:

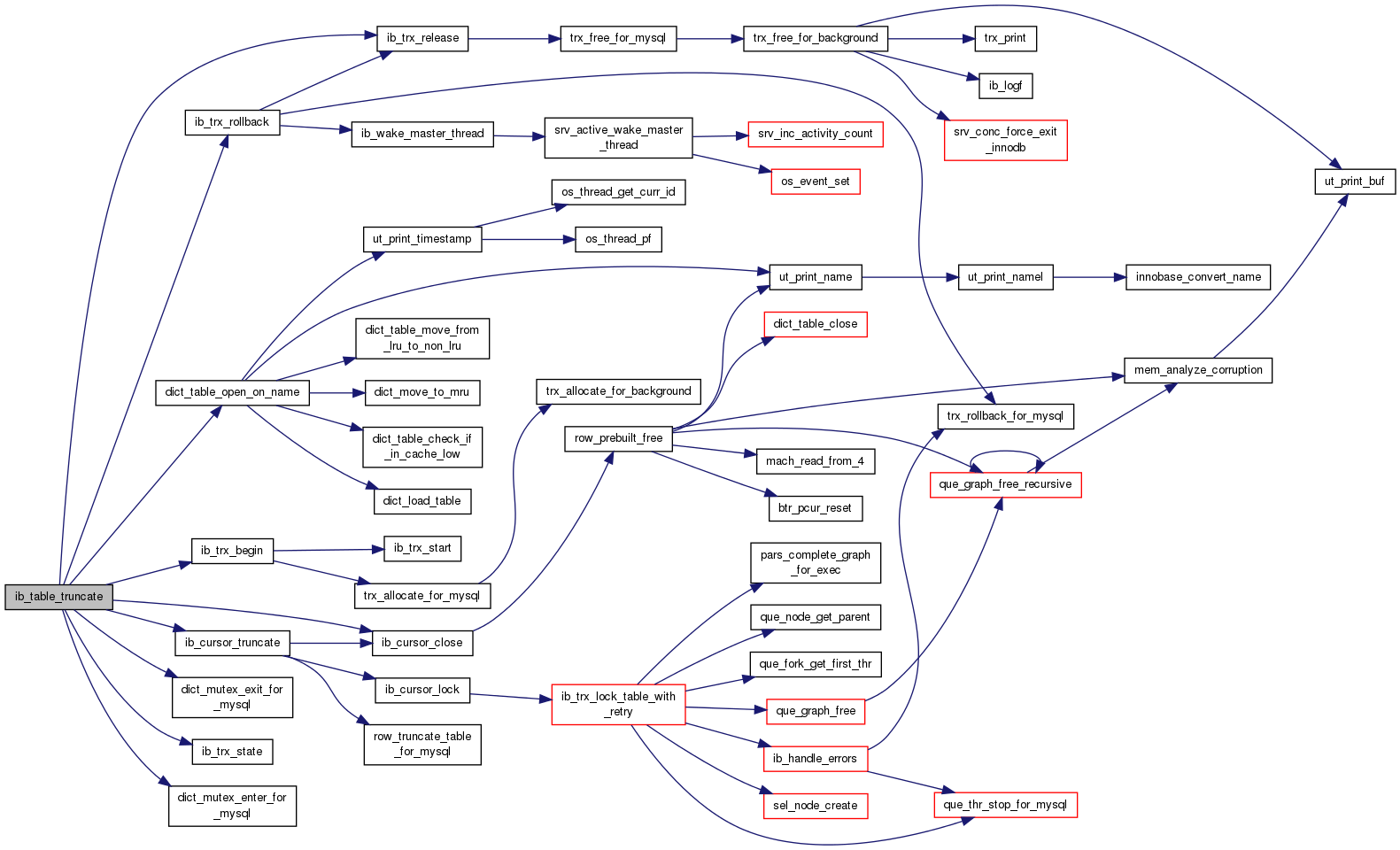

UNIV_INTERN ib_err_t ib_table_truncate	(	const char *	table_name,
		ib_id_u64_t *	table_id
	)

Truncate a table.

Returns: DB_SUCCESS or error code

Parameters

table_name	in: table name
table_id	out: new table id

Definition at line 3837 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_trx_t ib_trx_begin ( ib_trx_level_t ib_trx_level )

Begin a transaction. This will allocate a new transaction handle. put the transaction in the active state.

Returns: innobase txn handle

Parameters

ib_trx_level in: trx isolation level

Definition at line 584 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

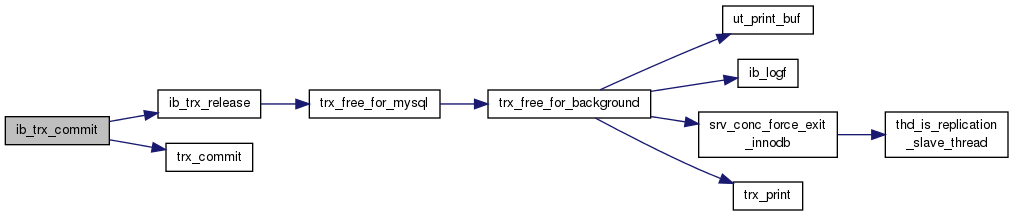

ib_err_t ib_trx_commit ( ib_trx_t ib_trx )

Commit a transaction. This function will also release the schema latches too.

Returns: DB_SUCCESS or err code

Parameters

ib_trx in: trx handle

Definition at line 647 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ib_u64_t ib_trx_get_start_time ( ib_trx_t ib_trx )

Get a trx start time.

Returns: trx start_time

Parameters

ib_trx in: transaction

Definition at line 617 of file api0api.cc.

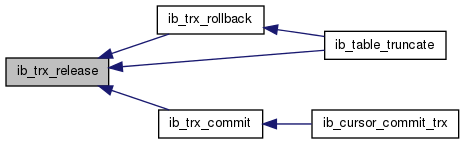

UNIV_INTERN ib_err_t ib_trx_release ( ib_trx_t ib_trx )

Release the resources of the transaction.

Returns: DB_SUCCESS or err code

Parameters

ib_trx in: trx handle

Definition at line 629 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

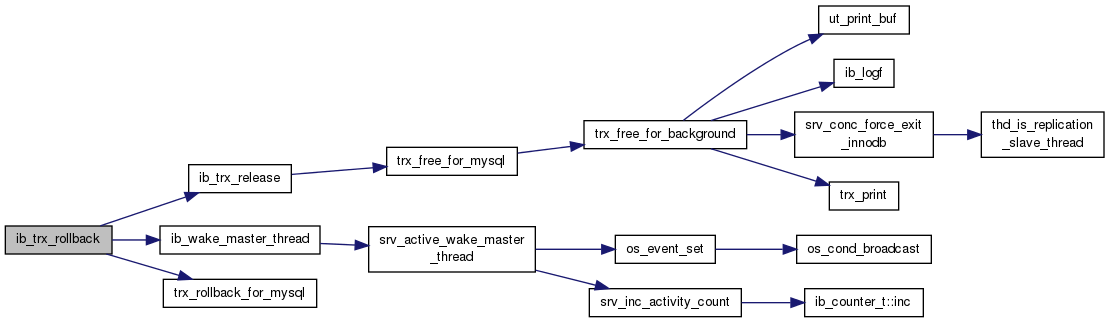

UNIV_INTERN ib_err_t ib_trx_rollback ( ib_trx_t ib_trx )

Rollback a transaction. This function will also release the schema latches too.

Returns: DB_SUCCESS or err code

Parameters

ib_trx in: trx handle

Definition at line 673 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ib_err_t ib_trx_start	(	ib_trx_t	ib_trx,
		ib_trx_level_t	ib_trx_level,
		void *	thd
	)

Begin a transaction.

Returns: innobase txn handle

Parameters

ib_trx	in: transaction to restart
ib_trx_level	in: trx isolation level
thd	in: THD

Definition at line 556 of file api0api.cc.

Here is the caller graph for this function:

UNIV_INTERN ib_trx_state_t ib_trx_state ( ib_trx_t ib_trx )

Get the transaction's state.

Returns: transaction state

Parameters

ib_trx in: trx handle

Definition at line 603 of file api0api.cc.

Here is the caller graph for this function:

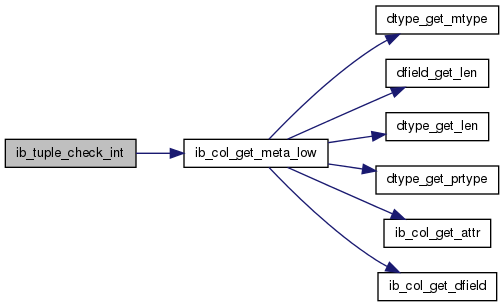

UNIV_INLINE ib_err_t ib_tuple_check_int	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_bool_t	usign,
		ulint	size
	)

Read a signed int 8 bit column from an InnoDB tuple.

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
usign	in: true if unsigned
size	in: size of integer

Definition at line 2741 of file api0api.cc.

Here is the call graph for this function:

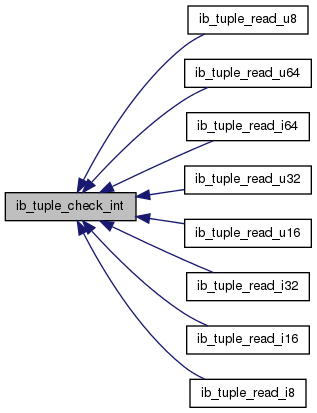

Here is the caller graph for this function:

UNIV_INTERN ib_tpl_t ib_tuple_clear ( ib_tpl_t ib_tpl )

"Clear" or reset an InnoDB tuple. We free the heap and recreate the tuple.

Returns: new tuple, or NULL

Parameters

ib_tpl in,own: tuple (will be freed)

Definition at line 2983 of file api0api.cc.

Here is the call graph for this function:

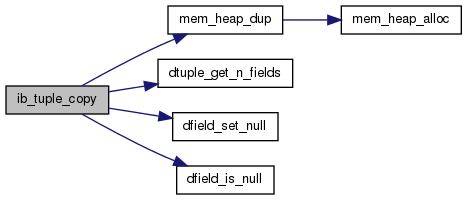

UNIV_INTERN ib_err_t ib_tuple_copy	(	ib_tpl_t	ib_dst_tpl,
		const ib_tpl_t	ib_src_tpl
	)

Copy the contents of source tuple to destination tuple. The tuples must be of the same type and belong to the same table/index.

Returns: DB_SUCCESS or error code

Parameters

ib_dst_tpl	in: destination tuple
ib_src_tpl	in: source tuple

Definition at line 3087 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN void ib_tuple_delete ( ib_tpl_t ib_tpl )

Destroy an InnoDB tuple.

Parameters

ib_tpl in,own: Tuple instance to delete

Definition at line 3244 of file api0api.cc.

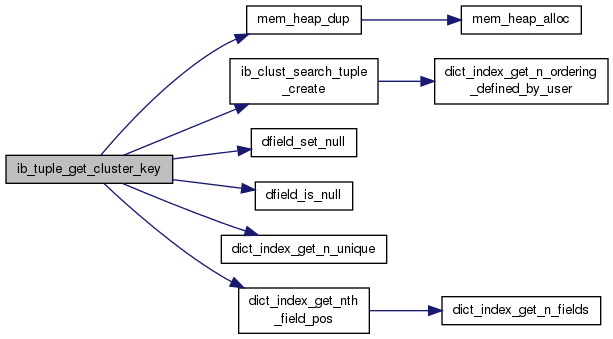

UNIV_INTERN ib_err_t ib_tuple_get_cluster_key	(	ib_crsr_t	ib_crsr,
		ib_tpl_t *	ib_dst_tpl,
		const ib_tpl_t	ib_src_tpl
	)

Create a new cluster key search tuple and copy the contents of the secondary index key tuple columns that refer to the cluster index record to the cluster key. It does a deep copy of the column data.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr	in: secondary index cursor
ib_dst_tpl	out,own: destination tuple
ib_src_tpl	in: source tuple

Definition at line 3012 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_ulint_t ib_tuple_get_n_cols ( const ib_tpl_t ib_tpl )

Return the number of columns in the tuple definition.

Returns: number of columns

Parameters

ib_tpl in: Tuple for table/index

Definition at line 3231 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

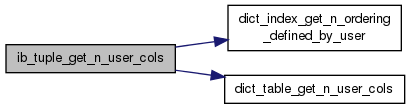

UNIV_INTERN ib_ulint_t ib_tuple_get_n_user_cols ( const ib_tpl_t ib_tpl )

Return the number of user columns in the tuple definition.

Returns: number of user columns

Parameters

ib_tpl in: Tuple for current table

Definition at line 3213 of file api0api.cc.

Here is the call graph for this function:

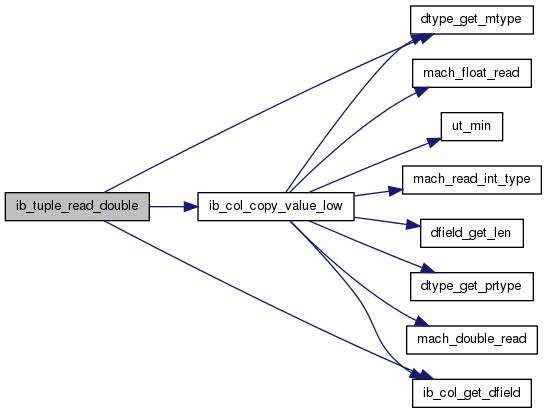

UNIV_INTERN ib_err_t ib_tuple_read_double	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	col_no,
		double *	dval
	)

Read a double column value from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
col_no	in: column number
dval	out: double value

Definition at line 3705 of file api0api.cc.

Here is the call graph for this function:

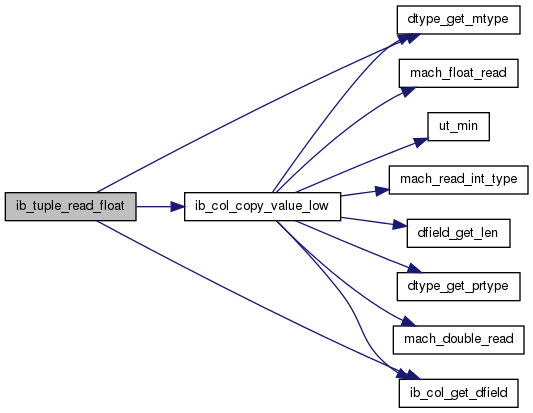

UNIV_INTERN ib_err_t ib_tuple_read_float	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	col_no,
		float *	fval
	)

Read a float value from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
col_no	in: column number
fval	out: float value

Definition at line 3756 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_read_i16	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_i16_t *	ival
	)

Read a signed int 16 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2814 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_read_i32	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_i32_t *	ival
	)

Read a signed int 32 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2858 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_read_i64	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_i64_t *	ival
	)

Read a signed int 64 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2902 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_read_i8	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_i8_t *	ival
	)

Read a signed int 8 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2770 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_read_u16	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_u16_t *	ival
	)

Read an unsigned int 16 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2836 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_read_u32	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_u32_t *	ival
	)

Read an unsigned int 32 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2880 of file api0api.cc.

Here is the call graph for this function:

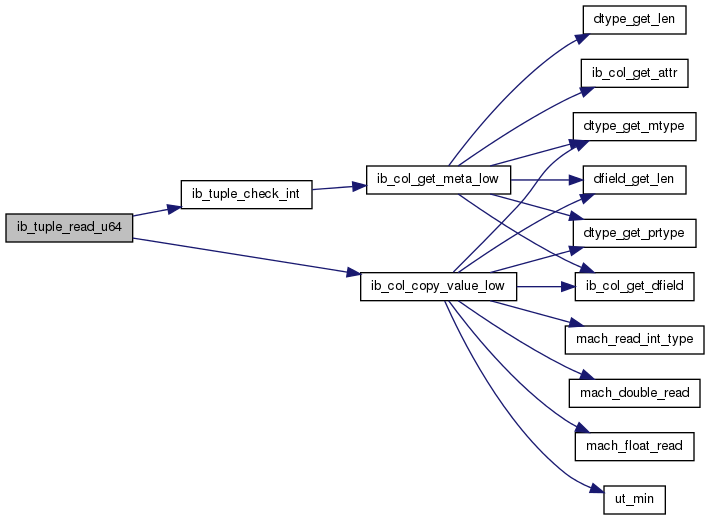

UNIV_INTERN ib_err_t ib_tuple_read_u64	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_u64_t *	ival
	)

Read an unsigned int 64 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2924 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_read_u8	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_u8_t *	ival
	)

Read an unsigned int 8 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2792 of file api0api.cc.

Here is the call graph for this function:

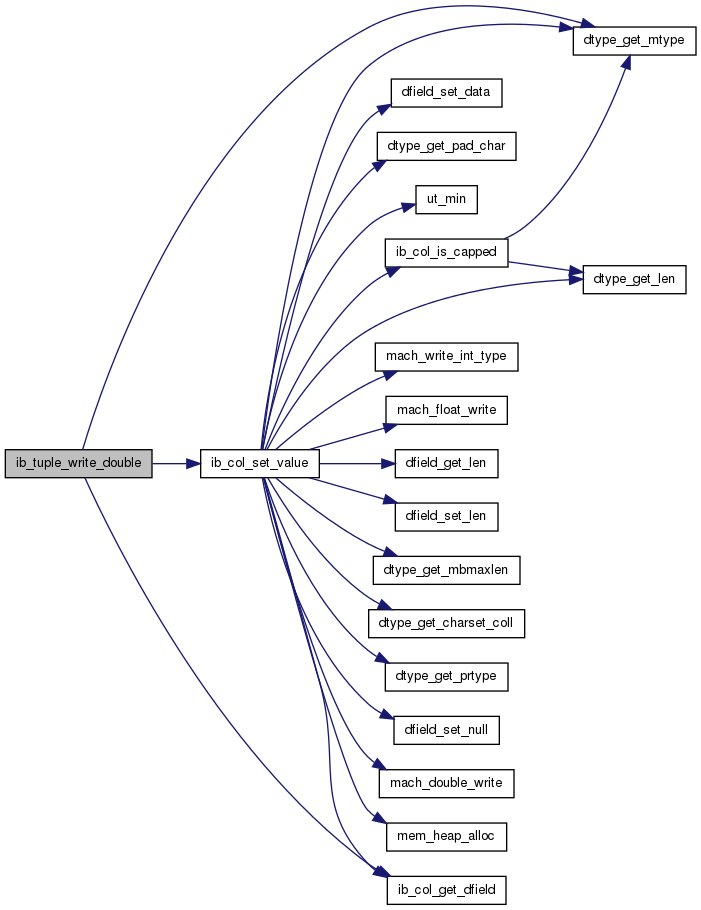

UNIV_INTERN ib_err_t ib_tuple_write_double	(	ib_tpl_t	ib_tpl,
		int	col_no,
		double	val
	)

Write a double value to a column.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3681 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_write_float	(	ib_tpl_t	ib_tpl,
		int	col_no,
		float	val
	)

Write a float value to a column.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3732 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_write_i16	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_i16_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3564 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_write_i32	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_i32_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3579 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_write_i64	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_i64_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3594 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_write_i8	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_i8_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3549 of file api0api.cc.

Here is the call graph for this function:

UNIV_INLINE ib_err_t ib_tuple_write_int	(	ib_tpl_t	ib_tpl,
		ulint	col_no,
		const void *	value,
		ulint	value_len
	)

Convert and write an INT column value to an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
value	in: integer value
value_len	in: sizeof value type

Definition at line 3515 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_write_u16	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_u16_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tupe to write to
col_no	in: column number
val	in: value to write

Definition at line 3624 of file api0api.cc.

Here is the call graph for this function:

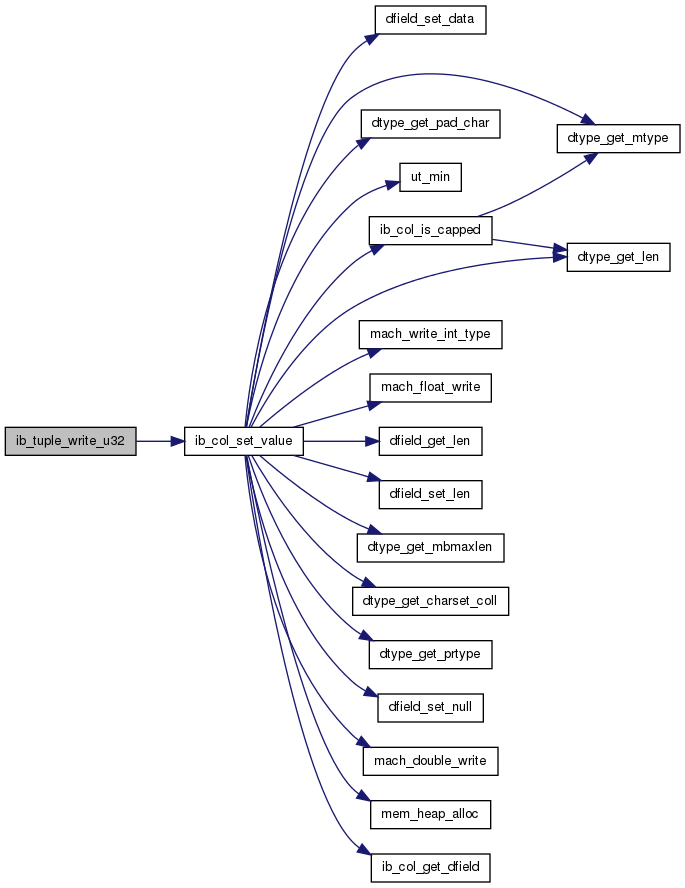

UNIV_INTERN ib_err_t ib_tuple_write_u32	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_u32_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3639 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_write_u64	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_u64_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3654 of file api0api.cc.

Here is the call graph for this function:

UNIV_INTERN ib_err_t ib_tuple_write_u8	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_u8_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3609 of file api0api.cc.

Here is the call graph for this function:

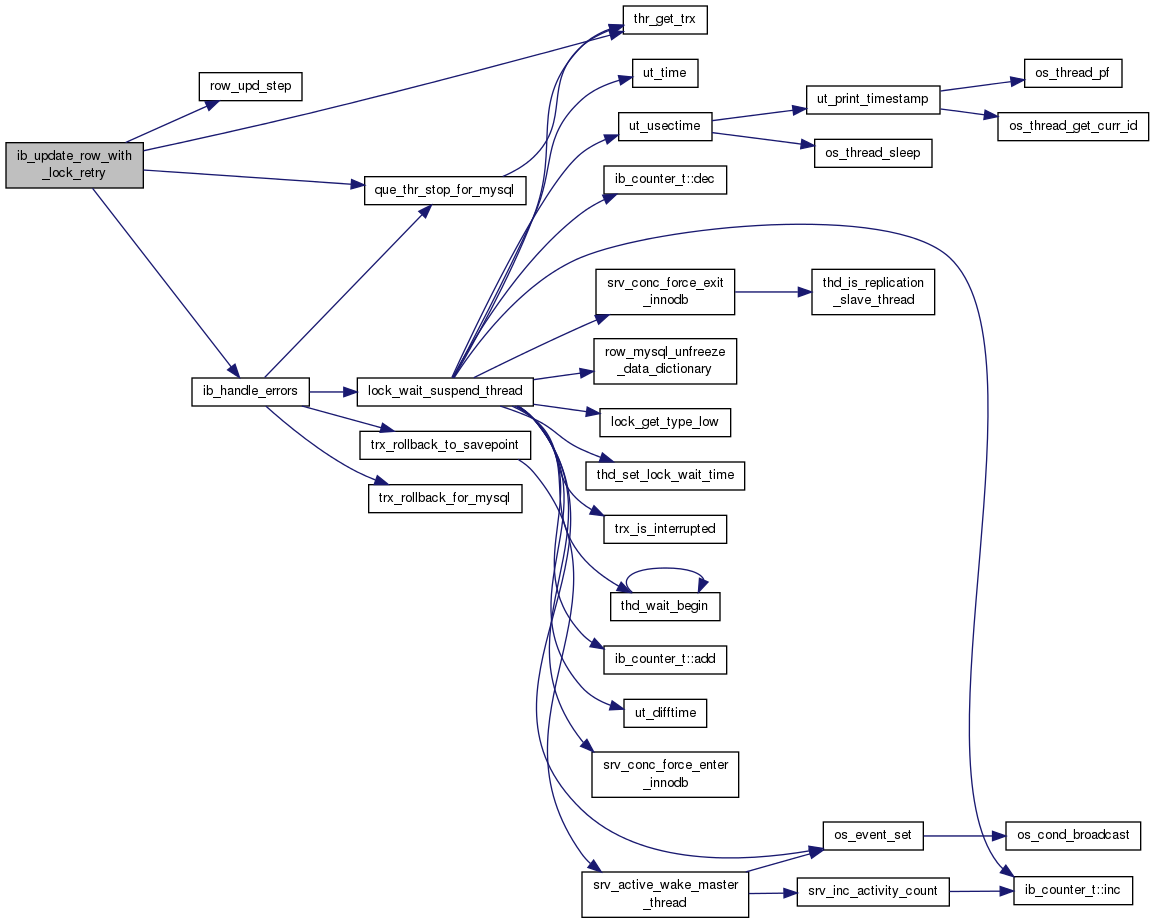

UNIV_INLINE ib_err_t ib_update_row_with_lock_retry	(	que_thr_t *	thr,
		upd_node_t *	node,
		trx_savept_t *	savept
	)

Run the update query and do error handling.

Returns: DB_SUCCESS or error code

Parameters

thr	in: Update query graph
node	in: Update node for the query
savept	in: savepoint to rollback to in case of an error

Definition at line 1775 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

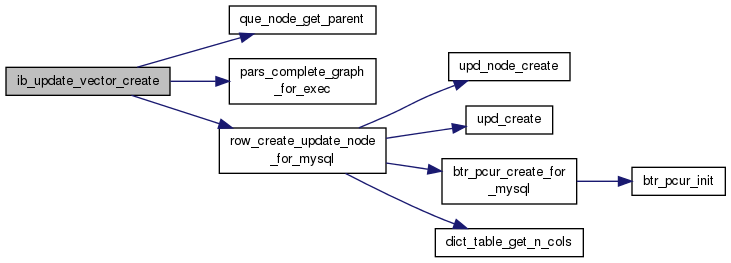

UNIV_INLINE upd_t* ib_update_vector_create ( ib_cursor_t * cursor )

Gets pointer to a prebuilt update vector used in updates.

Returns: update vector

Parameters

cursor in: current cursor

Definition at line 1643 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE void ib_wake_master_thread ( void )

Increments innobase_active_counter and every INNOBASE_WAKE_INTERVALth time calls srv_active_wake_master_thread. This function should be used when a single database operation may introduce a small need for server utility activity, like checkpointing.

Definition at line 309 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

my_bool ib_binlog_enabled = FALSE

configure variable for binlog option with InnoDB APIs

Definition at line 60 of file api0api.cc.

ulong ib_bk_commit_interval = 0

configure variable for background commit interval in seconds

Definition at line 72 of file api0api.cc.

my_bool ib_disable_row_lock = FALSE

configure variable for disable rowlock with InnoDB APIs

Definition at line 66 of file api0api.cc.

my_bool ib_mdl_enabled = FALSE

configure variable for MDL option with InnoDB APIs

Definition at line 63 of file api0api.cc.

ulong ib_trx_level_setting = IB_TRX_READ_UNCOMMITTED

configure variable for Transaction isolation levels

Definition at line 69 of file api0api.cc.

Classes

Macros

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
