#include "db0err.h"
#include <stdio.h>
#include <stdint.h>

Include dependency graph for api0api.h:

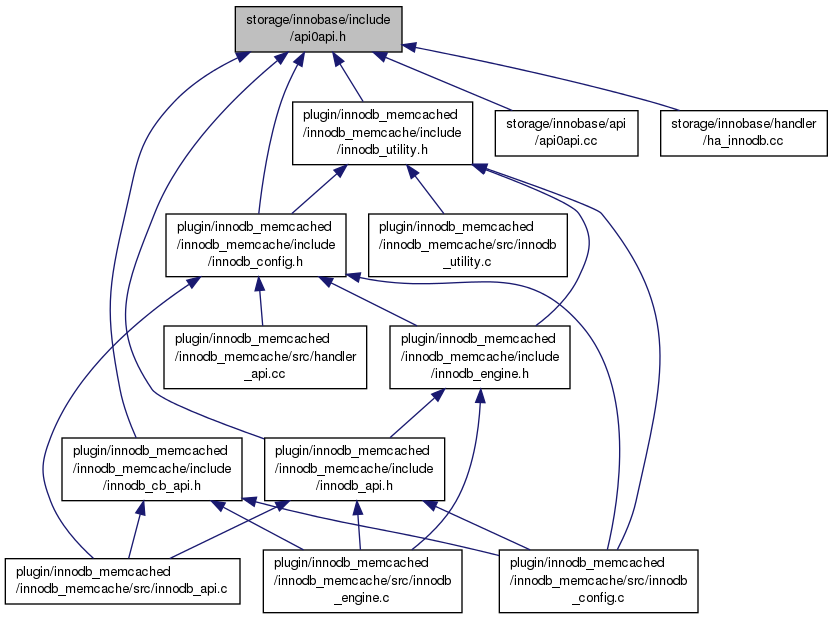

This graph shows which files directly or indirectly include this file:

Classes
struct	ib_col_meta_t

Macros
#define	UNIV_NO_IGNORE
#define	IB_TRUE 0x1UL
#define	IB_FALSE 0x0UL
#define	IB_CFG_BINLOG_ENABLED 0x1
#define	IB_CFG_MDL_ENABLED 0x2
#define	IB_CFG_DISABLE_ROWLOCK 0x4
#define	IB_SQL_NULL 0xFFFFFFFF
#define	IB_N_SYS_COLS 3
#define	MAX_TEXT_LEN 4096
#define	IB_MAX_COL_NAME_LEN (64 * 3)
#define	IB_MAX_TABLE_NAME_LEN (64 * 3) * 2

Typedefs
typedef enum dberr_t	ib_err_t
typedef unsigned char	ib_byte_t
typedef unsigned long int	ib_ulint_t
typedef int8_t	ib_i8_t
typedef uint8_t	ib_u8_t
typedef int16_t	ib_i16_t
typedef uint16_t	ib_u16_t
typedef int32_t	ib_i32_t
typedef uint32_t	ib_u32_t
typedef int64_t	ib_i64_t
typedef uint64_t	ib_u64_t
typedef void *	ib_opaque_t
typedef ib_opaque_t	ib_charset_t
typedef ib_ulint_t	ib_bool_t
typedef ib_u64_t	ib_id_u64_t
typedef void(*	ib_cb_t )(void)
typedef FILE *	ib_msg_stream_t
typedef int(*	ib_msg_log_t )(ib_msg_stream_t, const char *,...)
typedef struct ib_tuple_t *	ib_tpl_t
typedef struct trx_t *	ib_trx_t
typedef struct ib_cursor_t *	ib_crsr_t
typedef int(*	ib_client_cmp_t )(const ib_col_meta_t col_meta, const ib_byte_t p1, ib_ulint_t p1_len, const ib_byte_t *p2, ib_ulint_t p2_len)

Enumerations
enum	ib_cfg_type_t { IB_CFG_IBOOL, IB_CFG_ULINT, IB_CFG_ULONG, IB_CFG_TEXT, IB_CFG_CB }
enum	ib_col_type_t { IB_VARCHAR = 1, IB_CHAR = 2, IB_BINARY = 3, IB_VARBINARY = 4, IB_BLOB = 5, IB_INT = 6, IB_SYS = 8, IB_FLOAT = 9, IB_DOUBLE = 10, IB_DECIMAL = 11, IB_VARCHAR_ANYCHARSET = 12, IB_CHAR_ANYCHARSET = 13 }
enum	ib_tbl_fmt_t { IB_TBL_REDUNDANT, IB_TBL_COMPACT, IB_TBL_DYNAMIC, IB_TBL_COMPRESSED }
enum	ib_col_attr_t { IB_COL_NONE = 0, IB_COL_NOT_NULL = 1, IB_COL_UNSIGNED = 2, IB_COL_NOT_USED = 4, IB_COL_CUSTOM1 = 8, IB_COL_CUSTOM2 = 16, IB_COL_CUSTOM3 = 32 }
enum	ib_lck_mode_t { IB_LOCK_IS = 0, IB_LOCK_IX, IB_LOCK_S, IB_LOCK_X, IB_LOCK_TABLE_X, IB_LOCK_NONE, IB_LOCK_NUM = IB_LOCK_NONE }
enum	ib_index_type_t { IB_CLUSTERED = 1, IB_UNIQUE = 2 }
enum	ib_srch_mode_t { IB_CUR_G = 1, IB_CUR_GE = 2, IB_CUR_L = 3, IB_CUR_LE = 4 }
enum	ib_match_mode_t { IB_CLOSEST_MATCH, IB_EXACT_MATCH, IB_EXACT_PREFIX }
enum	ib_trx_state_t { IB_TRX_NOT_STARTED, IB_TRX_ACTIVE, IB_TRX_COMMITTED_IN_MEMORY, IB_TRX_PREPARED }
enum	ib_trx_level_t { IB_TRX_READ_UNCOMMITTED = 0, IB_TRX_READ_COMMITTED = 1, IB_TRX_REPEATABLE_READ = 2, IB_TRX_SERIALIZABLE = 3 }

Functions
ib_err_t	ib_trx_start (ib_trx_t ib_trx, ib_trx_level_t ib_trx_level, void *thd)
ib_trx_t	ib_trx_begin (ib_trx_level_t ib_trx_level)
ib_trx_state_t	ib_trx_state (ib_trx_t ib_trx)

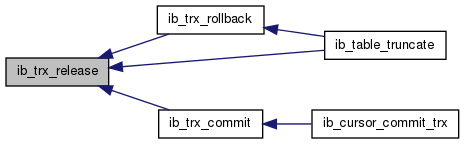

ib_err_t	ib_trx_release (ib_trx_t ib_trx)
ib_err_t	ib_trx_commit (ib_trx_t ib_trx)

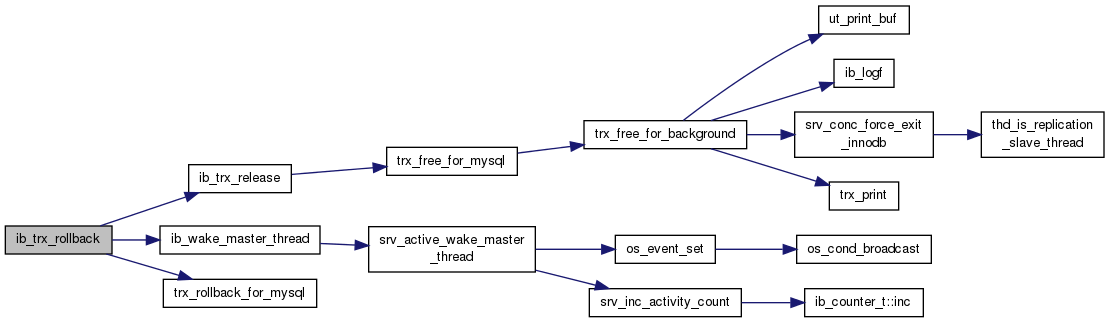

ib_err_t	ib_trx_rollback (ib_trx_t ib_trx)
ib_err_t	ib_cursor_open_table_using_id (ib_id_u64_t table_id, ib_trx_t ib_trx, ib_crsr_t *ib_crsr)

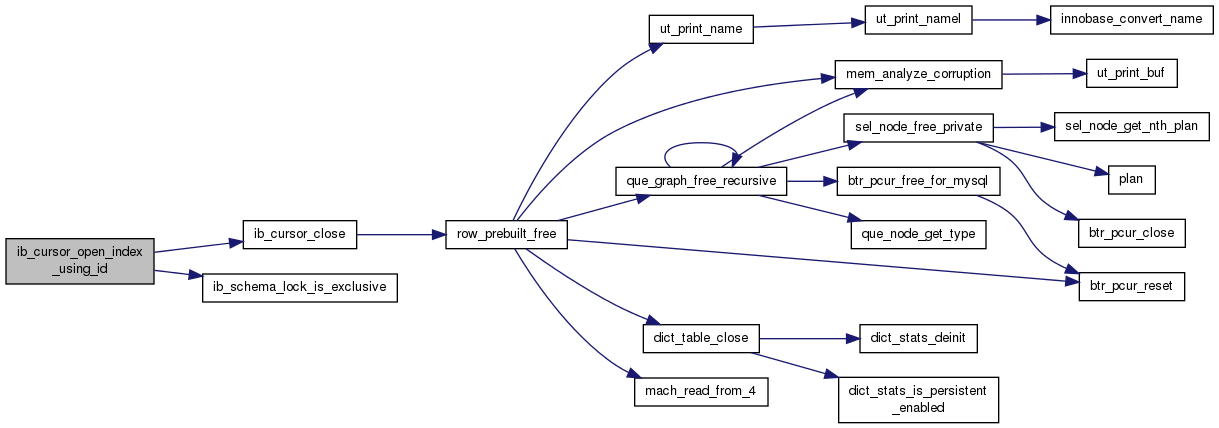

ib_err_t	ib_cursor_open_index_using_id (ib_id_u64_t index_id, ib_trx_t ib_trx, ib_crsr_t *ib_crsr)

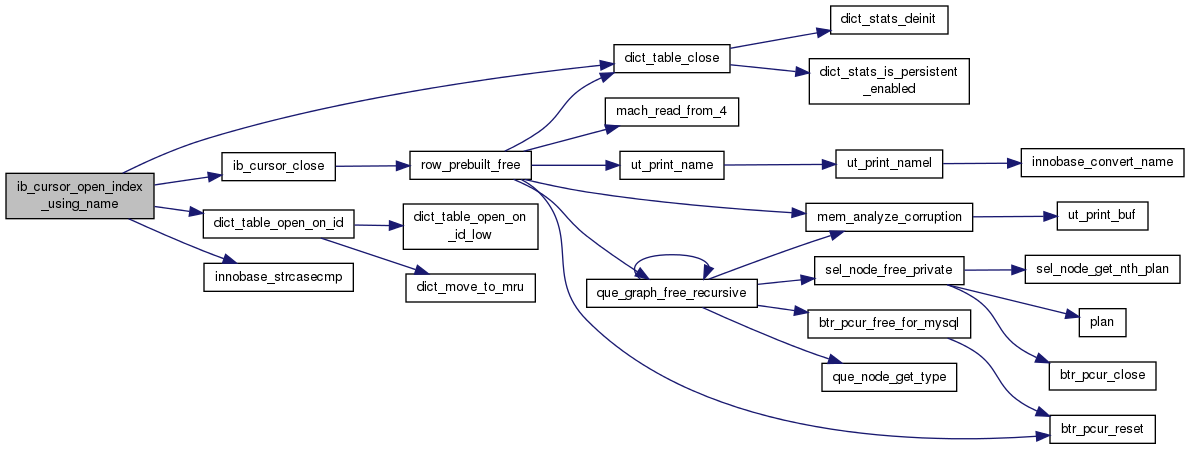

ib_err_t	ib_cursor_open_index_using_name (ib_crsr_t ib_open_crsr, const char index_name, ib_crsr_t ib_crsr, int idx_type, ib_id_u64_t idx_id)
ib_err_t	ib_cursor_open_table (const char name, ib_trx_t ib_trx, ib_crsr_t ib_crsr)
ib_err_t	ib_cursor_reset (ib_crsr_t ib_crsr)
void	ib_cursor_clear_trx (ib_crsr_t ib_crsr)

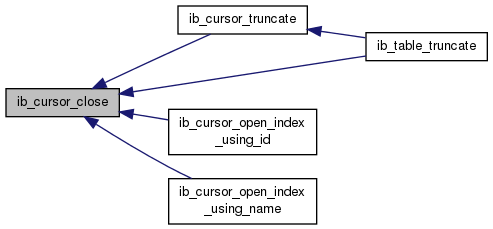

ib_err_t	ib_cursor_close (ib_crsr_t ib_crsr)

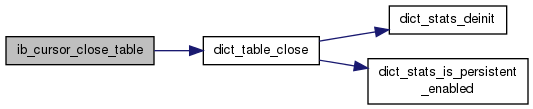

ib_err_t	ib_cursor_close_table (ib_crsr_t ib_crsr)
ib_err_t	ib_cursor_new_trx (ib_crsr_t ib_crsr, ib_trx_t ib_trx)

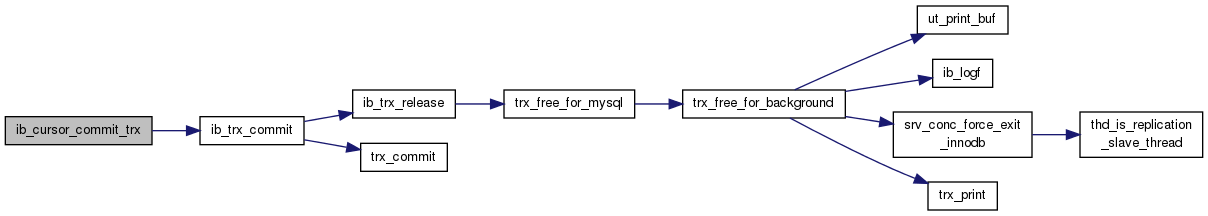

ib_err_t	ib_cursor_commit_trx (ib_crsr_t ib_crsr, ib_trx_t ib_trx)

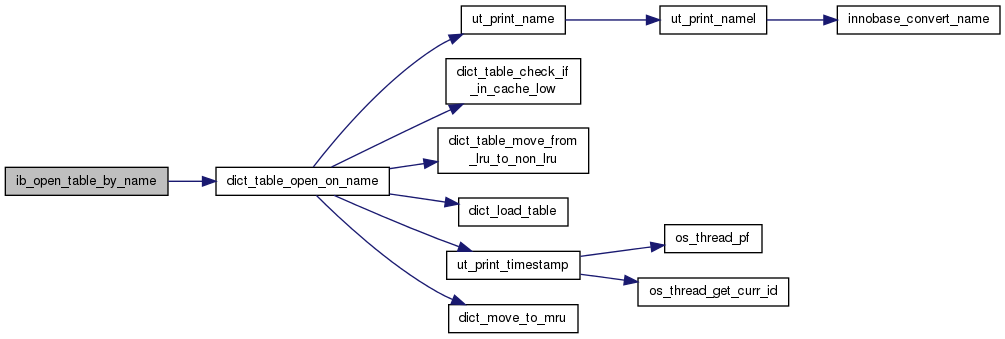

void *	ib_open_table_by_name (const char *name)
ib_err_t	ib_cursor_insert_row (ib_crsr_t ib_crsr, const ib_tpl_t ib_tpl)

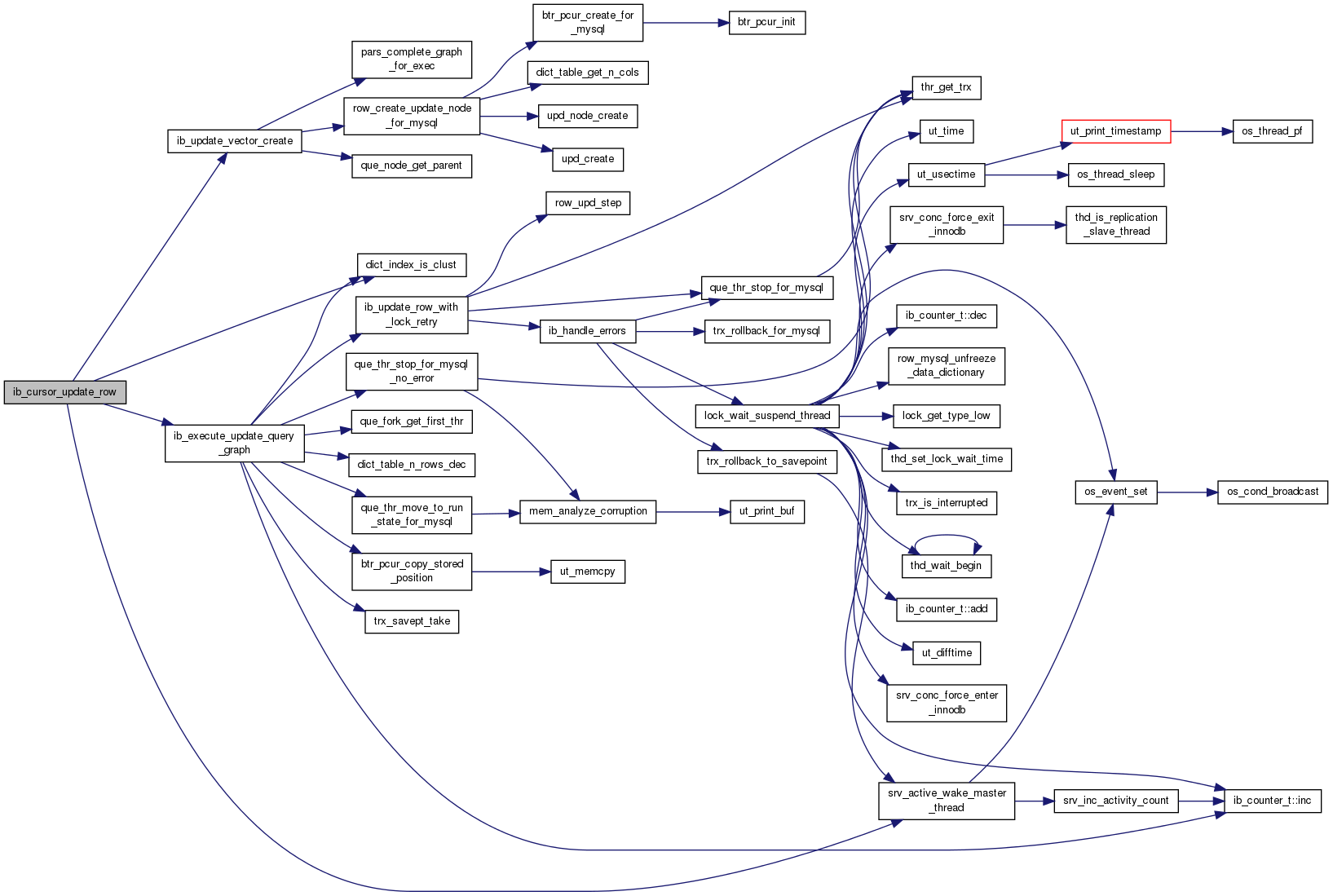

ib_err_t	ib_cursor_update_row (ib_crsr_t ib_crsr, const ib_tpl_t ib_old_tpl, const ib_tpl_t ib_new_tpl)

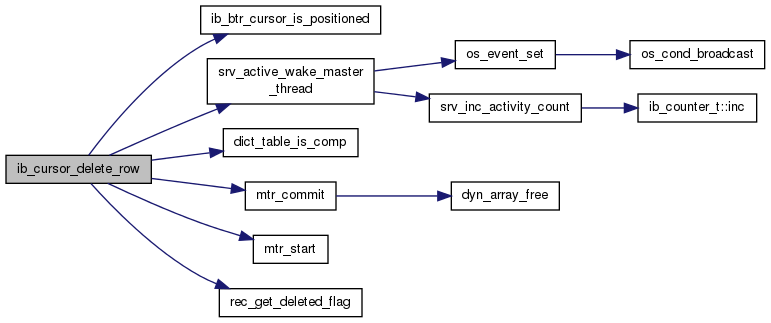

ib_err_t	ib_cursor_delete_row (ib_crsr_t ib_crsr)

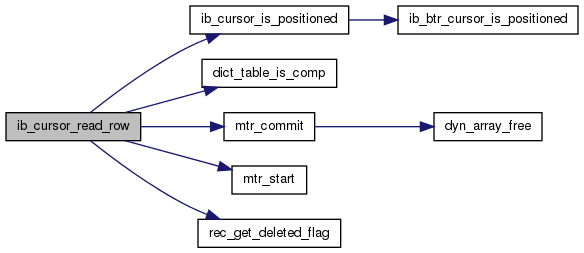

ib_err_t	ib_cursor_read_row (ib_crsr_t ib_crsr, ib_tpl_t ib_tpl)
ib_err_t	ib_cursor_first (ib_crsr_t ib_crsr)
ib_err_t	ib_cursor_last (ib_crsr_t ib_crsr)
ib_err_t	ib_cursor_next (ib_crsr_t ib_crsr)

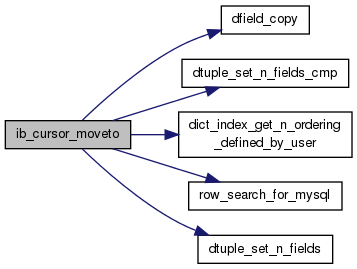

ib_err_t	ib_cursor_moveto (ib_crsr_t ib_crsr, ib_tpl_t ib_tpl, ib_srch_mode_t ib_srch_mode)
void	ib_cursor_set_match_mode (ib_crsr_t ib_crsr, ib_match_mode_t match_mode)

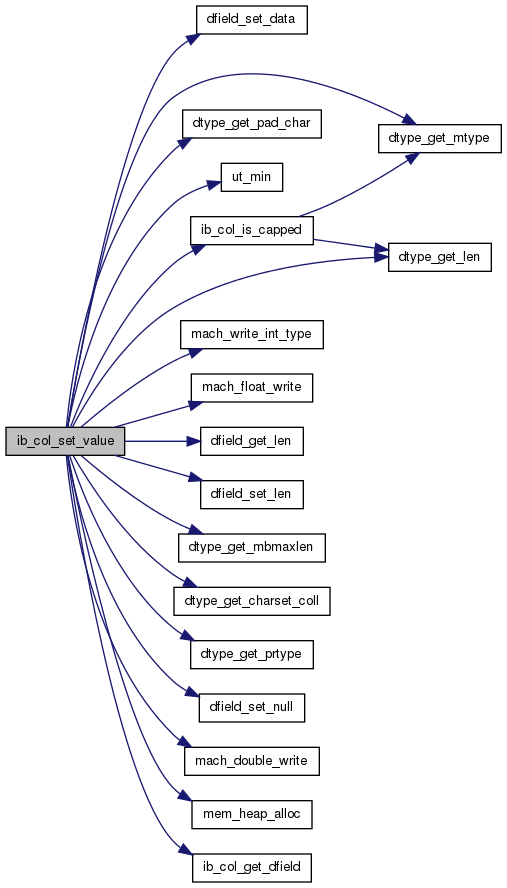

ib_err_t	ib_col_set_value (ib_tpl_t ib_tpl, ib_ulint_t col_no, const void *src, ib_ulint_t len, ib_bool_t need_cpy)
ib_ulint_t	ib_col_get_len (ib_tpl_t ib_tpl, ib_ulint_t i)

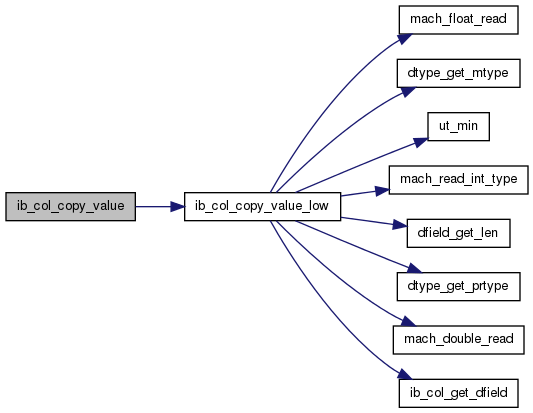

ib_ulint_t	ib_col_copy_value (ib_tpl_t ib_tpl, ib_ulint_t i, void *dst, ib_ulint_t len)

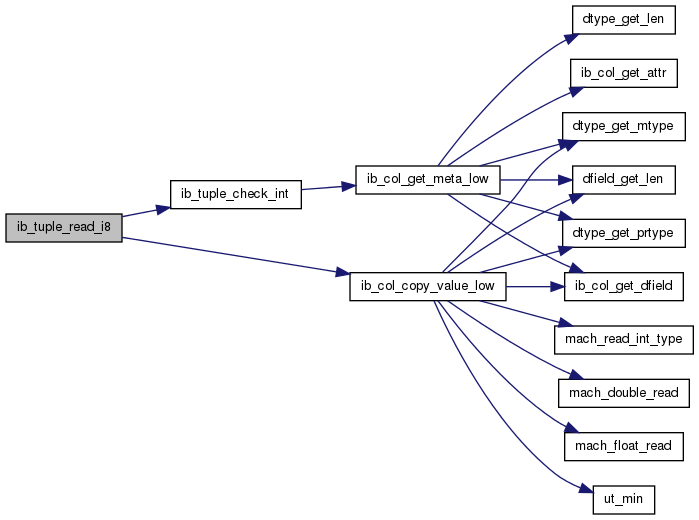

ib_err_t	ib_tuple_read_i8 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_i8_t *ival)
ib_err_t	ib_tuple_read_u8 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_u8_t *ival)
ib_err_t	ib_tuple_read_i16 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_i16_t *ival)
ib_err_t	ib_tuple_read_u16 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_u16_t *ival)
ib_err_t	ib_tuple_read_i32 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_i32_t *ival)
ib_err_t	ib_tuple_read_u32 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_u32_t *ival)
ib_err_t	ib_tuple_read_i64 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_i64_t *ival)

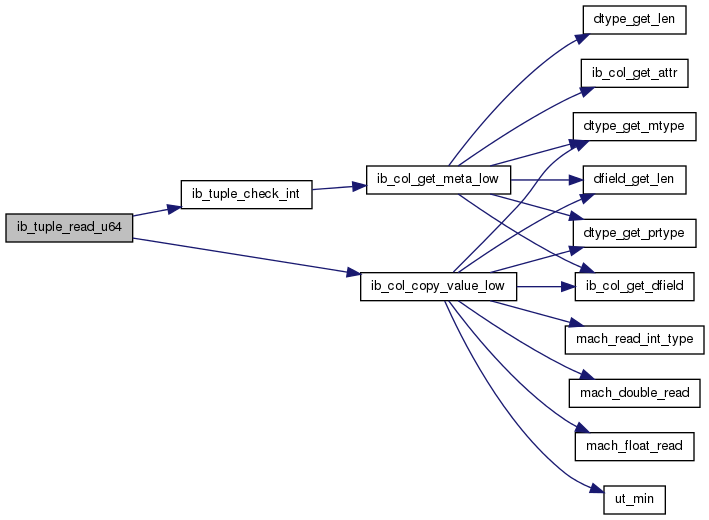

ib_err_t	ib_tuple_read_u64 (ib_tpl_t ib_tpl, ib_ulint_t i, ib_u64_t *ival)
const void *	ib_col_get_value (ib_tpl_t ib_tpl, ib_ulint_t i)

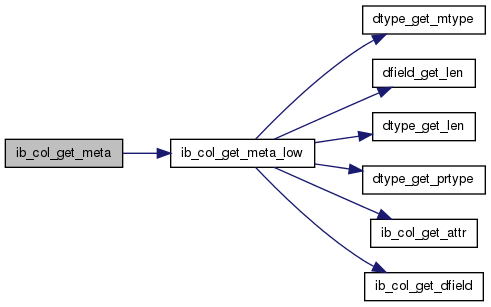

ib_ulint_t	ib_col_get_meta (ib_tpl_t ib_tpl, ib_ulint_t i, ib_col_meta_t *ib_col_meta)
ib_tpl_t	ib_tuple_clear (ib_tpl_t ib_tpl)

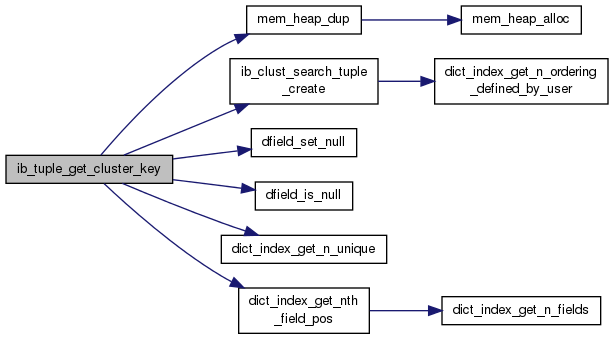

ib_err_t	ib_tuple_get_cluster_key (ib_crsr_t ib_crsr, ib_tpl_t *ib_dst_tpl, const ib_tpl_t ib_src_tpl)

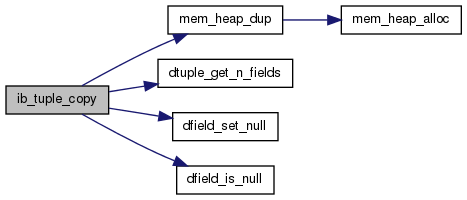

ib_err_t	ib_tuple_copy (ib_tpl_t ib_dst_tpl, const ib_tpl_t ib_src_tpl)
ib_tpl_t	ib_sec_search_tuple_create (ib_crsr_t ib_crsr)
ib_tpl_t	ib_sec_read_tuple_create (ib_crsr_t ib_crsr)
ib_tpl_t	ib_clust_search_tuple_create (ib_crsr_t ib_crsr)
ib_tpl_t	ib_clust_read_tuple_create (ib_crsr_t ib_crsr)

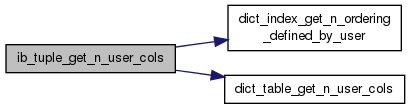

ib_ulint_t	ib_tuple_get_n_user_cols (const ib_tpl_t ib_tpl)
ib_ulint_t	ib_tuple_get_n_cols (const ib_tpl_t ib_tpl)
void	ib_tuple_delete (ib_tpl_t ib_tpl)

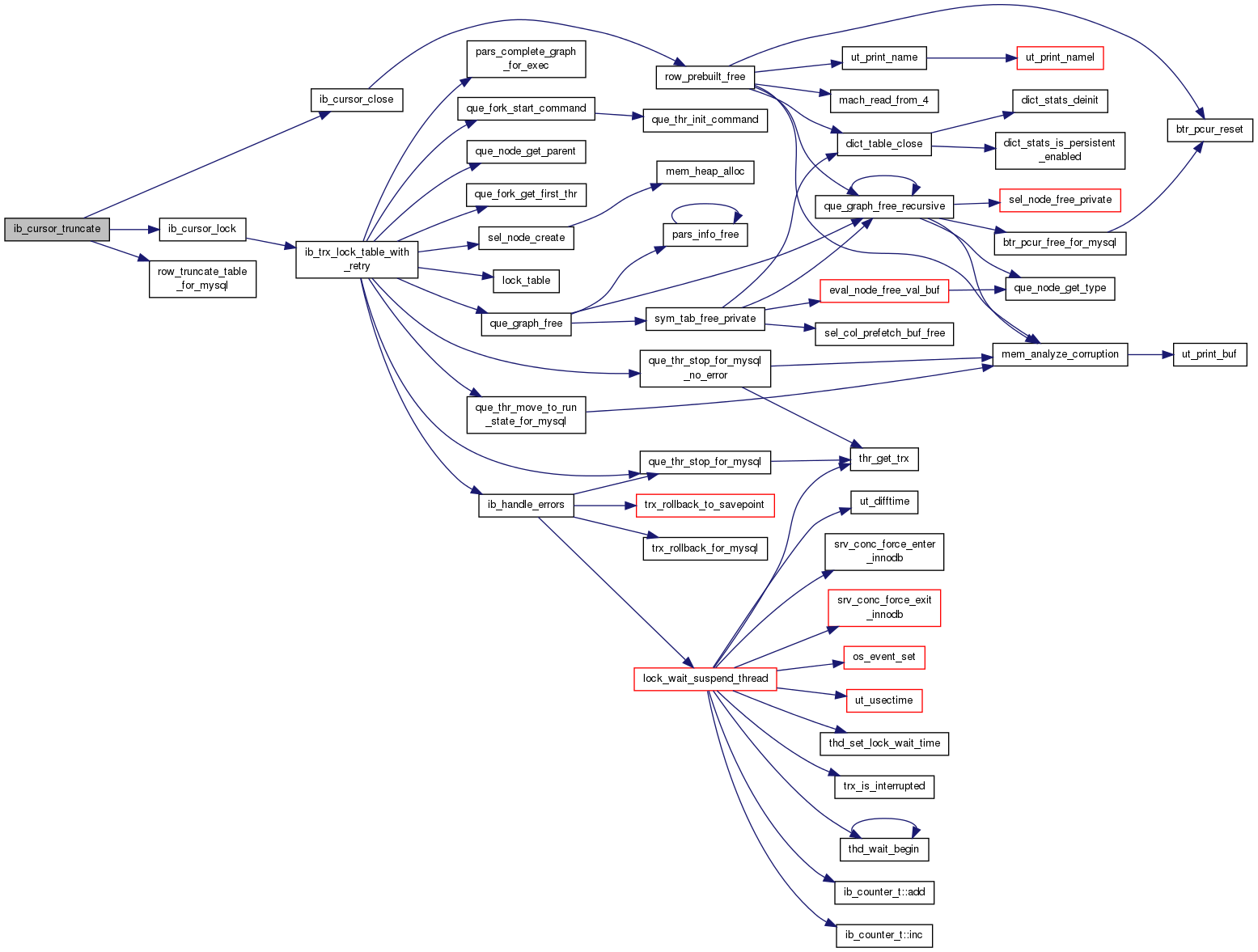

ib_err_t	ib_cursor_truncate (ib_crsr_t ib_crsr, ib_id_u64_t table_id)

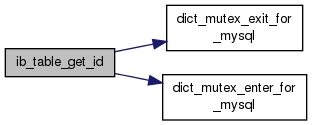

ib_err_t	ib_table_get_id (const char table_name, ib_id_u64_t table_id)

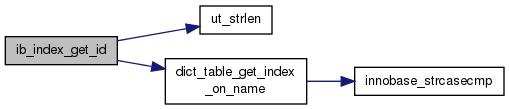

ib_err_t	ib_index_get_id (const char table_name, const char index_name, ib_id_u64_t *index_id)
ib_bool_t	ib_cursor_is_positioned (const ib_crsr_t ib_crsr)

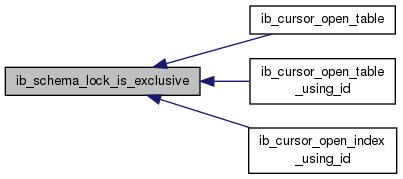

ib_bool_t	ib_schema_lock_is_exclusive (const ib_trx_t ib_trx)

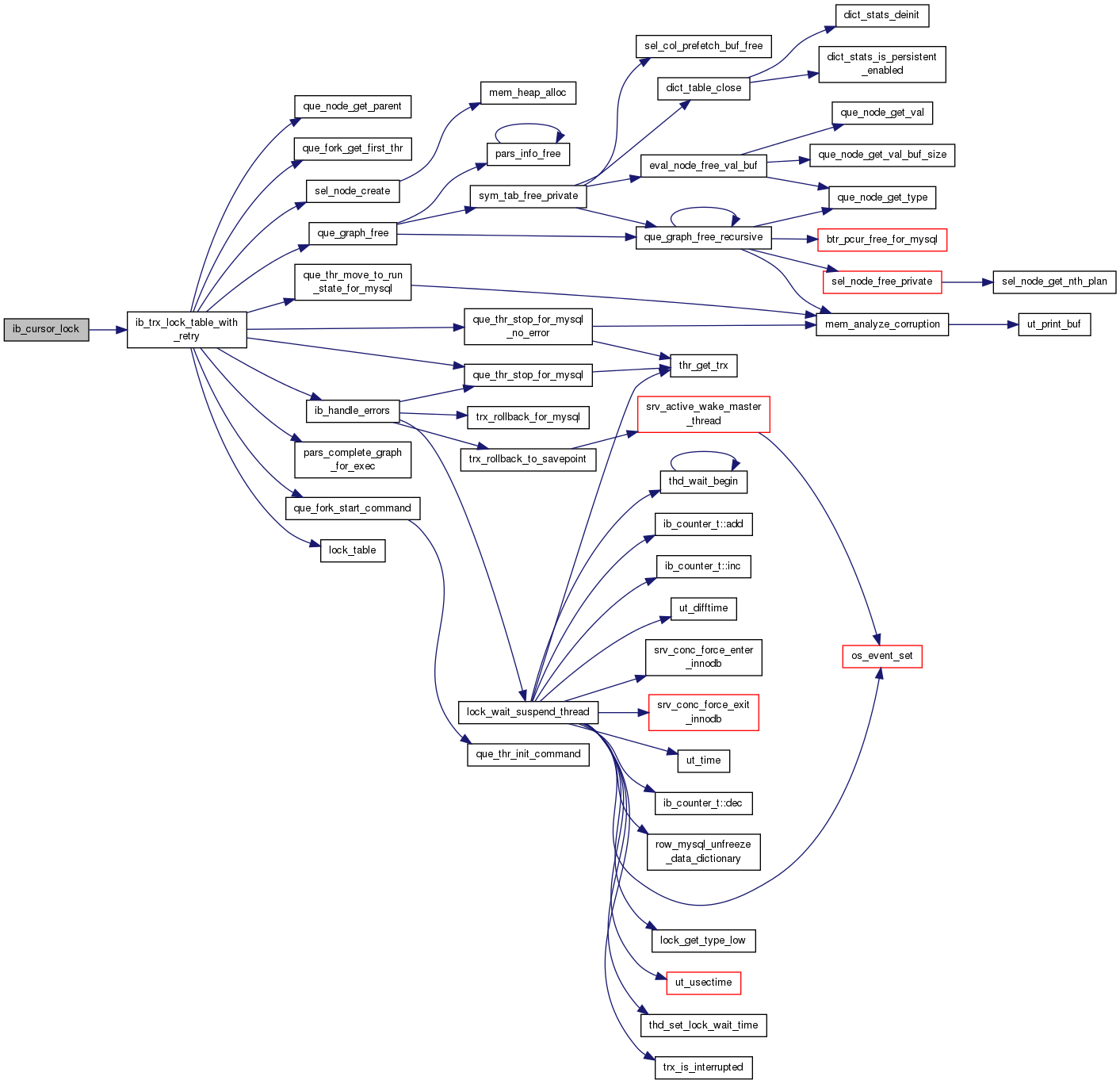

ib_err_t	ib_cursor_lock (ib_crsr_t ib_crsr, ib_lck_mode_t ib_lck_mode)
ib_err_t	ib_table_lock (ib_trx_t ib_trx, ib_id_u64_t table_id, ib_lck_mode_t ib_lck_mode)

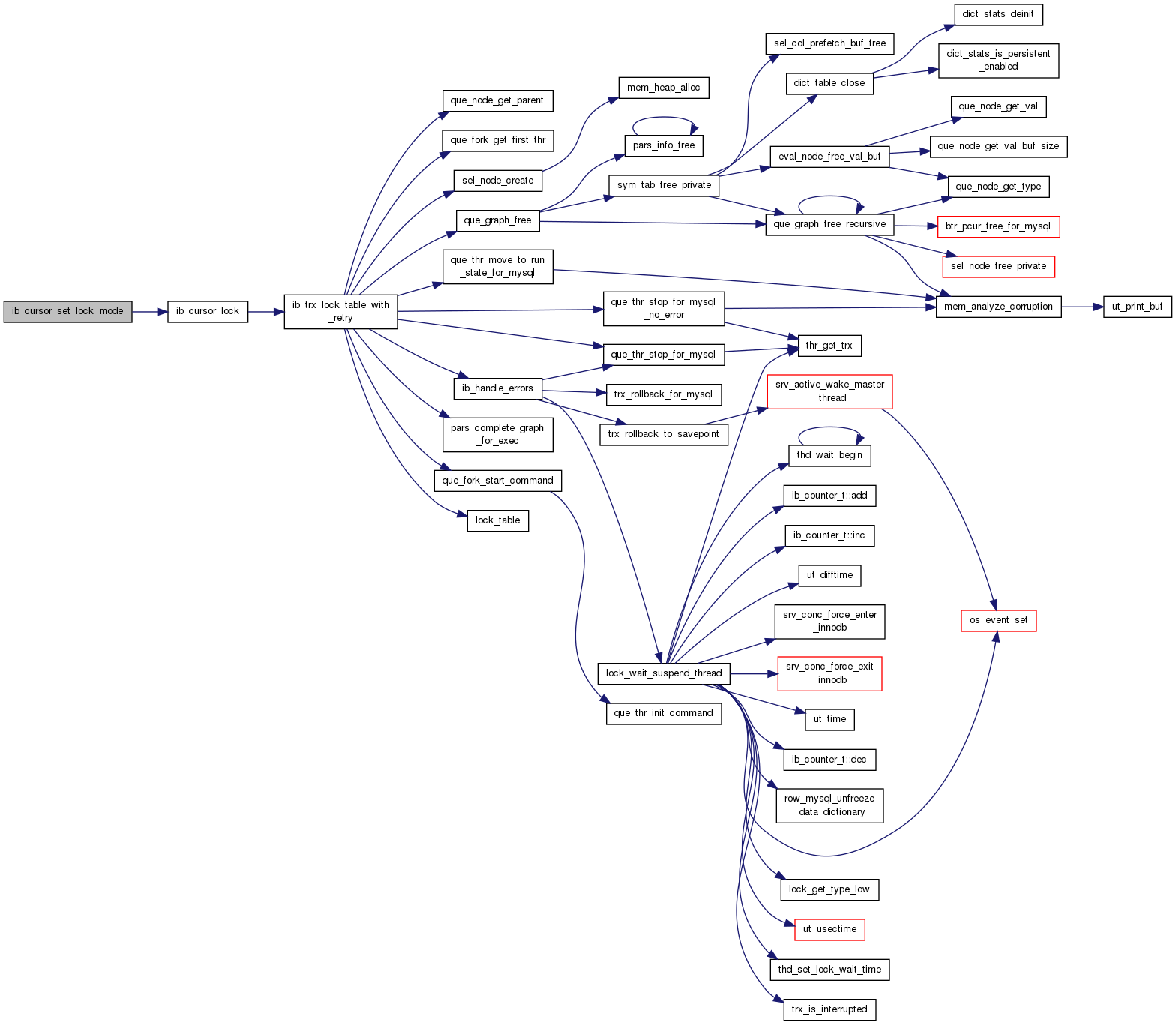

ib_err_t	ib_cursor_set_lock_mode (ib_crsr_t ib_crsr, ib_lck_mode_t ib_lck_mode)
void	ib_cursor_set_cluster_access (ib_crsr_t ib_crsr)
ib_err_t	ib_tuple_write_i8 (ib_tpl_t ib_tpl, int col_no, ib_i8_t val)
ib_err_t	ib_tuple_write_i16 (ib_tpl_t ib_tpl, int col_no, ib_i16_t val)
ib_err_t	ib_tuple_write_i32 (ib_tpl_t ib_tpl, int col_no, ib_i32_t val)
ib_err_t	ib_tuple_write_i64 (ib_tpl_t ib_tpl, int col_no, ib_i64_t val)
ib_err_t	ib_tuple_write_u8 (ib_tpl_t ib_tpl, int col_no, ib_u8_t val)
ib_err_t	ib_tuple_write_u16 (ib_tpl_t ib_tpl, int col_no, ib_u16_t val)
ib_err_t	ib_tuple_write_u32 (ib_tpl_t ib_tpl, int col_no, ib_u32_t val)

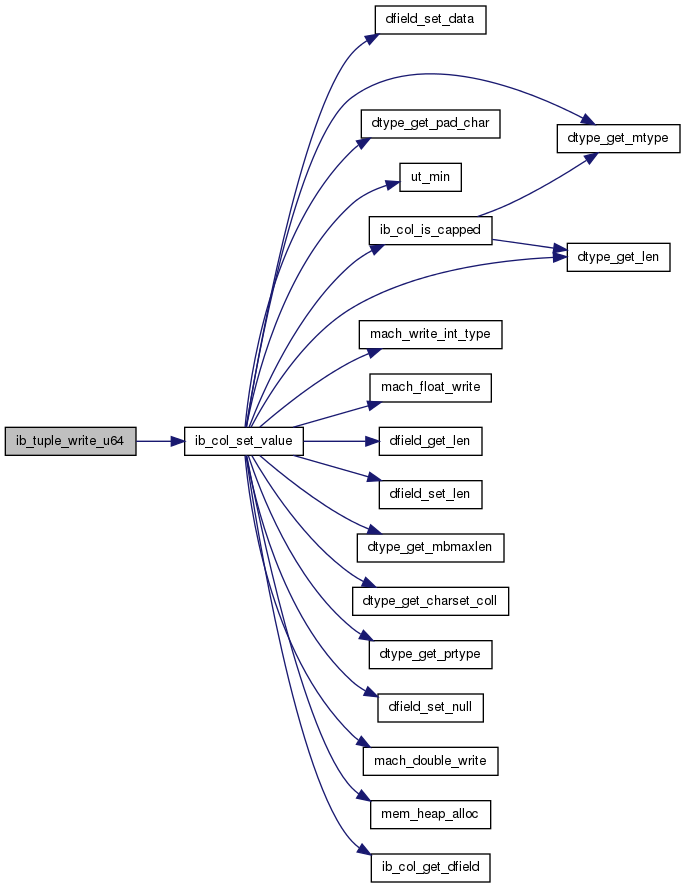

ib_err_t	ib_tuple_write_u64 (ib_tpl_t ib_tpl, int col_no, ib_u64_t val)
void	ib_cursor_stmt_begin (ib_crsr_t ib_crsr)

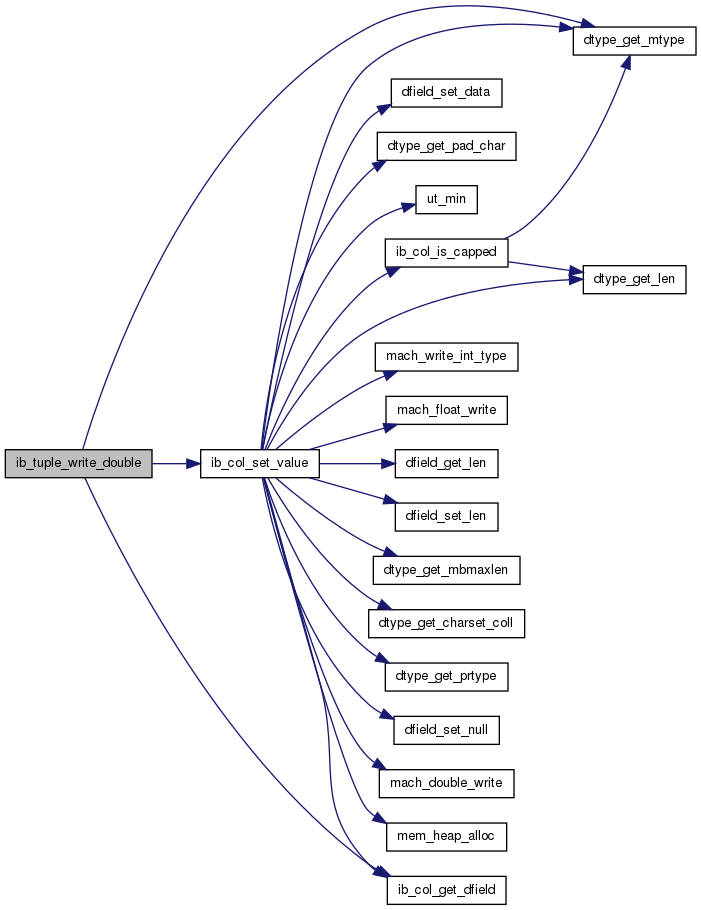

ib_err_t	ib_tuple_write_double (ib_tpl_t ib_tpl, int col_no, double val)

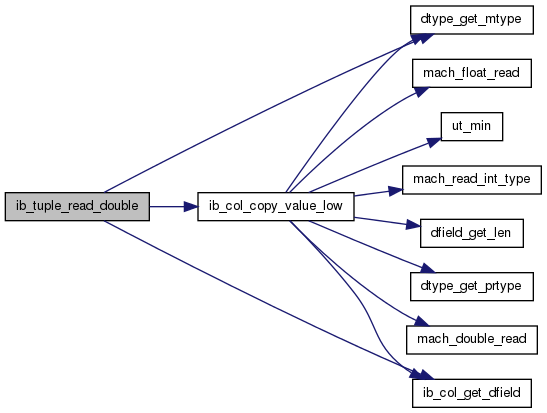

ib_err_t	ib_tuple_read_double (ib_tpl_t ib_tpl, ib_ulint_t col_no, double *dval)

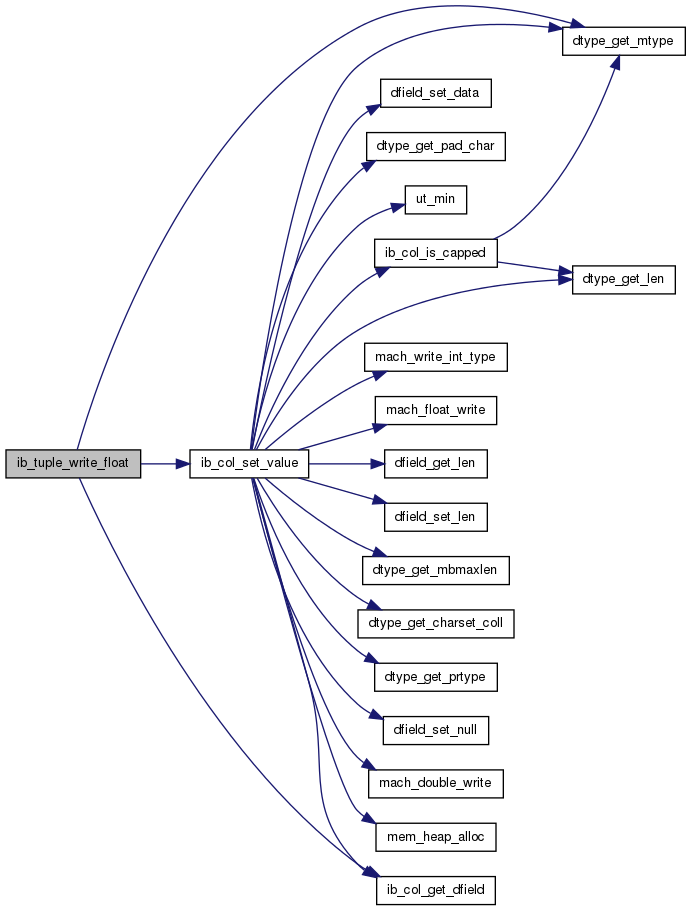

ib_err_t	ib_tuple_write_float (ib_tpl_t ib_tpl, int col_no, float val)

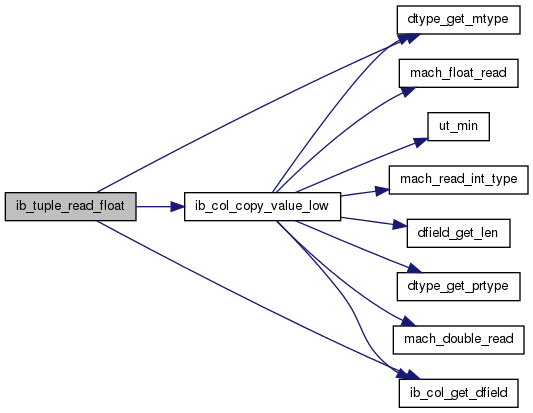

ib_err_t	ib_tuple_read_float (ib_tpl_t ib_tpl, ib_ulint_t col_no, float *fval)
const char *	ib_col_get_name (ib_crsr_t ib_crsr, ib_ulint_t i)
const char *	ib_get_idx_field_name (ib_crsr_t ib_crsr, ib_ulint_t i)

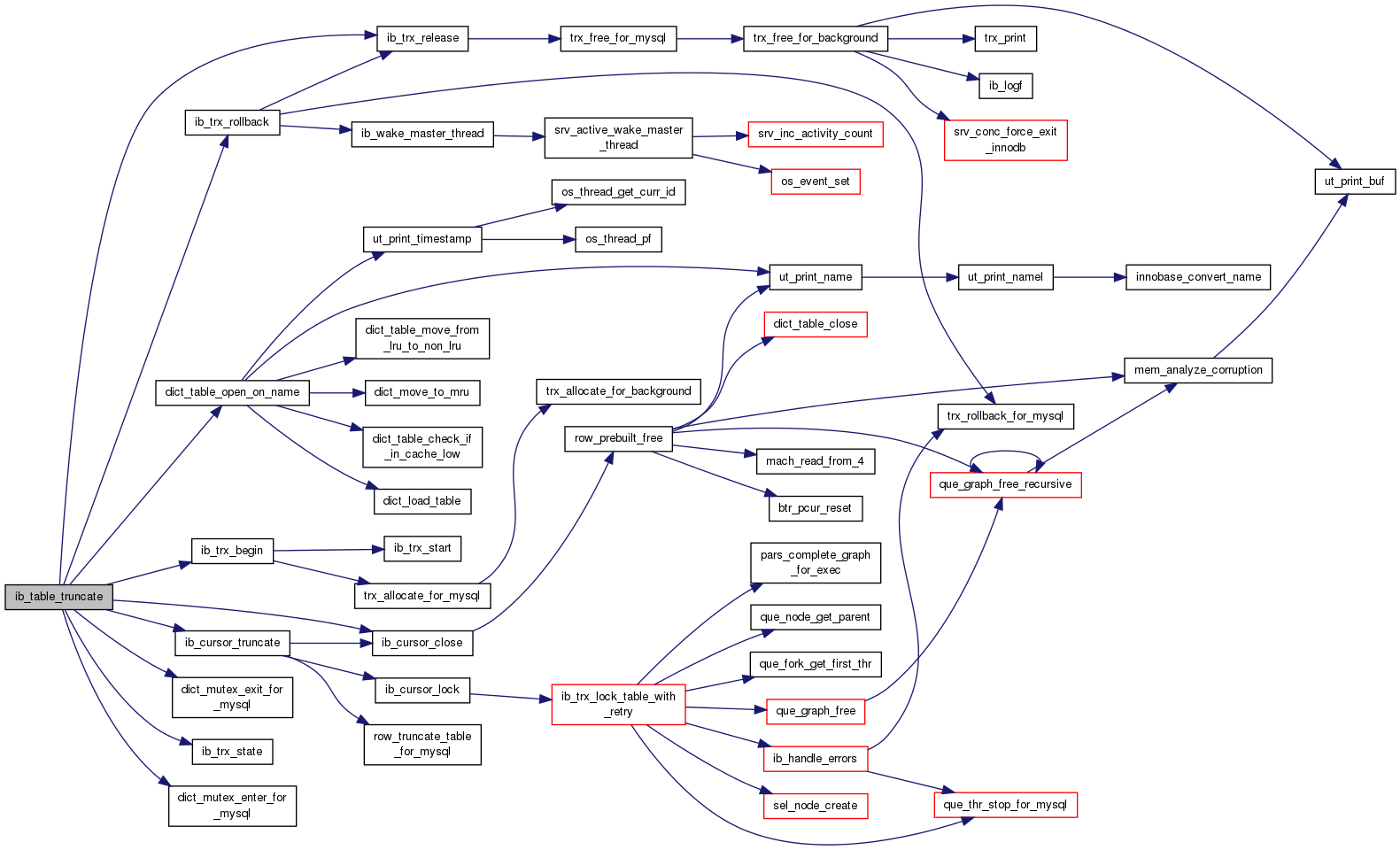

ib_err_t	ib_table_truncate (const char table_name, ib_id_u64_t table_id)
ib_err_t	ib_close_thd (void *thd)
int	ib_cfg_get_cfg ()
ib_err_t	ib_table_name_check (const char *name)
ib_trx_state_t	ib_cfg_trx_level ()
ib_ulint_t	ib_cfg_bk_commit_interval ()
ib_u64_t	ib_trx_get_start_time (ib_trx_t ib_trx)

Detailed Description

InnoDB Native API

2008-08-01 Created by Sunny Bains. 3/20/2011 Jimmy Yang extracted from Embedded InnoDB

Definition in file api0api.h.

Macro Definition Documentation

#define IB_FALSE 0x0UL

The boolean value of "false" used internally within InnoDB

Definition at line 48 of file api0api.h.

#define IB_MAX_COL_NAME_LEN (64 * 3)

The maximum length of a column name in a table schema.

Definition at line 444 of file api0api.h.

#define IB_MAX_TABLE_NAME_LEN (64 * 3) * 2

The maximum length of a table name (plus database name).

Definition at line 447 of file api0api.h.

#define IB_N_SYS_COLS 3

The number of system columns in a row.

Definition at line 437 of file api0api.h.

#define IB_SQL_NULL 0xFFFFFFFF

Represents SQL_NULL length

Definition at line 435 of file api0api.h.

#define IB_TRUE 0x1UL

The boolean value of "true" used internally within InnoDB

Definition at line 46 of file api0api.h.

#define MAX_TEXT_LEN 4096

The maximum length of a text column.

Definition at line 440 of file api0api.h.

Typedef Documentation

typedef unsigned char ib_byte_t

Representation of a byte within InnoDB

Definition at line 54 of file api0api.h.

typedef void(* ib_cb_t)(void)

Generical InnoDB callback prototype.

Definition at line 376 of file api0api.h.

typedef int(* ib_client_cmp_t)(const ib_col_meta_t *col_meta, const ib_byte_t *p1, ib_ulint_t p1_len, const ib_byte_t *p2, ib_ulint_t p2_len)

This function is used to compare two data fields for which the data type is such that we must use the client code to compare them.

Parameters

col_meta	column meta data
p1	key p1_len key length
p2	second key
p2_len	second key length

Returns: 1, 0, -1, if a is greater, equal, less than b, respectively

Definition at line 426 of file api0api.h.

typedef struct ib_cursor_t* ib_crsr_t

InnoDB cursor handle

Definition at line 413 of file api0api.h.

typedef enum dberr_t ib_err_t

All InnoDB error codes are represented by ib_err_t

Definition at line 52 of file api0api.h.

typedef int16_t ib_i16_t

A signed 16 bit integral type.

Definition at line 86 of file api0api.h.

typedef int32_t ib_i32_t

A signed 32 bit integral type.

Definition at line 102 of file api0api.h.

typedef int64_t ib_i64_t

A signed 64 bit integral type.

Definition at line 118 of file api0api.h.

typedef int8_t ib_i8_t

A signed 8 bit integral type.

Definition at line 70 of file api0api.h.

typedef int(* ib_msg_log_t)(ib_msg_stream_t, const char *,...)

All log messages are written to this function.It should have the same

behavior as fprintf(3).

Definition at line 389 of file api0api.h.

typedef FILE* ib_msg_stream_t

The first argument to the InnoDB message logging function. By default

it's set to stderr. You should treat ib_msg_stream_t as a void*, since it will probably change in the future.

Definition at line 385 of file api0api.h.

typedef struct ib_tuple_t* ib_tpl_t

InnoDB tuple handle. This handle can refer to either a cluster index

tuple or a secondary index tuple. There are two types of tuples for each type of index, making a total of four types of tuple handles. There is a tuple for reading the entire row contents and another for searching on the index key.

Definition at line 401 of file api0api.h.

typedef struct trx_t* ib_trx_t

InnoDB transaction handle, all database operations need to be covered

by transactions. This handle represents a transaction. The handle can be created with ib_trx_begin(), you commit your changes with ib_trx_commit() and undo your changes using ib_trx_rollback(). If the InnoDB deadlock monitor rolls back the transaction then you need to free the transaction using the function ib_trx_release(). You can query the state of an InnoDB transaction by calling ib_trx_state().

Definition at line 410 of file api0api.h.

typedef uint16_t ib_u16_t

An unsigned 16 bit integral type.

Definition at line 94 of file api0api.h.

typedef uint32_t ib_u32_t

An unsigned 32 bit integral type.

Definition at line 110 of file api0api.h.

typedef uint64_t ib_u64_t

An unsigned 64 bit integral type.

Definition at line 126 of file api0api.h.

typedef uint8_t ib_u8_t

An unsigned 8 bit integral type.

Definition at line 78 of file api0api.h.

typedef unsigned long int ib_ulint_t

Representation of an unsigned long int within InnoDB

Definition at line 56 of file api0api.h.

Enumeration Type Documentation

enum ib_cfg_type_t

Possible types for a configuration variable.

Enumerator:

IB_CFG_IBOOL	The configuration parameter is of type ibool
IB_CFG_ULINT	The configuration parameter is of type ulint
IB_CFG_ULONG	The configuration parameter is of type ulong
IB_CFG_TEXT	The configuration parameter is of type char*
IB_CFG_CB	The configuration parameter is a callback parameter

Definition at line 135 of file api0api.h.

enum ib_col_attr_t

InnoDB column attributes

Enumerator:

IB_COL_NONE	No special attributes.
IB_COL_NOT_NULL	Column data can't be NULL.
IB_COL_UNSIGNED	Column is IB_INT and unsigned.
IB_COL_NOT_USED	Future use, reserved.
IB_COL_CUSTOM1	Custom precision type, this is a bit that is ignored by InnoDB and so can be set and queried by users.
IB_COL_CUSTOM2	Custom precision type, this is a bit that is ignored by InnoDB and so can be set and queried by users.
IB_COL_CUSTOM3	Custom precision type, this is a bit that is ignored by InnoDB and so can be set and queried by users.

Definition at line 227 of file api0api.h.

enum ib_col_type_t

column types that are supported.

Enumerator:

IB_VARCHAR	Character varying length. The column is not padded.
IB_CHAR	Fixed length character string. The column is padded to the right.
IB_BINARY	Fixed length binary, similar to IB_CHAR but the column is not padded to the right.
IB_VARBINARY	Variable length binary
IB_BLOB	Binary large object, or a TEXT type
IB_INT	Integer: can be any size from 1 - 8 bytes. If the size is 1, 2, 4 and 8 bytes then you can use the typed read and write functions. For other sizes you will need to use the ib_col_get_value() function and do the conversion yourself.
IB_SYS	System column, this column can be one of DATA_TRX_ID, DATA_ROLL_PTR or DATA_ROW_ID.
IB_FLOAT	C (float) floating point value.
IB_DECIMAL	C (double) floating point value. Decimal stored as an ASCII string
IB_VARCHAR_ANYCHARSET	Any charset, varying length
IB_CHAR_ANYCHARSET	Any charset, fixed length

Definition at line 165 of file api0api.h.

enum ib_index_type_t

Enumerator:

IB_CLUSTERED	clustered index
IB_UNIQUE	unique index

Definition at line 272 of file api0api.h.

enum ib_lck_mode_t

InnoDB lock modes.

Enumerator:

IB_LOCK_IS	Intention shared, an intention lock should be used to lock tables
IB_LOCK_IX	Intention exclusive, an intention lock should be used to lock tables
IB_LOCK_S	Shared locks should be used to lock rows
IB_LOCK_X	Exclusive locks should be used to lock rows
IB_LOCK_TABLE_X	exclusive table lock
IB_LOCK_NONE	This is used internally to note consistent read
IB_LOCK_NUM	number of lock modes

Definition at line 251 of file api0api.h.

enum ib_match_mode_t

Various match modes used by ib_cursor_moveto()

Enumerator:

IB_CLOSEST_MATCH	Closest match possible
IB_EXACT_MATCH	Search using a complete key value
IB_EXACT_PREFIX	Search using a key prefix which must match to rows: the prefix may contain an incomplete field (the last field in prefix may be just a prefix of a fixed length column)

Definition at line 300 of file api0api.h.

enum ib_srch_mode_t

 InnoDB cursor search modes for ib_cursor_moveto().

Note: Values must match those found in page0cur.h

Enumerator:

IB_CUR_G	If search key is not found then position the cursor on the row that is greater than the search key
IB_CUR_GE	If the search key not found then position the cursor on the row that is greater than or equal to the search key
IB_CUR_L	If search key is not found then position the cursor on the row that is less than the search key
IB_CUR_LE	If search key is not found then position the cursor on the row that is less than or equal to the search key

Definition at line 279 of file api0api.h.

enum ib_tbl_fmt_t

InnoDB table format types

Enumerator:

IB_TBL_REDUNDANT	Redundant row format, the column type and length is stored in the row.
IB_TBL_COMPACT	Compact row format, the column type is not stored in the row. The length is stored in the row but the storage format uses a compact format to store the length of the column data and record data storage format also uses less storage.
IB_TBL_DYNAMIC	Compact row format. BLOB prefixes are not stored in the clustered index
IB_TBL_COMPRESSED	Similar to dynamic format but with pages compressed

Definition at line 207 of file api0api.h.

enum ib_trx_level_t

Transaction isolation levels

Enumerator:

IB_TRX_READ_UNCOMMITTED	Dirty read: non-locking SELECTs are performed so that we do not look at a possible earlier version of a record; thus they are not 'consistent' reads under this isolation level; otherwise like level 2
IB_TRX_READ_COMMITTED	Somewhat Oracle-like isolation, except that in range UPDATE and DELETE we must block phantom rows with next-key locks; SELECT ... FOR UPDATE and ... LOCK IN SHARE MODE only lock the index records, NOT the gaps before them, and thus allow free inserting; each consistent read reads its own snapshot
IB_TRX_REPEATABLE_READ	All consistent reads in the same trx read the same snapshot; full next-key locking used in locking reads to block insertions into gaps
IB_TRX_SERIALIZABLE	All plain SELECTs are converted to LOCK IN SHARE MODE reads

Definition at line 348 of file api0api.h.

enum ib_trx_state_t

 The transaction state can be queried using the

ib_trx_state() function. The InnoDB deadlock monitor can roll back a transaction and users should be prepared for this, especially where there is high contention. The way to determine the state of the transaction is to query it's state and check.

Enumerator:

IB_TRX_NOT_STARTED	Has not started yet, the transaction has not ben started yet.
IB_TRX_ACTIVE	The transaction is currently active and needs to be either committed or rolled back.
IB_TRX_COMMITTED_IN_MEMORY	Not committed to disk yet
IB_TRX_PREPARED	Support for 2PC/XA

Definition at line 333 of file api0api.h.

Function Documentation

ib_ulint_t ib_cfg_bk_commit_interval ( )

Return configure value for background commit interval (in seconds)

Returns: background commit interval (in seconds)

Definition at line 3921 of file api0api.cc.

int ib_cfg_get_cfg ( )

Get generic configure status

Returns: configure status

Definition at line 3932 of file api0api.cc.

ib_trx_state_t ib_cfg_trx_level ( )

Return isolation configuration set by "innodb_api_trx_level"

Returns: trx isolation level

Definition at line 3910 of file api0api.cc.

ib_err_t ib_close_thd ( void * thd )

Frees a possible InnoDB trx object associated with the current THD.

Returns: DB_SUCCESS or error number in: handle to the MySQL thread of the user whose resources should be free'd

Frees a possible InnoDB trx object associated with the current THD.

Returns: 0 or error number

Parameters

thd	in: handle to the MySQL thread of the user whose resources should be free'd

Definition at line 3895 of file api0api.cc.

Here is the call graph for this function:

ib_tpl_t ib_clust_read_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple for table row operations.

Returns: tuple for current table in: Cursor instance

Create an InnoDB tuple for table row operations.

Returns: own: Tuple for current table

Parameters

ib_crsr in: Cursor instance

Definition at line 3194 of file api0api.cc.

Here is the call graph for this function:

ib_tpl_t ib_clust_search_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple used for table key operations.

Returns: tuple for current table in: Cursor instance

Create an InnoDB tuple used for table key operations.

Returns: own: Tuple for current table

Parameters

ib_crsr in: Cursor instance

Definition at line 3175 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_ulint_t ib_col_copy_value	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		void *	dst,
		ib_ulint_t	len
	)

Copy a column value from the tuple.

Returns: bytes copied or IB_SQL_NULL in: max data value len to copy

Copy a column value from the tuple.

Returns: bytes copied or IB_SQL_NULL

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple
dst	out: copied data value
len	in: max data value len to copy

Definition at line 2625 of file api0api.cc.

Here is the call graph for this function:

ib_ulint_t ib_col_get_len	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i
	)

Get the size of the data available in the column the tuple.

Returns: bytes avail or IB_SQL_NULL in: column index in tuple

Get the size of the data available in a column of the tuple.

Returns: bytes avail or IB_SQL_NULL

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple

Definition at line 2508 of file api0api.cc.

Here is the call graph for this function:

ib_ulint_t ib_col_get_meta	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_col_meta_t *	ib_col_meta
	)

Get a column type, length and attributes from the tuple.

Returns: len of column data out: column meta data

Get a column type, length and attributes from the tuple.

Returns: len of column data

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple
ib_col_meta	out: column meta data

Definition at line 2969 of file api0api.cc.

Here is the call graph for this function:

const char* ib_col_get_name	(	ib_crsr_t	ib_crsr,
		ib_ulint_t	i
	)

Get a column type, length and attributes from the tuple.

Returns: len of column data in: column index in tuple

Get a column name from the tuple.

Returns: name of the column

Parameters

ib_crsr	in: InnoDB cursor instance
i	in: column index in tuple

Definition at line 2662 of file api0api.cc.

Here is the call graph for this function:

const void* ib_col_get_value	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i
	)

Get a column value pointer from the tuple.

Returns: NULL or pointer to buffer in: column number

Get a column value pointer from the tuple.

Returns: NULL or pointer to buffer

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple

Definition at line 2946 of file api0api.cc.

Here is the call graph for this function:

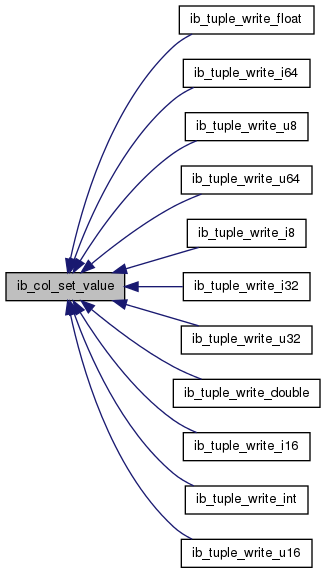

ib_err_t ib_col_set_value	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	col_no,
		const void *	src,
		ib_ulint_t	len,
		ib_bool_t	need_cpy
	)

Set a column of the tuple. Make a copy using the tuple's heap.

Returns: DB_SUCCESS or error code in: if need memcpy

Set a column of the tuple. Make a copy using the tuple's heap.

Returns: DB_SUCCESS or error code

Parameters

ib_tpl	in: tuple instance
col_no	in: column index in tuple
src	in: data value
len	in: data value len
need_cpy	in: if need memcpy

Definition at line 2300 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void ib_cursor_clear_trx ( ib_crsr_t ib_crsr )

set a cursor trx to NULL in/out: InnoDB cursor

set a cursor trx to NULL

Parameters

ib_crsr in/out: InnoDB cursor

Definition at line 1299 of file api0api.cc.

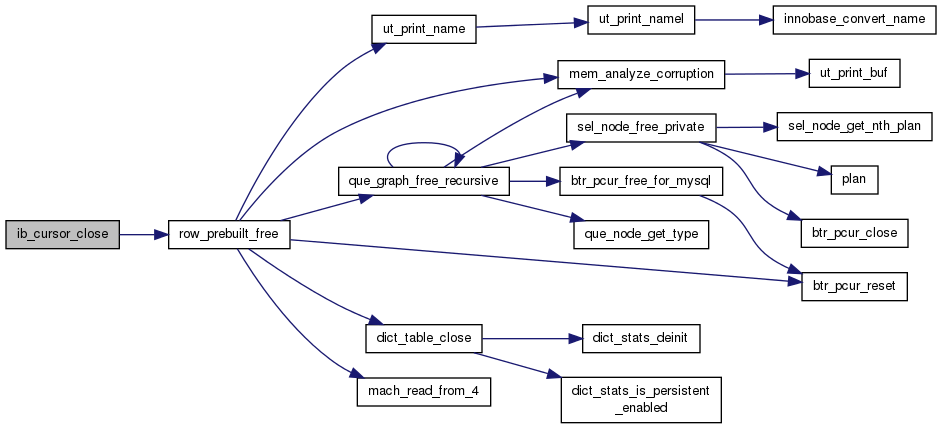

ib_err_t ib_cursor_close ( ib_crsr_t ib_crsr )

Close an InnoDB table and free the cursor.

Returns: DB_SUCCESS or err code in/out: InnoDB cursor

Close an InnoDB table and free the cursor.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in,own: InnoDB cursor

Definition at line 1388 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t ib_cursor_close_table ( ib_crsr_t ib_crsr )

Close the table, decrement n_ref_count count.

Returns: DB_SUCCESS or err code in/out: InnoDB cursor

Close the table, decrement n_ref_count count.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in,own: InnoDB cursor

Definition at line 1426 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_commit_trx	(	ib_crsr_t	ib_crsr,
		ib_trx_t	ib_trx
	)

Commit the transaction in a cursor

Returns: DB_SUCCESS or err code in: transaction

Commit the transaction in a cursor

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_trx	in: transaction

Definition at line 1367 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_delete_row ( ib_crsr_t ib_crsr )

Delete a row in a table.

Returns: DB_SUCCESS or err code in: cursor instance

Delete a row in a table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 1995 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_first ( ib_crsr_t ib_crsr )

Move cursor to the first record in the table.

Returns: DB_SUCCESS or err code in: InnoDB cursor instance

Move cursor to the first record in the table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 2152 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_insert_row	(	ib_crsr_t	ib_crsr,
		const ib_tpl_t	ib_tpl
	)

Insert a row to a table.

Returns: DB_SUCCESS or err code in: tuple to insert

Insert a row to a table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in/out: InnoDB cursor instance
ib_tpl	in: tuple to insert

Definition at line 1562 of file api0api.cc.

Here is the call graph for this function:

ib_bool_t ib_cursor_is_positioned ( const ib_crsr_t ib_crsr )

Check if cursor is positioned.

Returns: IB_TRUE if positioned in: InnoDB cursor instance

Check if cursor is positioned.

Returns: IB_TRUE if positioned

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 3336 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t ib_cursor_last ( ib_crsr_t ib_crsr )

Move cursor to the last record in the table.

Returns: DB_SUCCESS or err code in: InnoDB cursor instance

Move cursor to the last record in the table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 2166 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_lock	(	ib_crsr_t	ib_crsr,
		ib_lck_mode_t	ib_lck_mode
	)

Lock an InnoDB cursor/table.

Returns: DB_SUCCESS or error code in: InnoDB lock mode

Set the Lock an InnoDB cursor/table.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_lck_mode	in: InnoDB lock mode

Definition at line 3380 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t ib_cursor_moveto	(	ib_crsr_t	ib_crsr,
		ib_tpl_t	ib_tpl,
		ib_srch_mode_t	ib_srch_mode
	)

Search for key.

Returns: DB_SUCCESS or err code in: search mode

Search for key.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in: InnoDB cursor instance
ib_tpl	in: Key to search for
ib_srch_mode	in: search mode

Definition at line 2203 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_new_trx	(	ib_crsr_t	ib_crsr,
		ib_trx_t	ib_trx
	)

update the cursor with new transactions and also reset the cursor

Returns: DB_SUCCESS or err code in: transaction

update the cursor with new transactions and also reset the cursor

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_trx	in: transaction

Definition at line 1339 of file api0api.cc.

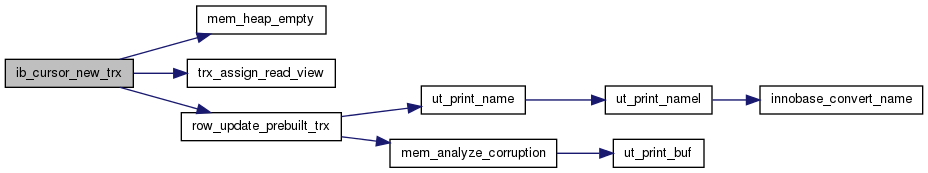

Here is the call graph for this function:

ib_err_t ib_cursor_next ( ib_crsr_t ib_crsr )

Move cursor to the next record in the table.

Returns: DB_SUCCESS or err code in: InnoDB cursor instance

Move cursor to the next user record in the table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 2180 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_open_index_using_id	(	ib_id_u64_t	index_id,
		ib_trx_t	ib_trx,
		ib_crsr_t *	ib_crsr
	)

Open an InnoDB index and return a cursor handle to it.

Returns: DB_SUCCESS or err code out: InnoDB cursor

Open an InnoDB index and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

index_id	in: index id of index to open
ib_trx	in: Current transaction handle can be NULL
ib_crsr	out: InnoDB cursor

Definition at line 1117 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_open_index_using_name	(	ib_crsr_t	ib_open_crsr,
		const char *	index_name,
		ib_crsr_t *	ib_crsr,
		int *	idx_type,
		ib_id_u64_t *	idx_id
	)

Open an InnoDB secondary index cursor and return a cursor handle to it.

Returns: DB_SUCCESS or err code out: index id

Open an InnoDB secondary index cursor and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

ib_open_crsr	in: open/active cursor
index_name	in: secondary index name
ib_crsr	out,own: InnoDB index cursor
idx_type	out: index is cluster index
idx_id	out: index id

Definition at line 1166 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_open_table	(	const char *	name,
		ib_trx_t	ib_trx,
		ib_crsr_t *	ib_crsr
	)

Open an InnoDB table by name and return a cursor handle to it.

Returns: DB_SUCCESS or err code out,own: InnoDB cursor

Open an InnoDB table and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

name	in: table name
ib_trx	in: Current transaction handle can be NULL
ib_crsr	out,own: InnoDB cursor

Definition at line 1234 of file api0api.cc.

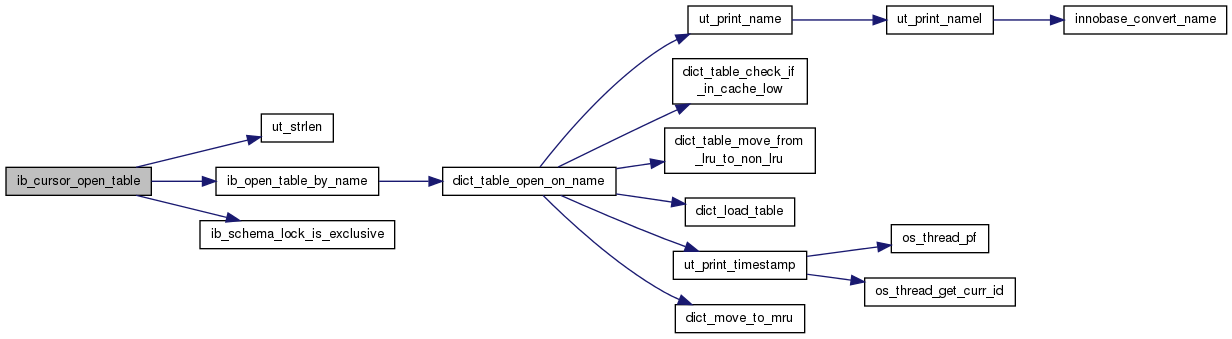

Here is the call graph for this function:

ib_err_t ib_cursor_open_table_using_id	(	ib_id_u64_t	table_id,
		ib_trx_t	ib_trx,
		ib_crsr_t *	ib_crsr
	)

Open an InnoDB table and return a cursor handle to it.

Returns: DB_SUCCESS or err code out,own: InnoDB cursor

Open an InnoDB table and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

table_id	in: table id of table to open
ib_trx	in: Current transaction handle can be NULL
ib_crsr	out,own: InnoDB cursor

Definition at line 1085 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_read_row	(	ib_crsr_t	ib_crsr,
		ib_tpl_t	ib_tpl
	)

Read current row.

Returns: DB_SUCCESS or err code out: read cols into this tuple

Read current row.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in: InnoDB cursor instance
ib_tpl	out: read cols into this tuple

Definition at line 2056 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_cursor_reset ( ib_crsr_t ib_crsr )

Reset the cursor.

Returns: DB_SUCCESS or err code in/out: InnoDB cursor

Reset the cursor.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in/out: InnoDB cursor

Definition at line 1313 of file api0api.cc.

Here is the call graph for this function:

void ib_cursor_set_cluster_access ( ib_crsr_t ib_crsr )

Set need to access clustered index record flag. in/out: InnoDB cursor

Set need to access clustered index record.

Parameters

ib_crsr in/out: InnoDB cursor

Definition at line 3500 of file api0api.cc.

ib_err_t ib_cursor_set_lock_mode	(	ib_crsr_t	ib_crsr,
		ib_lck_mode_t	ib_lck_mode
	)

Set the Lock mode of the cursor.

Returns: DB_SUCCESS or error code in: InnoDB lock mode

Set the Lock mode of the cursor.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_lck_mode	in: InnoDB lock mode

Definition at line 3471 of file api0api.cc.

Here is the call graph for this function:

void ib_cursor_set_match_mode	(	ib_crsr_t	ib_crsr,
		ib_match_mode_t	match_mode
	)

Set the match mode for ib_cursor_move(). in: ib_cursor_moveto match mode

Set the cursor search mode.

Parameters

ib_crsr	in: Cursor instance
match_mode	in: ib_cursor_moveto match mode

Definition at line 2249 of file api0api.cc.

void ib_cursor_stmt_begin ( ib_crsr_t ib_crsr )

Inform the cursor that it's the start of an SQL statement. in: cursor

Inform the cursor that it's the start of an SQL statement.

Parameters

ib_crsr in: cursor

Definition at line 3667 of file api0api.cc.

ib_err_t ib_cursor_truncate	(	ib_crsr_t *	ib_crsr,
		ib_id_u64_t *	table_id
	)

Truncate a table. The cursor handle will be closed and set to NULL on success.

Returns: DB_SUCCESS or error code out: new table id

Truncate a table. The cursor handle will be closed and set to NULL on success.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr	in/out: cursor for table to truncate
table_id	out: new table id

Definition at line 3784 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t ib_cursor_update_row	(	ib_crsr_t	ib_crsr,
		const ib_tpl_t	ib_old_tpl,
		const ib_tpl_t	ib_new_tpl
	)

Update a row in a table.

Returns: DB_SUCCESS or err code in: New tuple to update

Update a row in a table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in: InnoDB cursor instance
ib_old_tpl	in: Old tuple in table
ib_new_tpl	in: New tuple to update

Definition at line 1883 of file api0api.cc.

Here is the call graph for this function:

const char* ib_get_idx_field_name	(	ib_crsr_t	ib_crsr,
		ib_ulint_t	i
	)

Get an index field name from the cursor.

Returns: name of the field in: column index in tuple

Get an index field name from the cursor.

Returns: name of the field

Parameters

ib_crsr	in: InnoDB cursor instance
i	in: column index in tuple

Definition at line 2683 of file api0api.cc.

ib_err_t ib_index_get_id	(	const char *	table_name,
		const char *	index_name,
		ib_id_u64_t *	index_id
	)

Get an index id.

Returns: DB_SUCCESS if found out: index id if found

Get an index id.

Returns: DB_SUCCESS if found

Parameters

table_name	in: find index for this table
index_name	in: index to find
index_id	out: index id if found

Definition at line 3283 of file api0api.cc.

Here is the call graph for this function:

void* ib_open_table_by_name ( const char * name )

Open a table using the table name, if found then increment table ref count.

Returns: table instance if found in: table name to lookup

Open a table using the table name, if found then increment table ref count.

Returns: table instance if found

Parameters

name	in: table name to lookup

Definition at line 266 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_bool_t ib_schema_lock_is_exclusive ( const ib_trx_t ib_trx )

Checks if the data dictionary is latched in exclusive mode by a user transaction.

Returns: TRUE if exclusive latch in: transaction

Checks if the data dictionary is latched in exclusive mode.

Returns: TRUE if exclusive latch

Parameters

ib_trx in: transaction

Definition at line 3352 of file api0api.cc.

Here is the caller graph for this function:

ib_tpl_t ib_sec_read_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple used for index/table search.

Returns: tuple for current index in: Cursor instance

Create an InnoDB tuple used for index/table search.

Returns: own: Tuple for current index

Parameters

ib_crsr in: Cursor instance

Definition at line 3158 of file api0api.cc.

Here is the call graph for this function:

ib_tpl_t ib_sec_search_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple used for index/table search.

Returns: tuple for current index in: Cursor instance

Create an InnoDB tuple used for index/table search.

Returns: own: Tuple for current index

Parameters

ib_crsr in: Cursor instance

Definition at line 3141 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_table_get_id	(	const char *	table_name,
		ib_id_u64_t *	table_id
	)

Get a table id.

Returns: DB_SUCCESS if found out: table id if found

Get a table id. This function will acquire the dictionary mutex.

Returns: DB_SUCCESS if found

Parameters

table_name	in: table to find
table_id	out: table id if found

Definition at line 3262 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_table_lock	(	ib_trx_t	ib_trx,
		ib_id_u64_t	table_id,
		ib_lck_mode_t	ib_lck_mode
	)

Set the Lock an InnoDB table using the table id.

Returns: DB_SUCCESS or error code in: InnoDB lock mode

Set the Lock an InnoDB table using the table id.

Returns: DB_SUCCESS or error code

Parameters

ib_trx	in/out: transaction
table_id	in: table id
ib_lck_mode	in: InnoDB lock mode

Definition at line 3399 of file api0api.cc.

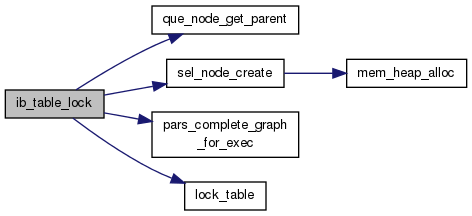

Here is the call graph for this function:

ib_err_t ib_table_name_check ( const char * name )

Check whether the table name conforms to our requirements. Currently we only do a simple check for the presence of a '/'.

Returns: DB_SUCCESS or err code in: table name to check

Check whether the table name conforms to our requirements. Currently we only do a simple check for the presence of a '/'.

Returns: DB_SUCCESS or err code

Parameters

name	in: table name to check

Definition at line 887 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_table_truncate	(	const char *	table_name,
		ib_id_u64_t *	table_id
	)

Truncate a table.

Returns: DB_SUCCESS or error code out: new table id

Truncate a table.

Returns: DB_SUCCESS or error code

Parameters

table_name	in: table name
table_id	out: new table id

Definition at line 3837 of file api0api.cc.

Here is the call graph for this function:

ib_trx_t ib_trx_begin ( ib_trx_level_t ib_trx_level )

Begin a transaction. This will allocate a new transaction handle and put the transaction in the active state.

Returns: innobase txn handle in: trx isolation level

Begin a transaction. This will allocate a new transaction handle. put the transaction in the active state.

Returns: innobase txn handle

Parameters

ib_trx_level in: trx isolation level

Definition at line 584 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t ib_trx_commit ( ib_trx_t ib_trx )

Commit a transaction. This function will release the schema latches too. It will also free the transaction handle.

Returns: DB_SUCCESS or err code in: trx handle

Commit a transaction. This function will also release the schema latches too.

Returns: DB_SUCCESS or err code

Parameters

ib_trx in: trx handle

Definition at line 647 of file api0api.cc.

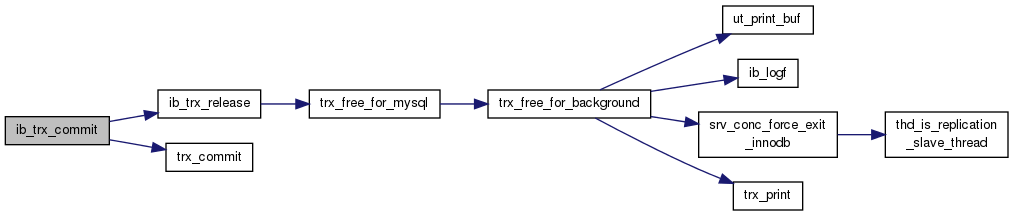

Here is the call graph for this function:

Here is the caller graph for this function:

ib_u64_t ib_trx_get_start_time ( ib_trx_t ib_trx )

Get a trx start time.

Returns: trx start_time in: transaction

Get a trx start time.

Returns: trx start_time

Parameters

ib_trx in: transaction

Definition at line 617 of file api0api.cc.

ib_err_t ib_trx_release ( ib_trx_t ib_trx )

Release the resources of the transaction. If the transaction was selected as a victim by InnoDB and rolled back then use this function to free the transaction handle.

Returns: DB_SUCCESS or err code in: trx handle

Release the resources of the transaction.

Returns: DB_SUCCESS or err code

Parameters

ib_trx in: trx handle

Definition at line 629 of file api0api.cc.

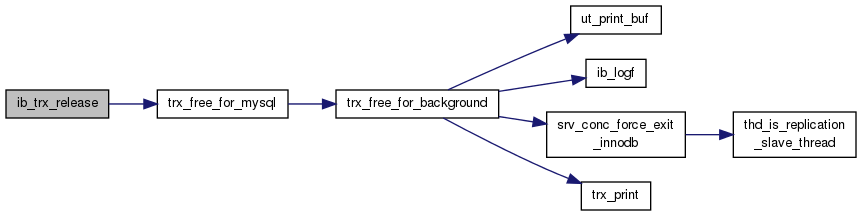

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t ib_trx_rollback ( ib_trx_t ib_trx )

Rollback a transaction. This function will release the schema latches too. It will also free the transaction handle.

Returns: DB_SUCCESS or err code in: trx handle

Rollback a transaction. This function will also release the schema latches too.

Returns: DB_SUCCESS or err code

Parameters

ib_trx in: trx handle

Definition at line 673 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t ib_trx_start	(	ib_trx_t	ib_trx,
		ib_trx_level_t	ib_trx_level,
		void *	thd
	)

Start a transaction that's been rolled back. This special function exists for the case when InnoDB's deadlock detector has rolledack a transaction. While the transaction has been rolled back the handle is still valid and can be reused by calling this function. If you don't want to reuse the transaction handle then you can free the handle by calling ib_trx_release().

Returns: innobase txn handle in: THD

Begin a transaction.

Returns: innobase txn handle

Parameters

ib_trx	in: transaction to restart
ib_trx_level	in: trx isolation level
thd	in: THD

Definition at line 556 of file api0api.cc.

Here is the caller graph for this function:

ib_trx_state_t ib_trx_state ( ib_trx_t ib_trx )

Query the transaction's state. This function can be used to check for the state of the transaction in case it has been rolled back by the InnoDB deadlock detector. Note that when a transaction is selected as a victim for rollback, InnoDB will always return an appropriate error code indicating this.

See Also: DB_DEADLOCK,; DB_LOCK_TABLE_FULL and; DB_LOCK_WAIT_TIMEOUT

Returns: transaction state in: trx handle

Get the transaction's state.

Returns: transaction state

Parameters

ib_trx in: trx handle

Definition at line 603 of file api0api.cc.

Here is the caller graph for this function:

ib_tpl_t ib_tuple_clear ( ib_tpl_t ib_tpl )

"Clear" or reset an InnoDB tuple. We free the heap and recreate the tuple.

Returns: new tuple, or NULL in: InnoDB tuple

"Clear" or reset an InnoDB tuple. We free the heap and recreate the tuple.

Returns: new tuple, or NULL

Parameters

ib_tpl in,own: tuple (will be freed)

Definition at line 2983 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_copy	(	ib_tpl_t	ib_dst_tpl,
		const ib_tpl_t	ib_src_tpl
	)

Copy the contents of source tuple to destination tuple. The tuples must be of the same type and belong to the same table/index.

Returns: DB_SUCCESS or error code in: source tuple

Copy the contents of source tuple to destination tuple. The tuples must be of the same type and belong to the same table/index.

Returns: DB_SUCCESS or error code

Parameters

ib_dst_tpl	in: destination tuple
ib_src_tpl	in: source tuple

Definition at line 3087 of file api0api.cc.

Here is the call graph for this function:

void ib_tuple_delete ( ib_tpl_t ib_tpl )

Destroy an InnoDB tuple. in,own: Tuple instance to delete

Destroy an InnoDB tuple.

Parameters

ib_tpl in,own: Tuple instance to delete

Definition at line 3244 of file api0api.cc.

ib_err_t ib_tuple_get_cluster_key	(	ib_crsr_t	ib_crsr,
		ib_tpl_t *	ib_dst_tpl,
		const ib_tpl_t	ib_src_tpl
	)

Create a new cluster key search tuple and copy the contents of the secondary index key tuple columns that refer to the cluster index record to the cluster key. It does a deep copy of the column data.

Returns: DB_SUCCESS or error code in: source tuple

Create a new cluster key search tuple and copy the contents of the secondary index key tuple columns that refer to the cluster index record to the cluster key. It does a deep copy of the column data.

Returns: DB_SUCCESS or error code

Parameters

ib_crsr	in: secondary index cursor
ib_dst_tpl	out,own: destination tuple
ib_src_tpl	in: source tuple

Definition at line 3012 of file api0api.cc.

Here is the call graph for this function:

ib_ulint_t ib_tuple_get_n_cols ( const ib_tpl_t ib_tpl )

Return the number of columns in the tuple definition.

Returns: number of columns in: Tuple for current table

Return the number of columns in the tuple definition.

Returns: number of columns

Parameters

ib_tpl in: Tuple for table/index

Definition at line 3231 of file api0api.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_ulint_t ib_tuple_get_n_user_cols ( const ib_tpl_t ib_tpl )

Return the number of user columns in the tuple definition.

Returns: number of user columns in: Tuple for current table

Return the number of user columns in the tuple definition.

Returns: number of user columns

Parameters

ib_tpl in: Tuple for current table

Definition at line 3213 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_double	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	col_no,
		double *	dval
	)

Read a double column value from an InnoDB tuple.

Returns: DB_SUCCESS or error out: double value

Read a double column value from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
col_no	in: column number
dval	out: double value

Definition at line 3705 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_float	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	col_no,
		float *	fval
	)

Read a float value from an InnoDB tuple.

Returns: DB_SUCCESS or error out: float value

Read a float value from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
col_no	in: column number
fval	out: float value

Definition at line 3756 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_i16	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_i16_t *	ival
	)

Read a signed int 16 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error out: integer value

Read a signed int 16 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2814 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_i32	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_i32_t *	ival
	)

Read a signed int 32 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error out: integer value

Read a signed int 32 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2858 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_i64	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_i64_t *	ival
	)

Read a signed int 64 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error out: integer value

Read a signed int 64 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2902 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_i8	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_i8_t *	ival
	)

Read a signed int 8 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error out: integer value

Read a signed int 8 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2770 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_u16	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_u16_t *	ival
	)

Read an unsigned int 16 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error out: integer value

Read an unsigned int 16 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2836 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_u32	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_u32_t *	ival
	)

Read an unsigned int 32 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error out: integer value

Read an unsigned int 32 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2880 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_u64	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_u64_t *	ival
	)

Read an unsigned int 64 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error out: integer value

Read an unsigned int 64 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2924 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_read_u8	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_u8_t *	ival
	)

Read an unsigned int 8 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error out: integer value

Read an unsigned int 8 bit column from an InnoDB tuple.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in: InnoDB tuple
i	in: column number
ival	out: integer value

Definition at line 2792 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_double	(	ib_tpl_t	ib_tpl,
		int	col_no,
		double	val
	)

Write a double value to a column.

Returns: DB_SUCCESS or error in: value to write

Write a double value to a column.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3681 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_float	(	ib_tpl_t	ib_tpl,
		int	col_no,
		float	val
	)

Write a float value to a column.

Returns: DB_SUCCESS or error in: value to write

Write a float value to a column.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3732 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_i16	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_i16_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error in: value to write

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3564 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_i32	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_i32_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error in: value to write

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3579 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_i64	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_i64_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error in: value to write

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3594 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_i8	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_i8_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error in: value to write

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3549 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_u16	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_u16_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error in: value to write

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tupe to write to
col_no	in: column number
val	in: value to write

Definition at line 3624 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_u32	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_u32_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error in: value to write

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3639 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_u64	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_u64_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error in: value to write

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3654 of file api0api.cc.

Here is the call graph for this function:

ib_err_t ib_tuple_write_u8	(	ib_tpl_t	ib_tpl,
		int	col_no,
		ib_u8_t	val
	)

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCESS or error in: value to write

Write an integer value to a column. Integers are stored in big-endian format and will need to be converted from the host format.

Returns: DB_SUCCESS or error

Parameters

ib_tpl	in/out: tuple to write to
col_no	in: column number
val	in: value to write

Definition at line 3609 of file api0api.cc.

Here is the call graph for this function:

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation
