#include "univ.i"
#include "trx0types.h"
#include "dict0types.h"
#include "lock0types.h"
#include "log0log.h"
#include "usr0types.h"
#include "que0types.h"
#include "mem0mem.h"
#include "read0types.h"
#include "trx0xa.h"
#include "ut0vec.h"
#include "fts0fts.h"
#include "trx0trx.ic"

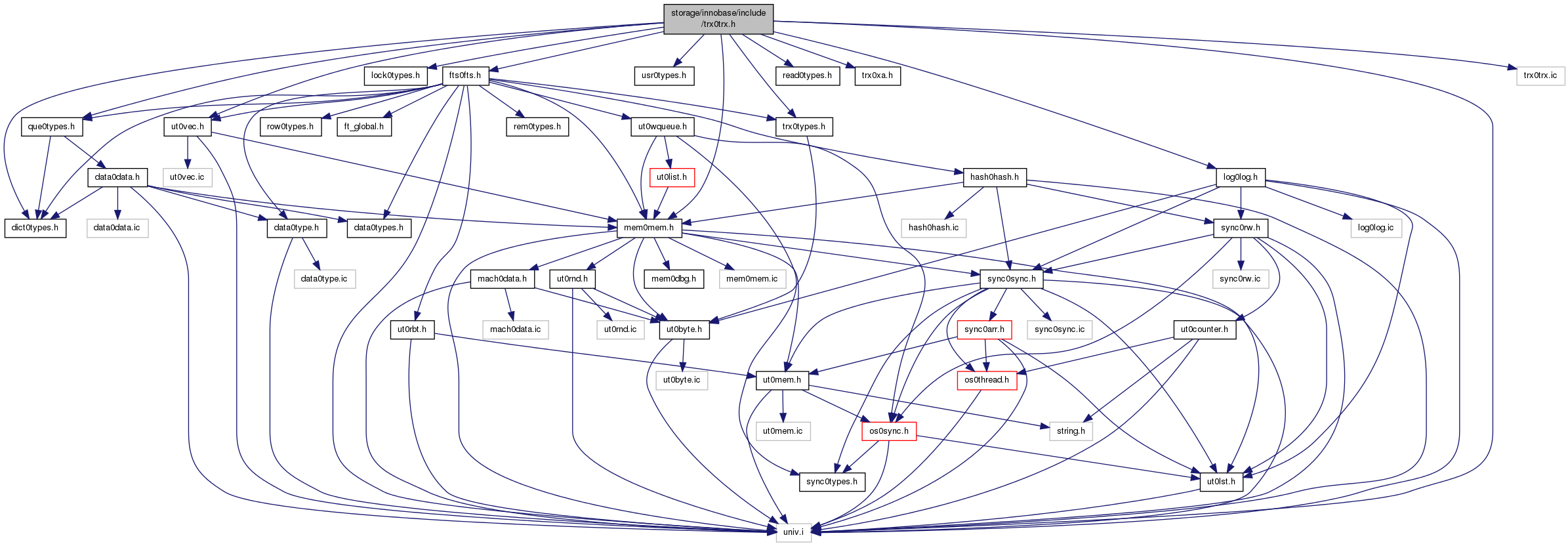

Include dependency graph for trx0trx.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	trx_lock_t
struct	trx_t
struct	commit_node_t

Macros
#define	trx_start_if_not_started_xa(t) trx_start_if_not_started_xa_low((t))
#define	trx_start_if_not_started(t) trx_start_if_not_started_low((t))
#define	trx_start_for_ddl(t, o) trx_start_for_ddl_low((t), (o))
#define	TRX_WEIGHT(t) ((t)->undo_no + UT_LIST_GET_LEN((t)->lock.trx_locks))
#define	TRX_QUE_STATE_STR_MAX_LEN 12 /* "ROLLING BACK" */
#define	trx_lock_wait_timeout_get(trx)
#define	trx_is_autocommit_non_locking(t) ((t)->auto_commit && (t)->will_lock == 0)
#define	trx_is_ac_nl_ro(t) ((t)->read_only && trx_is_autocommit_non_locking((t)))
#define	assert_trx_in_rw_list(t)
#define	assert_trx_in_list(t)
#define	assert_trx_nonlocking_or_in_list(trx) ((void)0)
#define	TRX_MAGIC_N 91118598
#define	TRX_ISO_READ_UNCOMMITTED
#define	TRX_ISO_READ_COMMITTED
#define	TRX_ISO_REPEATABLE_READ
#define	TRX_ISO_SERIALIZABLE
#define	TRX_DUP_IGNORE 1 /* duplicate rows are to be updated */
#define	TRX_DUP_REPLACE 2 /* duplicate rows are to be replaced */
#define	TRX_SIG_NO_SIGNAL 0
#define	TRX_SIG_TOTAL_ROLLBACK 1
#define	TRX_SIG_ROLLBACK_TO_SAVEPT 2
#define	TRX_SIG_COMMIT 3
#define	TRX_SIG_BREAK_EXECUTION 5
#define	TRX_SIG_SELF
#define	TRX_SIG_OTHER_SESS
#define	trx_mutex_own(t) mutex_own(&t->mutex)
#define	trx_mutex_enter(t)
#define	trx_mutex_exit(t)
#define	btr_search_latch (*btr_search_latch_temp)

Enumerations
enum	commit_node_state { COMMIT_NODE_SEND = 1, COMMIT_NODE_WAIT }

Functions

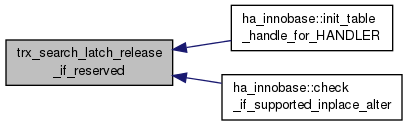

UNIV_INLINE void	trx_search_latch_release_if_reserved (trx_t *trx)
UNIV_INTERN void	trx_set_detailed_error (trx_t trx, const char msg)
UNIV_INTERN void	trx_set_detailed_error_from_file (trx_t trx, FILE file)
UNIV_INLINE const dict_index_t *	trx_get_error_info (const trx_t *trx)
UNIV_INTERN trx_t *	trx_allocate_for_mysql (void)
UNIV_INTERN trx_t *	trx_allocate_for_background (void)

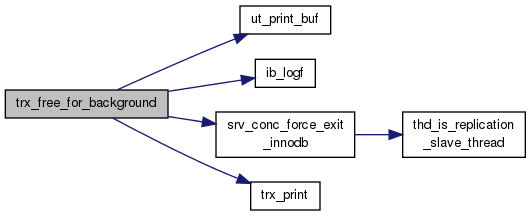

UNIV_INTERN void	trx_free_for_background (trx_t *trx)
UNIV_INTERN void	trx_free_prepared (trx_t *trx) UNIV_COLD __attribute__((nonnull))

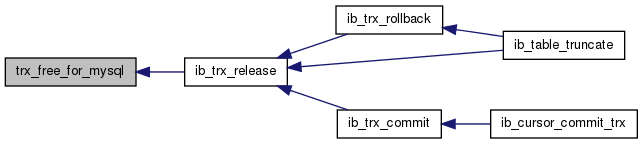

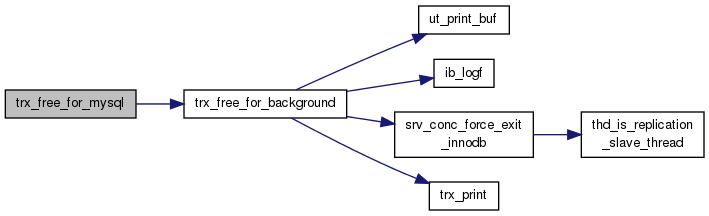

UNIV_INTERN void	trx_free_for_mysql (trx_t *trx)
UNIV_INTERN void	trx_lists_init_at_db_start (void)
UNIV_INTERN void	trx_start_if_not_started_xa_low (trx_t *trx)
UNIV_INTERN void	trx_start_if_not_started_low (trx_t *trx)
UNIV_INTERN void	trx_start_for_ddl_low (trx_t *trx, trx_dict_op_t op) __attribute__((nonnull))
UNIV_INTERN void	trx_commit (trx_t *trx) __attribute__((nonnull))
UNIV_INTERN void	trx_commit_low (trx_t trx, mtr_t mtr) __attribute__((nonnull(1)))
UNIV_INTERN void	trx_cleanup_at_db_startup (trx_t *trx)
UNIV_INTERN dberr_t	trx_commit_for_mysql (trx_t *trx)
UNIV_INTERN void	trx_prepare_for_mysql (trx_t *trx)
UNIV_INTERN int	trx_recover_for_mysql (XID *xid_list, ulint len)
UNIV_INTERN trx_t *	trx_get_trx_by_xid (const XID *xid)
UNIV_INTERN void	trx_commit_complete_for_mysql (trx_t *trx) __attribute__((nonnull))
UNIV_INTERN void	trx_mark_sql_stat_end (trx_t *trx)
UNIV_INTERN read_view_t *	trx_assign_read_view (trx_t *trx)
UNIV_INTERN void	trx_commit_or_rollback_prepare (trx_t *trx)
UNIV_INTERN commit_node_t *	trx_commit_node_create (mem_heap_t *heap)
UNIV_INTERN que_thr_t *	trx_commit_step (que_thr_t *thr)
UNIV_INTERN void	trx_print_low (FILE f, const trx_t trx, ulint max_query_len, ulint n_rec_locks, ulint n_trx_locks, ulint heap_size) __attribute__((nonnull))
UNIV_INTERN void	trx_print_latched (FILE f, const trx_t trx, ulint max_query_len) __attribute__((nonnull))

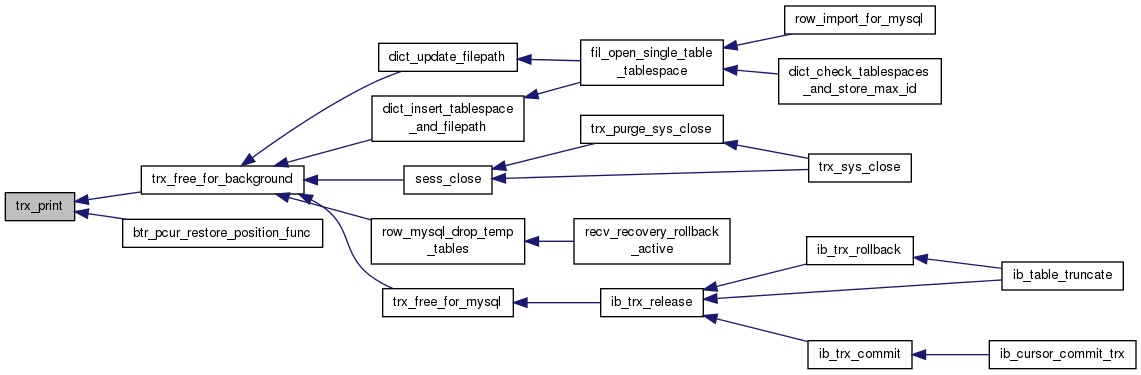

UNIV_INTERN void	trx_print (FILE f, const trx_t trx, ulint max_query_len) __attribute__((nonnull))

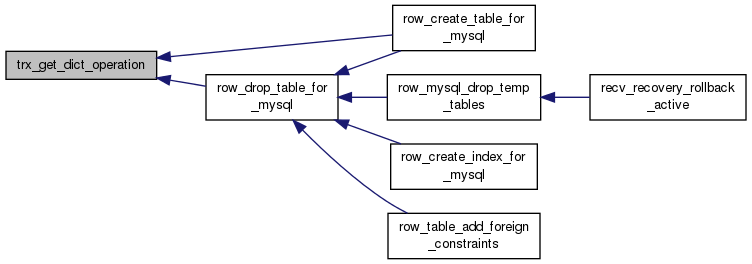

UNIV_INLINE enum trx_dict_op_t	trx_get_dict_operation (const trx_t *trx) __attribute__((pure))

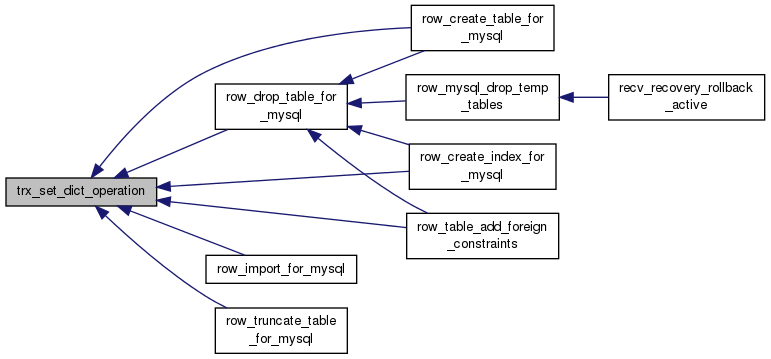

UNIV_INLINE void	trx_set_dict_operation (trx_t *trx, enum trx_dict_op_t op)

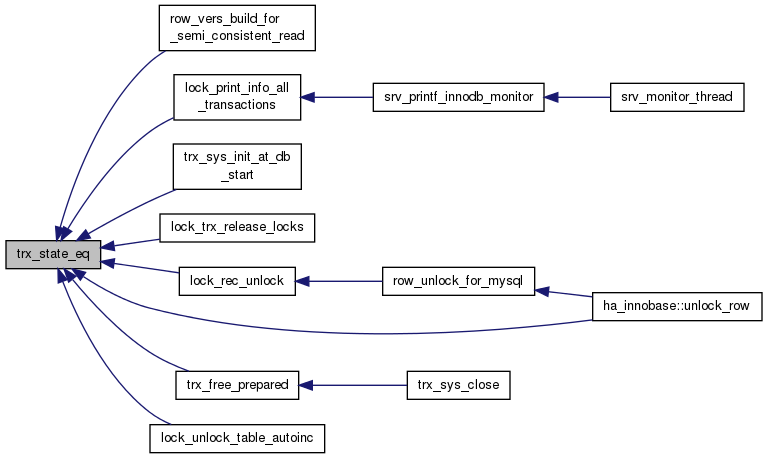

UNIV_INLINE ibool	trx_state_eq (const trx_t *trx, trx_state_t state) __attribute__((nonnull

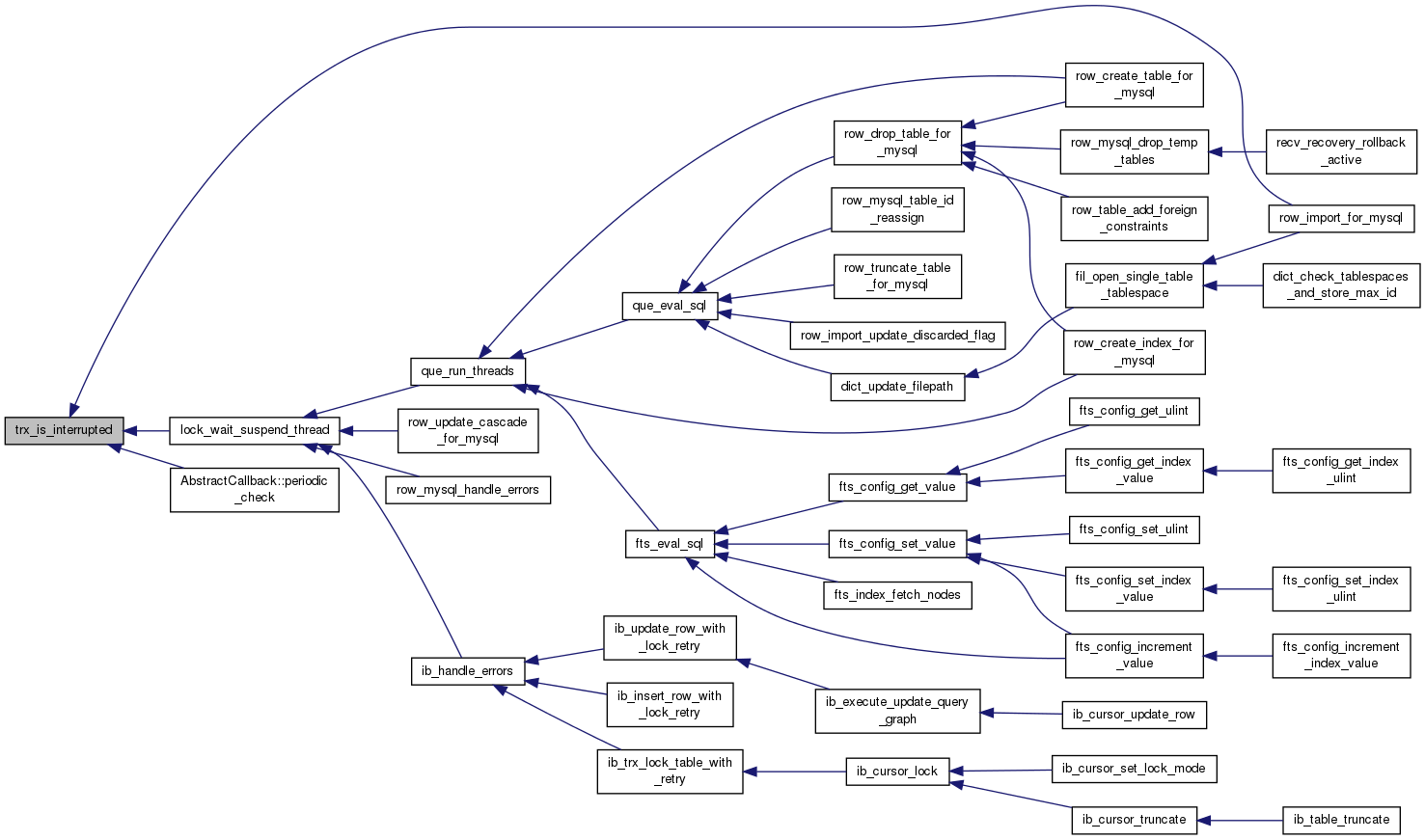

UNIV_INTERN ibool	trx_is_interrupted (const trx_t *trx)
UNIV_INTERN ibool	trx_is_strict (trx_t *trx)
UNIV_INTERN ibool	trx_weight_ge (const trx_t a, const trx_t b)
UNIV_INLINE const char *	trx_get_que_state_str (const trx_t *trx)
UNIV_INTERN void	trx_assign_rseg (trx_t *trx)

Variables
sess_t *	trx_dummy_sess
UNIV_INLINE ibool	warn_unused_result
rw_lock_t *	btr_search_latch_temp
	The latch protecting the adaptive search system.

Detailed Description

The transaction

Created 3/26/1996 Heikki Tuuri

Definition in file trx0trx.h.

Macro Definition Documentation

#define assert_trx_in_list ( t )

Value:

do {                                    \
        ut_ad((t)->in_ro_trx_list == (t)->read_only);                   \
        ut_ad((t)->in_rw_trx_list == !(t)->read_only);                  \
        ut_ad(!trx_is_autocommit_non_locking((t)));                     \
        switch ((t)->state) {                                           \
        case TRX_STATE_PREPARED:                                        \
                /* fall through */                                      \
        case TRX_STATE_ACTIVE:                                          \
        case TRX_STATE_COMMITTED_IN_MEMORY:                             \
                continue;                                               \
        case TRX_STATE_NOT_STARTED:                                     \
                break;                                                  \
        }                                                               \
        ut_error;                                                       \
} while (0)

Assert that the transaction is either in trx_sys->ro_trx_list or trx_sys->rw_trx_list but not both and it cannot be an autocommit non-locking select

Definition at line 501 of file trx0trx.h.

#define assert_trx_in_rw_list ( t )

Value:

do {                                    \
        ut_ad(!(t)->read_only);                                         \
        assert_trx_in_list(t);                                          \
} while (0)

Assert that the transaction is in the trx_sys_t::rw_trx_list

Definition at line 492 of file trx0trx.h.

#define assert_trx_nonlocking_or_in_list ( trx ) ((void)0)

Assert that an autocommit non-locking slect cannot be in the ro_trx_list nor the rw_trx_list and that it is a read-only transaction. The tranasction must be in the mysql_trx_list.

Definition at line 542 of file trx0trx.h.

#define btr_search_latch (*btr_search_latch_temp)

The latch protecting the adaptive search system

Definition at line 1077 of file trx0trx.h.

#define trx_is_ac_nl_ro ( t ) ((t)->read_only && trx_is_autocommit_non_locking((t)))

Determine if the transaction is a non-locking autocommit select with an explicit check for the read-only status.

Parameters

t	transaction

Returns: true if non-locking autocommit read-only transaction.

Definition at line 487 of file trx0trx.h.

#define trx_is_autocommit_non_locking ( t ) ((t)->auto_commit && (t)->will_lock == 0)

Determine if the transaction is a non-locking autocommit select (implied read-only).

Parameters

t	transaction

Returns: true if non-locking autocommit select transaction.

Definition at line 479 of file trx0trx.h.

#define TRX_ISO_READ_COMMITTED

Value:

1       /* somewhat Oracle-like
                                                isolation, except that in
                                                range UPDATE and DELETE we
                                                must block phantom rows
                                                with next-key locks;
                                                SELECT ... FOR UPDATE and ...
                                                LOCK IN SHARE MODE only lock
                                                the index records, NOT the
                                                gaps before them, and thus
                                                allow free inserting;
                                                each consistent read reads its
                                                own snapshot */

Definition at line 1009 of file trx0trx.h.

#define TRX_ISO_READ_UNCOMMITTED

Value:

0       /* dirty read: non-locking
                                                SELECTs are performed so that
                                                we do not look at a possible
                                                earlier version of a record;
                                                thus they are not 'consistent'
                                                reads under this isolation
                                                level; otherwise like level
                                                2 */

Definition at line 1007 of file trx0trx.h.

#define TRX_ISO_REPEATABLE_READ

Value:

2       /* this is the default;
                                                all consistent reads in the
                                                same trx read the same
                                                snapshot;
                                                full next-key locking used
                                                in locking reads to block
                                                insertions into gaps */

Definition at line 1011 of file trx0trx.h.

#define TRX_ISO_SERIALIZABLE

Value:

3       /* all plain SELECTs are
                                                converted to LOCK IN SHARE
                                                MODE reads */

Definition at line 1013 of file trx0trx.h.

#define trx_lock_wait_timeout_get ( trx )

Value:

((trx)->mysql_thd != NULL                                       \
         ? thd_lock_wait_timeout((trx)->mysql_thd)                      \
         : 0)

Transactions that aren't started by the MySQL server don't set the trx_t::mysql_thd field. For such transactions we set the lock wait timeout to 0 instead of the user configured value that comes from innodb_lock_wait_timeout via trx_t::mysql_thd.

Parameters

trx	transaction

Returns: lock wait timeout in seconds

Definition at line 469 of file trx0trx.h.

#define trx_mutex_enter ( t )

Value:

do {                    \
        mutex_enter(&t->mutex);                 \
} while (0)

Acquire the trx->mutex.

Definition at line 1052 of file trx0trx.h.

#define trx_mutex_exit ( t )

Value:

do {                    \
        mutex_exit(&t->mutex);                  \
} while (0)

Release the trx->mutex.

Definition at line 1057 of file trx0trx.h.

#define trx_mutex_own ( t ) mutex_own(&t->mutex)

Test if trx->mutex is owned.

Definition at line 1049 of file trx0trx.h.

#define TRX_SIG_OTHER_SESS

Value:

1 /* sent by another session (which

must hold rights to this) */

Definition at line 1030 of file trx0trx.h.

#define TRX_SIG_SELF

Value:

0       /* sent by the session itself, or
                                        by an error occurring within this
                                        session */

Definition at line 1029 of file trx0trx.h.

#define TRX_WEIGHT ( t ) ((t)->undo_no + UT_LIST_GET_LEN((t)->lock.trx_locks))

Calculates the "weight" of a transaction. The weight of one transaction is estimated as the number of altered rows + the number of locked rows.

Parameters

t	transaction

Returns: transaction weight

Definition at line 425 of file trx0trx.h.

Enumeration Type Documentation

enum commit_node_state

Commit node states

Enumerator:

COMMIT_NODE_SEND	about to send a commit signal to the transaction
COMMIT_NODE_WAIT	commit signal sent to the transaction, waiting for completion

Definition at line 1033 of file trx0trx.h.

Function Documentation

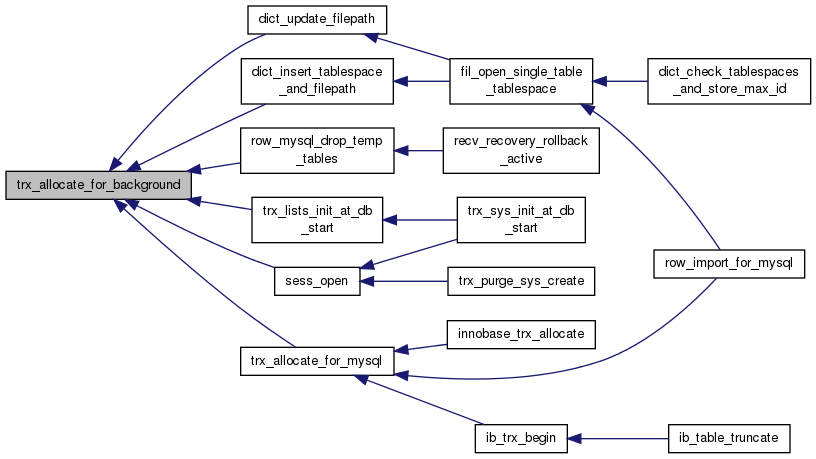

UNIV_INTERN trx_t* trx_allocate_for_background ( void )

Creates a transaction object for background operations by the master thread.

Returns: own: transaction object

Definition at line 163 of file trx0trx.cc.

Here is the caller graph for this function:

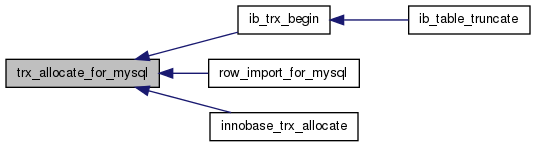

UNIV_INTERN trx_t* trx_allocate_for_mysql ( void )

Creates a transaction object for MySQL.

Returns: own: transaction object

Definition at line 180 of file trx0trx.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

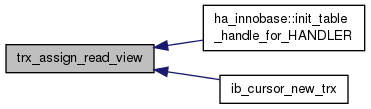

UNIV_INTERN read_view_t* trx_assign_read_view ( trx_t * trx )

Assigns a read view for a consistent read query. All the consistent reads within the same transaction will get the same read view, which is created when this function is first called for a new started transaction.

Returns: consistent read view in: active transaction

Here is the caller graph for this function:

UNIV_INTERN void trx_assign_rseg ( trx_t * trx )

Assign a read-only transaction a rollback-segment, if it is attempting to write to a TEMPORARY table. A read-only transaction that needs to be assigned a RBS.

Assign a read-only transaction a rollback-segment, if it is attempting to write to a TEMPORARY table.

Parameters

trx	A read-only transaction that needs to be assigned a RBS.

Definition at line 780 of file trx0trx.cc.

UNIV_INTERN void trx_cleanup_at_db_startup ( trx_t * trx )

Cleans up a transaction at database startup. The cleanup is needed if the transaction already got to the middle of a commit when the database crashed, and we cannot roll it back. in: transaction

UNIV_INTERN void trx_commit ( trx_t * trx )

Commits a transaction.

Parameters

trx	in/out: transaction

Here is the caller graph for this function:

UNIV_INTERN void trx_commit_complete_for_mysql ( trx_t * trx )

If required, flushes the log to disk if we called trx_commit_for_mysql() with trx->flush_log_later == TRUE.

Parameters

trx	in/out: transaction

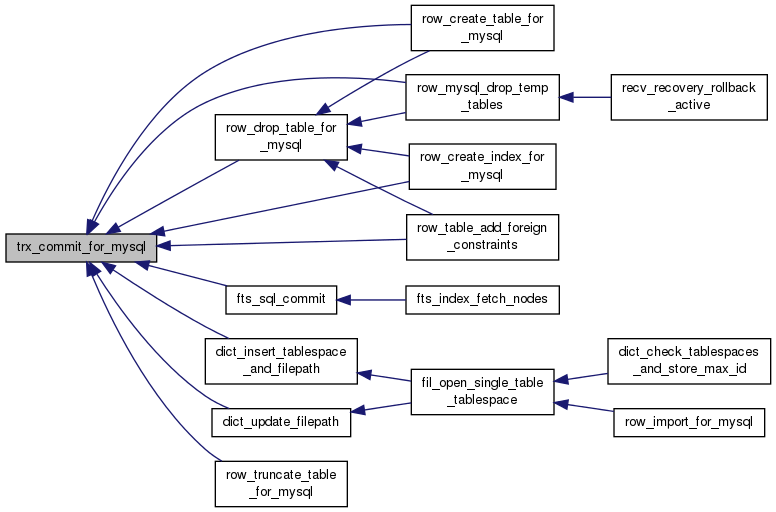

UNIV_INTERN dberr_t trx_commit_for_mysql ( trx_t * trx )

Does the transaction commit for MySQL.

Returns: DB_SUCCESS or error number in/out: transaction

Here is the caller graph for this function:

UNIV_INTERN void trx_commit_low	(	trx_t *	trx,
		mtr_t *	mtr
	)

Commits a transaction and a mini-transaction.

Parameters

trx	in/out: transaction
mtr	in/out: mini-transaction (will be committed), or NULL if trx made no modifications

UNIV_INTERN commit_node_t* trx_commit_node_create ( mem_heap_t * heap )

Creates a commit command node struct.

Returns: own: commit node struct in: mem heap where created

Here is the caller graph for this function:

UNIV_INTERN void trx_commit_or_rollback_prepare ( trx_t * trx )

Prepares a transaction for commit/rollback. in/out: transaction

UNIV_INTERN que_thr_t* trx_commit_step ( que_thr_t * thr )

Performs an execution step for a commit type node in a query graph.

Returns: query thread to run next, or NULL in: query thread

Here is the caller graph for this function:

UNIV_INTERN void trx_free_for_background ( trx_t * trx )

Frees a transaction object of a background operation of the master thread. in, own: trx object

Frees a transaction object of a background operation of the master thread.

Parameters

trx	in, own: trx object

Definition at line 251 of file trx0trx.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void trx_free_for_mysql ( trx_t * trx )

Frees a transaction object for MySQL. in, own: trx object

Frees a transaction object for MySQL.

Parameters

trx	in, own: trx object

Definition at line 324 of file trx0trx.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void trx_free_prepared ( trx_t * trx )

At shutdown, frees a transaction object that is in the PREPARED state.

Parameters

trx	in, own: trx object

Definition at line 296 of file trx0trx.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE enum trx_dict_op_t trx_get_dict_operation ( const trx_t * trx )

Determine if a transaction is a dictionary operation.

Returns: dictionary operation mode

Parameters

trx	in: transaction

Here is the caller graph for this function:

UNIV_INLINE const dict_index_t* trx_get_error_info ( const trx_t * trx )

Retrieves the error_info field from a trx.

Returns: the error info in: trx object

UNIV_INLINE const char* trx_get_que_state_str ( const trx_t * trx )

Retrieves transaction's que state in a human readable string. The string should not be free()'d or modified.

Returns: string in the data segment in: transaction

UNIV_INTERN trx_t* trx_get_trx_by_xid ( const XID * xid )

This function is used to find one X/Open XA distributed transaction which is in the prepared state

Returns: trx or NULL; on match, the trx->xid will be invalidated; note that the trx may have been committed, unless the caller is holding lock_sys->mutex in: X/Open XA transaction identifier

UNIV_INTERN ibool trx_is_interrupted ( const trx_t * trx )

Determines if the currently running transaction has been interrupted.

Returns: TRUE if interrupted in: transaction

Determines if the currently running transaction has been interrupted.

Returns: TRUE if interrupted

Parameters

trx	in: transaction

Definition at line 2635 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ibool trx_is_strict ( trx_t * trx )

Determines if the currently running transaction is in strict mode.

Returns: TRUE if strict in: transaction

Determines if the currently running transaction is in strict mode.

Returns: TRUE if strict

Parameters

trx	in: transaction

Definition at line 2647 of file ha_innodb.cc.

UNIV_INTERN void trx_lists_init_at_db_start ( void )

Creates trx objects for transactions and initializes the trx list of trx_sys at database start. Rollback segment and undo log lists must already exist when this function is called, because the lists of transactions to be rolled back or cleaned up are built based on the undo log lists.

Definition at line 659 of file trx0trx.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void trx_mark_sql_stat_end ( trx_t * trx )

Marks the latest SQL statement ended. in: trx handle

Here is the caller graph for this function:

UNIV_INTERN void trx_prepare_for_mysql ( trx_t * trx )

Does the transaction prepare for MySQL. in/out: trx handle

UNIV_INTERN void trx_print	(	FILE *	f,
		const trx_t *	trx,
		ulint	max_query_len
	)

Prints info about a transaction. Acquires and releases lock_sys->mutex and trx_sys->mutex.

Parameters

f	in: output stream
trx	in: transaction
max_query_len	in: max query length to print, or 0 to use the default max length

Here is the caller graph for this function:

UNIV_INTERN void trx_print_latched	(	FILE *	f,
		const trx_t *	trx,
		ulint	max_query_len
	)

Prints info about a transaction. The caller must hold lock_sys->mutex and trx_sys->mutex. When possible, use trx_print() instead.

Parameters

f	in: output stream
trx	in: transaction
max_query_len	in: max query length to print, or 0 to use the default max length

Here is the caller graph for this function:

UNIV_INTERN void trx_print_low	(	FILE *	f,
		const trx_t *	trx,
		ulint	max_query_len,
		ulint	n_rec_locks,
		ulint	n_trx_locks,
		ulint	heap_size
	)

Prints info about a transaction. Caller must hold trx_sys->mutex.

Parameters

f	in: output stream
trx	in: transaction
max_query_len	in: max query length to print, or 0 to use the default max length
n_rec_locks	in: lock_number_of_rows_locked(&trx->lock)
n_trx_locks	in: length of trx->lock.trx_locks
heap_size	in: mem_heap_get_size(trx->lock.lock_heap)

Here is the caller graph for this function:

UNIV_INTERN int trx_recover_for_mysql	(	XID *	xid_list,
		ulint	len
	)

This function is used to find number of prepared transactions and their transaction objects for a recovery.

Returns: number of prepared transactions in: number of slots in xid_list

Parameters

xid_list in/out: prepared transactions

UNIV_INLINE void trx_search_latch_release_if_reserved ( trx_t * trx )

Releases the search latch if trx has reserved it. in: transaction

Here is the caller graph for this function:

UNIV_INTERN void trx_set_detailed_error	(	trx_t *	trx,
		const char *	msg
	)

Set detailed error message for the transaction. in: detailed error message

Set detailed error message for the transaction.

Parameters

trx	in: transaction struct
msg	in: detailed error message

Definition at line 70 of file trx0trx.cc.

Here is the call graph for this function:

UNIV_INTERN void trx_set_detailed_error_from_file	(	trx_t *	trx,
		FILE *	file
	)

Set detailed error message for the transaction from a file. Note that the file is rewinded before reading from it. in: file to read message from

Set detailed error message for the transaction from a file. Note that the file is rewinded before reading from it.

Parameters

trx	in: transaction struct
file	in: file to read message from

Definition at line 83 of file trx0trx.cc.

Here is the call graph for this function:

UNIV_INLINE void trx_set_dict_operation	(	trx_t *	trx,
		enum trx_dict_op_t	op
	)

Flag a transaction a dictionary operation. in: operation, not TRX_DICT_OP_NONE

Parameters

trx	in/out: transaction

Here is the caller graph for this function:

UNIV_INTERN void trx_start_for_ddl_low	(	trx_t *	trx,
		trx_dict_op_t	op
	)

Starts the transaction for a DDL operation.

Parameters

trx	in/out: transaction
op	in: dictionary operation type

UNIV_INTERN void trx_start_if_not_started_low ( trx_t * trx )

Starts the transaction if it is not yet started. in: transaction

UNIV_INTERN void trx_start_if_not_started_xa_low ( trx_t * trx )

Starts the transaction if it is not yet started. in: transaction

UNIV_INLINE ibool trx_state_eq	(	const trx_t *	trx,
		trx_state_t	state
	)

Determines if a transaction is in the given state. The caller must hold trx_sys->mutex, or it must be the thread that is serving a running transaction. A running transaction must be in trx_sys->ro_trx_list or trx_sys->rw_trx_list unless it is a non-locking autocommit read only transaction, which is only in trx_sys->mysql_trx_list.

Returns: TRUE if trx->state == state

Parameters

trx	in: transaction
state	in: state; if state != TRX_STATE_NOT_STARTED asserts that trx->state != TRX_STATE_NOT_STARTED

Here is the caller graph for this function:

UNIV_INTERN ibool trx_weight_ge	(	const trx_t *	a,
		const trx_t *	b
	)

Compares the "weight" (or size) of two transactions. Transactions that have edited non-transactional tables are considered heavier than ones that have not.

Returns: TRUE if weight(a) >= weight(b) in: the second transaction to be compared

Parameters

a	in: the first transaction to be compared

Variable Documentation

rw_lock_t* btr_search_latch_temp

The latch protecting the adaptive search system.

This latch protects the (1) hash index; (2) columns of a record to which we have a pointer in the hash index;

but does NOT protect:

(3) next record offset field in a record; (4) next or previous records on the same page.

Bear in mind (3) and (4) when using the hash index.

The latch protecting the adaptive search system: this latch protects the

(1) positions of records on those pages where a hash index has been built. NOTE: It does not protect values of non-ordering fields within a record from being updated in-place! We can use fact (1) to perform unique searches to indexes.

Definition at line 73 of file btr0sea.cc.

sess_t* trx_dummy_sess

Dummy session used currently in MySQL interface

Definition at line 57 of file trx0trx.cc.

Classes

Macros

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
