#include "univ.i"

Include dependency graph for ut0lst.h:

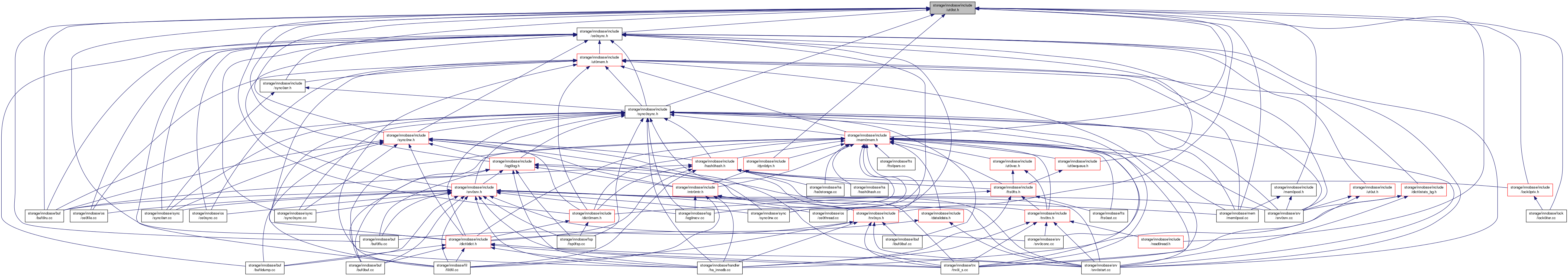

This graph shows which files directly or indirectly include this file:

Classes
struct	ut_list_base< TYPE >
struct	ut_list_node< TYPE >
struct	NullValidate

Macros
#define	IB_OFFSETOF(T, F) (reinterpret_cast<byte>(&(T)->F) - reinterpret_cast<byte>(T))
#define	UT_LIST_BASE_NODE_T(TYPE) ut_list_base<TYPE>
#define	UT_LIST_NODE_T(TYPE) ut_list_node<TYPE>
#define	UT_LIST_INIT(BASE)
#define	UT_LIST_ADD_FIRST(NAME, LIST, ELEM) ut_list_prepend(LIST, *ELEM, IB_OFFSETOF(ELEM, NAME))
#define	UT_LIST_ADD_LAST(NAME, LIST, ELEM) ut_list_append(LIST, *ELEM, IB_OFFSETOF(ELEM, NAME))
#define	UT_LIST_INSERT_AFTER(NAME, LIST, ELEM1, ELEM2) ut_list_insert(LIST, ELEM1, ELEM2, IB_OFFSETOF(ELEM1, NAME))
#define	UT_LIST_REMOVE_CLEAR(N)
#define	UT_LIST_REMOVE(NAME, LIST, ELEM) ut_list_remove(LIST, *ELEM, IB_OFFSETOF(ELEM, NAME))
#define	UT_LIST_GET_NEXT(NAME, N) (((N)->NAME).next)
#define	UT_LIST_GET_PREV(NAME, N) (((N)->NAME).prev)
#define	UT_LIST_GET_LEN(BASE) (BASE).count
#define	UT_LIST_GET_FIRST(BASE) (BASE).start
#define	UT_LIST_GET_LAST(BASE) (BASE).end
#define	UT_LIST_VALIDATE(NAME, TYPE, LIST, FUNCTOR) ut_list_validate(LIST, &TYPE::NAME, FUNCTOR)
#define	UT_LIST_CHECK(NAME, TYPE, LIST) ut_list_validate(LIST, &TYPE::NAME, NullValidate())

Functions
template<typename Type >
ut_list_node< Type > &	ut_elem_get_node (Type &elem, size_t offset)
template<typename List , typename Type >
void	ut_list_prepend (List &list, Type &elem, size_t offset)
template<typename List , typename Type >
void	ut_list_append (List &list, Type &elem, size_t offset)
template<typename List , typename Type >
void	ut_list_insert (List &list, Type &elem1, Type &elem2, size_t offset)
template<typename List , typename Type >
void	ut_list_remove (List &list, Type &elem, size_t offset)
template<typename List , class Functor >
void	ut_list_map (List &list, ut_list_node< typename List::elem_type > List::elem_type::*node, Functor functor)
template<typename List , class Functor >
void	ut_list_validate (List &list, ut_list_node< typename List::elem_type > List::elem_type::*node, Functor functor=NullValidate())

Detailed Description

List utilities

Created 9/10/1995 Heikki Tuuri

Definition in file ut0lst.h.

Macro Definition Documentation

#define IB_OFFSETOF	(	T,
		F
	)	(reinterpret_cast<byte>(&(T)->F) - reinterpret_cast<byte>(T))

Return offset of F in POD T.

Parameters

T	- POD pointer
F	- Field in T

Definition at line 35 of file ut0lst.h.

#define UT_LIST_ADD_FIRST	(	NAME,
		LIST,
		ELEM
	)	ut_list_prepend(LIST, *ELEM, IB_OFFSETOF(ELEM, NAME))

Adds the node as the first element in a two-way linked list.

Parameters

NAME	list name
LIST	the base node (not a pointer to it)
ELEM	the element to add

Definition at line 150 of file ut0lst.h.

#define UT_LIST_ADD_LAST	(	NAME,
		LIST,
		ELEM
	)	ut_list_append(LIST, *ELEM, IB_OFFSETOF(ELEM, NAME))

Adds the node as the last element in a two-way linked list.

Parameters

NAME	list name
LIST	list
ELEM	the element to add

Definition at line 193 of file ut0lst.h.

#define UT_LIST_GET_FIRST ( BASE ) (BASE).start

Gets the first node in a two-way list.

Parameters

BASE	the base node (not a pointer to it)

Returns: first node, or NULL if the list is empty

Definition at line 332 of file ut0lst.h.

#define UT_LIST_GET_LAST ( BASE ) (BASE).end

Gets the last node in a two-way list.

Parameters

BASE	the base node (not a pointer to it)

Returns: last node, or NULL if the list is empty

Definition at line 339 of file ut0lst.h.

#define UT_LIST_GET_LEN ( BASE ) (BASE).count

Alternative macro to get the number of nodes in a two-way list, i.e., its length.

Parameters

BASE	the base node (not a pointer to it).

Returns: the number of nodes in the list

Definition at line 325 of file ut0lst.h.

#define UT_LIST_GET_NEXT	(	NAME,
		N
	)	(((N)->NAME).next)

Gets the next node in a two-way list.

Parameters

NAME	list name
N	pointer to a node

Returns: the successor of N in NAME, or NULL

Definition at line 309 of file ut0lst.h.

#define UT_LIST_GET_PREV	(	NAME,
		N
	)	(((N)->NAME).prev)

Gets the previous node in a two-way list.

Parameters

NAME	list name
N	pointer to a node

Returns: the predecessor of N in NAME, or NULL

Definition at line 317 of file ut0lst.h.

#define UT_LIST_INIT ( BASE )

Value:

{\
        (BASE).count = 0;\
        (BASE).start = NULL;\
        (BASE).end   = NULL;\
}\

Initializes the base node of a two-way list.

Parameters

BASE	the list base node

Definition at line 103 of file ut0lst.h.

#define UT_LIST_INSERT_AFTER	(	NAME,
		LIST,
		ELEM1,
		ELEM2
	)	ut_list_insert(LIST, ELEM1, ELEM2, IB_OFFSETOF(ELEM1, NAME))

Inserts a ELEM2 after ELEM1 in a list.

Parameters

NAME	list name
LIST	the base node
ELEM1	node after which ELEM2 is inserted
ELEM2	node being inserted after ELEM1

Definition at line 240 of file ut0lst.h.

#define UT_LIST_REMOVE	(	NAME,
		LIST,
		ELEM
	)	ut_list_remove(LIST, *ELEM, IB_OFFSETOF(ELEM, NAME))

Removes a node from a two-way linked list. aram NAME list name

Parameters

LIST	the base node (not a pointer to it)
ELEM	node to be removed from the list

Definition at line 301 of file ut0lst.h.

#define UT_LIST_REMOVE_CLEAR ( N )

Invalidate the pointers in a list node.

Parameters

NAME	list name
N	pointer to the node that was removed

Definition at line 254 of file ut0lst.h.

#define UT_LIST_VALIDATE	(	NAME,
		TYPE,
		LIST,
		FUNCTOR
	)	ut_list_validate(LIST, &TYPE::NAME, FUNCTOR)

Checks the consistency of a two-way list.

Parameters

NAME	the name of the list
TYPE	node type
LIST	base node (not a pointer to it)
FUNCTOR	called for each list element

Definition at line 402 of file ut0lst.h.

Function Documentation

template<typename Type >

ut_list_node<Type>& ut_elem_get_node	(	Type &	elem,
		size_t	offset
	)

Get the list node at offset.

Parameters

elem	- list element
offset	- offset within element.

Returns: reference to list node.

Definition at line 91 of file ut0lst.h.

Here is the caller graph for this function:

template<typename List , typename Type >

void ut_list_append	(	List &	list,
		Type &	elem,
		size_t	offset
	)

Adds the node as the last element in a two-way linked list.

Parameters

list	list
elem	the element to add
offset	offset of list node in elem

Definition at line 160 of file ut0lst.h.

Here is the call graph for this function:

template<typename List , typename Type >

void ut_list_insert	(	List &	list,
		Type &	elem1,
		Type &	elem2,
		size_t	offset
	)

Inserts a ELEM2 after ELEM1 in a list.

Parameters

list	the base node
elem1	node after which ELEM2 is inserted
elem2	node being inserted after NODE1
offset	offset of list node in elem1 and elem2

Definition at line 204 of file ut0lst.h.

Here is the call graph for this function:

template<typename List , class Functor >

void ut_list_map	(	List &	list,
		ut_list_node< typename List::elem_type > List::elem_type::*	node,
		Functor	functor
	)

Iterate over all the elements and call the functor for each element.

Parameters

list	base node (not a pointer to it)
functor	Functor that is called for each element in the list node pointer to member node within list element

Definition at line 351 of file ut0lst.h.

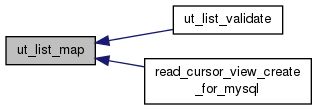

Here is the caller graph for this function:

template<typename List , typename Type >

void ut_list_prepend	(	List &	list,
		Type &	elem,
		size_t	offset
	)

Adds the node as the first element in a two-way linked list.

Parameters

list	the base node (not a pointer to it)
elem	the element to add
offset	offset of list node in elem.

Definition at line 117 of file ut0lst.h.

Here is the call graph for this function:

template<typename List , typename Type >

void ut_list_remove	(	List &	list,
		Type &	elem,
		size_t	offset
	)

Removes a node from a two-way linked list.

Parameters

list	the base node (not a pointer to it)
elem	node to be removed from the list
offset	offset of list node within elem

Definition at line 264 of file ut0lst.h.

Here is the call graph for this function:

template<typename List , class Functor >

void ut_list_validate	(	List &	list,
		ut_list_node< typename List::elem_type > List::elem_type::*	node,
		Functor	functor = `NullValidate()`
	)

Checks the consistency of a two-way list.

Parameters

list	base node (not a pointer to it)
functor	Functor that is called for each element in the list node pointer to member node within list element

Definition at line 376 of file ut0lst.h.

Here is the call graph for this function:
