Contains instantiated TcKeyReq signaldata for operation. More...

#include <DbUtil.hpp>

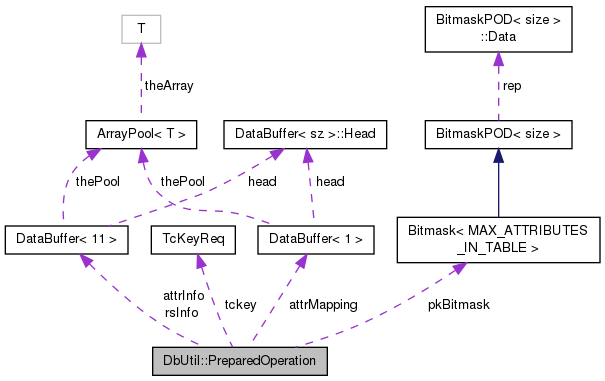

Collaboration diagram for DbUtil::PreparedOperation:

Public Member Functions
	PreparedOperation (AttrMappingBuffer::DataBufferPool &am, AttrInfoBuffer::DataBufferPool &ai, ResultSetInfoBuffer::DataBufferPool &rs)
void	print () const

Public Attributes
Uint32	rsLen
Uint32	noOfKeyAttr
Uint32	noOfAttr
bool	releaseFlag
AttrMappingBuffer	attrMapping
Uint32	tckeyLen
Uint32	keyDataPos
TcKeyReq	tckey
AttrInfoBuffer	attrInfo
ResultSetInfoBuffer	rsInfo
Bitmask< MAX_ATTRIBUTES_IN_TABLE >	pkBitmask
union {
Uint32 nextPool
Uint32 nextList
};
Uint32	prevList

Detailed Description

Contains instantiated TcKeyReq signaldata for operation.

The prepare phase is finished by storing the request in a PreparedOperation record.

Definition at line 214 of file DbUtil.hpp.

Member Data Documentation

AttrMappingBuffer DbUtil::PreparedOperation::attrMapping

Attribute Mapping

This datastructure (buffer of AttributeHeader:s) are used to map each execute request to a TCKEYREQ train of signals.

The datastructure contains (AttributeId, Position) pairs, where

AttributeId is id used in database, and
Position is position of attribute value in TCKEYREQ keyinfo part of the train of signals which will be send to TC. Position == 0x3fff means it should not be sent in keyinfo part.

Definition at line 242 of file DbUtil.hpp.

The documentation for this struct was generated from the following file:
