DataBuffer< sz > Class Template Reference

Buffer of data words. More...

#include <DataBuffer.hpp>

Inheritance diagram for DataBuffer< sz >:

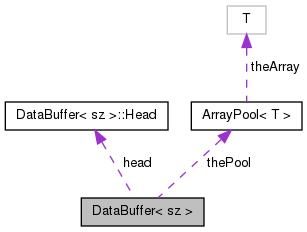

Collaboration diagram for DataBuffer< sz >:

Classes
struct	ConstDataBufferIterator
struct	DataBufferIterator
struct	Head
struct	Segment

Public Types
typedef ArrayPool< Segment >	DataBufferPool
typedef DataBufferIterator	Iterator

Public Member Functions
	DataBuffer (DataBufferPool &)
bool	seize (Uint32 n)
void	release ()
Uint32	getSize () const
bool	isEmpty () const
void	print (FILE *) const
bool	first (DataBufferIterator &)
bool	next (DataBufferIterator &)
bool	next (DataBufferIterator &, Uint32 hops)
bool	nextPool (DataBufferIterator &)
bool	position (DataBufferIterator &it, Uint32 pos)
bool	first (ConstDataBufferIterator &) const
bool	next (ConstDataBufferIterator &) const
bool	next (ConstDataBufferIterator &, Uint32 hops) const
bool	nextPool (ConstDataBufferIterator &) const
bool	importable (const DataBufferIterator, Uint32 len)
bool	import (const DataBufferIterator &, const Uint32 *src, Uint32 len)
bool	append (const Uint32 *src, Uint32 len)

Static Public Member Functions
static Uint32	getSegmentSize ()

Protected Attributes
Head	head
DataBufferPool &	thePool

Detailed Description

template<Uint32 sz>
class DataBuffer< sz >

Buffer of data words.

Note

The buffer is divided into segments (of size sz)

Definition at line 30 of file DataBuffer.hpp.

Constructor & Destructor Documentation

template<Uint32 sz>

DataBuffer< sz >::DataBuffer ( DataBufferPool &  p )

inline

Constructor

Definition at line 311 of file DataBuffer.hpp.

Member Function Documentation

template<Uint32 sz>

bool DataBuffer< sz >::append ( const Uint32 *  src, Uint32  len  )

inline

Increases size with appends len words

Returns

true if success, false otherwise.

Definition at line 256 of file DataBuffer.hpp.

Here is the call graph for this function:

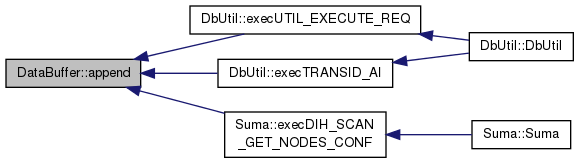

Here is the caller graph for this function:

template<Uint32 sz>

bool DataBuffer< sz >::first ( DataBufferIterator &  it )

inline

Iterator hops Number of words to jump forward

Note

DataBuffer::next returns false if applied to last word.

Definition at line 418 of file DataBuffer.hpp.

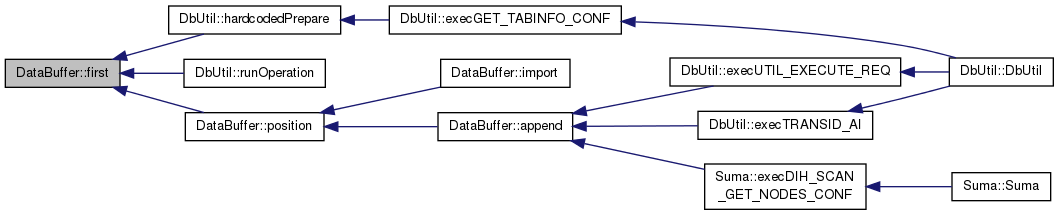

Here is the caller graph for this function:

template<Uint32 sz>

bool DataBuffer< sz >::first ( ConstDataBufferIterator &  it ) const

inline

Iterator

Definition at line 507 of file DataBuffer.hpp.

template<Uint32 sz>

Uint32 DataBuffer< sz >::getSegmentSize ( )

inlinestatic

Get segment size in words (template argument)

Definition at line 411 of file DataBuffer.hpp.

template<Uint32 sz>

Uint32 DataBuffer< sz >::getSize ( ) const

inline

Get size of databuffer, in words

Definition at line 596 of file DataBuffer.hpp.

Here is the caller graph for this function:

template<Uint32 sz>

bool DataBuffer< sz >::import ( const DataBufferIterator &  it, const Uint32 *  src, Uint32  len  )

inline

Stores len no of words starting at location src in databuffer at position given in iterator.

Returns

true if success, false otherwise.

Note

Iterator is not advanced.

Definition at line 220 of file DataBuffer.hpp.

Here is the call graph for this function:

template<Uint32 sz>

bool DataBuffer< sz >::importable ( const DataBufferIterator  it, Uint32  len  )

inline

Returns true if it is possible to store len no of words at position given in iterator.

Definition at line 199 of file DataBuffer.hpp.

template<Uint32 sz>

bool DataBuffer< sz >::isEmpty ( ) const

inline

Check if buffer is empty

Definition at line 603 of file DataBuffer.hpp.

template<Uint32 sz>

bool DataBuffer< sz >::position ( DataBufferIterator &  it, Uint32  pos  )

inline

Set iterator to position

Definition at line 205 of file DataBuffer.hpp.

Here is the call graph for this function:

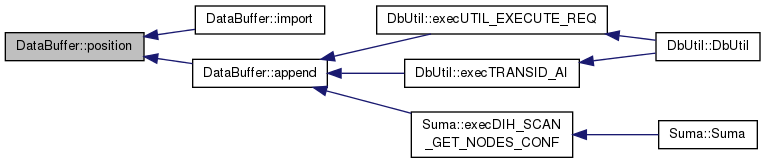

Here is the caller graph for this function:

template<Uint32 sz>

bool DataBuffer< sz >::seize ( Uint32  n )

inline

Seize n words, Release

No extra allocation needed

Check for space

Definition at line 317 of file DataBuffer.hpp.

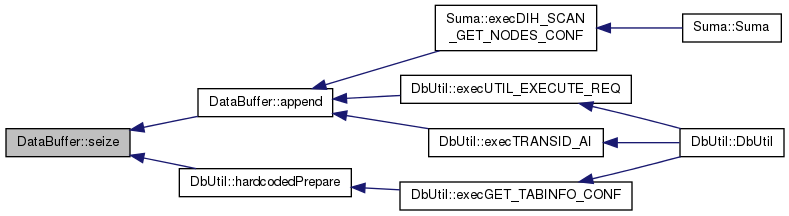

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• storage/ndb/src/kernel/vm/DataBuffer.hpp
