sql_profile.cc File Reference

#include "sql_priv.h"
#include "unireg.h"
#include "sql_profile.h"
#include "my_sys.h"
#include "sql_show.h"
#include "sql_class.h"
#include <algorithm>

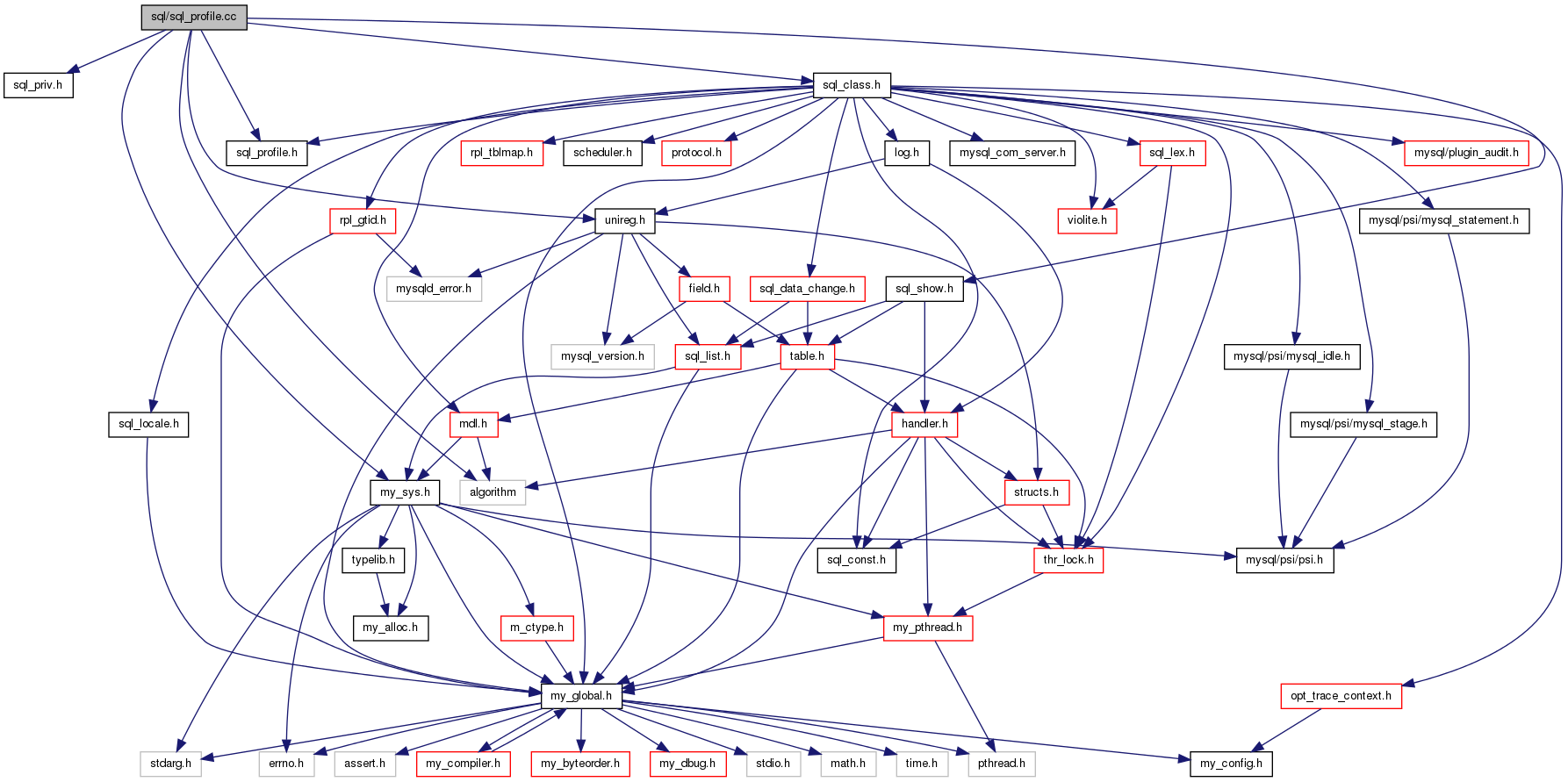

Include dependency graph for sql_profile.cc:

Go to the source code of this file.

Macros
#define	TIME_FLOAT_DIGITS   9
#define	TIME_I_S_DECIMAL_SIZE   (TIME_FLOAT_DIGITS*100)+(TIME_FLOAT_DIGITS-3)
#define	MAX_QUERY_LENGTH   300U
#define	MAX_QUERY_HISTORY   101U

Functions
int	fill_query_profile_statistics_info (THD *thd, TABLE_LIST *tables, Item *cond)
int	make_profile_table_for_show (THD *thd, ST_SCHEMA_TABLE *schema_table)

Variables
ST_FIELD_INFO	query_profile_statistics_info []

Detailed Description

Implement query profiling as as list of metaphorical fences, with one fence per query, and each fencepost a change of thd->proc_info state (with a snapshot of system statistics). When asked, we can then iterate over the fenceposts and calculate the distance between them, to inform the user what happened during a particular query or thd->proc_info state.

User variables that inform profiling behavior:

• "profiling", boolean, session only, "Are queries profiled?"
• "profiling_history_size", integer, session + global, "Num queries stored?"

Definition in file sql_profile.cc.

Macro Definition Documentation

#define TIME_I_S_DECIMAL_SIZE   (TIME_FLOAT_DIGITS*100)+(TIME_FLOAT_DIGITS-3)

two vals encoded: (dec*100)+len

Definition at line 46 of file sql_profile.cc.

Function Documentation

int fill_query_profile_statistics_info	(	THD *	thd,
		TABLE_LIST *	tables,
		Item *	cond
	)

Connects Information_Schema and Profiling.

Definition at line 54 of file sql_profile.cc.

Variable Documentation

ST_FIELD_INFO query_profile_statistics_info[]

Initial value:

{

  {"QUERY_ID", 20, MYSQL_TYPE_LONG, 0, false, "Query_id", SKIP_OPEN_TABLE},
  {"SEQ", 20, MYSQL_TYPE_LONG, 0, false, "Seq", SKIP_OPEN_TABLE},
  {"STATE", 30, MYSQL_TYPE_STRING, 0, false, "Status", SKIP_OPEN_TABLE},
  {"DURATION", TIME_I_S_DECIMAL_SIZE, MYSQL_TYPE_DECIMAL, 0, false, "Duration", SKIP_OPEN_TABLE},
  {"CPU_USER", TIME_I_S_DECIMAL_SIZE, MYSQL_TYPE_DECIMAL, 0, true, "CPU_user", SKIP_OPEN_TABLE},
  {"CPU_SYSTEM", TIME_I_S_DECIMAL_SIZE, MYSQL_TYPE_DECIMAL, 0, true, "CPU_system", SKIP_OPEN_TABLE},
  {"CONTEXT_VOLUNTARY", 20, MYSQL_TYPE_LONG, 0, true, "Context_voluntary", SKIP_OPEN_TABLE},
  {"CONTEXT_INVOLUNTARY", 20, MYSQL_TYPE_LONG, 0, true, "Context_involuntary", SKIP_OPEN_TABLE},
  {"BLOCK_OPS_IN", 20, MYSQL_TYPE_LONG, 0, true, "Block_ops_in", SKIP_OPEN_TABLE},
  {"BLOCK_OPS_OUT", 20, MYSQL_TYPE_LONG, 0, true, "Block_ops_out", SKIP_OPEN_TABLE},
  {"MESSAGES_SENT", 20, MYSQL_TYPE_LONG, 0, true, "Messages_sent", SKIP_OPEN_TABLE},
  {"MESSAGES_RECEIVED", 20, MYSQL_TYPE_LONG, 0, true, "Messages_received", SKIP_OPEN_TABLE},
  {"PAGE_FAULTS_MAJOR", 20, MYSQL_TYPE_LONG, 0, true, "Page_faults_major", SKIP_OPEN_TABLE},
  {"PAGE_FAULTS_MINOR", 20, MYSQL_TYPE_LONG, 0, true, "Page_faults_minor", SKIP_OPEN_TABLE},
  {"SWAPS", 20, MYSQL_TYPE_LONG, 0, true, "Swaps", SKIP_OPEN_TABLE},
  {"SOURCE_FUNCTION", 30, MYSQL_TYPE_STRING, 0, true, "Source_function", SKIP_OPEN_TABLE},
  {"SOURCE_FILE", 20, MYSQL_TYPE_STRING, 0, true, "Source_file", SKIP_OPEN_TABLE},
  {"SOURCE_LINE", 20, MYSQL_TYPE_LONG, 0, true, "Source_line", SKIP_OPEN_TABLE},
  {NULL, 0,  MYSQL_TYPE_STRING, 0, true, NULL, 0}
}

Definition at line 65 of file sql_profile.cc.
