Inheritance diagram for TABLE_LIST:

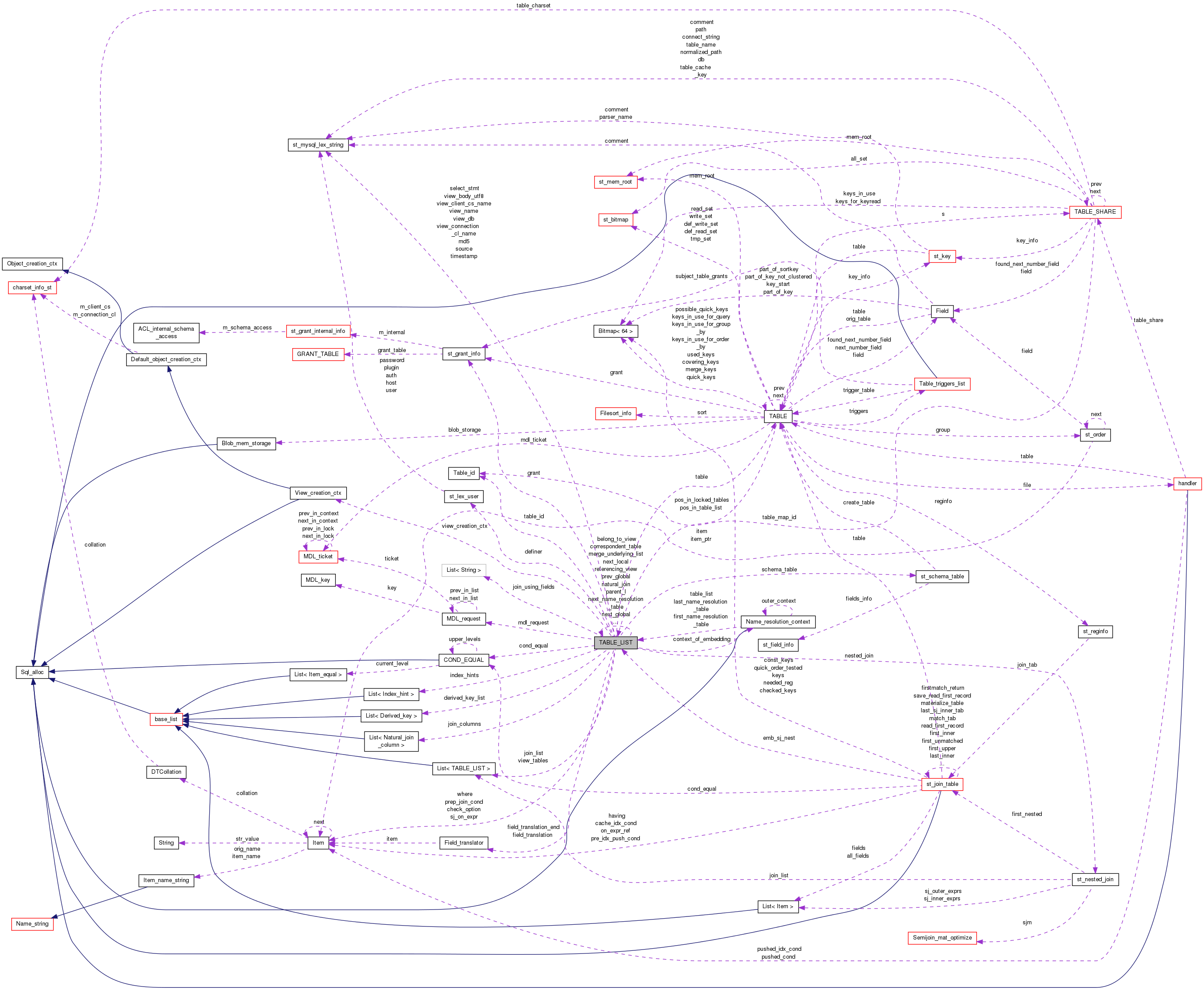

Collaboration diagram for TABLE_LIST:

Public Types
enum	{ OPEN_NORMAL = 0, OPEN_IF_EXISTS, OPEN_FOR_CREATE, OPEN_STUB }

Public Member Functions
void	init_one_table (const char db_name_arg, size_t db_length_arg, const char table_name_arg, size_t table_name_length_arg, const char *alias_arg, enum thr_lock_type lock_type_arg)
Item **	join_cond_ref ()
Item *	join_cond () const
Item *	set_join_cond (Item *val)
void	calc_md5 (char *buffer)
void	set_underlying_merge ()
	Set underlying table for table place holder of view.
int	view_check_option (THD *thd, bool ignore_failure) const
bool	setup_underlying (THD *thd)
void	cleanup_items ()
bool	placeholder ()
void	print (THD thd, String str, enum_query_type query_type)
bool	check_single_table (TABLE_LIST *table, table_map map, TABLE_LIST view)
bool	set_insert_values (MEM_ROOT *mem_root)
void	hide_view_error (THD *thd)
TABLE_LIST *	find_underlying_table (TABLE *table)
TABLE_LIST *	first_leaf_for_name_resolution ()
TABLE_LIST *	last_leaf_for_name_resolution ()
bool	is_leaf_for_name_resolution ()
const TABLE_LIST *	top_table () const
TABLE_LIST *	top_table ()
bool	prepare_check_option (THD *thd)
bool	prepare_where (THD thd, Item *conds, bool no_where_clause)
bool	uses_materialization () const
bool	is_view_or_derived () const
bool	materializable_is_const () const
void	register_want_access (ulong want_access)
bool	prepare_security (THD *thd)
Security_context *	find_view_security_context (THD *thd)
bool	prepare_view_securety_context (THD *thd)
void	reinit_before_use (THD *thd)
Item_subselect *	containing_subselect ()
bool	process_index_hints (TABLE *table)
bool	is_table_ref_id_equal (TABLE_SHARE *s) const
void	set_table_ref_id (TABLE_SHARE *s)
void	set_table_ref_id (enum_table_ref_type table_ref_type_arg, ulonglong table_ref_version_arg)
bool	is_anonymous_derived_table () const
	True if this TABLE_LIST represents an anonymous derived table, i.e. the result of a subquery.
uint	query_block_id () const
	returns query block id for derived table, and zero if not derived.
char *	get_db_name () const
	Returns the name of the database that the referenced table belongs to.
char *	get_table_name () const
	Returns the name of the table that this TABLE_LIST represents.
int	fetch_number_of_rows ()
	Retrieve number of rows in the table.
bool	update_derived_keys (Field , Item *, uint)
bool	generate_keys ()
	Generate keys for a materialized derived table/view.
bool	handle_derived (LEX lex, bool(processor)(THD , LEX , TABLE_LIST *))
st_select_lex_unit *	get_unit () const
	Return unit of this derived table/view.
TABLE_LIST *	outer_join_nest () const
	Returns the outer join nest that this TABLE_LIST belongs to, if any.

Static Public Member Functions
static TABLE_LIST *	new_nested_join (MEM_ROOT allocator, const char alias, TABLE_LIST embedding, List< TABLE_LIST > belongs_to, class st_select_lex *select)
	Create a TABLE_LIST object representing a nested join.

Public Attributes
TABLE_LIST *	next_local
TABLE_LIST *	next_global
TABLE_LIST **	prev_global
char *	db
char *	alias
char *	table_name
char *	schema_table_name
char *	option
Name_resolution_context *	context_of_embedding
Item *	prep_join_cond
Item *	sj_on_expr
table_map	sj_inner_tables
COND_EQUAL *	cond_equal
TABLE_LIST *	natural_join
bool	is_natural_join
List< String > *	join_using_fields
List< Natural_join_column > *	join_columns
bool	is_join_columns_complete
TABLE_LIST *	next_name_resolution_table
List< Index_hint > *	index_hints
TABLE *	table
Table_id	table_id
select_union *	derived_result
TABLE_LIST *	correspondent_table
st_select_lex_unit *	derived
	Normally, this field is non-null for anonymous derived tables only.
bool	derived_keys_ready
ST_SCHEMA_TABLE *	schema_table
st_select_lex *	schema_select_lex
bool	schema_table_reformed
TMP_TABLE_PARAM *	schema_table_param
st_select_lex *	select_lex
LEX *	view
Field_translator *	field_translation
Field_translator *	field_translation_end
TABLE_LIST *	merge_underlying_list
List< TABLE_LIST > *	view_tables
TABLE_LIST *	belong_to_view
TABLE_LIST *	referencing_view
TABLE_LIST *	parent_l
Security_context *	security_ctx
Security_context *	view_sctx
bool	allowed_show
TABLE_LIST *	next_leaf
Item *	where
Item *	check_option
LEX_STRING	select_stmt
LEX_STRING	md5
LEX_STRING	source
LEX_STRING	view_db
LEX_STRING	view_name
LEX_STRING	timestamp
st_lex_user	definer
ulonglong	file_version
ulonglong	updatable_view
ulonglong	algorithm
	The declared algorithm, if this is a view.
ulonglong	view_suid
ulonglong	with_check
uint8	effective_with_check
enum_derived_type	effective_algorithm
	The view algorithm that is actually used, if this is a view.
GRANT_INFO	grant
ulonglong	engine_data
qc_engine_callback	callback_func
thr_lock_type	lock_type
uint	outer_join
uint	shared
size_t	db_length
size_t	table_name_length
bool	updatable
bool	straight
bool	updating
bool	force_index
bool	ignore_leaves
table_map	dep_tables
table_map	on_expr_dep_tables
struct st_nested_join *	nested_join
TABLE_LIST *	embedding
List< TABLE_LIST > *	join_list
bool	cacheable_table
bool	table_in_first_from_clause
enum enum_open_type	open_type
bool	contain_auto_increment
bool	multitable_view
bool	compact_view_format
bool	where_processed
bool	check_option_processed
enum frm_type_enum	required_type
char	timestamp_buffer [20]
bool	prelocking_placeholder
enum TABLE_LIST:: { ... }	open_strategy
bool	internal_tmp_table
bool	is_alias
bool	is_fqtn
View_creation_ctx *	view_creation_ctx
LEX_STRING	view_client_cs_name
LEX_STRING	view_connection_cl_name
LEX_STRING	view_body_utf8
List< Derived_key >	derived_key_list
uint8	trg_event_map
bool	optimized_away
uint	i_s_requested_object
bool	has_db_lookup_value
bool	has_table_lookup_value
uint	table_open_method
enum enum_schema_table_state	schema_table_state
MDL_request	mdl_request

Detailed Description

Definition at line 1510 of file table.h.

Member Enumeration Documentation

anonymous enum

Indicates that if TABLE_LIST object corresponds to the table/view which requires special handling.

Definition at line 1803 of file table.h.

Member Function Documentation

int TABLE_LIST::fetch_number_of_rows ( )

Retrieve number of rows in the table.

Retrieve number of rows in the table referred by this TABLE_LIST and store it in the table's stats.records variable. If this TABLE_LIST refers to a materialized derived table/view, then the estimated number of rows of the derived table/view is used instead.

Returns: 0 ok; non zero error

Definition at line 6013 of file table.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

bool TABLE_LIST::generate_keys ( )

Generate keys for a materialized derived table/view.

This function adds keys to the result table by walking over the list of possible keys for this derived table/view and calling the TABLE::add_tmp_key to actually add keys. A name <auto_keyN>, where N is a sequential number, is given to each key to ease debugging.

See Also: add_derived_key

Returns: TRUE an error occur.; FALSE all keys were successfully added.

Definition at line 6237 of file table.cc.

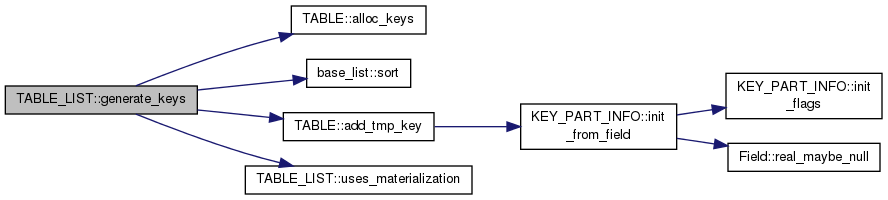

Here is the call graph for this function:

Here is the caller graph for this function:

char* TABLE_LIST::get_table_name ( ) const

inline

Returns the name of the table that this TABLE_LIST represents.

The unqualified table name or view name for a table or view, respectively.

Definition at line 2010 of file table.h.

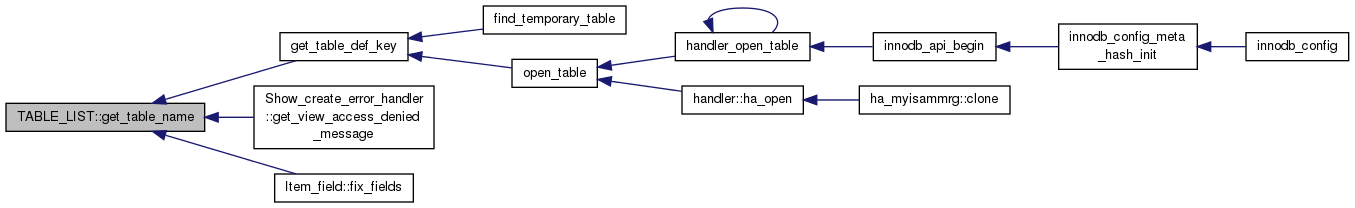

Here is the caller graph for this function:

st_select_lex_unit * TABLE_LIST::get_unit ( ) const

Return unit of this derived table/view.

Returns: reference to a unit if it's a derived table/view.; 0 when it's not a derived table/view.

Definition at line 6315 of file table.cc.

Here is the caller graph for this function:

void TABLE_LIST::hide_view_error ( THD * thd )

Hide errors which show view underlying table information. There are currently two mechanisms at work that handle errors for views, this one and a more general mechanism based on an Internal_error_handler, see Show_create_error_handler. The latter handles errors encountered during execution of SHOW CREATE VIEW, while the machanism using this method is handles SELECT from views. The two methods should not clash.

Parameters

[in,out] thd thread handler

Precondition: This method can be called only if there is an error.

Definition at line 4174 of file table.cc.

Here is the caller graph for this function:

void TABLE_LIST::init_one_table	(	const char *	db_name_arg,
		size_t	db_length_arg,
		const char *	table_name_arg,
		size_t	table_name_length_arg,
		const char *	alias_arg,
		enum thr_lock_type	lock_type_arg
	)

inline

Prepare TABLE_LIST that consists of one table instance to use in simple_open_and_lock_tables

Definition at line 1518 of file table.h.

Here is the call graph for this function:

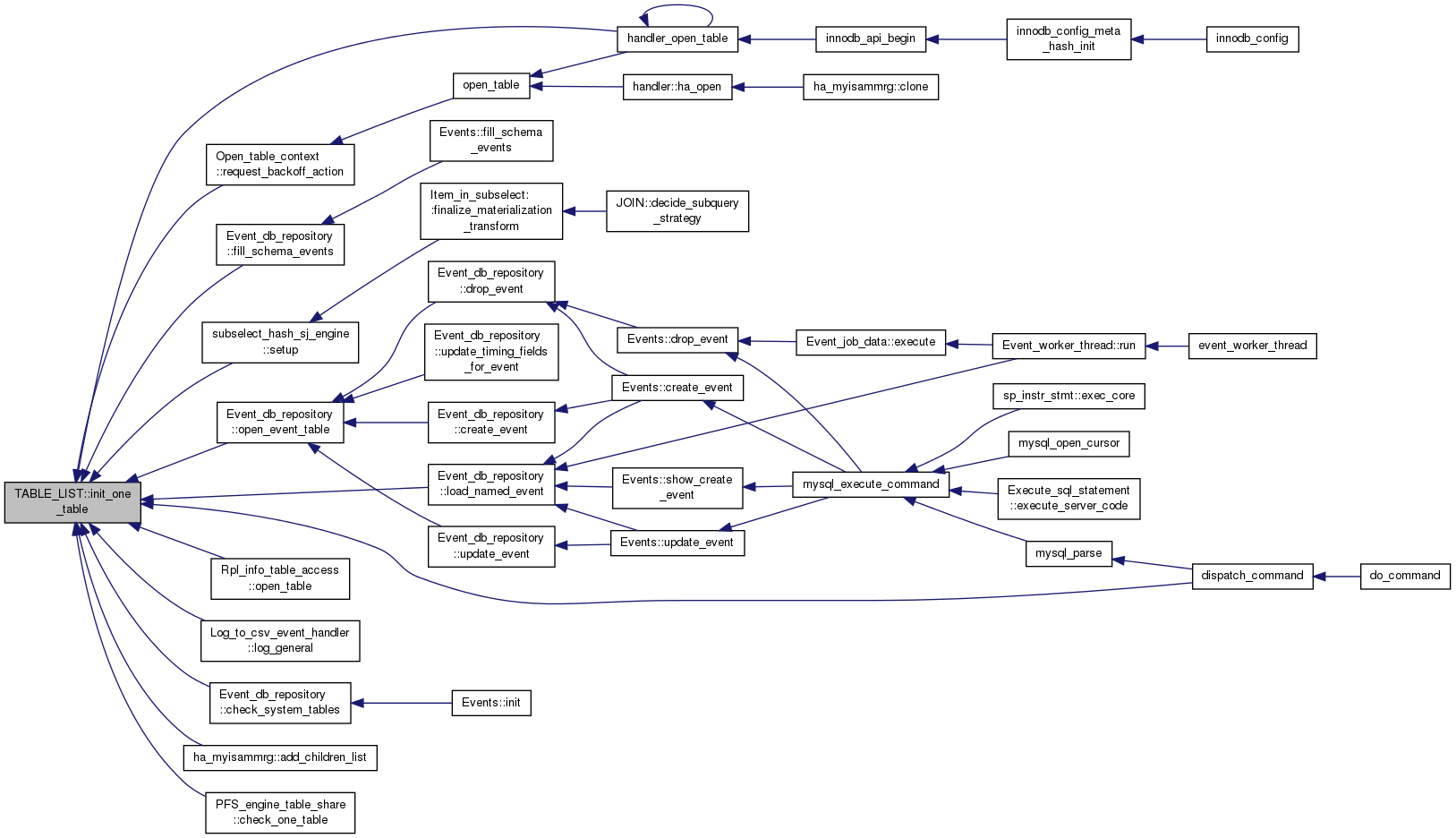

Here is the caller graph for this function:

bool TABLE_LIST::is_table_ref_id_equal ( TABLE_SHARE * s ) const

inline

Compare the version of metadata from the previous execution (if any) with values obtained from the current table definition cache element.

See Also: check_and_update_table_version()

Definition at line 1965 of file table.h.

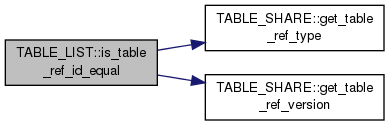

Here is the call graph for this function:

bool TABLE_LIST::materializable_is_const ( ) const

Returns: true if materializable table contains one or zero rows.

Returning true implies that the table is materialized during optimization, so it need not be optimized during execution.

Returns: true if materializable table contains one or zero rows

Definition at line 5993 of file table.cc.

Here is the call graph for this function:

TABLE_LIST * TABLE_LIST::new_nested_join	(	MEM_ROOT *	allocator,
		const char *	alias,
		TABLE_LIST *	embedding,
		List< TABLE_LIST > *	belongs_to,
		class st_select_lex *	select
	)

static

Create a TABLE_LIST object representing a nested join.

Create a TABLE_LIST object representing a nested join

Parameters

allocator	Mem root allocator that object is created from.
alias	Name of nested join object
embedding	Pointer to embedding join nest (or NULL if top-most)
belongs_to	List of tables this nest belongs to (never NULL).
select	The query block that this join nest belongs within.

Returns: Pointer to created join nest object, or NULL if error.

Definition at line 3767 of file table.cc.

TABLE_LIST* TABLE_LIST::outer_join_nest ( ) const

inline

Returns the outer join nest that this TABLE_LIST belongs to, if any.

There are two kinds of join nests, outer-join nests and semi-join nests. This function returns non-NULL in the following cases:

1. If this table/nest is embedded in a nest and this nest IS NOT a semi-join nest. (In other words, it is an outer-join nest.)
2. If this table/nest is embedded in a nest and this nest IS a semi-join nest, but this semi-join nest is embedded in another nest. (This other nest will be an outer-join nest, since all inner joined nested semi-join nests have been merged in simplify_joins() ). Note: This function assumes that simplify_joins() has been performed. Before that, join nests will be present for all types of join.

Returns: outer join nest, or NULL if none.

Definition at line 2034 of file table.h.

Here is the caller graph for this function:

void TABLE_LIST::print	(	THD *	thd,
		String *	str,
		enum_query_type	query_type
	)

Print table as it should be in join list.

Parameters

str	string where table should be printed

Definition at line 2536 of file sql_lex.cc.

void TABLE_LIST::set_table_ref_id ( TABLE_SHARE * s )

inline

Record the value of metadata version of the corresponding table definition cache element in this parse tree node.

See Also: check_and_update_table_version()

Definition at line 1978 of file table.h.

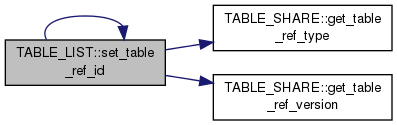

Here is the call graph for this function:

Here is the caller graph for this function:

void TABLE_LIST::set_underlying_merge ( )

Set underlying table for table place holder of view.

Replace all views that only use one table with the table itself. This allows us to treat the view as a simple table and even update it (it is a kind of optimization).

Note

This optimization is potentially dangerous as it makes views masquerade as base tables: Views don't have the pointer TABLE_LIST::table set to non-NULL.

We may have the case where a view accesses tables not normally accessible in the current Security_context (only in the definer's Security_context). According to the table's GRANT_INFO (TABLE::grant), access is fulfilled, but this is implicitly meant in the definer's security context. Hence we must never look at only a TABLE's GRANT_INFO without looking at the one of the referring TABLE_LIST.

Definition at line 3839 of file table.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

bool TABLE_LIST::uses_materialization ( ) const

inline

Returns: TRUE this is a materializable derived table/view. FALSE otherwise.

Definition at line 1920 of file table.h.

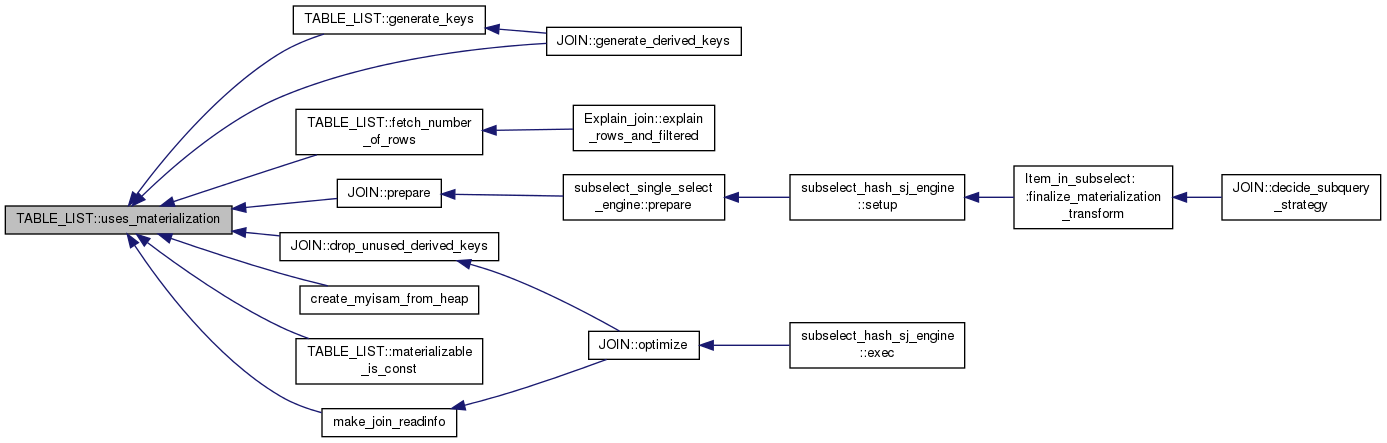

Here is the caller graph for this function:

Member Data Documentation

ulonglong TABLE_LIST::algorithm

The declared algorithm, if this is a view.

One of

VIEW_ALGORITHM_UNDEFINED
VIEW_ALGORITHM_TMPTABLE
VIEW_ALGORITHM_MERGE do Replace with an enum

Definition at line 1738 of file table.h.

Name_resolution_context* TABLE_LIST::context_of_embedding

Context which should be used to resolve identifiers contained in the ON condition of the embedding join nest.

Todo:: When name resolution contexts are created after parsing, we should be able to store this in the embedding join nest instead.

Definition at line 1563 of file table.h.

st_select_lex_unit* TABLE_LIST::derived

Normally, this field is non-null for anonymous derived tables only.

This field is set to non-null for

Anonymous derived tables, In this case it points to the SELECT_LEX_UNIT representing the derived table. E.g. for a query

SELECT * FROM (SELECT a FROM t1) b

For the TABLE_LIST representing the derived table b, derived points to the SELECT_LEX_UNIT representing the result of the query within parenteses.

Views. This is set for views with
```
ALGORITHM = TEMPTABLE
```
by mysql_make_view().

Note: Inside views, a subquery in the FROM clause is not allowed.; Do not use this field to separate views/base tables/anonymous derived tables. Use TABLE_LIST::is_anonymous_derived_table().

Definition at line 1661 of file table.h.

enum_derived_type TABLE_LIST::effective_algorithm

The view algorithm that is actually used, if this is a view.

One of

VIEW_ALGORITHM_UNDEFINED
VIEW_ALGORITHM_TMPTABLE
VIEW_ALGORITHM_MERGE do Replace with an enum

Definition at line 1754 of file table.h.

bool TABLE_LIST::is_alias

TRUE if an alias for this table was specified in the SQL.

Definition at line 1819 of file table.h.

bool TABLE_LIST::is_fqtn

TRUE if the table is referred to in the statement using a fully qualified name (<db_name>.<table_name>).

Definition at line 1823 of file table.h.

enum { ... } TABLE_LIST::open_strategy

Indicates that if TABLE_LIST object corresponds to the table/view which requires special handling.

enum enum_open_type TABLE_LIST::open_type

Specifies which kind of table should be open for this element of table list.

Definition at line 1782 of file table.h.

uint8 TABLE_LIST::trg_event_map

Indicates what triggers we need to pre-load for this TABLE_LIST when opening an associated TABLE. This is filled after the parsed tree is created.

Definition at line 1858 of file table.h.

The documentation for this struct was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation
