#include <map>
#include "page0zip.h"
#include "page0page.h"
#include "mtr0log.h"
#include "ut0sort.h"
#include "dict0dict.h"
#include "btr0cur.h"
#include "page0types.h"
#include "log0recv.h"
#include "zlib.h"
#include "buf0buf.h"
#include "buf0lru.h"
#include "btr0sea.h"
#include "dict0boot.h"
#include "lock0lock.h"
#include "srv0mon.h"
#include "srv0srv.h"
#include "ut0crc32.h"

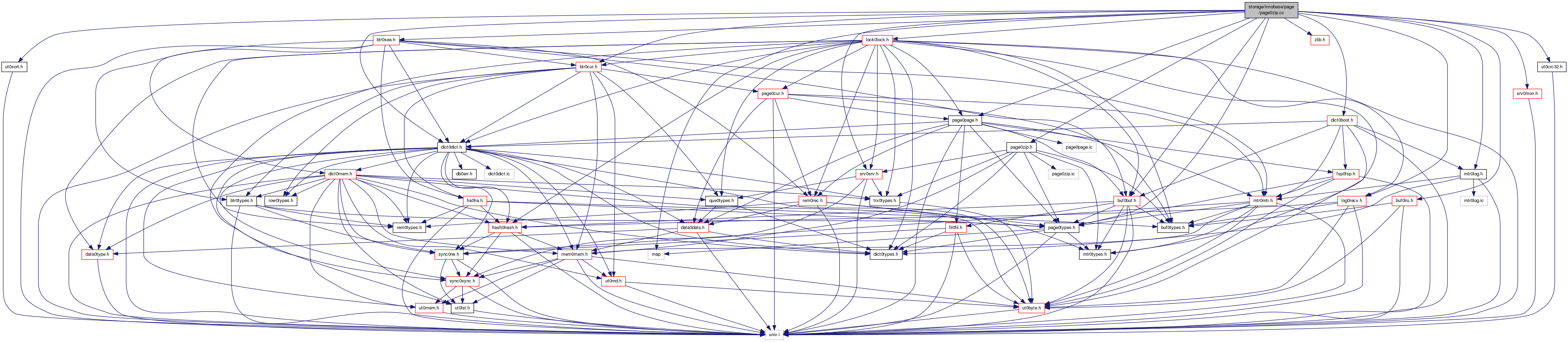

Include dependency graph for page0zip.cc:

Macros
#define	THIS_MODULE
#define	ASSERT_ZERO(b, s) ut_ad(!memcmp(b, field_ref_zero, ut_min(s, sizeof field_ref_zero)))
#define	ASSERT_ZERO_BLOB(b) ut_ad(!memcmp(b, field_ref_zero, sizeof field_ref_zero))
#define	page_zip_fail(fmt_args) /* empty */
#define	page_zip_dir_start_low(page_zip, n_dense) ((page_zip)->data + page_zip_dir_start_offs(page_zip, n_dense))
#define	page_zip_dir_start(page_zip) page_zip_dir_start_low(page_zip, page_zip_dir_elems(page_zip))
#define	FILE_LOGFILE
#define	LOGFILE

Functions
UNIV_INTERN ulint	page_zip_empty_size (ulint n_fields, ulint zip_size)
UNIV_INLINE ulint	page_zip_dir_elems (const page_zip_des_t *page_zip)
UNIV_INLINE ulint	page_zip_dir_size (const page_zip_des_t *page_zip)
UNIV_INLINE ulint	page_zip_dir_start_offs (const page_zip_des_t *page_zip, ulint n_dense)
UNIV_INLINE ulint	page_zip_dir_user_size (const page_zip_des_t *page_zip)
UNIV_INLINE byte *	page_zip_dir_find_low (byte slot, byte end, ulint offset)
UNIV_INLINE byte *	page_zip_dir_find (page_zip_des_t *page_zip, ulint offset)
UNIV_INLINE byte *	page_zip_dir_find_free (page_zip_des_t *page_zip, ulint offset)
UNIV_INLINE ulint	page_zip_dir_get (const page_zip_des_t *page_zip, ulint slot)
UNIV_INTERN void	page_zip_set_alloc (void stream, mem_heap_t heap)
UNIV_INTERN ibool	page_zip_compress (page_zip_des_t page_zip, const page_t page, dict_index_t index, ulint level, mtr_t mtr)
UNIV_INLINE ibool	page_zip_dir_cmp (const rec_t rec1, const rec_t rec2)
UNIV_INTERN ibool	page_zip_decompress (page_zip_des_t page_zip, page_t page, ibool all)
UNIV_INTERN void	page_zip_write_rec (page_zip_des_t page_zip, const byte rec, dict_index_t index, const ulint offsets, ulint create)
UNIV_INTERN byte *	page_zip_parse_write_blob_ptr (byte ptr, byte end_ptr, page_t page, page_zip_des_t page_zip)
UNIV_INTERN void	page_zip_write_blob_ptr (page_zip_des_t page_zip, const byte rec, dict_index_t index, const ulint offsets, ulint n, mtr_t *mtr)
UNIV_INTERN byte *	page_zip_parse_write_node_ptr (byte ptr, byte end_ptr, page_t page, page_zip_des_t page_zip)
UNIV_INTERN void	page_zip_write_node_ptr (page_zip_des_t page_zip, byte rec, ulint size, ulint ptr, mtr_t *mtr)
UNIV_INTERN void	page_zip_write_trx_id_and_roll_ptr (page_zip_des_t page_zip, byte rec, const ulint *offsets, ulint trx_id_col, trx_id_t trx_id, roll_ptr_t roll_ptr)
UNIV_INTERN void	page_zip_rec_set_deleted (page_zip_des_t page_zip, const byte rec, ulint flag)
UNIV_INTERN void	page_zip_rec_set_owned (page_zip_des_t page_zip, const byte rec, ulint flag)
UNIV_INTERN void	page_zip_dir_insert (page_zip_des_t page_zip, const byte prev_rec, const byte free_rec, byte rec)
UNIV_INTERN void	page_zip_dir_delete (page_zip_des_t page_zip, byte rec, const dict_index_t index, const ulint offsets, const byte *free)
UNIV_INTERN void	page_zip_dir_add_slot (page_zip_des_t *page_zip, ulint is_clustered)
UNIV_INTERN byte *	page_zip_parse_write_header (byte ptr, byte end_ptr, page_t page, page_zip_des_t page_zip)
UNIV_INTERN void	page_zip_write_header_log (const byte data, ulint length, mtr_t mtr)
UNIV_INTERN ibool	page_zip_reorganize (buf_block_t block, dict_index_t index, mtr_t *mtr)
UNIV_INTERN void	page_zip_copy_recs (page_zip_des_t page_zip, page_t page, const page_zip_des_t src_zip, const page_t src, dict_index_t index, mtr_t mtr)
UNIV_INTERN byte *	page_zip_parse_compress (byte ptr, byte end_ptr, page_t page, page_zip_des_t page_zip)
UNIV_INTERN ulint	page_zip_calc_checksum (const void *data, ulint size, srv_checksum_algorithm_t algo)
UNIV_INTERN ibool	page_zip_verify_checksum (const void *data, ulint size)

Variables
UNIV_INTERN page_zip_stat_t	page_zip_stat [PAGE_ZIP_SSIZE_MAX]
UNIV_INTERN page_zip_stat_per_index_t	page_zip_stat_per_index
UNIV_INTERN ib_mutex_t	page_zip_stat_per_index_mutex
UNIV_INTERN uint	page_zip_level = DEFAULT_COMPRESSION_LEVEL
UNIV_INTERN my_bool	page_zip_log_pages = true

Detailed Description

Compressed page interface

Created June 2005 by Marko Makela

Definition in file page0zip.cc.

Macro Definition Documentation

#define ASSERT_ZERO	(	b,
		s
	)	ut_ad(!memcmp(b, field_ref_zero, ut_min(s, sizeof field_ref_zero)))

Assert that a block of memory is filled with zero bytes.

Compare at most sizeof(field_ref_zero) bytes.

Parameters

b	in: memory block
s	in: size of the memory block, in bytes

Definition at line 108 of file page0zip.cc.

#define ASSERT_ZERO_BLOB ( b ) ut_ad(!memcmp(b, field_ref_zero, sizeof field_ref_zero))

Assert that a BLOB pointer is filled with zero bytes.

Parameters

b	in: BLOB pointer

Definition at line 112 of file page0zip.cc.

#define FILE_LOGFILE

Empty declaration of the logfile parameter

Definition at line 815 of file page0zip.cc.

#define LOGFILE

Missing logfile parameter

Definition at line 817 of file page0zip.cc.

#define page_zip_dir_start ( page_zip ) page_zip_dir_start_low(page_zip, page_zip_dir_elems(page_zip))

Gets a pointer to the compressed page trailer (the dense page directory), including deleted records (the free list).

Parameters

[in] page_zip compressed page

Returns: pointer to the dense page directory

Definition at line 232 of file page0zip.cc.

#define page_zip_dir_start_low	(	page_zip,
		n_dense
	)	((page_zip)->data + page_zip_dir_start_offs(page_zip, n_dense))

Gets a pointer to the compressed page trailer (the dense page directory), including deleted records (the free list).

Parameters

[in]	page_zip	compressed page
[in]	n_dense	number of entries in the directory

Returns: pointer to the dense page directory

Definition at line 225 of file page0zip.cc.

#define page_zip_fail ( fmt_args ) /* empty */

Dummy wrapper for page_zip_fail_func()

Parameters

fmt_args ignored: printf(3) format string and arguments

Definition at line 147 of file page0zip.cc.

Function Documentation

UNIV_INTERN ulint page_zip_calc_checksum	(	const void *	data,
		ulint	size,
		srv_checksum_algorithm_t	algo
	)

Calculate the compressed page checksum.

Returns: page checksum

Parameters

data	in: compressed page
size	in: size of compressed page
algo	in: algorithm to use

Definition at line 4827 of file page0zip.cc.

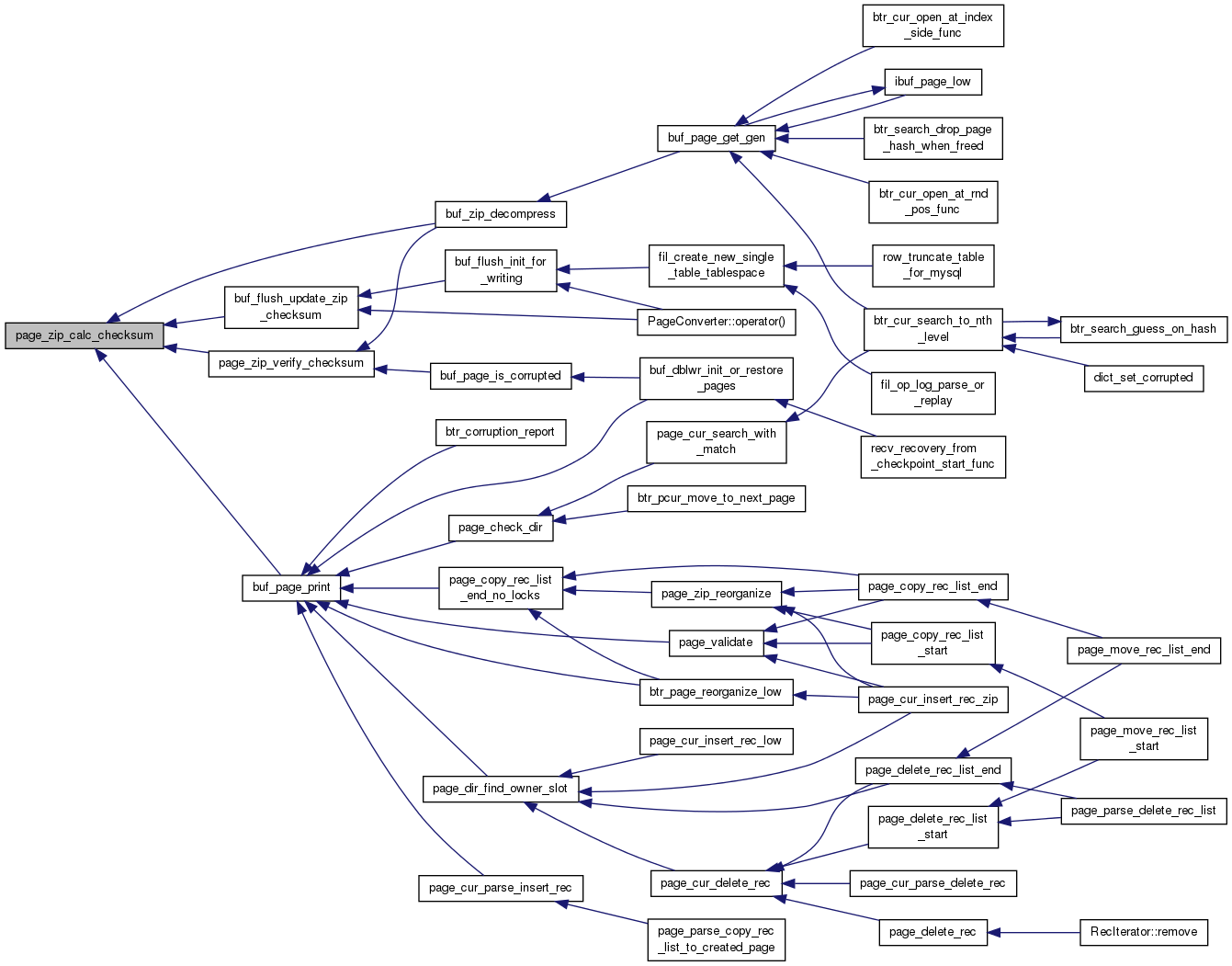

Here is the caller graph for this function:

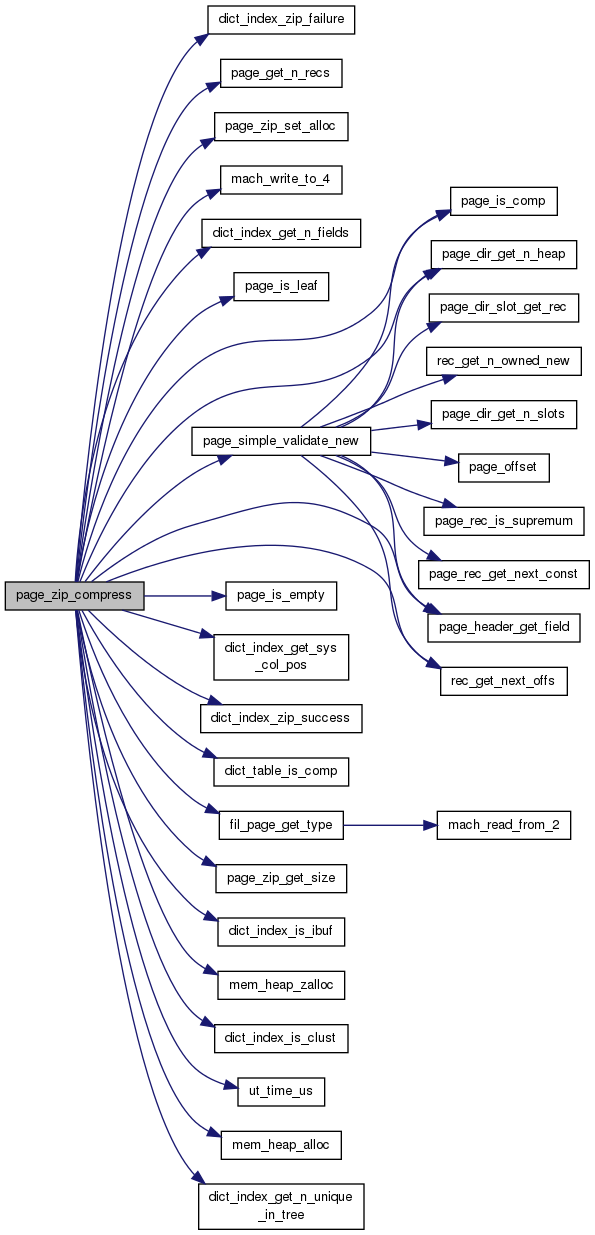

UNIV_INTERN ibool page_zip_compress	(	page_zip_des_t *	page_zip,
		const page_t *	page,
		dict_index_t *	index,
		ulint	level,
		mtr_t *	mtr
	)

Compress a page.

Returns: TRUE on success, FALSE on failure; page_zip will be left intact on failure.

< index field information

< compressed payload of the page

< dense page directory, sorted by address

Parameters

page_zip	in: size; out: data, n_blobs, m_start, m_end, m_nonempty
page	in: uncompressed page
index	in: index of the B-tree node
level	in: compression level
mtr	in: mini-transaction, or NULL

Definition at line 1197 of file page0zip.cc.

Here is the call graph for this function:

UNIV_INTERN void page_zip_copy_recs	(	page_zip_des_t *	page_zip,
		page_t *	page,
		const page_zip_des_t *	src_zip,
		const page_t *	src,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Copy the records of a page byte for byte. Do not copy the page header or trailer, except those B-tree header fields that are directly related to the storage of records. Also copy PAGE_MAX_TRX_ID. NOTE: The caller must update the lock table and the adaptive hash index.

Parameters

page_zip	out: copy of src_zip (n_blobs, m_start, m_end, m_nonempty, data[0..size-1])
page	out: copy of src
src_zip	in: compressed page
src	in: page
index	in: index of the B-tree
mtr	in: mini-transaction

Definition at line 4674 of file page0zip.cc.

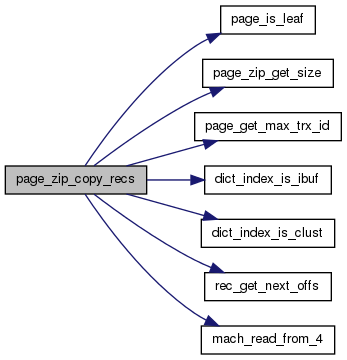

Here is the call graph for this function:

UNIV_INTERN ibool page_zip_decompress	(	page_zip_des_t *	page_zip,
		page_t *	page,
		ibool	all
	)

Decompress a page. This function should tolerate errors on the compressed page. Instead of letting assertions fail, it will return FALSE if an inconsistency is detected.

Returns: TRUE on success, FALSE on failure

< dense page directory, sorted by address

Parameters

page_zip	in: data, ssize; out: m_start, m_end, m_nonempty, n_blobs
page	out: uncompressed page, may be trashed
all	in: TRUE=decompress the whole page; FALSE=verify but do not copy some page header fields that should not change after page creation

Definition at line 2939 of file page0zip.cc.

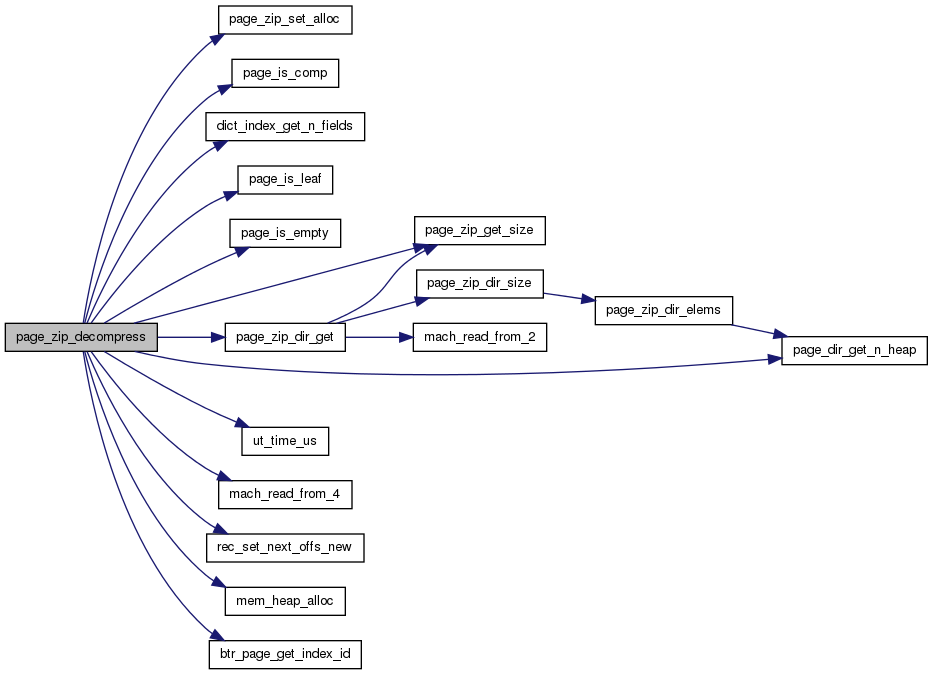

Here is the call graph for this function:

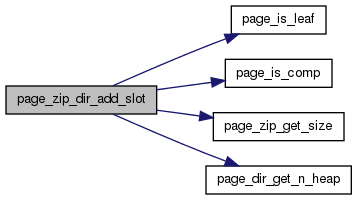

UNIV_INTERN void page_zip_dir_add_slot	(	page_zip_des_t *	page_zip,
		ulint	is_clustered
	)

Add a slot to the dense page directory.

Parameters

page_zip	in/out: compressed page
is_clustered	in: nonzero for clustered index, zero for others

Definition at line 4425 of file page0zip.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE ibool page_zip_dir_cmp	(	const rec_t *	rec1,
		const rec_t *	rec2
	)

Compare two page directory entries.

Returns: positive if rec1 > rec2

Parameters

rec1	in: rec1
rec2	in: rec2

Definition at line 1535 of file page0zip.cc.

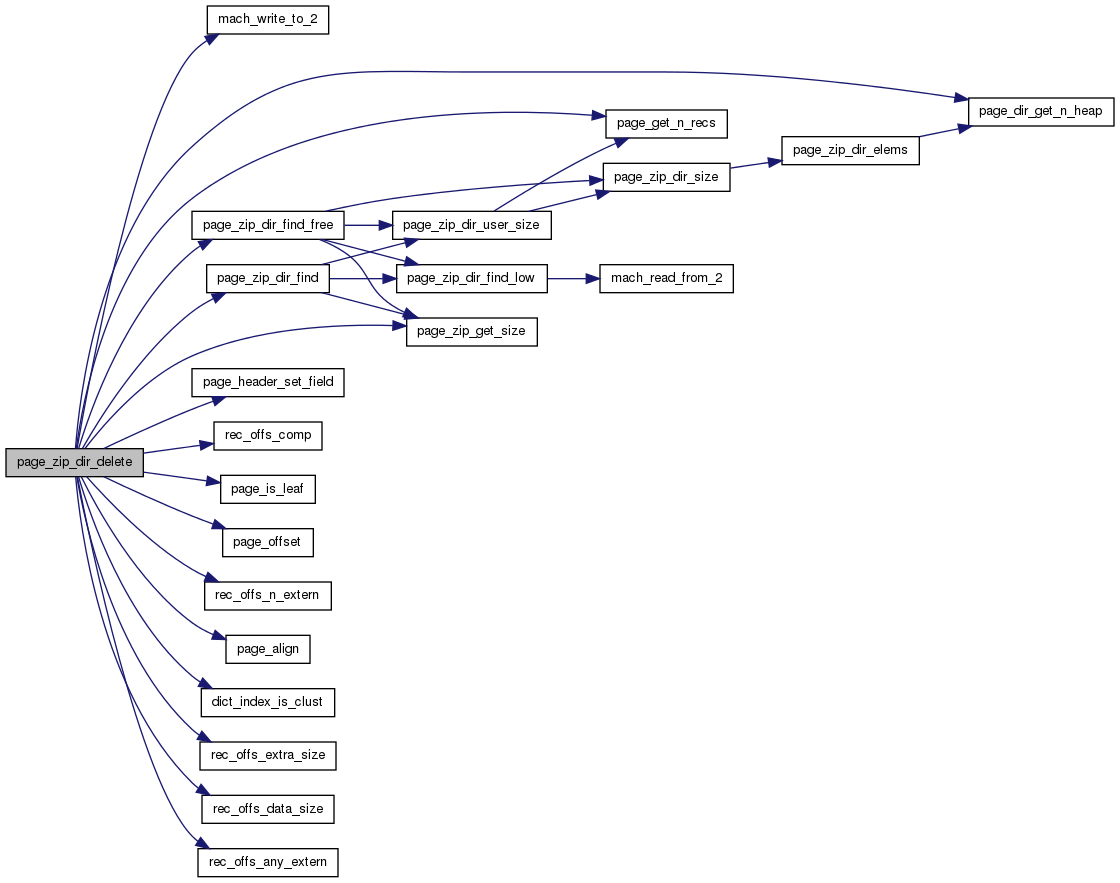

UNIV_INTERN void page_zip_dir_delete	(	page_zip_des_t *	page_zip,
		byte *	rec,
		const dict_index_t *	index,
		const ulint *	offsets,
		const byte *	free
	)

Shift the dense page directory and the array of BLOB pointers when a record is deleted.

Parameters

page_zip	in/out: compressed page
rec	in: deleted record
index	in: index of rec
offsets	in: rec_get_offsets(rec)
free	in: previous start of the free list

Definition at line 4327 of file page0zip.cc.

Here is the call graph for this function:

UNIV_INLINE ulint page_zip_dir_elems ( const page_zip_des_t * page_zip )

Gets the number of elements in the dense page directory, including deleted records (the free list).

Returns: number of elements in the dense page directory

Parameters

page_zip in: compressed page

Definition at line 182 of file page0zip.cc.

Here is the call graph for this function:

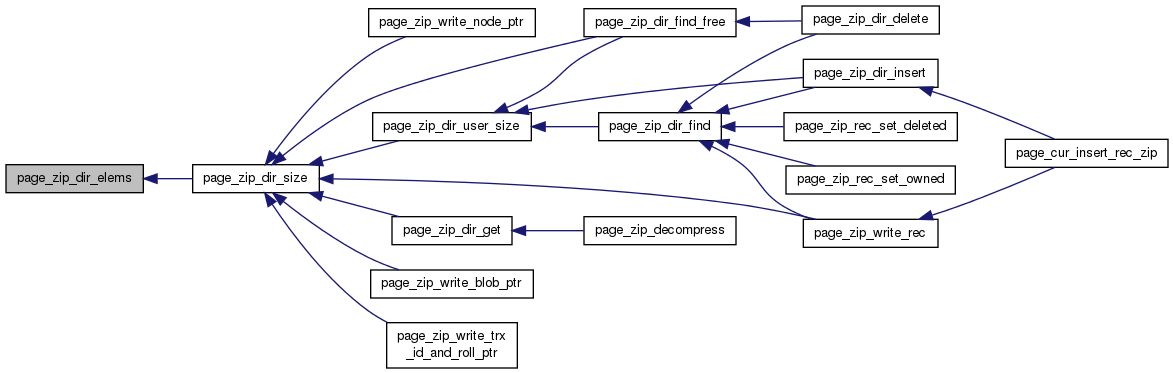

Here is the caller graph for this function:

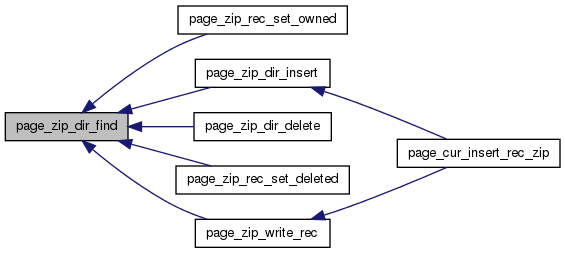

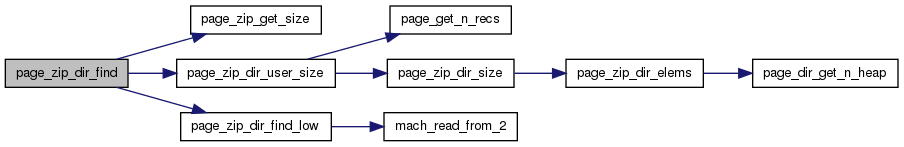

UNIV_INLINE byte* page_zip_dir_find	(	page_zip_des_t *	page_zip,
		ulint	offset
	)

Find the slot of the given non-free record in the dense page directory.

Returns: dense directory slot, or NULL if record not found

Parameters

page_zip	in: compressed page
offset	in: offset of user record

Definition at line 279 of file page0zip.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

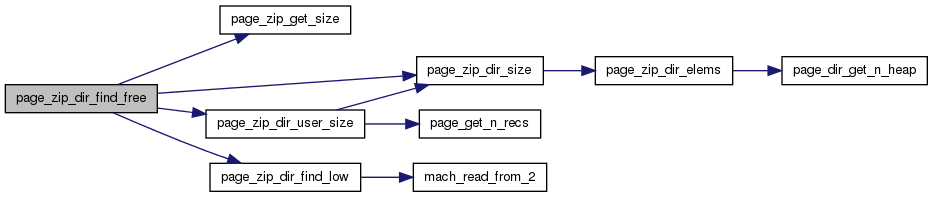

UNIV_INLINE byte* page_zip_dir_find_free	(	page_zip_des_t *	page_zip,
		ulint	offset
	)

Find the slot of the given free record in the dense page directory.

Returns: dense directory slot, or NULL if record not found

Parameters

page_zip	in: compressed page
offset	in: offset of user record

Definition at line 298 of file page0zip.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE byte* page_zip_dir_find_low	(	byte *	slot,
		byte *	end,
		ulint	offset
	)

Find the slot of the given record in the dense page directory.

Returns: dense directory slot, or NULL if record not found

Parameters

slot	in: start of records
end	in: end of records
offset	in: offset of user record

Definition at line 256 of file page0zip.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE ulint page_zip_dir_get	(	const page_zip_des_t *	page_zip,
		ulint	slot
	)

Read a given slot in the dense page directory.

Returns: record offset on the uncompressed page, possibly ORed with PAGE_ZIP_DIR_SLOT_DEL or PAGE_ZIP_DIR_SLOT_OWNED

Parameters

page_zip	in: compressed page
slot	in: slot (0=first user record)

Definition at line 318 of file page0zip.cc.

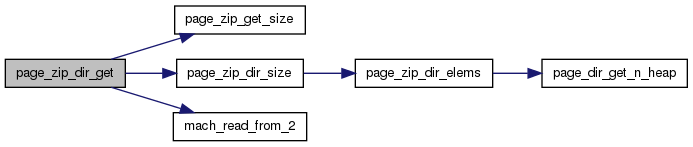

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void page_zip_dir_insert	(	page_zip_des_t *	page_zip,
		const byte *	prev_rec,
		const byte *	free_rec,
		byte *	rec
	)

Insert a record to the dense page directory.

Parameters

page_zip	in/out: compressed page
prev_rec	in: record after which to insert
free_rec	in: record from which rec was allocated, or NULL
rec	in: record to insert

Definition at line 4248 of file page0zip.cc.

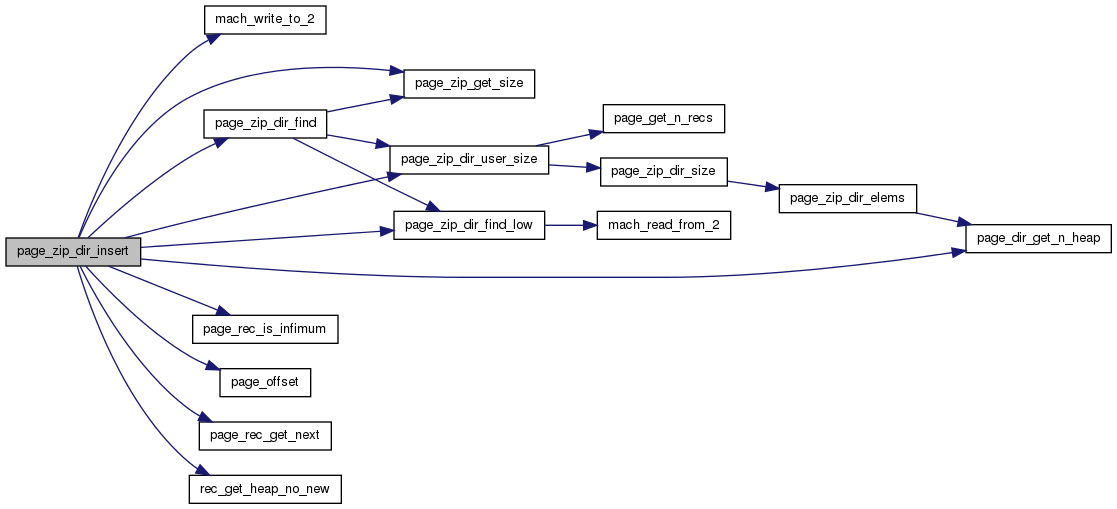

Here is the call graph for this function:

Here is the caller graph for this function:

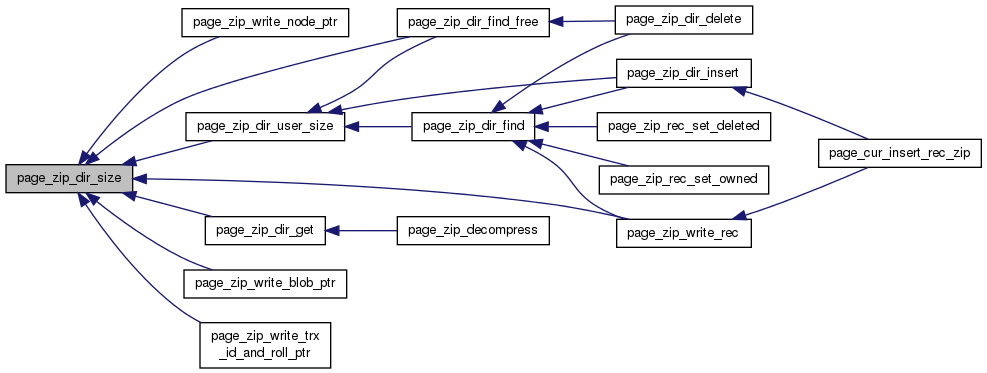

UNIV_INLINE ulint page_zip_dir_size ( const page_zip_des_t * page_zip )

Gets the size of the compressed page trailer (the dense page directory), including deleted records (the free list).

Returns: length of dense page directory, in bytes

Parameters

page_zip in: compressed page

Definition at line 196 of file page0zip.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE ulint page_zip_dir_start_offs	(	const page_zip_des_t *	page_zip,
		ulint	n_dense
	)

Gets an offset to the compressed page trailer (the dense page directory), including deleted records (the free list).

Returns: offset of the dense page directory

Parameters

page_zip	in: compressed page
n_dense	in: directory size

Definition at line 209 of file page0zip.cc.

Here is the call graph for this function:

UNIV_INLINE ulint page_zip_dir_user_size ( const page_zip_des_t * page_zip )

Gets the size of the compressed page trailer (the dense page directory), only including user records (excluding the free list).

Returns: length of dense page directory comprising existing records, in bytes

Parameters

page_zip in: compressed page

Definition at line 241 of file page0zip.cc.

Here is the call graph for this function:

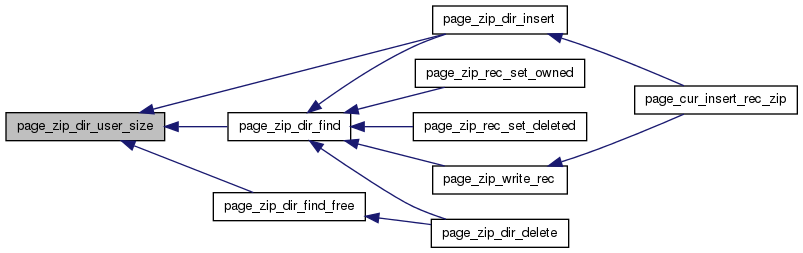

Here is the caller graph for this function:

UNIV_INTERN ulint page_zip_empty_size	(	ulint	n_fields,
		ulint	zip_size
	)

Determine the guaranteed free space on an empty page.

Returns: minimum payload size on the page

Parameters

n_fields	in: number of columns in the index
zip_size	in: compressed page size in bytes

Definition at line 156 of file page0zip.cc.

UNIV_INTERN byte* page_zip_parse_compress	(	byte *	ptr,
		byte *	end_ptr,
		page_t *	page,
		page_zip_des_t *	page_zip
	)

Parses a log record of compressing an index page.

Returns: end of log record or NULL

Parameters

ptr	in: buffer
end_ptr	in: buffer end
page	out: uncompressed page
page_zip	out: compressed page

Definition at line 4766 of file page0zip.cc.

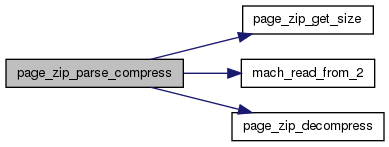

Here is the call graph for this function:

UNIV_INTERN byte* page_zip_parse_write_blob_ptr	(	byte *	ptr,
		byte *	end_ptr,
		page_t *	page,
		page_zip_des_t *	page_zip
	)

Parses a log record of writing a BLOB pointer of a record.

Returns: end of log record or NULL

Parameters

ptr	in: redo log buffer
end_ptr	in: redo log buffer end
page	in/out: uncompressed page
page_zip	in/out: compressed page

Definition at line 3761 of file page0zip.cc.

Here is the call graph for this function:

UNIV_INTERN byte* page_zip_parse_write_header	(	byte *	ptr,
		byte *	end_ptr,
		page_t *	page,
		page_zip_des_t *	page_zip
	)

Parses a log record of writing to the header of a page.

Returns: end of log record or NULL

Parameters

ptr	in: redo log buffer
end_ptr	in: redo log buffer end
page	in/out: uncompressed page
page_zip	in/out: compressed page

Definition at line 4482 of file page0zip.cc.

UNIV_INTERN byte* page_zip_parse_write_node_ptr	(	byte *	ptr,
		byte *	end_ptr,
		page_t *	page,
		page_zip_des_t *	page_zip
	)

Parses a log record of writing the node pointer of a record.

Returns: end of log record or NULL

Parameters

ptr	in: redo log buffer
end_ptr	in: redo log buffer end
page	in/out: uncompressed page
page_zip	in/out: compressed page

Definition at line 3904 of file page0zip.cc.

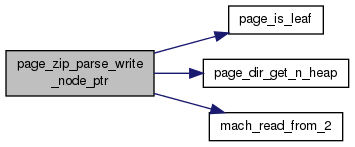

Here is the call graph for this function:

UNIV_INTERN void page_zip_rec_set_deleted	(	page_zip_des_t *	page_zip,
		const byte *	rec,
		ulint	flag
	)

Write the "deleted" flag of a record on a compressed page. The flag must already have been written on the uncompressed page.

Parameters

page_zip	in/out: compressed page
rec	in: record on the uncompressed page
flag	in: the deleted flag (nonzero=TRUE)

Definition at line 4204 of file page0zip.cc.

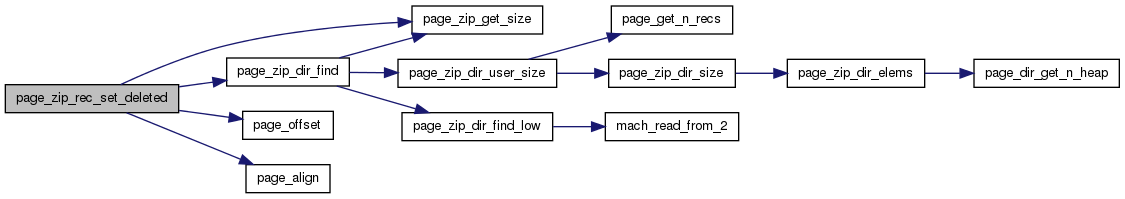

Here is the call graph for this function:

UNIV_INTERN void page_zip_rec_set_owned	(	page_zip_des_t *	page_zip,
		const byte *	rec,
		ulint	flag
	)

Write the "owned" flag of a record on a compressed page. The n_owned field must already have been written on the uncompressed page.

Parameters

page_zip	in/out: compressed page
rec	in: record on the uncompressed page
flag	in: the owned flag (nonzero=TRUE)

Definition at line 4228 of file page0zip.cc.

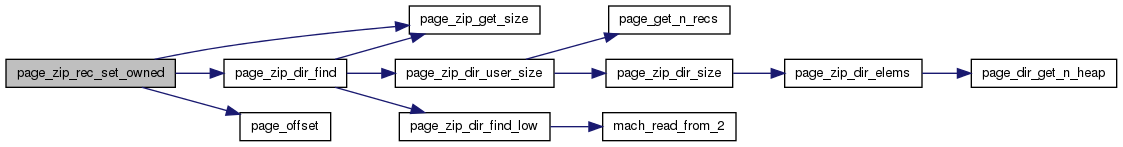

Here is the call graph for this function:

UNIV_INTERN ibool page_zip_reorganize	(	buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Reorganize and compress a page. This is a low-level operation for compressed pages, to be used when page_zip_compress() fails. On success, a redo log entry MLOG_ZIP_PAGE_COMPRESS will be written. The function btr_page_reorganize() should be preferred whenever possible. IMPORTANT: if page_zip_reorganize() is invoked on a leaf page of a non-clustered index, the caller must update the insert buffer free bits in the same mini-transaction in such a way that the modification will be redo-logged.

Returns: TRUE on success, FALSE on failure; page_zip will be left intact on failure, but page will be overwritten.

Parameters

block	in/out: page with compressed page; on the compressed page, in: size; out: data, n_blobs, m_start, m_end, m_nonempty
index	in: index of the B-tree node
mtr	in: mini-transaction

Definition at line 4585 of file page0zip.cc.

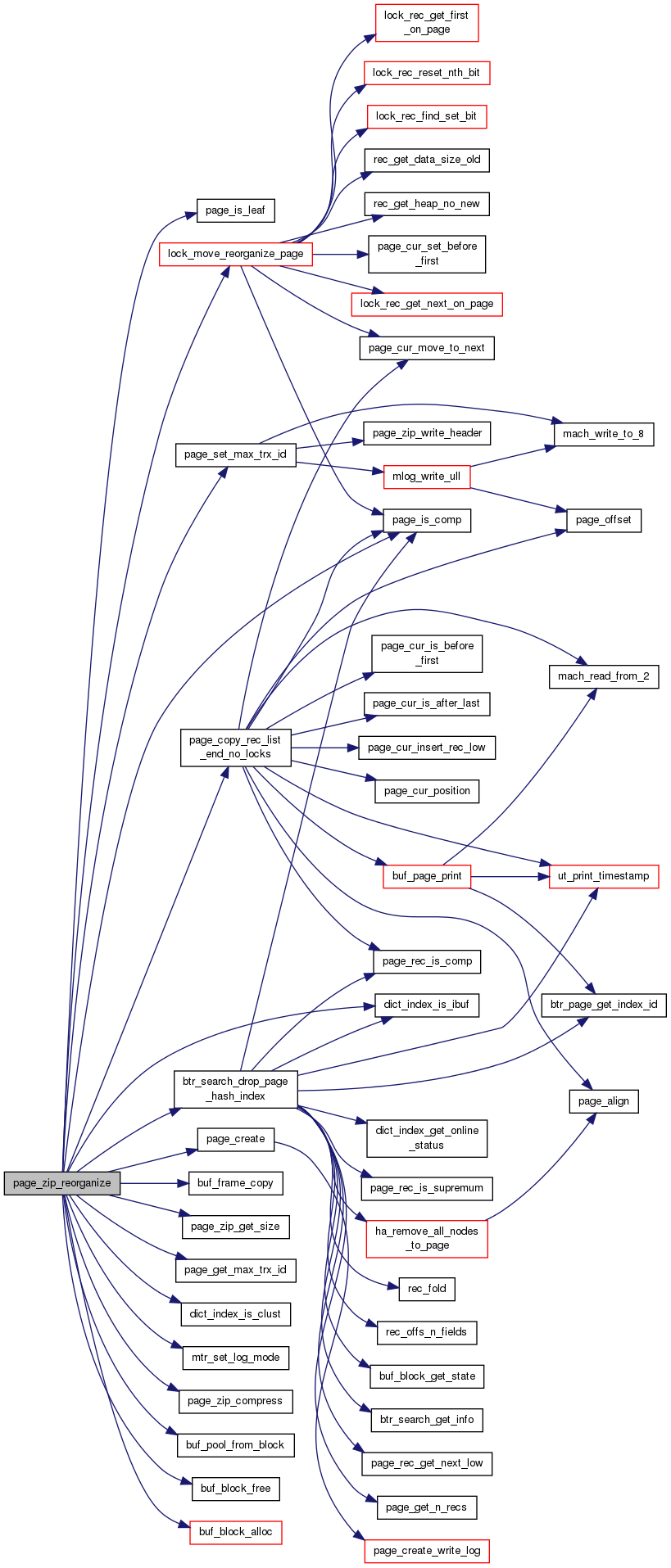

Here is the call graph for this function:

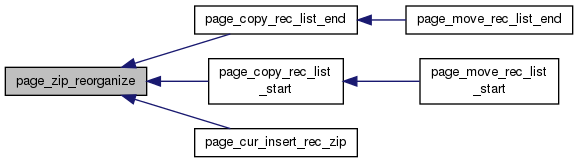

Here is the caller graph for this function:

UNIV_INTERN void page_zip_set_alloc	(	void *	stream,
		mem_heap_t *	heap
	)

Configure the zlib allocator to use the given memory heap.

Parameters

stream	in/out: zlib stream
heap	in: memory heap to use

Definition at line 749 of file page0zip.cc.

Here is the caller graph for this function:

UNIV_INTERN ibool page_zip_verify_checksum	(	const void *	data,
		ulint	size
	)

Verify a compressed page's checksum.

Returns: TRUE if the stored checksum is valid according to the value of innodb_checksum_algorithm

Parameters

data	in: compressed page
size	in: size of compressed page

Definition at line 4881 of file page0zip.cc.

Here is the call graph for this function:

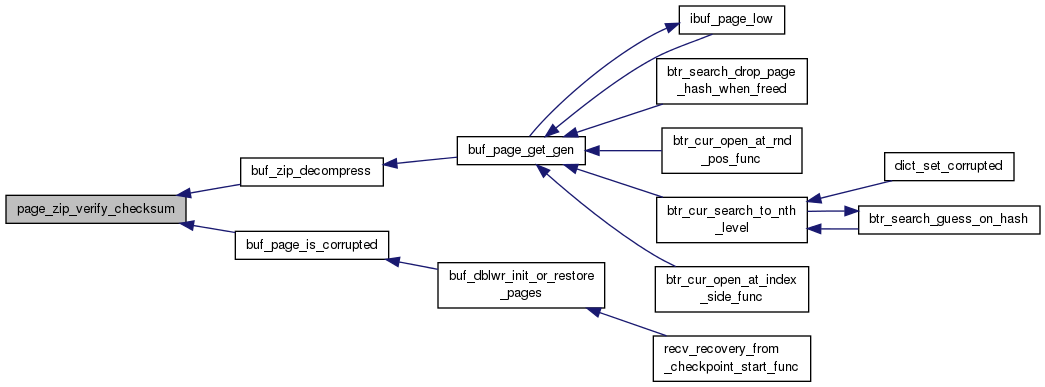

Here is the caller graph for this function:

UNIV_INTERN void page_zip_write_blob_ptr	(	page_zip_des_t *	page_zip,
		const byte *	rec,
		dict_index_t *	index,
		const ulint *	offsets,
		ulint	n,
		mtr_t *	mtr
	)

Write a BLOB pointer of a record on the leaf page of a clustered index. The information must already have been updated on the uncompressed page.

Parameters

page_zip	in/out: compressed page
rec	in/out: record whose data is being written
index	in: index of the page
offsets	in: rec_get_offsets(rec, index)
n	in: column index
mtr	in: mini-transaction handle, or NULL if no logging is needed

Definition at line 3820 of file page0zip.cc.

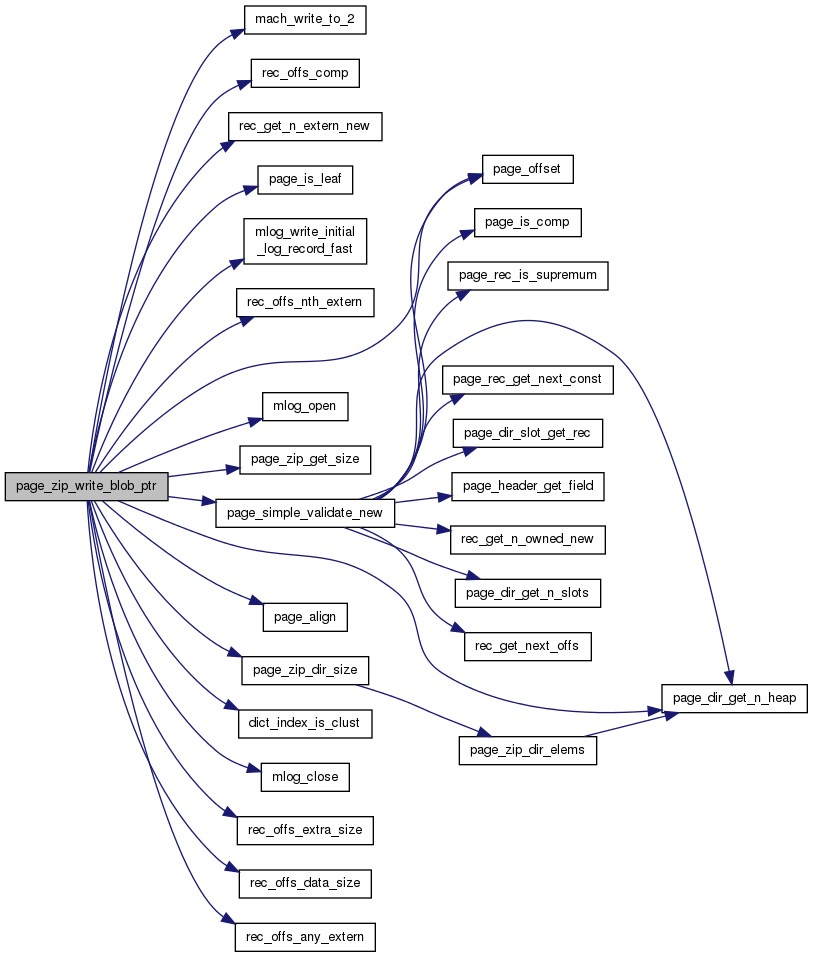

Here is the call graph for this function:

UNIV_INTERN void page_zip_write_header_log	(	const byte *	data,
		ulint	length,
		mtr_t *	mtr
	)

Write a log record of writing to the uncompressed header portion of a page.

Parameters

data	in: data on the uncompressed page
length	in: length of the data
mtr	in: mini-transaction

Definition at line 4540 of file page0zip.cc.

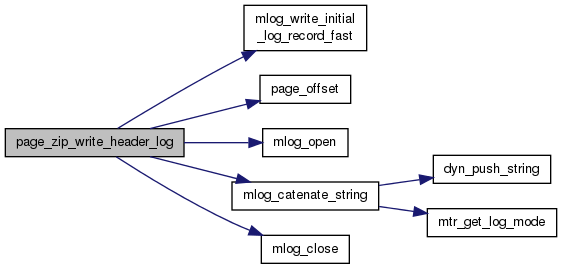

Here is the call graph for this function:

UNIV_INTERN void page_zip_write_node_ptr	(	page_zip_des_t *	page_zip,
		byte *	rec,
		ulint	size,
		ulint	ptr,
		mtr_t *	mtr
	)

Write the node pointer of a record on a non-leaf compressed page.

Parameters

page_zip	in/out: compressed page
rec	in/out: record
size	in: data size of rec
ptr	in: node pointer
mtr	in: mini-transaction, or NULL

Definition at line 3978 of file page0zip.cc.

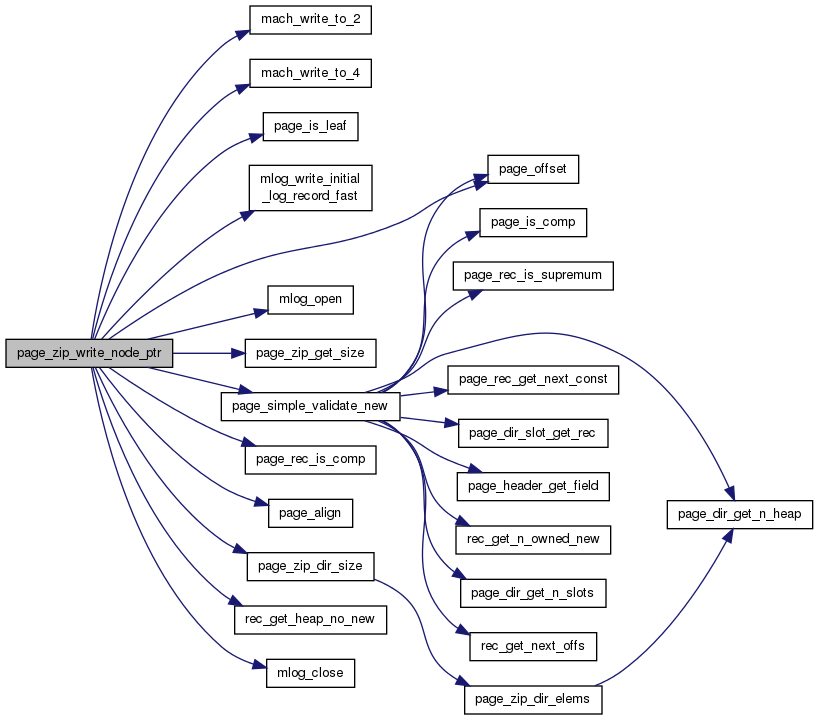

Here is the call graph for this function:

UNIV_INTERN void page_zip_write_rec	(	page_zip_des_t *	page_zip,
		const byte *	rec,
		dict_index_t *	index,
		const ulint *	offsets,
		ulint	create
	)

Write an entire record on the compressed page. The data must already have been written to the uncompressed page.

Parameters

page_zip	in/out: compressed page
rec	in: record being written
index	in: the index the record belongs to
offsets	in: rec_get_offsets(rec, index)
create	in: nonzero=insert, zero=update

Definition at line 3575 of file page0zip.cc.

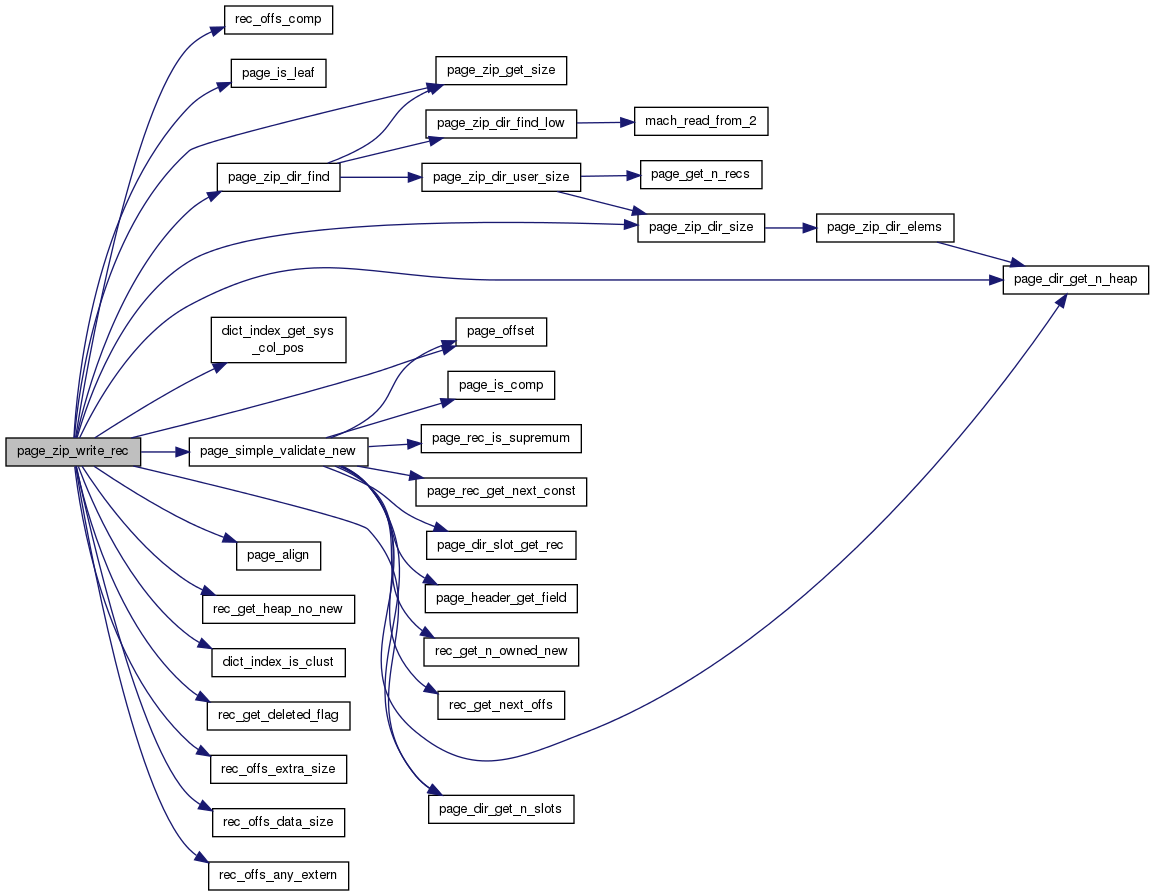

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void page_zip_write_trx_id_and_roll_ptr	(	page_zip_des_t *	page_zip,
		byte *	rec,
		const ulint *	offsets,
		ulint	trx_id_col,
		trx_id_t	trx_id,
		roll_ptr_t	roll_ptr
	)

Write the trx_id and roll_ptr of a record on a B-tree leaf node page.

Parameters

page_zip	in/out: compressed page
rec	in/out: record
offsets	in: rec_get_offsets(rec, index)
trx_id_col	in: column number of TRX_ID in rec
trx_id	in: transaction identifier
roll_ptr	in: roll_ptr

Definition at line 4045 of file page0zip.cc.

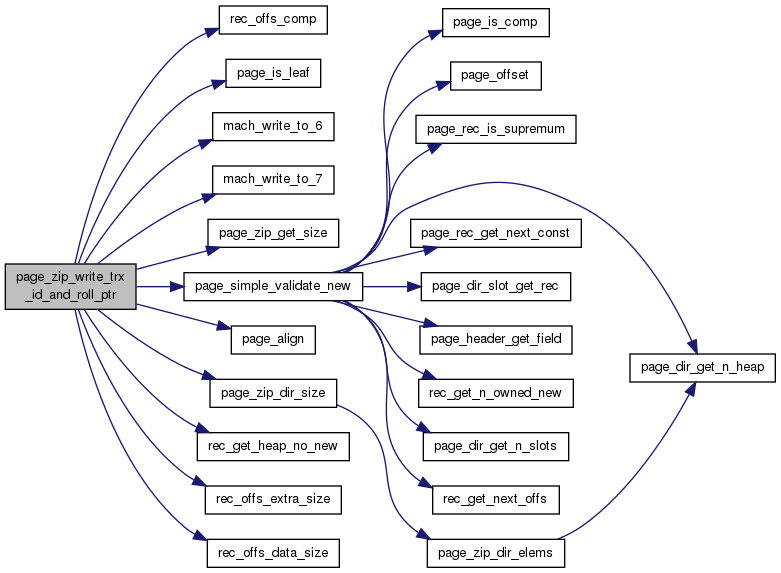

Here is the call graph for this function:

Variable Documentation

UNIV_INTERN page_zip_stat_t page_zip_stat[PAGE_ZIP_SSIZE_MAX]

Statistics on compression, indexed by page_zip_des_t::ssize - 1

Definition at line 61 of file page0zip.cc.

UNIV_INTERN page_zip_stat_per_index_t page_zip_stat_per_index

Statistics on compression, indexed by index->id

Definition at line 63 of file page0zip.cc.

UNIV_INTERN ib_mutex_t page_zip_stat_per_index_mutex

Mutex protecting page_zip_stat_per_index

Definition at line 65 of file page0zip.cc.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation

Variable Documentation
