#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <errno.h>
#include <sys/time.h>
#include "innodb_api.h"
#include "memcached/util.h"
#include <innodb_cb_api.h>
#include <innodb_config.h>

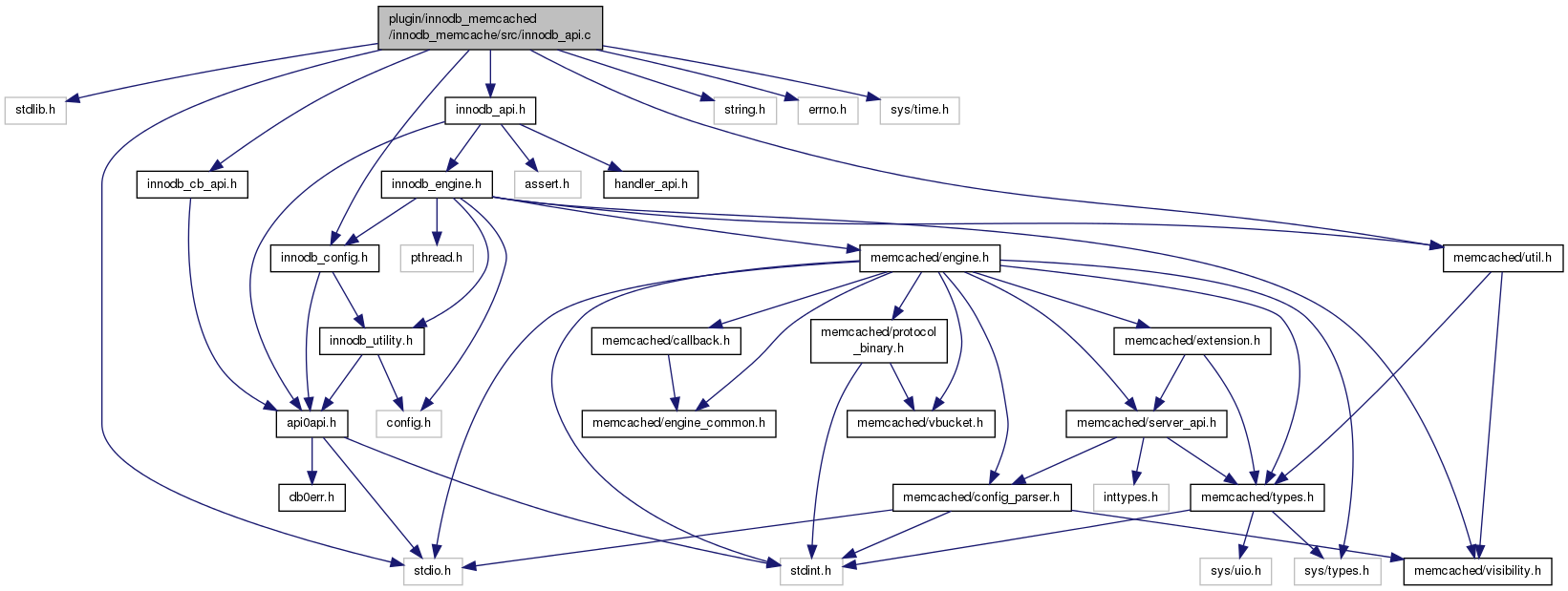

Include dependency graph for innodb_api.c:

Macros
#define	UPDATE_ALL_VAL_COL -1
#define	SET_EXP_TIME(exp)

Functions
void	register_innodb_cb (void *p)
ib_err_t	innodb_api_begin (innodb_engine_t engine, const char dbname, const char name, innodb_conn_data_t conn_data, ib_trx_t ib_trx, ib_crsr_t crsr, ib_crsr_t idx_crsr, ib_lck_mode_t lock_mode)
ib_err_t	innodb_api_search (innodb_conn_data_t cursor_data, ib_crsr_t crsr, const char key, int len, mci_item_t item, ib_tpl_t *r_tpl, bool sel_only)
uint64_t	mci_get_time (void)
ib_err_t	innodb_api_insert (innodb_engine_t engine, innodb_conn_data_t cursor_data, const char key, int len, uint32_t val_len, uint64_t exp, uint64_t cas, uint64_t flags)
ENGINE_ERROR_CODE	innodb_api_delete (innodb_engine_t engine, innodb_conn_data_t cursor_data, const char *key, int len)
ENGINE_ERROR_CODE	innodb_api_arithmetic (innodb_engine_t engine, innodb_conn_data_t cursor_data, const char key, int len, int delta, bool increment, uint64_t cas, rel_time_t exp_time __attribute__((unused)), bool create, uint64_t initial, uint64_t *out_result)
ENGINE_ERROR_CODE	innodb_api_store (innodb_engine_t engine, innodb_conn_data_t cursor_data, const char key, int len, uint32_t val_len, uint64_t exp, uint64_t cas, uint64_t input_cas, uint64_t flags, ENGINE_STORE_OPERATION op)
ENGINE_ERROR_CODE	innodb_api_flush (innodb_engine_t engine, innodb_conn_data_t conn_data, const char dbname, const char name)

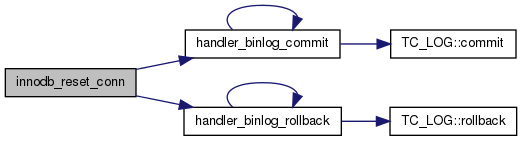

bool	innodb_reset_conn (innodb_conn_data_t *conn_data, bool has_lock, bool commit, bool has_binlog)
void	innodb_api_cursor_reset (innodb_engine_t engine, innodb_conn_data_t conn_data, conn_op_type_t op_type, bool commit)
ib_err_t	innodb_cb_cursor_close (ib_crsr_t ib_crsr)
ib_err_t	innodb_cb_trx_commit (ib_trx_t ib_trx)
ib_err_t	innodb_cb_close_thd (void *thd)
ib_trx_t	innodb_cb_trx_begin (ib_trx_level_t ib_trx_level)
ib_err_t	innodb_cb_cursor_new_trx (ib_crsr_t ib_crsr, ib_trx_t ib_trx)
ib_err_t	innodb_cb_cursor_lock (innodb_engine_t *eng, ib_crsr_t ib_crsr, ib_lck_mode_t ib_lck_mode)

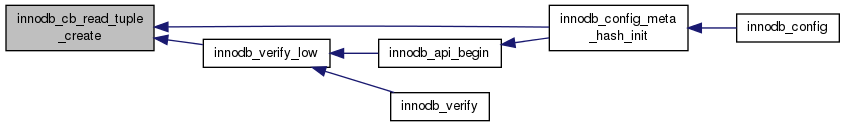

ib_tpl_t	innodb_cb_read_tuple_create (ib_crsr_t ib_crsr)
ib_err_t	innodb_cb_cursor_first (ib_crsr_t ib_crsr)
ib_err_t	innodb_cb_read_row (ib_crsr_t ib_crsr, ib_tpl_t ib_tpl)
ib_ulint_t	innodb_cb_col_get_meta (ib_tpl_t ib_tpl, ib_ulint_t i, ib_col_meta_t *ib_col_meta)
void	innodb_cb_tuple_delete (ib_tpl_t ib_tpl)
ib_ulint_t	innodb_cb_tuple_get_n_cols (const ib_tpl_t ib_tpl)
const void *	innodb_cb_col_get_value (ib_tpl_t ib_tpl, ib_ulint_t i)
ib_err_t	innodb_cb_open_table (const char name, ib_trx_t ib_trx, ib_crsr_t ib_crsr)
char *	innodb_cb_col_get_name (ib_crsr_t ib_crsr, ib_ulint_t i)
ib_err_t	innodb_cb_cursor_open_index_using_name (ib_crsr_t ib_open_crsr, const char index_name, ib_crsr_t ib_crsr, int idx_type, ib_id_u64_t idx_id)
int	innodb_cb_get_cfg ()

Variables
option_t	config_option_names []

Detailed Description

InnoDB APIs to support memcached commands

Created 04/12/2011 Jimmy Yang

Definition in file innodb_api.c.

Macro Definition Documentation

#define SET_EXP_TIME ( exp )

Value:

if (exp) {                              \
        if (exp < 60*60*24*30) {        \
                exp += mci_get_time();  \
        }                               \
}

Set expiration time. If the exp sent by client is larger than

60*60*24*30 (number of seconds in 30 days), it will be considered to be real Unix time value rather than an offset from current time

Definition at line 108 of file innodb_api.c.

#define UPDATE_ALL_VAL_COL -1

Whether to update all columns' value or a specific column value

Definition at line 38 of file innodb_api.c.

Function Documentation

ENGINE_ERROR_CODE innodb_api_arithmetic	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	cursor_data,
		const char *	key,
		int	len,
		int	delta,
		bool	increment,
		uint64_t *	cas,
		rel_time_t exp_time	__attribute__(unused),
		bool	create,
		uint64_t	initial,
		uint64_t *	out_result
	)

Update a row with arithmetic operations

Returns: ENGINE_SUCCESS if successful otherwise ENGINE_NOT_STORED

Parameters

engine	in: InnoDB Memcached engine
cursor_data	in/out: cursor info
key	in: key value
len	in: key length
delta	in: value to add or subtract
increment	in: increment or decrement
cas	out: cas
__attribute__	in: expire time
create	in: whether to create new entry if not found
initial	in: initialize value
out_result	in: arithmetic result

Definition at line 1533 of file innodb_api.c.

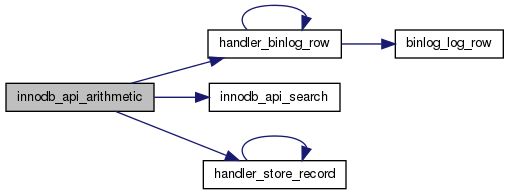

Here is the call graph for this function:

ib_err_t innodb_api_begin	(	innodb_engine_t *	engine,
		const char *	dbname,
		const char *	name,
		innodb_conn_data_t *	conn_data,
		ib_trx_t	ib_trx,
		ib_crsr_t *	crsr,
		ib_crsr_t *	idx_crsr,
		ib_lck_mode_t	lock_mode
	)

Open a table and return a cursor for the table.

Returns: DB_SUCCESS if table successfully opened

Parameters

engine	in: InnoDB Memcached engine
dbname	in: NUL terminated database name
name	in: NUL terminated table name
conn_data	in/out: connnection specific data
ib_trx	in: transaction
crsr	out: innodb cursor
idx_crsr	out: innodb index cursor
lock_mode	in: lock mode

Definition at line 139 of file innodb_api.c.

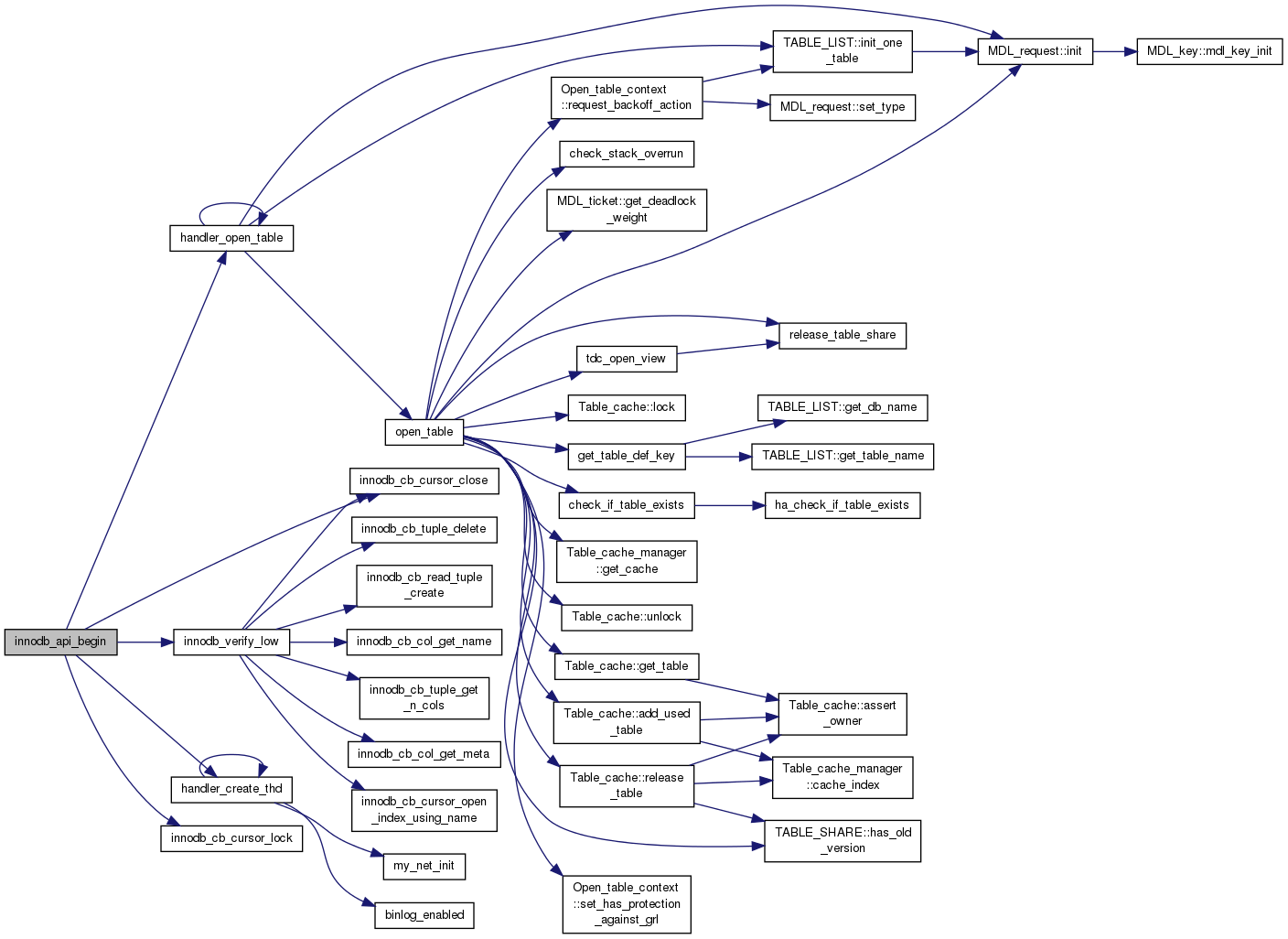

Here is the call graph for this function:

Here is the caller graph for this function:

void innodb_api_cursor_reset	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	conn_data,
		conn_op_type_t	op_type,
		bool	commit
	)

Increment read and write counters, if they exceed the batch size, commit the transaction.

Parameters

engine	in: InnoDB Memcached engine
conn_data	in/out: cursor affiliated with a connection
op_type	in: type of DML performed
commit	in: commit or abort trx

Definition at line 1984 of file innodb_api.c.

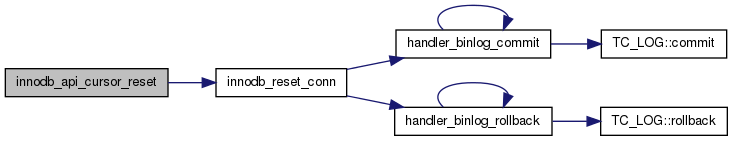

Here is the call graph for this function:

ENGINE_ERROR_CODE innodb_api_delete	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	cursor_data,
		const char *	key,
		int	len
	)

Delete a row, support the memcached "remove" command

Returns: ENGINE_SUCCESS if successful otherwise, error code

Parameters

engine	in: InnoDB Memcached engine
cursor_data	in/out: cursor info
key	in: value to insert
len	in: value length

Definition at line 1367 of file innodb_api.c.

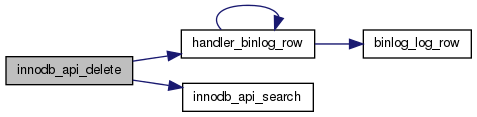

Here is the call graph for this function:

ENGINE_ERROR_CODE innodb_api_flush	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	conn_data,
		const char *	dbname,
		const char *	name
	)

Implement the "flush_all" command, map to InnoDB's "trunk table" operation return ENGINE_SUCCESS is all successful

Parameters

engine	in: InnoDB Memcached engine
conn_data	in/out: cursor affiliated with a connection
dbname	in: database name
name	in: table name

Definition at line 1842 of file innodb_api.c.

Here is the call graph for this function:

ib_err_t innodb_api_insert	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	cursor_data,
		const char *	key,
		int	len,
		uint32_t	val_len,
		uint64_t	exp,
		uint64_t *	cas,
		uint64_t	flags
	)

Insert a row

Returns: DB_SUCCESS if successful, otherwise, error code

Parameters

engine	in: InnoDB Memcached engine
cursor_data	in/out: cursor info
key	in: key and value to insert
len	in: key length
val_len	in: value length
exp	in: expiration time
cas	in/out: cas value
flags	in: flags

Definition at line 1234 of file innodb_api.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t innodb_api_search	(	innodb_conn_data_t *	cursor_data,
		ib_crsr_t *	crsr,
		const char *	key,
		int	len,
		mci_item_t *	item,
		ib_tpl_t *	r_tpl,
		bool	sel_only
	)

Position a row according to the search key, and fetch value if needed

Returns: DB_SUCCESS if successful otherwise, error code

Parameters

cursor_data	in/out: cursor info
crsr	in/out: cursor used to search
key	in: key to search
len	in: key length
item	in: result
r_tpl	in: tpl for other DML operations
sel_only	in: for select only

Definition at line 748 of file innodb_api.c.

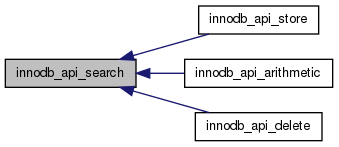

Here is the caller graph for this function:

ENGINE_ERROR_CODE innodb_api_store	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	cursor_data,
		const char *	key,
		int	len,
		uint32_t	val_len,
		uint64_t	exp,
		uint64_t *	cas,
		uint64_t	input_cas,
		uint64_t	flags,
		ENGINE_STORE_OPERATION	op
	)

This is the main interface to following memcached commands: 1) add 2) replace 3) append 4) prepend 5) set 6) cas

Returns: ENGINE_SUCCESS if successful, otherwise, error code

Parameters

engine	in: InnoDB Memcached engine
cursor_data	in/out: cursor info
key	in: key value
len	in: key length
val_len	in: value length
exp	in: expire time
cas	out: cas value
input_cas	in: cas value supplied by user
flags	in: flags
op	in: Operations

Definition at line 1727 of file innodb_api.c.

Here is the call graph for this function:

ib_err_t innodb_cb_close_thd ( void * thd )

Close table associated to the connection

Returns: DB_SUCCESS if successful or error code

Parameters

thd in: THD

Definition at line 2059 of file innodb_api.c.

ib_ulint_t innodb_cb_col_get_meta	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_col_meta_t *	ib_col_meta
	)

Get a column type, length and attributes from the tuple.

Returns: len of column data

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple
ib_col_meta	out: column meta data

Definition at line 2156 of file innodb_api.c.

Here is the caller graph for this function:

char* innodb_cb_col_get_name	(	ib_crsr_t	ib_crsr,
		ib_ulint_t	i
	)

Get a column name from the tuple.

Returns: name of the column

Parameters

ib_crsr	in: InnoDB cursor instance
i	in: column index in tuple

Definition at line 2216 of file innodb_api.c.

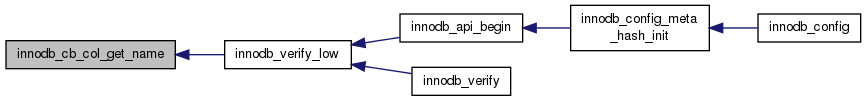

Here is the caller graph for this function:

const void* innodb_cb_col_get_value	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i
	)

Get a column value pointer from the tuple.

Returns: NULL or pointer to buffer

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple

Definition at line 2191 of file innodb_api.c.

ib_err_t innodb_cb_cursor_close ( ib_crsr_t ib_crsr )

Following are a set of InnoDB callback function wrappers for functions

that will be used outside innodb_api.c Close a cursor

Returns: DB_SUCCESS if successful or error code

Parameters

ib_crsr in/out: cursor to close

Definition at line 2037 of file innodb_api.c.

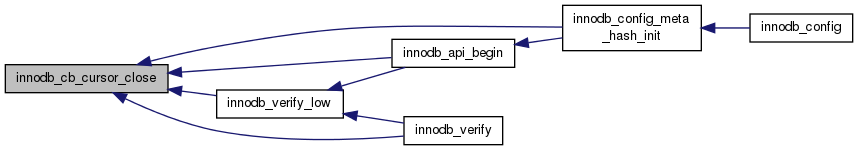

Here is the caller graph for this function:

ib_err_t innodb_cb_cursor_first ( ib_crsr_t ib_crsr )

Move cursor to the first record in the table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 2133 of file innodb_api.c.

Here is the caller graph for this function:

ib_err_t innodb_cb_cursor_lock	(	innodb_engine_t *	eng,
		ib_crsr_t	ib_crsr,
		ib_lck_mode_t	ib_lck_mode
	)

Set the Lock an InnoDB cursor/table.

Returns: DB_SUCCESS or error code

Parameters

eng	in: InnoDB Memcached engine
ib_crsr	in/out: InnoDB cursor
ib_lck_mode	in: InnoDB lock mode

Definition at line 2093 of file innodb_api.c.

Here is the caller graph for this function:

ib_err_t innodb_cb_cursor_new_trx	(	ib_crsr_t	ib_crsr,
		ib_trx_t	ib_trx
	)

update the cursor with new transactions and also reset the cursor

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_trx	in: transaction

Definition at line 2081 of file innodb_api.c.

ib_err_t innodb_cb_cursor_open_index_using_name	(	ib_crsr_t	ib_open_crsr,
		const char *	index_name,
		ib_crsr_t *	ib_crsr,
		int *	idx_type,
		ib_id_u64_t *	idx_id
	)

Open an InnoDB secondary index cursor and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

ib_open_crsr	in: open/active cursor
index_name	in: secondary index name
ib_crsr	out,own: InnoDB index cursor
idx_type	out: index is cluster index
idx_id	out: index id

Definition at line 2228 of file innodb_api.c.

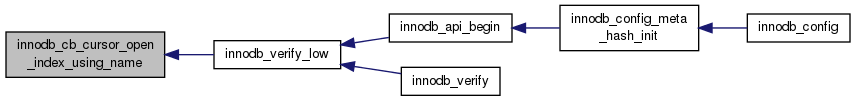

Here is the caller graph for this function:

int innodb_cb_get_cfg ( )

Get InnoDB API configure option

Returns: configure status

Definition at line 2243 of file innodb_api.c.

ib_err_t innodb_cb_open_table	(	const char *	name,
		ib_trx_t	ib_trx,
		ib_crsr_t *	ib_crsr
	)

Open a table using the table name.

Returns: table instance if found

Parameters

name	in: table name to lookup
ib_trx	in: transaction
ib_crsr	in: cursor to be used

Definition at line 2203 of file innodb_api.c.

Here is the caller graph for this function:

ib_err_t innodb_cb_read_row	(	ib_crsr_t	ib_crsr,
		ib_tpl_t	ib_tpl
	)

Read current row.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in: InnoDB cursor instance
ib_tpl	out: read cols into this tuple

Definition at line 2144 of file innodb_api.c.

Here is the caller graph for this function:

ib_tpl_t innodb_cb_read_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple used for index/table search.

Returns: own: Tuple for current index

Parameters

ib_crsr in: Cursor instance

Definition at line 2122 of file innodb_api.c.

Here is the caller graph for this function:

ib_trx_t innodb_cb_trx_begin ( ib_trx_level_t ib_trx_level )

Start a transaction

Returns: DB_SUCCESS if successful or error code

Parameters

ib_trx_level in: trx isolation level

Definition at line 2070 of file innodb_api.c.

Here is the caller graph for this function:

ib_err_t innodb_cb_trx_commit ( ib_trx_t ib_trx )

Commit the transaction

Returns: DB_SUCCESS if successful or error code

Parameters

ib_trx in/out: transaction to commit

Definition at line 2048 of file innodb_api.c.

Here is the caller graph for this function:

void innodb_cb_tuple_delete ( ib_tpl_t ib_tpl )

Destroy an InnoDB tuple.

Parameters

ib_tpl in,own: Tuple instance to delete

Definition at line 2168 of file innodb_api.c.

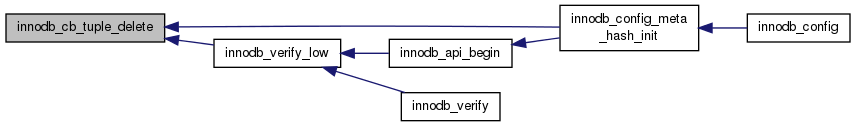

Here is the caller graph for this function:

ib_ulint_t innodb_cb_tuple_get_n_cols ( const ib_tpl_t ib_tpl )

Return the number of columns in the tuple definition.

Returns: number of columns

Parameters

ib_tpl in: Tuple for table/index

Definition at line 2180 of file innodb_api.c.

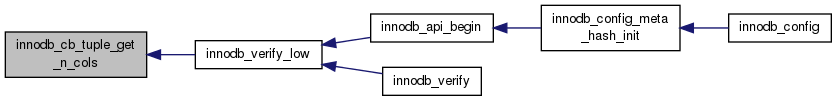

Here is the caller graph for this function:

bool innodb_reset_conn	(	innodb_conn_data_t *	conn_data,
		bool	has_lock,
		bool	commit,
		bool	has_binlog
	)

Increment read and write counters, if they exceed the batch size, commit the transaction.

Parameters

conn_data	in/out: cursor affiliated with a connection
has_lock	in: has lock on connection
commit	in: commit or abort trx
has_binlog	in: binlog enabled

Definition at line 1878 of file innodb_api.c.

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t mci_get_time ( void )

Get current time

Returns: time in seconds

Definition at line 997 of file innodb_api.c.

void register_innodb_cb ( void * p )

Register InnoDB Callback functions

Parameters

p	in: Pointer to callback function array

Definition at line 118 of file innodb_api.c.

Variable Documentation

option_t config_option_names[]

Configure options enum IDs, their "names" and their default value

Definition at line 38 of file innodb_config.c.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation

Variable Documentation
