#include "buf0buf.h"
#include "mem0mem.h"
#include "btr0btr.h"
#include "fil0fil.h"
#include "buf0buddy.h"
#include "lock0lock.h"
#include "btr0sea.h"
#include "ibuf0ibuf.h"
#include "trx0undo.h"
#include "log0log.h"
#include "srv0srv.h"
#include "dict0dict.h"
#include "log0recv.h"
#include "page0zip.h"
#include "srv0mon.h"
#include "buf0checksum.h"

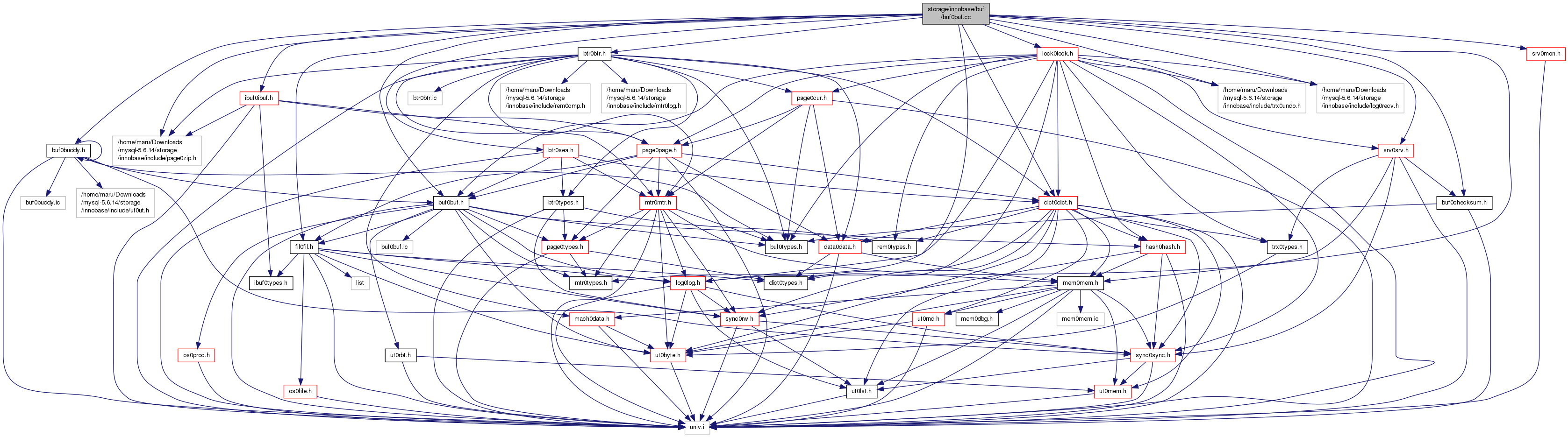

Include dependency graph for buf0buf.cc:

Macros
#define	MONITOR_RW_COUNTER(io_type, counter)

Functions
UNIV_INTERN lsn_t	buf_pool_get_oldest_modification (void)
UNIV_INTERN void	buf_get_total_list_len (ulint LRU_len, ulint free_len, ulint *flush_list_len)
UNIV_INTERN void	buf_get_total_list_size_in_bytes (buf_pools_list_size_t *buf_pools_list_size)
UNIV_INTERN void	buf_get_total_stat (buf_pool_stat_t *tot_stat)
UNIV_INTERN buf_block_t *	buf_block_alloc (buf_pool_t *buf_pool)
UNIV_INTERN ibool	buf_page_is_corrupted (bool check_lsn, const byte *read_buf, ulint zip_size)
UNIV_INTERN void	buf_page_print (const byte *read_buf, ulint zip_size, ulint flags)
UNIV_INTERN ulint	buf_pool_init_instance (buf_pool_t *buf_pool, ulint buf_pool_size, ulint instance_no)
UNIV_INTERN dberr_t	buf_pool_init (ulint total_size, ulint n_instances)
UNIV_INTERN void	buf_pool_free (ulint n_instances)
UNIV_INTERN void	buf_pool_clear_hash_index (void)

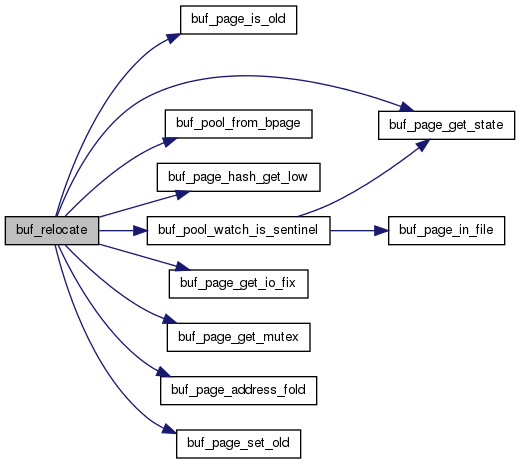

UNIV_INTERN void	buf_relocate (buf_page_t bpage, buf_page_t dpage)
UNIV_INTERN ibool	buf_pool_watch_is_sentinel (buf_pool_t buf_pool, const buf_page_t bpage)
UNIV_INTERN buf_page_t *	buf_pool_watch_set (ulint space, ulint offset, ulint fold)
UNIV_INTERN void	buf_pool_watch_unset (ulint space, ulint offset)

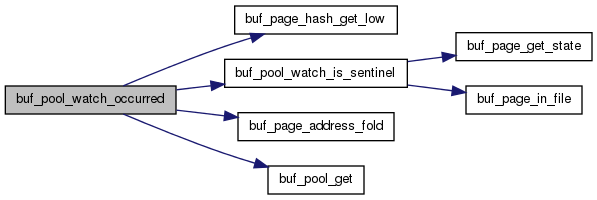

UNIV_INTERN ibool	buf_pool_watch_occurred (ulint space, ulint offset)
UNIV_INTERN void	buf_page_make_young (buf_page_t *bpage)
UNIV_INTERN void	buf_reset_check_index_page_at_flush (ulint space, ulint offset)
UNIV_INTERN buf_page_t *	buf_page_get_zip (ulint space, ulint zip_size, ulint offset)
UNIV_INLINE void	buf_block_init_low (buf_block_t *block)
UNIV_INTERN ibool	buf_zip_decompress (buf_block_t *block, ibool check)
UNIV_INTERN buf_block_t *	buf_block_align_instance (buf_pool_t buf_pool, const byte ptr)
UNIV_INTERN buf_block_t *	buf_block_align (const byte *ptr)
UNIV_INTERN ibool	buf_pointer_is_block_field (const void *ptr)
UNIV_INTERN buf_block_t *	buf_page_get_gen (ulint space, ulint zip_size, ulint offset, ulint rw_latch, buf_block_t guess, ulint mode, const char file, ulint line, mtr_t *mtr)
UNIV_INTERN ibool	buf_page_optimistic_get (ulint rw_latch, buf_block_t block, ib_uint64_t modify_clock, const char file, ulint line, mtr_t *mtr)
UNIV_INTERN ibool	buf_page_get_known_nowait (ulint rw_latch, buf_block_t block, ulint mode, const char file, ulint line, mtr_t *mtr)
UNIV_INTERN const buf_block_t *	buf_page_try_get_func (ulint space_id, ulint page_no, const char file, ulint line, mtr_t mtr)
UNIV_INLINE void	buf_page_init_low (buf_page_t *bpage)

Variables
UNIV_INTERN buf_pool_t *	buf_pool_ptr
static ulint	space
static ulint ulint	offset
static ulint ulint ulint	fold
static ulint ulint ulint ulint	zip_size

Detailed Description

The database buffer buf_pool

Created 11/5/1995 Heikki Tuuri

Definition in file buf0buf.cc.

Macro Definition Documentation

#define MONITOR_RW_COUNTER	(	io_type,
		counter
	)

Value:

((io_type == BUF_IO_READ)                       \
         ? (counter##_READ)                             \
         : (counter##_WRITTEN))

Macro to determine whether the read of write counter is used depending

on the io_type

Definition at line 301 of file buf0buf.cc.

Function Documentation

UNIV_INTERN buf_block_t* buf_block_align ( const byte * ptr )

Gets the block to whose frame the pointer is pointing to.

Returns: pointer to block, never NULL

Parameters

ptr	in: pointer to a frame

Definition at line 2294 of file buf0buf.cc.

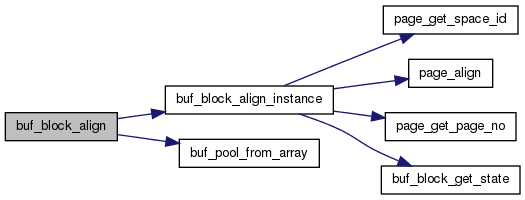

Here is the call graph for this function:

Here is the caller graph for this function:

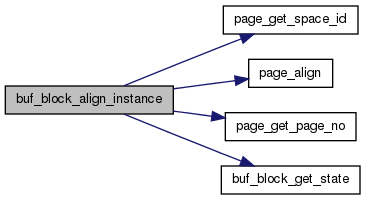

UNIV_INTERN buf_block_t* buf_block_align_instance	(	buf_pool_t *	buf_pool,
		const byte *	ptr
	)

Gets the block to whose frame the pointer is pointing to if found in this buffer pool instance.

Returns: pointer to block

Parameters

buf_pool	in: buffer in which the block resides
ptr	in: pointer to a frame

Definition at line 2204 of file buf0buf.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN buf_block_t* buf_block_alloc ( buf_pool_t * buf_pool )

Allocates a buffer block.

Returns: own: the allocated block, in state BUF_BLOCK_MEMORY

Parameters

buf_pool in/out: buffer pool instance, or NULL for round-robin selection of the buffer pool

Definition at line 444 of file buf0buf.cc.

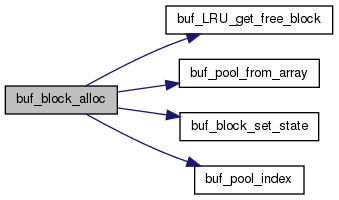

Here is the call graph for this function:

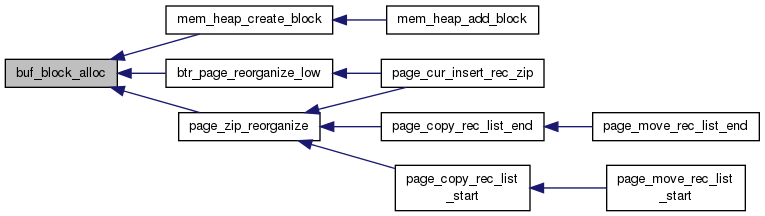

Here is the caller graph for this function:

UNIV_INLINE void buf_block_init_low ( buf_block_t * block )

Initialize some fields of a control block.

Parameters

block in: block to init

Definition at line 2115 of file buf0buf.cc.

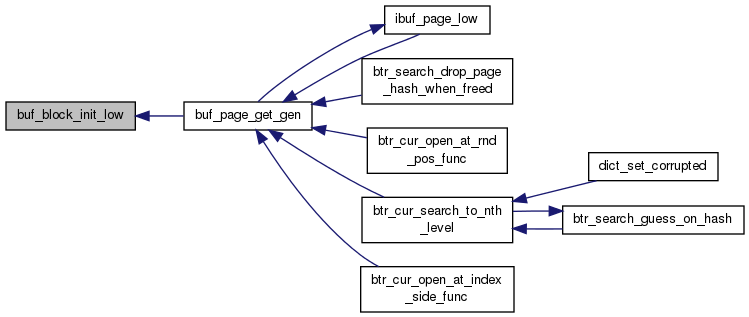

Here is the caller graph for this function:

UNIV_INTERN void buf_get_total_list_len	(	ulint *	LRU_len,
		ulint *	free_len,
		ulint *	flush_list_len
	)

Get total buffer pool statistics.

Parameters

LRU_len	out: length of all LRU lists
free_len	out: length of all free lists
flush_list_len	out: length of all flush lists

Definition at line 357 of file buf0buf.cc.

Here is the call graph for this function:

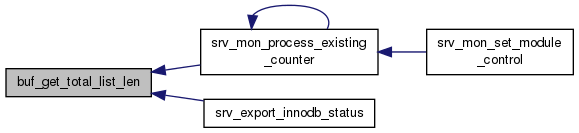

Here is the caller graph for this function:

UNIV_INTERN void buf_get_total_list_size_in_bytes ( buf_pools_list_size_t * buf_pools_list_size )

Get total list size in bytes from all buffer pools.

Parameters

buf_pools_list_size out: list sizes in all buffer pools

Definition at line 384 of file buf0buf.cc.

Here is the call graph for this function:

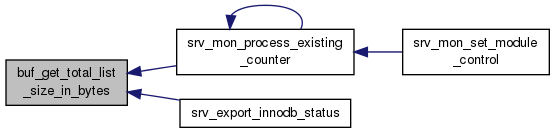

Here is the caller graph for this function:

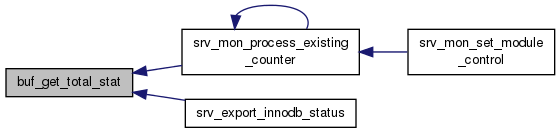

UNIV_INTERN void buf_get_total_stat ( buf_pool_stat_t * tot_stat )

Get total buffer pool statistics.

Parameters

tot_stat out: buffer pool stats

Definition at line 410 of file buf0buf.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN buf_block_t* buf_page_get_gen	(	ulint	space,
		ulint	zip_size,
		ulint	offset,
		ulint	rw_latch,
		buf_block_t *	guess,
		ulint	mode,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

This is the general function used to get access to a database page.

Returns: pointer to the block or NULL

Parameters

space	in: space id
zip_size	in: compressed page size in bytes or 0 for uncompressed pages
offset	in: page number
rw_latch	in: RW_S_LATCH, RW_X_LATCH, RW_NO_LATCH
guess	in: guessed block or NULL
mode	in: BUF_GET, BUF_GET_IF_IN_POOL, BUF_PEEK_IF_IN_POOL, BUF_GET_NO_LATCH, or BUF_GET_IF_IN_POOL_OR_WATCH
file	in: file name
line	in: line where called
mtr	in: mini-transaction

Definition at line 2416 of file buf0buf.cc.

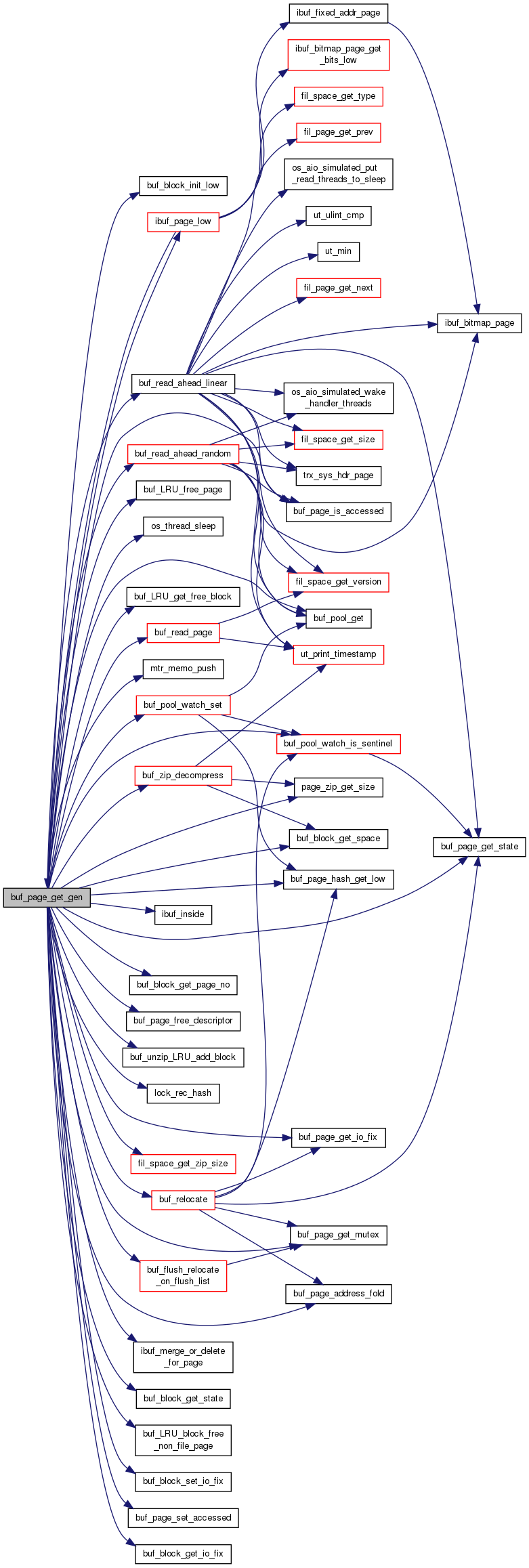

Here is the call graph for this function:

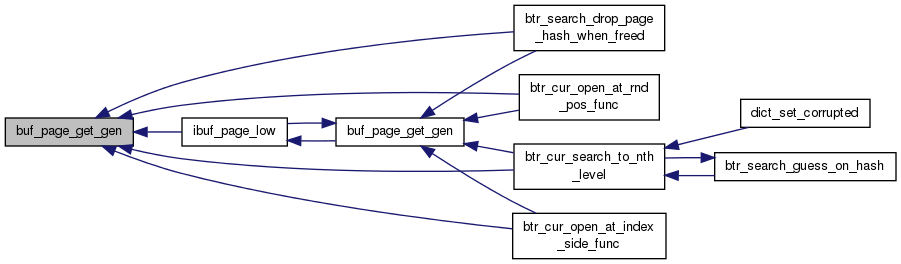

Here is the caller graph for this function:

UNIV_INTERN ibool buf_page_get_known_nowait	(	ulint	rw_latch,
		buf_block_t *	block,
		ulint	mode,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

This is used to get access to a known database page, when no waiting can be done. For example, if a search in an adaptive hash index leads us to this frame.

Returns: TRUE if success

Parameters

rw_latch	in: RW_S_LATCH, RW_X_LATCH
block	in: the known page
mode	in: BUF_MAKE_YOUNG or BUF_KEEP_OLD
file	in: file name
line	in: line where called
mtr	in: mini-transaction

Definition at line 3049 of file buf0buf.cc.

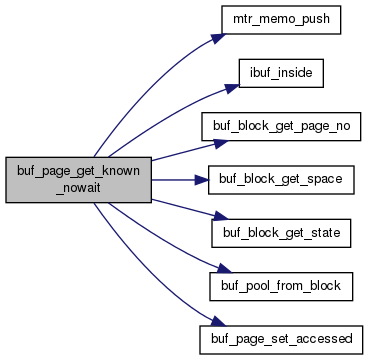

Here is the call graph for this function:

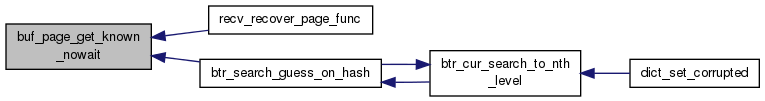

Here is the caller graph for this function:

UNIV_INTERN buf_page_t* buf_page_get_zip	(	ulint	space,
		ulint	zip_size,
		ulint	offset
	)

Get read access to a compressed page (usually of type FIL_PAGE_TYPE_ZBLOB or FIL_PAGE_TYPE_ZBLOB2). The page must be released with buf_page_release_zip(). NOTE: the page is not protected by any latch. Mutual exclusion has to be implemented at a higher level. In other words, all possible accesses to a given page through this function must be protected by the same set of mutexes or latches.

Returns: pointer to the block

Parameters

space	in: space id
zip_size	in: compressed page size
offset	in: page number

Definition at line 1983 of file buf0buf.cc.

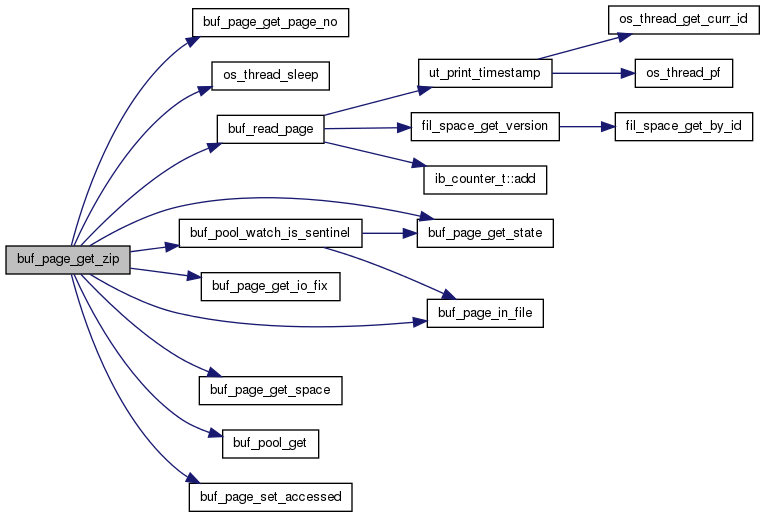

Here is the call graph for this function:

UNIV_INLINE void buf_page_init_low ( buf_page_t * bpage )

Initialize some fields of a control block.

Parameters

bpage in: block to init

Definition at line 3243 of file buf0buf.cc.

UNIV_INTERN ibool buf_page_is_corrupted	(	bool	check_lsn,
		const byte *	read_buf,
		ulint	zip_size
	)

Checks if a page is corrupt.

Returns: TRUE if corrupted

Parameters

check_lsn	in: true if we need to check and complain about the LSN
read_buf	in: a database page
zip_size	in: size of compressed page; 0 for uncompressed pages

Definition at line 474 of file buf0buf.cc.

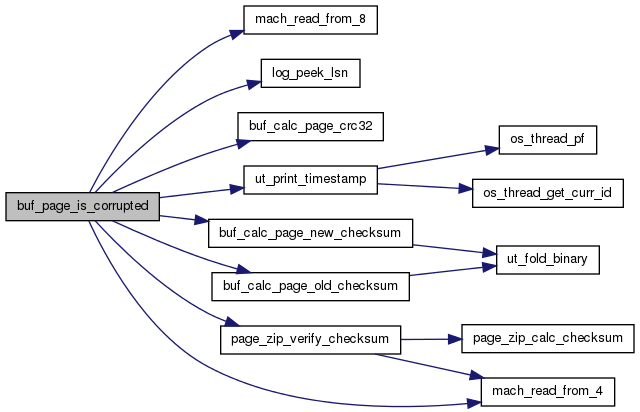

Here is the call graph for this function:

Here is the caller graph for this function:

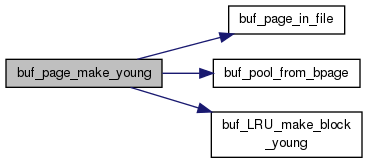

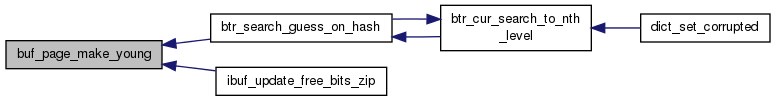

UNIV_INTERN void buf_page_make_young ( buf_page_t * bpage )

Moves a page to the start of the buffer pool LRU list. This high-level function can be used to prevent an important page from slipping out of the buffer pool.

Parameters

bpage in: buffer block of a file page

Definition at line 1812 of file buf0buf.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool buf_page_optimistic_get	(	ulint	rw_latch,
		buf_block_t *	block,
		ib_uint64_t	modify_clock,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

This is the general function used to get optimistic access to a database page.

Returns: TRUE if success

Parameters

rw_latch	in: RW_S_LATCH, RW_X_LATCH
block	in: guessed buffer block
modify_clock	in: modify clock value
file	in: file name
line	in: line where called
mtr	in: mini-transaction

Definition at line 2931 of file buf0buf.cc.

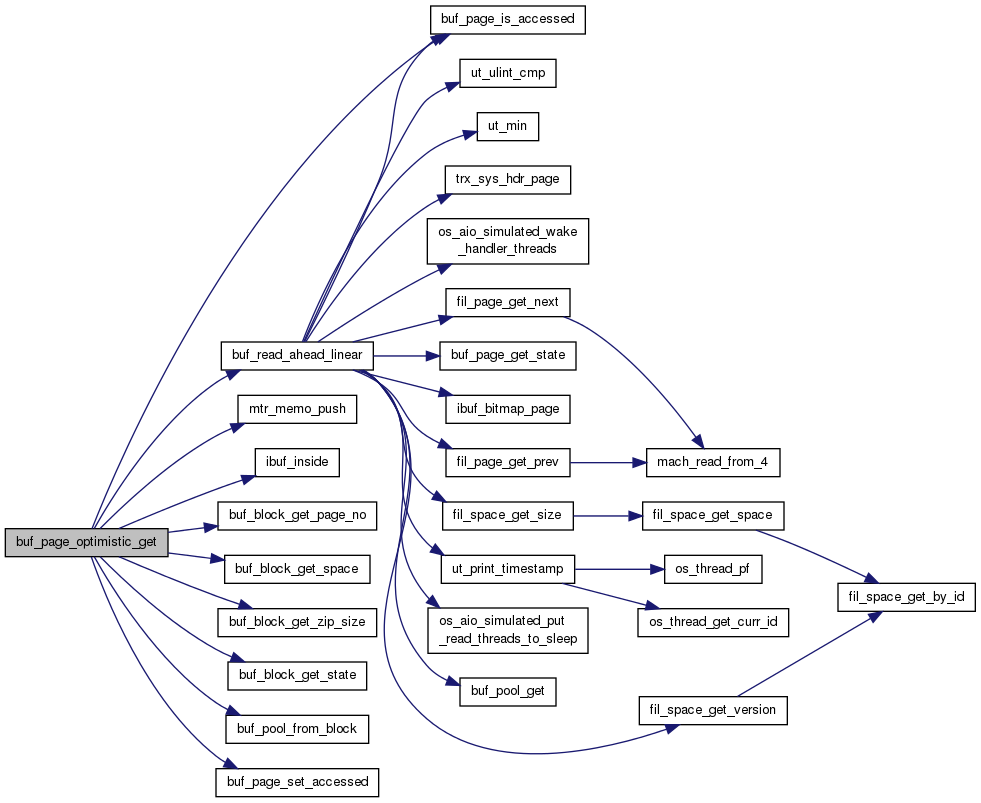

Here is the call graph for this function:

Here is the caller graph for this function:

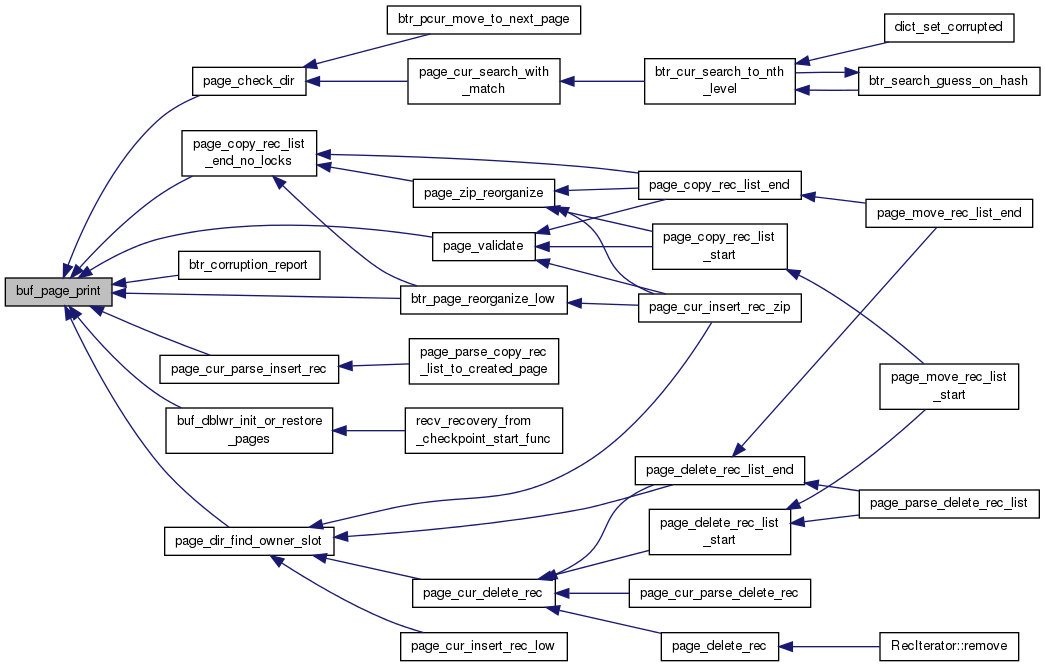

UNIV_INTERN void buf_page_print	(	const byte *	read_buf,
		ulint	zip_size,
		ulint	flags
	)

Prints a page to stderr.

Parameters

read_buf	in: a database page
zip_size	in: compressed page size, or 0 for uncompressed pages
flags	in: 0 or BUF_PAGE_PRINT_NO_CRASH or BUF_PAGE_PRINT_NO_FULL

Definition at line 706 of file buf0buf.cc.

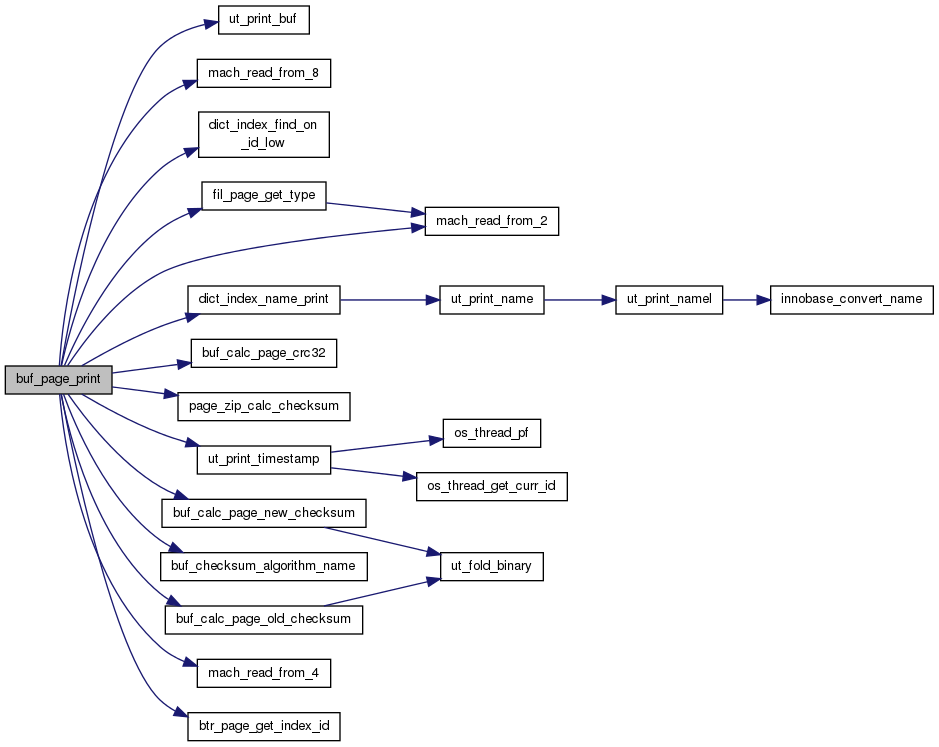

Here is the call graph for this function:

Here is the caller graph for this function:

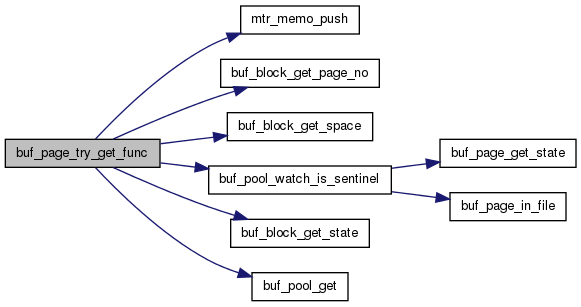

UNIV_INTERN const buf_block_t* buf_page_try_get_func	(	ulint	space_id,
		ulint	page_no,
		const char *	file,
		ulint	line,
		mtr_t *	mtr
	)

Given a tablespace id and page number tries to get that page. If the page is not in the buffer pool it is not loaded and NULL is returned. Suitable for using when holding the lock_sys_t::mutex.

Returns: pointer to a page or NULL

Parameters

space_id	in: tablespace id
page_no	in: page number
file	in: file name
line	in: line where called
mtr	in: mini-transaction

Definition at line 3154 of file buf0buf.cc.

Here is the call graph for this function:

UNIV_INTERN ibool buf_pointer_is_block_field ( const void * ptr )

Find out if a pointer belongs to a buf_block_t. It can be a pointer to the buf_block_t itself or a member of it

Returns: TRUE if ptr belongs to a buf_block_t struct

Parameters

ptr	in: pointer not dereferenced

Definition at line 2351 of file buf0buf.cc.

Here is the call graph for this function:

UNIV_INTERN void buf_pool_clear_hash_index ( void )

Clears the adaptive hash index on all pages in the buffer pool.

Definition at line 1419 of file buf0buf.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void buf_pool_free ( ulint n_instances )

Frees the buffer pool at shutdown. This must not be invoked before freeing all mutexes.

Parameters

n_instances in: numbere of instances to free

Definition at line 1401 of file buf0buf.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN lsn_t buf_pool_get_oldest_modification ( void )

Gets the smallest oldest_modification lsn for any page in the pool. Returns zero if all modified pages have been flushed to disk.

Returns: oldest modification in pool, zero if none

Definition at line 312 of file buf0buf.cc.

Here is the call graph for this function:

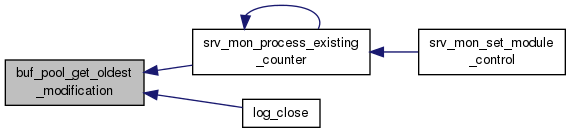

Here is the caller graph for this function:

UNIV_INTERN dberr_t buf_pool_init	(	ulint	total_size,
		ulint	n_instances
	)

Creates the buffer pool.

Returns: DB_SUCCESS if success, DB_ERROR if not enough memory or error

Parameters

total_size	in: size of the total pool in bytes
n_instances	in: number of instances

Definition at line 1361 of file buf0buf.cc.

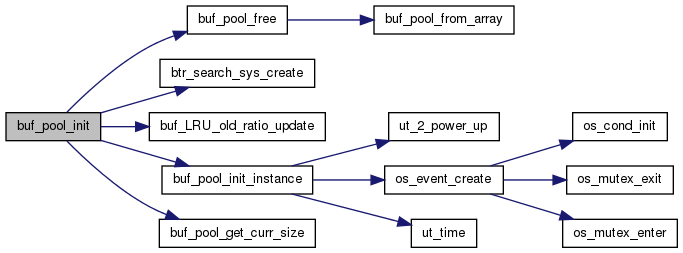

Here is the call graph for this function:

UNIV_INTERN ulint buf_pool_init_instance	(	buf_pool_t *	buf_pool,
		ulint	buf_pool_size,
		ulint	instance_no
	)

Initialize a buffer pool instance.

Returns: DB_SUCCESS if all goes well.

Parameters

buf_pool	in: buffer pool instance
buf_pool_size	in: size in bytes
instance_no	in: id of the instance

Definition at line 1230 of file buf0buf.cc.

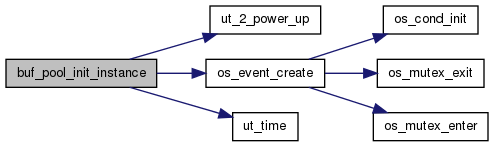

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool buf_pool_watch_is_sentinel	(	buf_pool_t *	buf_pool,
		const buf_page_t *	bpage
	)

Determine if a block is a sentinel for a buffer pool watch.

Returns: TRUE if a sentinel for a buffer pool watch, FALSE if not

Parameters

buf_pool	buffer pool instance
bpage	in: block

Definition at line 1552 of file buf0buf.cc.

Here is the call graph for this function:

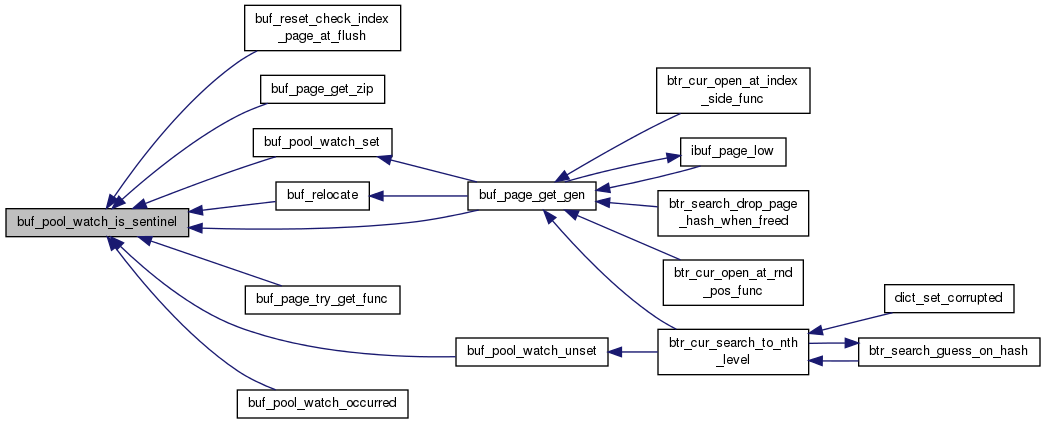

Here is the caller graph for this function:

UNIV_INTERN ibool buf_pool_watch_occurred	(	ulint	space,
		ulint	offset
	)

Check if the page has been read in. This may only be called after buf_pool_watch_set(space,offset) has returned NULL and before invoking buf_pool_watch_unset(space,offset).

Returns: FALSE if the given page was not read in, TRUE if it was

Parameters

space	in: space id
offset	in: page number

Definition at line 1782 of file buf0buf.cc.

Here is the call graph for this function:

UNIV_INTERN buf_page_t* buf_pool_watch_set	(	ulint	space,
		ulint	offset,
		ulint	fold
	)

Add watch for the given page to be read in. Caller must have appropriate hash_lock for the bpage. This function may release the hash_lock and reacquire it.

Returns: NULL if watch set, block if the page is in the buffer pool

Parameters

space	in: space id
offset	in: page number
fold	in: buf_page_address_fold(space, offset)

Definition at line 1585 of file buf0buf.cc.

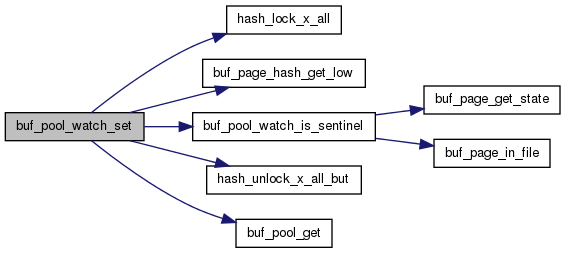

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void buf_pool_watch_unset	(	ulint	space,
		ulint	offset
	)

Stop watching if the page has been read in. buf_pool_watch_set(space,offset) must have returned NULL before.

Parameters

space	in: space id
offset	in: page number

Definition at line 1731 of file buf0buf.cc.

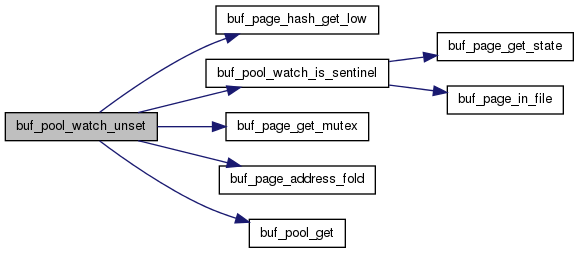

Here is the call graph for this function:

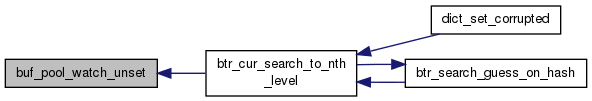

Here is the caller graph for this function:

UNIV_INTERN void buf_relocate	(	buf_page_t *	bpage,
		buf_page_t *	dpage
	)

Relocate a buffer control block. Relocates the block on the LRU list and in buf_pool->page_hash. Does not relocate bpage->list. The caller must take care of relocating bpage->list.

Parameters

bpage	in/out: control block being relocated; buf_page_get_state(bpage) must be BUF_BLOCK_ZIP_DIRTY or BUF_BLOCK_ZIP_PAGE
dpage	in/out: destination control block

Definition at line 1465 of file buf0buf.cc.

Here is the call graph for this function:

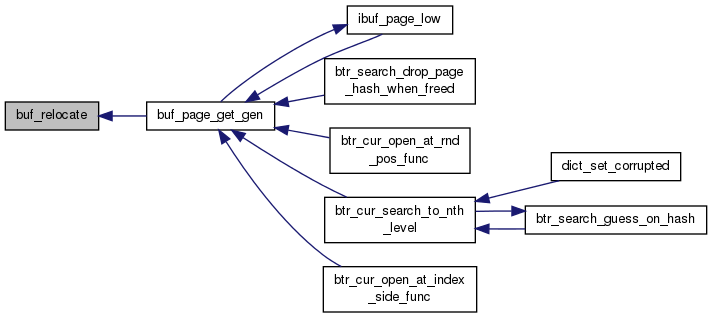

Here is the caller graph for this function:

UNIV_INTERN void buf_reset_check_index_page_at_flush	(	ulint	space,
		ulint	offset
	)

Resets the check_index_page_at_flush field of a page if found in the buffer pool.

Parameters

space	in: space id
offset	in: page number

Definition at line 1854 of file buf0buf.cc.

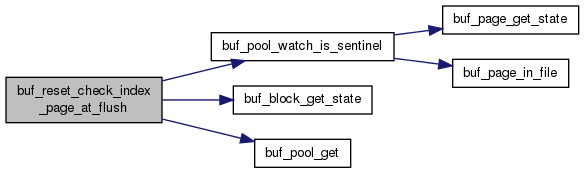

Here is the call graph for this function:

UNIV_INTERN ibool buf_zip_decompress	(	buf_block_t *	block,
		ibool	check
	)

Decompress a block.

Returns: TRUE if successful

Parameters

block	in/out: block
check	in: TRUE=verify the page checksum

Definition at line 2134 of file buf0buf.cc.

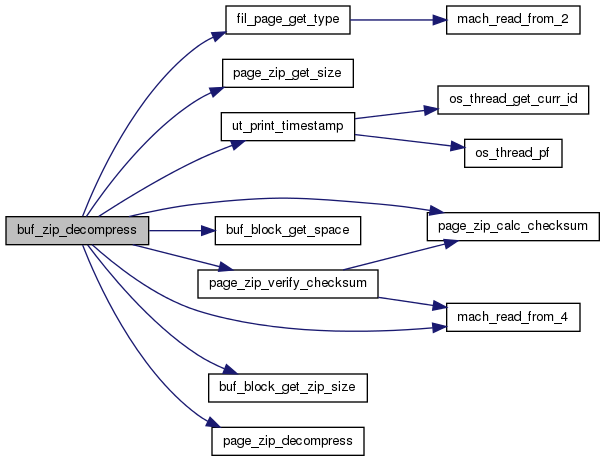

Here is the call graph for this function:

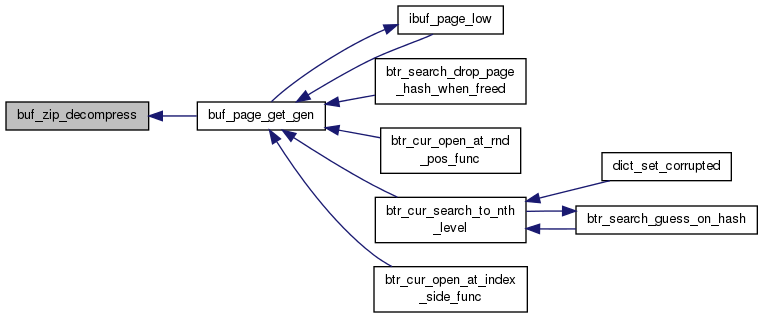

Here is the caller graph for this function:

Variable Documentation

UNIV_INTERN buf_pool_t* buf_pool_ptr

The buffer pools of the database

Definition at line 252 of file buf0buf.cc.

ulint ulint ulint fold

in: buf_page_address_fold(space,offset)

Definition at line 3267 of file buf0buf.cc.

static ulint ulint offset

in: offset of the page within space in units of a page

in: page offset; if equal to the free limit, we try to add new extents to the space free list

Definition at line 3267 of file buf0buf.cc.

ulint space

< in/out: buffer pool in: space id

Definition at line 3267 of file buf0buf.cc.

static ulint zip_size

in: compressed page size, or 0

< in: space id in: compressed page size in bytes or 0 for uncompressed pages

Definition at line 3267 of file buf0buf.cc.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation

Variable Documentation
