#include "dict0dict.h"
#include "fts0fts.h"
#include "fil0fil.h"
#include "buf0buf.h"
#include "data0type.h"
#include "mach0data.h"
#include "dict0boot.h"
#include "dict0mem.h"
#include "dict0crea.h"
#include "dict0stats.h"
#include "trx0undo.h"
#include "btr0btr.h"
#include "btr0cur.h"
#include "btr0sea.h"
#include "page0zip.h"
#include "page0page.h"
#include "pars0pars.h"
#include "pars0sym.h"
#include "que0que.h"
#include "rem0cmp.h"
#include "fts0types.h"
#include "m_ctype.h"
#include "ha_prototypes.h"
#include "srv0mon.h"
#include "srv0start.h"
#include "lock0lock.h"
#include "dict0priv.h"
#include "row0upd.h"
#include "row0mysql.h"
#include "row0merge.h"
#include "row0log.h"
#include "ut0ut.h"
#include "m_string.h"
#include "my_sys.h"
#include "mysqld.h"
#include "strfunc.h"
#include <ctype.h>

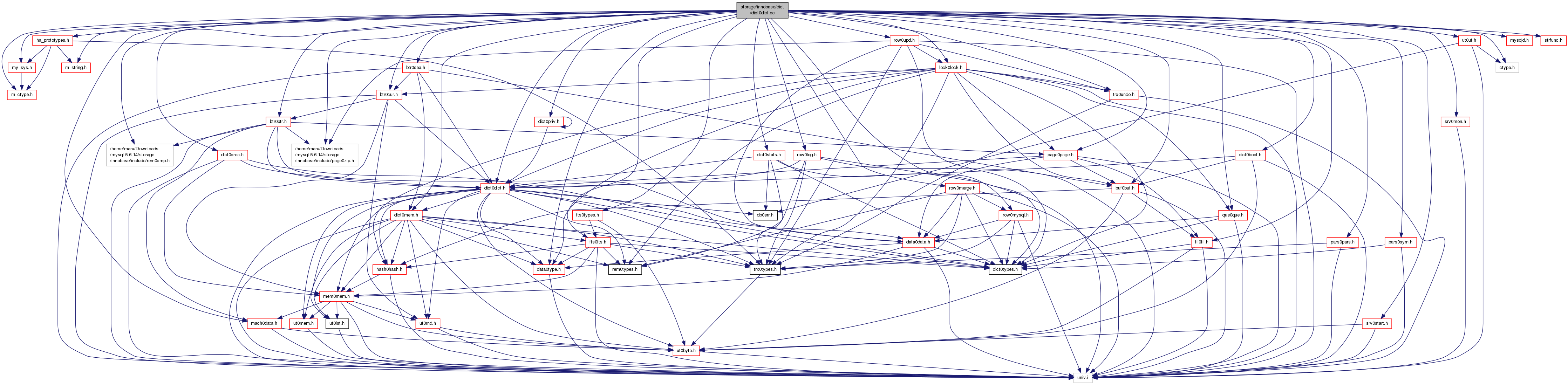

Include dependency graph for dict0dict.cc:

Macros
#define	DICT_HEAP_SIZE 100
#define	DICT_POOL_PER_TABLE_HASH 512
#define	DICT_POOL_PER_VARYING 4
#define	DICT_TABLE_STATS_LATCHES_SIZE 64
#define	GET_TABLE_STATS_LATCH(table)
#define	BIG_ROW_SIZE 1024

Functions
UNIV_INTERN void	dict_casedn_str (char *a)

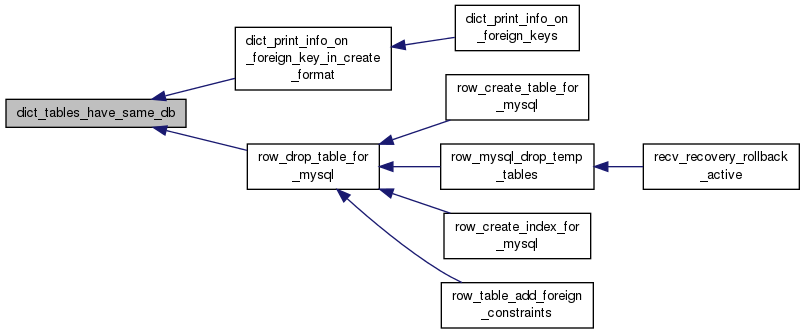

UNIV_INTERN ibool	dict_tables_have_same_db (const char name1, const char name2)
UNIV_INTERN const char *	dict_remove_db_name (const char *name)

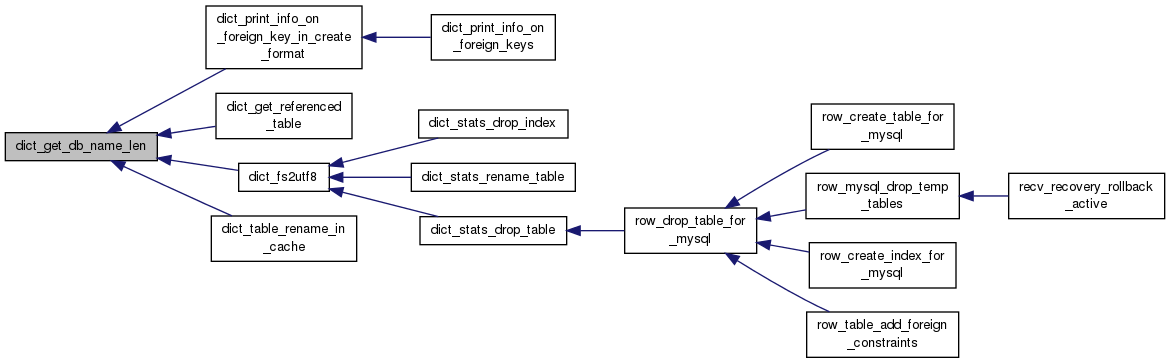

UNIV_INTERN ulint	dict_get_db_name_len (const char *name)
UNIV_INTERN void	dict_mutex_enter_for_mysql (void)

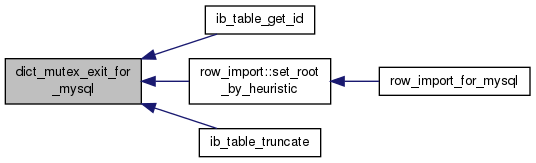

UNIV_INTERN void	dict_mutex_exit_for_mysql (void)
UNIV_INTERN void	dict_table_stats_lock (const dict_table_t *table, ulint latch_mode)
UNIV_INTERN void	dict_table_stats_unlock (const dict_table_t *table, ulint latch_mode)

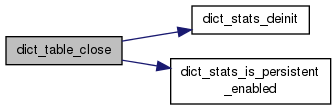

UNIV_INTERN void	dict_table_close (dict_table_t *table, ibool dict_locked, ibool try_drop)
UNIV_INTERN const char *	dict_table_get_col_name (const dict_table_t *table, ulint col_nr)
UNIV_INTERN void	dict_table_autoinc_lock (dict_table_t *table)

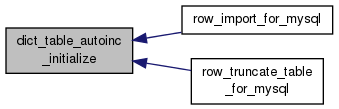

UNIV_INTERN void	dict_table_autoinc_initialize (dict_table_t *table, ib_uint64_t value)
UNIV_INTERN ulint	dict_table_get_all_fts_indexes (dict_table_t table, ib_vector_t indexes)
UNIV_INTERN ib_uint64_t	dict_table_autoinc_read (const dict_table_t *table)
UNIV_INTERN void	dict_table_autoinc_update_if_greater (dict_table_t *table, ib_uint64_t value)
UNIV_INTERN void	dict_table_autoinc_unlock (dict_table_t *table)
UNIV_INTERN ulint	dict_index_get_nth_col_or_prefix_pos (const dict_index_t *index, ulint n, ibool inc_prefix)
UNIV_INTERN ibool	dict_index_contains_col_or_prefix (const dict_index_t *index, ulint n)
UNIV_INTERN ulint	dict_index_get_nth_field_pos (const dict_index_t index, const dict_index_t index2, ulint n)

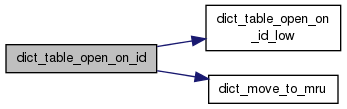

UNIV_INTERN dict_table_t *	dict_table_open_on_id (table_id_t table_id, ibool dict_locked, dict_table_op_t table_op)
UNIV_INTERN ulint	dict_table_get_nth_col_pos (const dict_table_t *table, ulint n)
UNIV_INTERN ibool	dict_table_col_in_clustered_key (const dict_table_t *table, ulint n)
UNIV_INTERN void	dict_init (void)
UNIV_INTERN void	dict_move_to_mru (dict_table_t *table)
UNIV_INTERN dict_table_t *	dict_table_open_on_name (const char *table_name, ibool dict_locked, ibool try_drop, dict_err_ignore_t ignore_err)

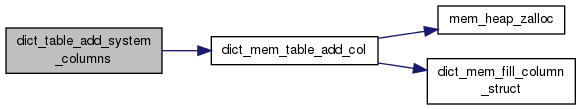

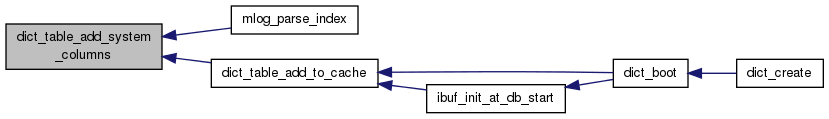

UNIV_INTERN void	dict_table_add_system_columns (dict_table_t table, mem_heap_t heap)
UNIV_INTERN void	dict_table_add_to_cache (dict_table_t table, ibool can_be_evicted, mem_heap_t heap)
UNIV_INTERN ulint	dict_make_room_in_cache (ulint max_tables, ulint pct_check)
UNIV_INTERN void	dict_table_move_from_lru_to_non_lru (dict_table_t *table)
UNIV_INTERN void	dict_table_move_from_non_lru_to_lru (dict_table_t *table)
UNIV_INTERN dict_index_t *	dict_index_find_on_id_low (index_id_t id)
UNIV_INTERN dberr_t	dict_table_rename_in_cache (dict_table_t table, const char new_name, ibool rename_also_foreigns)
UNIV_INTERN void	dict_table_change_id_in_cache (dict_table_t *table, table_id_t new_id)

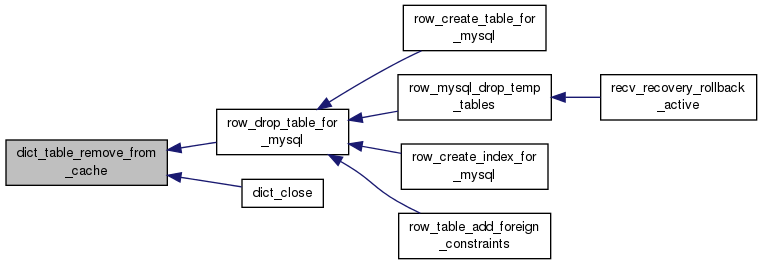

UNIV_INTERN void	dict_table_remove_from_cache (dict_table_t *table)
UNIV_INTERN ibool	dict_col_name_is_reserved (const char *name)
UNIV_INTERN dberr_t	dict_index_add_to_cache (dict_table_t table, dict_index_t index, ulint page_no, ibool strict)
UNIV_INTERN void	dict_index_remove_from_cache (dict_table_t table, dict_index_t index)

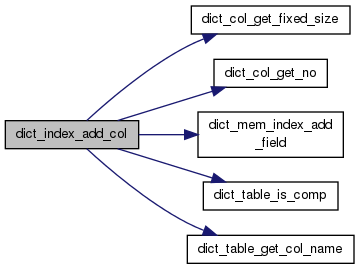

UNIV_INTERN void	dict_index_add_col (dict_index_t index, const dict_table_t table, dict_col_t *col, ulint prefix_len)

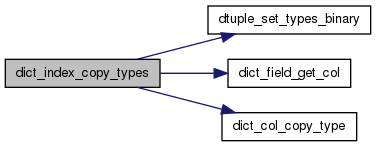

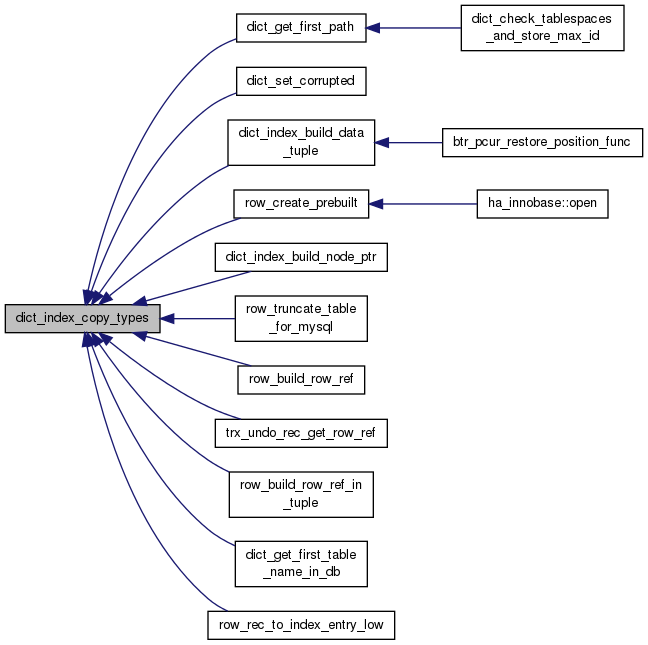

UNIV_INTERN void	dict_index_copy_types (dtuple_t tuple, const dict_index_t index, ulint n_fields)

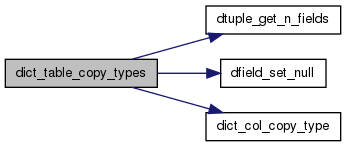

UNIV_INTERN void	dict_table_copy_types (dtuple_t tuple, const dict_table_t table)
UNIV_INTERN void	dict_table_wait_for_bg_threads_to_exit (dict_table_t *table, ulint delay)
UNIV_INTERN ibool	dict_table_is_referenced_by_foreign_key (const dict_table_t *table)
UNIV_INTERN dict_foreign_t *	dict_table_get_referenced_constraint (dict_table_t table, dict_index_t index)
UNIV_INTERN dict_foreign_t *	dict_table_get_foreign_constraint (dict_table_t table, dict_index_t index)
UNIV_INTERN void	dict_foreign_free (dict_foreign_t *foreign)
UNIV_INTERN void	dict_foreign_remove_from_cache (dict_foreign_t *foreign)
UNIV_INTERN dict_index_t *	dict_foreign_find_index (const dict_table_t table, const char col_names, const char columns, ulint n_cols, const dict_index_t types_idx, bool check_charsets, ulint check_null)
UNIV_INTERN dberr_t	dict_foreign_add_to_cache (dict_foreign_t foreign, const char *col_names, bool check_charsets, dict_err_ignore_t ignore_err)

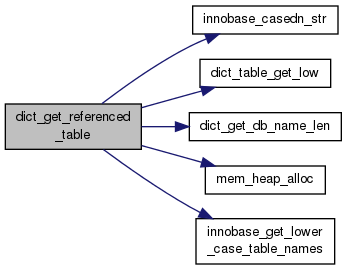

UNIV_INTERN char *	dict_get_referenced_table (const char name, const char database_name, ulint database_name_len, const char table_name, ulint table_name_len, dict_table_t table, mem_heap_t heap)
UNIV_INTERN ulint	dict_table_get_highest_foreign_id (dict_table_t *table)
UNIV_INTERN ibool	dict_str_starts_with_keyword (THD thd, const char str, const char *keyword)
UNIV_INTERN dberr_t	dict_create_foreign_constraints (trx_t trx, const char sql_string, size_t sql_length, const char *name, ibool reject_fks)
UNIV_INTERN dberr_t	dict_foreign_parse_drop_constraints (mem_heap_t heap, trx_t trx, dict_table_t table, ulint n, const char ***constraints_to_drop)
UNIV_INTERN dict_index_t *	dict_index_get_if_in_cache_low (index_id_t index_id)
UNIV_INTERN dtuple_t *	dict_index_build_node_ptr (const dict_index_t index, const rec_t rec, ulint page_no, mem_heap_t *heap, ulint level)

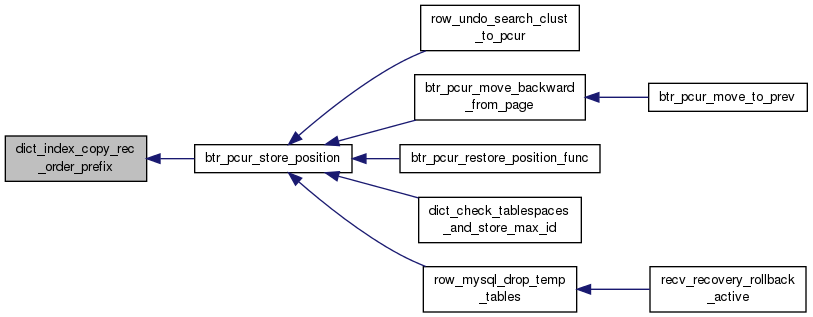

UNIV_INTERN rec_t *	dict_index_copy_rec_order_prefix (const dict_index_t index, const rec_t rec, ulint n_fields, byte buf, ulint buf_size)

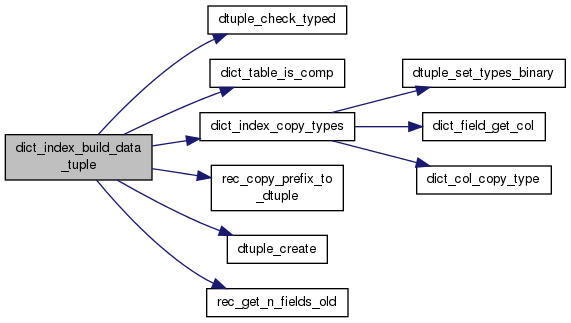

UNIV_INTERN dtuple_t *	dict_index_build_data_tuple (dict_index_t index, rec_t rec, ulint n_fields, mem_heap_t *heap)
UNIV_INTERN ulint	dict_index_calc_min_rec_len (const dict_index_t *index)

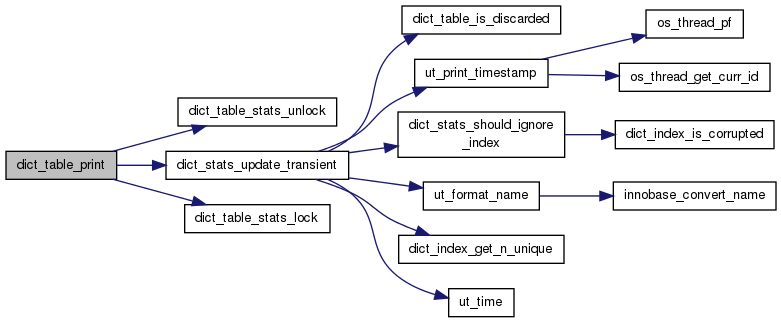

UNIV_INTERN void	dict_table_print (dict_table_t *table)

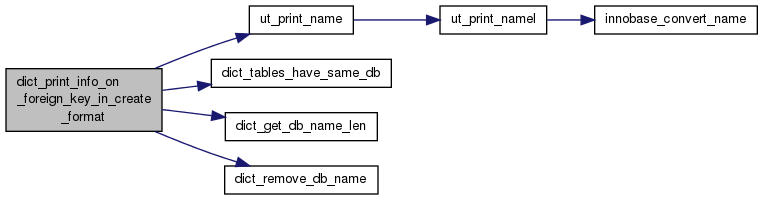

UNIV_INTERN void	dict_print_info_on_foreign_key_in_create_format (FILE file, trx_t trx, dict_foreign_t *foreign, ibool add_newline)
UNIV_INTERN void	dict_print_info_on_foreign_keys (ibool create_table_format, FILE file, trx_t trx, dict_table_t *table)

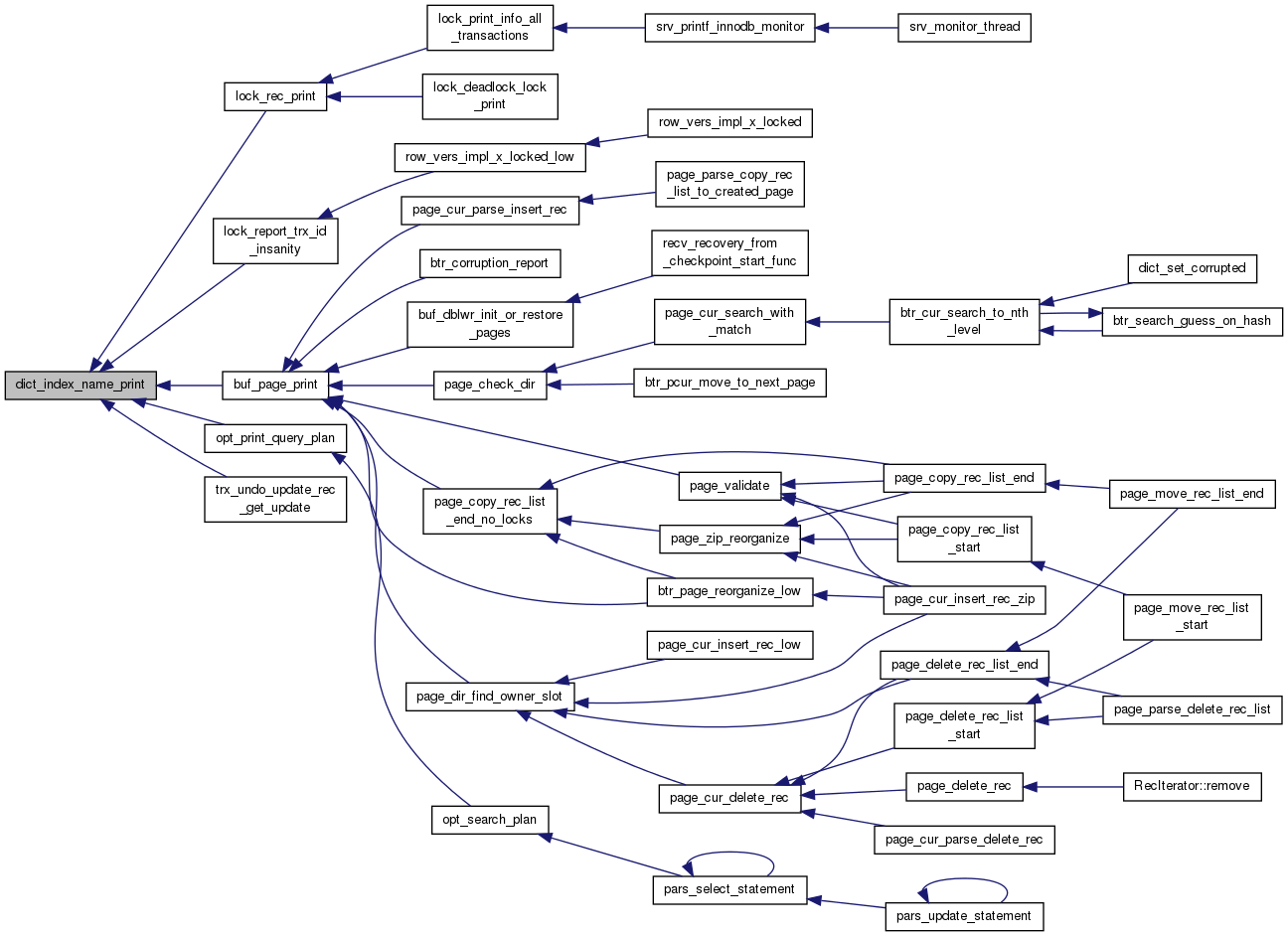

UNIV_INTERN void	dict_index_name_print (FILE file, const trx_t trx, const dict_index_t *index)
UNIV_INTERN ibool	dict_set_corrupted_by_space (ulint space_id)

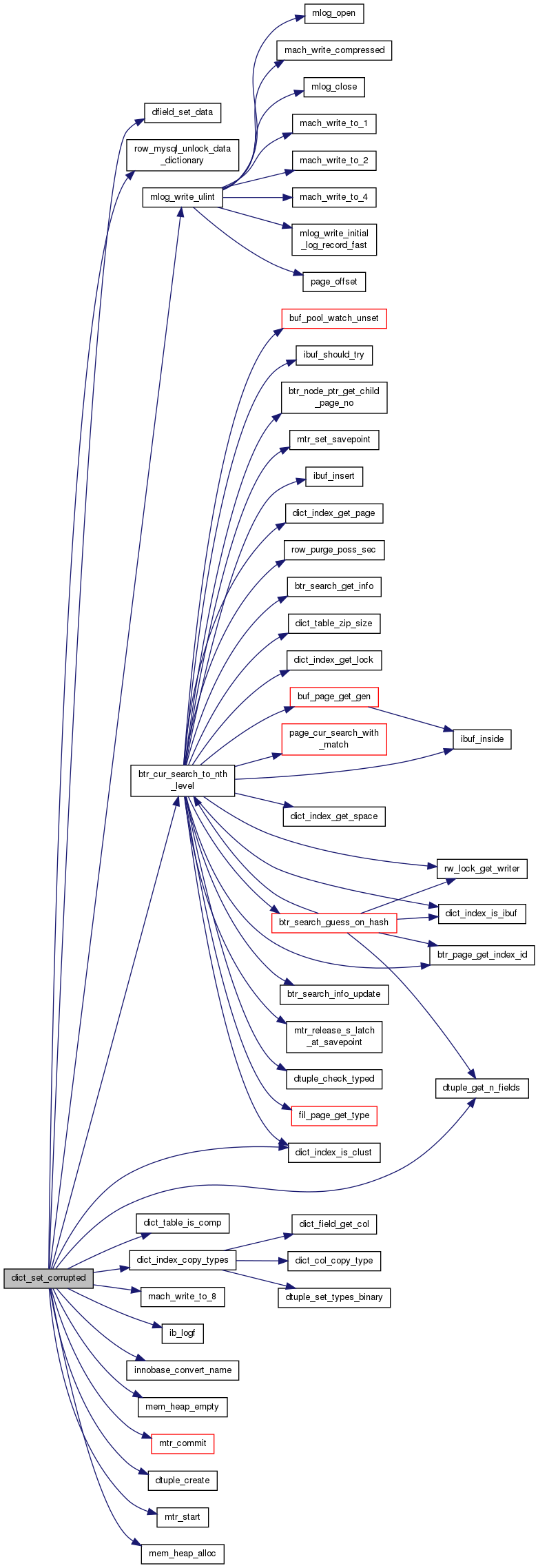

UNIV_INTERN void	dict_set_corrupted (dict_index_t index, trx_t trx, const char *ctx)
UNIV_INTERN void	dict_set_corrupted_index_cache_only (dict_index_t index, dict_table_t table)
UNIV_INTERN void	dict_ind_init (void)

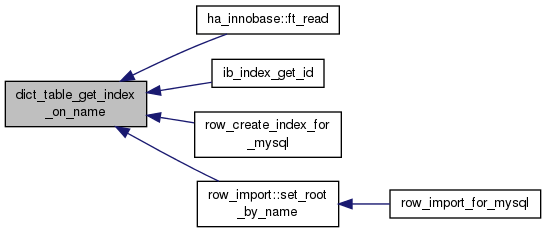

UNIV_INTERN dict_index_t *	dict_table_get_index_on_name (dict_table_t table, const char name)

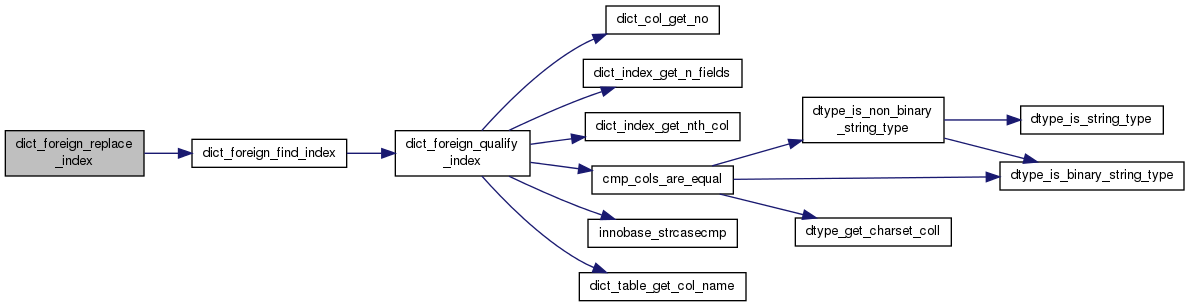

UNIV_INTERN bool	dict_foreign_replace_index (dict_table_t table, const char col_names, const dict_index_t index)
UNIV_INTERN dict_index_t *	dict_table_get_index_on_name_and_min_id (dict_table_t table, const char name)
UNIV_INTERN void	dict_fs2utf8 (const char db_and_table, char db_utf8, size_t db_utf8_size, char *table_utf8, size_t table_utf8_size)
UNIV_INTERN void	dict_close (void)
UNIV_INTERN bool	dict_foreign_qualify_index (const dict_table_t table, const char col_names, const char columns, ulint n_cols, const dict_index_t index, const dict_index_t *types_idx, bool check_charsets, ulint check_null)
UNIV_INTERN void	dict_index_zip_success (dict_index_t *index)
UNIV_INTERN void	dict_index_zip_failure (dict_index_t *index)
UNIV_INTERN ulint	dict_index_zip_pad_optimal_page_size (dict_index_t *index)
UNIV_INTERN const char *	dict_tf_to_row_format_string (ulint table_flag)

UNIV_INTERN dberr_t	dict_table_schema_check (dict_table_schema_t req_schema, char errstr, size_t errstr_sz)

Variables
UNIV_INTERN dict_index_t *	dict_ind_redundant
UNIV_INTERN dict_index_t *	dict_ind_compact
UNIV_INTERN dict_sys_t *	dict_sys = NULL
UNIV_INTERN rw_lock_t	dict_operation_lock
	the data dictionary rw-latch protecting dict_sys
UNIV_INTERN ulong	zip_failure_threshold_pct = 5
UNIV_INTERN ulong	zip_pad_max = 50
UNIV_INTERN FILE *	dict_foreign_err_file = NULL
UNIV_INTERN ib_mutex_t	dict_foreign_err_mutex

Detailed Description

Data dictionary system

Created 1/8/1996 Heikki Tuuri

Definition in file dict0dict.cc.

Macro Definition Documentation

#define DICT_HEAP_SIZE 100

initial memory heap size when creating a table or index object

Definition at line 114 of file dict0dict.cc.

#define DICT_POOL_PER_TABLE_HASH 512

buffer pool max size per table hash table fixed size in bytes

Definition at line 116 of file dict0dict.cc.

#define DICT_POOL_PER_VARYING 4

buffer pool max size per data dictionary varying size in bytes

Definition at line 118 of file dict0dict.cc.

#define DICT_TABLE_STATS_LATCHES_SIZE 64

array of rw locks protecting

dict_table_t::stat_initialized dict_table_t::stat_n_rows (*) dict_table_t::stat_clustered_index_size dict_table_t::stat_sum_of_other_index_sizes dict_table_t::stat_modified_counter (*) dict_table_t::indexes*::stat_n_diff_key_vals[] dict_table_t::indexes*::stat_index_size dict_table_t::indexes*::stat_n_leaf_pages (*) those are not always protected for performance reasons

Definition at line 134 of file dict0dict.cc.

#define GET_TABLE_STATS_LATCH ( table )

Value:

(&dict_table_stats_latches[ut_fold_ull((ib_uint64_t) table) \

% DICT_TABLE_STATS_LATCHES_SIZE])

Get the latch that protects the stats of a given table

Definition at line 336 of file dict0dict.cc.

Function Documentation

UNIV_INTERN void dict_casedn_str ( char * a )

Makes all characters in a NUL-terminated UTF-8 string lower case.

Parameters

a	in/out: string to put in lower case

Definition at line 255 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN void dict_close ( void )

Closes the data dictionary module.

Definition at line 6200 of file dict0dict.cc.

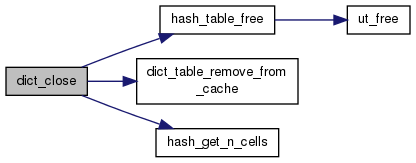

Here is the call graph for this function:

UNIV_INTERN ibool dict_col_name_is_reserved ( const char * name )

If the given column name is reserved for InnoDB system columns, return TRUE.

Returns: TRUE if name is reserved

Parameters

name	in: column name

Definition at line 1928 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN dberr_t dict_create_foreign_constraints	(	trx_t *	trx,
		const char *	sql_string,
		size_t	sql_length,
		const char *	name,
		ibool	reject_fks
	)

Scans a table create SQL string and adds to the data dictionary the foreign key constraints declared in the string. This function should be called after the indexes for a table have been created. Each foreign key constraint must be accompanied with indexes in both participating tables. The indexes are allowed to contain more fields than mentioned in the constraint.

Returns: error code or DB_SUCCESS

Parameters

trx	in: transaction
sql_string	in: table create statement where foreign keys are declared like: FOREIGN KEY (a, b) REFERENCES table2(c, d), table2 can be written also with the database name before it: test.table2; the default database id the database of parameter name
sql_length	in: length of sql_string
name	in: table full name in the normalized form database_name/table_name
reject_fks	in: if TRUE, fail with error code DB_CANNOT_ADD_CONSTRAINT if any foreign keys are found.

Definition at line 4665 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dberr_t dict_foreign_add_to_cache	(	dict_foreign_t *	foreign,
		const char **	col_names,
		bool	check_charsets,
		dict_err_ignore_t	ignore_err
	)

Adds a foreign key constraint object to the dictionary cache. May free the object if there already is an object with the same identifier in. At least one of the foreign table and the referenced table must already be in the dictionary cache!

Returns: DB_SUCCESS or error code

Parameters

foreign	in, own: foreign key constraint
col_names	in: column names, or NULL to use foreign->foreign_table->col_names
check_charsets	in: whether to check charset compatibility
ignore_err	in: error to be ignored

Definition at line 3304 of file dict0dict.cc.

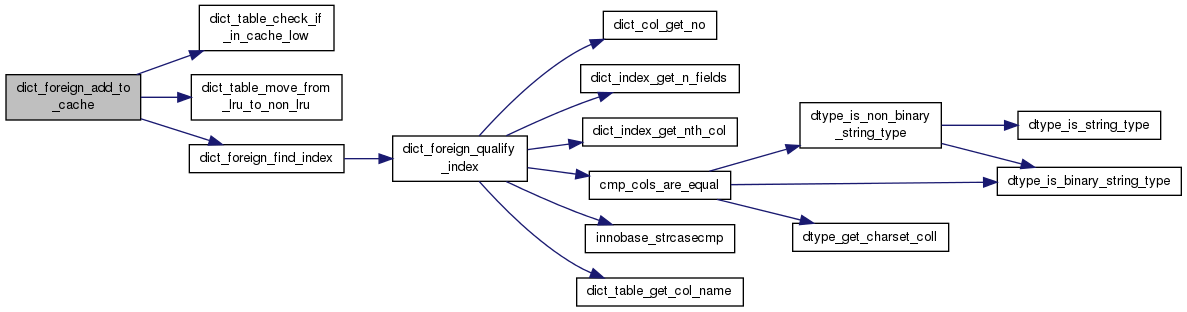

Here is the call graph for this function:

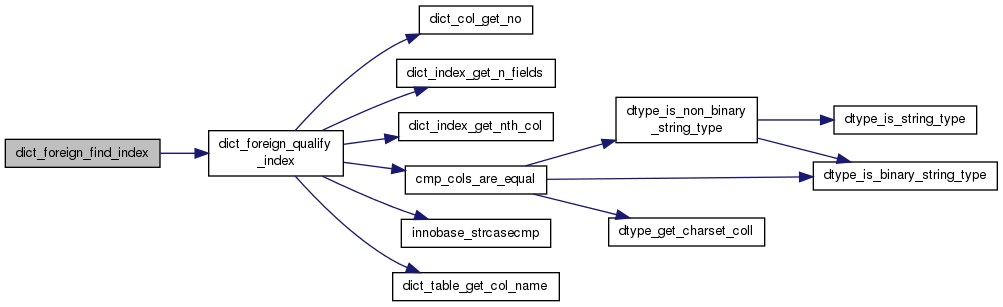

UNIV_INTERN dict_index_t* dict_foreign_find_index	(	const dict_table_t *	table,
		const char **	col_names,
		const char **	columns,
		ulint	n_cols,
		const dict_index_t *	types_idx,
		bool	check_charsets,
		ulint	check_null
	)

Tries to find an index whose first fields are the columns in the array, in the same order and is not marked for deletion and is not the same as types_idx.

Returns: matching index, NULL if not found

Parameters

table	in: table
col_names	in: column names, or NULL to use table->col_names
columns	in: array of column names
n_cols	in: number of columns
types_idx	in: NULL or an index whose types the column types must match
check_charsets	in: whether to check charsets. only has an effect if types_idx != NULL
check_null	in: nonzero if none of the columns must be declared NOT NULL

Definition at line 3210 of file dict0dict.cc.

Here is the call graph for this function:

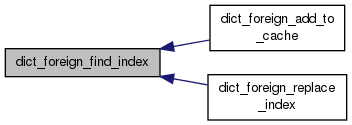

Here is the caller graph for this function:

UNIV_INTERN void dict_foreign_free ( dict_foreign_t * foreign )

Frees a foreign key struct.

Parameters

foreign in, own: foreign key struct

Definition at line 3129 of file dict0dict.cc.

Here is the caller graph for this function:

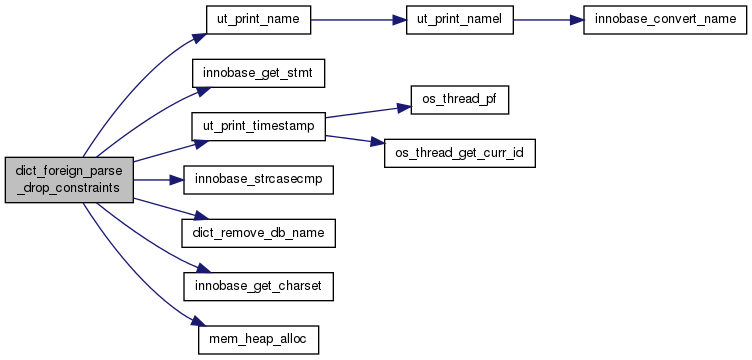

UNIV_INTERN dberr_t dict_foreign_parse_drop_constraints	(	mem_heap_t *	heap,
		trx_t *	trx,
		dict_table_t *	table,
		ulint *	n,
		const char ***	constraints_to_drop
	)

Parses the CONSTRAINT id's to be dropped in an ALTER TABLE statement.

Returns: DB_SUCCESS or DB_CANNOT_DROP_CONSTRAINT if syntax error or the constraint id does not match

Parameters

heap	in: heap from which we can allocate memory
trx	in: transaction
table	in: table
n	out: number of constraints to drop
constraints_to_drop	out: id's of the constraints to drop

Definition at line 4710 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN bool dict_foreign_qualify_index	(	const dict_table_t *	table,
		const char **	col_names,
		const char **	columns,
		ulint	n_cols,
		const dict_index_t *	index,
		const dict_index_t *	types_idx,
		bool	check_charsets,
		ulint	check_null
	)

Check an index to see whether its first fields are the columns in the array, in the same order and is not marked for deletion and is not the same as types_idx.

Returns: true if the index qualifies, otherwise false

Parameters

table	in: table
col_names	in: column names, or NULL to use table->col_names
columns	in: array of column names
n_cols	in: number of columns
index	in: index to check
types_idx	in: NULL or an index whose types the column types must match
check_charsets	in: whether to check charsets. only has an effect if types_idx != NULL
check_null	in: nonzero if none of the columns must be declared NOT NULL

Definition at line 6348 of file dict0dict.cc.

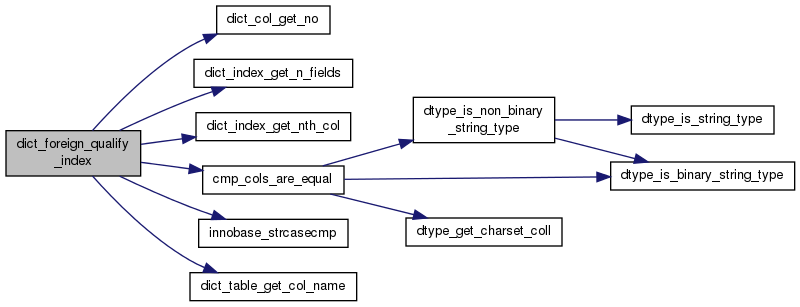

Here is the call graph for this function:

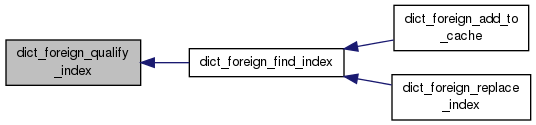

Here is the caller graph for this function:

UNIV_INTERN void dict_foreign_remove_from_cache ( dict_foreign_t * foreign )

Removes a foreign constraint struct from the dictionary cache.

Parameters

foreign in, own: foreign constraint

Definition at line 3140 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN bool dict_foreign_replace_index	(	dict_table_t *	table,
		const char **	col_names,
		const dict_index_t *	index
	)

Replace the index passed in with another equivalent index in the foreign key lists of the table.

Returns: whether all replacements were found

Parameters

table	in/out: table
col_names	in: column names, or NULL to use table->col_names
index	in: index to be replaced

Definition at line 5777 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN void dict_fs2utf8	(	const char *	db_and_table,
		char *	db_utf8,
		size_t	db_utf8_size,
		char *	table_utf8,
		size_t	table_utf8_size
	)

Converts a database and table name from filesystem encoding (e.g. d/a@1Kc, same format as used in dict_table_t::name) in two strings in UTF8 encoding (e.g. dцb and aюbØc). The output buffers must be at least MAX_DB_UTF8_LEN and MAX_TABLE_UTF8_LEN bytes.

Parameters

db_and_table	in: database and table names, e.g. d/a@1Kc
db_utf8	out: database name, e.g. dцb
db_utf8_size	in: dbname_utf8 size
table_utf8	out: table name, e.g. aюbØc
table_utf8_size	in: table_utf8 size

Definition at line 6138 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ulint dict_get_db_name_len ( const char * name )

Get the database name length in a table name.

Returns: database name length

Parameters

name	in: table name in the form dbname '/' tablename

Definition at line 304 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN char* dict_get_referenced_table	(	const char *	name,
		const char *	database_name,
		ulint	database_name_len,
		const char *	table_name,
		ulint	table_name_len,
		dict_table_t **	table,
		mem_heap_t *	heap
	)

Open a table from its database and table name, this is currently used by foreign constraint parser to get the referenced table.

Returns: complete table name with database and table name, allocated from heap memory passed in

Parameters

name	in: foreign key table name
database_name	in: table db name
database_name_len	in: db name length
table_name	in: table name
table_name_len	in: table name length
table	out: table object or NULL
heap	in/out: heap memory

Definition at line 3715 of file dict0dict.cc.

Here is the call graph for this function:

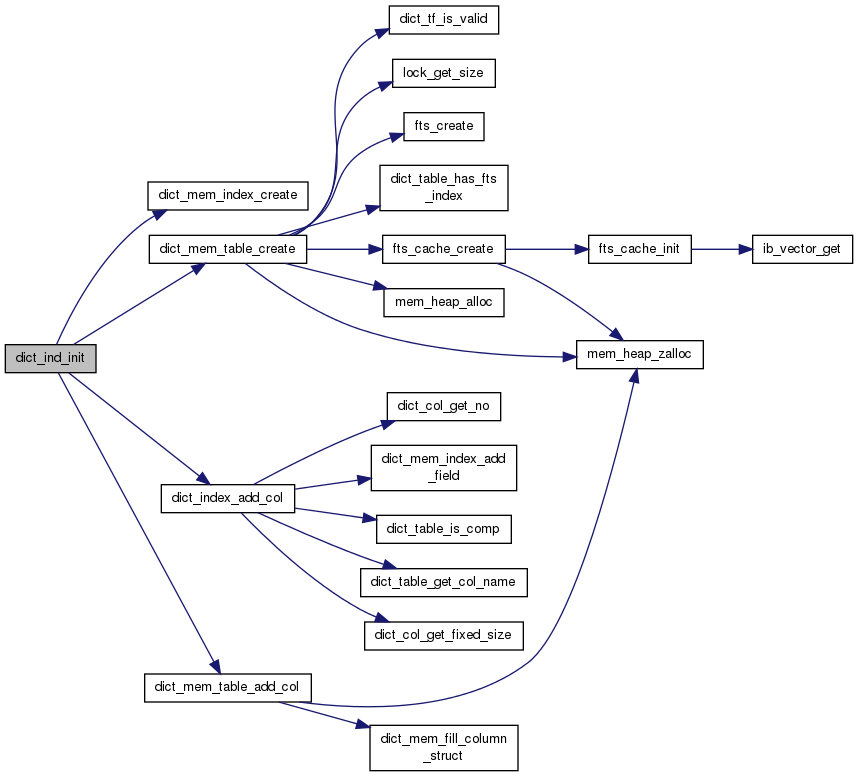

UNIV_INTERN void dict_ind_init ( void )

Inits dict_ind_redundant and dict_ind_compact.

Definition at line 5687 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_index_add_col	(	dict_index_t *	index,
		const dict_table_t *	table,
		dict_col_t *	col,
		ulint	prefix_len
	)

Adds a column to index.

Parameters

index	in/out: index
table	in: table
col	in: column
prefix_len	in: column prefix length

Definition at line 2595 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

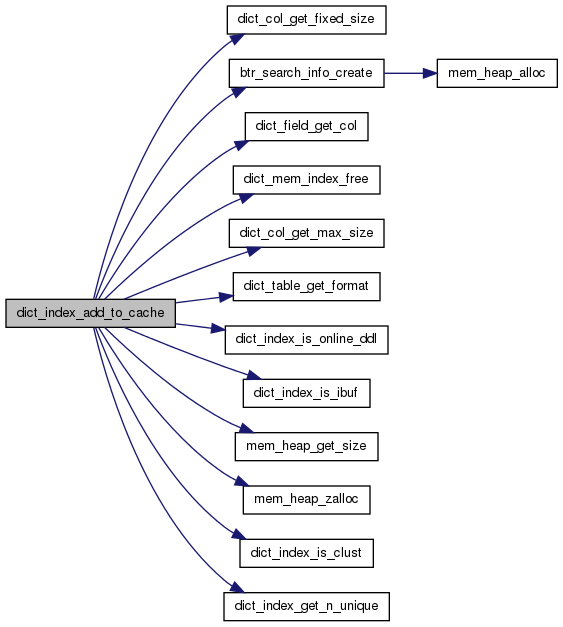

UNIV_INTERN dberr_t dict_index_add_to_cache	(	dict_table_t *	table,
		dict_index_t *	index,
		ulint	page_no,
		ibool	strict
	)

Adds an index to the dictionary cache.

Returns: DB_SUCCESS, DB_TOO_BIG_RECORD, or DB_CORRUPTION

Parameters

table	in: table on which the index is
index	in, own: index; NOTE! The index memory object is freed in this function!
page_no	in: root page number of the index
strict	in: TRUE=refuse to create the index if records could be too big to fit in an B-tree page

Definition at line 2262 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dtuple_t* dict_index_build_data_tuple	(	dict_index_t *	index,
		rec_t *	rec,
		ulint	n_fields,
		mem_heap_t *	heap
	)

Builds a typed data tuple out of a physical record.

Returns: own: data tuple

Parameters

index	in: index tree
rec	in: record for which to build data tuple
n_fields	in: number of data fields
heap	in: memory heap where tuple created

Definition at line 5019 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dtuple_t* dict_index_build_node_ptr	(	const dict_index_t *	index,
		const rec_t *	rec,
		ulint	page_no,
		mem_heap_t *	heap,
		ulint	level
	)

Builds a node pointer out of a physical record and a page number.

Returns: own: node pointer

Parameters

index	in: index
rec	in: record for which to build node pointer
page_no	in: page number to put in node pointer
heap	in: memory heap where pointer created
level	in: level of rec in tree: 0 means leaf level

Definition at line 4919 of file dict0dict.cc.

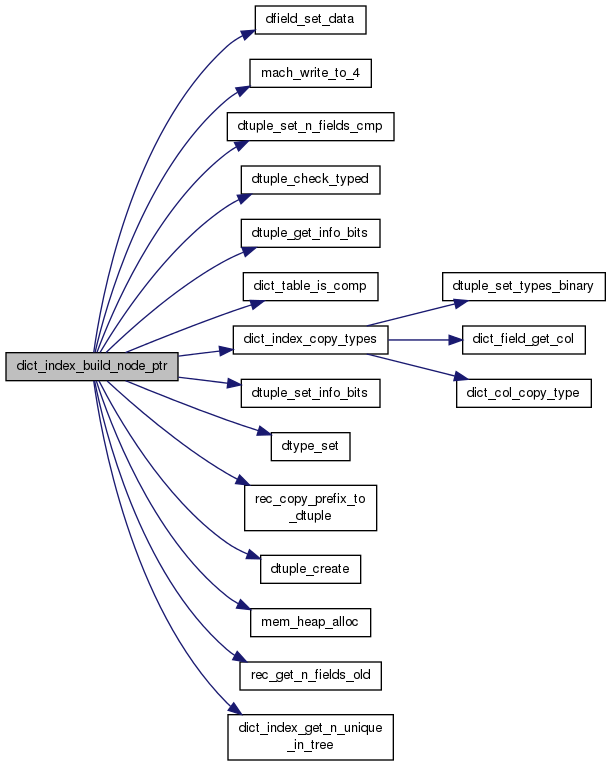

Here is the call graph for this function:

UNIV_INTERN ulint dict_index_calc_min_rec_len ( const dict_index_t * index )

Calculates the minimum record length in an index.

Parameters

index in: index

Definition at line 5046 of file dict0dict.cc.

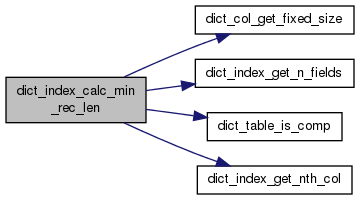

Here is the call graph for this function:

UNIV_INTERN ibool dict_index_contains_col_or_prefix	(	const dict_index_t *	index,
		ulint	n
	)

Returns TRUE if the index contains a column or a prefix of that column.

Returns: TRUE if contains the column or its prefix

Parameters

index	in: index
n	in: column number

Definition at line 705 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

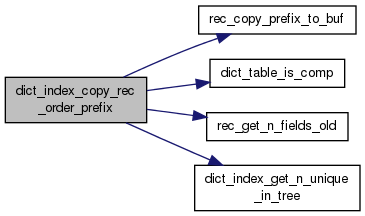

UNIV_INTERN rec_t* dict_index_copy_rec_order_prefix	(	const dict_index_t *	index,
		const rec_t *	rec,
		ulint *	n_fields,
		byte **	buf,
		ulint *	buf_size
	)

Copies an initial segment of a physical record, long enough to specify an index entry uniquely.

Returns: pointer to the prefix record

Parameters

index	in: index
rec	in: record for which to copy prefix
n_fields	out: number of fields copied
buf	in/out: memory buffer for the copied prefix, or NULL
buf_size	in/out: buffer size

Definition at line 4989 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_index_copy_types	(	dtuple_t *	tuple,
		const dict_index_t *	index,
		ulint	n_fields
	)

Copies types of fields contained in index to tuple.

Parameters

tuple	in/out: data tuple
index	in: index
n_fields	in: number of field types to copy

Definition at line 2668 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

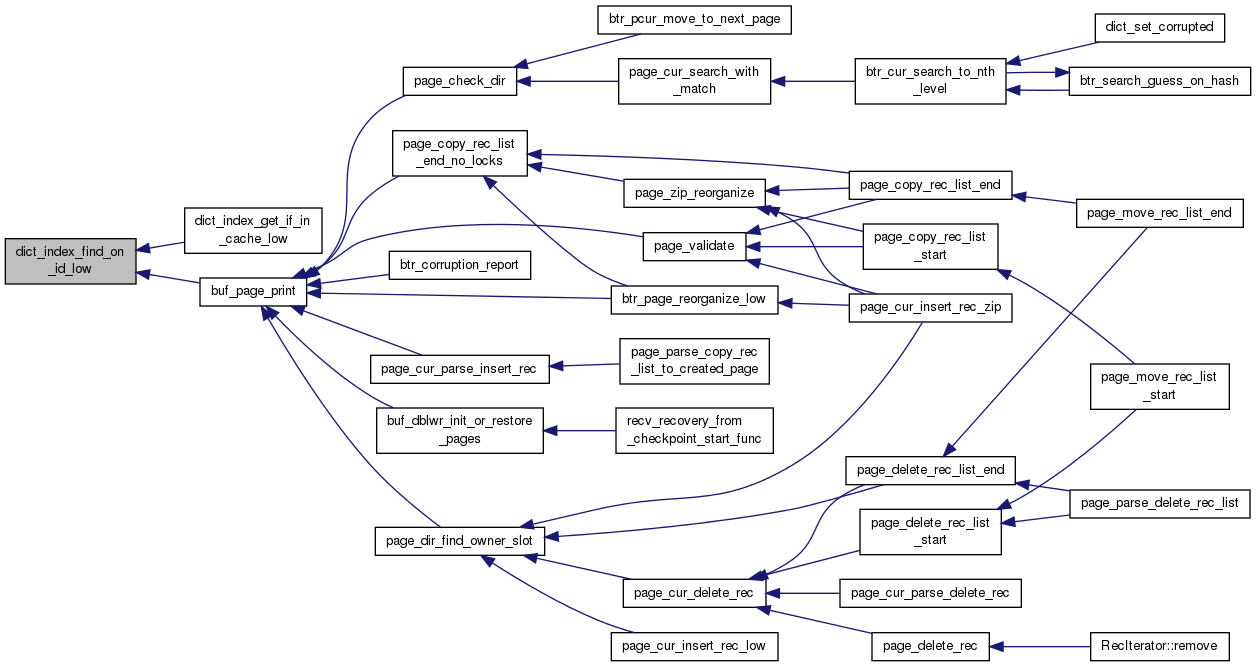

UNIV_INTERN dict_index_t* dict_index_find_on_id_low ( index_id_t id )

Looks for an index with the given id. NOTE that we do not reserve the dictionary mutex: this function is for emergency purposes like printing info of a corrupt database page!

Returns: index or NULL if not found in cache

Parameters

id	in: index id

Definition at line 1359 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN dict_index_t* dict_index_get_if_in_cache_low ( index_id_t index_id )

Returns an index object if it is found in the dictionary cache. Assumes that dict_sys->mutex is already being held.

Returns: index, NULL if not found

Parameters

index_id in: index id

Definition at line 4860 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN ulint dict_index_get_nth_col_or_prefix_pos	(	const dict_index_t *	index,
		ulint	n,
		ibool	inc_prefix
	)

Looks for column n in an index.

Returns: position in internal representation of the index; ULINT_UNDEFINED if not contained

Parameters

index	in: index
n	in: column number
inc_prefix	in: TRUE=consider column prefixes too

Definition at line 662 of file dict0dict.cc.

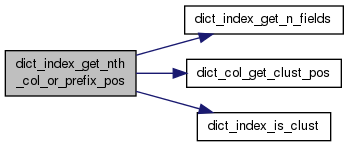

Here is the call graph for this function:

UNIV_INTERN ulint dict_index_get_nth_field_pos	(	const dict_index_t *	index,
		const dict_index_t *	index2,
		ulint	n
	)

Looks for a matching field in an index. The column has to be the same. The column in index must be complete, or must contain a prefix longer than the column in index2. That is, we must be able to construct the prefix in index2 from the prefix in index.

Returns: position in internal representation of the index; ULINT_UNDEFINED if not contained

Parameters

index	in: index from which to search
index2	in: index
n	in: field number in index2

Definition at line 748 of file dict0dict.cc.

Here is the call graph for this function:

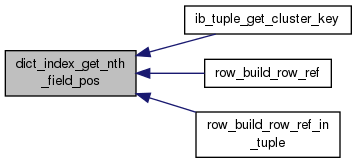

Here is the caller graph for this function:

UNIV_INTERN void dict_index_name_print	(	FILE *	file,
		const trx_t *	trx,
		const dict_index_t *	index
	)

Displays the names of the index and the table.

Parameters

file	in: output stream
trx	in: transaction
index	in: index to print

Definition at line 5469 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_index_remove_from_cache	(	dict_table_t *	table,
		dict_index_t *	index
	)

Removes an index from the dictionary cache.

Removes an index from the cache

Parameters

table	in/out: table
index	in, own: index

Definition at line 2535 of file dict0dict.cc.

UNIV_INTERN void dict_index_zip_failure ( dict_index_t * index )

This function should be called whenever a page compression attempt fails. Updates the compression padding information.

Parameters

index in/out: index to be updated.

Definition at line 6530 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN ulint dict_index_zip_pad_optimal_page_size ( dict_index_t * index )

Return the optimal page size, for which page will likely compress.

Returns: page size beyond which page might not compress

Parameters

index in: index for which page size is requested

Definition at line 6554 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN void dict_index_zip_success ( dict_index_t * index )

This function should be called whenever a page is successfully compressed. Updates the compression padding information.

Parameters

index in/out: index to be updated.

Definition at line 6507 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN void dict_init ( void )

Inits the data dictionary module.

Definition at line 880 of file dict0dict.cc.

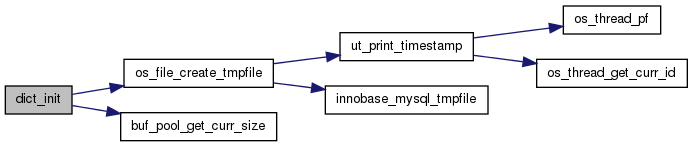

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ulint dict_make_room_in_cache	(	ulint	max_tables,
		ulint	pct_check
	)

Make room in the table cache by evicting an unused table. The unused table should not be part of FK relationship and currently not used in any user transaction. There is no guarantee that it will remove a table.

Returns: number of tables evicted. If the number of tables in the dict_LRU is less than max_tables it will not do anything.

Parameters

max_tables	in: max tables allowed in cache
pct_check	in: max percent to check

Definition at line 1230 of file dict0dict.cc.

UNIV_INTERN void dict_move_to_mru ( dict_table_t * table )

Move to the most recently used segment of the LRU list.

Parameters

table in: table to move to MRU

Definition at line 916 of file dict0dict.cc.

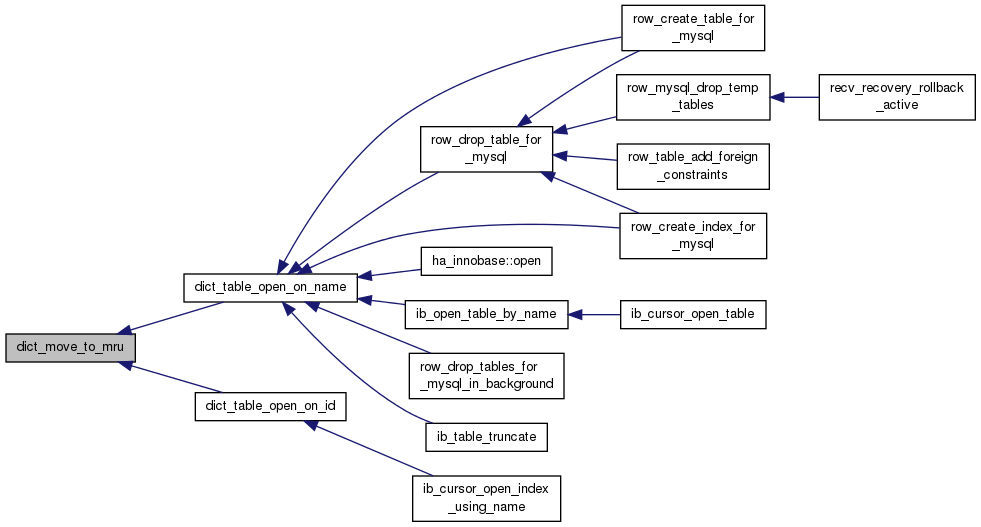

Here is the caller graph for this function:

UNIV_INTERN void dict_mutex_enter_for_mysql ( void )

Reserves the dictionary system mutex for MySQL.

Definition at line 319 of file dict0dict.cc.

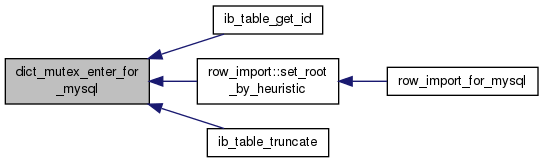

Here is the caller graph for this function:

UNIV_INTERN void dict_mutex_exit_for_mysql ( void )

Releases the dictionary system mutex for MySQL.

Definition at line 329 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN void dict_print_info_on_foreign_key_in_create_format	(	FILE *	file,
		trx_t *	trx,
		dict_foreign_t *	foreign,
		ibool	add_newline
	)

Outputs info on a foreign key of a table in a format suitable for CREATE TABLE.

Parameters

file	in: file where to print
trx	in: transaction
foreign	in: foreign key constraint
add_newline	in: whether to add a newline

Definition at line 5282 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_print_info_on_foreign_keys	(	ibool	create_table_format,
		FILE *	file,
		trx_t *	trx,
		dict_table_t *	table
	)

Outputs info on foreign keys of a table.

Parameters

create_table_format	in: if TRUE then print in a format suitable to be inserted into a CREATE TABLE, otherwise in the format of SHOW TABLE STATUS
file	in: file where to print
trx	in: transaction
table	in: table

Definition at line 5379 of file dict0dict.cc.

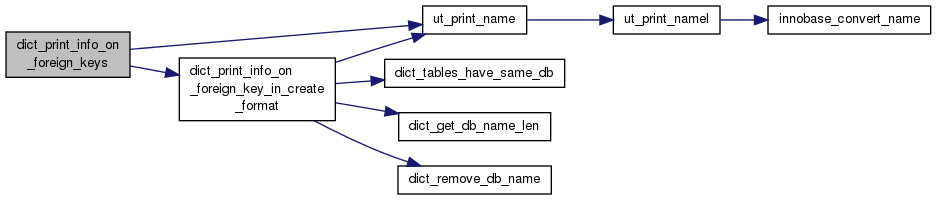

Here is the call graph for this function:

UNIV_INTERN const char* dict_remove_db_name ( const char * name )

Return the end of table name where we have removed dbname and '/'.

Returns: table name

Parameters

name	in: table name in the form dbname '/' tablename

Definition at line 288 of file dict0dict.cc.

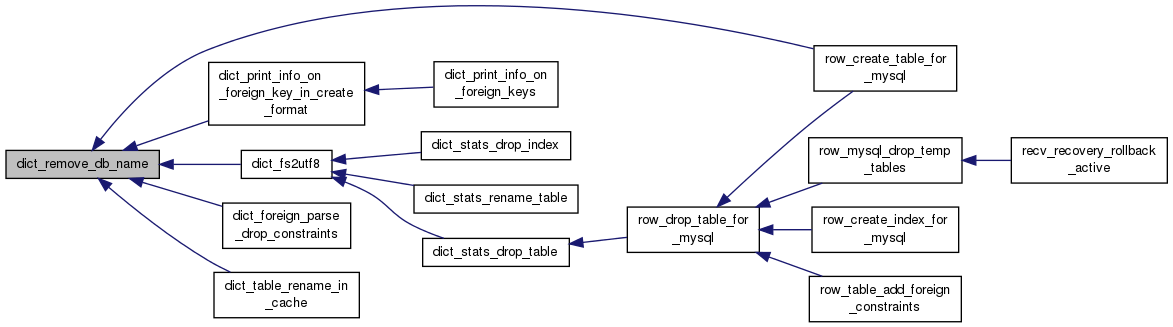

Here is the caller graph for this function:

UNIV_INTERN void dict_set_corrupted	(	dict_index_t *	index,
		trx_t *	trx,
		const char *	ctx
	)

Flags an index corrupted both in the data dictionary cache and in the SYS_INDEXES

Parameters

index	in/out: index
trx	in/out: transaction
ctx	in: context

Definition at line 5545 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN ibool dict_set_corrupted_by_space ( ulint space_id )

Flags a table with specified space_id corrupted in the data dictionary cache

Returns: TRUE if successful

Parameters

space_id in: space ID

Definition at line 5521 of file dict0dict.cc.

UNIV_INTERN void dict_set_corrupted_index_cache_only	(	dict_index_t *	index,
		dict_table_t *	table
	)

Flags an index corrupted in the data dictionary cache only. This is used mostly to mark a corrupted index when index's own dictionary is corrupted, and we force to load such index for repair purpose

Parameters

index	in/out: index
table	in/out: table

Definition at line 5656 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN ibool dict_str_starts_with_keyword	(	THD *	thd,
		const char *	str,
		const char *	keyword
	)

Parameters

thd	in: MySQL thread handle
str	in: string to scan for keyword
keyword	in: keyword to look for

Definition at line 4643 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN void dict_table_add_system_columns	(	dict_table_t *	table,
		mem_heap_t *	heap
	)

Adds system columns to a table object.

Parameters

table	in/out: table
heap	in: temporary heap

Definition at line 1017 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_table_add_to_cache	(	dict_table_t *	table,
		ibool	can_be_evicted,
		mem_heap_t *	heap
	)

Adds a table object to the dictionary cache.

Parameters

table	in: table
can_be_evicted	in: TRUE if can be evicted
heap	in: temporary heap

Definition at line 1064 of file dict0dict.cc.

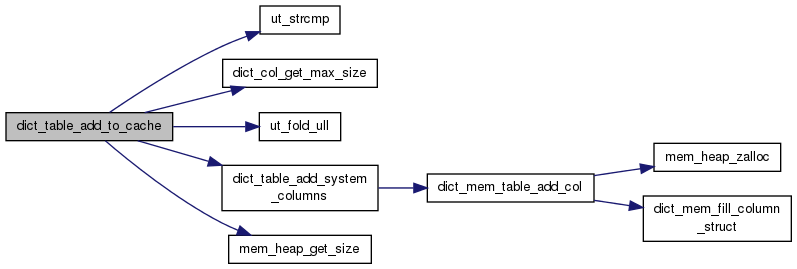

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_table_autoinc_initialize	(	dict_table_t *	table,
		ib_uint64_t	value
	)

Unconditionally set the autoinc counter.

Parameters

table	in/out: table
value	in: next value to assign to a row

Definition at line 573 of file dict0dict.cc.

Here is the caller graph for this function:

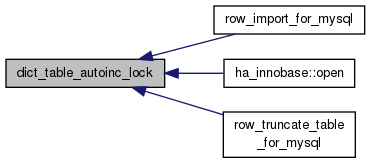

UNIV_INTERN void dict_table_autoinc_lock ( dict_table_t * table )

Acquire the autoinc lock.

Parameters

table in/out: table

Definition at line 562 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN ib_uint64_t dict_table_autoinc_read ( const dict_table_t * table )

Reads the next autoinc value (== autoinc counter value), 0 if not yet initialized.

Returns: value for a new row, or 0

Parameters

table in: table

Definition at line 616 of file dict0dict.cc.

Here is the caller graph for this function:

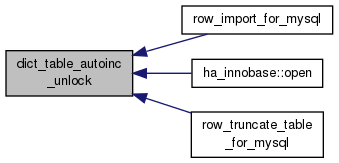

UNIV_INTERN void dict_table_autoinc_unlock ( dict_table_t * table )

Release the autoinc lock.

Parameters

table in/out: table

Definition at line 648 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN void dict_table_autoinc_update_if_greater	(	dict_table_t *	table,
		ib_uint64_t	value
	)

Updates the autoinc counter if the value supplied is greater than the current value.

Parameters

table	in/out: table
value	in: value which was assigned to a row

Definition at line 630 of file dict0dict.cc.

UNIV_INTERN void dict_table_change_id_in_cache	(	dict_table_t *	table,
		table_id_t	new_id
	)

Change the id of a table object in the dictionary cache. This is used in DISCARD TABLESPACE.

Parameters

table	in/out: table object already in cache
new_id	in: new id to set

Definition at line 1784 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

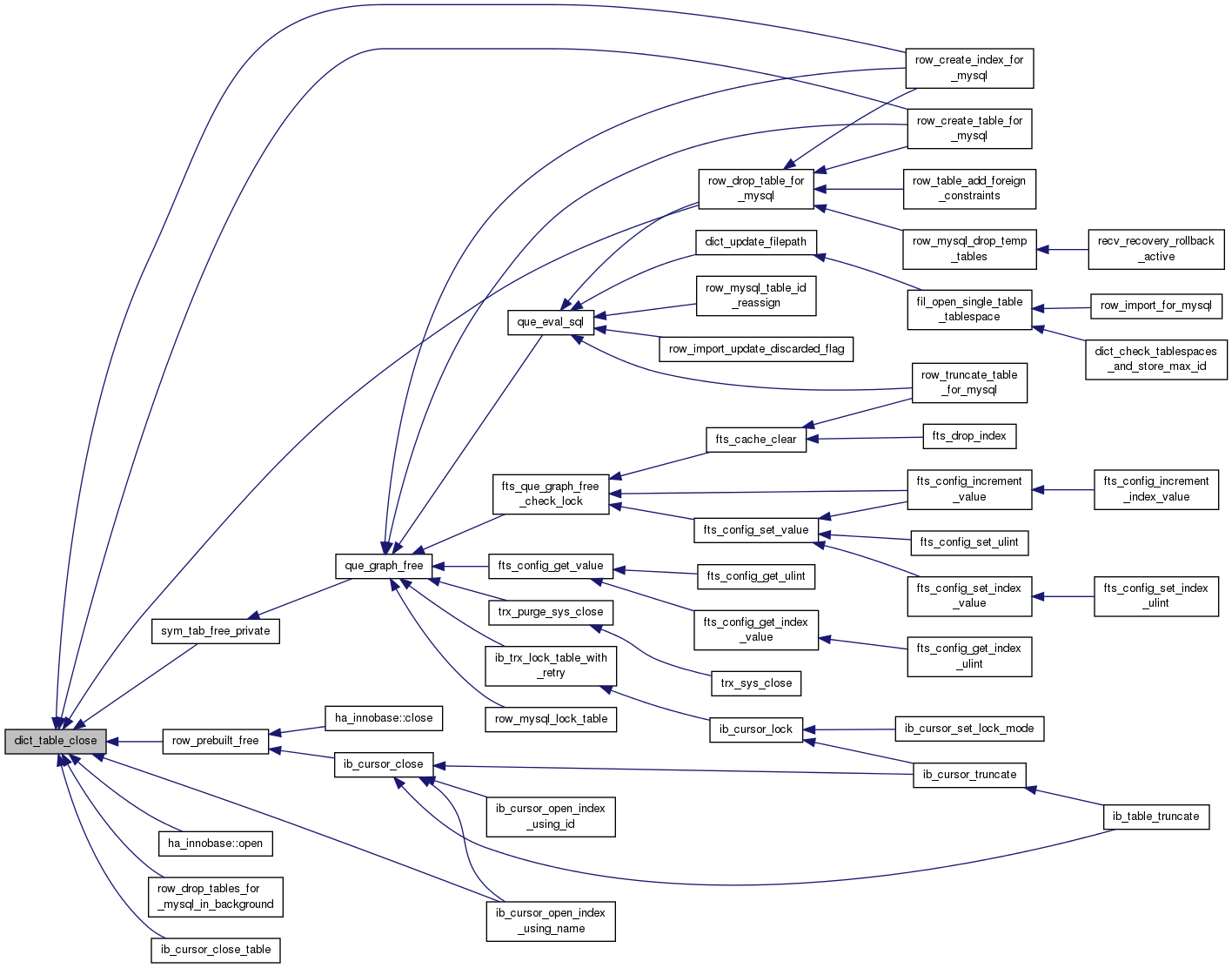

UNIV_INTERN void dict_table_close	(	dict_table_t *	table,
		ibool	dict_locked,
		ibool	try_drop
	)

Decrements the count of open handles to a table.

Parameters

table	in/out: table
dict_locked	in: TRUE=data dictionary locked
try_drop	in: TRUE=try to drop any orphan indexes after an aborted online index creation

Definition at line 470 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool dict_table_col_in_clustered_key	(	const dict_table_t *	table,
		ulint	n
	)

Checks if a column is in the ordering columns of the clustered index of a table. Column prefixes are treated like whole columns.

Returns: TRUE if the column, or its prefix, is in the clustered key

Parameters

table	in: table
n	in: column number

Definition at line 845 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN void dict_table_copy_types	(	dtuple_t *	tuple,
		const dict_table_t *	table
	)

Copies types of columns contained in table to tuple and sets all fields of the tuple to the SQL NULL value. This function should be called right after dtuple_create().

Parameters

tuple	in/out: data tuple
table	in: table

Definition at line 2699 of file dict0dict.cc.

Here is the call graph for this function:

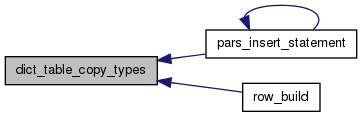

Here is the caller graph for this function:

UNIV_INTERN ulint dict_table_get_all_fts_indexes	(	dict_table_t *	table,
		ib_vector_t *	indexes
	)

Parameters

table	in: table
indexes	out: all FTS indexes on this table

Definition at line 588 of file dict0dict.cc.

UNIV_INTERN const char* dict_table_get_col_name	(	const dict_table_t *	table,
		ulint	col_nr
	)

Returns a column's name.

Returns: column name. NOTE: not guaranteed to stay valid if table is modified in any way (columns added, etc.).

Parameters

table	in: table
col_nr	in: column number

Definition at line 535 of file dict0dict.cc.

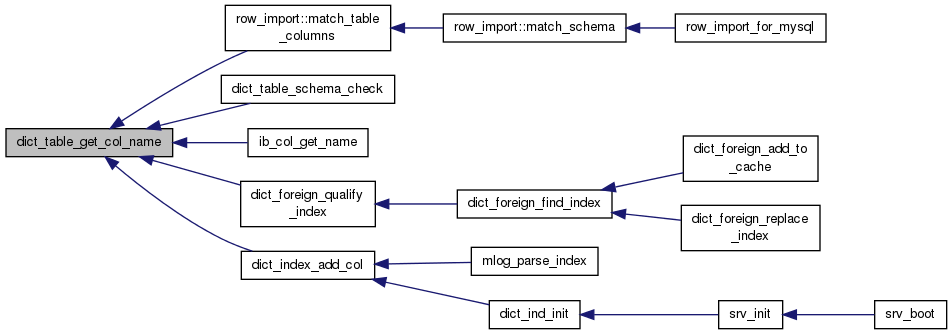

Here is the caller graph for this function:

UNIV_INTERN dict_foreign_t* dict_table_get_foreign_constraint	(	dict_table_t *	table,
		dict_index_t *	index
	)

Checks if a index is defined for a foreign key constraint. Index is a part of a foreign key constraint if the index is referenced by foreign key or index is a foreign key index.

Returns: pointer to foreign key struct if index is defined for foreign key, otherwise NULL

Parameters

table	in: InnoDB table
index	in: InnoDB index

Definition at line 3102 of file dict0dict.cc.

UNIV_INTERN ulint dict_table_get_highest_foreign_id ( dict_table_t * table )

Finds the highest [number] for foreign key constraints of the table. Looks only at the >= 4.0.18-format id's, which are of the form databasename/tablename_ibfk_[number].

Returns: highest number, 0 if table has no new format foreign key constraints

Parameters

table in: table in the dictionary memory cache

Definition at line 3987 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN dict_index_t* dict_table_get_index_on_name	(	dict_table_t *	table,
		const char *	name
	)

Get index by name

Returns: index, NULL if does not exist

Parameters

table	in: table
name	in: name of the index to find

Definition at line 5745 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dict_index_t* dict_table_get_index_on_name_and_min_id	(	dict_table_t *	table,
		const char *	name
	)

In case there is more than one index with the same name return the index with the min(id).

Returns: index, NULL if does not exist

Parameters

table	in: table
name	in: name of the index to find

Definition at line 5848 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN ulint dict_table_get_nth_col_pos	(	const dict_table_t *	table,
		ulint	n
	)

Looks for column n position in the clustered index.

Returns: position in internal representation of the clustered index

Parameters

table	in: table
n	in: column number

Definition at line 830 of file dict0dict.cc.

Here is the call graph for this function:

UNIV_INTERN dict_foreign_t* dict_table_get_referenced_constraint	(	dict_table_t *	table,
		dict_index_t *	index
	)

Check if the index is referenced by a foreign key, if TRUE return foreign else return NULL

Returns: pointer to foreign key struct if index is defined for foreign key, otherwise NULL

Parameters

table	in: InnoDB table
index	in: InnoDB index

Definition at line 3071 of file dict0dict.cc.

UNIV_INTERN ibool dict_table_is_referenced_by_foreign_key ( const dict_table_t * table )

Checks if a table is referenced by foreign keys.

Returns: TRUE if table is referenced by a foreign key

Parameters

table in: InnoDB table

Definition at line 3057 of file dict0dict.cc.

Here is the caller graph for this function:

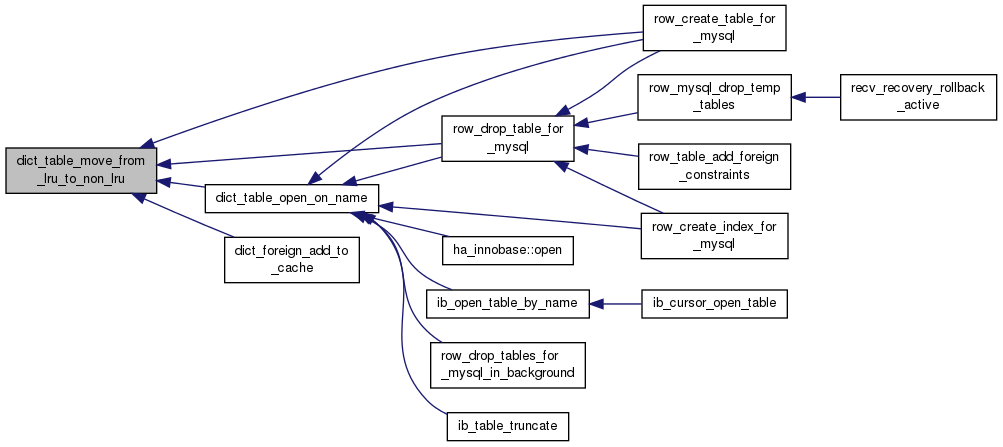

UNIV_INTERN void dict_table_move_from_lru_to_non_lru ( dict_table_t * table )

Move a table to the non-LRU list from the LRU list.

Parameters

table in: table to move from LRU to non-LRU

Definition at line 1290 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN void dict_table_move_from_non_lru_to_lru ( dict_table_t * table )

Move a table to the LRU list from the non-LRU list.

Parameters

table in: table to move from non-LRU to LRU

Definition at line 1310 of file dict0dict.cc.

UNIV_INTERN dict_table_t* dict_table_open_on_id	(	table_id_t	table_id,
		ibool	dict_locked,
		dict_table_op_t	table_op
	)

Returns a table object based on table id.

Returns: table, NULL if does not exist

Parameters

table_id	in: table id
dict_locked	in: TRUE=data dictionary locked
table_op	in: operation to perform

Definition at line 786 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

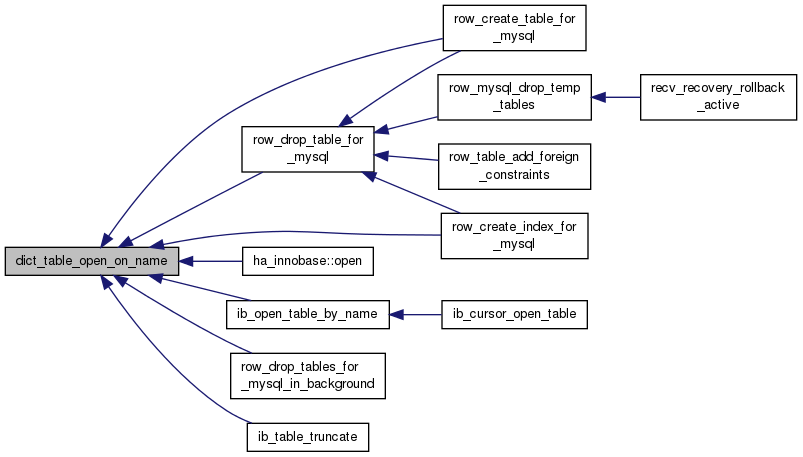

UNIV_INTERN dict_table_t* dict_table_open_on_name	(	const char *	table_name,
		ibool	dict_locked,
		ibool	try_drop,
		dict_err_ignore_t	ignore_err
	)

Returns a table object and increment its open handle count. NOTE! This is a high-level function to be used mainly from outside the 'dict' module. Inside this directory dict_table_get_low is usually the appropriate function.

Returns: table, NULL if does not exist

Parameters

table_name	in: table name
dict_locked	in: TRUE=data dictionary locked
try_drop	in: TRUE=try to drop any orphan indexes after an aborted online index creation
ignore_err	in: error to be ignored when loading a table definition

Definition at line 941 of file dict0dict.cc.

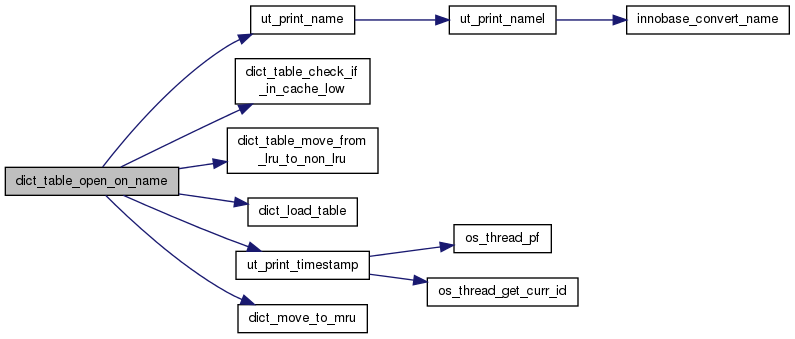

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_table_print ( dict_table_t * table )

Prints a table data.

Parameters

table in: table

Definition at line 5127 of file dict0dict.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_table_remove_from_cache ( dict_table_t * table )

Removes a table object from the dictionary cache.

Parameters

table in, own: table

Definition at line 1915 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN dberr_t dict_table_rename_in_cache	(	dict_table_t *	table,
		const char *	new_name,
		ibool	rename_also_foreigns
	)

Renames a table object.

Returns: TRUE if success

Parameters

table	in/out: table
new_name	in: new name
rename_also_foreigns	in: in ALTER TABLE we want to preserve the original table name in constraints which reference it

Definition at line 1400 of file dict0dict.cc.

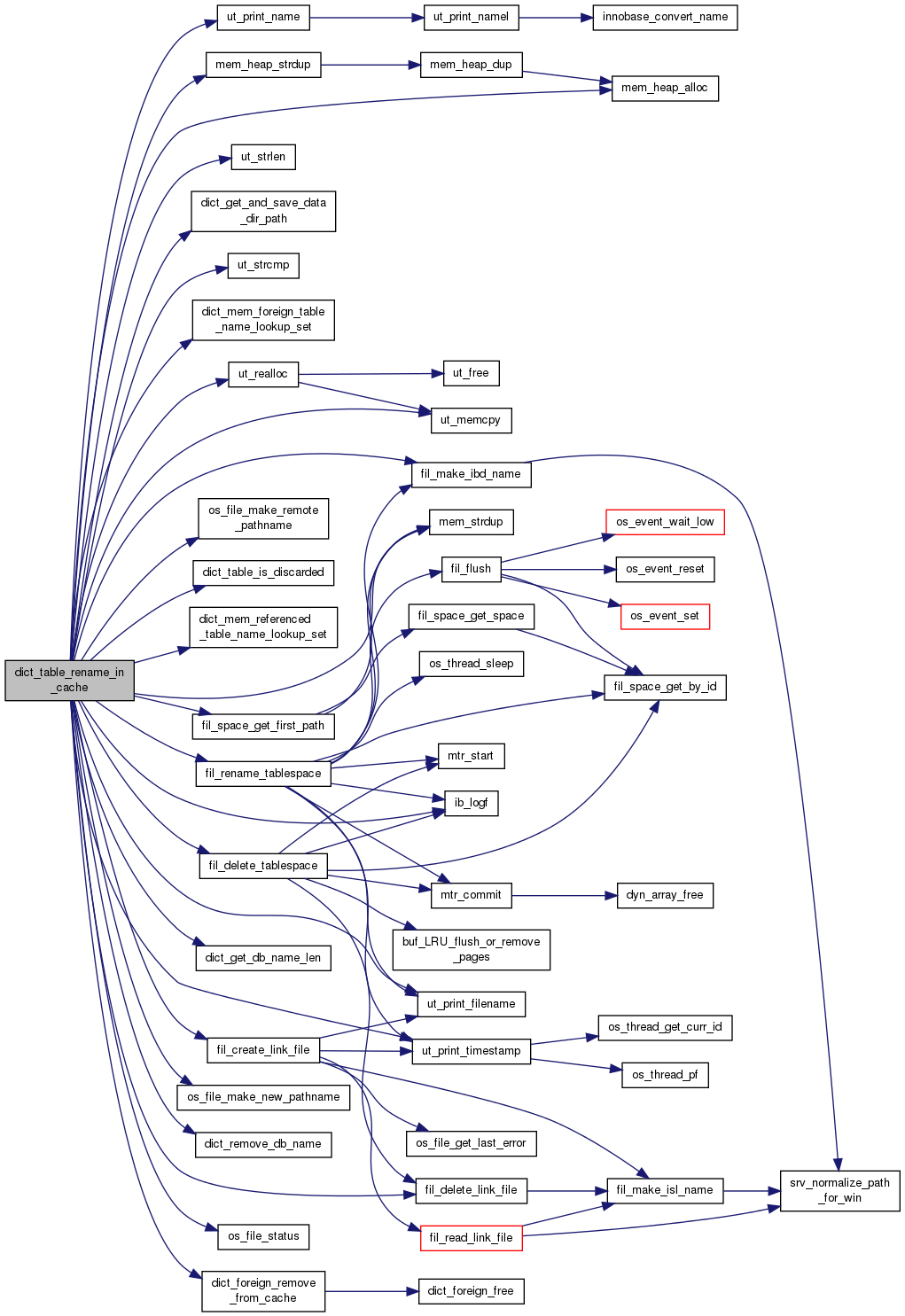

Here is the call graph for this function:

UNIV_INTERN dberr_t dict_table_schema_check	(	dict_table_schema_t *	req_schema,
		char *	errstr,
		size_t	errstr_sz
	)

Checks whether a table exists and whether it has the given structure. The table must have the same number of columns with the same names and types. The order of the columns does not matter. The caller must own the dictionary mutex. dict_table_schema_check()

Returns: DB_SUCCESS if the table exists and contains the necessary columns

Parameters

req_schema	in/out: required table schema
errstr	out: human readable error message if != DB_SUCCESS is returned
errstr_sz	in: errstr size

Definition at line 5942 of file dict0dict.cc.

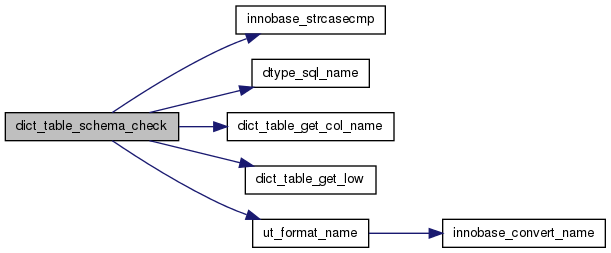

Here is the call graph for this function:

UNIV_INTERN void dict_table_stats_lock	(	const dict_table_t *	table,
		ulint	latch_mode
	)

Lock the appropriate latch to protect a given table's statistics. table->id is used to pick the corresponding latch from a global array of latches.

Parameters

table	in: table
latch_mode	in: RW_S_LATCH or RW_X_LATCH

Definition at line 346 of file dict0dict.cc.

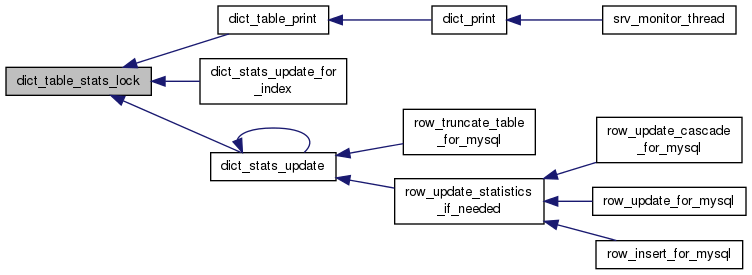

Here is the caller graph for this function:

UNIV_INTERN void dict_table_stats_unlock	(	const dict_table_t *	table,
		ulint	latch_mode
	)

Unlock the latch that has been locked by dict_table_stats_lock()

Parameters

table	in: table
latch_mode	in: RW_S_LATCH or RW_X_LATCH

Definition at line 373 of file dict0dict.cc.

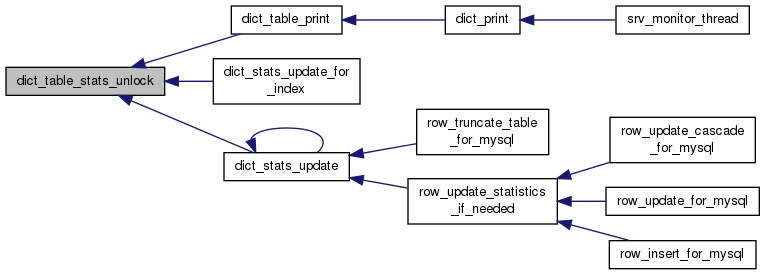

Here is the caller graph for this function:

UNIV_INTERN ibool dict_tables_have_same_db	(	const char *	name1,
		const char *	name2
	)

Checks if the database name in two table names is the same.

Returns: TRUE if same db name

Parameters

name1	in: table name in the form dbname '/' tablename
name2	in: table name in the form dbname '/' tablename

Definition at line 267 of file dict0dict.cc.

Here is the caller graph for this function:

UNIV_INTERN const char* dict_tf_to_row_format_string ( ulint table_flag )

Convert table flag to row format string.

Returns: row format name.

Parameters

table_flag in: row format setting

Definition at line 6597 of file dict0dict.cc.

Here is the caller graph for this function:

Variable Documentation

UNIV_INTERN dict_index_t* dict_ind_compact

dummy index for ROW_FORMAT=COMPACT supremum and infimum records

Definition at line 39 of file dict0dict.cc.

UNIV_INTERN dict_index_t* dict_ind_redundant

dummy index for ROW_FORMAT=REDUNDANT supremum and infimum records

Definition at line 37 of file dict0dict.cc.

UNIV_INTERN rw_lock_t dict_operation_lock

the data dictionary rw-latch protecting dict_sys

table create, drop, etc. reserve this in X-mode; implicit or backround operations purge, rollback, foreign key checks reserve this in S-mode; we cannot trust that MySQL protects implicit or background operations a table drop since MySQL does not know of them; therefore we need this; NOTE: a transaction which reserves this must keep book on the mode in trx_t::dict_operation_lock_mode

Definition at line 90 of file dict0dict.cc.

UNIV_INTERN dict_sys_t* dict_sys = NULL

the dictionary system

Definition at line 80 of file dict0dict.cc.

UNIV_INTERN ulong zip_failure_threshold_pct = 5

Percentage of compression failures that are allowed in a single

round

Definition at line 94 of file dict0dict.cc.

UNIV_INTERN ulong zip_pad_max = 50

Maximum percentage of a page that can be allowed as a pad to avoid

compression failures

Definition at line 98 of file dict0dict.cc.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation

Variable Documentation
