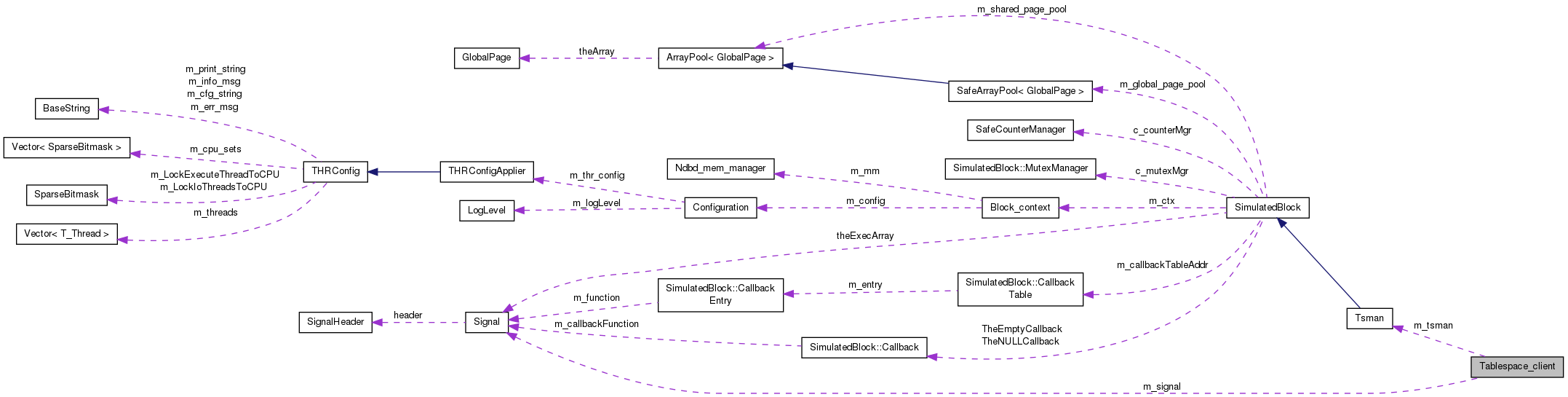

Collaboration diagram for Tablespace_client:

Public Member Functions
	DEBUG_OUT_DEFINES (TSMAN)
	Tablespace_client (Signal signal, SimulatedBlock block, Tsman *tsman, Uint32 table, Uint32 fragment, Uint32 tablespaceId, bool lock=true)
	Tablespace_client (Signal signal, Tsman tsman, Local_key *key)
int	alloc_extent (Local_key *key)
int	alloc_page_from_extent (Local_key *key, unsigned bits)
int	free_extent (Local_key *key, Uint64 lsn)
int	update_page_free_bits (Local_key *, unsigned bits)
int	get_page_free_bits (Local_key , unsigned uncommitted, unsigned *committed)
int	unmap_page (Local_key *, Uint32 bits)
int	restart_undo_page_free_bits (Local_key *, unsigned bits)
int	get_tablespace_info (CreateFilegroupImplReq *rep)
int	update_lsn (Local_key *key, Uint64 lsn)

Public Attributes
Uint32	m_block
Tsman *	m_tsman
Signal *	m_signal
Uint32	m_table_id
Uint32	m_fragment_id
Uint32	m_tablespace_id
bool	m_lock

Detailed Description

Definition at line 281 of file tsman.hpp.

Member Function Documentation

int Tablespace_client::alloc_extent ( Local_key * key )

inline

Return >0 if success, no of pages in extent, sets key <0 if failure, -error code

Definition at line 397 of file tsman.hpp.

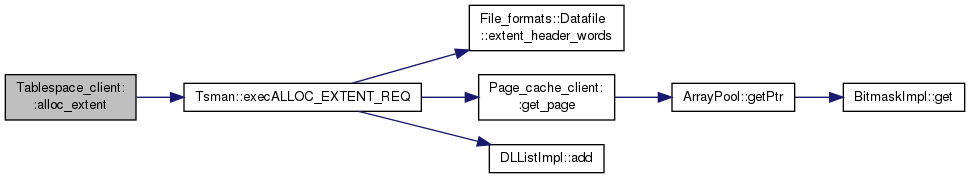

Here is the call graph for this function:

int Tablespace_client::alloc_page_from_extent	(	Local_key *	key,
		unsigned	bits
	)

inline

Allocated a page from an extent performs linear search in extent free bits until it find page that has atleast bits bits free

Start search from key->m_page_no and return found page in key->m_page_no this make sequential calls find sequential pages

If page is found, then the unlogged "page allocated bit" is set so that page can't be allocated twice unless freed first

Note: user of allocated page should use update_page_free_bits to undo log changes in free space on page

Return <0 if none found >=0 if found, then free bits of page found is returned

Definition at line 416 of file tsman.hpp.

Here is the call graph for this function:

int Tablespace_client::free_extent	(	Local_key *	key,
		Uint64	lsn
	)

inline

Free extent

Definition at line 437 of file tsman.hpp.

Here is the call graph for this function:

int Tablespace_client::get_page_free_bits	(	Local_key *	key,
		unsigned *	uncommitted,
		unsigned *	committed
	)

inline

Get page free bits

Definition at line 466 of file tsman.hpp.

Here is the caller graph for this function:

int Tablespace_client::get_tablespace_info ( CreateFilegroupImplReq * rep )

Get tablespace info

Store result in rep

Return 0 - on sucess <0 - on error

Definition at line 2311 of file tsman.cpp.

int Tablespace_client::restart_undo_page_free_bits	(	Local_key *	key,
		unsigned	bits
	)

inline

Undo handling of page bits

Definition at line 482 of file tsman.hpp.

int Tablespace_client::unmap_page	(	Local_key *	,
		Uint32	bits
	)

inline

Update unlogged page free bit

Definition at line 475 of file tsman.hpp.

Here is the caller graph for this function:

int Tablespace_client::update_lsn	(	Local_key *	key,
		Uint64	lsn
	)

Update lsn of page corresponing to key

int Tablespace_client::update_page_free_bits	(	Local_key *	key,
		unsigned	bits
	)

inline

Update page free bits

Definition at line 457 of file tsman.hpp.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

storage/ndb/src/kernel/blocks/tsman.hpp
storage/ndb/src/kernel/blocks/tsman.cpp
