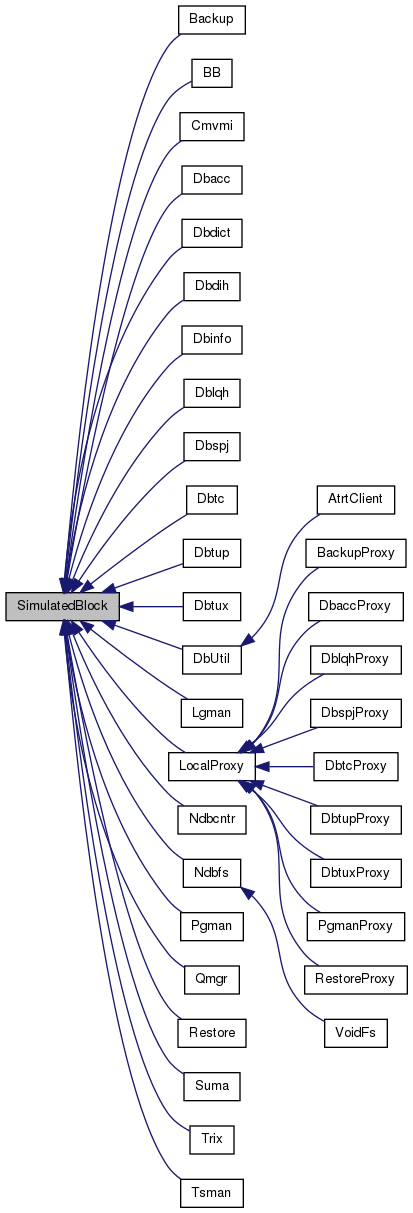

Inheritance diagram for SimulatedBlock:

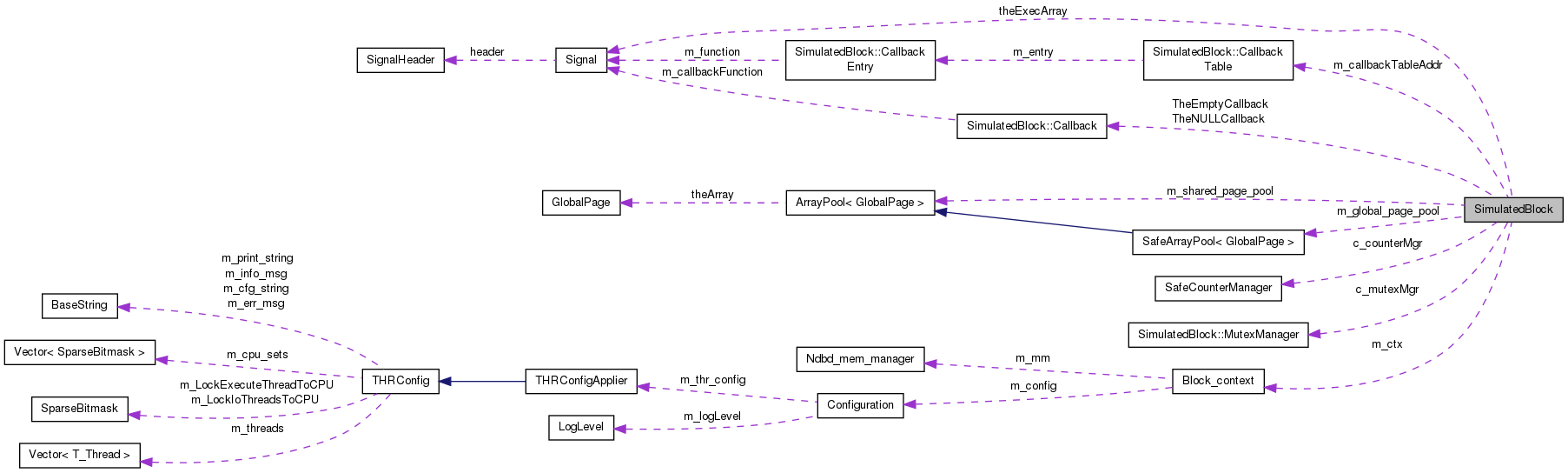

Collaboration diagram for SimulatedBlock:

Classes
struct	AllocChunk
struct	Callback
struct	CallbackEntry
struct	CallbackPtr
struct	CallbackTable
struct	FragmentInfo
struct	FragmentSendInfo
class	MutexManager
struct	RoutePath
struct	SyncThreadRecord
struct	ThreadContext

Public Types
typedef void(SimulatedBlock::*	CallbackFunction )(class Signal *, Uint32 callbackData, Uint32 returnCode)

Public Member Functions
void	executeFunction (GlobalSignalNumber gsn, Signal *signal)
Uint32	instance () const
SimulatedBlock *	getInstance (Uint32 instanceNumber)
void	addInstance (SimulatedBlock *b, Uint32 theInstanceNo)
virtual void	loadWorkers ()
void	assignToThread (ThreadContext ctx)
uint32	getThreadId () const
void	assertOwnThread ()
void	synchronize_threads_for_blocks (Signal *, const Uint32 blocks[], const Callback &, JobBufferLevel=JBB)
void	synchronize_path (Signal *, const Uint32 blocks[], const Callback &, JobBufferLevel=JBB)
virtual const char *	get_filename (Uint32 fd) const
EmulatedJamBuffer *	jamBuffer () const
void	ignoreMutexUnlockCallback (Signal *signal, Uint32 ptrI, Uint32 retVal)
virtual bool	getParam (const char param, Uint32 retVal)

Static Public Member Functions
static bool	isMultiThreaded ()
static bool	isNdbMt ()
static bool	isNdbMtLqh ()
static Uint32	getLqhWorkers ()
static Uint32	getInstanceKey (Uint32 tabId, Uint32 fragId)
static Uint32	getInstanceFromKey (Uint32 instanceKey)

Public Attributes
MutexManager	c_mutexMgr
SafeCounterManager	c_counterMgr

Protected Types
enum	CallbackFlags { CALLBACK_DIRECT = 0x0001, CALLBACK_ACK = 0x0002 }
enum	{ THE_NULL_CALLBACK = 0 }
typedef void(SimulatedBlock::*	ExecFunction )(Signal *signal)

Protected Member Functions
	SimulatedBlock (BlockNumber blockNumber, struct Block_context &ctx, Uint32 instanceNumber=0)
void	addRecSignalImpl (GlobalSignalNumber g, ExecFunction fun, bool f=false)
void	installSimulatedBlockFunctions ()
void	initCommon ()
void	TheNULLCallbackFunction (class Signal *, Uint32, Uint32)
void	execute (Signal *signal, Callback &c, Uint32 returnCode)
void	sendSignal (BlockReference ref, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf) const
void	sendSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf) const
void	sendSignal (BlockReference ref, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections) const
void	sendSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections) const
void	sendSignal (BlockReference ref, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections) const
void	sendSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections) const
void	sendSignalNoRelease (BlockReference ref, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections) const
void	sendSignalNoRelease (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections) const
void	sendSignalWithDelay (BlockReference ref, GlobalSignalNumber gsn, Signal *signal, Uint32 delayInMilliSeconds, Uint32 length) const
void	sendSignalWithDelay (BlockReference ref, GlobalSignalNumber gsn, Signal signal, Uint32 delayInMilliSeconds, Uint32 length, SectionHandle sections) const
void	EXECUTE_DIRECT (Uint32 block, Uint32 gsn, Signal *signal, Uint32 len, Uint32 givenInstanceNo=ZNIL)
class SectionSegmentPool &	getSectionSegmentPool ()
void	release (SegmentedSectionPtr &ptr)
void	release (SegmentedSectionPtrPOD &ptr)
void	releaseSection (Uint32 firstSegmentIVal)
void	releaseSections (struct SectionHandle &)
bool	import (Ptr< SectionSegment > &first, const Uint32 *src, Uint32 len)
bool	import (SegmentedSectionPtr &ptr, const Uint32 *src, Uint32 len)
bool	appendToSection (Uint32 &firstSegmentIVal, const Uint32 *src, Uint32 len)
bool	dupSection (Uint32 &copyFirstIVal, Uint32 srcFirstIVal)
bool	writeToSection (Uint32 firstSegmentIVal, Uint32 offset, const Uint32 *src, Uint32 len)
void	handle_invalid_sections_in_send_signal (Signal *) const
void	handle_lingering_sections_after_execute (Signal *) const
void	handle_lingering_sections_after_execute (SectionHandle *) const
void	handle_invalid_fragmentInfo (Signal *) const
void	handle_send_failed (SendStatus, Signal *) const
void	handle_out_of_longsignal_memory (Signal *) const
void	sendRoutedSignal (RoutePath path[], Uint32 pathcnt, Uint32 dst[], Uint32 dstcnt, Uint32 gsn, Signal , Uint32 len, JobBufferLevel prio, SectionHandle handle=0)
bool	checkNodeFailSequence (Signal *)
bool	assembleFragments (Signal *signal)
bool	assembleDroppedFragments (Signal *signal)
	STATIC_CONST (FRAGMENT_WORD_SIZE=240)
void	sendFragmentedSignal (BlockReference ref, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections, Callback &=TheEmptyCallback, Uint32 messageSize=FRAGMENT_WORD_SIZE)
void	sendFragmentedSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections, Callback &=TheEmptyCallback, Uint32 messageSize=FRAGMENT_WORD_SIZE)
void	sendFragmentedSignal (BlockReference ref, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections, Callback &=TheEmptyCallback, Uint32 messageSize=FRAGMENT_WORD_SIZE)
void	sendFragmentedSignal (NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections, Callback &=TheEmptyCallback, Uint32 messageSize=FRAGMENT_WORD_SIZE)
Uint32	simBlockNodeFailure (Signal *signal, Uint32 failedNodeId, Callback &cb=TheEmptyCallback)
bool	sendFirstFragment (FragmentSendInfo &info, NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal signal, Uint32 length, JobBufferLevel jbuf, SectionHandle sections, bool noRelease, Uint32 messageSize=FRAGMENT_WORD_SIZE)
bool	sendFirstFragment (FragmentSendInfo &info, NodeReceiverGroup rg, GlobalSignalNumber gsn, Signal *signal, Uint32 length, JobBufferLevel jbuf, LinearSectionPtr ptr[3], Uint32 noOfSections, Uint32 messageSize=FRAGMENT_WORD_SIZE)
void	sendNextSegmentedFragment (Signal *signal, FragmentSendInfo &info)
void	sendNextLinearFragment (Signal *signal, FragmentSendInfo &info)
BlockNumber	number () const
BlockReference	reference () const
NodeId	getOwnNodeId () const
void	refresh_watch_dog (Uint32 place=1)
void	update_watch_dog_timer (Uint32 interval)
void	progError (int line, int err_code, const char *extradata=NULL) const ATTRIBUTE_NORETURN
NewVARIABLE *	allocateBat (int batSize)
void	freeBat ()
BlockReference	calcInstanceBlockRef (BlockNumber aBlock)
BlockReference	calcInstanceBlockRef (BlockNumber aBlock, NodeId aNode)
void *	allocRecord (const char *type, size_t s, size_t n, bool clear=true, Uint32 paramId=0)
void *	allocRecordAligned (const char type, size_t s, size_t n, void *unaligned_buffer, Uint32 align=NDB_O_DIRECT_WRITE_ALIGNMENT, bool clear=true, Uint32 paramId=0)
void	deallocRecord (void *, const char type, size_t s, size_t n)
Uint32	allocChunks (AllocChunk dst[], Uint32arraysize, Uint32rg, Uint32pages, Uint32 paramId)
void	infoEvent (const char *msg,...) const ATTRIBUTE_FORMAT(printf
void void	warningEvent (const char *msg,...) const ATTRIBUTE_FORMAT(printf
void void const NodeState &	getNodeState () const
const NodeInfo &	getNodeInfo (NodeId nodeId) const
NodeInfo &	setNodeInfo (NodeId)
const NodeVersionInfo &	getNodeVersionInfo () const
NodeVersionInfo &	setNodeVersionInfo ()
Uint32	xfrm_key (Uint32 tab, const Uint32 src, Uint32 dst, Uint32 dstSize, Uint32 keyPartLen[MAX_ATTRIBUTES_IN_INDEX]) const
Uint32	xfrm_attr (Uint32 attrDesc, CHARSET_INFO cs, const Uint32 src, Uint32 &srcPos, Uint32 *dst, Uint32 &dstPos, Uint32 dstSize) const
Uint32	create_distr_key (Uint32 tableId, const Uint32 src, Uint32 dst, const Uint32 keyPaLen[MAX_ATTRIBUTES_IN_INDEX]) const
void	wakeup ()
void	setup_wakeup ()
void	execNDB_TAMPER (Signal *signal)
void	execNODE_STATE_REP (Signal *signal)
void	execCHANGE_NODE_STATE_REQ (Signal *signal)
void	execSIGNAL_DROPPED_REP (Signal *signal)
void	execCONTINUE_FRAGMENTED (Signal *signal)
void	execSTOP_FOR_CRASH (Signal *signal)
void	execAPI_START_REP (Signal *signal)
void	execNODE_START_REP (Signal *signal)
void	execSEND_PACKED (Signal *signal)
void	execLOCAL_ROUTE_ORD (Signal *)
Uint32	debugPrintFragmentCounts ()
void	fsRefError (Signal signal, Uint32 line, const char msg)
void	execFSWRITEREF (Signal *signal)
void	execFSREADREF (Signal *signal)
void	execFSOPENREF (Signal *signal)
void	execFSCLOSEREF (Signal *signal)
void	execFSREMOVEREF (Signal *signal)
void	execFSSYNCREF (Signal *signal)
void	execFSAPPENDREF (Signal *signal)
void	execute (Signal *signal, CallbackPtr &cptr, Uint32 returnCode)
const CallbackEntry &	getCallbackEntry (Uint32 ci)
void	sendCallbackConf (Signal *signal, Uint32 fullBlockNo, CallbackPtr &cptr, Uint32 returnCode)
void	execCALLBACK_CONF (Signal *signal)
void	ndbinfo_send_row (Signal *signal, const DbinfoScanReq &req, const Ndbinfo::Row &row, Ndbinfo::Ratelimit &rl) const
void	ndbinfo_send_scan_break (Signal *signal, DbinfoScanReq &req, const Ndbinfo::Ratelimit &rl, Uint32 data1, Uint32 data2=0, Uint32 data3=0, Uint32 data4=0) const
void	ndbinfo_send_scan_conf (Signal *signal, DbinfoScanReq &req, const Ndbinfo::Ratelimit &rl) const

Static Protected Member Functions
static const NewVARIABLE *	getBat (BlockNumber blockNo, Uint32 instanceNo)
static Uint16	getBatSize (BlockNumber blockNo, Uint32 instanceNo)
static BlockReference	calcTcBlockRef (NodeId aNode)
static BlockReference	calcLqhBlockRef (NodeId aNode)
static BlockReference	calcAccBlockRef (NodeId aNode)
static BlockReference	calcTupBlockRef (NodeId aNode)
static BlockReference	calcTuxBlockRef (NodeId aNode)
static BlockReference	calcDihBlockRef (NodeId aNode)
static BlockReference	calcQmgrBlockRef (NodeId aNode)
static BlockReference	calcDictBlockRef (NodeId aNode)
static BlockReference	calcNdbCntrBlockRef (NodeId aNode)
static BlockReference	calcTrixBlockRef (NodeId aNode)
static BlockReference	calcBackupBlockRef (NodeId aNode)
static BlockReference	calcSumaBlockRef (NodeId aNode)
static BlockReference	calcApiClusterMgrBlockRef (NodeId aNode)
static int	sortchunks (const void , const void )

Protected Attributes
ExecFunction	theExecArray [MAX_GSN+1]
Block_context	m_ctx
SafeArrayPool< GlobalPage > &	m_global_page_pool
ArrayPool< GlobalPage > &	m_shared_page_pool
CallbackTable *	m_callbackTableAddr
	ERROR_INSERT_VARIABLE

Static Protected Attributes
static Callback	TheEmptyCallback = {0, 0}
static Callback	TheNULLCallback

Friends
class	TraceLCP
class	SafeCounter
class	SafeCounterManager
class	AsyncFile
class	PosixAsyncFile
class	Win32AsyncFile
class	Pgman
class	Page_cache_client
class	Lgman
class	Logfile_client
class	Tablespace_client
class	Dbtup_client
struct	Pool_context
struct	SectionHandle
class	LockQueue
class	SimplePropertiesSectionWriter
class	BlockComponent
class	MutexManager

Detailed Description

Definition at line 106 of file SimulatedBlock.hpp.

Constructor & Destructor Documentation

SimulatedBlock::SimulatedBlock	(	BlockNumber	blockNumber,
		struct Block_context &	ctx,
		Uint32	instanceNumber = `0`
	)

protected

Constructor

Definition at line 68 of file SimulatedBlock.cpp.

Member Function Documentation

void * SimulatedBlock::allocRecord	(	const char *	type,
		size_t	s,
		size_t	n,
		bool	clear = `true`,
		Uint32	paramId = `0`
	)

protected

allocRecord Allocates memory for the datastructures where ndb keeps the data

Definition at line 1640 of file SimulatedBlock.cpp.

bool SimulatedBlock::assembleDroppedFragments ( Signal * signal )

protected

Assemble dropped fragments

Should be called at the start of a Dropped Signal Report (GSN_DROPPED_SIGNAL_REP) handler when it is expected that the block could receive fragmented signals. No dropped signal handling should be done until this method returns true.

Returns: true if all fragments has arrived and dropped signal handling can proceed. false otherwise

First in train

FragInfo == 2 or 3

fragInfo = 2 Still waiting for final fragments. Return false to caller.

fragInfo = 3 All fragments received, remove entry from hash and return to caller for dropped signal handling.

Unable to find fragment

Definition at line 2359 of file SimulatedBlock.cpp.

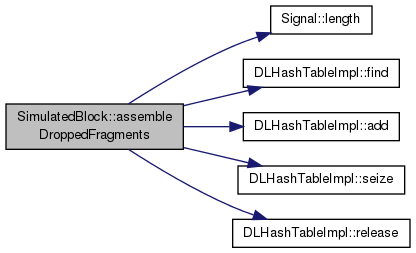

Here is the call graph for this function:

bool SimulatedBlock::assembleFragments ( Signal * signal )

protected

Assemble fragments

Returns: true if all fragments has arrived false otherwise

First in train

Don't release allocated segments

FragInfo == 2 or 3

fragInfo = 2

fragInfo = 3

NOTE: Don't use EXECUTE_DIRECT as it sets sendersBlockRef to reference()

Unable to find fragment

Definition at line 2211 of file SimulatedBlock.cpp.

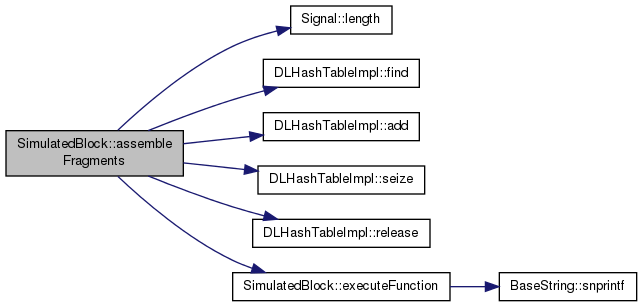

Here is the call graph for this function:

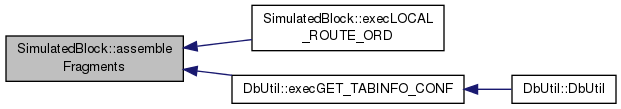

Here is the caller graph for this function:

void SimulatedBlock::assertOwnThread ( )

inline

Assert that thread calling this function is "owner" of block instance

Definition at line 198 of file SimulatedBlock.hpp.

bool SimulatedBlock::checkNodeFailSequence ( Signal * signal )

protected

Check that signal sent from remote node is guaranteed to be correctly serialized wrt to NODE_FAILREP

Make sure that a signal being part of node-failure handling from a remote node, does not get to us before we got the NODE_FAILREP (this to avoid tricky state handling)

To ensure this, we send the signal via QMGR (GSN_COMMIT_FAILREQ) and NDBCNTR (which sends NODE_FAILREP)

The extra time should be negilable

Note, make an exception for signals sent by our self as they are only sent as a consequence of NODE_FAILREP

Definition at line 4260 of file SimulatedBlock.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void SimulatedBlock::deallocRecord	(	void **	ptr,
		const char *	type,
		size_t	s,
		size_t	n
	)

protected

Deallocate record

NOTE: Also resets pointer

Definition at line 1710 of file SimulatedBlock.cpp.

void SimulatedBlock::execCHANGE_NODE_STATE_REQ ( Signal * signal )

protected

Pack return signal

Definition at line 1914 of file SimulatedBlock.cpp.

Here is the caller graph for this function:

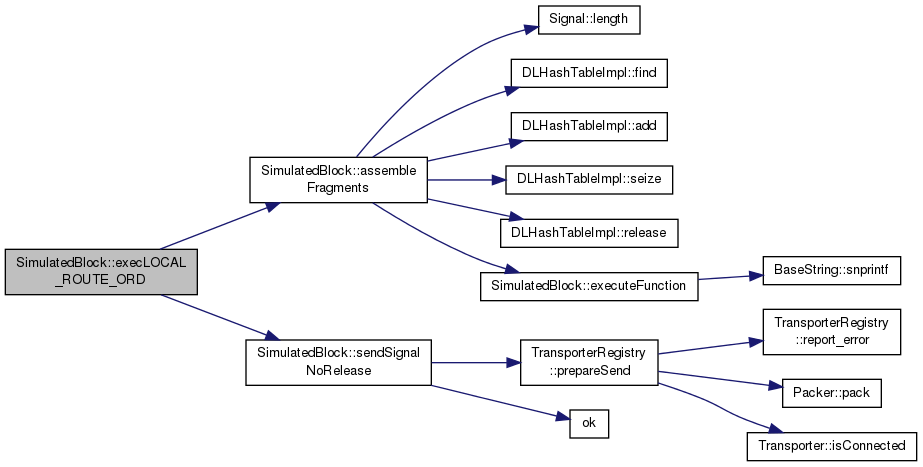

void SimulatedBlock::execLOCAL_ROUTE_ORD ( Signal * signal )

protected

This NDBCNTR error code 1001

Send to final destination(s);

Data is at end of this...

Put section 0 in signal->theData

Reroute

Definition at line 3951 of file SimulatedBlock.cpp.

Here is the call graph for this function:

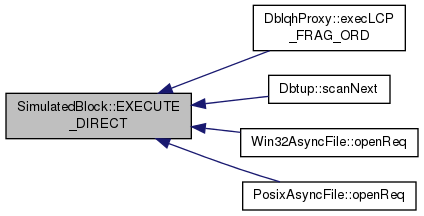

void SimulatedBlock::EXECUTE_DIRECT	(	Uint32	block,
		Uint32	gsn,
		Signal *	signal,
		Uint32	len,
		Uint32	givenInstanceNo = `ZNIL`
	)

inlineprotected

In multithreaded NDB, blocks run in different threads, and EXECUTE_DIRECT (unlike sendSignal) is generally not thread-safe. So only allow EXECUTE_DIRECT between blocks that run in the same thread, unless caller explicitly marks it as being thread safe (eg NDBFS), by using an explicit instance argument. By default instance of sender is used. This is automatically thread-safe for worker instances (instance != 0).

Definition at line 1234 of file SimulatedBlock.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

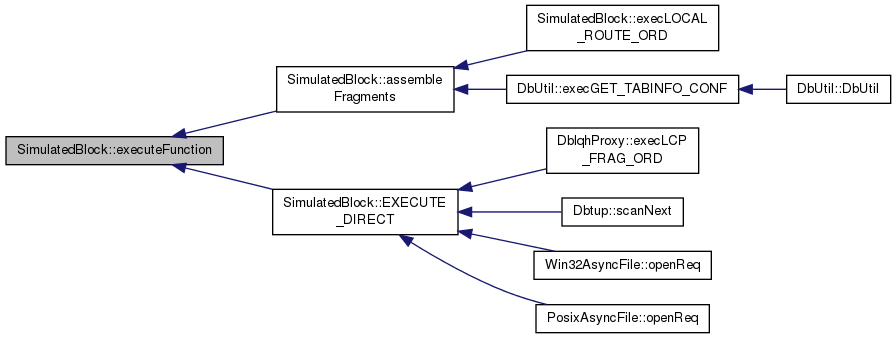

void SimulatedBlock::executeFunction	(	GlobalSignalNumber	gsn,
		Signal *	signal
	)

inline

This point only passed if an error has occurred

Definition at line 1026 of file SimulatedBlock.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

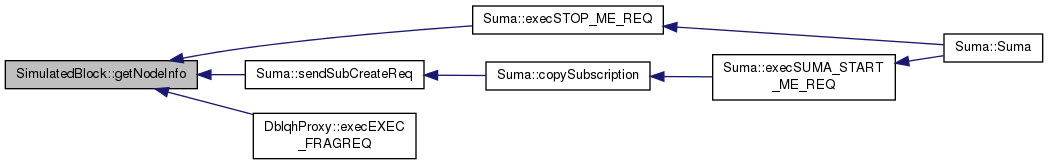

const NodeInfo & SimulatedBlock::getNodeInfo ( NodeId nodeId ) const

inlineprotected

Get node info

Definition at line 1200 of file SimulatedBlock.hpp.

Here is the caller graph for this function:

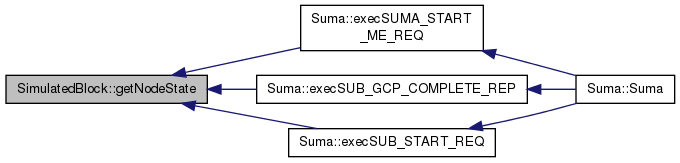

const NodeState & SimulatedBlock::getNodeState ( ) const

inlineprotected

Get node state

Definition at line 1194 of file SimulatedBlock.hpp.

Here is the caller graph for this function:

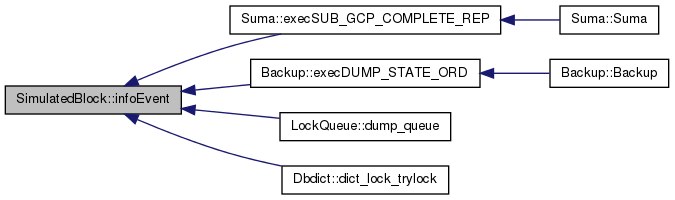

void SimulatedBlock::infoEvent	(	const char *	msg,
			...
	)		const

protected

General info event (sent to cluster log)

Init and put it into the job buffer

Definition at line 1817 of file SimulatedBlock.cpp.

Here is the caller graph for this function:

void SimulatedBlock::progError	(	int	line,
		int	err_code,
		const char *	extradata = `NULL`
	)		const

protected

Prog error This function should be called when this node should be shutdown If the cause of the shutdown is known use extradata to add an errormessage describing the problem

Definition at line 1796 of file SimulatedBlock.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void SimulatedBlock::refresh_watch_dog ( Uint32 place = 1 )

protected

Refresh Watch Dog in initialising code

Definition at line 1779 of file SimulatedBlock.cpp.

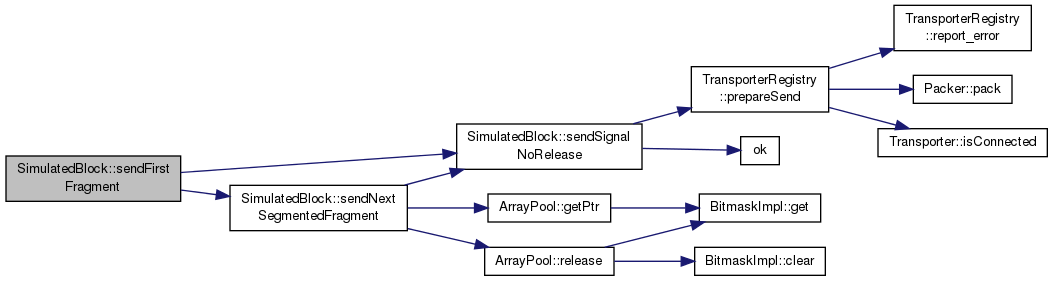

bool SimulatedBlock::sendFirstFragment	(	FragmentSendInfo &	info,
		NodeReceiverGroup	rg,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf,
		SectionHandle *	sections,
		bool	noRelease,
		Uint32	messageSize = `FRAGMENT_WORD_SIZE`
	)

protected

sendFirstFragment Used by sendFragmentedSignal noRelease can only be used if the caller can guarantee not to free the supplied sections until all fragments have been sent.

Send signal directly

Setup info object

Clear sections in caller's handle. Actual send will consume them

Fragment id 0 is invalid

Definition at line 2762 of file SimulatedBlock.cpp.

Here is the call graph for this function:

bool SimulatedBlock::sendFirstFragment	(	FragmentSendInfo &	info,
		NodeReceiverGroup	rg,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf,
		LinearSectionPtr	ptr[3],
		Uint32	noOfSections,
		Uint32	messageSize = `FRAGMENT_WORD_SIZE`
	)

protected

Send signal directly

Indicate to sendLinearSignalFragment that we'r already done

Setup info object

Fragment id 0 is invalid

Definition at line 3121 of file SimulatedBlock.cpp.

Here is the call graph for this function:

void SimulatedBlock::sendNextLinearFragment	(	Signal *	signal,
		FragmentSendInfo &	info
	)

protected

Send signal fragment

See Also: sendFragmentedSignal

Store "theData"

The section fits

Only one segment left to send send even if sizeLeft <= size

Less than one segment left (space) dont bother sending

Split list 1) Find place to split 2) Rewrite header (the part that will be sent) 3) Write new header (for remaining part) 4) Store new header on FragmentSendInfo - record

Rewrite header w.r.t size

Write/store "new" header

Store fragment id

Not finished

This is the last signal

Definition at line 3201 of file SimulatedBlock.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

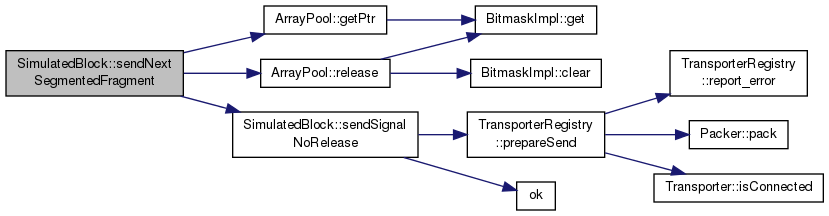

void SimulatedBlock::sendNextSegmentedFragment	(	Signal *	signal,
		FragmentSendInfo &	info
	)

protected

Send signal fragment

See Also: sendFragmentedSignal

Setup main signal data from stored copy

The section fits

Only one segment left to send send even if sizeLeft <= size

Less than one segment left (space) dont bother sending

Split list 1) Find place to split 2) Rewrite header (the part that will be sent) 3) Write new header (for remaining part) 4) Store new header on FragmentSendInfo - record

Record details of the section pre-split This allows the split to be 'healed' afterwards in the no release case.

Rewrite header w.r.t size and last This is what will be sent in this fragment.

Write "new" list header This is what remains to be sent in this section

And store it on info-record

Store fragment id

Not finished

This is the last signal Release saved 'main signal' words segment

Definition at line 2865 of file SimulatedBlock.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void SimulatedBlock::sendRoutedSignal	(	RoutePath	path[],
		Uint32	pathcnt,
		Uint32	dst[],
		Uint32	dstcnt,
		Uint32	gsn,
		Signal *	signal,
		Uint32	len,
		JobBufferLevel	prio,
		SectionHandle *	handle = `0`
	)

protected

we need to store theData in a section

Definition at line 3870 of file SimulatedBlock.cpp.

Here is the caller graph for this function:

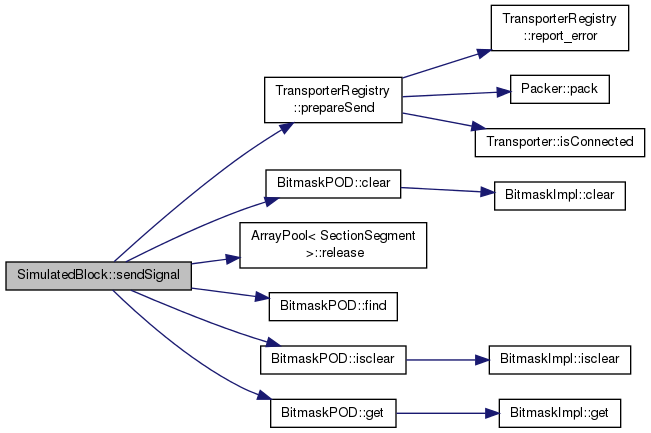

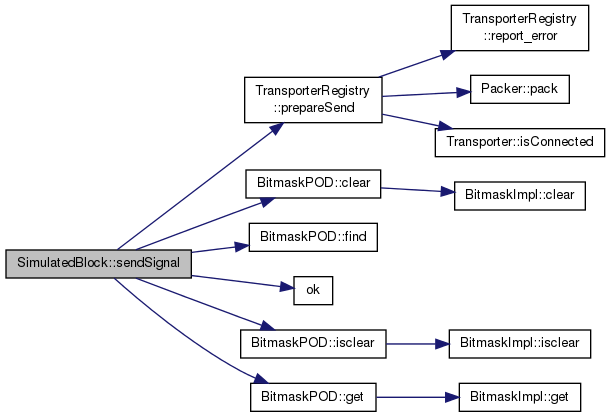

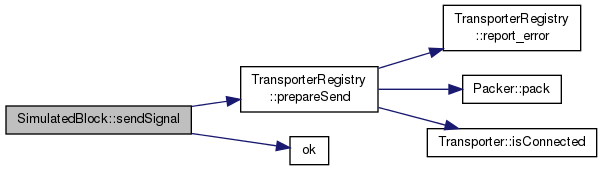

void SimulatedBlock::sendSignal	(	NodeReceiverGroup	rg,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf
	)		const

protected

Check own node

Do the big loop

Definition at line 593 of file SimulatedBlock.cpp.

Here is the call graph for this function:

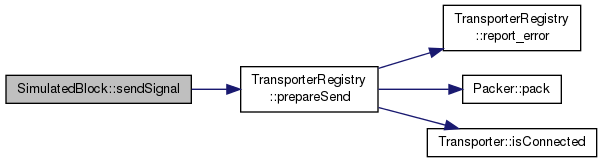

void SimulatedBlock::sendSignal	(	BlockReference	ref,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf,
		SectionHandle *	sections
	)		const

protected

We have to copy the data

Definition at line 953 of file SimulatedBlock.cpp.

Here is the call graph for this function:

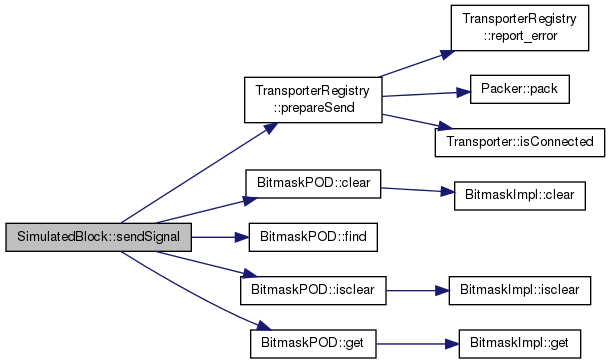

void SimulatedBlock::sendSignal	(	NodeReceiverGroup	rg,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf,
		SectionHandle *	sections
	)		const

protected

Check own node

We have to copy the data

Do the big loop

Definition at line 1065 of file SimulatedBlock.cpp.

Here is the call graph for this function:

void SimulatedBlock::sendSignal	(	BlockReference	ref,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf,
		LinearSectionPtr	ptr[3],
		Uint32	noOfSections
	)		const

protected

We have to copy the data

Definition at line 703 of file SimulatedBlock.cpp.

Here is the call graph for this function:

void SimulatedBlock::sendSignal	(	NodeReceiverGroup	rg,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf,
		LinearSectionPtr	ptr[3],
		Uint32	noOfSections
	)		const

protected

Check own node

We have to copy the data

Do the big loop

Definition at line 822 of file SimulatedBlock.cpp.

Here is the call graph for this function:

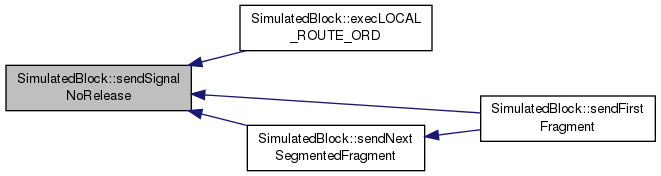

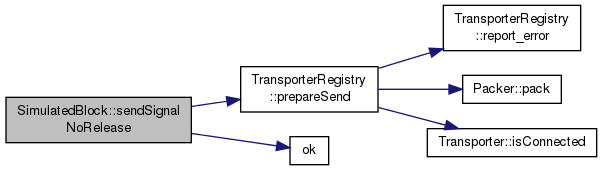

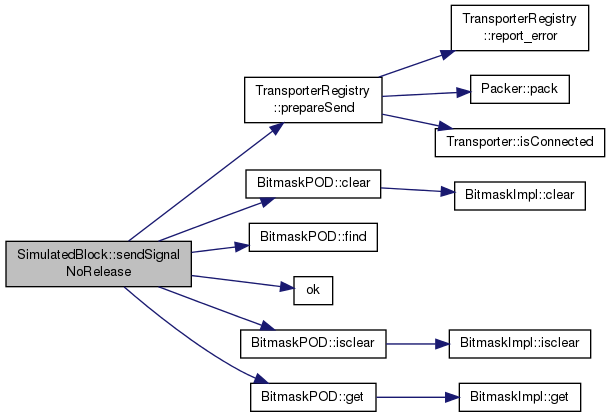

void SimulatedBlock::sendSignalNoRelease	(	BlockReference	ref,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf,
		SectionHandle *	sections
	)		const

protected

Implementation the same as sendSignal(), except that the sections are duplicated when sending locally, and not released

Definition at line 1198 of file SimulatedBlock.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void SimulatedBlock::sendSignalNoRelease	(	NodeReceiverGroup	rg,
		GlobalSignalNumber	gsn,
		Signal *	signal,
		Uint32	length,
		JobBufferLevel	jbuf,
		SectionHandle *	sections
	)		const

protected

Implementation the same as sendSignal(), except that the sections are duplicated when sending locally, and not released

Check own node

Do the big loop

Definition at line 1313 of file SimulatedBlock.cpp.

Here is the call graph for this function:

void SimulatedBlock::setup_wakeup ( )

protected

setup struct for wakeup

Definition at line 4303 of file SimulatedBlock.cpp.

Here is the caller graph for this function:

Uint32 SimulatedBlock::simBlockNodeFailure	(	Signal *	signal,
		Uint32	failedNodeId,
		Callback &	cb = `TheEmptyCallback`
	)

protected

simBlockNodeFailure

Method must be called by blocks that send or receive remote Fragmented Signals when they detect a node (NDBD or API) failure. If the block needs to acknowledge or perform further processing after completing block-level node failure handling, it can supply a Callback which will be invoked when block-level node failure handling has completed. Otherwise TheEmptyCallback is used. If TheEmptyCallback is used, all failure handling is performed in the current timeslice, to avoid any races.

Parameters signal : Current signal* failedNodeId : Node id of failed node cb : Callback to be executed when block-level node failure handling completed. TheEmptyCallback is passed if no further processing is required. Returns Number of 'resources' cleaned up in call. Callback return code is total resources cleaned up.

Definition at line 2701 of file SimulatedBlock.cpp.

void SimulatedBlock::synchronize_path	(	Signal *	signal,
		const Uint32	blocks[],
		const Callback &	cb,
		JobBufferLevel	prio = `JBB`
	)

This method make sure that the path specified in blocks[] will be traversed before returning

Definition at line 4166 of file SimulatedBlock.cpp.

Here is the call graph for this function:

void SimulatedBlock::synchronize_threads_for_blocks	(	Signal *	signal,
		const Uint32	blocks[],
		const Callback &	cb,
		JobBufferLevel	prio = `JBB`
	)

This method will make sure that when callback in called each thread running an instance any of the threads in blocks[] will have executed a signal

Definition at line 4092 of file SimulatedBlock.cpp.

Here is the call graph for this function:

void SimulatedBlock::wakeup ( )

protected

if ndbd, wakeup main-loop if sleeping on IO if ndbmtd wakeup thread running block-instance

Definition at line 4312 of file SimulatedBlock.cpp.

void SimulatedBlock::warningEvent	(	const char *	msg,
			...
	)		const

protected

Init and put it into the job buffer

Definition at line 1862 of file SimulatedBlock.cpp.

Uint32 SimulatedBlock::xfrm_key	(	Uint32	tab,
		const Uint32 *	src,
		Uint32 *	dst,
		Uint32	dstSize,
		Uint32	keyPartLen[MAX_ATTRIBUTES_IN_INDEX]
	)		const

protected

Returns: length

Definition at line 3701 of file SimulatedBlock.cpp.

Here is the caller graph for this function:

Member Data Documentation

SimulatedBlock::Callback SimulatedBlock::TheNULLCallback

staticprotected

Initial value:

{ &SimulatedBlock::TheNULLCallbackFunction, 0 }

Definition at line 246 of file SimulatedBlock.hpp.

The documentation for this class was generated from the following files:

storage/ndb/src/kernel/vm/SimulatedBlock.hpp
storage/ndb/src/kernel/blocks/print_file.cpp
storage/ndb/src/kernel/vm/SimulatedBlock.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
