NdbScanFilter Class Reference

A simple way to specify filters for scan operations. More...

#include <NdbScanFilter.hpp>

Public Types

enum  Group { AND = 1, OR = 2, NAND = 3, NOR = 4 }
enum  BinaryCondition {
  COND_LE = 0, COND_LT = 1, COND_GE = 2, COND_GT = 3,
  COND_EQ = 4, COND_NE = 5, COND_LIKE = 6, COND_NOT_LIKE = 7,
  COND_AND_EQ_MASK = 8, COND_AND_NE_MASK = 9, COND_AND_EQ_ZERO = 10, COND_AND_NE_ZERO = 11
}
enum  Error { FilterTooLarge = 4294 }

Public Member Functions

 NdbScanFilter (NdbInterpretedCode *code)
 NdbScanFilter (class NdbOperation *op)
int istrue ()
int isfalse ()
int cmp (BinaryCondition cond, int ColId, const void *val, Uint32 len=0)
int isnull (int ColId)
int isnotnull (int ColId)
struct NdbError & getNdbError () const
const NdbInterpretedCode * getInterpretedCode () const
NdbOperation * getNdbOperation () const
Grouping
int begin (Group group=AND)
int end ()
Integer Comparators
int eq (int ColId, Uint32 value)
int ne (int ColId, Uint32 value)
int lt (int ColId, Uint32 value)
int le (int ColId, Uint32 value)
int gt (int ColId, Uint32 value)
int ge (int ColId, Uint32 value)
int eq (int ColId, Uint64 value)
int ne (int ColId, Uint64 value)
int lt (int ColId, Uint64 value)
int le (int ColId, Uint64 value)
int gt (int ColId, Uint64 value)
int ge (int ColId, Uint64 value)

Friends

class NdbScanFilterImpl

Detailed Description

A simple way to specify filters for scan operations.

Note
This filter interface is under development and may change in the future!

Definition at line 35 of file NdbScanFilter.hpp.

Member Enumeration Documentation

enum NdbScanFilter::BinaryCondition
Enumerator:
COND_LE

lower bound

COND_LT

lower bound, strict

COND_GE

upper bound

COND_GT

upper bound, strict

COND_EQ

equality

COND_NE

not equal

COND_LIKE

like

COND_NOT_LIKE

not like

COND_AND_EQ_MASK

(bit & mask) == mask

COND_AND_NE_MASK

(bit & mask) != mask (incl. NULL)

COND_AND_EQ_ZERO

(bit & mask) == 0

COND_AND_NE_ZERO

(bit & mask) != 0 (incl. NULL)

Definition at line 84 of file NdbScanFilter.hpp.

enum NdbScanFilter::Group

Group operators

Enumerator:
AND

(x1 AND x2 AND x3)

OR

(x1 OR x2 OR X3)

NAND

NOT (x1 AND x2 AND x3)

NOR

NOT (x1 OR x2 OR x3)

Definition at line 77 of file NdbScanFilter.hpp.

Constructor & Destructor Documentation

NdbScanFilter::NdbScanFilter ( NdbInterpretedCode *  code)

Constructor Using this constructor, a ScanFilter is created which will build and finalise a scan filter program using the NdbInterpretedCode object passed. Once defined, the generated NdbInterpretedCode object can be used to specify a scan filter for one or more NdbRecord defined ScanOperations on the supplied table. The NdbInterpretedCode object is passed to the ScanTable() or ScanIndex() call via the ScanOptions structure.

Parameters
codePointer to the NdbInterpretedCode object to build the ScanFilter in.

Definition at line 126 of file NdbScanFilter.cpp.

NdbScanFilter::NdbScanFilter ( class NdbOperation *  op)

Constructor This constructor is used to create an ScanFilter object for use with a non-NdbRecord defined ScanOperation.

As part of the filter definition, it is automatically added to the supplied operation. ScanFilters defined this way can only be used with the passed Scan operation.

Parameters
opThe NdbOperation that the filter is applied to. Note that this MUST be an NdbScanOperation or NdbIndexScanOperation object created using the NdbTransaction->getNdbScanOperation() or NdbTransaciton->getNdbIndexScanOperation() methods

Definition at line 134 of file NdbScanFilter.cpp.

Here is the call graph for this function:

Member Function Documentation

int NdbScanFilter::begin ( Group  group = AND)

Begin of compound. If no group type is passed, defaults to AND. ®return 0 if successful, -1 otherwise

Definition at line 169 of file NdbScanFilter.cpp.

int NdbScanFilter::cmp ( BinaryCondition  cond,
int  ColId,
const void *  val,
Uint32  len = 0
)

Compare column ColId with val

For all BinaryConditions except LIKE and NOT_LIKE, the value pointed to by val should be in normal column format as described in the documentation for NdbOperation::equal(). For BinaryConditions LIKE and NOT_LIKE, the value pointed to by val should NOT include initial length bytes. For LIKE and NOT_LIKE, the % and ? wildcards are supported. For bitmask operations, see the bitmask format information against the branch_col_and_mask_eq_mask instruction in NdbInterpretedCode.hpp

®return 0 if successful, -1 otherwise

Definition at line 690 of file NdbScanFilter.cpp.

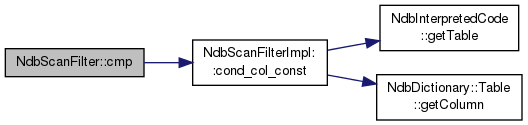

Here is the call graph for this function:

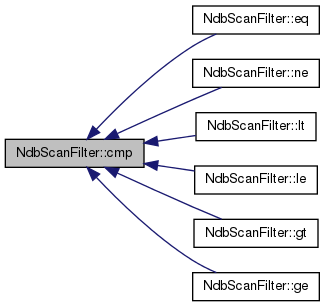

Here is the caller graph for this function:

int NdbScanFilter::end ( )

End of compound. ®return 0 if successful, -1 otherwise

Definition at line 257 of file NdbScanFilter.cpp.

int NdbScanFilter::eq ( int  ColId,
Uint32  value
)
inline

Compare column value with integer for equal ®return 0 if successful, -1 otherwise

Definition at line 155 of file NdbScanFilter.hpp.

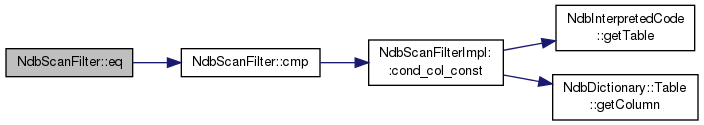

Here is the call graph for this function:

int NdbScanFilter::eq ( int  ColId,
Uint64  value
)
inline

Compare column value with integer for equal. 64-bit. ®return 0 if successful, -1 otherwise

Definition at line 181 of file NdbScanFilter.hpp.

Here is the call graph for this function:

int NdbScanFilter::ge ( int  ColId,
Uint32  value
)
inline

Compare column value with integer for greater than or equal. ®return 0 if successful, -1 otherwise

Definition at line 176 of file NdbScanFilter.hpp.

Here is the call graph for this function:

int NdbScanFilter::ge ( int  ColId,
Uint64  value
)
inline

Compare column value with integer for greater than or equal. 64-bit. ®return 0 if successful, -1 otherwise

Definition at line 201 of file NdbScanFilter.hpp.

Here is the call graph for this function:

const NdbInterpretedCode * NdbScanFilter::getInterpretedCode ( ) const

Get filter's associated InterpretedCode object. For ScanFilters associated with a non-NdbRecord scan operation, this method always returns NULL.

Definition at line 738 of file NdbScanFilter.cpp.

const NdbError & NdbScanFilter::getNdbError ( ) const
read

Get filter level error.

Errors encountered when building a ScanFilter do not propagate to any involved NdbOperation object. This method gives access to error information.

Definition at line 731 of file NdbScanFilter.cpp.

NdbOperation * NdbScanFilter::getNdbOperation ( ) const

Get NdbScanFilter's associated NdbScanOperation

Where the NdbScanFilter was constructed with an NdbOperation this method can be used to obtain a pointer to the NdbOperation object. For other NdbScanFilter objects it will return NULL

Definition at line 751 of file NdbScanFilter.cpp.

int NdbScanFilter::gt ( int  ColId,
Uint32  value
)
inline

Compare column value with integer for greater than. ®return 0 if successful, -1 otherwise

Definition at line 172 of file NdbScanFilter.hpp.

Here is the call graph for this function:

int NdbScanFilter::gt ( int  ColId,
Uint64  value
)
inline

Compare column value with integer for greater than. 64-bit. ®return 0 if successful, -1 otherwise

Definition at line 197 of file NdbScanFilter.hpp.

Here is the call graph for this function:

int NdbScanFilter::isfalse ( )

Define one term of the current group as FALSE ®return 0 if successful, -1 otherwise

Definition at line 390 of file NdbScanFilter.cpp.

int NdbScanFilter::isnotnull ( int  ColId)

Check if column value is non-NULL ®return 0 if successful, -1 otherwise

Definition at line 488 of file NdbScanFilter.cpp.

int NdbScanFilter::isnull ( int  ColId)

Check if column value is NULL ®return 0 if successful, -1 otherwise

Definition at line 478 of file NdbScanFilter.cpp.

int NdbScanFilter::istrue ( )

Define one term of the current group as TRUE ®return 0 if successful, -1 otherwise

Definition at line 368 of file NdbScanFilter.cpp.

int NdbScanFilter::le ( int  ColId,
Uint32  value
)
inline

Compare column value with integer for less than or equal. ®return 0 if successful, -1 otherwise

Definition at line 168 of file NdbScanFilter.hpp.

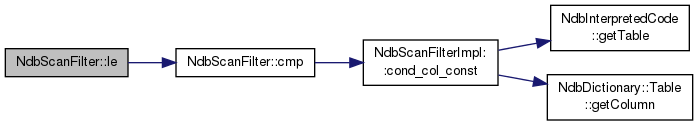

Here is the call graph for this function:

int NdbScanFilter::le ( int  ColId,
Uint64  value
)
inline

Compare column value with integer for less than or equal. 64-bit. ®return 0 if successful, -1 otherwise

Definition at line 193 of file NdbScanFilter.hpp.

Here is the call graph for this function:

int NdbScanFilter::lt ( int  ColId,
Uint32  value
)
inline

Compare column value with integer for less than. ®return 0 if successful, -1 otherwise

Definition at line 164 of file NdbScanFilter.hpp.

Here is the call graph for this function:

int NdbScanFilter::lt ( int  ColId,
Uint64  value
)
inline

Compare column value with integer for less than. 64-bit. ®return 0 if successful, -1 otherwise

Definition at line 189 of file NdbScanFilter.hpp.

Here is the call graph for this function:

int NdbScanFilter::ne ( int  ColId,
Uint32  value
)
inline

Compare column value with integer for not equal. ®return 0 if successful, -1 otherwise

Definition at line 160 of file NdbScanFilter.hpp.

Here is the call graph for this function:

int NdbScanFilter::ne ( int  ColId,
Uint64  value
)
inline

Compare column value with integer for not equal. 64-bit. ®return 0 if successful, -1 otherwise

Definition at line 185 of file NdbScanFilter.hpp.

Here is the call graph for this function:

The documentation for this class was generated from the following files:
