Represents an Event in NDB Cluster. More...

#include <NdbDictionary.hpp>

Inheritance diagram for NdbDictionary::Event:

Collaboration diagram for NdbDictionary::Event:

Public Types
enum	TableEvent { TE_INSERT = 1<<0, TE_DELETE = 1<<1, TE_UPDATE = 1<<2, TE_SCAN = 1<<3, TE_FIRST_NON_DATA_EVENT = 1<<4, TE_DROP = 1<<4, TE_ALTER = 1<<5, TE_CREATE = 1<<6, TE_GCP_COMPLETE = 1<<7, TE_CLUSTER_FAILURE = 1<<8, TE_STOP = 1<<9, TE_NODE_FAILURE = 1<<10, TE_SUBSCRIBE = 1<<11, TE_UNSUBSCRIBE = 1<<12, TE_ALL = 0xFFFF }
enum	_TableEvent { _TE_INSERT = 0, _TE_DELETE = 1, _TE_UPDATE = 2, _TE_SCAN = 3, _TE_FIRST_NON_DATA_EVENT = 4, _TE_DROP = 4, _TE_ALTER = 5, _TE_CREATE = 6, _TE_GCP_COMPLETE = 7, _TE_CLUSTER_FAILURE = 8, _TE_STOP = 9, _TE_NODE_FAILURE = 10, _TE_SUBSCRIBE = 11, _TE_UNSUBSCRIBE = 12, _TE_NUL = 13, _TE_ACTIVE = 14 }
enum	EventDurability { ED_UNDEFINED = 0, ED_PERMANENT = 3 }
enum	EventReport { ER_UPDATED = 0, ER_ALL = 1, ER_SUBSCRIBE = 2, ER_DDL = 4 }
Public Types inherited from NdbDictionary::Object
enum	Status { New, Changed, Retrieved, Invalid, Altered }
enum	Type { TypeUndefined = 0, SystemTable = 1, UserTable = 2, UniqueHashIndex = 3, OrderedIndex = 6, HashIndexTrigger = 7, IndexTrigger = 8, SubscriptionTrigger = 9, ReadOnlyConstraint = 10, TableEvent = 11, Tablespace = 20, LogfileGroup = 21, Datafile = 22, Undofile = 23, ReorgTrigger = 19, HashMap = 24 }
enum	State { StateUndefined = 0, StateOffline = 1, StateBuilding = 2, StateDropping = 3, StateOnline = 4, StateBackup = 5, StateBroken = 9 }
enum	Store { StoreUndefined = 0, StoreNotLogged = 1, StorePermanent = 2 }
enum	FragmentType { FragUndefined = 0, FragSingle = 1, FragAllSmall = 2, FragAllMedium = 3, FragAllLarge = 4, DistrKeyHash = 5, DistrKeyLin = 6, UserDefined = 7, HashMapPartition = 9 }

Public Member Functions
	Event (const char *name)
	Event (const char *name, const NdbDictionary::Table &table)
int	setName (const char *name)
const char *	getName () const
const NdbDictionary::Table *	getTable () const
void	setTable (const NdbDictionary::Table &table)
int	setTable (const char *tableName)
const char *	getTableName () const
void	addTableEvent (const TableEvent te)
bool	getTableEvent (const TableEvent te) const
void	setDurability (EventDurability)
EventDurability	getDurability () const
void	setReport (EventReport)
EventReport	getReport () const
void	addColumn (const Column &c)
void	addEventColumn (unsigned attrId)
void	addEventColumn (const char *columnName)
void	addEventColumns (int n, const char **columnNames)
int	getNoOfEventColumns () const
const Column *	getEventColumn (unsigned no) const
void	mergeEvents (bool flag)
virtual Object::Status	getObjectStatus () const
virtual int	getObjectVersion () const
virtual int	getObjectId () const
void	print ()

Friends
class	NdbEventImpl
class	NdbEventOperationImpl

Detailed Description

Represents an Event in NDB Cluster.

Definition at line 1404 of file NdbDictionary.hpp.

Member Enumeration Documentation

enum NdbDictionary::Event::EventDurability

Specifies the durability of an event (future version may supply other types)

Enumerator:

ED_PERMANENT

All API's can use it. It's still defined after a cluster system restart

Definition at line 1456 of file NdbDictionary.hpp.

enum NdbDictionary::Event::EventReport

Specifies reporting options for table events

Definition at line 1480 of file NdbDictionary.hpp.

enum NdbDictionary::Event::TableEvent

Specifies the type of database operations an Event listens toTableEvent must match 1 << TriggerEvent

Enumerator:

TE_INSERT	Insert event on table.
TE_DELETE	Delete event on table.
TE_UPDATE	Update event on table.
TE_SCAN	Scan event on table.
TE_DROP	Drop of table.
TE_ALTER	Alter of table.
TE_CREATE	Create of table.
TE_GCP_COMPLETE	GCP is complete.
TE_CLUSTER_FAILURE	Cluster is unavailable.
TE_STOP	Stop of event operation.
TE_NODE_FAILURE	Node failed.
TE_SUBSCRIBE	Node subscribes.
TE_UNSUBSCRIBE	Node unsubscribes.
TE_ALL	Any/all event on table (not relevant when events are received)

Definition at line 1412 of file NdbDictionary.hpp.

Constructor & Destructor Documentation

NdbDictionary::Event::Event ( const char * name )

Constructor

Parameters

name	Name of event

Definition at line 1292 of file NdbDictionary.cpp.

Here is the call graph for this function:

NdbDictionary::Event::Event	(	const char *	name,
		const NdbDictionary::Table &	table
	)

Constructor

Parameters

name	Name of event
table	Reference retrieved from NdbDictionary

Definition at line 1298 of file NdbDictionary.cpp.

Here is the call graph for this function:

Member Function Documentation

void NdbDictionary::Event::addEventColumn ( unsigned attrId )

Add a column on which events should be detected

Parameters

attrId Column id

Note: errors will mot be detected until createEvent() is called

Definition at line 1398 of file NdbDictionary.cpp.

void NdbDictionary::Event::addEventColumn ( const char * columnName )

Add a column on which events should be detected

Parameters

columnName Column name

Note: errors will not be detected until createEvent() is called

Definition at line 1404 of file NdbDictionary.cpp.

void NdbDictionary::Event::addEventColumns	(	int	n,
		const char **	columnNames
	)

Add several columns on which events should be detected

Parameters

n	Number of columns
columnNames	Column names

Note: errors will mot be detected until NdbDictionary::Dictionary::createEvent() is called

Definition at line 1411 of file NdbDictionary.cpp.

void NdbDictionary::Event::addTableEvent ( const TableEvent te )

Add type of event that should be detected

Reimplemented in NdbEventImpl.

Definition at line 1355 of file NdbDictionary.cpp.

NdbDictionary::Event::EventDurability NdbDictionary::Event::getDurability ( ) const

Get durability of the event

Reimplemented in NdbEventImpl.

Definition at line 1373 of file NdbDictionary.cpp.

const NdbDictionary::Column * NdbDictionary::Event::getEventColumn ( unsigned no ) const

Get a specific column in the event

Reimplemented in NdbEventImpl.

Definition at line 1423 of file NdbDictionary.cpp.

const char * NdbDictionary::Event::getName ( ) const

Get unique identifier for the event

Reimplemented in NdbEventImpl.

Definition at line 1325 of file NdbDictionary.cpp.

int NdbDictionary::Event::getNoOfEventColumns ( ) const

Get no of columns defined in an Event

Returns: Number of columns, -1 on error

Reimplemented in NdbEventImpl.

Definition at line 1417 of file NdbDictionary.cpp.

int NdbDictionary::Event::getObjectId ( ) const

virtual

Get object id

Implements NdbDictionary::Object.

Definition at line 1446 of file NdbDictionary.cpp.

NdbDictionary::Object::Status NdbDictionary::Event::getObjectStatus ( ) const

virtual

Get object status

Implements NdbDictionary::Object.

Definition at line 1434 of file NdbDictionary.cpp.

int NdbDictionary::Event::getObjectVersion ( ) const

virtual

Get object version

Implements NdbDictionary::Object.

Definition at line 1440 of file NdbDictionary.cpp.

NdbDictionary::Event::EventReport NdbDictionary::Event::getReport ( ) const

Get report option of the event

Reimplemented in NdbEventImpl.

Definition at line 1385 of file NdbDictionary.cpp.

const NdbDictionary::Table * NdbDictionary::Event::getTable ( ) const

Get table that the event is defined on

Returns: pointer to table or NULL if no table has been defined

Reimplemented in NdbEventImpl.

Definition at line 1337 of file NdbDictionary.cpp.

Here is the caller graph for this function:

bool NdbDictionary::Event::getTableEvent ( const TableEvent te ) const

Check if a specific table event will be detected

Reimplemented in NdbEventImpl.

Definition at line 1361 of file NdbDictionary.cpp.

const char * NdbDictionary::Event::getTableName ( ) const

Get table name for events

Returns: table name

Reimplemented in NdbEventImpl.

Definition at line 1349 of file NdbDictionary.cpp.

void NdbDictionary::Event::mergeEvents ( bool flag )

The merge events flag is false by default. Setting it true implies that events are merged in following ways:

for given NdbEventOperation associated with this event, events on same PK within same GCI are merged into single event

a blob table event is created for each blob attribute and blob events are handled as part of main table events

blob post/pre data from the blob part events can be read via NdbBlob methods as a single value

NOTE: Currently this flag is not inherited by NdbEventOperation and must be set on NdbEventOperation explicitly.

Definition at line 1428 of file NdbDictionary.cpp.

void NdbDictionary::Event::setDurability ( EventDurability d )

Set durability of the event

Reimplemented in NdbEventImpl.

Definition at line 1367 of file NdbDictionary.cpp.

int NdbDictionary::Event::setName ( const char * name )

Set unique identifier for the event

Reimplemented in NdbEventImpl.

Definition at line 1319 of file NdbDictionary.cpp.

Here is the caller graph for this function:

void NdbDictionary::Event::setReport ( EventReport r )

Set report option of the event

Reimplemented in NdbEventImpl.

Definition at line 1379 of file NdbDictionary.cpp.

void NdbDictionary::Event::setTable ( const NdbDictionary::Table & table )

Define table on which events should be detected

Note: calling this method will default to detection of events on all columns. Calling subsequent addEventColumn calls will override this.

Parameters

table reference retrieved from NdbDictionary

Reimplemented in NdbEventImpl.

Definition at line 1331 of file NdbDictionary.cpp.

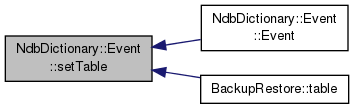

Here is the caller graph for this function:

int NdbDictionary::Event::setTable ( const char * tableName )

Set table for which events should be detected

Note: preferred way is using setTable(const NdbDictionary::Table&) or constructor with table object parameter

Reimplemented in NdbEventImpl.

Definition at line 1343 of file NdbDictionary.cpp.

The documentation for this class was generated from the following files:

storage/ndb/include/ndbapi/NdbDictionary.hpp
storage/ndb/src/ndbapi/NdbDictionary.cpp
