#include "univ.i"
#include "log0log.h"
#include "sync0sync.h"
#include "os0sync.h"
#include "que0types.h"
#include "trx0types.h"
#include "srv0conc.h"
#include "buf0checksum.h"
#include "ut0counter.h"

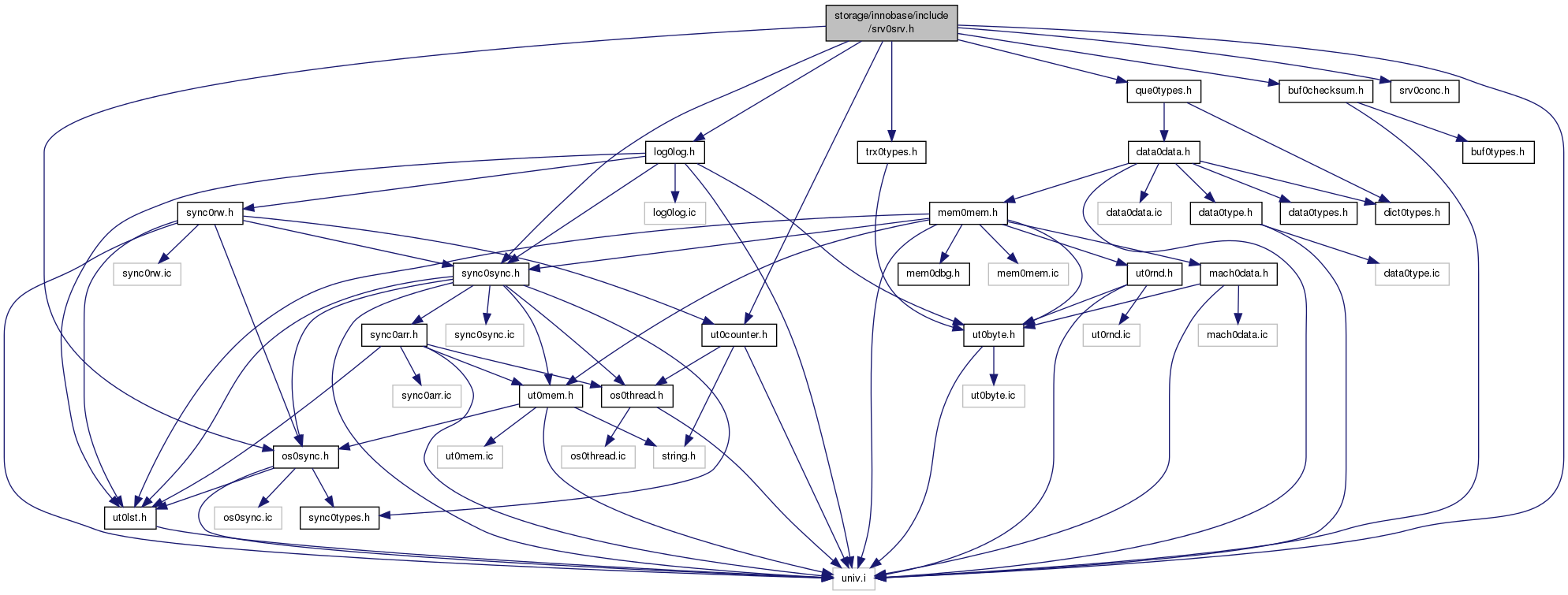

Include dependency graph for srv0srv.h:

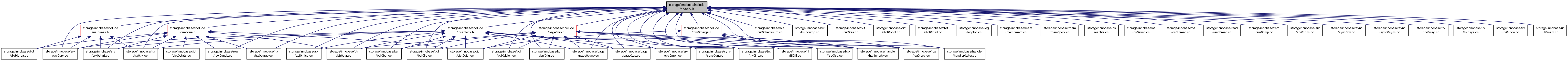

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	srv_stats_t
struct	export_var_t
struct	srv_slot_t

Macros
#define	SRV_BUF_DUMP_FILENAME_DEFAULT "ib_buffer_pool"
#define	SRV_AUTO_EXTEND_INCREMENT (srv_auto_extend_increment * ((1024 * 1024) / UNIV_PAGE_SIZE))
#define	SRV_N_LOG_FILES_MAX 100
#define	SRV_MAX_IO_CAPACITY_DUMMY_DEFAULT (~0UL)
#define	SRV_MAX_IO_CAPACITY_LIMIT (~0UL)
#define	PCT_IO(p) ((ulong) (srv_io_capacity * ((double) (p) / 100.0)))
#define	DEPRECATED_MSG_INNODB_TABLE_MONITOR
#define	srv_print_thread_releases FALSE
#define	srv_print_lock_waits FALSE
#define	srv_print_buf_io FALSE
#define	srv_print_log_io FALSE
#define	srv_print_latch_waits FALSE
#define	SRV_SEMAPHORE_WAIT_EXTENSION 7200
#define	SRV_MAX_N_IO_THREADS 130

Typedefs
typedef enum srv_stats_method_name_enum	srv_stats_method_name_t

Enumerations
enum	{ SRV_NOT_RAW = 0, SRV_NEW_RAW, SRV_OLD_RAW }
enum	{ SRV_UNIX_FSYNC = 1, SRV_UNIX_O_DSYNC, SRV_UNIX_LITTLESYNC, SRV_UNIX_NOSYNC, SRV_UNIX_O_DIRECT, SRV_UNIX_O_DIRECT_NO_FSYNC }
enum	{ SRV_WIN_IO_NORMAL = 1, SRV_WIN_IO_UNBUFFERED }
enum	{ SRV_FORCE_IGNORE_CORRUPT = 1, SRV_FORCE_NO_BACKGROUND = 2, SRV_FORCE_NO_TRX_UNDO = 3, SRV_FORCE_NO_IBUF_MERGE = 4, SRV_FORCE_NO_UNDO_LOG_SCAN = 5, SRV_FORCE_NO_LOG_REDO = 6 }
enum	srv_stats_method_name_enum { SRV_STATS_NULLS_EQUAL, SRV_STATS_NULLS_UNEQUAL, SRV_STATS_NULLS_IGNORED }
enum	srv_thread_type { SRV_NONE, SRV_WORKER, SRV_PURGE, SRV_MASTER }

Functions
UNIV_INTERN void	srv_boot (void)
UNIV_INTERN void	srv_init (void)
UNIV_INTERN void	srv_free (void)
UNIV_INTERN void	srv_general_init (void)
UNIV_INTERN void	srv_set_io_thread_op_info (ulint i, const char *str)
UNIV_INTERN void	srv_reset_io_thread_op_info ()
UNIV_INTERN void	srv_wake_purge_thread_if_not_active (void)
UNIV_INTERN void	srv_active_wake_master_thread (void)
UNIV_INTERN void	srv_wake_master_thread (void)
UNIV_INTERN ibool	srv_printf_innodb_monitor (FILE file, ibool nowait, ulint trx_start, ulint *trx_end)
UNIV_INTERN void	srv_export_innodb_status (void)
UNIV_INTERN ulint	srv_get_activity_count (void)
UNIV_INTERN ibool	srv_check_activity (ulint old_activity_count)
UNIV_INTERN void	srv_inc_activity_count (void)
UNIV_INTERN void	srv_que_task_enqueue_low (que_thr_t *thr)
UNIV_INTERN enum srv_thread_type	srv_get_active_thread_type (void)
UNIV_INTERN os_thread_ret_t DECLARE_THREAD()	srv_monitor_thread (void *arg)
UNIV_INTERN os_thread_ret_t DECLARE_THREAD()	srv_master_thread (void *arg)
UNIV_INTERN os_thread_ret_t DECLARE_THREAD()	srv_error_monitor_thread (void *arg)
UNIV_INTERN os_thread_ret_t DECLARE_THREAD()	srv_purge_coordinator_thread (void *arg __attribute__((unused)))
UNIV_INTERN os_thread_ret_t DECLARE_THREAD()	srv_worker_thread (void *arg __attribute__((unused)))
UNIV_INTERN ulint	srv_get_task_queue_length (void)
UNIV_INTERN ulint	srv_release_threads (enum srv_thread_type type, ulint n)
UNIV_INTERN const char *	srv_any_background_threads_are_active (void)
UNIV_INTERN void	srv_purge_wakeup (void)

Variables
const char *	srv_main_thread_op_info
const char	srv_mysql50_table_name_prefix [10]
os_event_t	srv_monitor_event
os_event_t	srv_error_event
os_event_t	srv_buf_dump_event
char *	srv_buf_dump_filename
char	srv_buffer_pool_dump_at_shutdown
char	srv_buffer_pool_load_at_startup
char	srv_disable_sort_file_cache
ib_mutex_t	srv_monitor_file_mutex
FILE *	srv_monitor_file
ib_mutex_t	srv_dict_tmpfile_mutex
FILE *	srv_dict_tmpfile
ib_mutex_t	srv_misc_tmpfile_mutex
FILE *	srv_misc_tmpfile
char *	srv_data_home
my_bool	srv_read_only_mode
my_bool	srv_file_per_table
ulong	srv_thread_sleep_delay
ulint	srv_file_format
ulint	srv_max_file_format_at_startup
ibool	srv_locks_unsafe_for_binlog
ulong	srv_sort_buf_size
unsigned long long	srv_online_max_size
my_bool	srv_use_native_aio
char *	srv_undo_dir
ulong	srv_undo_tablespaces
ulint	srv_undo_tablespaces_open
ulong	srv_undo_logs
ulint	srv_n_data_files
char **	srv_data_file_names
ulint *	srv_data_file_sizes
ulint *	srv_data_file_is_raw_partition
ibool	srv_auto_extend_last_data_file
ulint	srv_last_file_size_max
char *	srv_log_group_home_dir
ulong	srv_auto_extend_increment
ibool	srv_created_new_raw
ulong	srv_n_log_files
ib_uint64_t	srv_log_file_size
ib_uint64_t	srv_log_file_size_requested
ulint	srv_log_buffer_size
ulong	srv_flush_log_at_trx_commit
uint	srv_flush_log_at_timeout
char	srv_adaptive_flushing
my_bool	srv_load_corrupted
const byte *	srv_latin1_ordering
my_bool	srv_use_sys_malloc
ulint	srv_buf_pool_size
ulint	srv_buf_pool_instances
ulong	srv_n_page_hash_locks
ulong	srv_LRU_scan_depth
ulong	srv_flush_neighbors
ulint	srv_buf_pool_old_size
ulint	srv_buf_pool_curr_size
ulint	srv_mem_pool_size
ulint	srv_lock_table_size
ulint	srv_n_file_io_threads
my_bool	srv_random_read_ahead
ulong	srv_read_ahead_threshold
ulint	srv_n_read_io_threads
ulint	srv_n_write_io_threads
ulong	srv_io_capacity
ulong	srv_max_io_capacity
ulong	srv_innodb_stats_method
char *	srv_file_flush_method_str
ulint	srv_unix_file_flush_method
ulint	srv_win_file_flush_method
ulint	srv_max_n_open_files
ulong	srv_max_dirty_pages_pct
ulong	srv_max_dirty_pages_pct_lwm
ulong	srv_adaptive_flushing_lwm
ulong	srv_flushing_avg_loops
ulong	srv_force_recovery
ulong	srv_force_recovery_crash
ulint	srv_fast_shutdown
ibool	srv_innodb_status
unsigned long long	srv_stats_transient_sample_pages
my_bool	srv_stats_persistent
unsigned long long	srv_stats_persistent_sample_pages
my_bool	srv_stats_auto_recalc
ibool	srv_use_doublewrite_buf
ulong	srv_doublewrite_batch_size
ulong	srv_checksum_algorithm
ulong	srv_max_buf_pool_modified_pct
ulong	srv_max_purge_lag
ulong	srv_max_purge_lag_delay
ulong	srv_replication_delay
ibool	srv_print_innodb_monitor
ibool	srv_print_innodb_lock_monitor
ibool	srv_print_innodb_tablespace_monitor
ibool	srv_print_verbose_log
ibool	srv_print_innodb_table_monitor
ibool	srv_monitor_active
ibool	srv_error_monitor_active
ibool	srv_buf_dump_thread_active
ibool	srv_dict_stats_thread_active
ulong	srv_n_spin_wait_rounds
ulong	srv_n_free_tickets_to_enter
ulong	srv_spin_wait_delay
ibool	srv_priority_boost
ulint	srv_truncated_status_writes
ulint	srv_available_undo_logs
ulint	srv_fatal_semaphore_wait_threshold
ulint	srv_dml_needed_delay
ib_mutex_t	server_mutex
const char *	srv_io_thread_op_info []
const char *	srv_io_thread_function []
ulong	srv_n_purge_threads
ulong	srv_purge_batch_size
ulong	srv_sync_array_size
my_bool	srv_print_all_deadlocks
my_bool	srv_cmp_per_index_enabled
struct export_var_t	export_vars
srv_stats_t	srv_stats

Detailed Description

The server main program

Created 10/10/1995 Heikki Tuuri

Definition in file srv0srv.h.

Macro Definition Documentation

#define DEPRECATED_MSG_INNODB_TABLE_MONITOR

Value:

"Using innodb_table_monitor is deprecated and it may be removed " \
        "in future releases. Please use the InnoDB INFORMATION_SCHEMA " \
        "tables instead, see " REFMAN "innodb-i_s-tables.html"

Definition at line 362 of file srv0srv.h.

#define SRV_BUF_DUMP_FILENAME_DEFAULT "ib_buffer_pool"

The buffer pool dump/load file name

Definition at line 145 of file srv0srv.h.

#define SRV_N_LOG_FILES_MAX 100

Maximum number of srv_n_log_files, or innodb_log_files_in_group

Definition at line 251 of file srv0srv.h.

Enumeration Type Documentation

anonymous enum

Types of raw partitions in innodb_data_file_path

Enumerator:

SRV_NOT_RAW	Not a raw partition
SRV_NEW_RAW	A 'newraw' partition, only to be initialized
SRV_OLD_RAW	An initialized raw partition

Definition at line 477 of file srv0srv.h.

anonymous enum

Alternatives for the file flush option in Unix; see the InnoDB manual

about what these mean

Enumerator:

SRV_UNIX_FSYNC	fsync, the default
SRV_UNIX_O_DSYNC	open log files in O_SYNC mode
SRV_UNIX_LITTLESYNC	do not call os_file_flush() when writing data files, but do flush after writing to log files
SRV_UNIX_NOSYNC	do not flush after writing
SRV_UNIX_O_DIRECT	invoke os_file_set_nocache() on data files. This implies using non-buffered IO but still using fsync, the reason for which is that some FS do not flush meta-data when unbuffered IO happens
SRV_UNIX_O_DIRECT_NO_FSYNC	do not use fsync() when using direct IO i.e.: it can be set to avoid the fsync() call that we make when using SRV_UNIX_O_DIRECT. However, in this case user/DBA should be sure about the integrity of the meta-data

Definition at line 486 of file srv0srv.h.

anonymous enum

Alternatives for file i/o in Windows

Enumerator:

SRV_WIN_IO_NORMAL	buffered I/O
SRV_WIN_IO_UNBUFFERED	unbuffered I/O; this is the default

Definition at line 509 of file srv0srv.h.

anonymous enum

Alternatives for srv_force_recovery. Non-zero values are intended

to help the user get a damaged database up so that he can dump intact tables and rows with SELECT INTO OUTFILE. The database must not otherwise be used with these options! A bigger number below means that all precautions of lower numbers are included.

Enumerator:

SRV_FORCE_IGNORE_CORRUPT	let the server run even if it detects a corrupt page
SRV_FORCE_NO_BACKGROUND	prevent the main thread from running: if a crash would occur in purge, this prevents it
SRV_FORCE_NO_TRX_UNDO	do not run trx rollback after recovery
SRV_FORCE_NO_IBUF_MERGE	prevent also ibuf operations: if they would cause a crash, better not do them
SRV_FORCE_NO_UNDO_LOG_SCAN	do not look at undo logs when starting the database: InnoDB will treat even incomplete transactions as committed
SRV_FORCE_NO_LOG_REDO	do not do the log roll-forward in connection with recovery

Definition at line 519 of file srv0srv.h.

enum srv_thread_type

Types of threads existing in the system.

Enumerator:

SRV_NONE	None
SRV_WORKER	threads serving parallelized queries and queries released from lock wait
SRV_PURGE	Purge coordinator thread
SRV_MASTER	the master thread, (whose type number must be biggest)

Definition at line 553 of file srv0srv.h.

Function Documentation

UNIV_INTERN void srv_active_wake_master_thread ( void )

Tells the Innobase server that there has been activity in the database and wakes up the master thread if it is suspended (not sleeping). Used in the MySQL interface. Note that there is a small chance that the master thread stays suspended (we do not protect our operation with the kernel mutex, for performace reasons).

Tells the InnoDB server that there has been activity in the database and wakes up the master thread if it is suspended (not sleeping). Used in the MySQL interface. Note that there is a small chance that the master thread stays suspended (we do not protect our operation with the srv_sys_t->mutex, for performance reasons).

Definition at line 1871 of file srv0srv.cc.

Here is the call graph for this function:

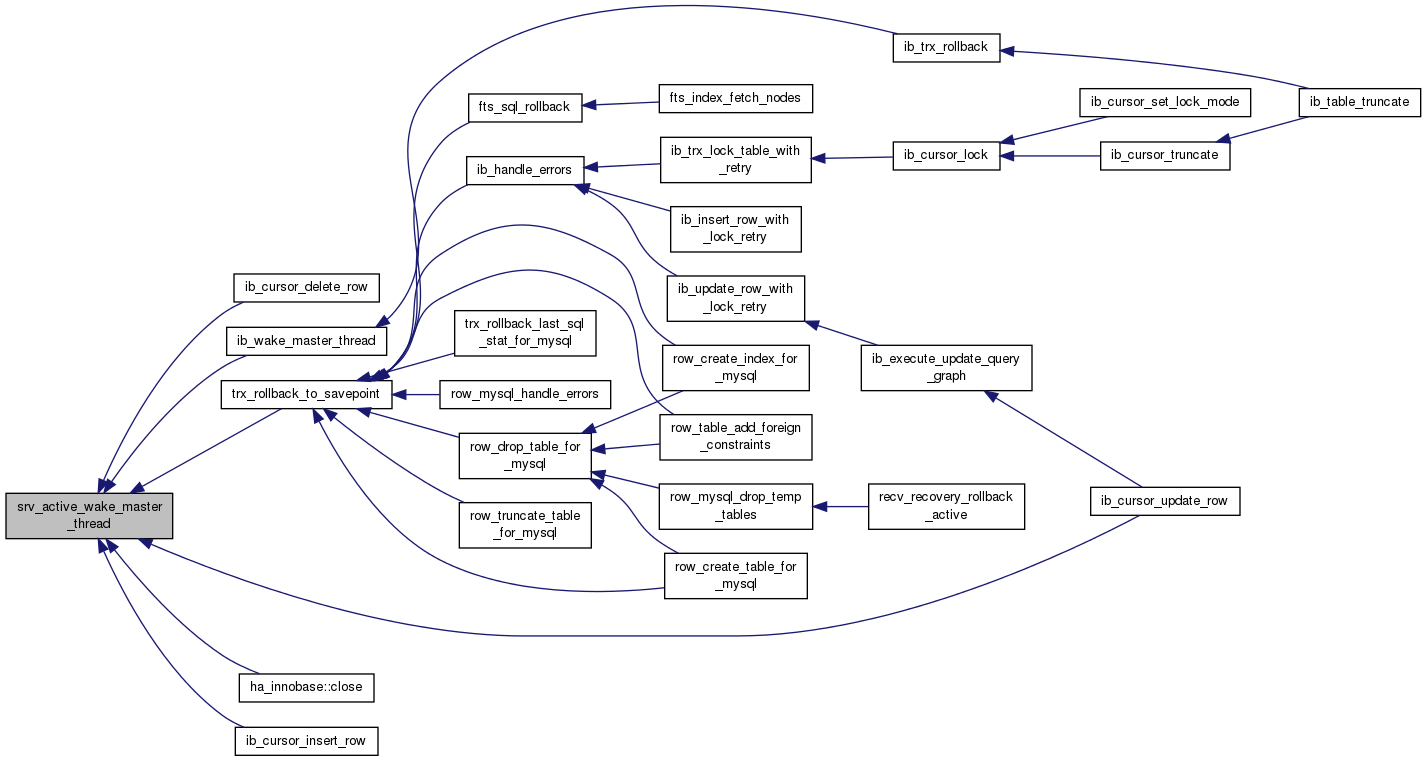

Here is the caller graph for this function:

UNIV_INTERN const char* srv_any_background_threads_are_active ( void )

Check whether any background thread are active. If so print which thread is active. Send the threads wakeup signal.

Returns: name of thread that is active or NULL

Definition at line 1835 of file srv0srv.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void srv_boot ( void )

Boots Innobase server.

Boots the InnoDB server.

Definition at line 1055 of file srv0srv.cc.

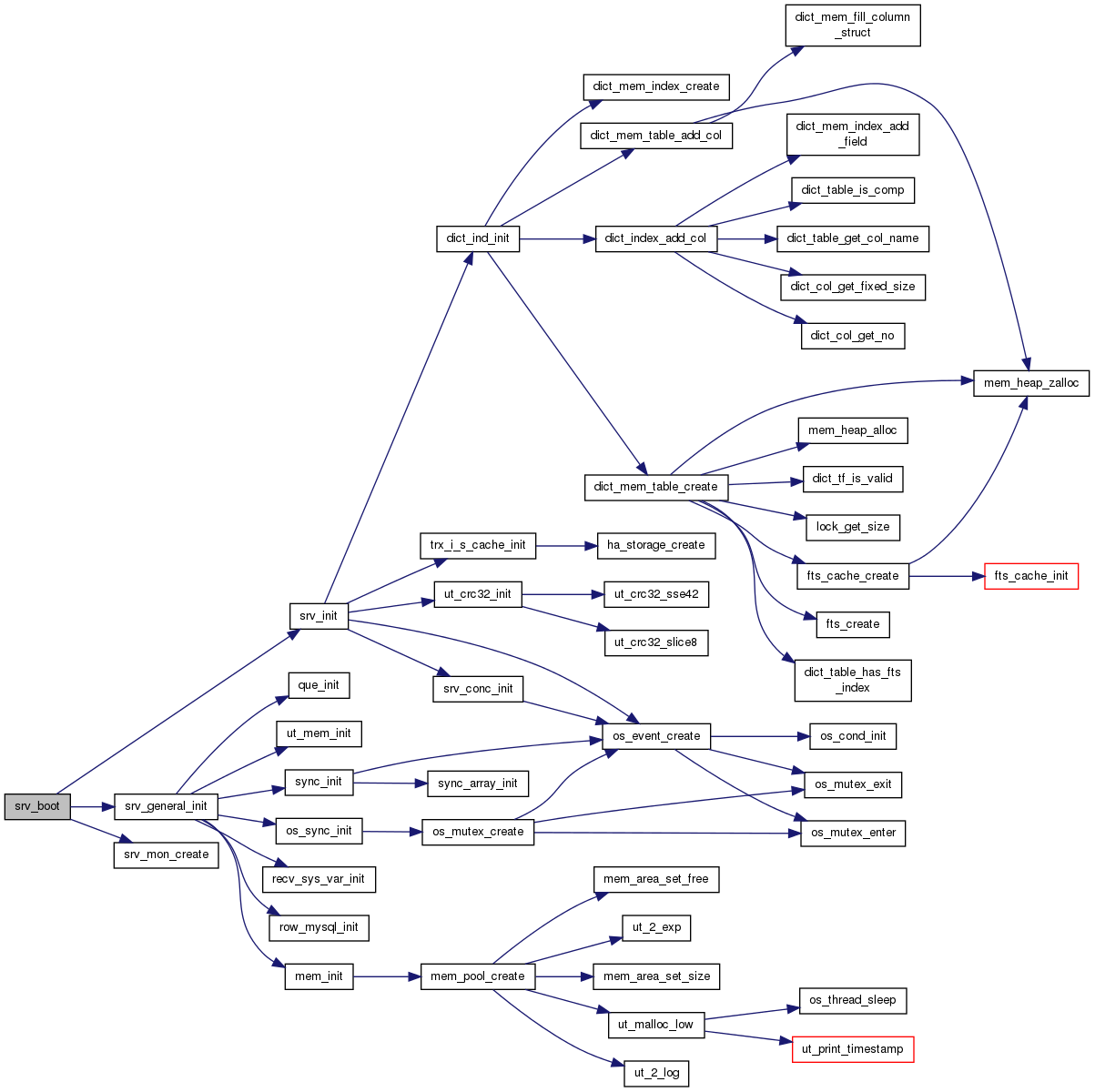

Here is the call graph for this function:

UNIV_INTERN ibool srv_check_activity ( ulint old_activity_count )

Check if there has been any activity.

Returns: FALSE if no change in activity counter. old activity count

Check if there has been any activity.

Returns: FALSE if no change in activity counter.

Parameters

old_activity_count in: old activity count

Definition at line 1959 of file srv0srv.cc.

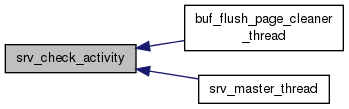

Here is the caller graph for this function:

UNIV_INTERN os_thread_ret_t DECLARE_THREAD() srv_error_monitor_thread ( void * arg )

in: a dummy parameter required by os_thread_create

UNIV_INTERN void srv_export_innodb_status ( void )

Function to pass InnoDB status variables to MySQL

Definition at line 1309 of file srv0srv.cc.

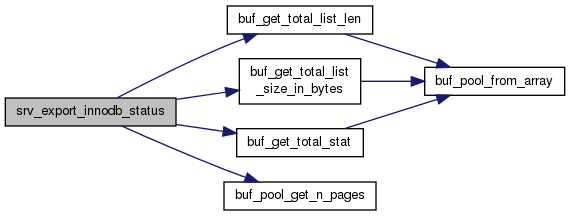

Here is the call graph for this function:

UNIV_INTERN void srv_free ( void )

Frees the data structures created in srv_init().

Definition at line 988 of file srv0srv.cc.

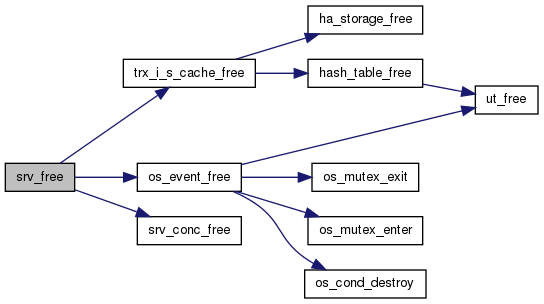

Here is the call graph for this function:

UNIV_INTERN void srv_general_init ( void )

Initializes the synchronization primitives, memory system, and the thread local storage.

Definition at line 1011 of file srv0srv.cc.

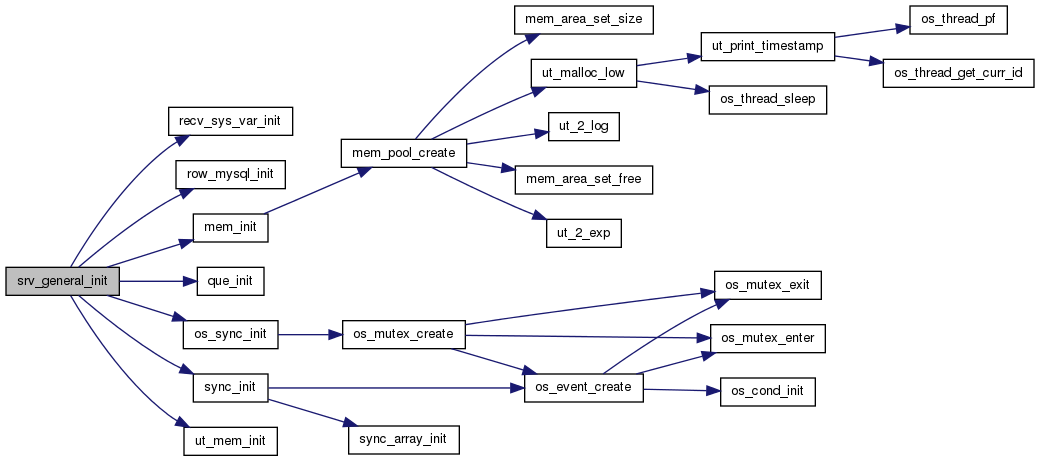

Here is the call graph for this function:

Here is the caller graph for this function:

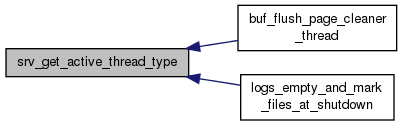

UNIV_INTERN enum srv_thread_type srv_get_active_thread_type ( void )

Check whether any background thread is active. If so, return the thread type.

Returns: SRV_NONE if all are are suspended or have exited, thread type if any are still active.

Check whether any background thread is active. If so return the thread type.

Returns: SRV_NONE if all are suspended or have exited, thread type if any are still active.

Definition at line 1797 of file srv0srv.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ulint srv_get_activity_count ( void )

Get current server activity count. We don't hold srv_sys::mutex while reading this value as it is only used in heuristics.

Returns: activity count.

Definition at line 1948 of file srv0srv.cc.

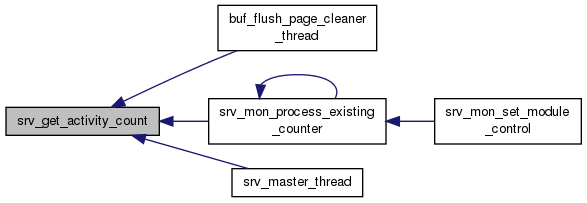

Here is the caller graph for this function:

UNIV_INTERN ulint srv_get_task_queue_length ( void )

Get count of tasks in the queue.

Returns: number of tasks in queue

Definition at line 2838 of file srv0srv.cc.

Here is the caller graph for this function:

UNIV_INTERN void srv_inc_activity_count ( void )

Increment the server activity counter.

Increment the server activity count.

Definition at line 1784 of file srv0srv.cc.

Here is the call graph for this function:

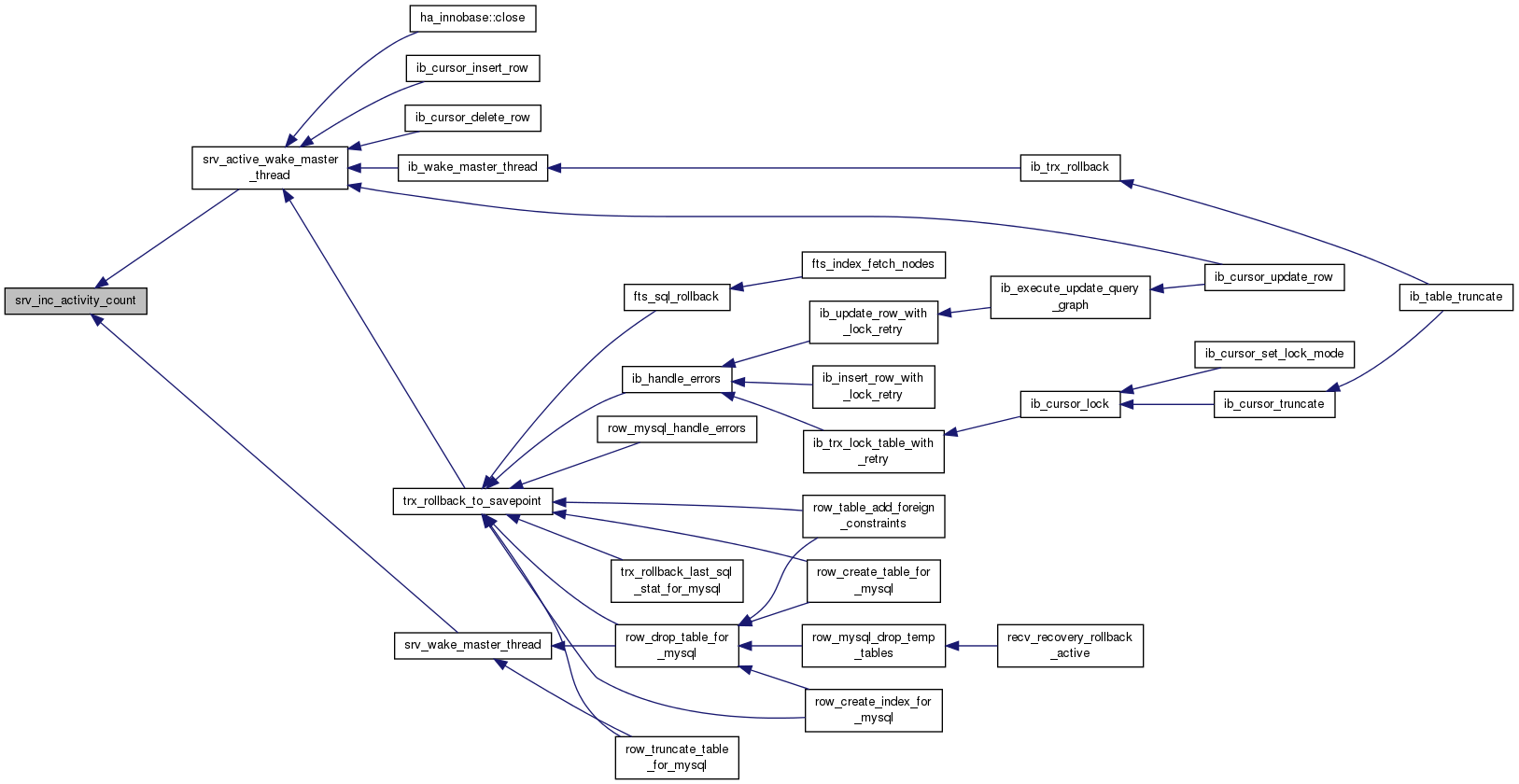

Here is the caller graph for this function:

UNIV_INTERN void srv_init ( void )

Initializes the server.

Definition at line 909 of file srv0srv.cc.

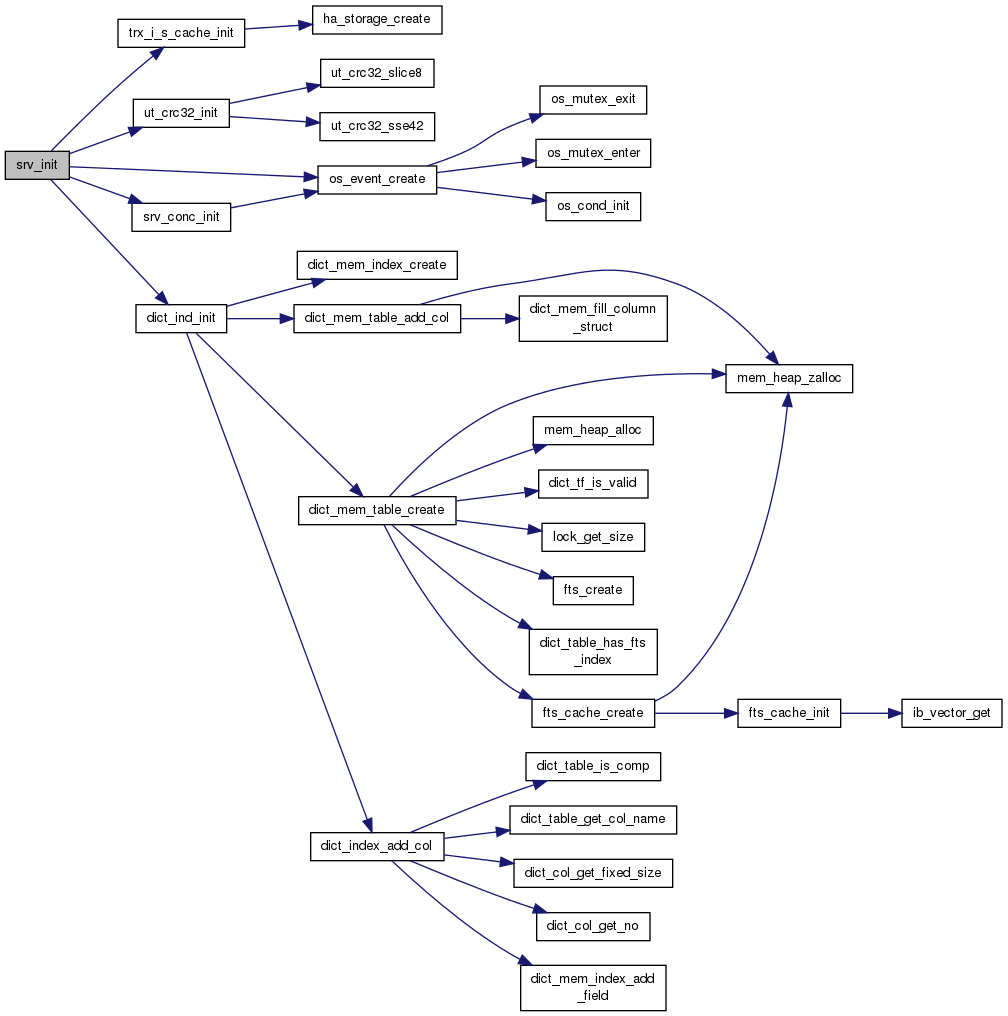

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN os_thread_ret_t DECLARE_THREAD() srv_master_thread ( void * arg )

The master thread controlling the server.

Returns: a dummy parameter in: a dummy parameter required by os_thread_create

UNIV_INTERN os_thread_ret_t DECLARE_THREAD() srv_monitor_thread ( void * arg )

A thread which prints the info output by various InnoDB monitors.

Returns: a dummy parameter in: a dummy parameter required by os_thread_create

UNIV_INTERN ibool srv_printf_innodb_monitor	(	FILE *	file,
		ibool	nowait,
		ulint *	trx_start_pos,
		ulint *	trx_end
	)

Outputs to a file the output of the InnoDB Monitor.

Returns: FALSE if not all information printed due to failure to obtain necessary mutex out: file position of the end of the list of active transactions

Outputs to a file the output of the InnoDB Monitor.

Returns: FALSE if not all information printed due to failure to obtain necessary mutex

Parameters

file	in: output stream
nowait	in: whether to wait for the lock_sys_t:: mutex
trx_start_pos	out: file position of the start of the list of active transactions
trx_end	out: file position of the end of the list of active transactions

Definition at line 1108 of file srv0srv.cc.

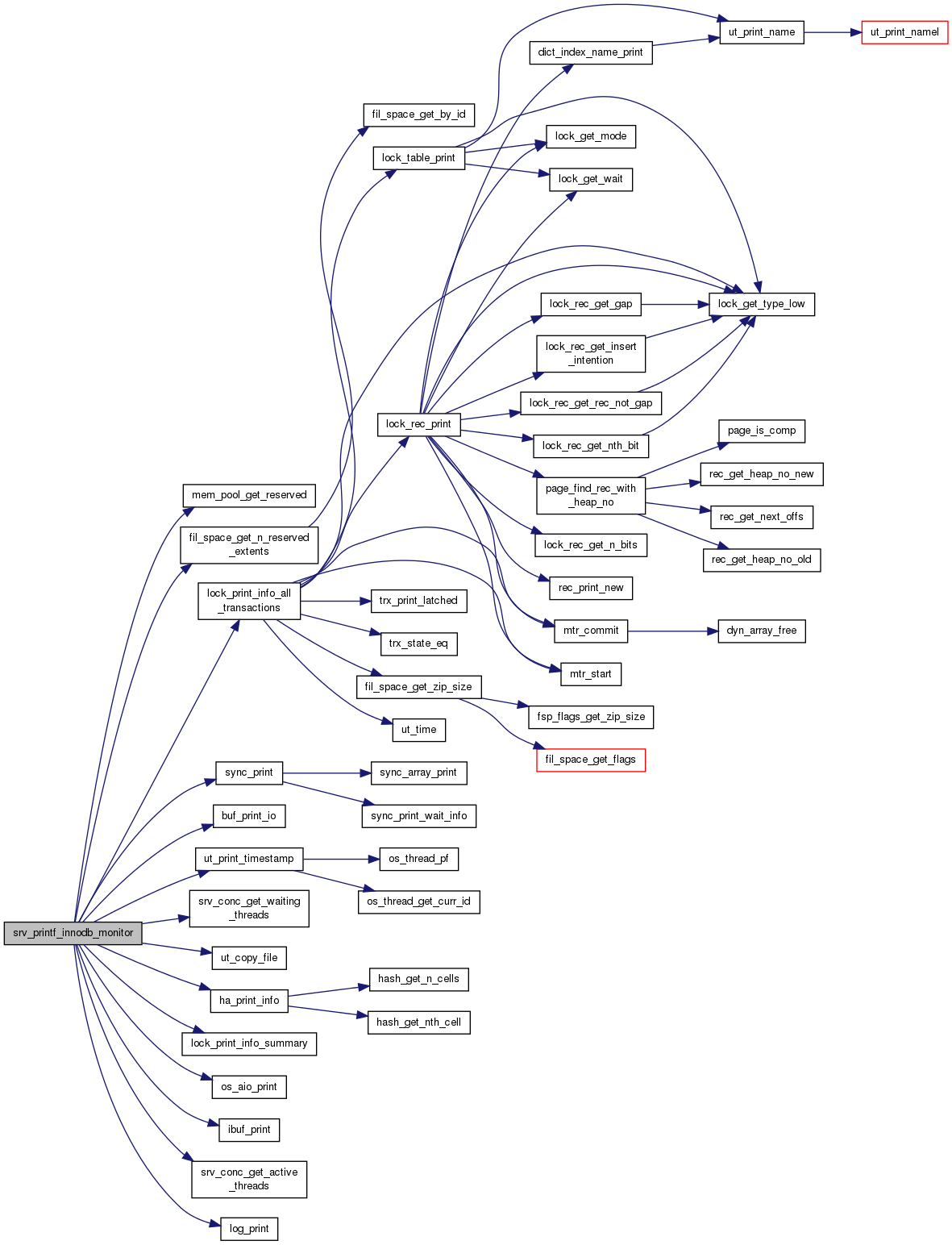

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN os_thread_ret_t DECLARE_THREAD() srv_purge_coordinator_thread ( void *arg __attribute__(unused) )

Purge coordinator thread that schedules the purge tasks.

Returns: a dummy parameter in: a dummy parameter required by os_thread_create

Purge coordinator thread that schedules the purge tasks.

Returns: a dummy parameter

Parameters

__attribute__ in: a dummy parameter required by os_thread_create

Definition at line 2707 of file srv0srv.cc.

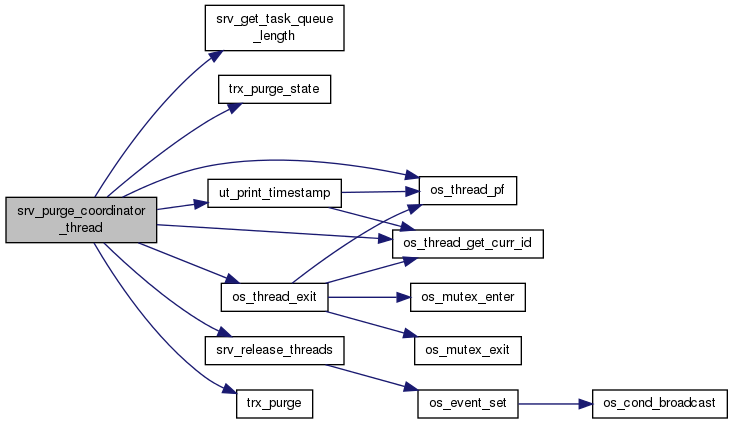

Here is the call graph for this function:

UNIV_INTERN void srv_purge_wakeup ( void )

Wakeup the purge threads.

Definition at line 2858 of file srv0srv.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void srv_que_task_enqueue_low ( que_thr_t * thr )

Enqueues a task to server task queue and releases a worker thread, if there is a suspended one. in: query thread

Enqueues a task to server task queue and releases a worker thread, if there is a suspended one.

Parameters

thr	in: query thread

Definition at line 2819 of file srv0srv.cc.

Here is the call graph for this function:

UNIV_INTERN ulint srv_release_threads	(	srv_thread_type	type,
		ulint	n
	)

Releases threads of the type given from suspension in the thread table. NOTE! The server mutex has to be reserved by the caller!

Returns: number of threads released: this may be less than n if not enough threads were suspended at the moment in: number of threads to release

Releases threads of the type given from suspension in the thread table. NOTE! The server mutex has to be reserved by the caller!

Returns: number of threads released: this may be less than n if not enough threads were suspended at the moment.

Parameters

type	in: thread type
n	in: number of threads to release

Definition at line 816 of file srv0srv.cc.

Here is the call graph for this function:

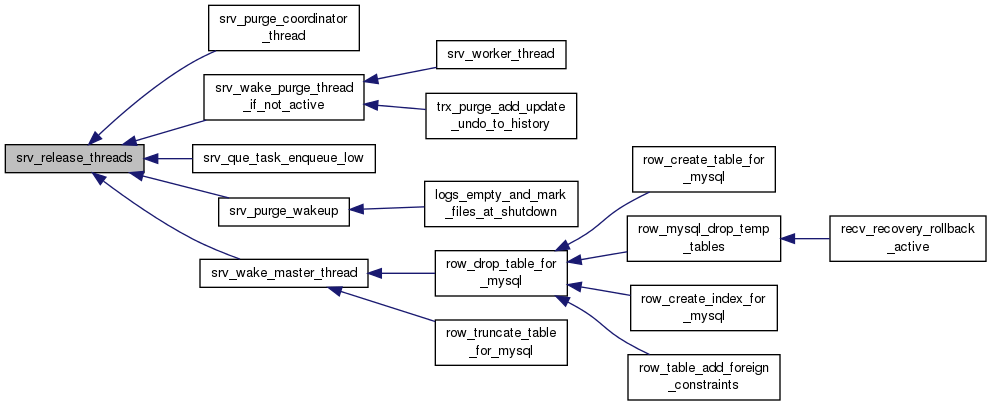

Here is the caller graph for this function:

UNIV_INTERN void srv_reset_io_thread_op_info ( )

Resets the info describing an i/o thread current state.

Definition at line 643 of file srv0srv.cc.

UNIV_INTERN void srv_set_io_thread_op_info	(	ulint	i,
		const char *	str
	)

Sets the info describing an i/o thread current state. in: constant char string describing the state

Sets the info describing an i/o thread current state.

Parameters

i	in: the 'segment' of the i/o thread
str	in: constant char string describing the state

Definition at line 628 of file srv0srv.cc.

Here is the caller graph for this function:

UNIV_INTERN void srv_wake_master_thread ( void )

Wakes up the master thread if it is suspended or being suspended.

Definition at line 1932 of file srv0srv.cc.

Here is the call graph for this function:

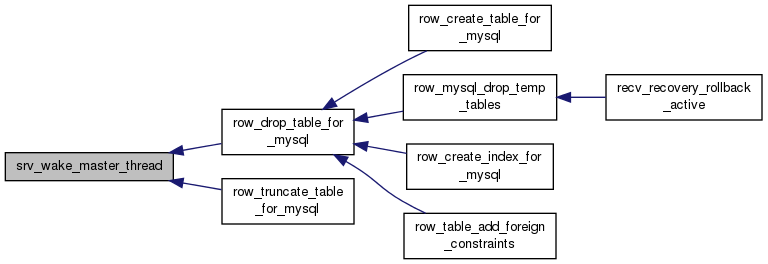

Here is the caller graph for this function:

UNIV_INTERN void srv_wake_purge_thread_if_not_active ( void )

Tells the purge thread that there has been activity in the database and wakes up the purge thread if it is suspended (not sleeping). Note that there is a small chance that the purge thread stays suspended (we do not protect our operation with the srv_sys_t:mutex, for performance reasons).

Tells the purge thread that there has been activity in the database and wakes up the purge thread if it is suspended (not sleeping). Note that there is a small chance that the purge thread stays suspended (we do not protect our check with the srv_sys_t:mutex and the purge_sys->latch, for performance reasons).

Definition at line 1916 of file srv0srv.cc.

Here is the call graph for this function:

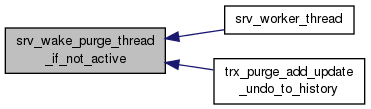

Here is the caller graph for this function:

UNIV_INTERN os_thread_ret_t DECLARE_THREAD() srv_worker_thread ( void *arg __attribute__(unused) )

Worker thread that reads tasks from the work queue and executes them.

Returns: a dummy parameter in: a dummy parameter required by os_thread_create

Worker thread that reads tasks from the work queue and executes them.

Returns: a dummy parameter

Parameters

__attribute__ in: a dummy parameter required by os_thread_create

Definition at line 2447 of file srv0srv.cc.

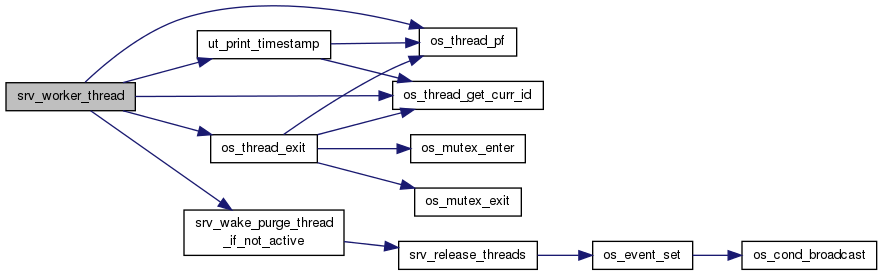

Here is the call graph for this function:

Variable Documentation

struct export_var_t export_vars

Status variables to be passed to MySQL

Definition at line 302 of file srv0srv.cc.

ib_mutex_t server_mutex

Mutex protecting some server global variables.

Definition at line 579 of file srv0srv.cc.

os_event_t srv_buf_dump_event

The buffer pool dump/load thread waits on this event.

Event to signal the buffer pool dump/load thread

Definition at line 591 of file srv0srv.cc.

char* srv_buf_dump_filename

The buffer pool dump/load file name

Definition at line 594 of file srv0srv.cc.

ulint srv_buf_pool_curr_size

current size in bytes

Definition at line 229 of file srv0srv.cc.

ulint srv_buf_pool_instances

requested number of buffer pool instances

Definition at line 219 of file srv0srv.cc.

ulint srv_buf_pool_old_size

previously requested size

Definition at line 227 of file srv0srv.cc.

ulint srv_buf_pool_size

requested size in bytes

Definition at line 217 of file srv0srv.cc.

char srv_buffer_pool_dump_at_shutdown

Boolean config knobs that tell InnoDB to dump the buffer pool at shutdown

and/or load it during startup.

Definition at line 598 of file srv0srv.cc.

ulong srv_checksum_algorithm

the macro MYSQL_SYSVAR_ENUM() requires "long unsigned int" and if we

use srv_checksum_algorithm_t here then we get a compiler error: ha_innodb.cc:12251: error: cannot convert 'srv_checksum_algorithm_t*' to 'long unsigned int*' in initialization

Definition at line 40 of file buf0checksum.cc.

my_bool srv_cmp_per_index_enabled

Enable INFORMATION_SCHEMA.innodb_cmp_per_index

Definition at line 320 of file srv0srv.cc.

FILE* srv_dict_tmpfile

Temporary file for output from the data dictionary

Definition at line 420 of file srv0srv.cc.

ib_mutex_t srv_dict_tmpfile_mutex

Mutex for locking srv_dict_tmpfile. Not created if srv_read_only_mode.

This mutex has a very high rank; threads reserving it should not be holding any InnoDB latches.

Definition at line 418 of file srv0srv.cc.

ulong srv_doublewrite_batch_size

doublewrite buffer is 1MB is size i.e.: it can hold 128 16K pages.

The following parameter is the size of the buffer that is used for batch flushing i.e.: LRU flushing and flush_list flushing. The rest of the pages are used for single page flushing.

Definition at line 348 of file srv0srv.cc.

os_event_t srv_error_event

Event to signal the error thread

Definition at line 588 of file srv0srv.cc.

ulint srv_fast_shutdown

If this is 1, do not do a purge and index buffer merge. If this 2, do not even flush the buffer pool to data files at the shutdown: we effectively 'crash' InnoDB (but lose no committed transactions).

Definition at line 326 of file srv0srv.cc.

ulint srv_file_format

The file format to use on new *.ibd files.

Definition at line 124 of file srv0srv.cc.

my_bool srv_file_per_table

store to its own file each table created by an user; data

dictionary tables are in the system tablespace 0

Definition at line 122 of file srv0srv.cc.

ulong srv_flush_neighbors

whether or not to flush neighbors of a block

Definition at line 225 of file srv0srv.cc.

ulong srv_force_recovery

Normally 0. When nonzero, skip some phases of crash recovery,

starting from SRV_FORCE_IGNORE_CORRUPT, so that data can be recovered by SELECT or mysqldump. When this is nonzero, we do not allow any user modifications to the data.

Definition at line 308 of file srv0srv.cc.

ulong srv_force_recovery_crash

Inject a crash at different steps of the recovery process.

This is for testing and debugging only.

Definition at line 312 of file srv0srv.cc.

const byte* srv_latin1_ordering

The sort order table of the MySQL latin1_swedish_ci character set

collation

Definition at line 212 of file srv0srv.cc.

ibool srv_locks_unsafe_for_binlog

Place locks to records only i.e. do not use next-key locking except

on duplicate key checking and foreign key checking

Definition at line 136 of file srv0srv.cc.

ulong srv_LRU_scan_depth

Scan depth for LRU flush batch

Scan depth for LRU flush batch i.e.: number of blocks scanned

Definition at line 223 of file srv0srv.cc.

ulint srv_max_file_format_at_startup

Whether to check file format during startup.  A value of

UNIV_FORMAT_MAX + 1 means no checking ie. FALSE. The default is to set it to the highest format we support.

Definition at line 128 of file srv0srv.cc.

ulong srv_max_purge_lag

Maximum allowable purge history length. <=0 means 'infinite'.

Definition at line 50 of file trx0purge.cc.

ulong srv_max_purge_lag_delay

Max DML user threads delay in micro-seconds.

Definition at line 53 of file trx0purge.cc.

FILE* srv_misc_tmpfile

Temporary file for miscellanous diagnostic output

Definition at line 426 of file srv0srv.cc.

ib_mutex_t srv_misc_tmpfile_mutex

Mutex for locking srv_misc_tmpfile. Not created if srv_read_only_mode.

This mutex has a very low rank; threads reserving it should not acquire any further latches or sleep before releasing this one.

Definition at line 424 of file srv0srv.cc.

os_event_t srv_monitor_event

Event to signal the monitor thread.

Definition at line 585 of file srv0srv.cc.

FILE* srv_monitor_file

Temporary file for innodb monitor output

Definition at line 414 of file srv0srv.cc.

const char srv_mysql50_table_name_prefix[10]

Prefix used by MySQL to indicate pre-5.1 table name encoding

Definition at line 91 of file srv0srv.cc.

ulong srv_n_free_tickets_to_enter

Number of times a thread is allowed to enter InnoDB within the same

SQL query after it has once got the ticket.

Definition at line 48 of file srv0conc.cc.

ulong srv_n_page_hash_locks

number of locks to protect buf_pool->page_hash

Definition at line 221 of file srv0srv.cc.

unsigned long long srv_online_max_size

Maximum modification log file size for online index creation

Definition at line 140 of file srv0srv.cc.

my_bool srv_print_all_deadlocks

Print all user-level transactions deadlocks to mysqld stderr

Definition at line 317 of file srv0srv.cc.

my_bool srv_read_only_mode

Set if InnoDB must operate in read-only mode. We don't do any

recovery and open all tables in RO mode instead of RW mode. We don't sync the max trx id to disk either.

Definition at line 119 of file srv0srv.cc.

ulong srv_sort_buf_size

Sort buffer size in index creation

Definition at line 138 of file srv0srv.cc.

srv_stats_t srv_stats

Global counters

Definition at line 299 of file srv0srv.cc.

ulong srv_sync_array_size

User configured sync array size

Definition at line 140 of file sync0arr.cc.

ulong srv_thread_sleep_delay

Sleep delay for threads waiting to enter InnoDB. In micro-seconds.

Definition at line 379 of file srv0srv.h.

char* srv_undo_dir

Server undo tablespaces directory, can be absolute path.

Rollback files directory, can be absolute.

Definition at line 101 of file srv0srv.cc.

ulong srv_undo_tablespaces

Number of undo tablespaces to use.

The number of tablespaces to use for rollback segments.

Definition at line 104 of file srv0srv.cc.

ulint srv_undo_tablespaces_open

The number of UNDO tablespaces that are open and ready to use.

Definition at line 107 of file srv0srv.cc.

Classes

Macros

Typedefs

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
