trx0purge.h File Reference

#include "univ.i"
#include "trx0types.h"
#include "mtr0mtr.h"
#include "trx0sys.h"
#include "que0types.h"
#include "page0page.h"
#include "usr0sess.h"
#include "fil0fil.h"
#include "trx0purge.ic"

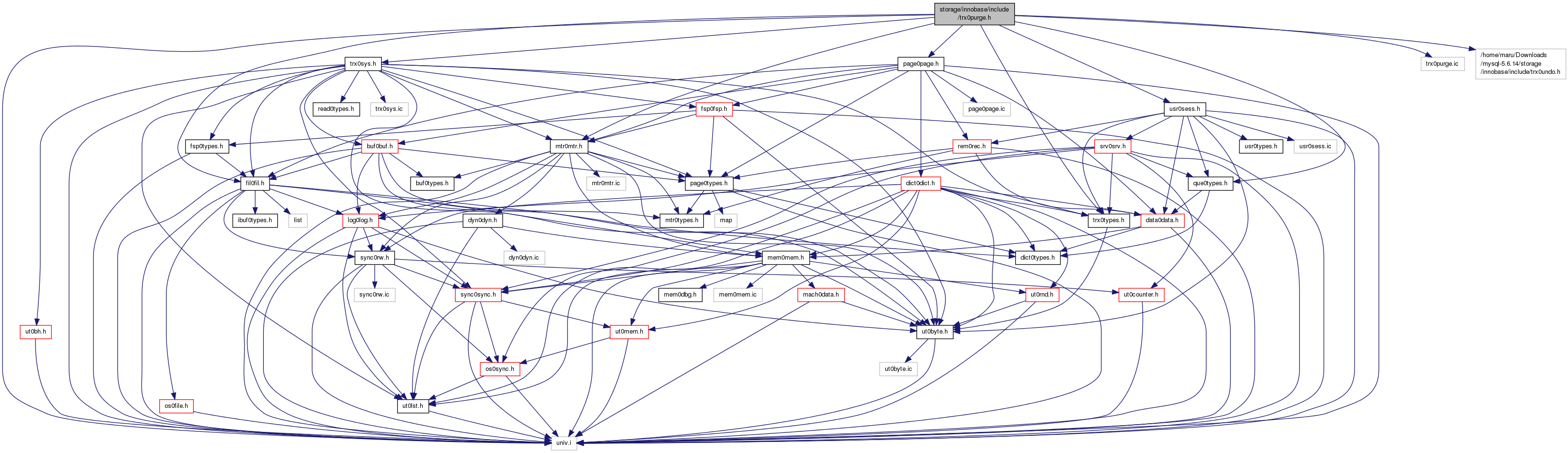

Include dependency graph for trx0purge.h:

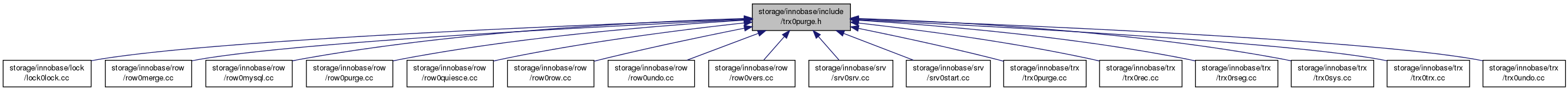

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	purge_iter_t
struct	trx_purge_t
struct	trx_purge_rec_t

Enumerations
enum	purge_state_t {   PURGE_STATE_INIT, PURGE_STATE_RUN, PURGE_STATE_STOP, PURGE_STATE_EXIT,   PURGE_STATE_DISABLED }

Functions
UNIV_INLINE fil_addr_t	trx_purge_get_log_from_hist (fil_addr_t node_addr)
UNIV_INTERN void	trx_purge_sys_create (ulint n_purge_threads, ib_bh_t *ib_bh)
UNIV_INTERN void	trx_purge_sys_close (void)
UNIV_INTERN void	trx_purge_add_update_undo_to_history (trx_t *trx, page_t *undo_page, mtr_t *mtr)
UNIV_INTERN ulint	trx_purge (ulint n_purge_threads, ulint limit, bool truncate)
UNIV_INTERN void	trx_purge_stop (void)
UNIV_INTERN void	trx_purge_run (void)
UNIV_INTERN purge_state_t	trx_purge_state (void)

Variables
trx_purge_t *	purge_sys
trx_undo_rec_t	trx_purge_dummy_rec

Detailed Description

Purge old versions

Created 3/26/1996 Heikki Tuuri

Definition in file trx0purge.h.

Enumeration Type Documentation

enum purge_state_t

Purge states

Enumerator:

PURGE_STATE_INIT	Purge instance created
PURGE_STATE_RUN	Purge should be running
PURGE_STATE_STOP	Purge should be stopped
PURGE_STATE_EXIT	Purge has been shutdown
PURGE_STATE_DISABLED	Purge was never started

Definition at line 107 of file trx0purge.h.

Function Documentation

UNIV_INTERN ulint trx_purge	(	ulint	n_purge_threads,
		ulint	limit,
		bool	truncate
	)

This function runs a purge batch.

Returns

number of undo log pages handled in the batch in: truncate history if true

Parameters

n_purge_threads	in: number of purge tasks to submit to task queue.
limit	in: the maximum number of records to purge in one batch

Here is the caller graph for this function:

UNIV_INTERN void trx_purge_add_update_undo_to_history	(	trx_t *	trx,
		page_t *	undo_page,
		mtr_t *	mtr
	)

in: mtr

Adds the update undo log as the first log in the history list. Removes the update undo log segment from the rseg slot if it is too big for reuse.

Parameters

trx	in: transaction
undo_page	in: update undo log header page, x-latched
mtr	in: mtr

Definition at line 201 of file trx0purge.cc.

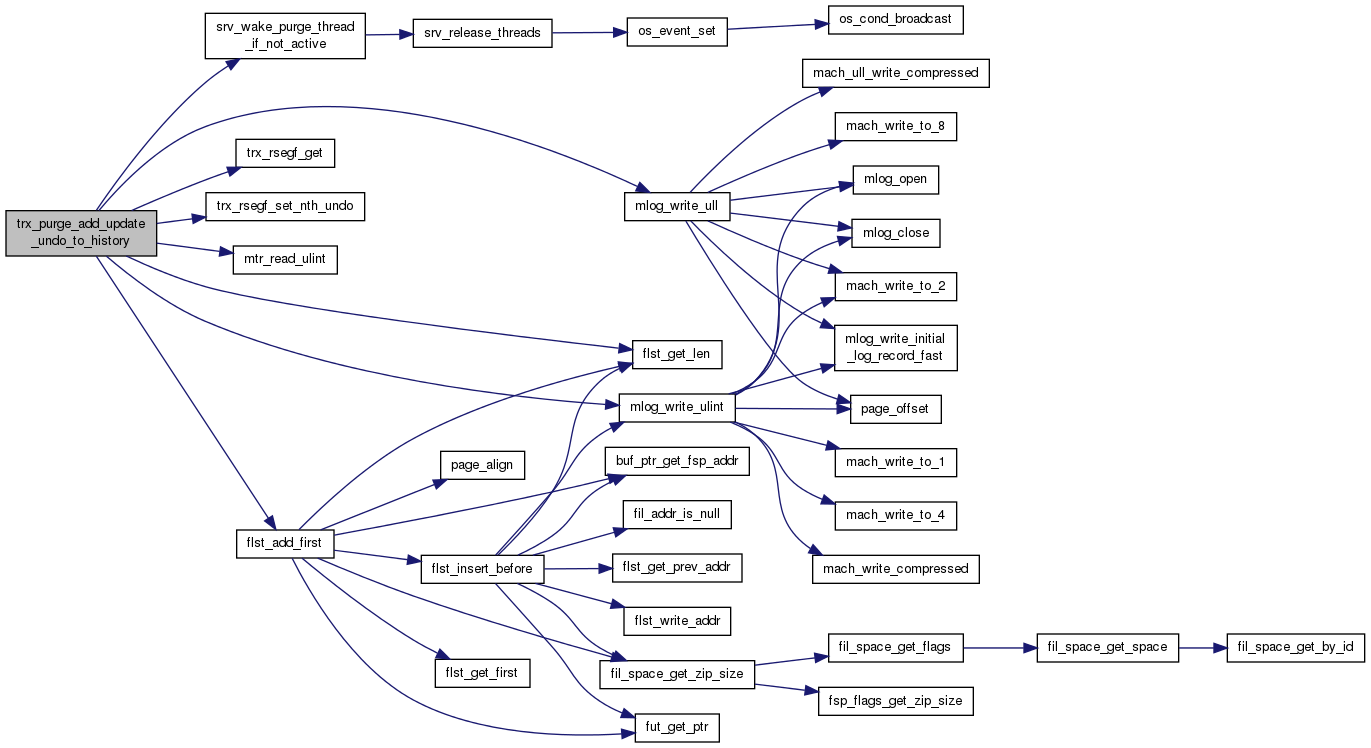

Here is the call graph for this function:

UNIV_INLINE fil_addr_t trx_purge_get_log_from_hist

(

fil_addr_t

node_addr

)

Calculates the file address of an undo log header when we have the file address of its history list node.

Returns

file address of the log in: file address of the history list node of the log

UNIV_INTERN void trx_purge_run

(

void

)

Resume purge, move to PURGE_STATE_RUN.

UNIV_INTERN purge_state_t trx_purge_state

(

void

)

Get the purge state.

Returns

purge state.

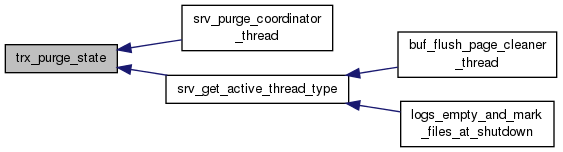

Here is the caller graph for this function:

UNIV_INTERN void trx_purge_stop

(

void

)

Stop purge and wait for it to stop, move to PURGE_STATE_STOP.

UNIV_INTERN void trx_purge_sys_close

(

void

)

Frees the global purge system control structure.

Definition at line 162 of file trx0purge.cc.

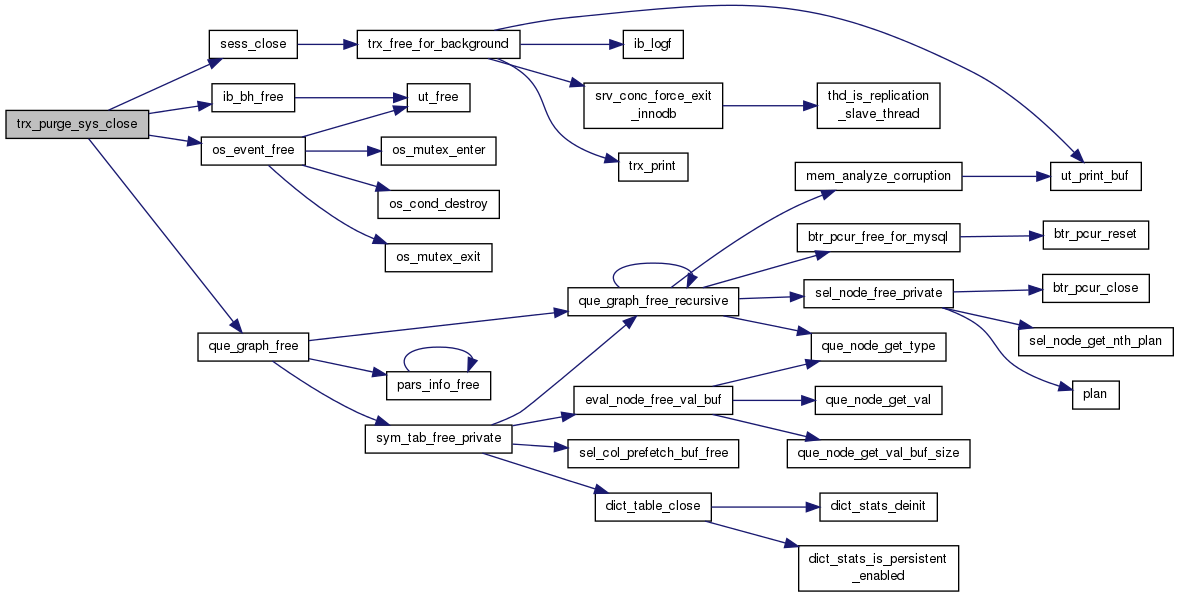

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void trx_purge_sys_create	(	ulint	n_purge_threads,
		ib_bh_t *	ib_bh
	)

Creates the global purge system control structure and inits the history mutex. in/own: UNDO log min binary heap

Creates the global purge system control structure and inits the history mutex.

Parameters

n_purge_threads	in: number of purge threads
ib_bh	in, own: UNDO log min binary heap

Definition at line 112 of file trx0purge.cc.

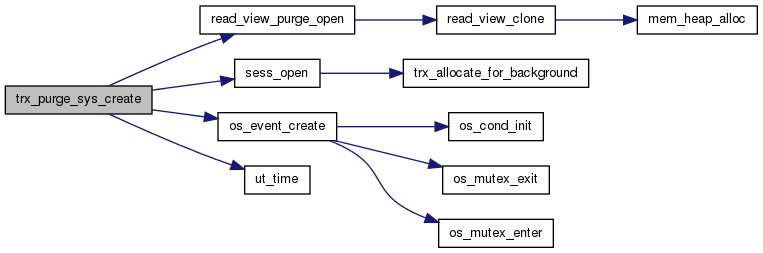

Here is the call graph for this function:

Variable Documentation

trx_purge_t* purge_sys

The global data structure coordinating a purge

Definition at line 56 of file trx0purge.cc.

trx_undo_rec_t trx_purge_dummy_rec

A dummy undo record used as a return value when we have a whole undo log

which needs no purge

Definition at line 60 of file trx0purge.cc.
