#include "univ.i"
#include <mysql/plugin.h>
#include "buf0buf.h"
#include "dict0dict.h"
#include "ha0storage.h"
#include "ha_prototypes.h"
#include "hash0hash.h"
#include "lock0iter.h"
#include "lock0lock.h"
#include "mem0mem.h"
#include "page0page.h"
#include "rem0rec.h"
#include "row0row.h"
#include "srv0srv.h"
#include "sync0rw.h"
#include "sync0sync.h"
#include "sync0types.h"
#include "trx0i_s.h"
#include "trx0sys.h"
#include "trx0trx.h"
#include "ut0mem.h"
#include "ut0ut.h"

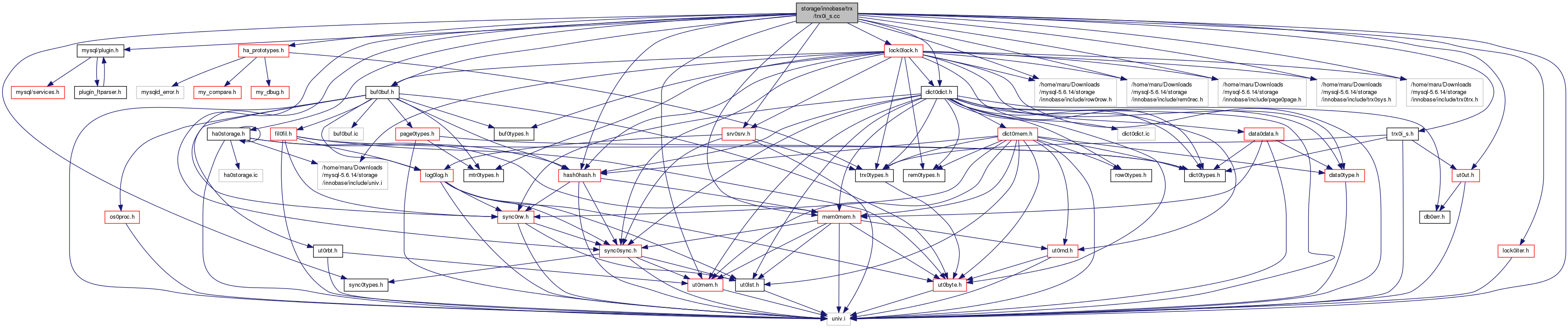

Include dependency graph for trx0i_s.cc:

Classes
struct	i_s_mem_chunk_t
struct	i_s_table_cache_t
struct	trx_i_s_cache_t

Macros
#define	TABLE_CACHE_INITIAL_ROWSNUM 1024
#define	MEM_CHUNKS_IN_TABLE_CACHE 39
	The maximum number of chunks to allocate for a table cache.
#define	MAX_ALLOWED_FOR_STORAGE(cache)
#define	MAX_ALLOWED_FOR_ALLOC(cache)
#define	LOCKS_HASH_CELLS_NUM 10000
#define	CACHE_STORAGE_INITIAL_SIZE 1024
#define	CACHE_STORAGE_HASH_CELLS 2048
#define	CACHE_MIN_IDLE_TIME_US 100000 /* 0.1 sec */

Functions
UNIV_INTERN int	trx_i_s_possibly_fetch_data_into_cache (trx_i_s_cache_t *cache)
UNIV_INTERN ibool	trx_i_s_cache_is_truncated (trx_i_s_cache_t *cache)
UNIV_INTERN void	trx_i_s_cache_init (trx_i_s_cache_t *cache)
UNIV_INTERN void	trx_i_s_cache_free (trx_i_s_cache_t *cache)
UNIV_INTERN void	trx_i_s_cache_start_read (trx_i_s_cache_t *cache)
UNIV_INTERN void	trx_i_s_cache_end_read (trx_i_s_cache_t *cache)
UNIV_INTERN void	trx_i_s_cache_start_write (trx_i_s_cache_t *cache)
UNIV_INTERN void	trx_i_s_cache_end_write (trx_i_s_cache_t *cache)
UNIV_INTERN ulint	trx_i_s_cache_get_rows_used (trx_i_s_cache_t *cache, enum i_s_table table)
UNIV_INTERN void *	trx_i_s_cache_get_nth_row (trx_i_s_cache_t *cache, enum i_s_table table, ulint n)
UNIV_INTERN char *	trx_i_s_create_lock_id (const i_s_locks_row_t row, char lock_id, ulint lock_id_size)

Variables
UNIV_INTERN trx_i_s_cache_t *	trx_i_s_cache = &trx_i_s_cache_static

Detailed Description

INFORMATION SCHEMA innodb_trx, innodb_locks and innodb_lock_waits tables fetch code.

The code below fetches information needed to fill those 3 dynamic tables and uploads it into a "transactions table cache" for later retrieval.

Created July 17, 2007 Vasil Dimov

Definition in file trx0i_s.cc.

Macro Definition Documentation

#define CACHE_MIN_IDLE_TIME_US 100000 /* 0.1 sec */

The minimum time that a cache must not be updated after it has been

read for the last time; measured in microseconds. We use this technique to ensure that SELECTs which join several INFORMATION SCHEMA tables read the same version of the cache.

Definition at line 1225 of file trx0i_s.cc.

#define CACHE_STORAGE_HASH_CELLS 2048

Number of hash cells in the cache storage

Definition at line 173 of file trx0i_s.cc.

#define CACHE_STORAGE_INITIAL_SIZE 1024

Initial size of the cache storage

Definition at line 171 of file trx0i_s.cc.

#define LOCKS_HASH_CELLS_NUM 10000

the hash table size is LOCKS_HASH_CELLS_NUM * sizeof(void*) bytes

Definition at line 166 of file trx0i_s.cc.

#define MAX_ALLOWED_FOR_ALLOC ( cache )

Value:

(TRX_I_S_MEM_LIMIT                      \
         - (cache)->mem_allocd                  \
         - ha_storage_get_size((cache)->storage))

Memory limit in table_cache_create_empty_row().

Parameters

cache hash storage

Returns: maximum allowed allocation size

Definition at line 126 of file trx0i_s.cc.

#define MAX_ALLOWED_FOR_STORAGE ( cache )

Value:

(TRX_I_S_MEM_LIMIT \

- (cache)->mem_allocd)

The following are some testing auxiliary macros. Do not enable them

in a production environment. Memory limit passed to ha_storage_put_memlim().

Parameters

cache hash storage

Returns: maximum allowed allocation size

Definition at line 119 of file trx0i_s.cc.

#define MEM_CHUNKS_IN_TABLE_CACHE 39

The maximum number of chunks to allocate for a table cache.

The rows of a table cache are stored in a set of chunks. When a new row is added a new chunk is allocated if necessary. Assuming that the first one is 1024 rows (TABLE_CACHE_INITIAL_ROWSNUM) and each subsequent is N/2 where N is the number of rows we have allocated till now, then 39th chunk would accommodate 1677416425 rows and all chunks would accommodate 3354832851 rows.

Definition at line 73 of file trx0i_s.cc.

#define TABLE_CACHE_INITIAL_ROWSNUM 1024

Initial number of rows in the table cache

Definition at line 63 of file trx0i_s.cc.

Function Documentation

UNIV_INTERN void trx_i_s_cache_end_read ( trx_i_s_cache_t * cache )

Release a shared/read lock on the tables cache.

Parameters

cache in: cache

Definition at line 1492 of file trx0i_s.cc.

Here is the call graph for this function:

UNIV_INTERN void trx_i_s_cache_end_write ( trx_i_s_cache_t * cache )

Release an exclusive/write lock on the tables cache.

Parameters

cache in: cache

Definition at line 1526 of file trx0i_s.cc.

UNIV_INTERN void trx_i_s_cache_free ( trx_i_s_cache_t * cache )

Free the INFORMATION SCHEMA trx related cache.

Parameters

cache in, own: cache to free

Definition at line 1465 of file trx0i_s.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void* trx_i_s_cache_get_nth_row	(	trx_i_s_cache_t *	cache,
		enum i_s_table	table,
		ulint	n
	)

Retrieves the nth row (zero-based) in the cache for a given INFORMATION SCHEMA table.

Returns: row

Parameters

cache	in: cache
table	in: which table
n	in: row number

Definition at line 1595 of file trx0i_s.cc.

UNIV_INTERN ulint trx_i_s_cache_get_rows_used	(	trx_i_s_cache_t *	cache,
		enum i_s_table	table
	)

Retrieves the number of used rows in the cache for a given INFORMATION SCHEMA table.

Returns: number of rows

Parameters

cache	in: cache
table	in: which table

Definition at line 1577 of file trx0i_s.cc.

UNIV_INTERN void trx_i_s_cache_init ( trx_i_s_cache_t * cache )

Initialize INFORMATION SCHEMA trx related cache.

Parameters

cache out: cache to init

Definition at line 1424 of file trx0i_s.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool trx_i_s_cache_is_truncated ( trx_i_s_cache_t * cache )

Returns TRUE if the data in the cache is truncated due to the memory limit posed by TRX_I_S_MEM_LIMIT.

Returns: TRUE if truncated

Parameters

cache in: cache

Definition at line 1413 of file trx0i_s.cc.

UNIV_INTERN void trx_i_s_cache_start_read ( trx_i_s_cache_t * cache )

Issue a shared/read lock on the tables cache.

Parameters

cache in: cache

Definition at line 1481 of file trx0i_s.cc.

UNIV_INTERN void trx_i_s_cache_start_write ( trx_i_s_cache_t * cache )

Issue an exclusive/write lock on the tables cache.

Parameters

cache in: cache

Definition at line 1515 of file trx0i_s.cc.

UNIV_INTERN char* trx_i_s_create_lock_id	(	const i_s_locks_row_t *	row,
		char *	lock_id,
		ulint	lock_id_size
	)

Crafts a lock id string from a i_s_locks_row_t object. Returns its second argument. This function aborts if there is not enough space in lock_id. Be sure to provide at least TRX_I_S_LOCK_ID_MAX_LEN + 1 if you want to be 100% sure that it will not abort.

Returns: resulting lock id

Parameters

row	in: innodb_locks row
lock_id	out: resulting lock_id
lock_id_size	in: size of the lock id buffer

Definition at line 1636 of file trx0i_s.cc.

UNIV_INTERN int trx_i_s_possibly_fetch_data_into_cache ( trx_i_s_cache_t * cache )

Update the transactions cache if it has not been read for some time. Called from handler/i_s.cc.

Returns: 0 - fetched, 1 - not

Parameters

cache in/out: cache

Definition at line 1383 of file trx0i_s.cc.

Variable Documentation

UNIV_INTERN trx_i_s_cache_t* trx_i_s_cache = &trx_i_s_cache_static

This is the intermediate buffer where data needed to fill the

INFORMATION SCHEMA tables is fetched and later retrieved by the C++ code in handler/i_s.cc.

Definition at line 192 of file trx0i_s.cc.
