#include "univ.i"
#include "ut0lst.h"
#include "ut0counter.h"
#include "sync0sync.h"
#include "os0sync.h"
#include "sync0rw.ic"

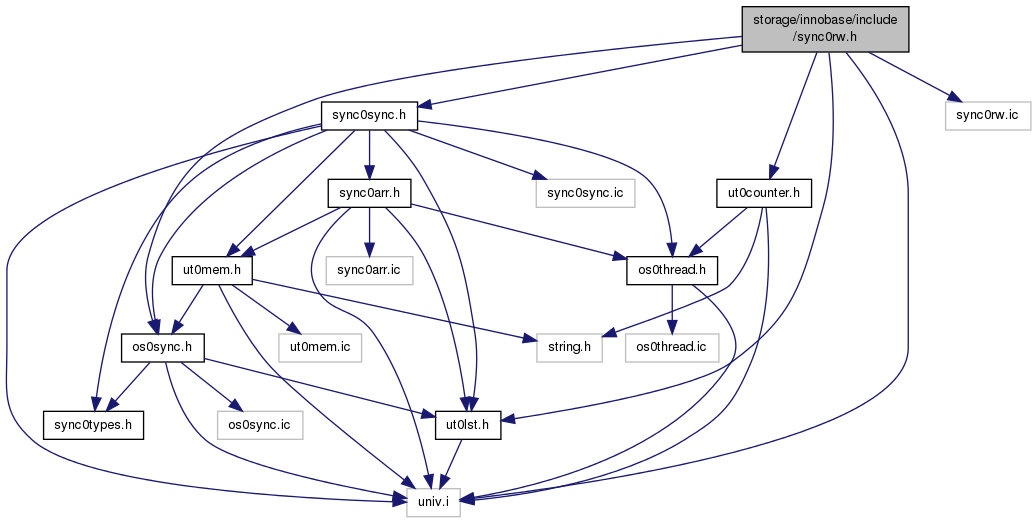

Include dependency graph for sync0rw.h:

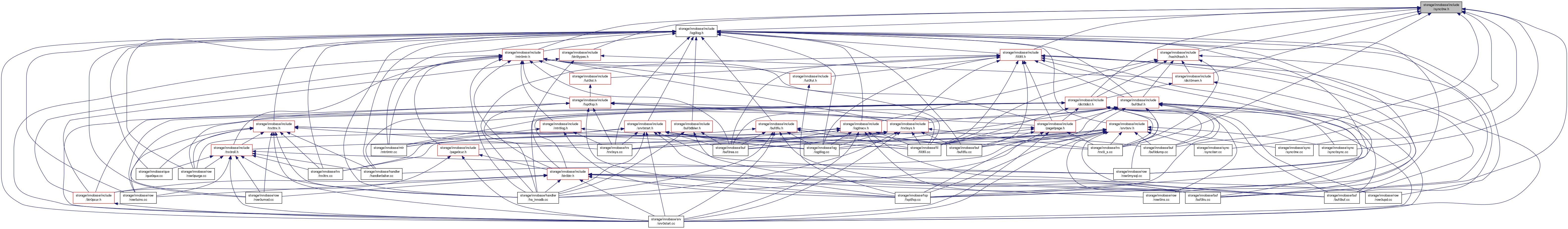

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	rw_lock_stats_t
struct	rw_lock_t

Macros
#define	RW_S_LATCH 1
#define	RW_X_LATCH 2
#define	RW_NO_LATCH 3
#define	X_LOCK_DECR 0x00100000
#define	rw_lock_create(K, L, level) rw_lock_create_func((L), __FILE__, __LINE__)
#define	rw_lock_s_lock(M) rw_lock_s_lock_func((M), 0, __FILE__, __LINE__)
#define	rw_lock_s_lock_inline(M, P, F, L) rw_lock_s_lock_func((M), (P), (F), (L))
#define	rw_lock_s_lock_gen(M, P) rw_lock_s_lock_func((M), (P), __FILE__, __LINE__)
#define	rw_lock_s_lock_nowait(M, F, L) rw_lock_s_lock_low((M), 0, (F), (L))
#define	rw_lock_s_unlock_gen(L, P) rw_lock_s_unlock_func(L)
#define	rw_lock_x_lock(M) rw_lock_x_lock_func((M), 0, __FILE__, __LINE__)
#define	rw_lock_x_lock_inline(M, P, F, L) rw_lock_x_lock_func((M), (P), (F), (L))
#define	rw_lock_x_lock_gen(M, P) rw_lock_x_lock_func((M), (P), __FILE__, __LINE__)
#define	rw_lock_x_lock_nowait(M) rw_lock_x_lock_func_nowait((M), __FILE__, __LINE__)
#define	rw_lock_x_lock_func_nowait_inline(M, F, L) rw_lock_x_lock_func_nowait((M), (F), (L))
#define	rw_lock_x_unlock_gen(L, P) rw_lock_x_unlock_func(L)
#define	rw_lock_free(M) rw_lock_free_func(M)
#define	rw_lock_s_unlock(L) rw_lock_s_unlock_gen(L, 0)
#define	rw_lock_x_unlock(L) rw_lock_x_unlock_gen(L, 0)

Functions
typedef	UT_LIST_BASE_NODE_T (rw_lock_t) rw_lock_list_t
UNIV_INTERN void	rw_lock_create_func (rw_lock_t lock, const char cfile_name, ulint cline)
UNIV_INTERN void	rw_lock_free_func (rw_lock_t *lock)
UNIV_INLINE ibool	rw_lock_s_lock_low (rw_lock_t lock, ulint pass __attribute__((unused)), const char file_name, ulint line)
UNIV_INLINE void	rw_lock_s_lock_func (rw_lock_t lock, ulint pass, const char file_name, ulint line)
UNIV_INLINE ibool	rw_lock_x_lock_func_nowait (rw_lock_t lock, const char file_name, ulint line)
UNIV_INLINE void	rw_lock_s_unlock_func (rw_lock_t *lock)
UNIV_INTERN void	rw_lock_x_lock_func (rw_lock_t lock, ulint pass, const char file_name, ulint line)
UNIV_INLINE void	rw_lock_x_unlock_func (rw_lock_t *lock)
UNIV_INTERN void	rw_lock_x_lock_move_ownership (rw_lock_t *lock)
UNIV_INLINE ulint	rw_lock_get_x_lock_count (const rw_lock_t *lock)
UNIV_INLINE ulint	rw_lock_get_waiters (const rw_lock_t *lock)
UNIV_INLINE ulint	rw_lock_get_writer (const rw_lock_t *lock)
UNIV_INLINE ulint	rw_lock_get_reader_count (const rw_lock_t *lock)
UNIV_INLINE ibool	rw_lock_lock_word_decr (rw_lock_t *lock, ulint amount)
UNIV_INLINE lint	rw_lock_lock_word_incr (rw_lock_t *lock, ulint amount)
UNIV_INLINE void	rw_lock_set_writer_id_and_recursion_flag (rw_lock_t *lock, ibool recursive)
UNIV_INTERN ibool	rw_lock_is_locked (rw_lock_t *lock, ulint lock_type)

Variables
rw_lock_list_t	rw_lock_list
ib_mutex_t	rw_lock_list_mutex
rw_lock_stats_t	rw_lock_stats

Detailed Description

The read-write lock (for threads, not for database transactions)

Created 9/11/1995 Heikki Tuuri

Definition in file sync0rw.h.

Macro Definition Documentation

#define rw_lock_create	(	K,
		L,
		level
	)	rw_lock_create_func((L), __FILE__, __LINE__)

Creates, or rather, initializes an rw-lock object in a specified memory location (which must be appropriately aligned). The rw-lock is initialized to the non-locked state. Explicit freeing of the rw-lock with rw_lock_free is necessary only if the memory block containing it is freed. if MySQL performance schema is enabled and "UNIV_PFS_RWLOCK" is defined, the rwlock are instrumented with performance schema probes.

Definition at line 167 of file sync0rw.h.

#define rw_lock_s_lock ( M ) rw_lock_s_lock_func((M), 0, __FILE__, __LINE__)

NOTE! The following macros should be used in rw locking and unlocking, not the corresponding function.

Definition at line 175 of file sync0rw.h.

Function Documentation

UNIV_INTERN void rw_lock_create_func	(	rw_lock_t *	lock,
		const char *	cfile_name,
		ulint	cline
	)

Creates, or rather, initializes an rw-lock object in a specified memory location (which must be appropriately aligned). The rw-lock is initialized to the non-locked state. Explicit freeing of the rw-lock with rw_lock_free is necessary only if the memory block containing it is freed. in: file line where created

Creates, or rather, initializes an rw-lock object in a specified memory location (which must be appropriately aligned). The rw-lock is initialized to the non-locked state. Explicit freeing of the rw-lock with rw_lock_free is necessary only if the memory block containing it is freed.

Parameters

lock	in: pointer to memory
cfile_name	in: file name where created
cline	in: file line where created

Definition at line 209 of file sync0rw.cc.

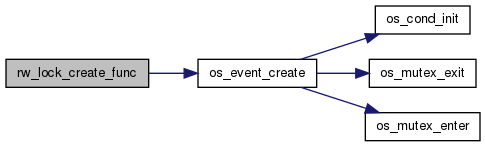

Here is the call graph for this function:

UNIV_INTERN void rw_lock_free_func ( rw_lock_t * lock )

Calling this function is obligatory only if the memory buffer containing the rw-lock is freed. Removes an rw-lock object from the global list. The rw-lock is checked to be in the non-locked state. in: rw-lock

Calling this function is obligatory only if the memory buffer containing the rw-lock is freed. Removes an rw-lock object from the global list. The rw-lock is checked to be in the non-locked state.

Parameters

lock	in: rw-lock

Definition at line 285 of file sync0rw.cc.

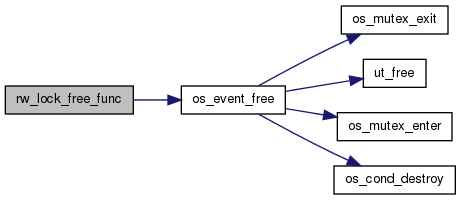

Here is the call graph for this function:

UNIV_INLINE ulint rw_lock_get_reader_count ( const rw_lock_t * lock )

Returns the number of readers.

Returns: number of readers in: rw-lock

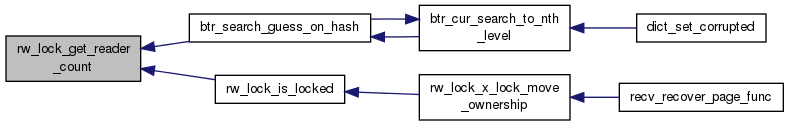

Here is the caller graph for this function:

UNIV_INLINE ulint rw_lock_get_waiters ( const rw_lock_t * lock )

Check if there are threads waiting for the rw-lock.

Returns: 1 if waiters, 0 otherwise in: rw-lock

UNIV_INLINE ulint rw_lock_get_writer ( const rw_lock_t * lock )

Returns the write-status of the lock - this function made more sense with the old rw_lock implementation.

Returns: RW_LOCK_NOT_LOCKED, RW_LOCK_EX, RW_LOCK_WAIT_EX in: rw-lock

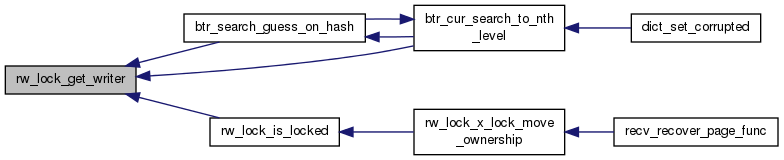

Here is the caller graph for this function:

UNIV_INLINE ulint rw_lock_get_x_lock_count ( const rw_lock_t * lock )

Returns the value of writer_count for the lock. Does not reserve the lock mutex, so the caller must be sure it is not changed during the call.

Returns: value of writer_count in: rw-lock

Here is the caller graph for this function:

UNIV_INTERN ibool rw_lock_is_locked	(	rw_lock_t *	lock,
		ulint	lock_type
	)

Checks if somebody has locked the rw-lock in the specified mode. in: lock type: RW_LOCK_SHARED, RW_LOCK_EX

Checks if somebody has locked the rw-lock in the specified mode.

Returns: TRUE if locked

Parameters

lock	in: rw-lock
lock_type	in: lock type: RW_LOCK_SHARED, RW_LOCK_EX

Definition at line 859 of file sync0rw.cc.

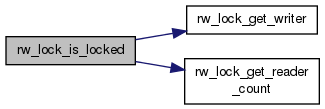

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE ibool rw_lock_lock_word_decr	(	rw_lock_t *	lock,
		ulint	amount
	)

Decrements lock_word the specified amount if it is greater than 0. This is used by both s_lock and x_lock operations.

Returns: TRUE if decr occurs in: amount to decrement

Parameters

lock	in/out: rw-lock

Here is the caller graph for this function:

UNIV_INLINE lint rw_lock_lock_word_incr	(	rw_lock_t *	lock,
		ulint	amount
	)

Increments lock_word the specified amount and returns new value.

Returns: lock->lock_word after increment in: amount to increment

Parameters

lock	in/out: rw-lock

UNIV_INLINE void rw_lock_s_lock_func	(	rw_lock_t *	lock,
		ulint	pass,
		const char *	file_name,
		ulint	line
	)

NOTE! Use the corresponding macro, not directly this function, except if you supply the file name and line number. Lock an rw-lock in shared mode for the current thread. If the rw-lock is locked in exclusive mode, or there is an exclusive lock request waiting, the function spins a preset time (controlled by SYNC_SPIN_ROUNDS), waiting for the lock, before suspending the thread. in: line where requested

Parameters

lock	in: pointer to rw-lock
pass	in: pass value; != 0, if the lock will be passed to another thread to unlock
file_name	in: file name where lock requested

Here is the caller graph for this function:

UNIV_INLINE ibool rw_lock_s_lock_low	(	rw_lock_t *	lock,
		ulint pass	__attribute__(unused),
		const char *	file_name,
		ulint	line
	)

Low-level function which tries to lock an rw-lock in s-mode. Performs no spinning.

Returns: TRUE if success in: line where requested

Parameters

lock	in: pointer to rw-lock
__attribute__	in: pass value; != 0, if the lock will be passed to another thread to unlock
file_name	in: file name where lock requested

Here is the caller graph for this function:

UNIV_INLINE void rw_lock_s_unlock_func ( rw_lock_t * lock )

Releases a shared mode lock. in/out: rw-lock

UNIV_INLINE void rw_lock_set_writer_id_and_recursion_flag	(	rw_lock_t *	lock,
		ibool	recursive
	)

This function sets the lock->writer_thread and lock->recursive fields. For platforms where we are using atomic builtins instead of lock->mutex it sets the lock->writer_thread field using atomics to ensure memory ordering. Note that it is assumed that the caller of this function effectively owns the lock i.e.: nobody else is allowed to modify lock->writer_thread at this point in time. The protocol is that lock->writer_thread MUST be updated BEFORE the lock->recursive flag is set. in: TRUE if recursion allowed

Parameters

lock	in/out: lock to work on

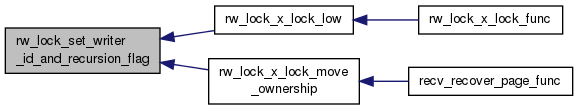

Here is the caller graph for this function:

UNIV_INTERN void rw_lock_x_lock_func	(	rw_lock_t *	lock,
		ulint	pass,
		const char *	file_name,
		ulint	line
	)

NOTE! Use the corresponding macro, not directly this function! Lock an rw-lock in exclusive mode for the current thread. If the rw-lock is locked in shared or exclusive mode, or there is an exclusive lock request waiting, the function spins a preset time (controlled by SYNC_SPIN_ROUNDS), waiting for the lock, before suspending the thread. If the same thread has an x-lock on the rw-lock, locking succeed, with the following exception: if pass != 0, only a single x-lock may be taken on the lock. NOTE: If the same thread has an s-lock, locking does not succeed! in: line where requested

NOTE! Use the corresponding macro, not directly this function! Lock an rw-lock in exclusive mode for the current thread. If the rw-lock is locked in shared or exclusive mode, or there is an exclusive lock request waiting, the function spins a preset time (controlled by SYNC_SPIN_ROUNDS), waiting for the lock before suspending the thread. If the same thread has an x-lock on the rw-lock, locking succeed, with the following exception: if pass != 0, only a single x-lock may be taken on the lock. NOTE: If the same thread has an s-lock, locking does not succeed!

< spin round count

< index of the reserved wait cell

Parameters

lock	in: pointer to rw-lock
pass	in: pass value; != 0, if the lock will be passed to another thread to unlock
file_name	in: file name where lock requested
line	in: line where requested

Definition at line 599 of file sync0rw.cc.

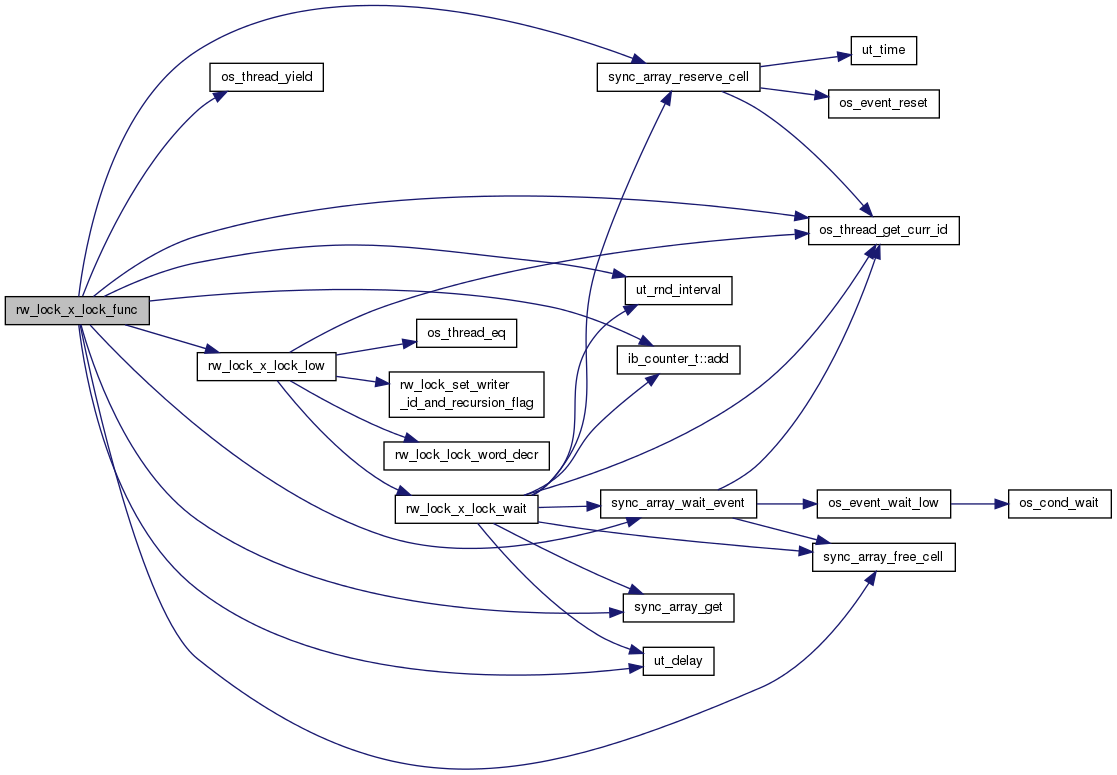

Here is the call graph for this function:

UNIV_INLINE ibool rw_lock_x_lock_func_nowait	(	rw_lock_t *	lock,
		const char *	file_name,
		ulint	line
	)

NOTE! Use the corresponding macro, not directly this function! Lock an rw-lock in exclusive mode for the current thread if the lock can be obtained immediately.

Returns: TRUE if success in: line where requested

Parameters

lock	in: pointer to rw-lock
file_name	in: file name where lock requested

UNIV_INTERN void rw_lock_x_lock_move_ownership ( rw_lock_t * lock )

This function is used in the insert buffer to move the ownership of an x-latch on a buffer frame to the current thread. The x-latch was set by the buffer read operation and it protected the buffer frame while the read was done. The ownership is moved because we want that the current thread is able to acquire a second x-latch which is stored in an mtr. This, in turn, is needed to pass the debug checks of index page operations. in: lock which was x-locked in the buffer read

This function is used in the insert buffer to move the ownership of an x-latch on a buffer frame to the current thread. The x-latch was set by the buffer read operation and it protected the buffer frame while the read was done. The ownership is moved because we want that the current thread is able to acquire a second x-latch which is stored in an mtr. This, in turn, is needed to pass the debug checks of index page operations.

Parameters

lock	in: lock which was x-locked in the buffer read

Definition at line 444 of file sync0rw.cc.

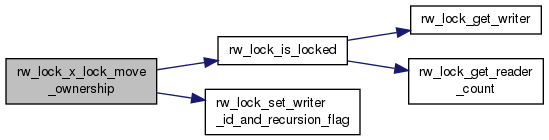

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE void rw_lock_x_unlock_func ( rw_lock_t * lock )

Releases an exclusive mode lock. in/out: rw-lock

Variable Documentation

rw_lock_stats_t rw_lock_stats

Counters for RW locks.

Definition at line 137 of file sync0rw.cc.
