sync0arr.h File Reference

#include "univ.i"
#include "ut0lst.h"
#include "ut0mem.h"
#include "os0thread.h"
#include "sync0arr.ic"

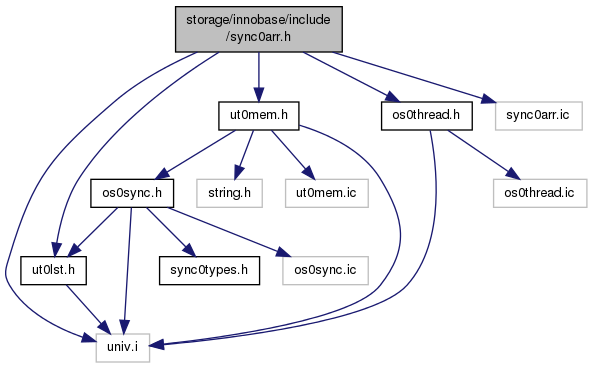

Include dependency graph for sync0arr.h:

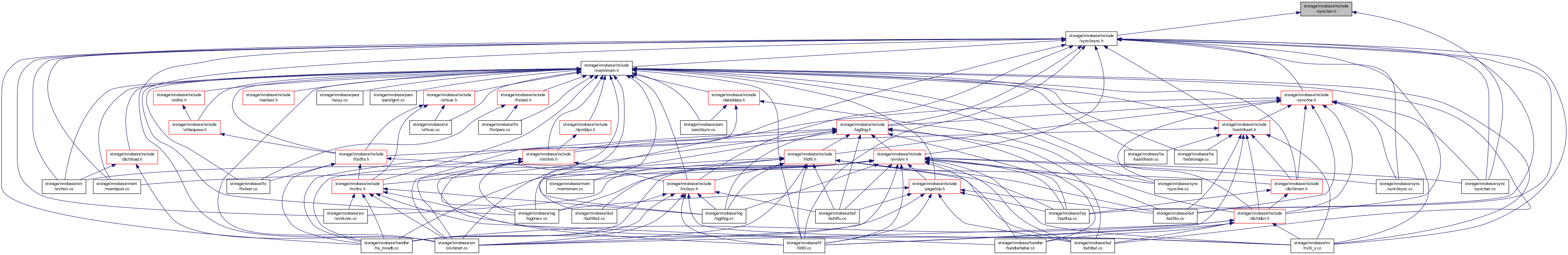

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
UNIV_INTERN void	sync_array_reserve_cell (sync_array_t *arr, void *object, ulint type, const char *file, ulint line, ulint *index)
UNIV_INTERN void	sync_array_wait_event (sync_array_t *arr, ulint index)
UNIV_INTERN void	sync_array_free_cell (sync_array_t *arr, ulint index)
UNIV_INTERN void	sync_array_object_signalled (void)
UNIV_INTERN void	sync_arr_wake_threads_if_sema_free (void)
UNIV_INTERN ibool	sync_array_print_long_waits (os_thread_id_t *waiter, const void **sema) __attribute__((nonnull))
UNIV_INTERN void	sync_array_validate (sync_array_t *arr)
UNIV_INTERN void	sync_array_print (FILE *file)
UNIV_INTERN void	sync_array_init (ulint n_threads)
UNIV_INTERN void	sync_array_close (void)
UNIV_INTERN sync_array_t *	sync_array_get (void)

Detailed Description

The wait array used in synchronization primitives

Created 9/5/1995 Heikki Tuuri

Definition in file sync0arr.h.

Function Documentation

UNIV_INTERN void sync_arr_wake_threads_if_sema_free

(

void

)

If the wakeup algorithm does not work perfectly at semaphore relases, this function will do the waking (see the comment in mutex_exit). This function should be called about every 1 second in the server.

If the wakeup algorithm does not work perfectly at semaphore relases, this function will do the waking (see the comment in mutex_exit). This function should be called about every 1 second in the server.

Note that there's a race condition between this thread and mutex_exit changing the lock_word and calling signal_object, so sometimes this finds threads to wake up even when nothing has gone wrong.

Definition at line 873 of file sync0arr.cc.

Here is the caller graph for this function:

UNIV_INTERN void sync_array_close

(

void

)

Close sync array wait sub-system.

Definition at line 1103 of file sync0arr.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void sync_array_free_cell	(	sync_array_t *	arr,
		ulint	index
	)

Frees the cell. NOTE! sync_array_wait_event frees the cell automatically! in: index of the cell in array

Frees the cell. NOTE! sync_array_wait_event frees the cell automatically!

Parameters

arr	in: wait array
index	in: index of the cell in array

Definition at line 785 of file sync0arr.cc.

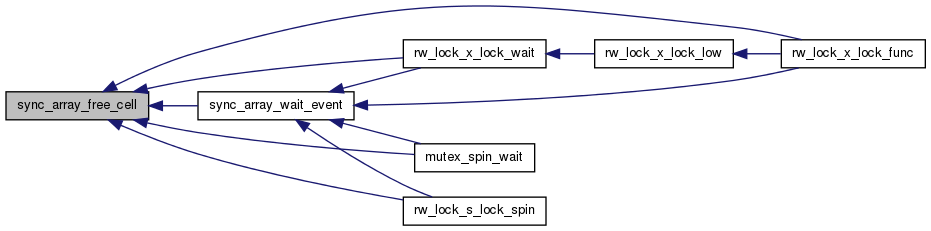

Here is the caller graph for this function:

UNIV_INTERN sync_array_t* sync_array_get

(

void

)

Get an instance of the sync wait array.

Definition at line 1139 of file sync0arr.cc.

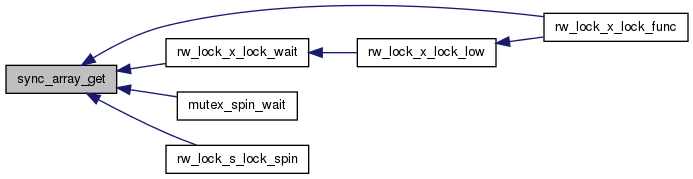

Here is the caller graph for this function:

UNIV_INTERN void sync_array_init

(

ulint

n_threads

)

Create the primary system wait array(s), they are protected by an OS mutex in: Number of slots to create

Create the primary system wait array(s), they are protected by an OS mutex

Parameters

n_threads

in: Number of slots to create in all arrays

Definition at line 1070 of file sync0arr.cc.

Here is the caller graph for this function:

UNIV_INTERN void sync_array_object_signalled

(

void

)

Note that one of the wait objects was signalled.

Increments the signalled count.

Definition at line 812 of file sync0arr.cc.

Here is the caller graph for this function:

UNIV_INTERN void sync_array_print

(

FILE *

file

)

Prints info of the wait array. in: file where to print

Print info about the sync array(s).

Parameters

file	in/out: Print to this stream

Definition at line 1120 of file sync0arr.cc.

Here is the caller graph for this function:

UNIV_INTERN ibool sync_array_print_long_waits	(	os_thread_id_t *	waiter,
		const void **	sema
	)

Prints warnings of long semaphore waits to stderr.

Returns

TRUE if fatal semaphore wait threshold was exceeded

Parameters

waiter	out: longest waiting thread
sema	out: longest-waited-for semaphore

Definition at line 964 of file sync0arr.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void sync_array_reserve_cell	(	sync_array_t *	arr,
		void *	object,
		ulint	type,
		const char *	file,
		ulint	line,
		ulint *	index
	)

Reserves a wait array cell for waiting for an object. The event of the cell is reset to nonsignalled state. out: index of the reserved cell

Reserves a wait array cell for waiting for an object. The event of the cell is reset to nonsignalled state.

Parameters

arr	in: wait array
object	in: pointer to the object to wait for
type	in: lock request type
file	in: file where requested
line	in: line where requested
index	out: index of the reserved cell

Definition at line 310 of file sync0arr.cc.

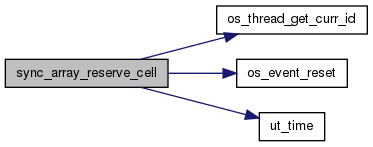

Here is the call graph for this function:

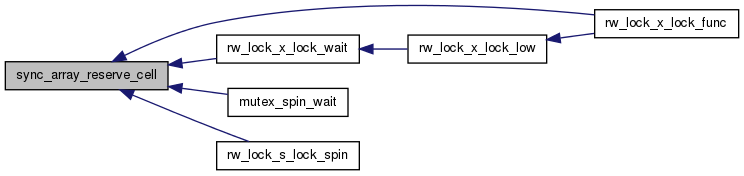

Here is the caller graph for this function:

UNIV_INTERN void sync_array_validate

(

sync_array_t *

arr

)

Validates the integrity of the wait array. Checks that the number of reserved cells equals the count variable. in: sync wait array

Validates the integrity of the wait array. Checks that the number of reserved cells equals the count variable.

Parameters

arr	in: sync wait array

Definition at line 264 of file sync0arr.cc.

UNIV_INTERN void sync_array_wait_event	(	sync_array_t *	arr,
		ulint	index
	)

This function should be called when a thread starts to wait on a wait array cell. In the debug version this function checks if the wait for a semaphore will result in a deadlock, in which case prints info and asserts. in: index of the reserved cell

This function should be called when a thread starts to wait on a wait array cell. In the debug version this function checks if the wait for a semaphore will result in a deadlock, in which case prints info and asserts.

Parameters

arr	in: wait array
index	in: index of the reserved cell

Definition at line 384 of file sync0arr.cc.

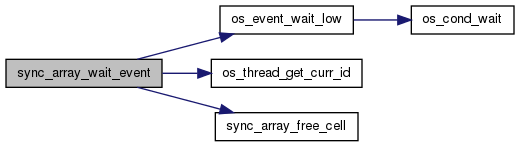

Here is the call graph for this function:

Here is the caller graph for this function:
