Dbspj::TreeNode Struct Reference

#include <Dbspj.hpp>

Inheritance diagram for Dbspj::TreeNode:

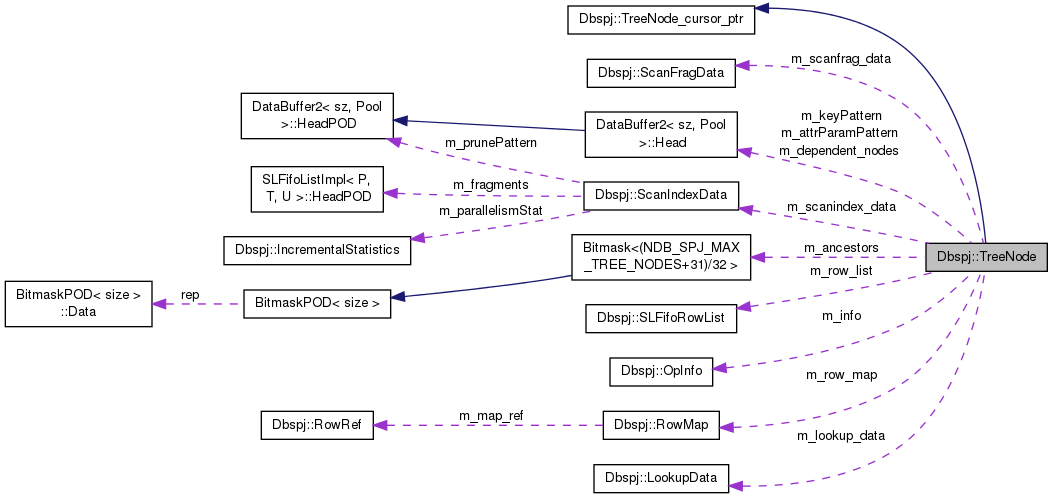

Collaboration diagram for Dbspj::TreeNode:

Public Types
enum	TreeNodeState {   TN_BUILDING = 1, TN_PREPARING = 2, TN_INACTIVE = 3, TN_ACTIVE = 4,   TN_COMPLETING = 5, TN_END = 0 }
enum	TreeNodeBits {   T_ATTR_INTERPRETED = 0x1, T_ONE_SHOT = 0x2, T_KEYINFO_CONSTRUCTED = 0x4, T_ATTRINFO_CONSTRUCTED = 0x8,   T_LEAF = 0x10, T_USER_PROJECTION = 0x20, T_UNIQUE_INDEX_LOOKUP = 0x40, T_ROW_BUFFER = 0x80,   T_ROW_BUFFER_MAP = 0x100, T_REPORT_BATCH_COMPLETE = 0x200, T_NEED_REPORT_BATCH_COMPLETED = 0x400, T_CONST_PRUNE = 0x800,   T_PRUNE_PATTERN = 0x1000, T_SCAN_PARALLEL = 0x2000, T_SCAN_REPEATABLE = 0x4000, T_END = 0 }

Public Member Functions
	STATIC_CONST (MAGIC=~RT_SPJ_TREENODE)
	TreeNode (Uint32 request)
bool	isLeaf () const

Public Attributes
const Uint32	m_magic
struct OpInfo *	m_info
Uint32	m_bits
Uint32	m_state
Uint32	m_node_no
Uint32	m_batch_size
Uint32	m_parentPtrI
const Uint32	m_requestPtrI
TreeNodeBitMask	m_ancestors
Dependency_map::Head	m_dependent_nodes
PatternStore::Head	m_keyPattern
PatternStore::Head	m_attrParamPattern
union {
RowMap   m_row_map
SLFifoRowList   m_row_list
};
union {
LookupData   m_lookup_data
ScanFragData   m_scanfrag_data
ScanIndexData   m_scanindex_data
};
struct {
Uint32   m_ref
Uint32   m_correlation
Uint32   m_keyInfoPtrI
Uint32   m_attrInfoPtrI
}	m_send
union {
Uint32   nextList
Uint32   nextPool
};
Uint32	prevList
Public Attributes inherited from Dbspj::TreeNode_cursor_ptr
Uint32	nextList

Detailed Description

A node in a Query (This is an instantiated version of QueryNode in include/kernel/signal/QueryTree.hpp)

Definition at line 627 of file Dbspj.hpp.

Member Enumeration Documentation

enum Dbspj::TreeNode::TreeNodeBits

Enumerator:

T_ONE_SHOT	Will node be executed only once (::parent_row()) implies key/attr-info will be disowned (by send-signal)
T_KEYINFO_CONSTRUCTED	Is keyinfo "constructed" (implies key info will be disowned (by send-signal)
T_ATTRINFO_CONSTRUCTED	Is attrinfo "constructed" (implies attr info will be disowned (by send-signal)
T_LEAF	Is this node a leaf-node
T_USER_PROJECTION	Does this node have a user projection. (The index access part of an index lookup operation has no user projection, since only the base table tuple is sent to the API.)
T_UNIQUE_INDEX_LOOKUP	Is this a unique index lookup (on index table) (implies some extra error handling code)
T_ROW_BUFFER_MAP	Should rows have dictionary (i.e random access capability) This is typically used when having nodes depending on multiple parents so that when row gets availble from "last" parent, a key can be constructed using correlation value from parents
T_REPORT_BATCH_COMPLETE	Does any child need to know about when my batch is complete
T_NEED_REPORT_BATCH_COMPLETED	Do I need to know when parent batch is completed
T_CONST_PRUNE	Constant prune pattern
T_PRUNE_PATTERN	Prune pattern
T_SCAN_PARALLEL	Should index scan be parallel
T_SCAN_REPEATABLE	Possible requesting resultset for this index scan to be repeated

Definition at line 687 of file Dbspj.hpp.

enum Dbspj::TreeNode::TreeNodeState

Enumerator:

TN_BUILDING	Initial
TN_PREPARING	Tree node is preparing
TN_INACTIVE	Tree node is build and prepared, but not active
TN_ACTIVE	Tree node is active (i.e has outstanding request(s))
TN_COMPLETING	Tree node is "finishing" (after TN_INACTIVE)
TN_END	end-marker, not a valid state

Definition at line 654 of file Dbspj.hpp.

Member Data Documentation

union { ... }

Rows buffered by this node

Uint32 Dbspj::TreeNode::m_correlation

Each tuple has a 16-bit id that is unique within that operation, batch and SPJ block instance. The upper half word of m_correlation is the id of the parent tuple, and the lower half word is the id of the current tuple.

Definition at line 809 of file Dbspj.hpp.

---

The documentation for this struct was generated from the following file:

• storage/ndb/src/kernel/blocks/dbspj/Dbspj.hpp
