#include "row0mysql.h"
#include <debug_sync.h>
#include <my_dbug.h>
#include "row0ins.h"
#include "row0merge.h"
#include "row0sel.h"
#include "row0upd.h"
#include "row0row.h"
#include "que0que.h"
#include "pars0pars.h"
#include "dict0dict.h"
#include "dict0crea.h"
#include "dict0load.h"
#include "dict0boot.h"
#include "dict0stats.h"
#include "dict0stats_bg.h"
#include "trx0roll.h"
#include "trx0purge.h"
#include "trx0rec.h"
#include "trx0undo.h"
#include "lock0lock.h"
#include "rem0cmp.h"
#include "log0log.h"
#include "btr0sea.h"
#include "fil0fil.h"
#include "ibuf0ibuf.h"
#include "fts0fts.h"
#include "fts0types.h"
#include "srv0start.h"
#include "row0import.h"
#include "m_string.h"
#include "my_sys.h"
#include "ha_prototypes.h"

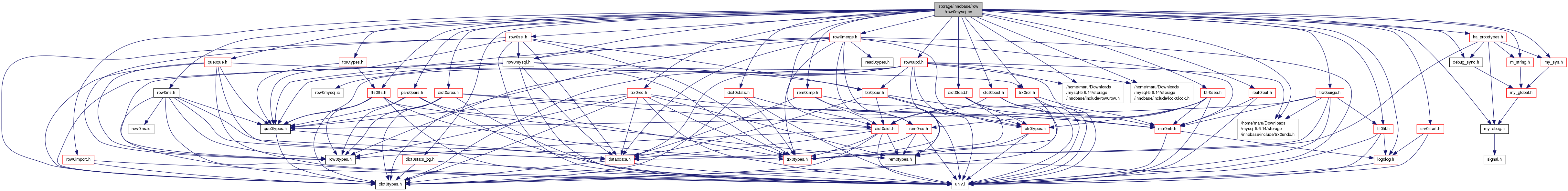

Include dependency graph for row0mysql.cc:

Classes
struct	row_mysql_drop_t

Macros
#define	STR_EQ(str1, str1_len, str2_onstack)
#define	PREBUILT_HEAP_INITIAL_SIZE
#define	TABLE_NOT_IN_THIS_DB "SUBSTR(for_name, 0, LENGTH(:dbname)) <> :dbname"

Functions
UNIV_INTERN void	row_mysql_prebuilt_free_blob_heap (row_prebuilt_t *prebuilt)

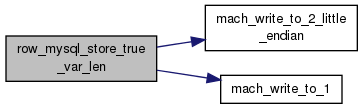

UNIV_INTERN byte *	row_mysql_store_true_var_len (byte *dest, ulint len, ulint lenlen)
UNIV_INTERN const byte *	row_mysql_read_true_varchar (ulint len, const byte field, ulint lenlen)
UNIV_INTERN void	row_mysql_store_blob_ref (byte dest, ulint col_len, const void data, ulint len)
UNIV_INTERN const byte *	row_mysql_read_blob_ref (ulint len, const byte ref, ulint col_len)
UNIV_INTERN void	row_mysql_pad_col (ulint mbminlen, byte *pad, ulint len)
UNIV_INTERN byte *	row_mysql_store_col_in_innobase_format (dfield_t dfield, byte buf, ibool row_format_col, const byte *mysql_data, ulint col_len, ulint comp)
UNIV_INTERN bool	row_mysql_handle_errors (dberr_t new_err, trx_t trx, que_thr_t thr, trx_savept_t savept)
UNIV_INTERN row_prebuilt_t *	row_create_prebuilt (dict_table_t *table, ulint mysql_row_len)
UNIV_INTERN void	row_prebuilt_free (row_prebuilt_t *prebuilt, ibool dict_locked)
UNIV_INTERN void	row_update_prebuilt_trx (row_prebuilt_t prebuilt, trx_t trx)
UNIV_INLINE void	row_update_statistics_if_needed (dict_table_t *table)
UNIV_INTERN dberr_t	row_lock_table_autoinc_for_mysql (row_prebuilt_t *prebuilt)
UNIV_INTERN dberr_t	row_lock_table_for_mysql (row_prebuilt_t prebuilt, dict_table_t table, ulint mode)
UNIV_INTERN dberr_t	row_insert_for_mysql (byte mysql_rec, row_prebuilt_t prebuilt)
UNIV_INTERN void	row_prebuild_sel_graph (row_prebuilt_t *prebuilt)
UNIV_INTERN upd_node_t *	row_create_update_node_for_mysql (dict_table_t table, mem_heap_t heap)
UNIV_INTERN upd_t *	row_get_prebuilt_update_vector (row_prebuilt_t *prebuilt)
UNIV_INTERN dberr_t	row_update_for_mysql (byte mysql_rec, row_prebuilt_t prebuilt)
UNIV_INTERN void	row_unlock_for_mysql (row_prebuilt_t *prebuilt, ibool has_latches_on_recs)

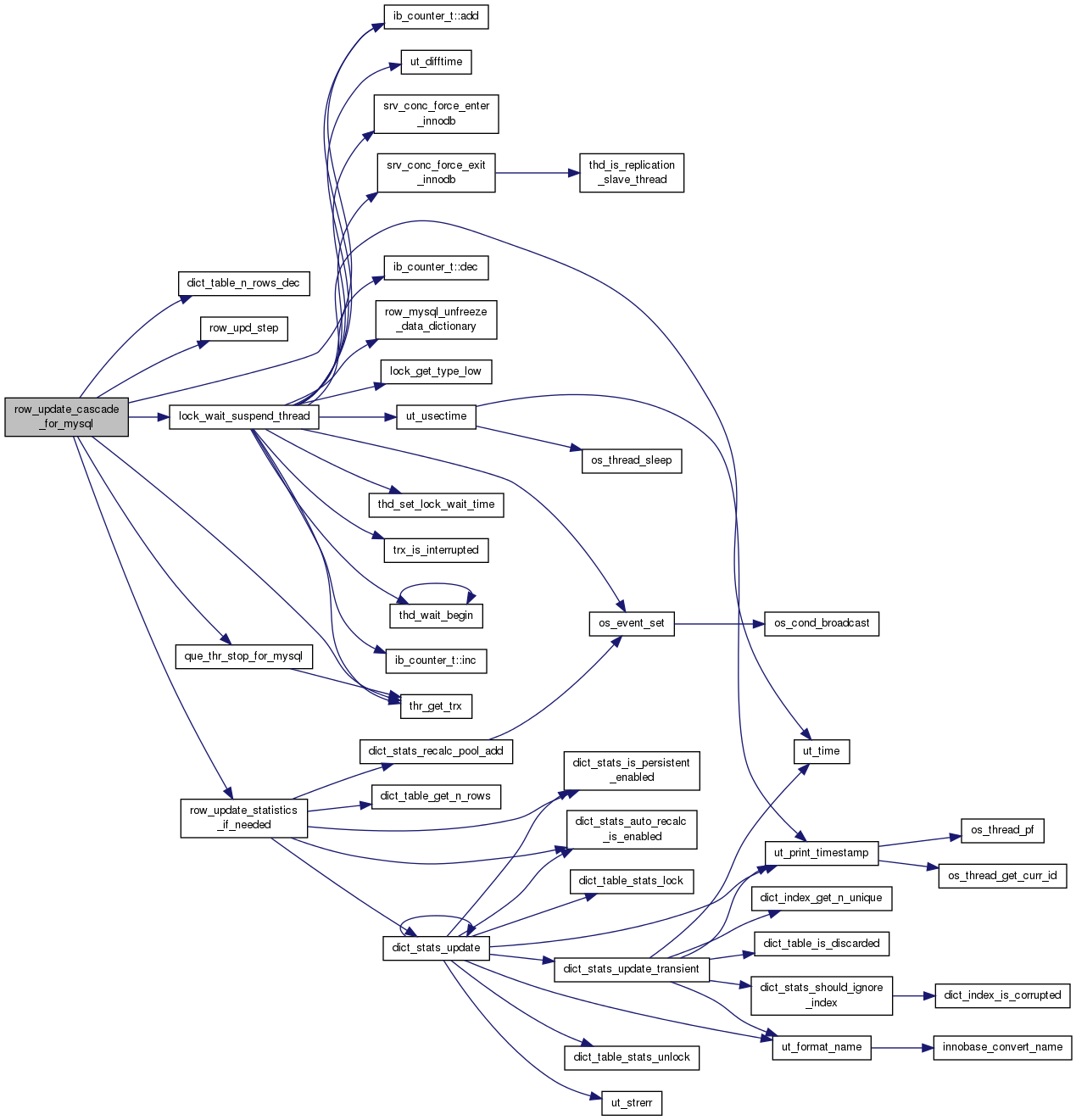

UNIV_INTERN dberr_t	row_update_cascade_for_mysql (que_thr_t thr, upd_node_t node, dict_table_t *table)
UNIV_INTERN ibool	row_table_got_default_clust_index (const dict_table_t *table)
UNIV_INTERN void	row_mysql_freeze_data_dictionary_func (trx_t trx, const char file, ulint line)
UNIV_INTERN void	row_mysql_unfreeze_data_dictionary (trx_t *trx)
UNIV_INTERN void	row_mysql_lock_data_dictionary_func (trx_t trx, const char file, ulint line)
UNIV_INTERN void	row_mysql_unlock_data_dictionary (trx_t *trx)
UNIV_INTERN dberr_t	row_create_table_for_mysql (dict_table_t table, trx_t trx, bool commit)
UNIV_INTERN dberr_t	row_create_index_for_mysql (dict_index_t index, trx_t trx, const ulint *field_lengths)
UNIV_INTERN dberr_t	row_table_add_foreign_constraints (trx_t trx, const char sql_string, size_t sql_length, const char *name, ibool reject_fks)
UNIV_INTERN ulint	row_drop_tables_for_mysql_in_background (void)
UNIV_INTERN ulint	row_get_background_drop_list_len_low (void)
UNIV_INTERN dberr_t	row_mysql_table_id_reassign (dict_table_t table, trx_t trx, table_id_t *new_id)
UNIV_INTERN dberr_t	row_discard_tablespace_for_mysql (const char name, trx_t trx)

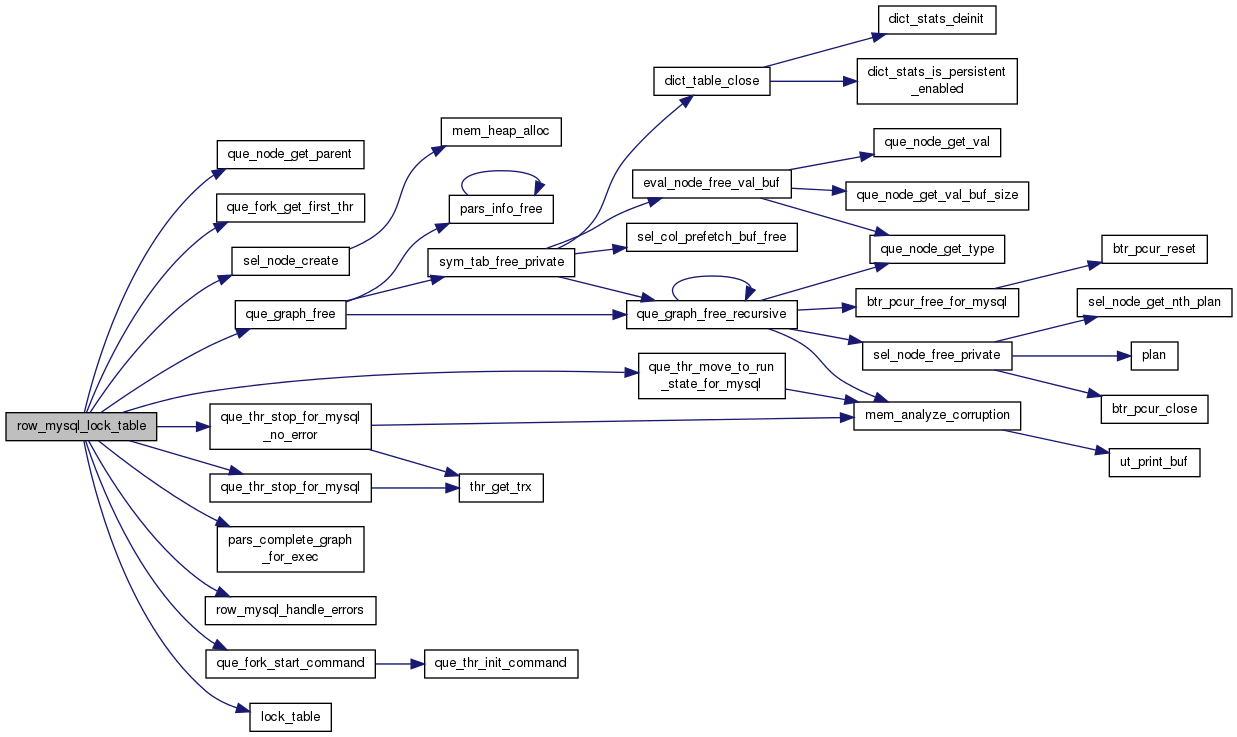

UNIV_INTERN dberr_t	row_mysql_lock_table (trx_t trx, dict_table_t table, enum lock_mode mode, const char *op_info)
UNIV_INTERN dberr_t	row_truncate_table_for_mysql (dict_table_t table, trx_t trx)
UNIV_INTERN dberr_t	row_drop_table_for_mysql (const char name, trx_t trx, bool drop_db, bool nonatomic)
UNIV_INTERN void	row_mysql_drop_temp_tables (void)

Variables
UNIV_INTERN ibool	row_rollback_on_timeout = FALSE

Detailed Description

Interface between Innobase row operations and MySQL. Contains also create table and other data dictionary operations.

Created 9/17/2000 Heikki Tuuri

Definition in file row0mysql.cc.

Macro Definition Documentation

#define PREBUILT_HEAP_INITIAL_SIZE

Value:

( \
        sizeof(*prebuilt) \
        /* allocd in this function */ \
        + DTUPLE_EST_ALLOC(search_tuple_n_fields) \
        + DTUPLE_EST_ALLOC(ref_len) \
        /* allocd in row_prebuild_sel_graph() */ \
        + sizeof(sel_node_t) \
        + sizeof(que_fork_t) \
        + sizeof(que_thr_t) \
        /* allocd in row_get_prebuilt_update_vector() */ \
        + sizeof(upd_node_t) \
        + sizeof(upd_t) \
        + sizeof(upd_field_t) \
          * dict_table_get_n_cols(table) \
        + sizeof(que_fork_t) \
        + sizeof(que_thr_t) \
        /* allocd in row_get_prebuilt_insert_row() */ \
        + sizeof(ins_node_t) \
        /* mysql_row_len could be huge and we are not \
        sure if this prebuilt instance is going to be \
        used in inserts */ \
        + (mysql_row_len < 256 ? mysql_row_len : 0) \
        + DTUPLE_EST_ALLOC(dict_table_get_n_cols(table)) \
        + sizeof(que_fork_t) \
        + sizeof(que_thr_t) \
        )

#define STR_EQ	(	str1,
		str1_len,
		str2_onstack
	)

Value:

((str1_len) == sizeof(str2_onstack) \

&& memcmp(str1, str2_onstack, sizeof(str2_onstack)) == 0)

Evaluates to true if str1 equals str2_onstack, used for comparing

the magic table names.

Parameters

str1	in: string to compare
str1_len	in: length of str1, in bytes, including terminating NUL
str2_onstack	in: char[] array containing a NUL terminated string

Returns: TRUE if str1 equals str2_onstack

Definition at line 112 of file row0mysql.cc.

Function Documentation

UNIV_INTERN dberr_t row_create_index_for_mysql	(	dict_index_t *	index,
		trx_t *	trx,
		const ulint *	field_lengths
	)

Does an index creation operation for MySQL. TODO: currently failure to create an index results in dropping the whole table! This is no problem currently as all indexes must be created at the same time as the table.

Returns: error number or DB_SUCCESS

Parameters

index	in, own: index definition (will be freed)
trx	in: transaction handle
field_lengths	in: if not NULL, must contain dict_index_get_n_fields(index) actual field lengths for the index columns, which are then checked for not being too large.

Definition at line 2350 of file row0mysql.cc.

Here is the call graph for this function:

UNIV_INTERN row_prebuilt_t* row_create_prebuilt	(	dict_table_t *	table,
		ulint	mysql_row_len
	)

Create a prebuilt struct for a MySQL table handle.

Returns: own: a prebuilt struct

Parameters

table	in: Innobase table handle
mysql_row_len	in: length in bytes of a row in the MySQL format

Definition at line 704 of file row0mysql.cc.

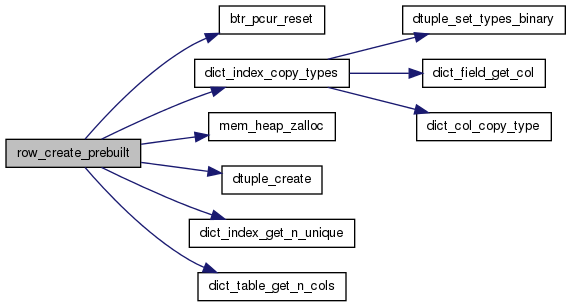

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dberr_t row_create_table_for_mysql	(	dict_table_t *	table,
		trx_t *	trx,
		bool	commit
	)

Creates a table for MySQL. If the name of the table ends in one of "innodb_monitor", "innodb_lock_monitor", "innodb_tablespace_monitor", "innodb_table_monitor", then this will also start the printing of monitor output by the master thread. If the table name ends in "innodb_mem_validate", InnoDB will try to invoke mem_validate(). On failure the transaction will be rolled back and the 'table' object will be freed.

Returns: error code or DB_SUCCESS

Parameters

table	in, own: table definition (will be freed, or on DB_SUCCESS added to the data dictionary cache)
trx	in/out: transaction
commit	in: if true, commit the transaction

Definition at line 2116 of file row0mysql.cc.

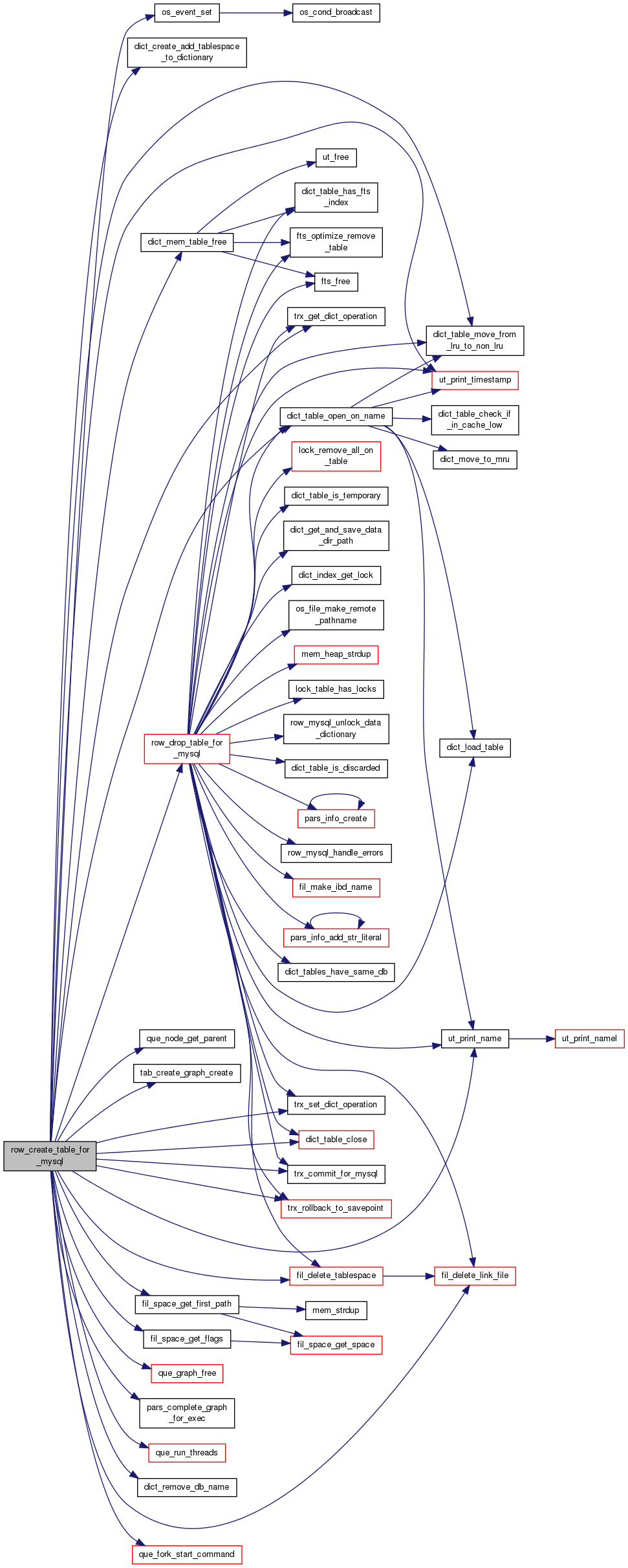

Here is the call graph for this function:

UNIV_INTERN upd_node_t* row_create_update_node_for_mysql	(	dict_table_t *	table,
		mem_heap_t *	heap
	)

Creates an query graph node of 'update' type to be used in the MySQL interface.

Returns: own: update node

Parameters

table	in: table to update
heap	in: mem heap from which allocated

Definition at line 1439 of file row0mysql.cc.

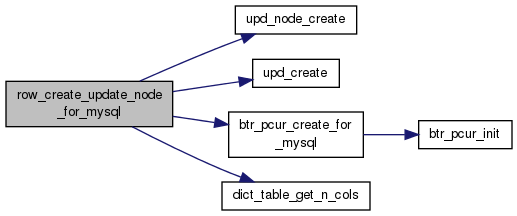

Here is the call graph for this function:

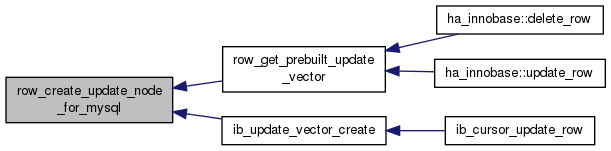

Here is the caller graph for this function:

UNIV_INTERN dberr_t row_discard_tablespace_for_mysql	(	const char *	name,
		trx_t *	trx
	)

Discards the tablespace of a table which stored in an .ibd file. Discarding means that this function renames the .ibd file and assigns a new table id for the table. Also the flag table->ibd_file_missing is set to TRUE.

Returns: error code or DB_SUCCESS

Parameters

name	in: table name
trx	in: transaction handle

Definition at line 3019 of file row0mysql.cc.

Here is the call graph for this function:

UNIV_INTERN dberr_t row_drop_table_for_mysql	(	const char *	name,
		trx_t *	trx,
		bool	drop_db,
		bool	nonatomic
	)

Drops a table for MySQL. If the name of the dropped table ends in one of "innodb_monitor", "innodb_lock_monitor", "innodb_tablespace_monitor", "innodb_table_monitor", then this will also stop the printing of monitor output by the master thread. If the data dictionary was not already locked by the transaction, the transaction will be committed. Otherwise, the data dictionary will remain locked.

Returns: error code or DB_SUCCESS

Parameters

name	in: table name
trx	in: transaction handle
drop_db	in: true=dropping whole database
nonatomic	in: whether it is permitted to release and reacquire dict_operation_lock

Definition at line 3653 of file row0mysql.cc.

Here is the call graph for this function:

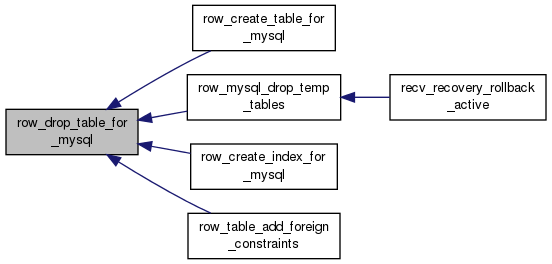

Here is the caller graph for this function:

UNIV_INTERN ulint row_drop_tables_for_mysql_in_background ( void )

The master thread in srv0srv.cc calls this regularly to drop tables which we must drop in background after queries to them have ended. Such lazy dropping of tables is needed in ALTER TABLE on Unix.

Returns: how many tables dropped + remaining tables in list

Definition at line 2597 of file row0mysql.cc.

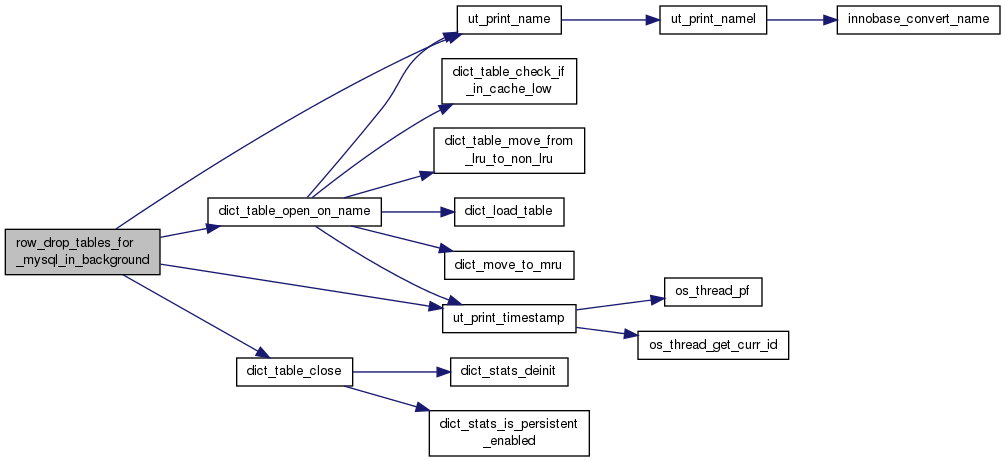

Here is the call graph for this function:

UNIV_INTERN ulint row_get_background_drop_list_len_low ( void )

Get the background drop list length. NOTE: the caller must own the drop list mutex!

Returns: how many tables in list

Definition at line 2672 of file row0mysql.cc.

UNIV_INTERN upd_t* row_get_prebuilt_update_vector ( row_prebuilt_t * prebuilt )

Gets pointer to a prebuilt update vector used in updates. If the update graph has not yet been built in the prebuilt struct, then this function first builds it.

Returns: prebuilt update vector

Parameters

prebuilt in: prebuilt struct in MySQL handle

Definition at line 1476 of file row0mysql.cc.

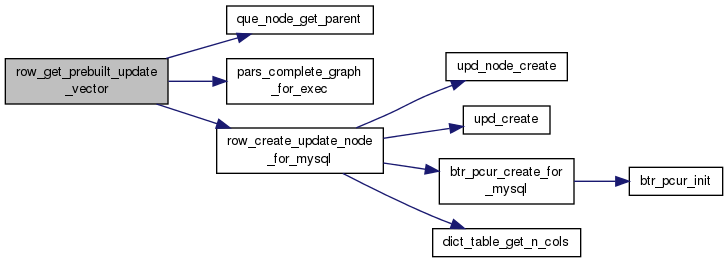

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dberr_t row_insert_for_mysql	(	byte *	mysql_rec,
		row_prebuilt_t *	prebuilt
	)

Does an insert for MySQL.

Returns: error code or DB_SUCCESS

Parameters

mysql_rec	in: row in the MySQL format
prebuilt	in: prebuilt struct in MySQL handle

Definition at line 1227 of file row0mysql.cc.

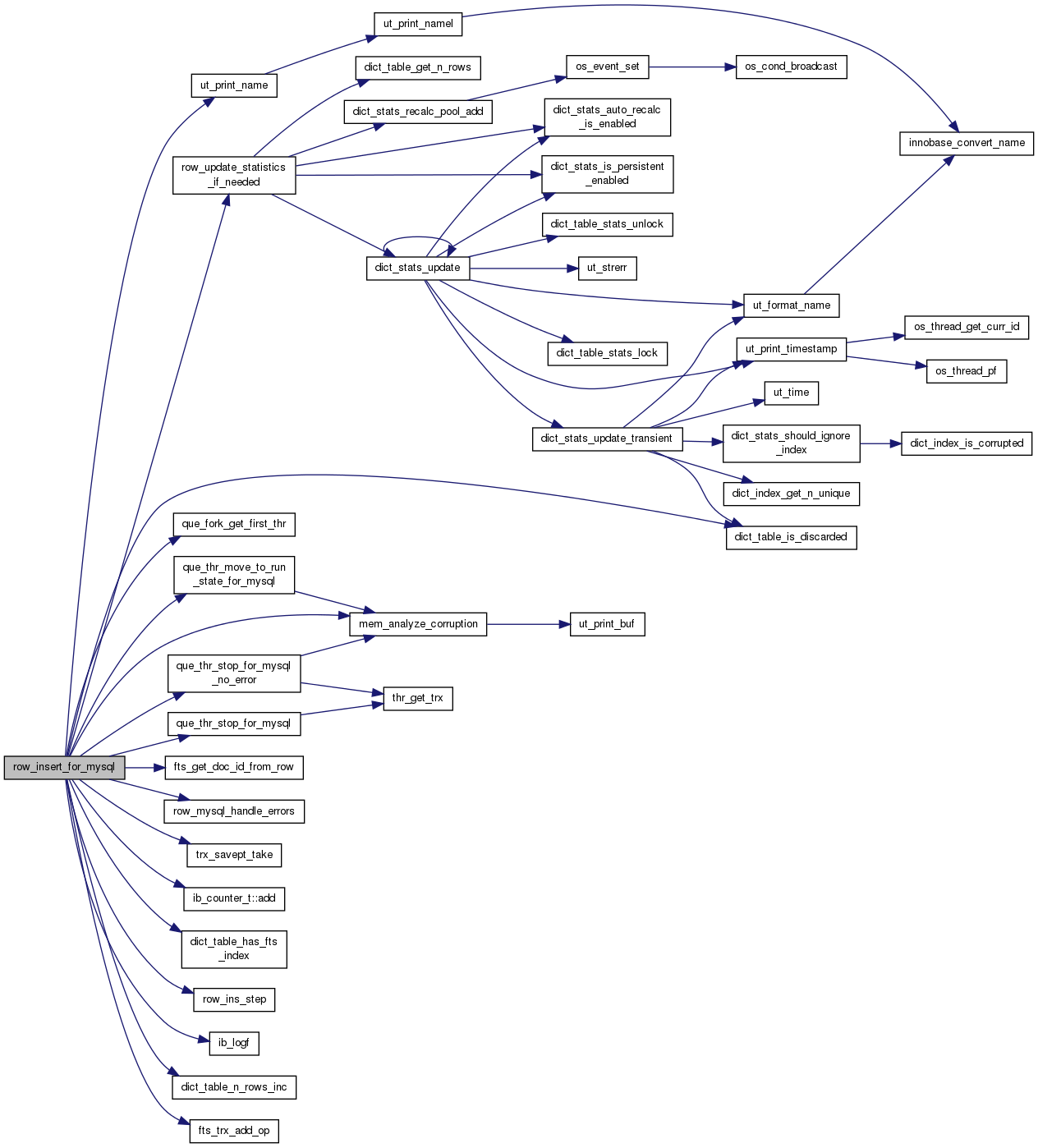

Here is the call graph for this function:

UNIV_INTERN dberr_t row_lock_table_autoinc_for_mysql ( row_prebuilt_t * prebuilt )

Sets an AUTO_INC type lock on the table mentioned in prebuilt. The AUTO_INC lock gives exclusive access to the auto-inc counter of the table. The lock is reserved only for the duration of an SQL statement. It is not compatible with another AUTO_INC or exclusive lock on the table.

Returns: error code or DB_SUCCESS

Parameters

prebuilt in: prebuilt struct in the MySQL table handle

Definition at line 1073 of file row0mysql.cc.

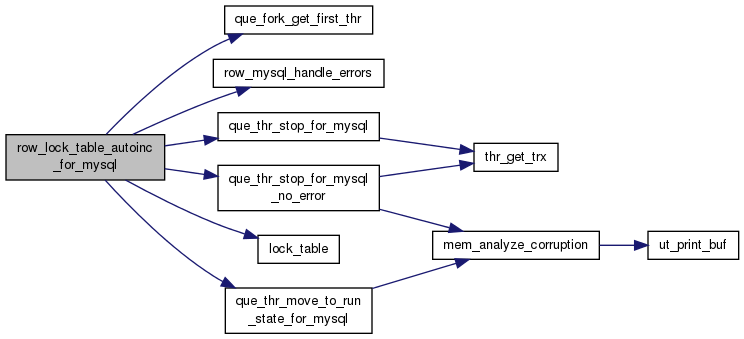

Here is the call graph for this function:

UNIV_INTERN dberr_t row_lock_table_for_mysql	(	row_prebuilt_t *	prebuilt,
		dict_table_t *	table,
		ulint	mode
	)

Sets a table lock on the table mentioned in prebuilt.

Returns: error code or DB_SUCCESS

Parameters

prebuilt	in: prebuilt struct in the MySQL table handle
table	in: table to lock, or NULL if prebuilt->table should be locked as prebuilt->select_lock_type
mode	in: lock mode of table (ignored if table==NULL)

Definition at line 1146 of file row0mysql.cc.

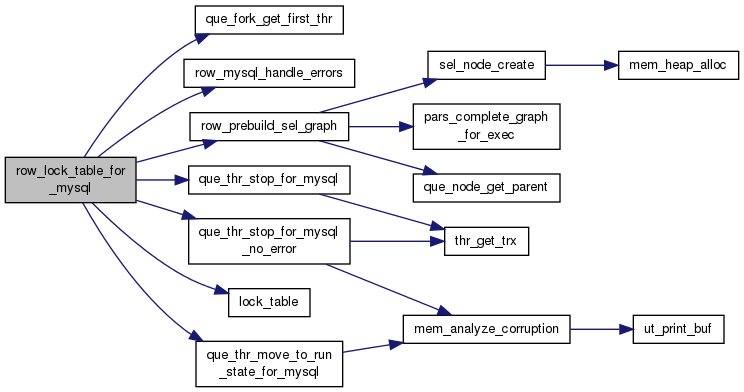

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void row_mysql_drop_temp_tables ( void )

Drop all temporary tables during crash recovery.

Definition at line 4317 of file row0mysql.cc.

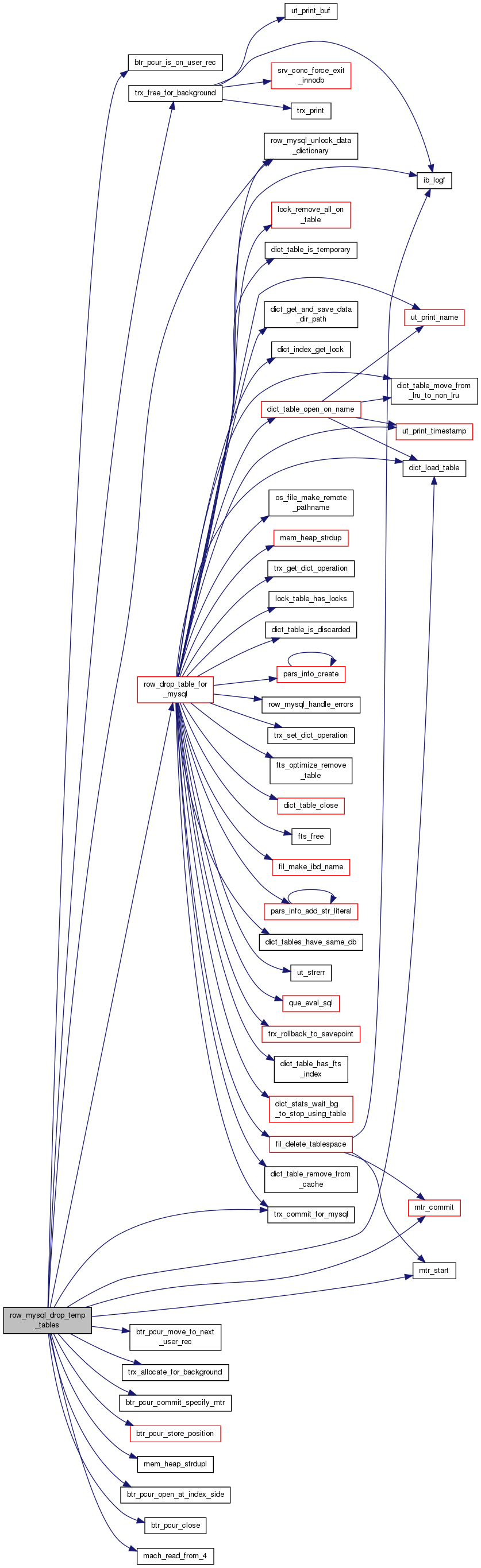

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void row_mysql_freeze_data_dictionary_func	(	trx_t *	trx,
		const char *	file,
		ulint	line
	)

Locks the data dictionary in shared mode from modifications, for performing foreign key check, rollback, or other operation invisible to MySQL.

Parameters

trx	in/out: transaction
file	in: file name
line	in: line number

Definition at line 2032 of file row0mysql.cc.

UNIV_INTERN bool row_mysql_handle_errors	(	dberr_t *	new_err,
		trx_t *	trx,
		que_thr_t *	thr,
		trx_savept_t *	savept
	)

Handles user errors and lock waits detected by the database engine.

Returns: true if it was a lock wait and we should continue running the query thread and in that case the thr is ALREADY in the running state.

Parameters

new_err	out: possible new error encountered in lock wait, or if no new error, the value of trx->error_state at the entry of this function
trx	in: transaction
thr	in: query thread, or NULL
savept	in: savepoint, or NULL

Definition at line 582 of file row0mysql.cc.

Here is the call graph for this function:

UNIV_INTERN void row_mysql_lock_data_dictionary_func	(	trx_t *	trx,
		const char *	file,
		ulint	line
	)

Locks the data dictionary exclusively for performing a table create or other data dictionary modification operation.

Parameters

trx	in/out: transaction
file	in: file name
line	in: line number

Definition at line 2067 of file row0mysql.cc.

UNIV_INTERN dberr_t row_mysql_lock_table	(	trx_t *	trx,
		dict_table_t *	table,
		enum lock_mode	mode,
		const char *	op_info
	)

Sets an exclusive lock on a table.

Returns: error code or DB_SUCCESS

Parameters

trx	in/out: transaction
table	in: table to lock
mode	in: LOCK_X or LOCK_S
op_info	in: string for trx->op_info

Definition at line 3073 of file row0mysql.cc.

Here is the call graph for this function:

UNIV_INTERN void row_mysql_pad_col	(	ulint	mbminlen,
		byte *	pad,
		ulint	len
	)

Pad a column with spaces.

Parameters

mbminlen	in: minimum size of a character, in bytes
pad	out: padded buffer
len	in: number of bytes to pad

Definition at line 292 of file row0mysql.cc.

UNIV_INTERN void row_mysql_prebuilt_free_blob_heap ( row_prebuilt_t * prebuilt )

Frees the blob heap in prebuilt when no longer needed.

Parameters

prebuilt in: prebuilt struct of a ha_innobase:: table handle

Definition at line 164 of file row0mysql.cc.

UNIV_INTERN const byte* row_mysql_read_blob_ref	(	ulint *	len,
		const byte *	ref,
		ulint	col_len
	)

Reads a reference to a BLOB in the MySQL format.

Returns: pointer to BLOB data

Parameters

len	out: BLOB length
ref	in: BLOB reference in the MySQL format
col_len	in: BLOB reference length (not BLOB length)

Definition at line 271 of file row0mysql.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN const byte* row_mysql_read_true_varchar	(	ulint *	len,
		const byte *	field,
		ulint	lenlen
	)

Reads a >= 5.0.3 format true VARCHAR length, in the MySQL row format, and returns a pointer to the data.

Returns: pointer to the data, we skip the 1 or 2 bytes at the start that are used to store the len

Parameters

len	out: variable-length field length
field	in: field in the MySQL format
lenlen	in: storage length of len: either 1 or 2 bytes

Definition at line 209 of file row0mysql.cc.

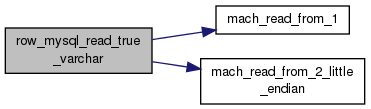

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void row_mysql_store_blob_ref	(	byte *	dest,
		ulint	col_len,
		const void *	data,
		ulint	len
	)

Stores a reference to a BLOB in the MySQL format.

Parameters

dest	in: where to store
col_len	in: dest buffer size: determines into how many bytes the BLOB length is stored, the space for the length may vary from 1 to 4 bytes
data	in: BLOB data; if the value to store is SQL NULL this should be NULL pointer
len	in: BLOB length; if the value to store is SQL NULL this should be 0; remember also to set the NULL bit in the MySQL record header!

Definition at line 233 of file row0mysql.cc.

Here is the call graph for this function:

UNIV_INTERN byte* row_mysql_store_col_in_innobase_format	(	dfield_t *	dfield,
		byte *	buf,
		ibool	row_format_col,
		const byte *	mysql_data,
		ulint	col_len,
		ulint	comp
	)

Stores a non-SQL-NULL field given in the MySQL format in the InnoDB format. The counterpart of this function is row_sel_field_store_in_mysql_format() in row0sel.cc.

Returns: up to which byte we used buf in the conversion

Parameters

dfield	in/out: dfield where dtype information must be already set when this function is called!
buf	in/out: buffer for a converted integer value; this must be at least col_len long then! NOTE that dfield may also get a pointer to 'buf', therefore do not discard this as long as dfield is used!
row_format_col	TRUE if the mysql_data is from a MySQL row, FALSE if from a MySQL key value; in MySQL, a true VARCHAR storage format differs in a row and in a key value: in a key value the length is always stored in 2 bytes!
mysql_data	in: MySQL column value, not SQL NULL; NOTE that dfield may also get a pointer to mysql_data, therefore do not discard this as long as dfield is used!
col_len	in: MySQL column length; NOTE that this is the storage length of the column in the MySQL format row, not necessarily the length of the actual payload data; if the column is a true VARCHAR then this is irrelevant
comp	in: nonzero=compact format

Definition at line 338 of file row0mysql.cc.

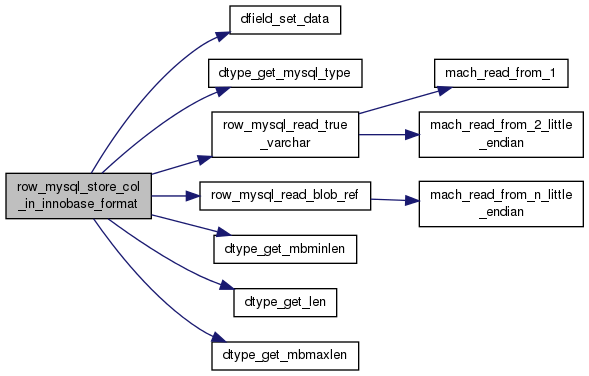

Here is the call graph for this function:

UNIV_INTERN byte* row_mysql_store_true_var_len	(	byte *	dest,
		ulint	len,
		ulint	lenlen
	)

Stores a >= 5.0.3 format true VARCHAR length to dest, in the MySQL row format.

Returns: pointer to the data, we skip the 1 or 2 bytes at the start that are used to store the len

Parameters

dest	in: where to store
len	in: length, must fit in two bytes
lenlen	in: storage length of len: either 1 or 2 bytes

Definition at line 180 of file row0mysql.cc.

Here is the call graph for this function:

UNIV_INTERN dberr_t row_mysql_table_id_reassign	(	dict_table_t *	table,
		trx_t *	trx,
		table_id_t *	new_id
	)

Reassigns the table identifier of a table.

Returns: error code or DB_SUCCESS

Parameters

table	in/out: table
trx	in/out: transaction
new_id	out: new table id

Definition at line 2744 of file row0mysql.cc.

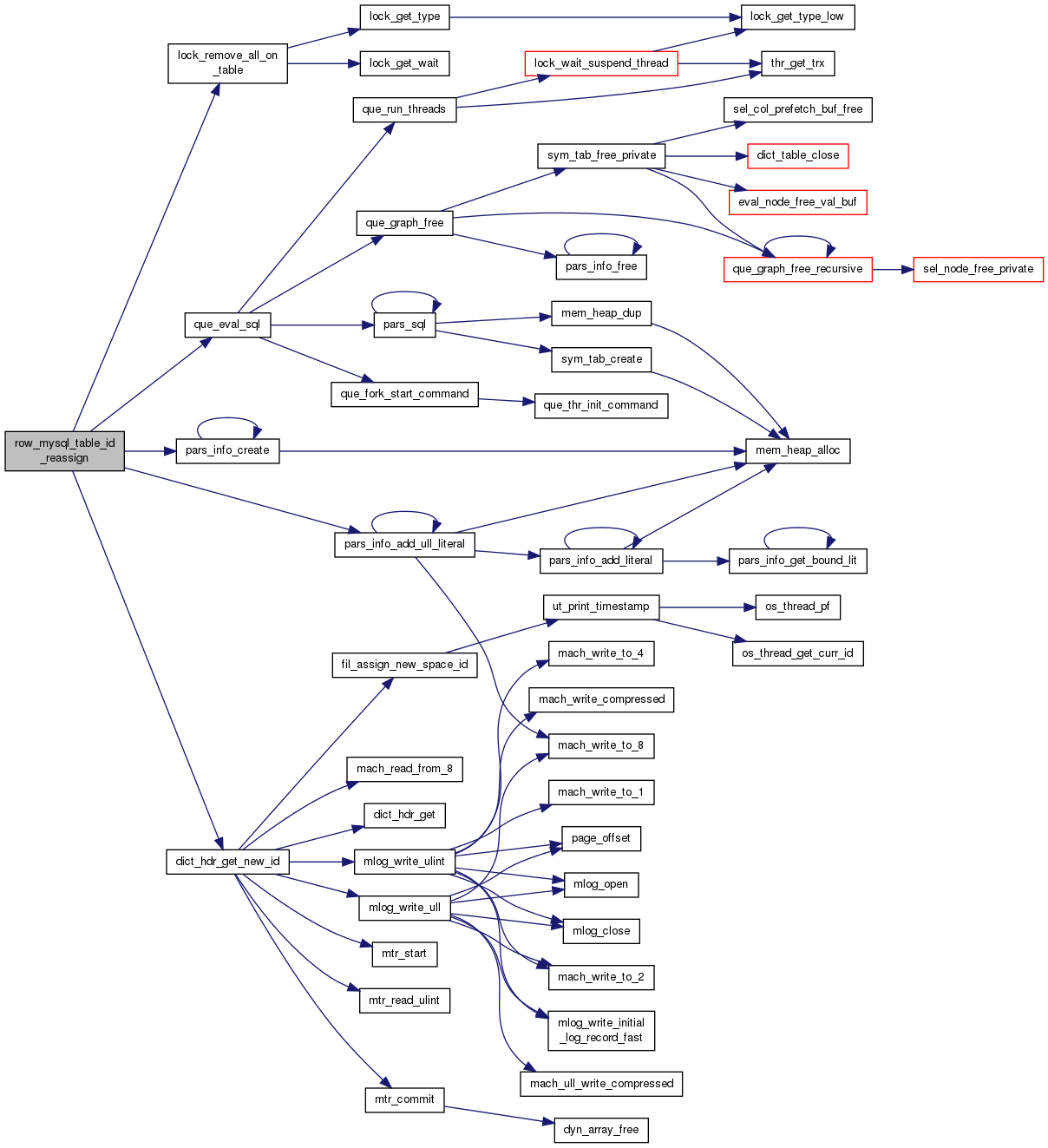

Here is the call graph for this function:

UNIV_INTERN void row_mysql_unfreeze_data_dictionary ( trx_t * trx )

Unlocks the data dictionary shared lock.

Parameters

trx	in/out: transaction

Definition at line 2049 of file row0mysql.cc.

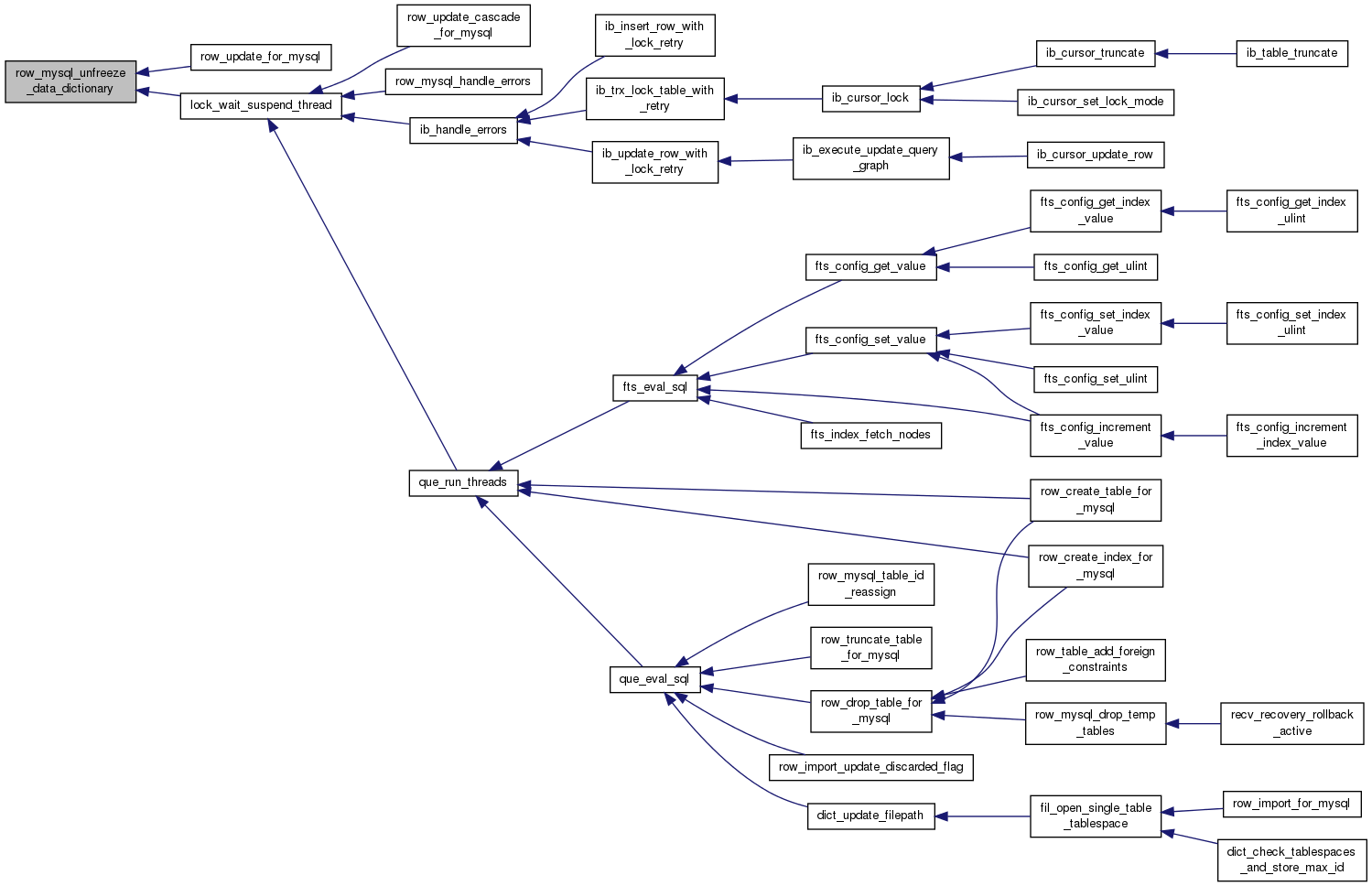

Here is the caller graph for this function:

UNIV_INTERN void row_mysql_unlock_data_dictionary ( trx_t * trx )

Unlocks the data dictionary exclusive lock.

Parameters

trx	in/out: transaction

Definition at line 2089 of file row0mysql.cc.

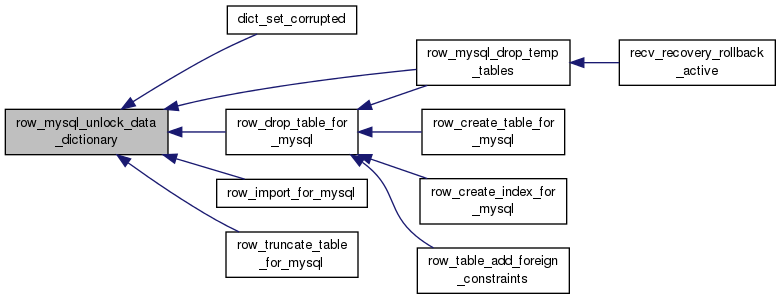

Here is the caller graph for this function:

UNIV_INTERN void row_prebuild_sel_graph ( row_prebuilt_t * prebuilt )

Builds a dummy query graph used in selects.

Parameters

prebuilt in: prebuilt struct in MySQL handle

Definition at line 1410 of file row0mysql.cc.

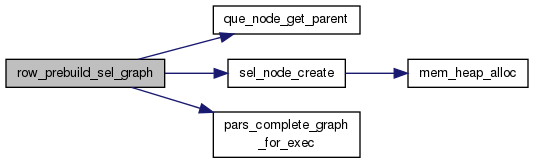

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void row_prebuilt_free	(	row_prebuilt_t *	prebuilt,
		ibool	dict_locked
	)

Free a prebuilt struct for a MySQL table handle.

Parameters

prebuilt	in, own: prebuilt struct
dict_locked	in: TRUE=data dictionary locked

Definition at line 803 of file row0mysql.cc.

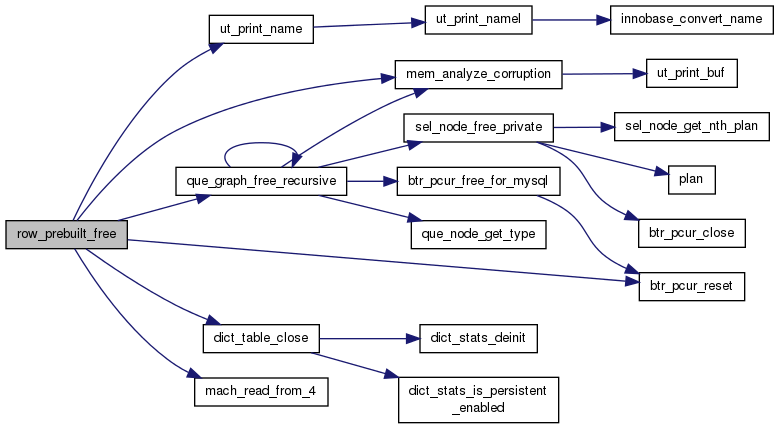

Here is the call graph for this function:

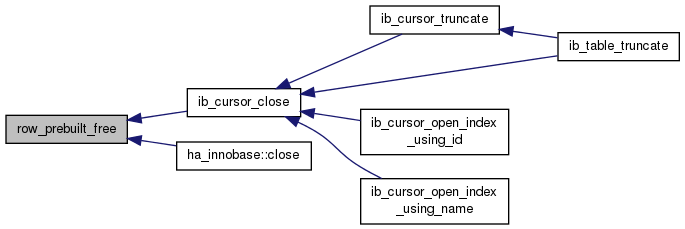

Here is the caller graph for this function:

UNIV_INTERN dberr_t row_table_add_foreign_constraints	(	trx_t *	trx,
		const char *	sql_string,
		size_t	sql_length,
		const char *	name,
		ibool	reject_fks
	)

Scans a table create SQL string and adds to the data dictionary the foreign key constraints declared in the string. This function should be called after the indexes for a table have been created. Each foreign key constraint must be accompanied with indexes in both participating tables. The indexes are allowed to contain more fields than mentioned in the constraint. Check also that foreign key constraints which reference this table are ok.

Returns: error code or DB_SUCCESS

Parameters

trx	in: transaction
sql_string	in: table create statement where foreign keys are declared like: FOREIGN KEY (a, b) REFERENCES table2(c, d), table2 can be written also with the database name before it: test.table2
sql_length	in: length of sql_string
name	in: table full name in the normalized form database_name/table_name
reject_fks	in: if TRUE, fail with error code DB_CANNOT_ADD_CONSTRAINT if any foreign keys are found.

Definition at line 2483 of file row0mysql.cc.

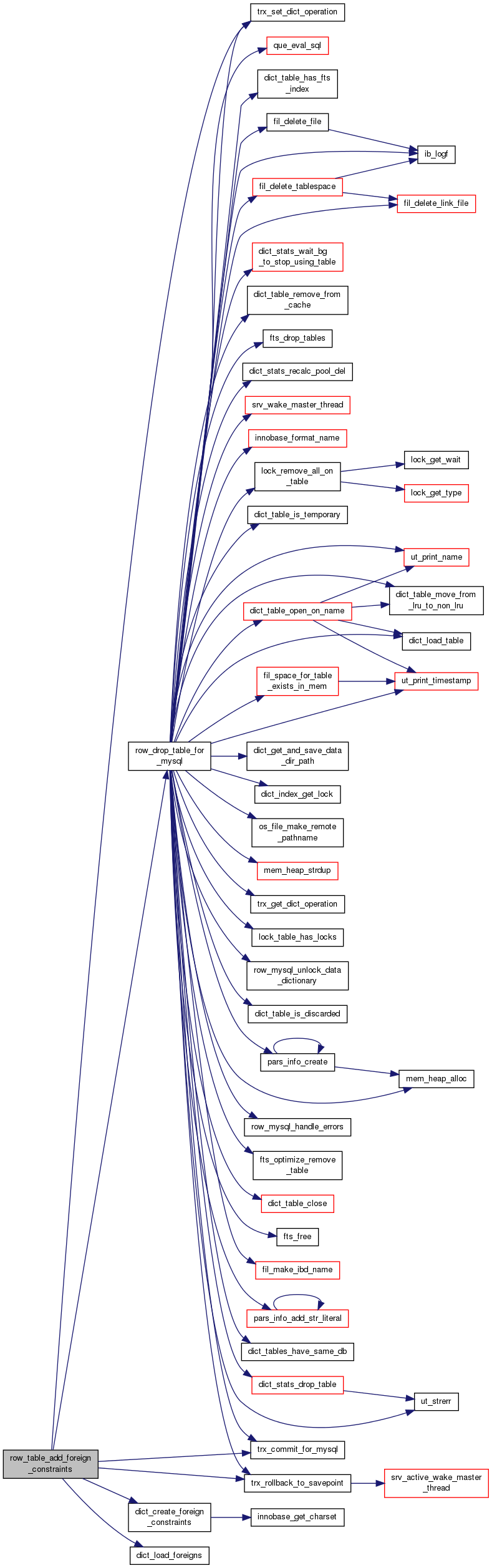

Here is the call graph for this function:

UNIV_INTERN ibool row_table_got_default_clust_index ( const dict_table_t * table )

Checks if a table is such that we automatically created a clustered index on it (on row id).

Returns: TRUE if the clustered index was generated automatically

Parameters

table in: table

Definition at line 2016 of file row0mysql.cc.

Here is the call graph for this function:

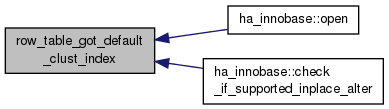

Here is the caller graph for this function:

UNIV_INTERN dberr_t row_truncate_table_for_mysql	(	dict_table_t *	table,
		trx_t *	trx
	)

Truncates a table for MySQL.

Returns: error code or DB_SUCCESS

Parameters

table	in: table handle
trx	in: transaction handle

Definition at line 3156 of file row0mysql.cc.

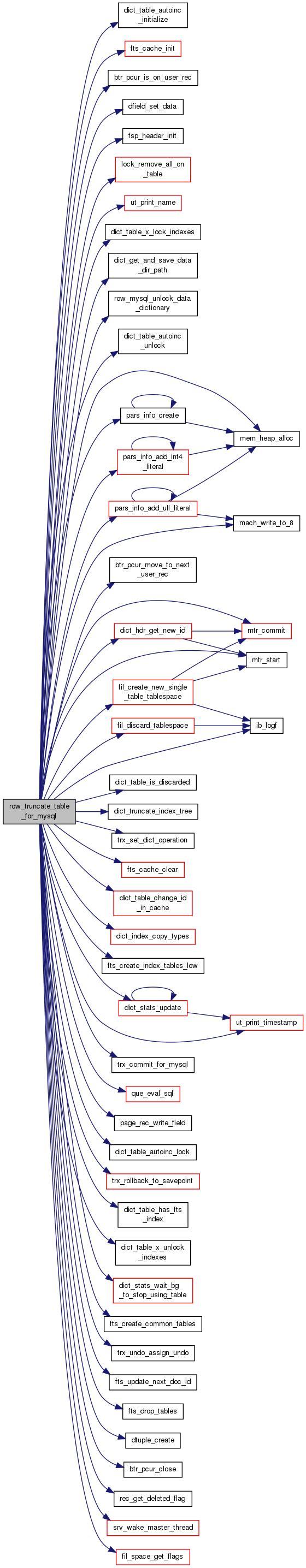

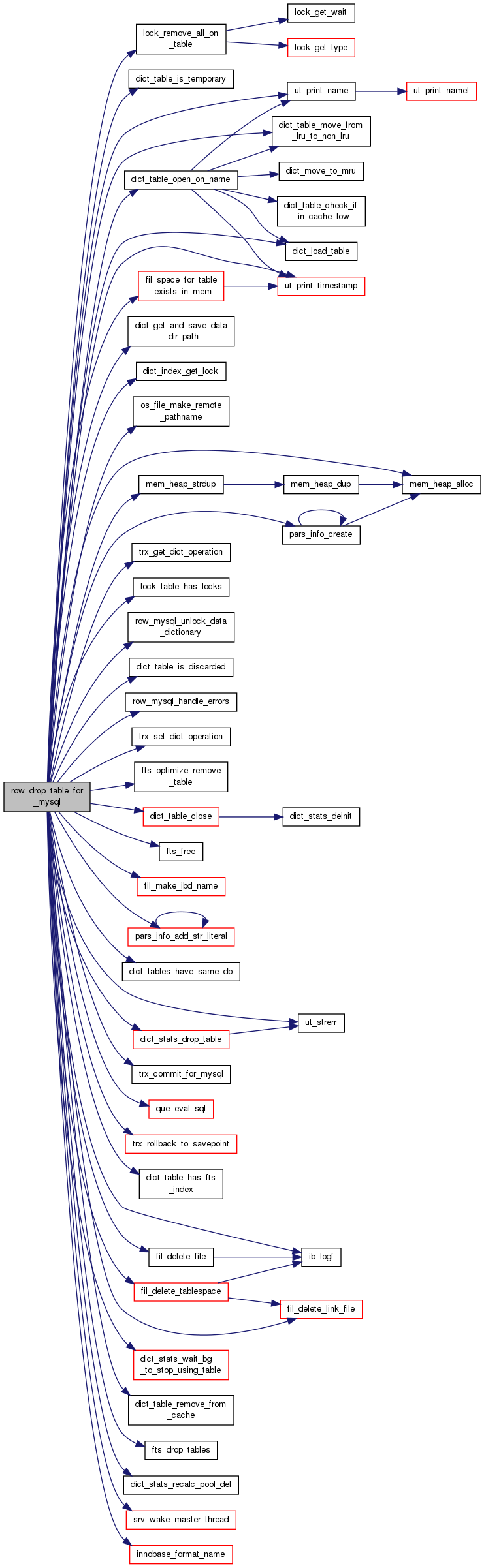

Here is the call graph for this function:

UNIV_INTERN void row_unlock_for_mysql	(	row_prebuilt_t *	prebuilt,
		ibool	has_latches_on_recs
	)

This can only be used when srv_locks_unsafe_for_binlog is TRUE or this session is using a READ COMMITTED or READ UNCOMMITTED isolation level. Before calling this function row_search_for_mysql() must have initialized prebuilt->new_rec_locks to store the information which new record locks really were set. This function removes a newly set clustered index record lock under prebuilt->pcur or prebuilt->clust_pcur. Thus, this implements a 'mini-rollback' that releases the latest clustered index record lock we set.

Returns: error code or DB_SUCCESS

Parameters

prebuilt	in/out: prebuilt struct in MySQL handle
has_latches_on_recs	in: TRUE if called so that we have the latches on the records under pcur and clust_pcur, and we do not need to reposition the cursors.

Definition at line 1803 of file row0mysql.cc.

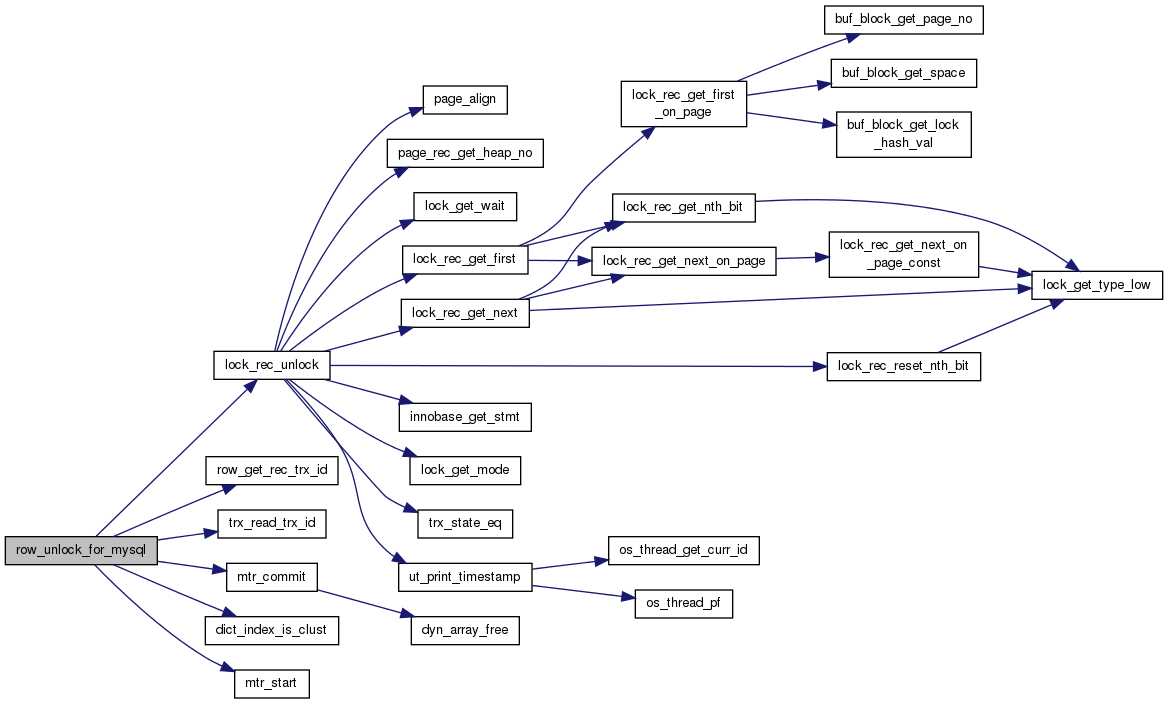

Here is the call graph for this function:
