pfs_instr_class.h File Reference

#include "my_global.h"
#include "mysql_com.h"
#include "lf.h"
#include "pfs_global.h"
#include <my_sys.h>
#include <mysql/psi/psi.h>
#include "pfs_lock.h"
#include "pfs_stat.h"
#include "pfs_column_types.h"

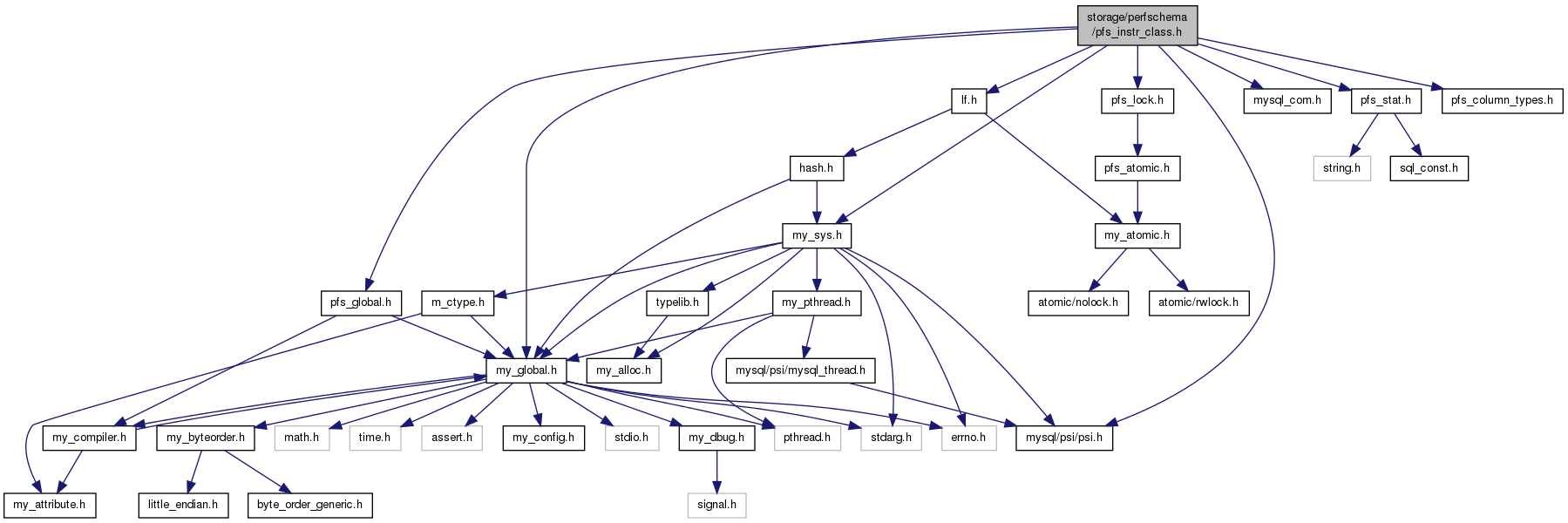

Include dependency graph for pfs_instr_class.h:

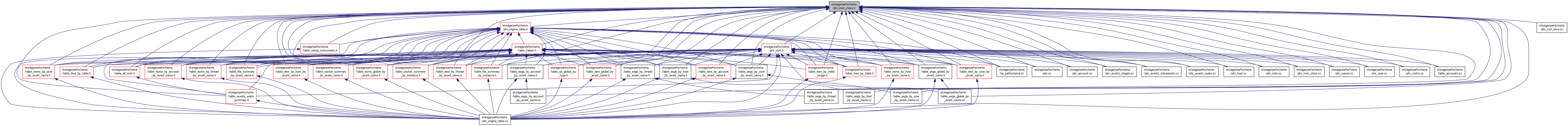

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	PFS_instr_config
struct	PFS_instr_class
struct	PFS_mutex_class
struct	PFS_rwlock_class
struct	PFS_cond_class
struct	PFS_thread_class
struct	PFS_table_share_key
struct	PFS_table_key
struct	PFS_table_share
struct	PFS_file_class
struct	PFS_stage_class
struct	PFS_statement_class
struct	PFS_socket_class

Macros
#define	PFS_MAX_INFO_NAME_LENGTH   128
#define	PFS_MAX_FULL_PREFIX_NAME_LENGTH   32
#define	GLOBAL_TABLE_IO_EVENT_INDEX   0
#define	GLOBAL_TABLE_LOCK_EVENT_INDEX   1
#define	GLOBAL_IDLE_EVENT_INDEX   2

Typedefs
typedef unsigned int	PFS_sync_key
typedef unsigned int	PFS_thread_key
typedef unsigned int	PFS_file_key
typedef unsigned int	PFS_stage_key
typedef unsigned int	PFS_statement_key
typedef unsigned int	PFS_socket_key

Enumerations
enum	PFS_class_type {   PFS_CLASS_NONE = 0, PFS_CLASS_MUTEX = 1, PFS_CLASS_RWLOCK = 2, PFS_CLASS_COND = 3,   PFS_CLASS_FILE = 4, PFS_CLASS_TABLE = 5, PFS_CLASS_STAGE = 6, PFS_CLASS_STATEMENT = 7,   PFS_CLASS_SOCKET = 8, PFS_CLASS_TABLE_IO = 9, PFS_CLASS_TABLE_LOCK = 10, PFS_CLASS_IDLE = 11,   PFS_CLASS_LAST = PFS_CLASS_IDLE, PFS_CLASS_MAX = PFS_CLASS_LAST + 1 }

Functions
uint	sanitize_index_count (uint count)
void	init_event_name_sizing (const PFS_global_param *param)
void	register_global_classes ()
int	init_sync_class (uint mutex_class_sizing, uint rwlock_class_sizing, uint cond_class_sizing)
void	cleanup_sync_class (void)
int	init_thread_class (uint thread_class_sizing)
void	cleanup_thread_class (void)
int	init_table_share (uint table_share_sizing)
void	cleanup_table_share (void)
C_MODE_END int	init_table_share_hash (void)
void	cleanup_table_share_hash (void)
int	init_file_class (uint file_class_sizing)
void	cleanup_file_class (void)
int	init_stage_class (uint stage_class_sizing)
void	cleanup_stage_class (void)
int	init_statement_class (uint statement_class_sizing)
void	cleanup_statement_class (void)
int	init_socket_class (uint socket_class_sizing)
void	cleanup_socket_class (void)
PFS_sync_key	register_mutex_class (const char *name, uint name_length, int flags)
PFS_sync_key	register_rwlock_class (const char *name, uint name_length, int flags)
PFS_sync_key	register_cond_class (const char *name, uint name_length, int flags)
PFS_thread_key	register_thread_class (const char *name, uint name_length, int flags)
PFS_file_key	register_file_class (const char *name, uint name_length, int flags)
PFS_stage_key	register_stage_class (const char *name, uint prefix_length, uint name_length, int flags)
PFS_statement_key	register_statement_class (const char *name, uint name_length, int flags)
PFS_socket_key	register_socket_class (const char *name, uint name_length, int flags)
PFS_mutex_class *	find_mutex_class (PSI_mutex_key key)
PFS_mutex_class *	sanitize_mutex_class (PFS_mutex_class *unsafe)
PFS_rwlock_class *	find_rwlock_class (PSI_rwlock_key key)
PFS_rwlock_class *	sanitize_rwlock_class (PFS_rwlock_class *unsafe)
PFS_cond_class *	find_cond_class (PSI_cond_key key)
PFS_cond_class *	sanitize_cond_class (PFS_cond_class *unsafe)
PFS_thread_class *	find_thread_class (PSI_thread_key key)
PFS_thread_class *	sanitize_thread_class (PFS_thread_class *unsafe)
PFS_file_class *	find_file_class (PSI_file_key key)
PFS_file_class *	sanitize_file_class (PFS_file_class *unsafe)
PFS_stage_class *	find_stage_class (PSI_stage_key key)
PFS_stage_class *	sanitize_stage_class (PFS_stage_class *unsafe)
PFS_statement_class *	find_statement_class (PSI_statement_key key)
PFS_statement_class *	sanitize_statement_class (PFS_statement_class *unsafe)
PFS_instr_class *	find_table_class (uint index)
PFS_instr_class *	sanitize_table_class (PFS_instr_class *unsafe)
PFS_socket_class *	find_socket_class (PSI_socket_key key)
PFS_socket_class *	sanitize_socket_class (PFS_socket_class *unsafe)
PFS_instr_class *	find_idle_class (uint index)
PFS_instr_class *	sanitize_idle_class (PFS_instr_class *unsafe)
PFS_table_share *	find_or_create_table_share (PFS_thread *thread, bool temporary, const TABLE_SHARE *share)
void	release_table_share (PFS_table_share *pfs)
void	drop_table_share (PFS_thread *thread, bool temporary, const char *schema_name, uint schema_name_length, const char *table_name, uint table_name_length)
PFS_table_share *	sanitize_table_share (PFS_table_share *unsafe)
void	reset_events_waits_by_class ()
void	reset_file_class_io (void)
void	reset_socket_class_io (void)
void	update_table_share_derived_flags (PFS_thread *thread)

Variables
my_bool	pfs_enabled
enum_timer_name *	class_timers []
DYNAMIC_ARRAY	pfs_instr_config_array
int	pfs_instr_config_state
uint	mutex_class_start
uint	rwlock_class_start
uint	cond_class_start
uint	file_class_start
uint	socket_class_start
uint	wait_class_max
PFS_single_stat	global_idle_stat
PFS_table_io_stat	global_table_io_stat
PFS_table_lock_stat	global_table_lock_stat
PFS_instr_class	global_table_io_class
PFS_instr_class	global_table_lock_class
PFS_instr_class	global_idle_class
ulong	mutex_class_max
ulong	mutex_class_lost
ulong	rwlock_class_max
ulong	rwlock_class_lost
ulong	cond_class_max
ulong	cond_class_lost
ulong	thread_class_max
ulong	thread_class_lost
ulong	file_class_max
ulong	file_class_lost
ulong	stage_class_max
ulong	stage_class_lost
ulong	statement_class_max
ulong	statement_class_lost
ulong	socket_class_max
ulong	socket_class_lost
ulong	table_share_max
ulong	table_share_lost
PFS_mutex_class *	mutex_class_array
PFS_rwlock_class *	rwlock_class_array
PFS_cond_class *	cond_class_array
PFS_file_class *	file_class_array
PFS_table_share *	table_share_array
LF_HASH	table_share_hash

Detailed Description

Performance schema instruments meta data (declarations).

Definition in file pfs_instr_class.h.

Macro Definition Documentation

#define PFS_MAX_FULL_PREFIX_NAME_LENGTH   32

Maximum length of the 'full' prefix of an instrument name. For example, for the instrument name 'wait/sync/mutex/sql/LOCK_open', the full prefix is 'wait/sync/mutex/sql/', which in turn derives from a prefix 'wait/sync/mutex' for mutexes, and a category of 'sql' for mutexes of the sql layer in the server.

Definition at line 42 of file pfs_instr_class.h.

#define PFS_MAX_INFO_NAME_LENGTH   128

Maximum length of an instrument name. For example, 'wait/sync/mutex/sql/LOCK_open' is an instrument name.

Definition at line 33 of file pfs_instr_class.h.
