#include "os0sync.h"
#include "ut0mem.h"
#include "srv0start.h"
#include "srv0srv.h"

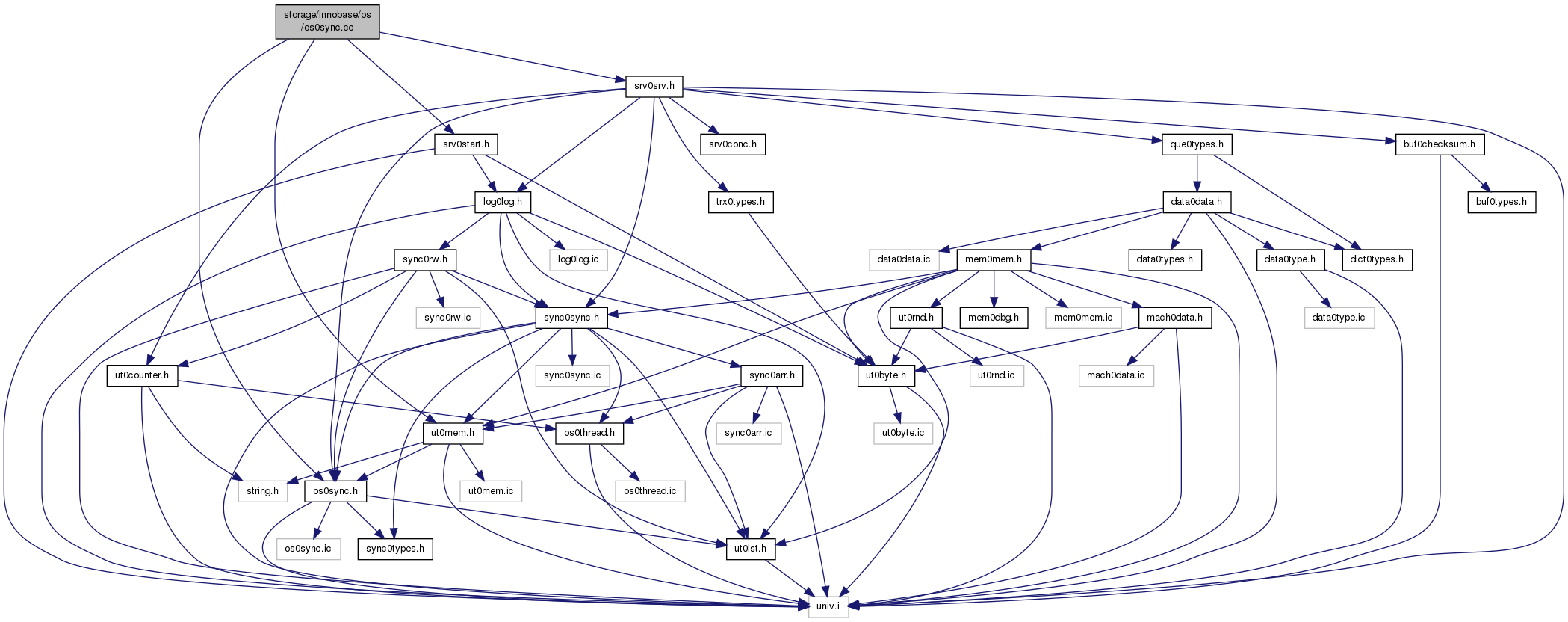

Include dependency graph for os0sync.cc:

Classes
struct	os_mutex_t

Functions
UNIV_INLINE void	os_cond_init (os_cond_t *cond)
UNIV_INLINE ibool	os_cond_wait_timed (os_cond_t cond, os_fast_mutex_t fast_mutex, const struct timespec *abstime)
UNIV_INLINE void	os_cond_wait (os_cond_t cond, os_fast_mutex_t fast_mutex)
UNIV_INLINE void	os_cond_broadcast (os_cond_t *cond)
UNIV_INLINE void	os_cond_signal (os_cond_t *cond)
UNIV_INLINE void	os_cond_destroy (os_cond_t *cond)
UNIV_INTERN void	os_sync_init (void)
UNIV_INTERN void	os_sync_free (void)
UNIV_INTERN os_event_t	os_event_create (void)
UNIV_INTERN void	os_event_set (os_event_t event)
UNIV_INTERN ib_int64_t	os_event_reset (os_event_t event)
UNIV_INTERN void	os_event_free (os_event_t event)
UNIV_INTERN void	os_event_wait_low (os_event_t event, ib_int64_t reset_sig_count)
UNIV_INTERN ulint	os_event_wait_time_low (os_event_t event, ulint time_in_usec, ib_int64_t reset_sig_count)
UNIV_INTERN os_ib_mutex_t	os_mutex_create (void)
UNIV_INTERN void	os_mutex_enter (os_ib_mutex_t mutex)
UNIV_INTERN void	os_mutex_exit (os_ib_mutex_t mutex)
UNIV_INTERN void	os_mutex_free (os_ib_mutex_t mutex)
UNIV_INTERN void	os_fast_mutex_init_func (fast_mutex_t *fast_mutex)
UNIV_INTERN void	os_fast_mutex_lock_func (fast_mutex_t *fast_mutex)
UNIV_INTERN void	os_fast_mutex_unlock_func (fast_mutex_t *fast_mutex)
UNIV_INTERN void	os_fast_mutex_free_func (fast_mutex_t *fast_mutex)

Variables
UNIV_INTERN os_ib_mutex_t	os_sync_mutex
UNIV_INTERN ulint	os_thread_count = 0
UNIV_INTERN ulint	os_event_count = 0
UNIV_INTERN ulint	os_mutex_count = 0
UNIV_INTERN ulint	os_fast_mutex_count = 0

Detailed Description

The interface to the operating system synchronization primitives.

Created 9/6/1995 Heikki Tuuri

Definition in file os0sync.cc.

Function Documentation

UNIV_INLINE void os_cond_broadcast ( os_cond_t * cond )

Wakes all threads waiting for condition variable

Parameters

cond	in: condition variable.

Definition at line 222 of file os0sync.cc.

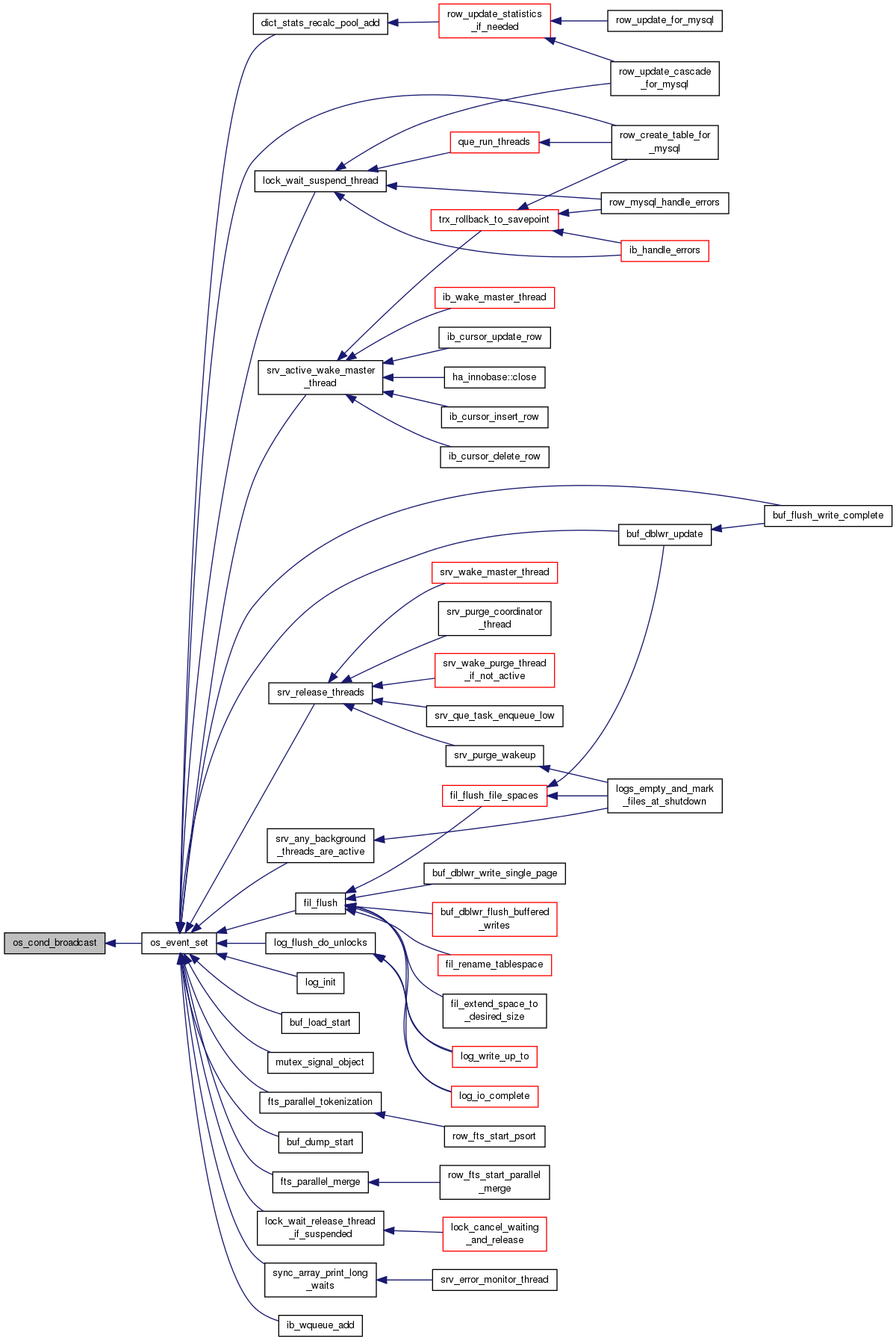

Here is the caller graph for this function:

UNIV_INLINE void os_cond_destroy ( os_cond_t * cond )

Destroys condition variable

Parameters

cond	in: condition variable.

Definition at line 258 of file os0sync.cc.

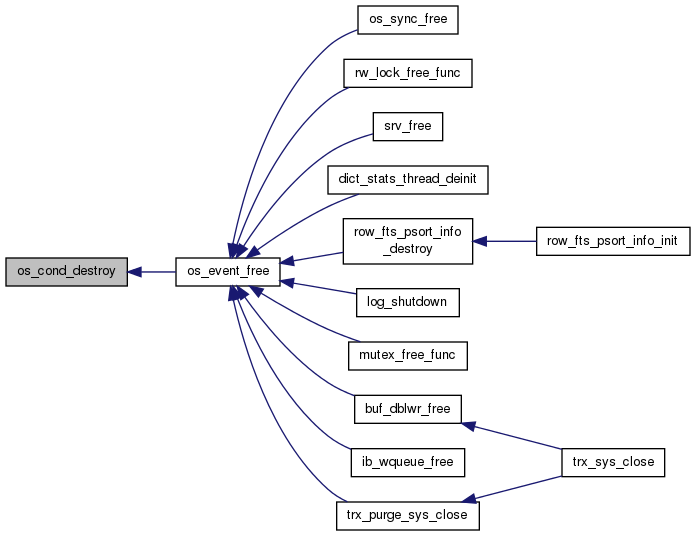

Here is the caller graph for this function:

UNIV_INLINE void os_cond_init ( os_cond_t * cond )

Initialitze condition variable

Parameters

cond	in: condition variable.

Definition at line 118 of file os0sync.cc.

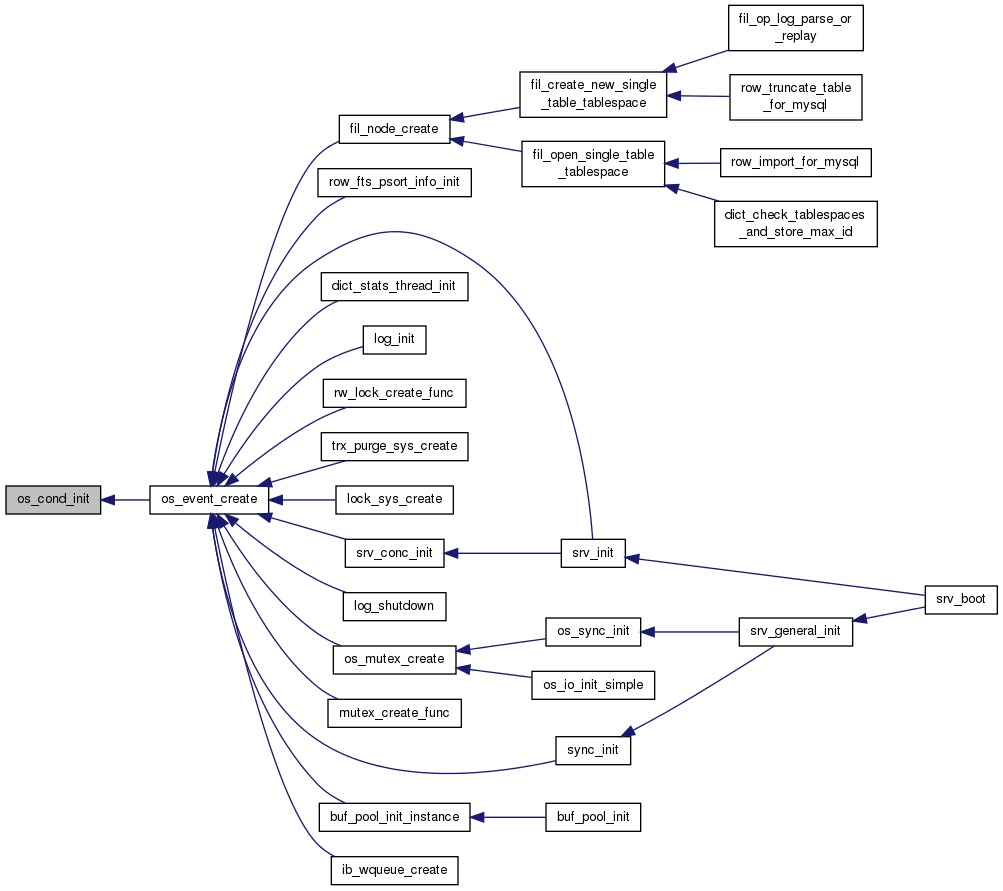

Here is the caller graph for this function:

UNIV_INLINE void os_cond_signal ( os_cond_t * cond )

Wakes one thread waiting for condition variable

Parameters

cond	in: condition variable.

Definition at line 240 of file os0sync.cc.

UNIV_INLINE void os_cond_wait	(	os_cond_t *	cond,
		os_fast_mutex_t *	fast_mutex
	)

Wait on condition variable

Parameters

cond	in: condition variable.
fast_mutex	in: fast mutex

Definition at line 201 of file os0sync.cc.

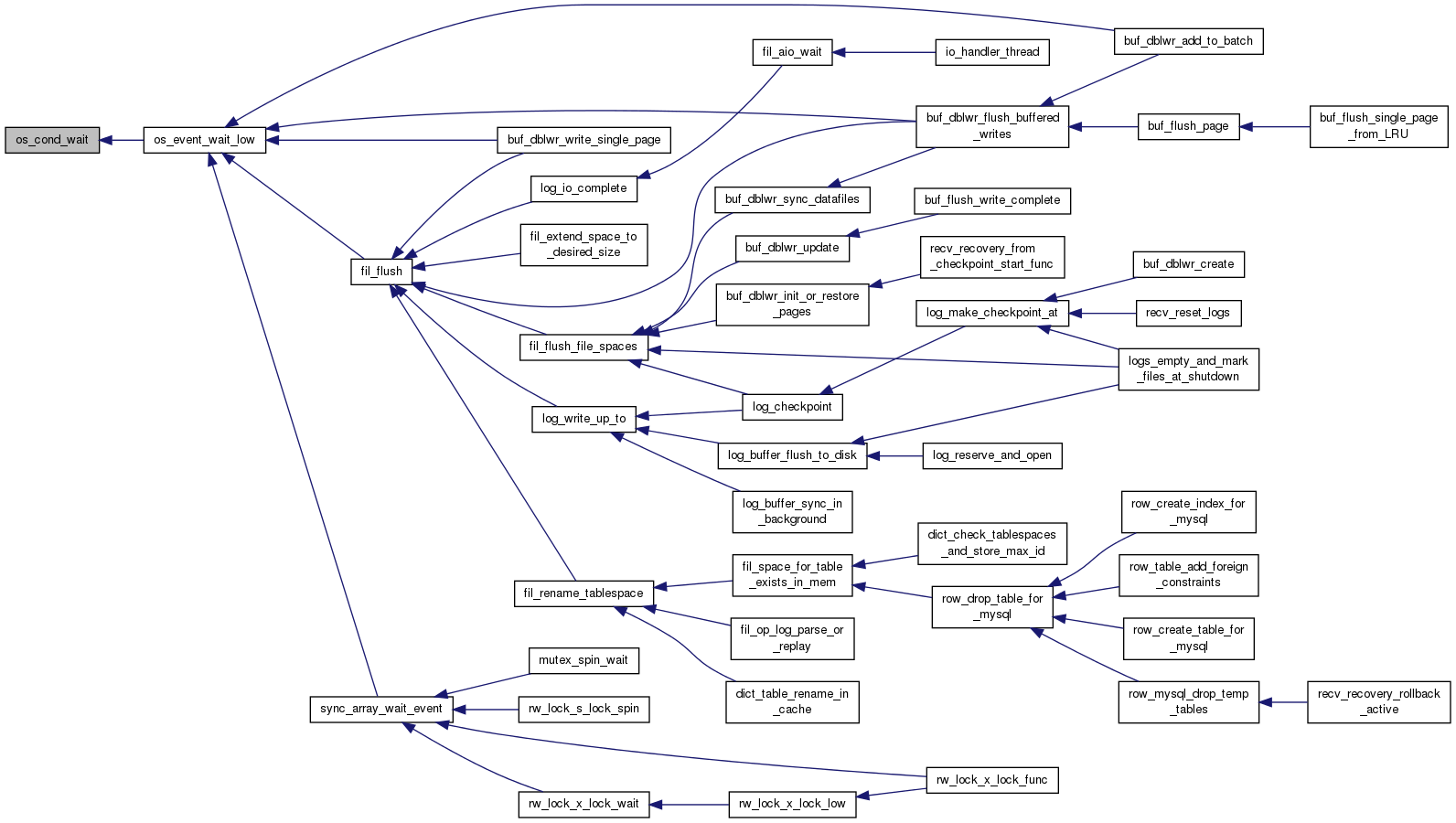

Here is the caller graph for this function:

UNIV_INLINE ibool os_cond_wait_timed	(	os_cond_t *	cond,
		os_fast_mutex_t *	fast_mutex,
		const struct timespec *	abstime
	)

Do a timed wait on condition variable.

Returns: TRUE if timed out, FALSE otherwise

Parameters

cond	in: condition variable.
fast_mutex	in: fast mutex
abstime	in: timeout

Definition at line 137 of file os0sync.cc.

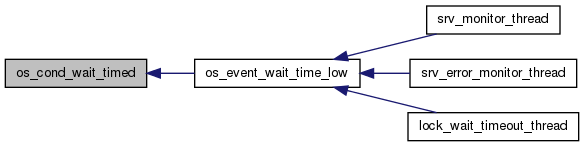

Here is the caller graph for this function:

UNIV_INTERN os_event_t os_event_create ( void )

Creates an event semaphore, i.e., a semaphore which may just have two states: signaled and nonsignaled. The created event is manual reset: it must be reset explicitly by calling sync_os_reset_event.

Returns: the event handle

Definition at line 368 of file os0sync.cc.

Here is the call graph for this function:

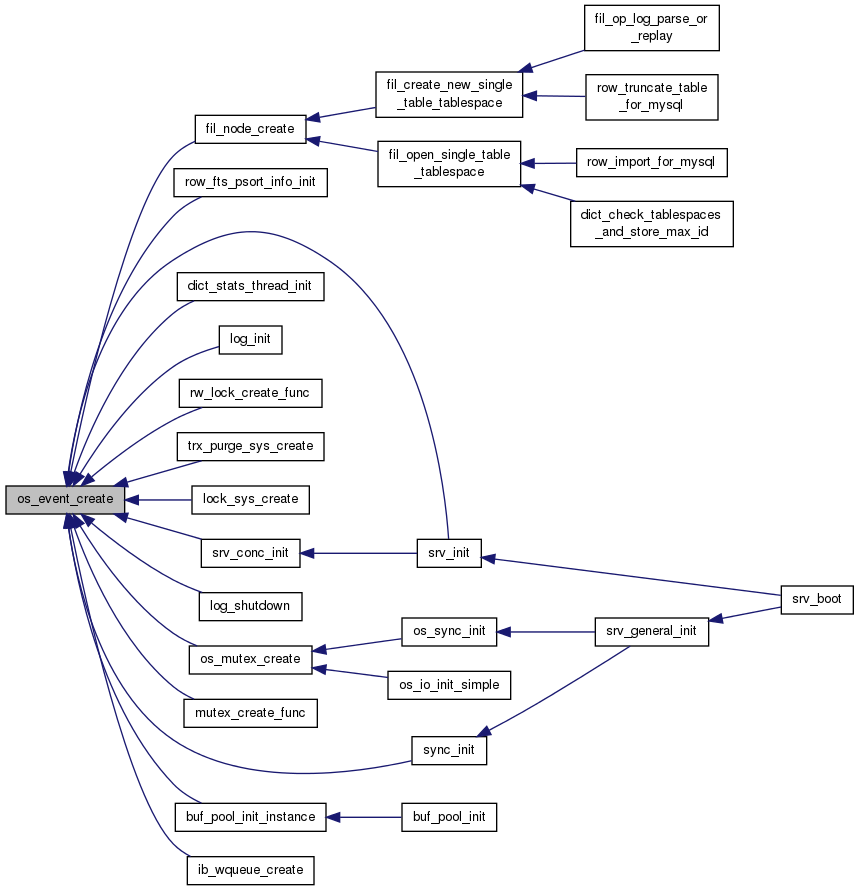

Here is the caller graph for this function:

UNIV_INTERN void os_event_free ( os_event_t event )

Frees an event object.

Parameters

event in: event to free

Definition at line 532 of file os0sync.cc.

Here is the call graph for this function:

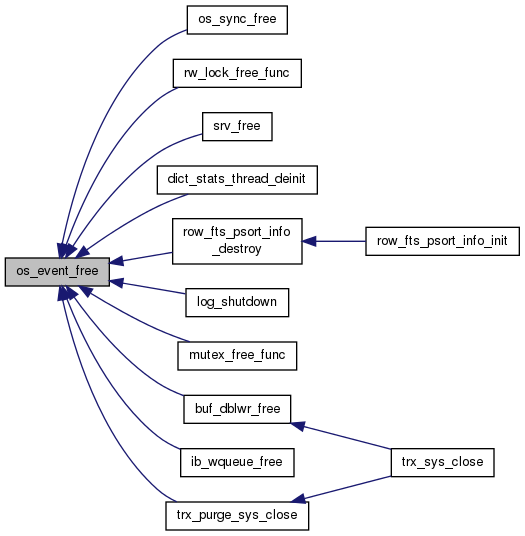

Here is the caller graph for this function:

UNIV_INTERN ib_int64_t os_event_reset ( os_event_t event )

Resets an event semaphore to the nonsignaled state. Waiting threads will stop to wait for the event. The return value should be passed to os_even_wait_low() if it is desired that this thread should not wait in case of an intervening call to os_event_set() between this os_event_reset() and the os_event_wait_low() call. See comments for os_event_wait_low().

Returns: current signal_count.

Parameters

event in: event to reset

Definition at line 469 of file os0sync.cc.

Here is the caller graph for this function:

UNIV_INTERN void os_event_set ( os_event_t event )

Sets an event semaphore to the signaled state: lets waiting threads proceed.

Parameters

event in: event to set

Definition at line 433 of file os0sync.cc.

Here is the call graph for this function:

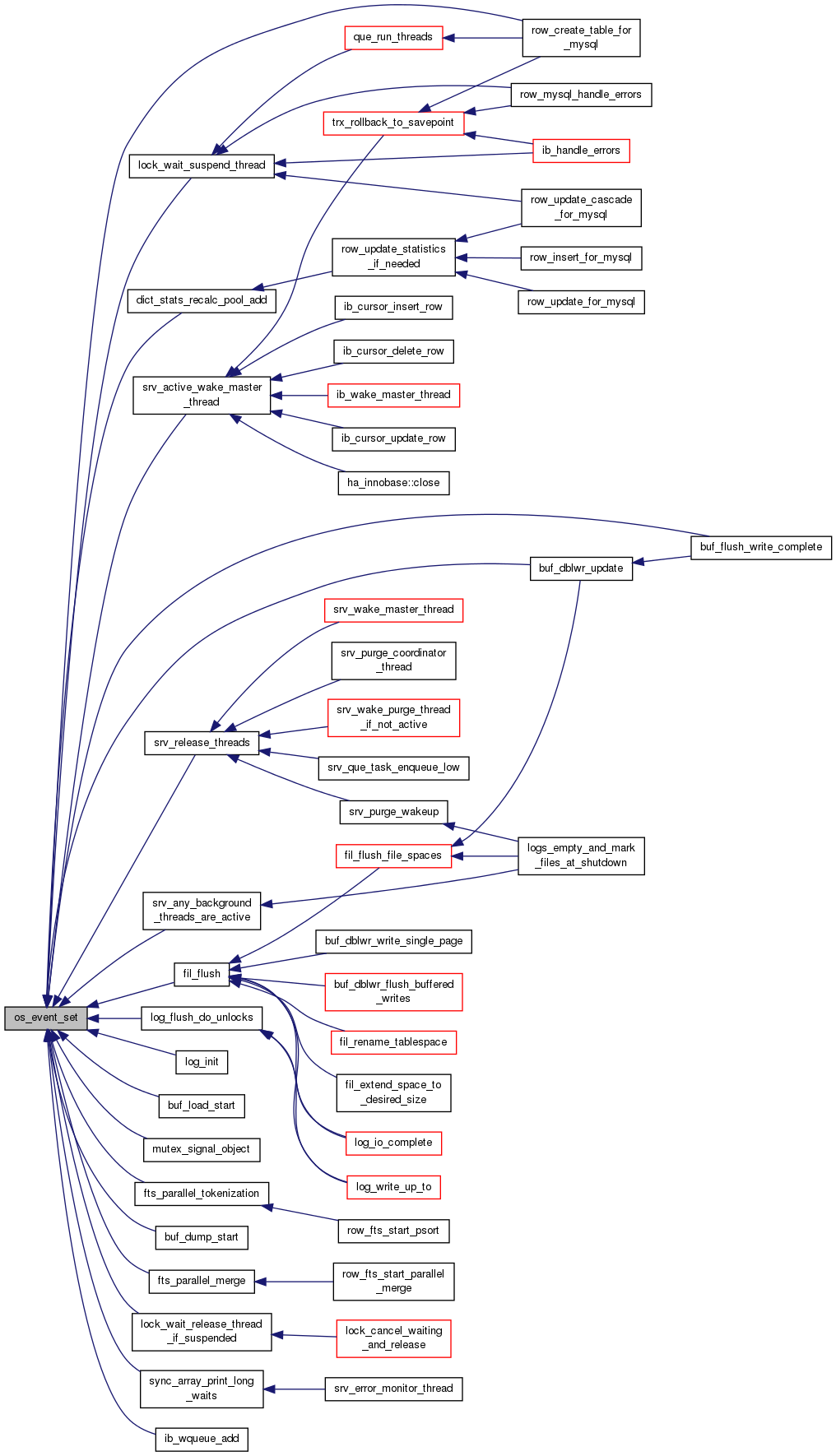

Here is the caller graph for this function:

UNIV_INTERN void os_event_wait_low	(	os_event_t	event,
		ib_int64_t	reset_sig_count
	)

Waits for an event object until it is in the signaled state.

Typically, if the event has been signalled after the os_event_reset() we'll return immediately because event->is_set == TRUE. There are, however, situations (e.g.: sync_array code) where we may lose this information. For example:

thread A calls os_event_reset() thread B calls os_event_set() [event->is_set == TRUE] thread C calls os_event_reset() [event->is_set == FALSE] thread A calls os_event_wait() [infinite wait!] thread C calls os_event_wait() [infinite wait!]

Where such a scenario is possible, to avoid infinite wait, the value returned by os_event_reset() should be passed in as reset_sig_count.

Parameters

event	in: event to wait
reset_sig_count	in: zero or the value returned by previous call of os_event_reset().

Definition at line 580 of file os0sync.cc.

Here is the call graph for this function:

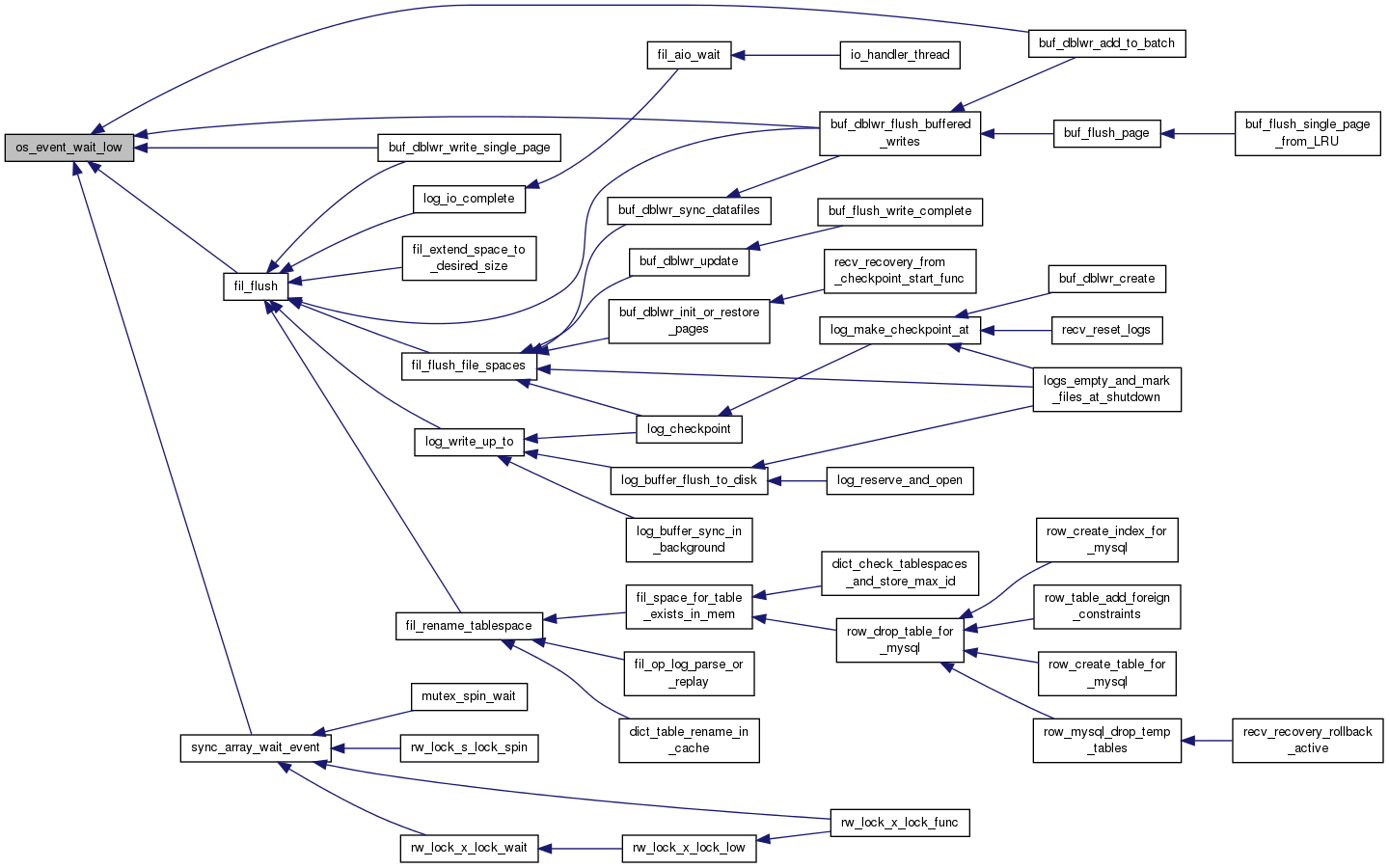

Here is the caller graph for this function:

UNIV_INTERN ulint os_event_wait_time_low	(	os_event_t	event,
		ulint	time_in_usec,
		ib_int64_t	reset_sig_count
	)

Waits for an event object until it is in the signaled state or a timeout is exceeded.

Returns: 0 if success, OS_SYNC_TIME_EXCEEDED if timeout was exceeded

Parameters

event	in: event to wait
time_in_usec	in: timeout in microseconds, or OS_SYNC_INFINITE_TIME
reset_sig_count	in: zero or the value returned by previous call of os_event_reset().

Definition at line 626 of file os0sync.cc.

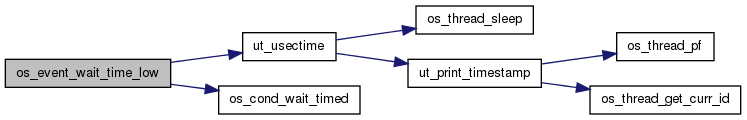

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void os_fast_mutex_free_func ( fast_mutex_t * fast_mutex )

Frees a mutex object.

Parameters

fast_mutex in: mutex to free

Definition at line 896 of file os0sync.cc.

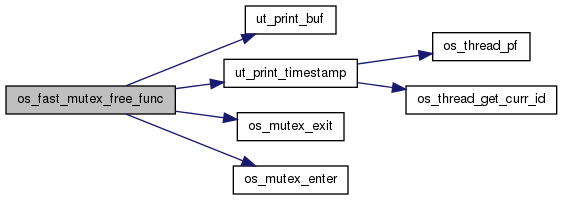

Here is the call graph for this function:

UNIV_INTERN void os_fast_mutex_init_func ( fast_mutex_t * fast_mutex )

Initializes an operating system fast mutex semaphore.

Parameters

fast_mutex in: fast mutex

Definition at line 837 of file os0sync.cc.

Here is the call graph for this function:

UNIV_INTERN void os_fast_mutex_lock_func ( fast_mutex_t * fast_mutex )

Acquires ownership of a fast mutex.

Parameters

fast_mutex in: mutex to acquire

Definition at line 866 of file os0sync.cc.

UNIV_INTERN void os_fast_mutex_unlock_func ( fast_mutex_t * fast_mutex )

Releases ownership of a fast mutex.

Parameters

fast_mutex in: mutex to release

Definition at line 881 of file os0sync.cc.

UNIV_INTERN os_ib_mutex_t os_mutex_create ( void )

Creates an operating system mutex semaphore. Because these are slow, the mutex semaphore of InnoDB itself (ib_mutex_t) should be used where possible.

Returns: the mutex handle

Definition at line 738 of file os0sync.cc.

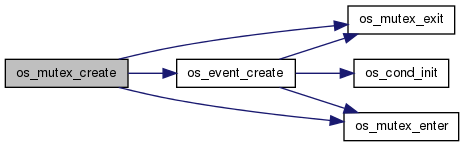

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void os_mutex_enter ( os_ib_mutex_t mutex )

Acquires ownership of a mutex semaphore.

Parameters

mutex in: mutex to acquire

Definition at line 775 of file os0sync.cc.

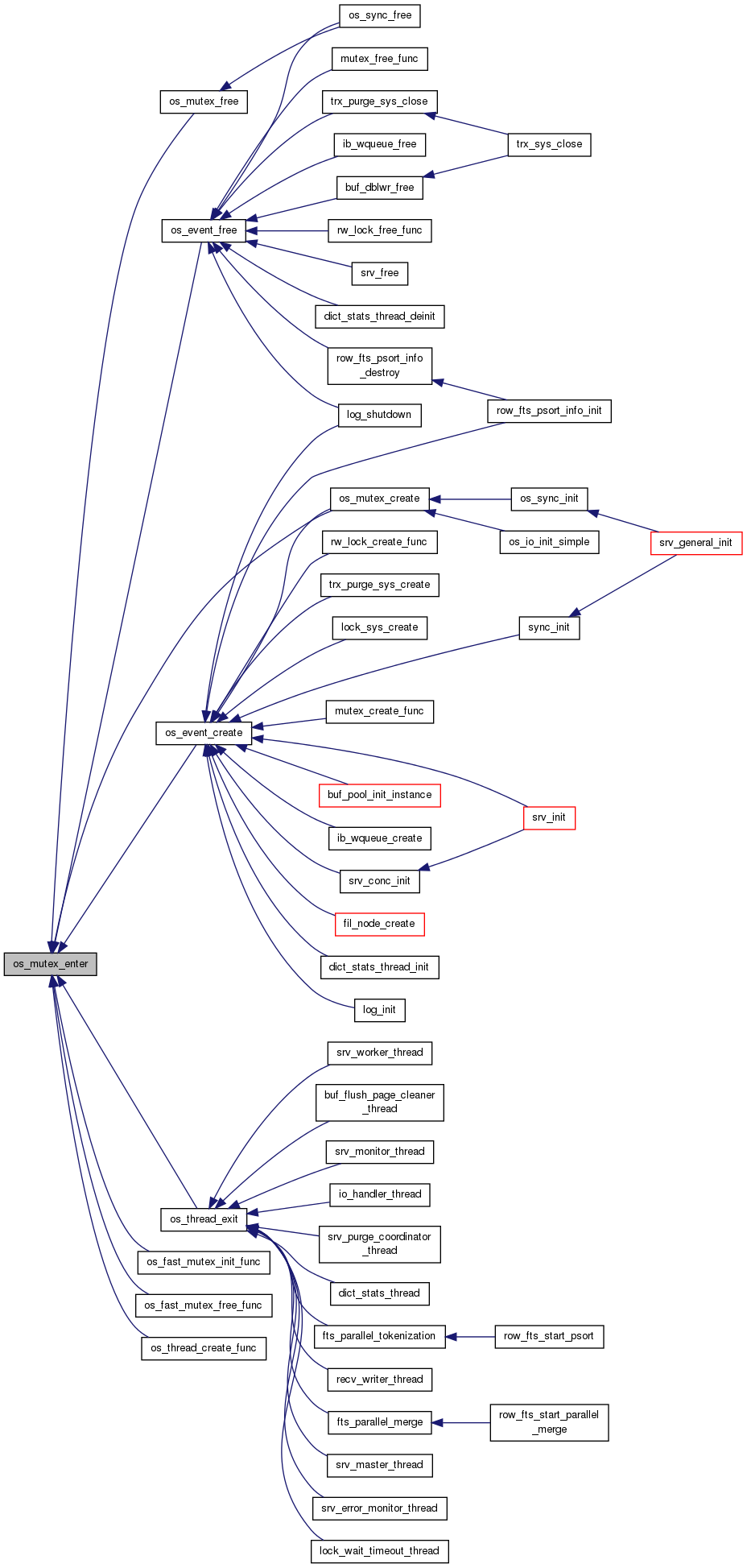

Here is the caller graph for this function:

UNIV_INTERN void os_mutex_exit ( os_ib_mutex_t mutex )

Releases ownership of a mutex.

Parameters

mutex in: mutex to release

Definition at line 790 of file os0sync.cc.

Here is the caller graph for this function:

UNIV_INTERN void os_mutex_free ( os_ib_mutex_t mutex )

Frees a mutex object.

Parameters

mutex in: mutex to free

Definition at line 806 of file os0sync.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void os_sync_free ( void )

Frees created events and OS 'slow' mutexes.

Definition at line 328 of file os0sync.cc.

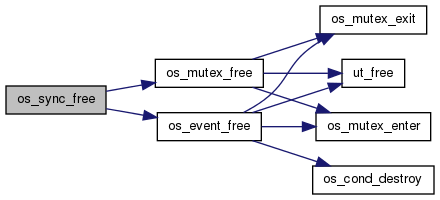

Here is the call graph for this function:

UNIV_INTERN void os_sync_init ( void )

Initializes global event and OS 'slow' mutex lists.

Definition at line 307 of file os0sync.cc.

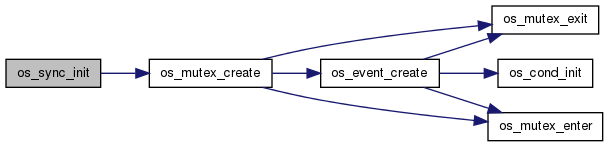

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

UNIV_INTERN os_ib_mutex_t os_sync_mutex

Mutex protecting counts and the lists of OS mutexes and events

Definition at line 55 of file os0sync.cc.

UNIV_INTERN ulint os_thread_count = 0

This is incremented by 1 in os_thread_create and decremented by 1 in

os_thread_exit

Definition at line 63 of file os0sync.cc.
