mtr0log.h File Reference

#include "univ.i"
#include "mtr0mtr.h"
#include "dict0types.h"
#include "mtr0log.ic"

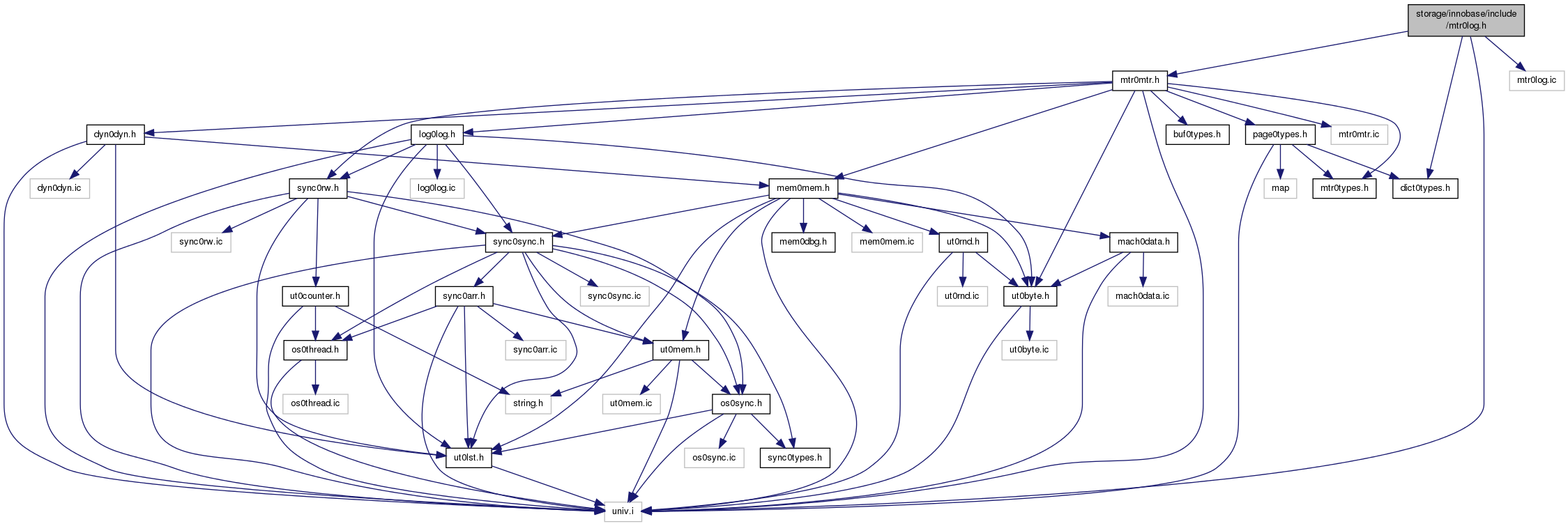

Include dependency graph for mtr0log.h:

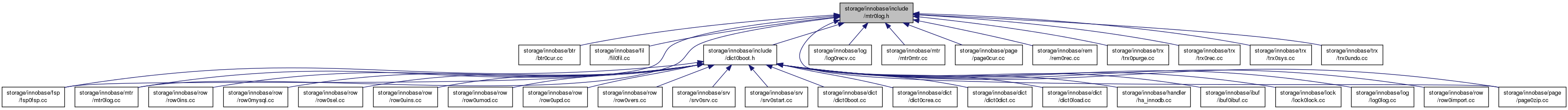

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	MLOG_BUF_MARGIN   256

Functions
UNIV_INTERN void	mlog_write_ulint (byte *ptr, ulint val, byte type, mtr_t *mtr)
UNIV_INTERN void	mlog_write_ull (byte *ptr, ib_uint64_t val, mtr_t *mtr)
UNIV_INTERN void	mlog_write_string (byte *ptr, const byte *str, ulint len, mtr_t *mtr)
UNIV_INTERN void	mlog_log_string (byte *ptr, ulint len, mtr_t *mtr)
UNIV_INTERN void	mlog_write_initial_log_record (const byte *ptr, byte type, mtr_t *mtr)
UNIV_INLINE byte *	mlog_write_initial_log_record_for_file_op (ulint type, ulint space_id, ulint page_no, byte *log_ptr, mtr_t *mtr)
UNIV_INLINE void	mlog_catenate_ulint (mtr_t *mtr, ulint val, ulint type)
UNIV_INTERN void	mlog_catenate_string (mtr_t *mtr, const byte *str, ulint len)
UNIV_INLINE void	mlog_catenate_ulint_compressed (mtr_t *mtr, ulint val)
UNIV_INLINE void	mlog_catenate_ull_compressed (mtr_t *mtr, ib_uint64_t val)
UNIV_INLINE byte *	mlog_open (mtr_t *mtr, ulint size)
UNIV_INLINE void	mlog_close (mtr_t *mtr, byte *ptr)
UNIV_INLINE byte *	mlog_write_initial_log_record_fast (const byte *ptr, byte type, byte *log_ptr, mtr_t *mtr)
UNIV_INTERN byte *	mlog_parse_initial_log_record (byte *ptr, byte *end_ptr, byte *type, ulint *space, ulint *page_no)
UNIV_INTERN byte *	mlog_parse_nbytes (ulint type, byte *ptr, byte *end_ptr, byte *page, void *page_zip)
UNIV_INTERN byte *	mlog_parse_string (byte *ptr, byte *end_ptr, byte *page, void *page_zip)
UNIV_INTERN byte *	mlog_open_and_write_index (mtr_t *mtr, const byte *rec, const dict_index_t *index, byte type, ulint size)
UNIV_INTERN byte *	mlog_parse_index (byte *ptr, const byte *end_ptr, ibool comp, dict_index_t **index)

Detailed Description

Mini-transaction logging routines

Created 12/7/1995 Heikki Tuuri

Definition in file mtr0log.h.

Function Documentation

UNIV_INTERN void mlog_catenate_string	(	mtr_t *	mtr,
		const byte *	str,
		ulint	len
	)

Catenates n bytes to the mtr log. in: string length

Catenates n bytes to the mtr log.

Parameters

mtr	in: mtr
str	in: string to write
len	in: string length

Definition at line 44 of file mtr0log.cc.

Here is the call graph for this function:

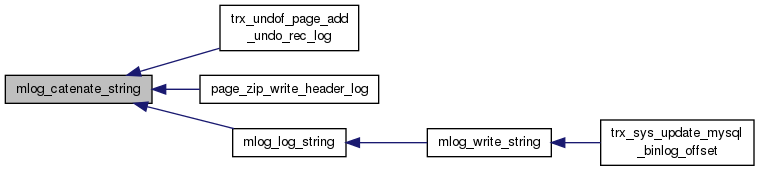

Here is the caller graph for this function:

UNIV_INLINE void mlog_catenate_ulint	(	mtr_t *	mtr,
		ulint	val,
		ulint	type
	)

Catenates 1 - 4 bytes to the mtr log. in: MLOG_1BYTE, MLOG_2BYTES, MLOG_4BYTES

Parameters

mtr	in: mtr
val	in: value to write

UNIV_INLINE void mlog_catenate_ulint_compressed	(	mtr_t *	mtr,
		ulint	val
	)

Catenates a compressed ulint to mlog. in: value to write

Parameters

mtr

in: mtr

Here is the caller graph for this function:

UNIV_INLINE void mlog_catenate_ull_compressed	(	mtr_t *	mtr,
		ib_uint64_t	val
	)

Catenates a compressed 64-bit integer to mlog. in: value to write

Parameters

mtr

in: mtr

UNIV_INLINE void mlog_close	(	mtr_t *	mtr,
		byte *	ptr
	)

Closes a buffer opened to mlog. in: buffer space from ptr up was not used

Parameters

mtr

in: mtr

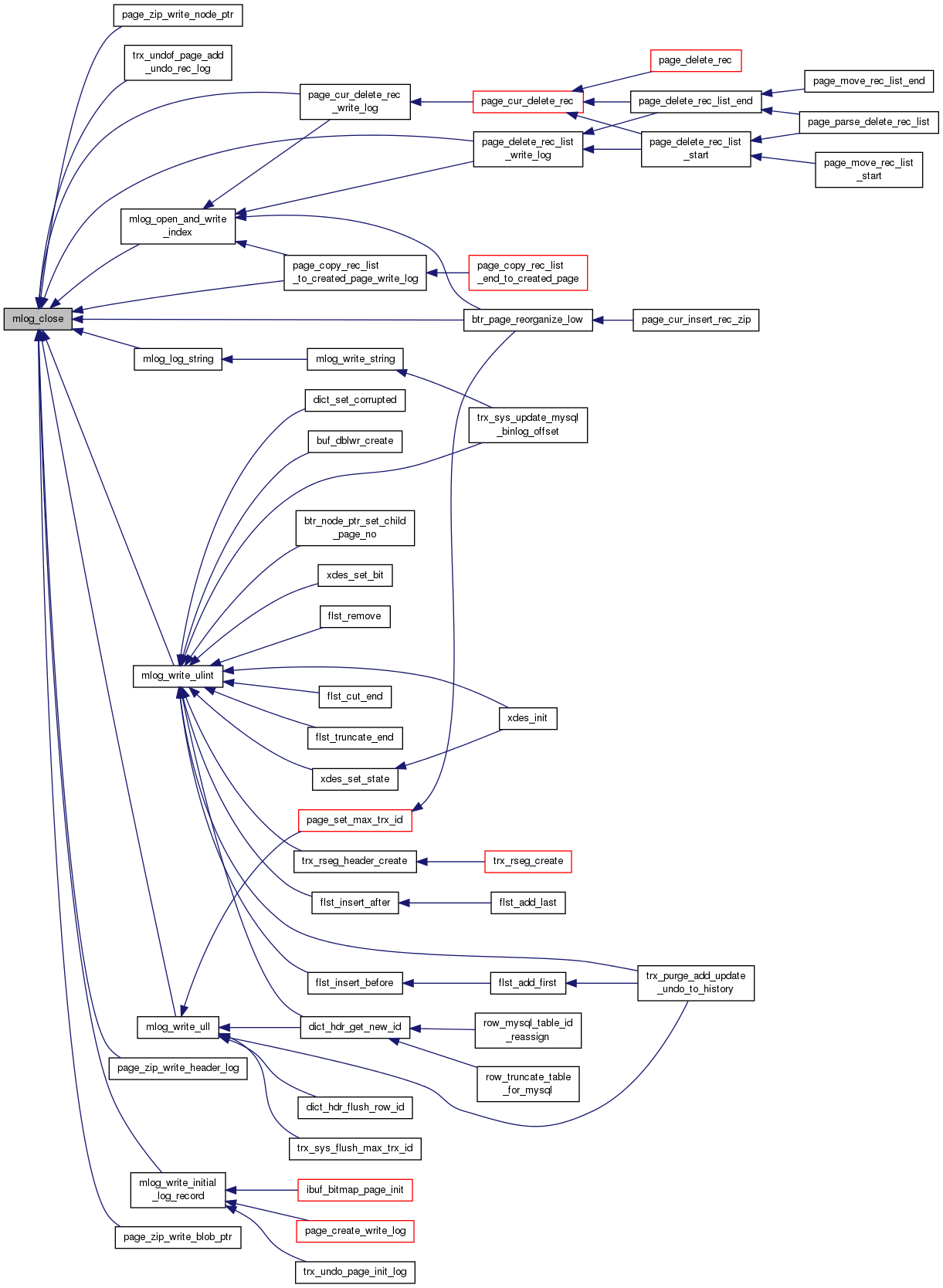

Here is the caller graph for this function:

UNIV_INTERN void mlog_log_string	(	byte *	ptr,
		ulint	len,
		mtr_t *	mtr
	)

Logs a write of a string to a file page buffered in the buffer pool. Writes the corresponding log record to the mini-transaction log. in: mini-transaction handle

Logs a write of a string to a file page buffered in the buffer pool. Writes the corresponding log record to the mini-transaction log.

Parameters

ptr	in: pointer written to
len	in: string length
mtr	in: mini-transaction handle

Definition at line 346 of file mtr0log.cc.

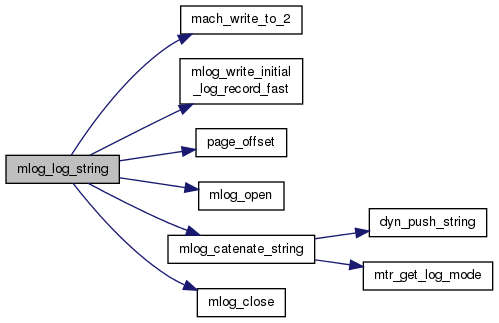

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE byte* mlog_open	(	mtr_t *	mtr,
		ulint	size
	)

Opens a buffer to mlog. It must be closed with mlog_close.

Returns

buffer, NULL if log mode MTR_LOG_NONE in: buffer size in bytes; MUST be smaller than DYN_ARRAY_DATA_SIZE!

Parameters

mtr

in: mtr

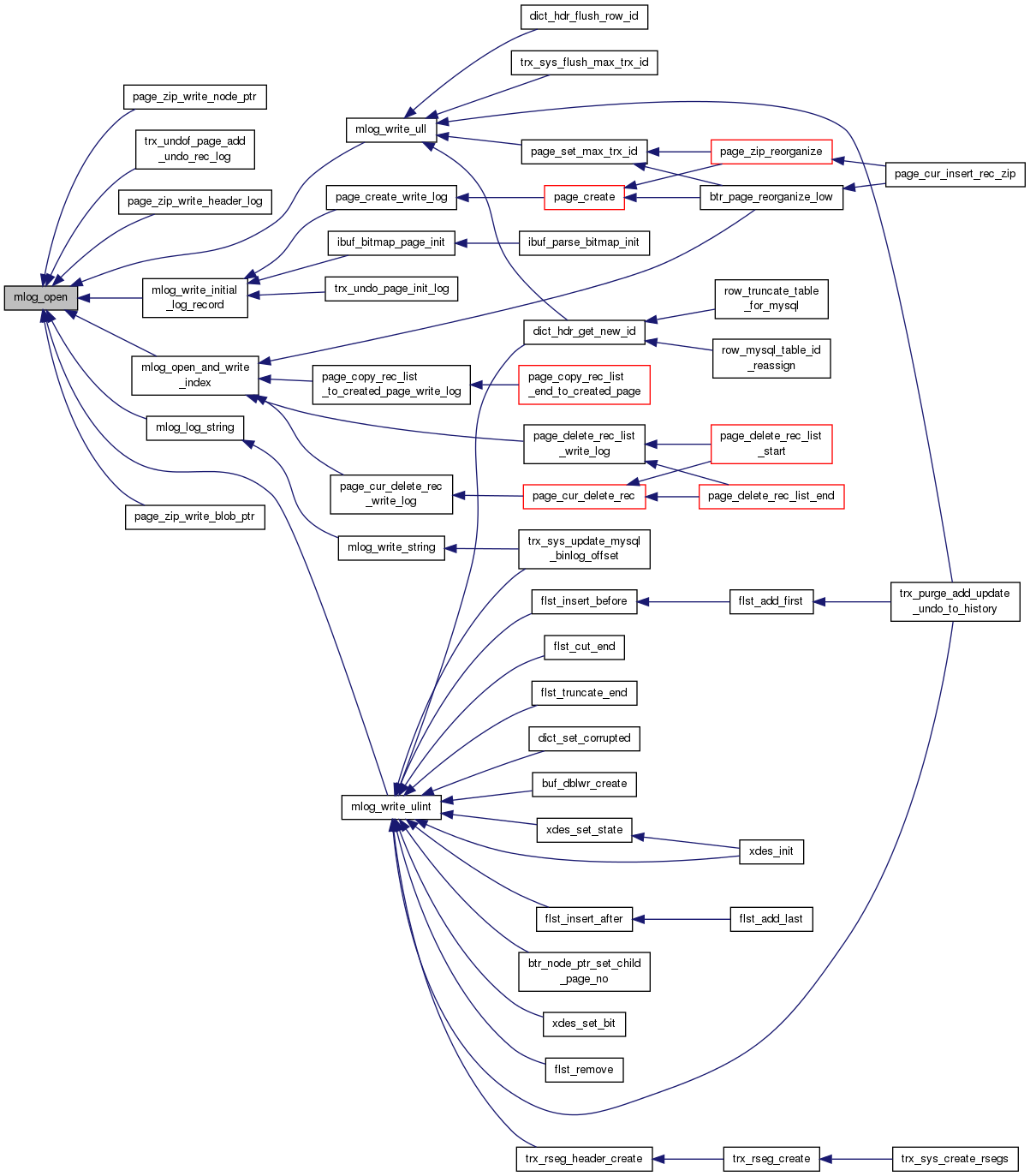

Here is the caller graph for this function:

UNIV_INTERN byte* mlog_open_and_write_index	(	mtr_t *	mtr,
		const byte *	rec,
		const dict_index_t *	index,
		byte	type,
		ulint	size
	)

Opens a buffer for mlog, writes the initial log record and, if needed, the field lengths of an index. Reserves space for further log entries. The log entry must be closed with mtr_close().

Returns

buffer, NULL if log mode MTR_LOG_NONE in: requested buffer size in bytes (if 0, calls mlog_close() and returns NULL)

Opens a buffer for mlog, writes the initial log record and, if needed, the field lengths of an index.

Returns

buffer, NULL if log mode MTR_LOG_NONE

Parameters

mtr	in: mtr
rec	in: index record or page
index	in: record descriptor
type	in: log item type
size	in: requested buffer size in bytes (if 0, calls mlog_close() and returns NULL)

Definition at line 436 of file mtr0log.cc.

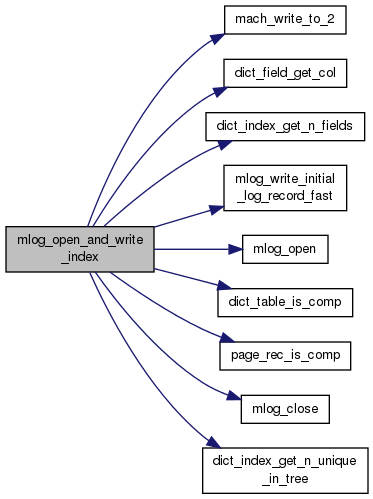

Here is the call graph for this function:

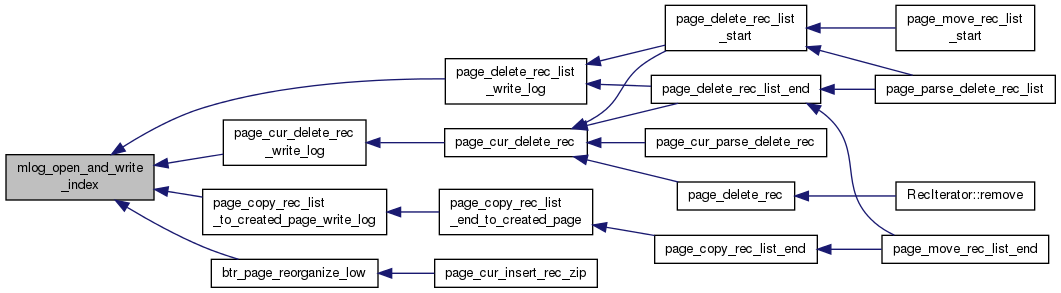

Here is the caller graph for this function:

UNIV_INTERN byte* mlog_parse_index	(	byte *	ptr,
		const byte *	end_ptr,
		ibool	comp,
		dict_index_t **	index
	)

Parses a log record written by mlog_open_and_write_index.

Returns

parsed record end, NULL if not a complete record out, own: dummy index

Parses a log record written by mlog_open_and_write_index.

Returns

parsed record end, NULL if not a complete record

Parameters

ptr	in: buffer
end_ptr	in: buffer end
comp	in: TRUE=compact row format
index	out, own: dummy index

Definition at line 534 of file mtr0log.cc.

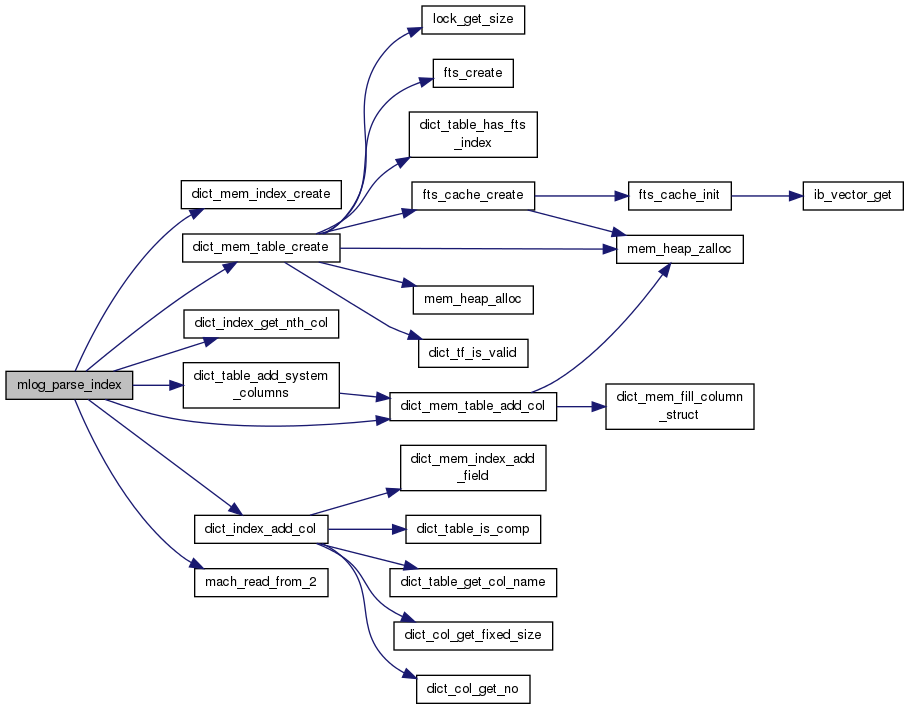

Here is the call graph for this function:

UNIV_INTERN byte* mlog_parse_initial_log_record	(	byte *	ptr,
		byte *	end_ptr,
		byte *	type,
		ulint *	space,
		ulint *	page_no
	)

Parses an initial log record written by mlog_write_initial_log_record.

Returns

parsed record end, NULL if not a complete record out: page number

Parses an initial log record written by mlog_write_initial_log_record.

Returns

parsed record end, NULL if not a complete record

Parameters

ptr	in: buffer
end_ptr	in: buffer end
type	out: log record type: MLOG_1BYTE, ...
space	out: space id
page_no	out: page number

Definition at line 100 of file mtr0log.cc.

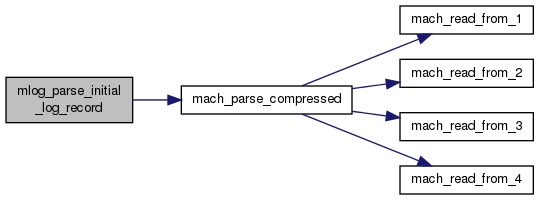

Here is the call graph for this function:

UNIV_INTERN byte* mlog_parse_nbytes	(	ulint	type,
		byte *	ptr,
		byte *	end_ptr,
		byte *	page,
		void *	page_zip
	)

Parses a log record written by mlog_write_ulint or mlog_write_ull.

Returns

parsed record end, NULL if not a complete record in/out: compressed page, or NULL

Parses a log record written by mlog_write_ulint or mlog_write_ull.

Returns

parsed record end, NULL if not a complete record or a corrupt record

Parameters

type	in: log record type: MLOG_1BYTE, ...
ptr	in: buffer
end_ptr	in: buffer end
page	in: page where to apply the log record, or NULL
page_zip	in/out: compressed page, or NULL

Definition at line 140 of file mtr0log.cc.

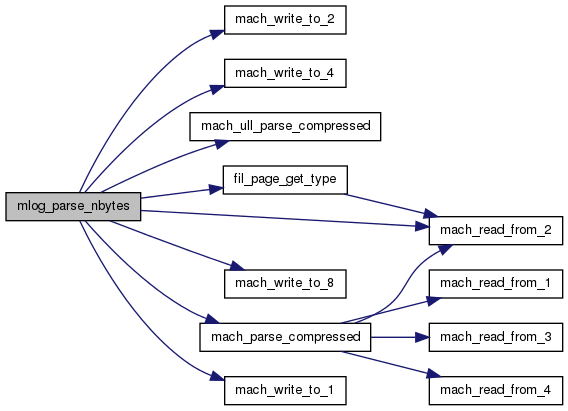

Here is the call graph for this function:

UNIV_INTERN byte* mlog_parse_string	(	byte *	ptr,
		byte *	end_ptr,
		byte *	page,
		void *	page_zip
	)

Parses a log record written by mlog_write_string.

Returns

parsed record end, NULL if not a complete record in/out: compressed page, or NULL

Parses a log record written by mlog_write_string.

Returns

parsed record end, NULL if not a complete record

Parameters

ptr	in: buffer
end_ptr	in: buffer end
page	in: page where to apply the log record, or NULL
page_zip	in/out: compressed page, or NULL

Definition at line 384 of file mtr0log.cc.

Here is the call graph for this function:

UNIV_INTERN void mlog_write_initial_log_record	(	const byte *	ptr,
		byte	type,
		mtr_t *	mtr
	)

Writes initial part of a log record consisting of one-byte item type and four-byte space and page numbers. in: mini-transaction handle

Writes the initial part of a log record consisting of one-byte item type and four-byte space and page numbers. Also pushes info to the mtr memo that a buffer page has been modified.

Parameters

ptr	in: pointer to (inside) a buffer frame holding the file page where modification is made
type	in: log item type: MLOG_1BYTE, ...
mtr	in: mini-transaction handle

Definition at line 68 of file mtr0log.cc.

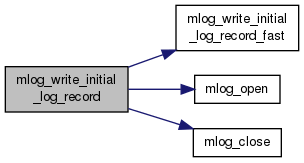

Here is the call graph for this function:

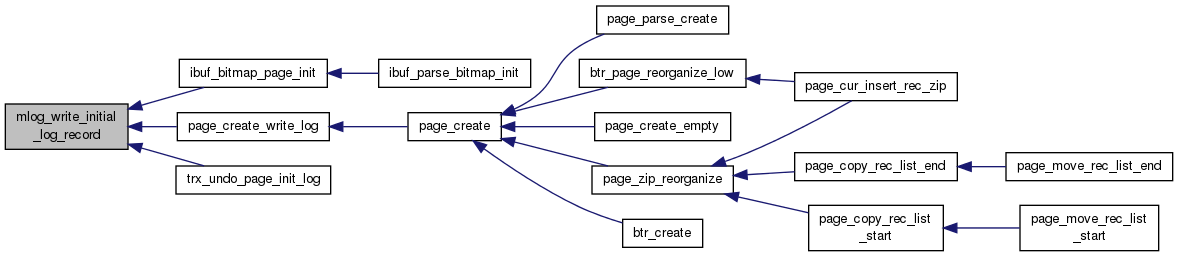

Here is the caller graph for this function:

UNIV_INLINE byte* mlog_write_initial_log_record_fast	(	const byte *	ptr,
		byte	type,
		byte *	log_ptr,
		mtr_t *	mtr
	)

Writes the initial part of a log record (3..11 bytes). If the implementation of this function is changed, all size parameters to mlog_open() should be adjusted accordingly!

Returns

new value of log_ptr in: mtr

Parameters

ptr	in: pointer to (inside) a buffer frame holding the file page where modification is made
type	in: log item type: MLOG_1BYTE, ...
log_ptr	in: pointer to mtr log which has been opened

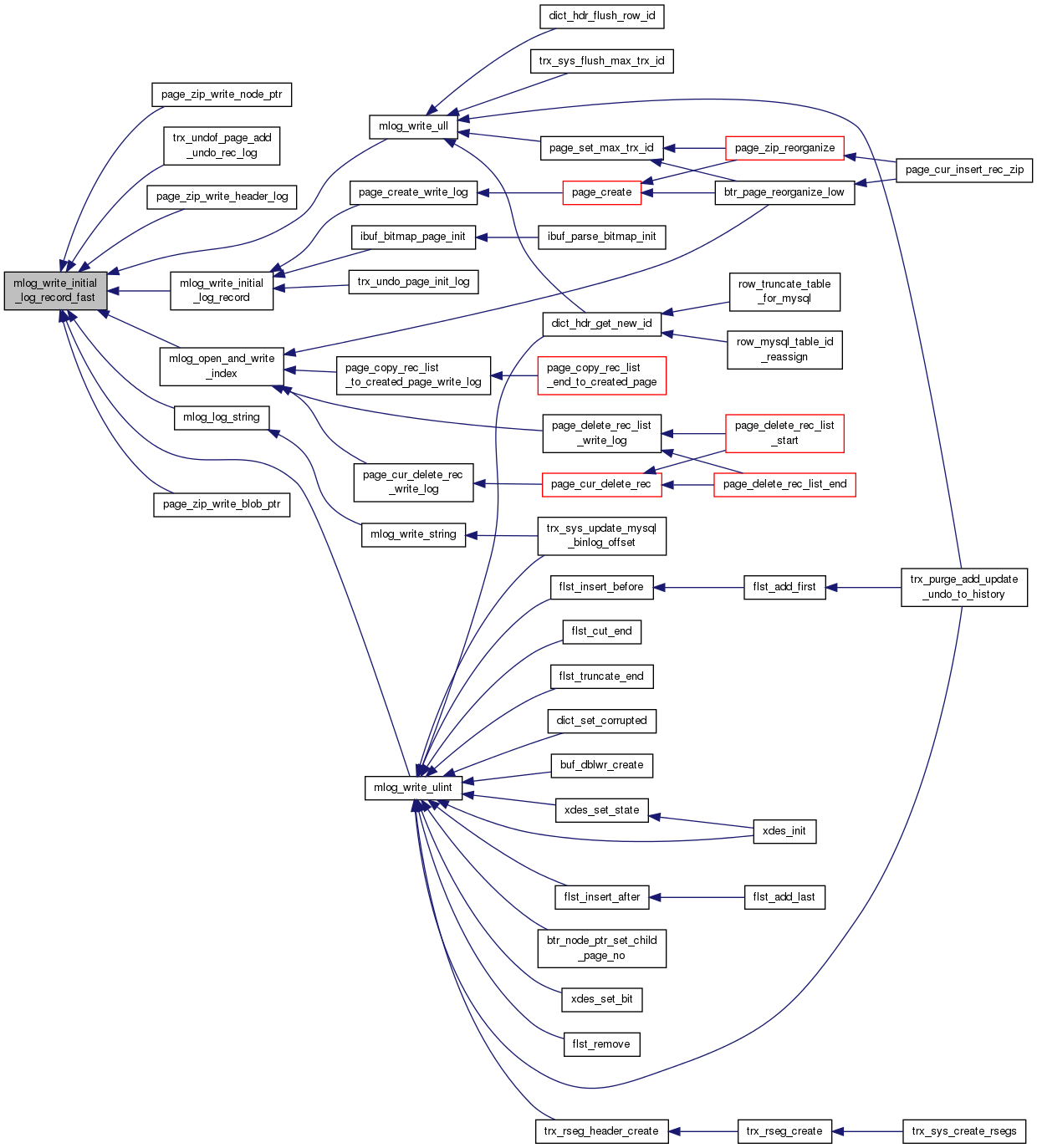

Here is the caller graph for this function:

UNIV_INLINE byte* mlog_write_initial_log_record_for_file_op	(	ulint	type,
		ulint	space_id,
		ulint	page_no,
		byte *	log_ptr,
		mtr_t *	mtr
	)

Writes a log record about an .ibd file create/delete/rename.

Returns

new value of log_ptr in: mtr

Parameters

type	in: MLOG_FILE_CREATE, MLOG_FILE_DELETE, or MLOG_FILE_RENAME
space_id	in: space id, if applicable
page_no	in: page number (not relevant currently)
log_ptr	in: pointer to mtr log which has been opened

UNIV_INTERN void mlog_write_string	(	byte *	ptr,
		const byte *	str,
		ulint	len,
		mtr_t *	mtr
	)

Writes a string to a file page buffered in the buffer pool. Writes the corresponding log record to the mini-transaction log. in: mini-transaction handle

Writes a string to a file page buffered in the buffer pool. Writes the corresponding log record to the mini-transaction log.

Parameters

ptr	in: pointer where to write
str	in: string to write
len	in: string length
mtr	in: mini-transaction handle

Definition at line 326 of file mtr0log.cc.

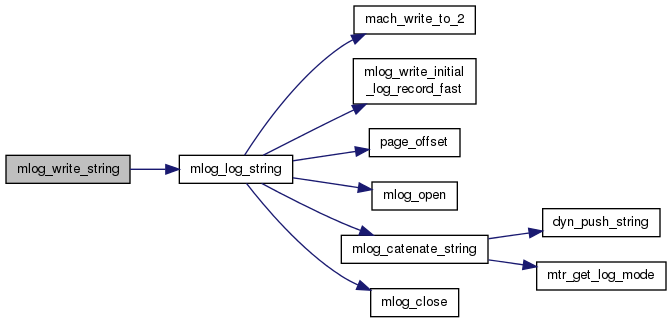

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void mlog_write_ulint	(	byte *	ptr,
		ulint	val,
		byte	type,
		mtr_t *	mtr
	)

Writes 1, 2 or 4 bytes to a file page. Writes the corresponding log record to the mini-transaction log if mtr is not NULL. in: mini-transaction handle

Writes 1, 2 or 4 bytes to a file page. Writes the corresponding log record to the mini-transaction log if mtr is not NULL.

Parameters

ptr	in: pointer where to write
val	in: value to write
type	in: MLOG_1BYTE, MLOG_2BYTES, MLOG_4BYTES
mtr	in: mini-transaction handle

Definition at line 247 of file mtr0log.cc.

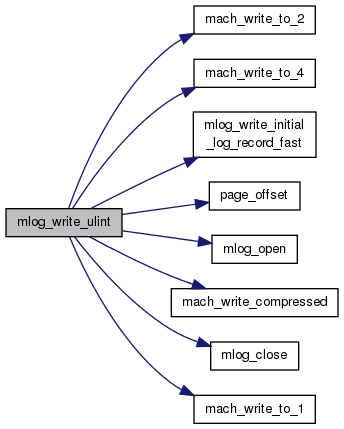

Here is the call graph for this function:

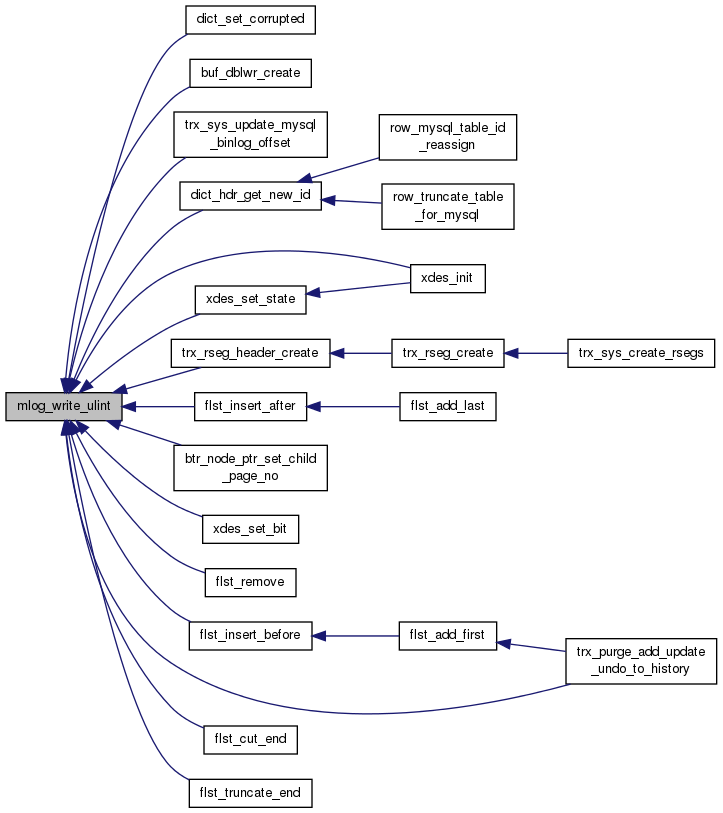

Here is the caller graph for this function:

UNIV_INTERN void mlog_write_ull	(	byte *	ptr,
		ib_uint64_t	val,
		mtr_t *	mtr
	)

Writes 8 bytes to a file page. Writes the corresponding log record to the mini-transaction log, only if mtr is not NULL in: mini-transaction handle

Writes 8 bytes to a file page. Writes the corresponding log record to the mini-transaction log, only if mtr is not NULL

Parameters

ptr	in: pointer where to write
val	in: value to write
mtr	in: mini-transaction handle

Definition at line 293 of file mtr0log.cc.

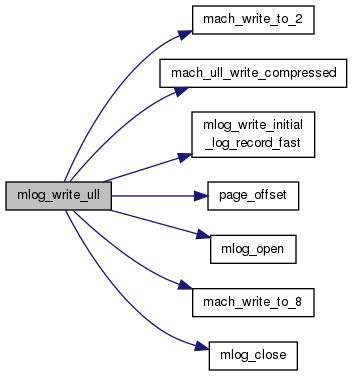

Here is the call graph for this function:

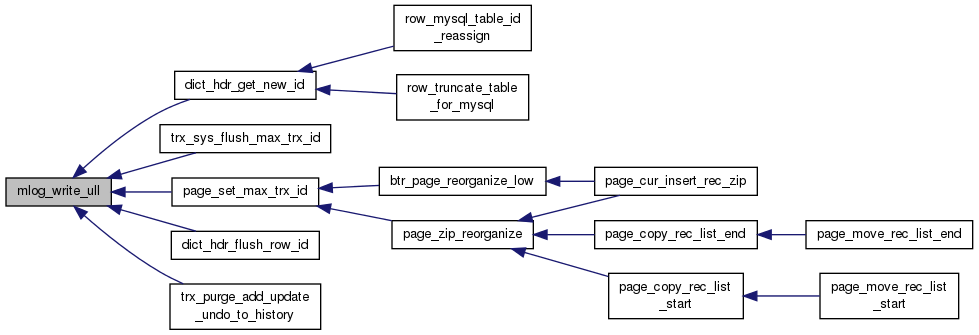

Here is the caller graph for this function:
