#include "mysys_priv.h"
#include "mysys_err.h"
#include <keycache.h>
#include "my_static.h"
#include <m_string.h>
#include <my_bit.h>
#include <errno.h>
#include <stdarg.h>
#include "probes_mysql.h"

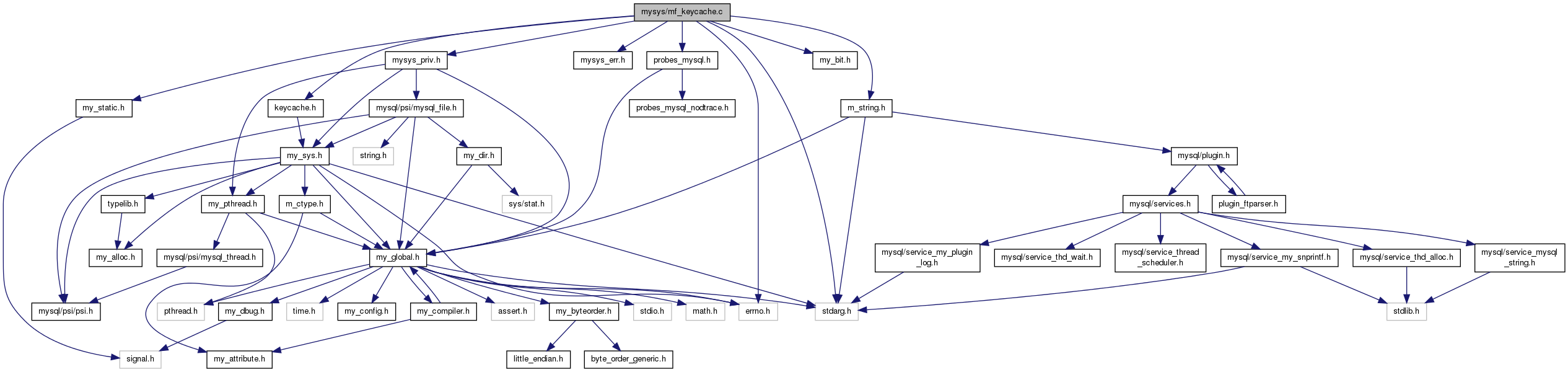

Include dependency graph for mf_keycache.c:

Classes
struct	st_keycache_page
struct	st_hash_link
struct	st_block_link

Macros
#define	STRUCT_PTR(TYPE, MEMBER, a) (TYPE ) ((char ) (a) - offsetof(TYPE, MEMBER))
#define	COND_FOR_REQUESTED 0
#define	COND_FOR_SAVED 1
#define	COND_FOR_READERS 2
#define	BLOCK_ERROR 1 /* an error occured when performing file i/o */
#define	BLOCK_READ 2 /* file block is in the block buffer */
#define	BLOCK_IN_SWITCH 4 /* block is preparing to read new page */
#define	BLOCK_REASSIGNED 8 /* blk does not accept requests for old page */
#define	BLOCK_IN_FLUSH 16 /* block is selected for flush */
#define	BLOCK_CHANGED 32 /* block buffer contains a dirty page */
#define	BLOCK_IN_USE 64 /* block is not free */
#define	BLOCK_IN_EVICTION 128 /* block is selected for eviction */
#define	BLOCK_IN_FLUSHWRITE 256 /* block is in write to file */
#define	BLOCK_FOR_UPDATE 512 /* block is selected for buffer modification */
#define	PAGE_READ 0
#define	PAGE_TO_BE_READ 1
#define	PAGE_WAIT_TO_BE_READ 2
#define	FLUSH_CACHE 2000 /* sort this many blocks at once */
#define	KEYCACHE_HASH(f, pos)
#define	FILE_HASH(f) ((uint) (f) & (CHANGED_BLOCKS_HASH-1))
#define	DEFAULT_KEYCACHE_DEBUG_LOG "keycache_debug.log"
#define	KEYCACHE_DEBUG_OPEN
#define	KEYCACHE_DEBUG_CLOSE
#define	KEYCACHE_DBUG_PRINT(l, m) DBUG_PRINT(l, m)
#define	KEYCACHE_DBUG_ASSERT(a) DBUG_ASSERT(a)
#define	KEYCACHE_THREAD_TRACE(l) KEYCACHE_DBUG_PRINT(l,("\|thread %ld",keycache_thread_id))
#define	KEYCACHE_THREAD_TRACE_BEGIN(l)
#define	KEYCACHE_THREAD_TRACE_END(l) KEYCACHE_DBUG_PRINT(l,("]thread %ld",keycache_thread_id))
#define	BLOCK_NUMBER(b) ((uint) (((char)(b)-(char ) keycache->block_root)/sizeof(BLOCK_LINK)))
#define	HASH_LINK_NUMBER(h) ((uint) (((char)(h)-(char ) keycache->hash_link_root)/sizeof(HASH_LINK)))
#define	keycache_pthread_cond_wait(C, M) mysql_cond_wait(C, M)
#define	keycache_pthread_mutex_lock(M) mysql_mutex_lock(M)
#define	keycache_pthread_mutex_unlock(M) mysql_mutex_unlock(M)
#define	keycache_pthread_cond_signal(C) mysql_cond_signal(C)
#define	inline /* disabled inline for easier debugging */
#define	F_B_PRT(_f_, _v_) DBUG_PRINT("assert_fail", (_f_, _v_))

Typedefs
typedef mysql_cond_t	KEYCACHE_CONDVAR

Enumerations
enum	BLOCK_TEMPERATURE { BLOCK_COLD, BLOCK_WARM, BLOCK_HOT }

Functions
int	init_key_cache (KEY_CACHE *keycache, uint key_cache_block_size, size_t use_mem, uint division_limit, uint age_threshold)
int	resize_key_cache (KEY_CACHE *keycache, uint key_cache_block_size, size_t use_mem, uint division_limit, uint age_threshold)
void	change_key_cache_param (KEY_CACHE *keycache, uint division_limit, uint age_threshold)
void	end_key_cache (KEY_CACHE *keycache, my_bool cleanup)
uchar *	key_cache_read (KEY_CACHE keycache, File file, my_off_t filepos, int level, uchar buff, uint length, uint block_length __attribute__((unused)), int return_buffer __attribute__((unused)))
int	key_cache_insert (KEY_CACHE keycache, File file, my_off_t filepos, int level, uchar buff, uint length)
int	key_cache_write (KEY_CACHE keycache, File file, my_off_t filepos, int level, uchar buff, uint length, uint block_length __attribute__((unused)), int dont_write)
int	flush_key_blocks (KEY_CACHE *keycache, File file, enum flush_type type)
int	reset_key_cache_counters (const char name __attribute__((unused)), KEY_CACHE key_cache)

Variables
KEY_CACHE	dflt_key_cache_var
KEY_CACHE *	dflt_key_cache = &dflt_key_cache_var

Detailed Description

These functions handle keyblock cacheing for ISAM and MyISAM tables.

One cache can handle many files. It must contain buffers of the same blocksize. init_key_cache() should be used to init cache handler.

The free list (free_block_list) is a stack like structure. When a block is freed by free_block(), it is pushed onto the stack. When a new block is required it is first tried to pop one from the stack. If the stack is empty, it is tried to get a never-used block from the pool. If this is empty too, then a block is taken from the LRU ring, flushing it to disk, if neccessary. This is handled in find_key_block(). With the new free list, the blocks can have three temperatures: hot, warm and cold (which is free). This is remembered in the block header by the enum BLOCK_TEMPERATURE temperature variable. Remembering the temperature is neccessary to correctly count the number of warm blocks, which is required to decide when blocks are allowed to become hot. Whenever a block is inserted to another (sub-)chain, we take the old and new temperature into account to decide if we got one more or less warm block. blocks_unused is the sum of never used blocks in the pool and of currently free blocks. blocks_used is the number of blocks fetched from the pool and as such gives the maximum number of in-use blocks at any time.

Definition in file mf_keycache.c.

Macro Definition Documentation

#define KEYCACHE_HASH	(	f,
		pos
	)

Value:

(((ulong) ((pos) / keycache->key_cache_block_size) + \

(ulong) (f)) & (keycache->hash_entries-1))

Definition at line 239 of file mf_keycache.c.

#define KEYCACHE_THREAD_TRACE_BEGIN ( l )

Value:

{ struct st_my_thread_var *thread_var= my_thread_var;             \
              keycache_thread_id= thread_var->id;                             \
              KEYCACHE_DBUG_PRINT(l,("[thread %ld",keycache_thread_id)) }

Definition at line 290 of file mf_keycache.c.
