mach0data.h File Reference

#include "univ.i"
#include "ut0byte.h"
#include "mach0data.ic"

Include dependency graph for mach0data.h:

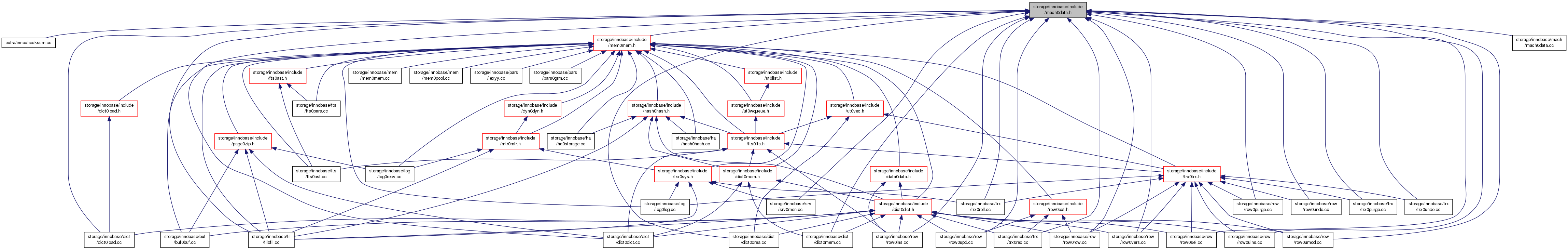

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
UNIV_INLINE void	mach_write_to_1 (byte *b, ulint n)
UNIV_INLINE ulint	mach_read_from_1 (const byte *b) __attribute__((nonnull
UNIV_INLINE void	mach_write_to_2 (byte *b, ulint n)
UNIV_INLINE ulint	mach_read_from_2 (const byte *b) __attribute__((nonnull
UNIV_INLINE uint16	mach_encode_2 (ulint n) __attribute__((const ))
UNIV_INLINE ulint	mach_decode_2 (uint16 n) __attribute__((const ))
UNIV_INLINE void	mach_write_to_3 (byte *b, ulint n)
UNIV_INLINE ulint	mach_read_from_3 (const byte *b) __attribute__((nonnull
UNIV_INLINE void	mach_write_to_4 (byte *b, ulint n)
UNIV_INLINE ulint	mach_read_from_4 (const byte *b) __attribute__((nonnull
UNIV_INLINE ulint	mach_write_compressed (byte *b, ulint n)
UNIV_INLINE ulint	mach_get_compressed_size (ulint n) __attribute__((const ))
UNIV_INLINE ulint	mach_read_compressed (const byte *b) __attribute__((nonnull
UNIV_INLINE void	mach_write_to_6 (byte *b, ib_uint64_t id)
UNIV_INLINE ib_uint64_t	mach_read_from_6 (const byte *b) __attribute__((nonnull
UNIV_INLINE void	mach_write_to_7 (byte *b, ib_uint64_t n)
UNIV_INLINE ib_uint64_t	mach_read_from_7 (const byte *b) __attribute__((nonnull
UNIV_INLINE void	mach_write_to_8 (void *b, ib_uint64_t n)
UNIV_INLINE ib_uint64_t	mach_read_from_8 (const byte *b) __attribute__((nonnull
UNIV_INLINE ulint	mach_ull_write_compressed (byte *b, ib_uint64_t n)
UNIV_INLINE ulint	mach_ull_get_compressed_size (ib_uint64_t n)
UNIV_INLINE ib_uint64_t	mach_ull_read_compressed (const byte *b) __attribute__((nonnull
UNIV_INLINE ulint	mach_ull_write_much_compressed (byte *b, ib_uint64_t n)
UNIV_INLINE ulint	mach_ull_get_much_compressed_size (ib_uint64_t n) __attribute__((const ))
UNIV_INLINE ib_uint64_t	mach_ull_read_much_compressed (const byte *b) __attribute__((nonnull
UNIV_INTERN byte *	mach_parse_compressed (byte *ptr, byte *end_ptr, ulint *val)
UNIV_INLINE byte *	mach_ull_parse_compressed (byte *ptr, byte *end_ptr, ib_uint64_t *val)
UNIV_INLINE double	mach_double_read (const byte *b) __attribute__((nonnull
UNIV_INLINE void	mach_double_write (byte *b, double d)
UNIV_INLINE float	mach_float_read (const byte *b) __attribute__((nonnull
UNIV_INLINE void	mach_float_write (byte *b, float d)
UNIV_INLINE ulint	mach_read_from_n_little_endian (const byte *buf, ulint buf_size) __attribute__((nonnull
UNIV_INLINE void	mach_write_to_n_little_endian (byte *dest, ulint dest_size, ulint n)
UNIV_INLINE ulint	mach_read_from_2_little_endian (const byte *buf) __attribute__((nonnull
UNIV_INLINE void	mach_write_to_2_little_endian (byte *dest, ulint n)
UNIV_INLINE ib_uint64_t	mach_read_int_type (const byte *src, ulint len, ibool unsigned_type)
UNIV_INLINE void	mach_write_int_type (byte *dest, const byte *src, ulint len, bool usign)
UNIV_INLINE void	mach_write_ulonglong (byte *dest, ulonglong src, ulint len, bool usign)
UNIV_INLINE ulint	mach_read_ulint (const byte *ptr, ulint type)

Variables
UNIV_INLINE ulint	pure

Detailed Description

Utilities for converting data from the database file to the machine format.

Created 11/28/1995 Heikki Tuuri

Definition in file mach0data.h.

Function Documentation

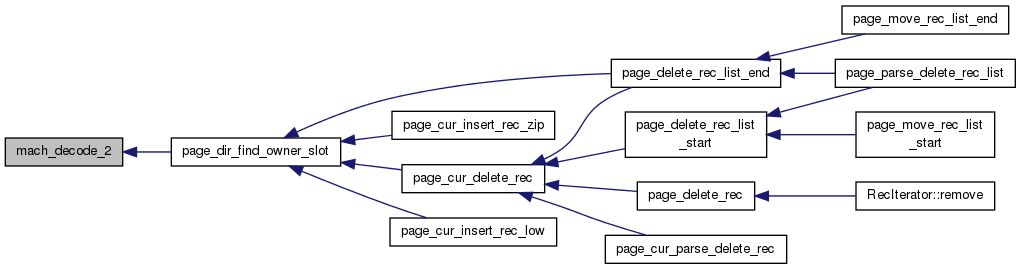

UNIV_INLINE ulint mach_decode_2

(

uint16

n

)

const

The following function is used to convert a 16-bit data item from the canonical format, for fast bytewise equality test against memory.

Returns

integer in machine-dependent format

Parameters

n	in: 16-bit integer in canonical format

Here is the caller graph for this function:

UNIV_INLINE double mach_double_read

(

const byte *

b

)

Reads a double. It is stored in a little-endian format.

Returns

double read

Parameters

b	in: pointer to memory from where to read

Here is the caller graph for this function:

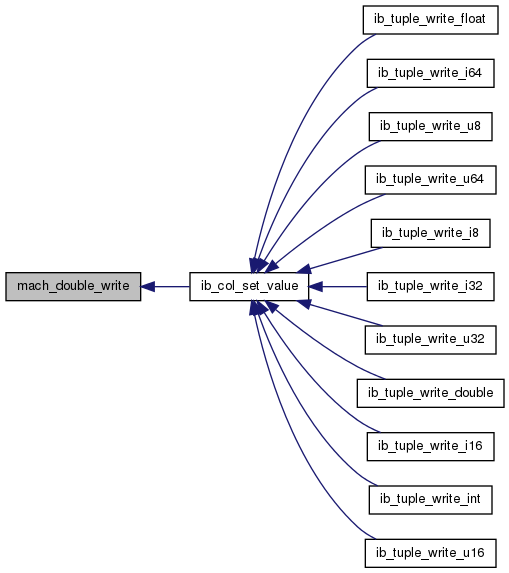

UNIV_INLINE void mach_double_write	(	byte *	b,
		double	d
	)

Writes a double. It is stored in a little-endian format. in: double

Parameters

b	in: pointer to memory where to write

Here is the caller graph for this function:

UNIV_INLINE uint16 mach_encode_2

(

ulint

n

)

const

The following function is used to convert a 16-bit data item to the canonical format, for fast bytewise equality test against memory.

Returns

16-bit integer in canonical format

Parameters

n	in: integer in machine-dependent format

Here is the caller graph for this function:

UNIV_INLINE float mach_float_read

(

const byte *

b

)

Reads a float. It is stored in a little-endian format.

Returns

float read

Parameters

b	in: pointer to memory from where to read

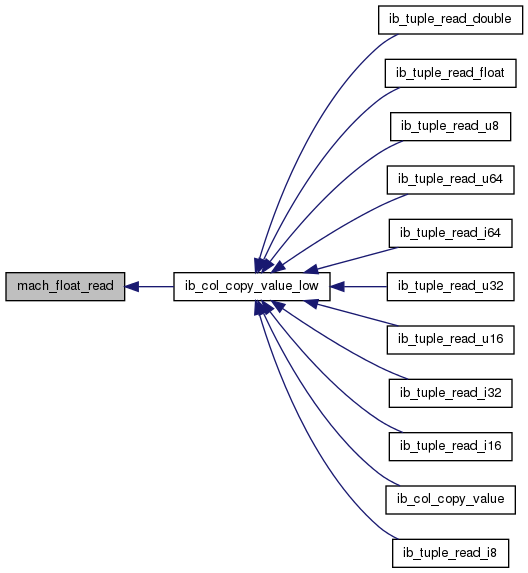

Here is the caller graph for this function:

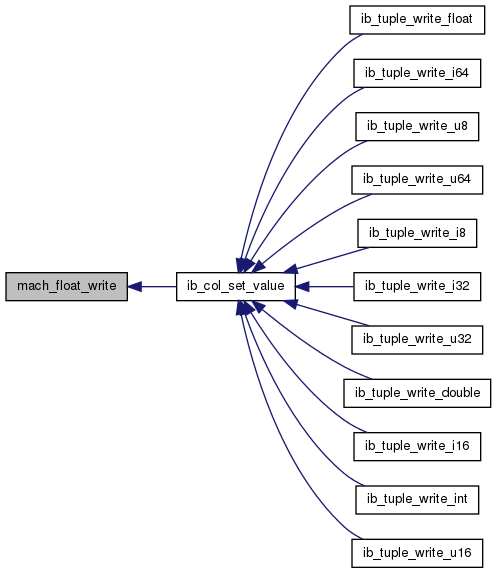

UNIV_INLINE void mach_float_write	(	byte *	b,
		float	d
	)

Writes a float. It is stored in a little-endian format. in: float

Parameters

b	in: pointer to memory where to write

Here is the caller graph for this function:

UNIV_INLINE ulint mach_get_compressed_size

(

ulint

n

)

const

Returns the size of an ulint when written in the compressed form.

Returns

compressed size in bytes

Parameters

n	in: ulint integer to be stored

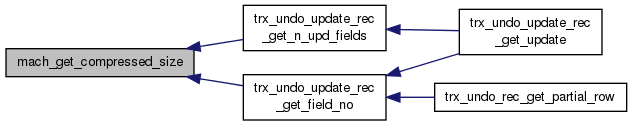

Here is the caller graph for this function:

UNIV_INTERN byte* mach_parse_compressed	(	byte *	ptr,
		byte *	end_ptr,
		ulint *	val
	)

Reads a ulint in a compressed form if the log record fully contains it.

Returns

pointer to end of the stored field, NULL if not complete out: read value

Reads a ulint in a compressed form if the log record fully contains it.

Returns

pointer to end of the stored field, NULL if not complete

Parameters

ptr	in: pointer to buffer from where to read
end_ptr	in: pointer to end of the buffer
val	out: read value (< 2^32)

Definition at line 38 of file mach0data.cc.

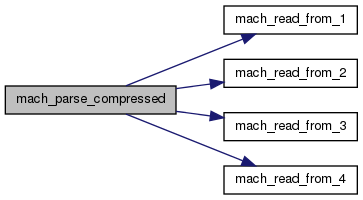

Here is the call graph for this function:

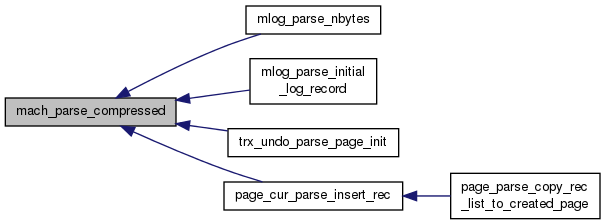

Here is the caller graph for this function:

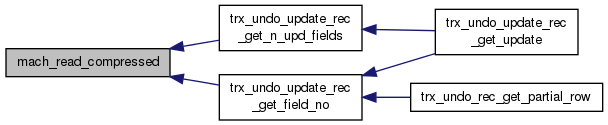

UNIV_INLINE ulint mach_read_compressed

(

const byte *

b

)

Reads a ulint in a compressed form.

Returns

read integer

Parameters

b	in: pointer to memory from where to read

Here is the caller graph for this function:

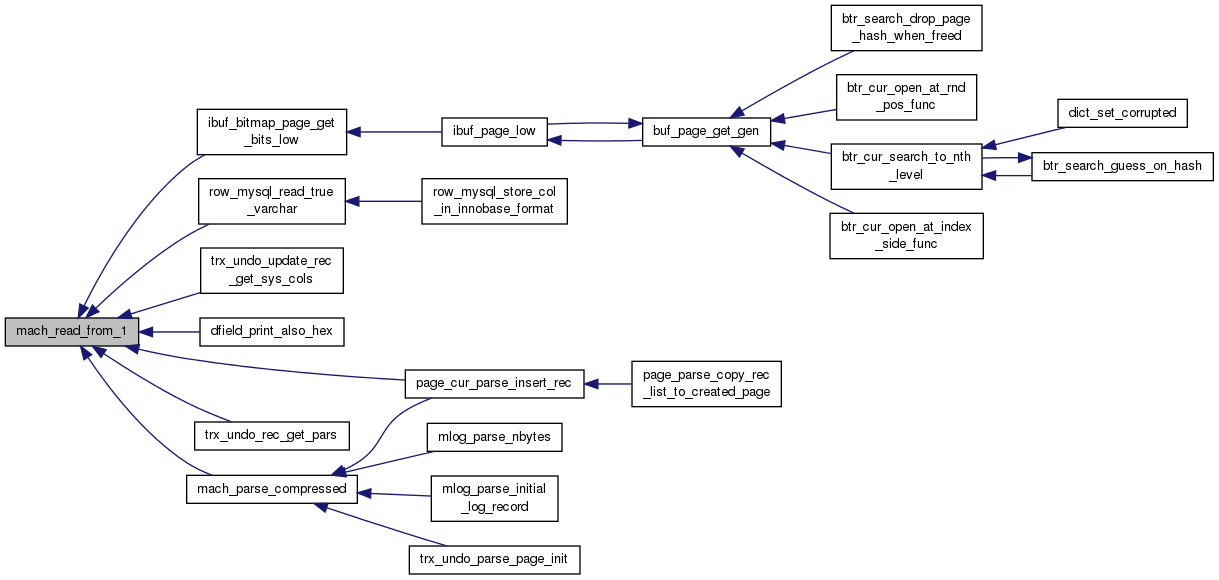

UNIV_INLINE ulint mach_read_from_1

(

const byte *

b

)

The following function is used to fetch data from one byte.

Returns

ulint integer, >= 0, < 256

Parameters

b	in: pointer to byte

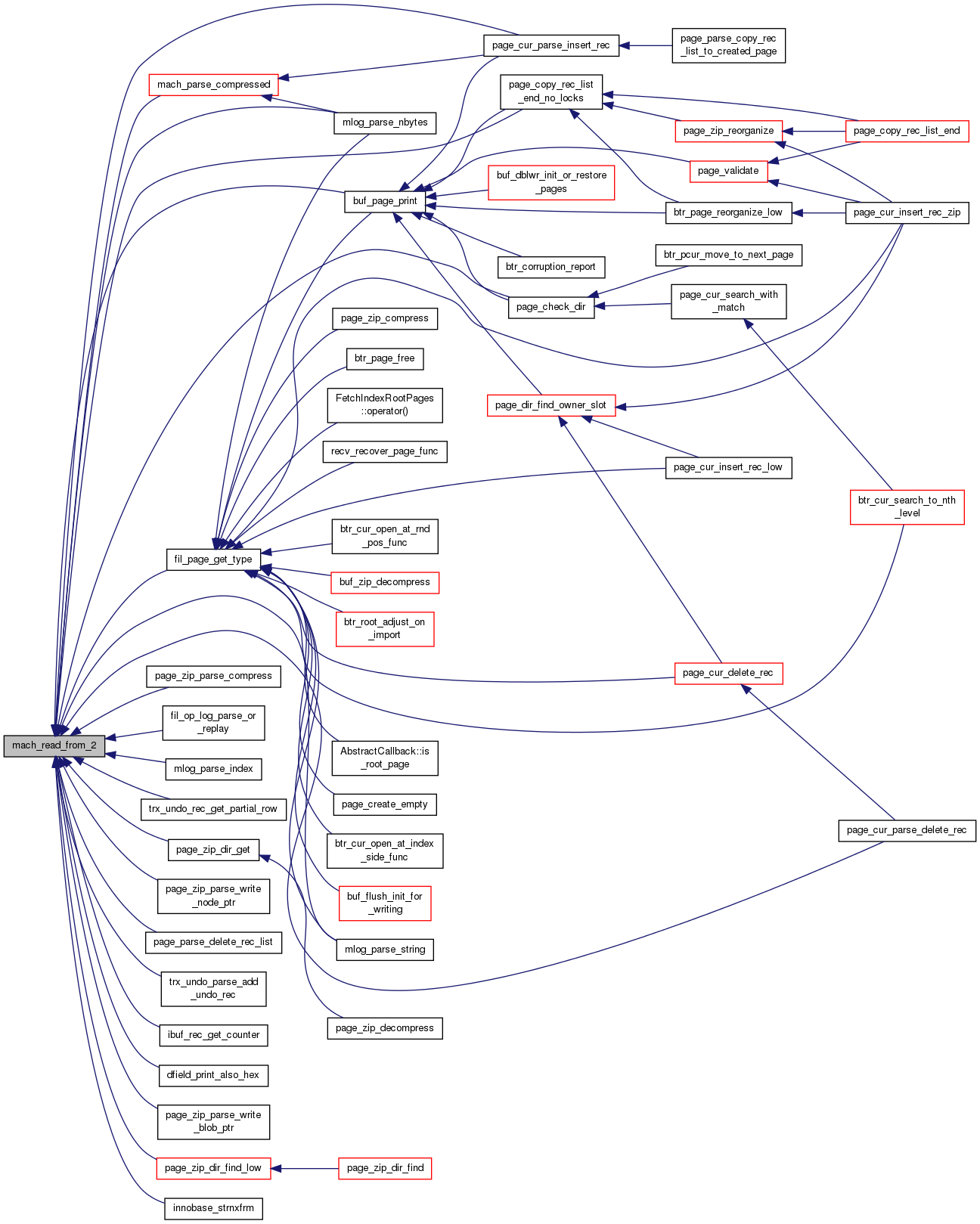

Here is the caller graph for this function:

UNIV_INLINE ulint mach_read_from_2

(

const byte *

b

)

The following function is used to fetch data from two consecutive bytes. The most significant byte is at the lowest address.

Returns

ulint integer, >= 0, < 64k

Parameters

b	in: pointer to two bytes

Here is the caller graph for this function:

UNIV_INLINE ulint mach_read_from_2_little_endian

(

const byte *

buf

)

Reads a ulint stored in the little-endian format.

Returns

unsigned long int

Parameters

buf	in: from where to read

Here is the caller graph for this function:

UNIV_INLINE ulint mach_read_from_3

(

const byte *

b

)

The following function is used to fetch data from 3 consecutive bytes. The most significant byte is at the lowest address.

Returns

ulint integer

Parameters

b	in: pointer to 3 bytes

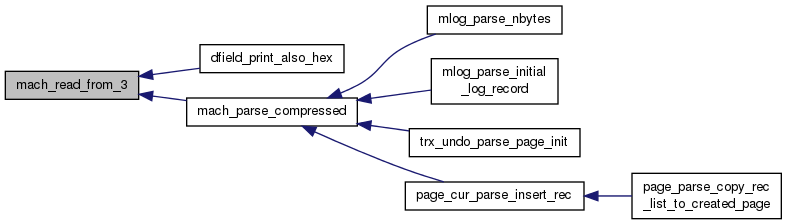

Here is the caller graph for this function:

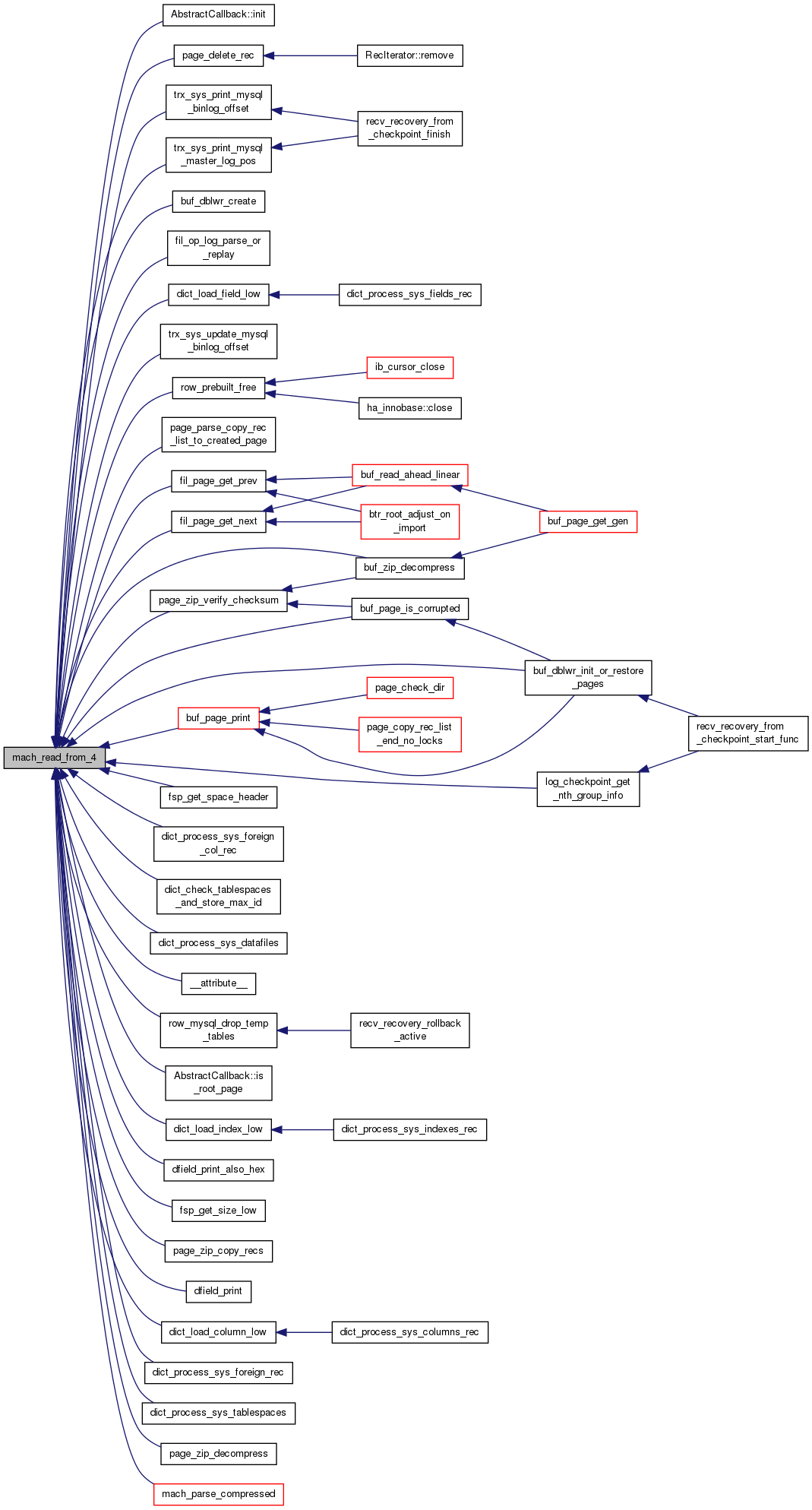

UNIV_INLINE ulint mach_read_from_4

(

const byte *

b

)

The following function is used to fetch data from 4 consecutive bytes. The most significant byte is at the lowest address.

Returns

ulint integer

Parameters

b	in: pointer to four bytes

Here is the caller graph for this function:

UNIV_INLINE ib_uint64_t mach_read_from_6

(

const byte *

b

)

The following function is used to fetch data from 6 consecutive bytes. The most significant byte is at the lowest address.

Returns

48-bit integer

Parameters

b	in: pointer to 6 bytes

Here is the caller graph for this function:

UNIV_INLINE ib_uint64_t mach_read_from_7

(

const byte *

b

)

The following function is used to fetch data from 7 consecutive bytes. The most significant byte is at the lowest address.

Returns

56-bit integer

Parameters

b	in: pointer to 7 bytes

Here is the caller graph for this function:

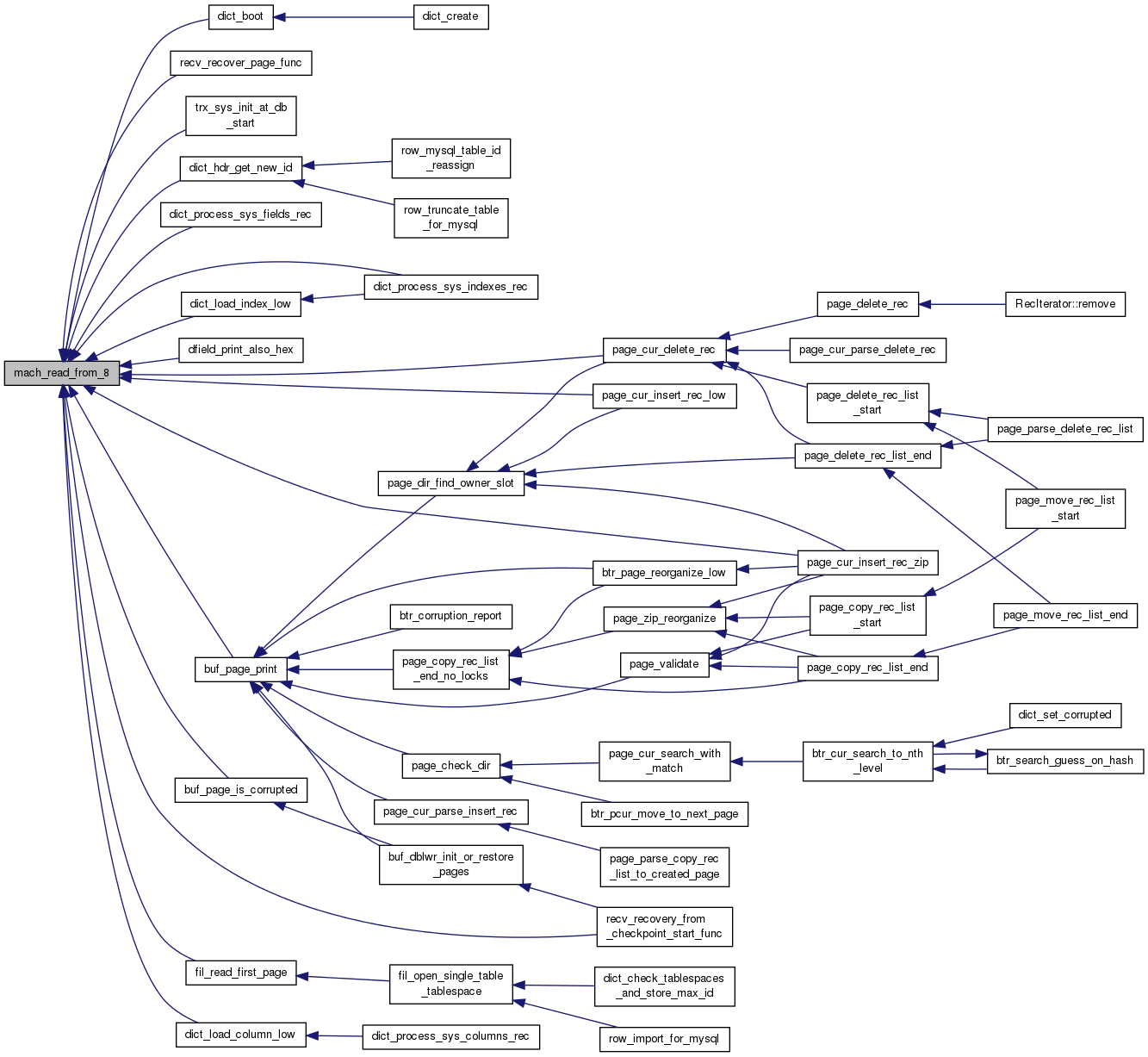

UNIV_INLINE ib_uint64_t mach_read_from_8

(

const byte *

b

)

The following function is used to fetch data from 8 consecutive bytes. The most significant byte is at the lowest address.

Returns

64-bit integer

Parameters

b	in: pointer to 8 bytes

Here is the caller graph for this function:

UNIV_INLINE ulint mach_read_from_n_little_endian	(	const byte *	buf,
		ulint	buf_size
	)

Reads a ulint stored in the little-endian format.

Returns

unsigned long int

Parameters

buf	in: from where to read
buf_size	in: from how many bytes to read

Here is the caller graph for this function:

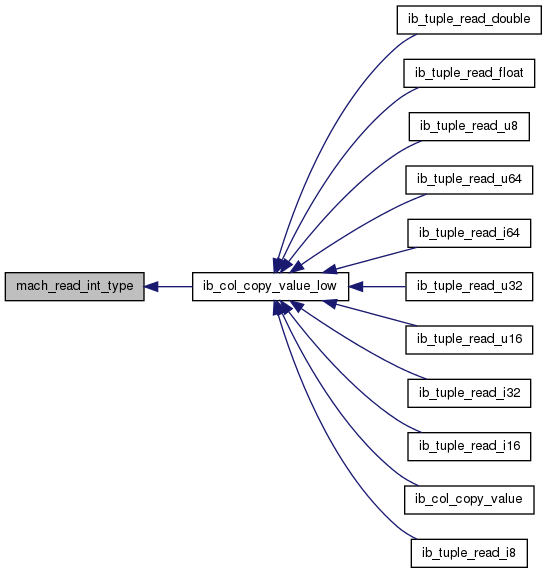

UNIV_INLINE ib_uint64_t mach_read_int_type	(	const byte *	src,
		ulint	len,
		ibool	unsigned_type
	)

Convert integral type from storage byte order (big endian) to host byte order.

Returns

integer value in: signed or unsigned flag

Parameters

src	in: where to read from
len	in: length of src

Here is the caller graph for this function:

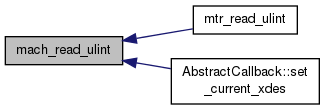

UNIV_INLINE ulint mach_read_ulint	(	const byte *	ptr,
		ulint	type
	)

Reads 1 - 4 bytes from a file page buffered in the buffer pool.

Returns

value read in: MLOG_1BYTE, MLOG_2BYTES, MLOG_4BYTES

Parameters

ptr	in: pointer from where to read

Here is the caller graph for this function:

UNIV_INLINE ulint mach_ull_get_compressed_size

(

ib_uint64_t

n

)

Returns the size of a 64-bit integer when written in the compressed form.

Returns

compressed size in bytes in: 64-bit integer to be stored

Here is the caller graph for this function:

UNIV_INLINE ulint mach_ull_get_much_compressed_size

(

ib_uint64_t

n

)

const

Returns the size of a 64-bit integer when written in the compressed form.

Returns

compressed size in bytes

Parameters

n	in: 64-bit integer to be stored

Here is the caller graph for this function:

UNIV_INLINE byte* mach_ull_parse_compressed	(	byte *	ptr,
		byte *	end_ptr,
		ib_uint64_t *	val
	)

Reads a 64-bit integer in a compressed form if the log record fully contains it.

Returns

pointer to end of the stored field, NULL if not complete out: read value

Parameters

ptr	in: pointer to buffer from where to read
end_ptr	in: pointer to end of the buffer

Here is the caller graph for this function:

UNIV_INLINE ib_uint64_t mach_ull_read_compressed

(

const byte *

b

)

Reads a 64-bit integer in a compressed form.

Returns

the value read

Parameters

b	in: pointer to memory from where to read

Here is the caller graph for this function:

UNIV_INLINE ib_uint64_t mach_ull_read_much_compressed

(

const byte *

b

)

Reads a 64-bit integer in a compressed form.

Returns

the value read

Parameters

b	in: pointer to memory from where to read

Here is the caller graph for this function:

UNIV_INLINE ulint mach_ull_write_compressed	(	byte *	b,
		ib_uint64_t	n
	)

Writes a 64-bit integer in a compressed form (5..9 bytes).

Returns

size in bytes in: 64-bit integer to be stored

Parameters

b	in: pointer to memory where to store

Here is the caller graph for this function:

UNIV_INLINE ulint mach_ull_write_much_compressed	(	byte *	b,
		ib_uint64_t	n
	)

Writes a 64-bit integer in a compressed form (1..11 bytes).

Returns

size in bytes in: 64-bit integer to be stored

Parameters

b	in: pointer to memory where to store

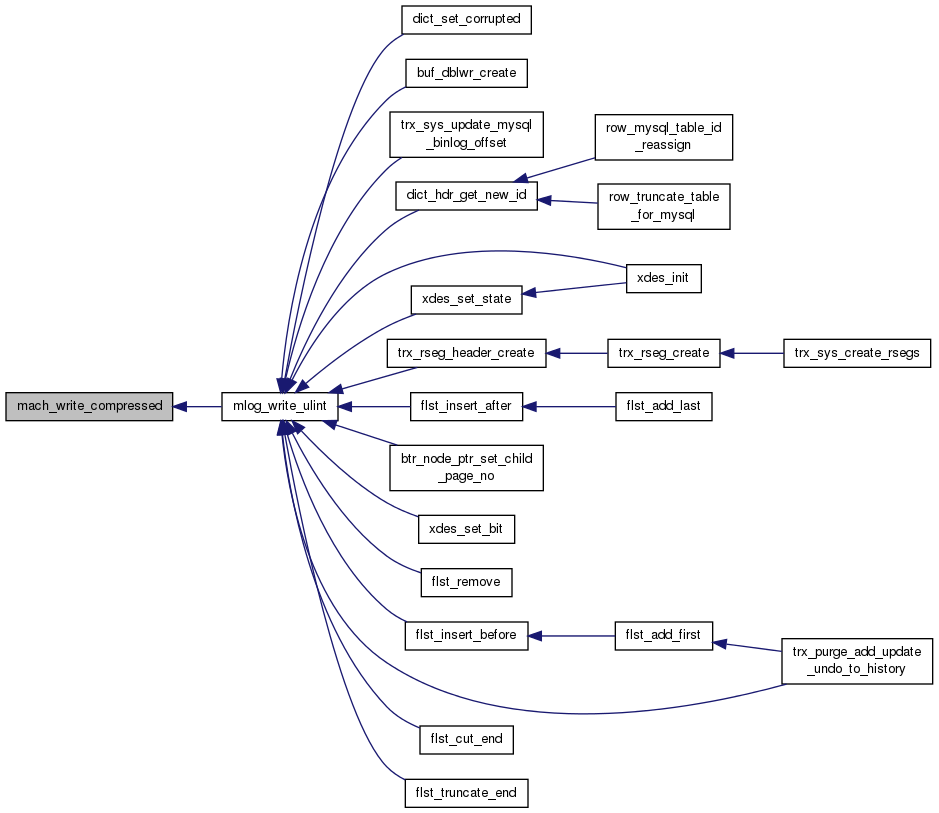

UNIV_INLINE ulint mach_write_compressed	(	byte *	b,
		ulint	n
	)

Writes a ulint in a compressed form (1..5 bytes).

Returns

stored size in bytes in: ulint integer to be stored

Parameters

b	in: pointer to memory where to store

Here is the caller graph for this function:

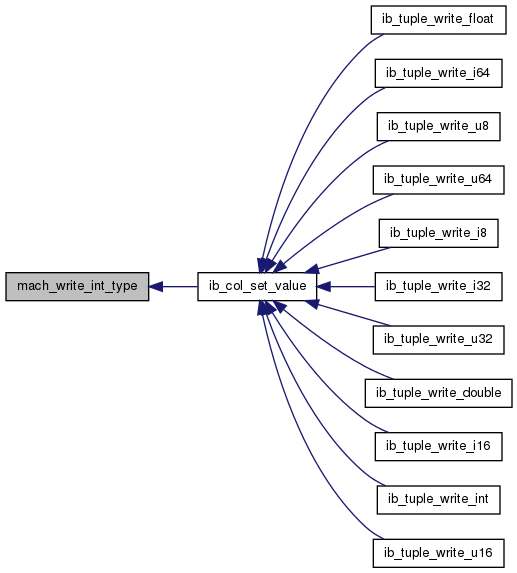

UNIV_INLINE void mach_write_int_type	(	byte *	dest,
		const byte *	src,
		ulint	len,
		bool	usign
	)

Convert integral type from host byte order to (big-endian) storage byte order. in: signed or unsigned flag

Parameters

dest	in: where to write
src	in: where to read from
len	in: length of src

Here is the caller graph for this function:

UNIV_INLINE void mach_write_to_1	(	byte *	b,
		ulint	n
	)

The following function is used to store data in one byte. in: ulint integer to be stored, >= 0, < 256

Parameters

b	in: pointer to byte where to store

Here is the caller graph for this function:

UNIV_INLINE void mach_write_to_2	(	byte *	b,
		ulint	n
	)

The following function is used to store data in two consecutive bytes. We store the most significant byte to the lower address. in: ulint integer to be stored, >= 0, < 64k

Parameters

b	in: pointer to two bytes where to store

Here is the caller graph for this function:

UNIV_INLINE void mach_write_to_2_little_endian	(	byte *	dest,
		ulint	n
	)

Writes a ulint in the little-endian format. in: unsigned long int to write

Parameters

dest	in: where to write

Here is the caller graph for this function:

UNIV_INLINE void mach_write_to_3	(	byte *	b,
		ulint	n
	)

The following function is used to store data in 3 consecutive bytes. We store the most significant byte to the lowest address. in: ulint integer to be stored

Parameters

b	in: pointer to 3 bytes where to store

UNIV_INLINE void mach_write_to_4	(	byte *	b,
		ulint	n
	)

The following function is used to store data in four consecutive bytes. We store the most significant byte to the lowest address. in: ulint integer to be stored

Parameters

b	in: pointer to four bytes where to store

Here is the caller graph for this function:

UNIV_INLINE void mach_write_to_6	(	byte *	b,
		ib_uint64_t	id
	)

The following function is used to store data in 6 consecutive bytes. We store the most significant byte to the lowest address. in: 48-bit integer

Parameters

b	in: pointer to 6 bytes where to store

Here is the caller graph for this function:

UNIV_INLINE void mach_write_to_7	(	byte *	b,
		ib_uint64_t	n
	)

The following function is used to store data in 7 consecutive bytes. We store the most significant byte to the lowest address. in: 56-bit integer

Parameters

b	in: pointer to 7 bytes where to store

Here is the caller graph for this function:

UNIV_INLINE void mach_write_to_8	(	void *	b,
		ib_uint64_t	n
	)

The following function is used to store data in 8 consecutive bytes. We store the most significant byte to the lowest address. in: 64-bit integer to be stored

Parameters

b	in: pointer to 8 bytes where to store

Here is the caller graph for this function:

UNIV_INLINE void mach_write_to_n_little_endian	(	byte *	dest,
		ulint	dest_size,
		ulint	n
	)

Writes a ulint in the little-endian format. in: unsigned long int to write

Parameters

dest	in: where to write
dest_size	in: into how many bytes to write

Here is the caller graph for this function:

UNIV_INLINE void mach_write_ulonglong	(	byte *	dest,
		ulonglong	src,
		ulint	len,
		bool	usign
	)

in: signed or unsigned flag

Parameters

dest	in: where to write
src	in: where to read from
len	in: length of dest
