#include "univ.i"
#include "ut0byte.h"
#include "ut0lst.h"
#include "sync0sync.h"
#include "sync0rw.h"
#include "log0log.ic"

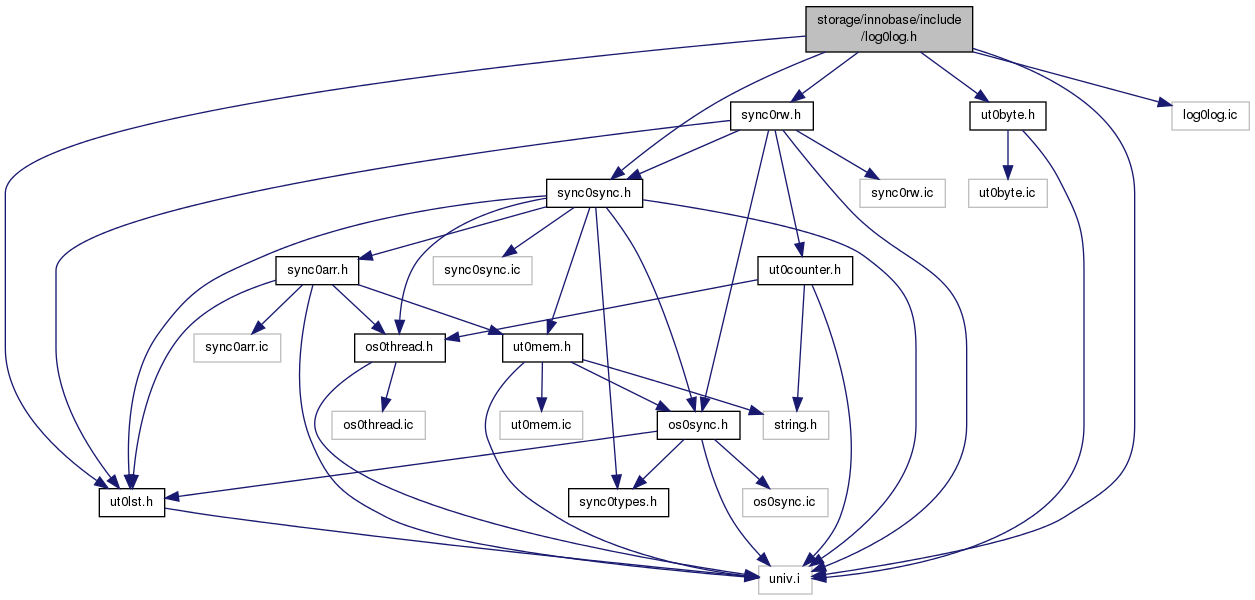

Include dependency graph for log0log.h:

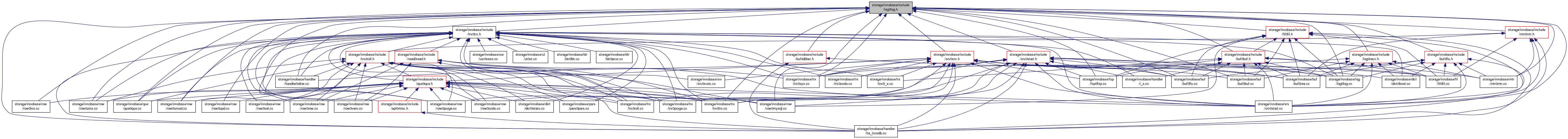

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	log_group_t
struct	log_t

Macros
#define	LSN_MAX IB_UINT64_MAX
#define	LSN_PF UINT64PF
#define	log_do_write TRUE
#define	LOG_MAX_N_GROUPS 32
#define	LOG_FLUSH 7652559
#define	LOG_CHECKPOINT 78656949
#define	LOG_RECOVER 98887331
#define	LOG_START_LSN ((lsn_t) (16 * OS_FILE_LOG_BLOCK_SIZE))
#define	LOG_BUFFER_SIZE (srv_log_buffer_size * UNIV_PAGE_SIZE)
#define	LOG_ARCHIVE_BUF_SIZE (srv_log_buffer_size * UNIV_PAGE_SIZE / 4)
#define	LOG_BLOCK_HDR_NO
#define	LOG_BLOCK_FLUSH_BIT_MASK 0x80000000UL
#define	LOG_BLOCK_HDR_DATA_LEN
#define	LOG_BLOCK_FIRST_REC_GROUP
#define	LOG_BLOCK_CHECKPOINT_NO
#define	LOG_BLOCK_HDR_SIZE
#define	LOG_BLOCK_CHECKSUM
#define	LOG_BLOCK_TRL_SIZE 4 /* trailer size in bytes */
#define	LOG_CHECKPOINT_NO 0
#define	LOG_CHECKPOINT_LSN 8
#define	LOG_CHECKPOINT_OFFSET_LOW32 16
#define	LOG_CHECKPOINT_LOG_BUF_SIZE 20
#define	LOG_CHECKPOINT_ARCHIVED_LSN 24
#define	LOG_CHECKPOINT_GROUP_ARRAY 32
#define	LOG_CHECKPOINT_ARCHIVED_FILE_NO 0
#define	LOG_CHECKPOINT_ARCHIVED_OFFSET 4
#define	LOG_CHECKPOINT_ARRAY_END
#define	LOG_CHECKPOINT_CHECKSUM_1 LOG_CHECKPOINT_ARRAY_END
#define	LOG_CHECKPOINT_CHECKSUM_2 (4 + LOG_CHECKPOINT_ARRAY_END)
#define	LOG_CHECKPOINT_OFFSET_HIGH32 (16 + LOG_CHECKPOINT_ARRAY_END)
#define	LOG_CHECKPOINT_SIZE (20 + LOG_CHECKPOINT_ARRAY_END)
#define	LOG_GROUP_ID 0 /* log group number */
#define	LOG_FILE_START_LSN
#define	LOG_FILE_NO
#define	LOG_FILE_WAS_CREATED_BY_HOT_BACKUP 16
#define	LOG_FILE_ARCH_COMPLETED OS_FILE_LOG_BLOCK_SIZE
#define	LOG_FILE_END_LSN (OS_FILE_LOG_BLOCK_SIZE + 4)
#define	LOG_CHECKPOINT_1 OS_FILE_LOG_BLOCK_SIZE
#define	LOG_CHECKPOINT_2 (3 * OS_FILE_LOG_BLOCK_SIZE)
#define	LOG_FILE_HDR_SIZE (4 * OS_FILE_LOG_BLOCK_SIZE)
#define	LOG_GROUP_OK 301
#define	LOG_GROUP_CORRUPTED 302
#define	log_flush_order_mutex_own() mutex_own(&log_sys->log_flush_order_mutex)
#define	log_flush_order_mutex_enter()
#define	log_flush_order_mutex_exit()

#define	LOG_NO_WAIT 91
#define	LOG_WAIT_ONE_GROUP 92
#define	LOG_WAIT_ALL_GROUPS 93

Typedefs
typedef ib_uint64_t	lsn_t

Functions
UNIV_INTERN ulint	log_calc_where_lsn_is (ib_int64_t *log_file_offset, ib_uint64_t first_header_lsn, ib_uint64_t lsn, ulint n_log_files, ib_int64_t log_file_size)
UNIV_INLINE lsn_t	log_reserve_and_write_fast (const void str, ulint len, lsn_t start_lsn)
UNIV_INLINE void	log_release (void)
UNIV_INLINE void	log_free_check (void)
UNIV_INTERN lsn_t	log_reserve_and_open (ulint len)

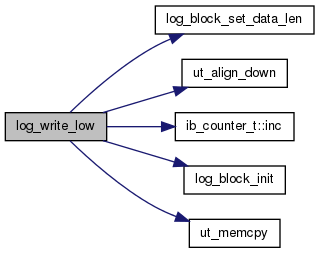

UNIV_INTERN void	log_write_low (byte *str, ulint str_len)

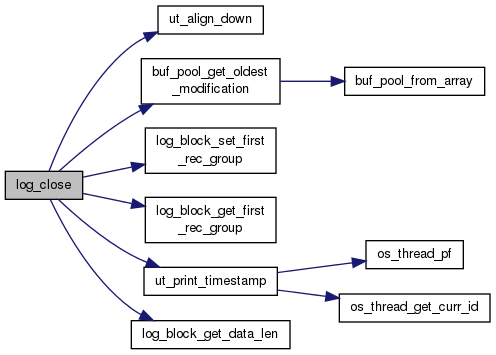

UNIV_INTERN lsn_t	log_close (void)
UNIV_INLINE lsn_t	log_get_lsn (void)
UNIV_INLINE lsn_t	log_get_capacity (void)
UNIV_INLINE lsn_t	log_get_max_modified_age_async (void)
UNIV_INTERN void	log_init (void)
UNIV_INTERN void	log_group_init (ulint id, ulint n_files, lsn_t file_size, ulint space_id, ulint archive_space_id)

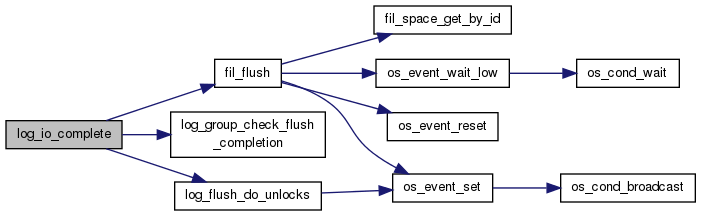

UNIV_INTERN void	log_io_complete (log_group_t *group)

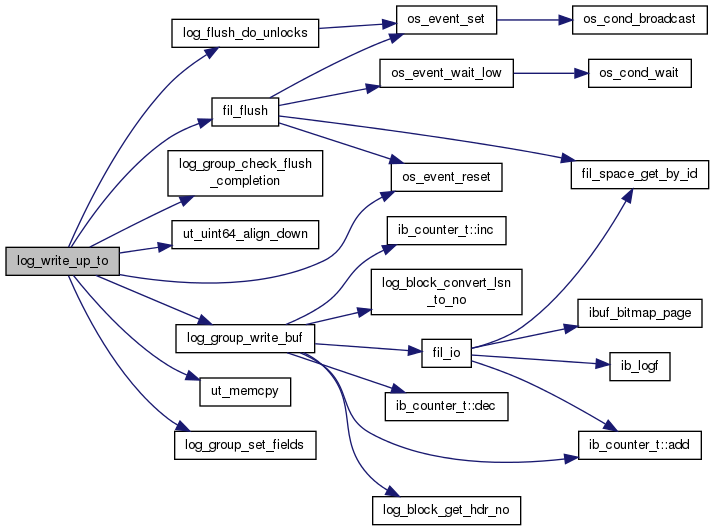

UNIV_INTERN void	log_write_up_to (lsn_t lsn, ulint wait, ibool flush_to_disk)
UNIV_INTERN void	log_buffer_flush_to_disk (void)
UNIV_INTERN void	log_buffer_sync_in_background (ibool flush)
UNIV_INTERN ibool	log_checkpoint (ibool sync, ibool write_always)
UNIV_INTERN void	log_make_checkpoint_at (lsn_t lsn, ibool write_always)

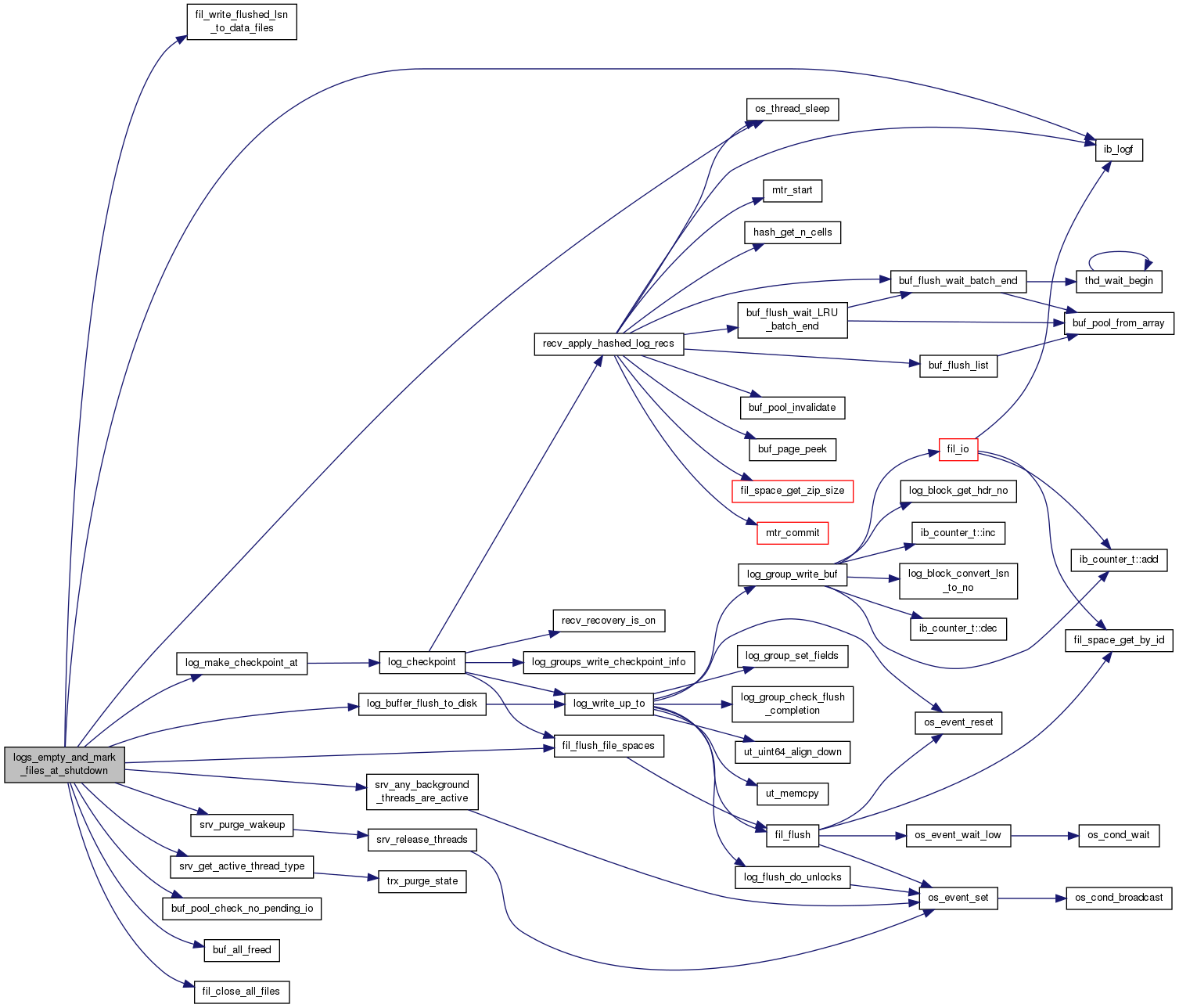

UNIV_INTERN void	logs_empty_and_mark_files_at_shutdown (void)
UNIV_INTERN void	log_group_read_checkpoint_info (log_group_t *group, ulint field)
UNIV_INTERN void	log_checkpoint_get_nth_group_info (const byte buf, ulint n, ulint file_no, ulint *offset)
UNIV_INTERN void	log_groups_write_checkpoint_info (void)
UNIV_INTERN ibool	log_archive_do (ibool sync, ulint *n_bytes)
UNIV_INTERN ulint	log_archive_stop (void)
UNIV_INTERN ulint	log_archive_start (void)
UNIV_INTERN ulint	log_archive_noarchivelog (void)
UNIV_INTERN ulint	log_archive_archivelog (void)
UNIV_INTERN void	log_archived_file_name_gen (char *buf, ulint id, ulint file_no)
UNIV_INTERN void	log_check_margins (void)

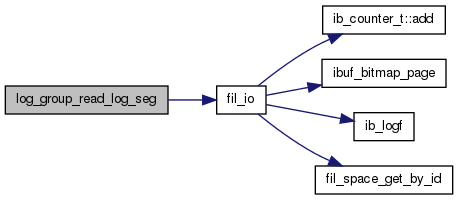

UNIV_INTERN void	log_group_read_log_seg (ulint type, byte buf, log_group_t group, lsn_t start_lsn, lsn_t end_lsn)
UNIV_INTERN void	log_group_write_buf (log_group_t group, byte buf, ulint len, lsn_t start_lsn, ulint new_data_offset)
UNIV_INTERN void	log_group_set_fields (log_group_t *group, lsn_t lsn)
UNIV_INTERN lsn_t	log_group_get_capacity (const log_group_t *group)
UNIV_INLINE ibool	log_block_get_flush_bit (const byte *log_block)
UNIV_INLINE ulint	log_block_get_hdr_no (const byte *log_block)
UNIV_INLINE ulint	log_block_get_data_len (const byte *log_block)
UNIV_INLINE void	log_block_set_data_len (byte *log_block, ulint len)
UNIV_INLINE ulint	log_block_calc_checksum (const byte *block)
UNIV_INLINE ulint	log_block_get_checksum (const byte *log_block)
UNIV_INLINE void	log_block_set_checksum (byte *log_block, ulint checksum)
UNIV_INLINE ulint	log_block_get_first_rec_group (const byte *log_block)
UNIV_INLINE void	log_block_set_first_rec_group (byte *log_block, ulint offset)
UNIV_INLINE ulint	log_block_get_checkpoint_no (const byte *log_block)
UNIV_INLINE void	log_block_init (byte *log_block, lsn_t lsn)
UNIV_INLINE void	log_block_init_in_old_format (byte *log_block, lsn_t lsn)
UNIV_INLINE ulint	log_block_convert_lsn_to_no (lsn_t lsn)
UNIV_INTERN void	log_print (FILE *file)
UNIV_INTERN ibool	log_peek_lsn (lsn_t *lsn)
UNIV_INTERN void	log_refresh_stats (void)
UNIV_INTERN void	log_group_close_all (void)

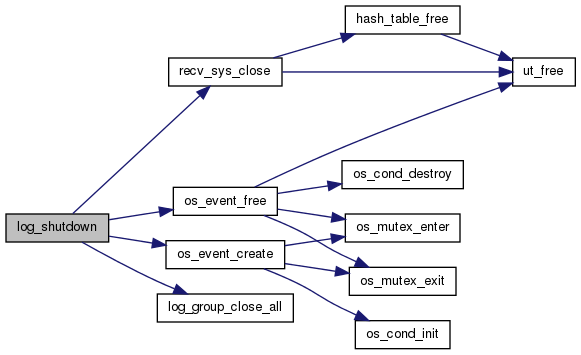

UNIV_INTERN void	log_shutdown (void)
UNIV_INTERN void	log_mem_free (void)

Variables
log_t *	log_sys

Detailed Description

Database log

Created 12/9/1995 Heikki Tuuri

Definition in file log0log.h.

Macro Definition Documentation

#define LOG_BLOCK_CHECKPOINT_NO

Value:

8       /* 4 lower bytes of the value of
                                        log_sys->next_checkpoint_no when the
                                        log block was last written to: if the
                                        block has not yet been written full,
                                        this value is only updated before a
                                        log buffer flush */

Definition at line 587 of file log0log.h.

#define LOG_BLOCK_CHECKSUM

Value:

4       /* 4 byte checksum of the log block
                                        contents; in InnoDB versions
                                        < 3.23.52 this did not contain the
                                        checksum but the same value as
                                        .._HDR_NO */

Definition at line 591 of file log0log.h.

#define LOG_BLOCK_FIRST_REC_GROUP

Value:

6       /* offset of the first start of an
                                        mtr log record group in this log block,
                                        0 if none; if the value is the same
                                        as LOG_BLOCK_HDR_DATA_LEN, it means
                                        that the first rec group has not yet
                                        been catenated to this log block, but
                                        if it will, it will start at this
                                        offset; an archive recovery can
                                        start parsing the log records starting
                                        from this offset in this log block,
                                        if value not 0 */

Definition at line 586 of file log0log.h.

#define LOG_BLOCK_HDR_DATA_LEN

Value:

4 /* number of bytes of log written to

this block */

Definition at line 585 of file log0log.h.

#define LOG_BLOCK_HDR_NO

Value:

0       /* block number which must be > 0 and
                                        is allowed to wrap around at 2G; the
                                        highest bit is set to 1 if this is the
                                        first log block in a log flush write
                                        segment */

Definition at line 581 of file log0log.h.

#define LOG_BLOCK_HDR_SIZE

Value:

12 /* size of the log block header in

bytes */

Definition at line 588 of file log0log.h.

#define LOG_CHECKPOINT_ARRAY_END

Value:

(LOG_CHECKPOINT_GROUP_ARRAY\

+ LOG_MAX_N_GROUPS * 8)

Definition at line 607 of file log0log.h.

#define log_do_write TRUE

Write to log

Definition at line 62 of file log0log.h.

#define LOG_FILE_NO

Value:

12      /* 4-byte archived log file number;
                                        this field is only defined in an
                                        archived log file */

Definition at line 647 of file log0log.h.

#define LOG_FILE_START_LSN

Value:

4 /* lsn of the start of data in this

log file */

Definition at line 646 of file log0log.h.

#define log_flush_order_mutex_enter ( )

Value:

do {            \
        mutex_enter(&log_sys->log_flush_order_mutex);   \
} while (0)

Acquire the flush order mutex.

Definition at line 947 of file log0log.h.

#define log_flush_order_mutex_exit ( )

Value:

do {            \
        mutex_exit(&log_sys->log_flush_order_mutex);    \
} while (0)

Release the flush order mutex.

Definition at line 951 of file log0log.h.

#define log_flush_order_mutex_own ( ) mutex_own(&log_sys->log_flush_order_mutex)

Test if flush order mutex is owned.

Definition at line 943 of file log0log.h.

#define LOG_MAX_N_GROUPS 32

Maximum number of log groups in log_group_t::checkpoint_buf

Definition at line 71 of file log0log.h.

#define LOG_NO_WAIT 91

Wait modes for log_write_up_to

Definition at line 66 of file log0log.h.

Function Documentation

UNIV_INTERN ulint log_archive_archivelog ( void )

Start archiving the log so that a gap may occur in the archived log files.

Returns: DB_SUCCESS or DB_ERROR

UNIV_INTERN ibool log_archive_do	(	ibool	sync,
		ulint *	n_bytes
	)

Starts an archiving operation.

Returns: TRUE if succeed, FALSE if an archiving operation was already running out: archive log buffer size, 0 if nothing to archive

Parameters

sync	in: TRUE if synchronous operation is desired

Here is the caller graph for this function:

UNIV_INTERN ulint log_archive_noarchivelog ( void )

Stop archiving the log so that a gap may occur in the archived log files.

Returns: DB_SUCCESS or DB_ERROR

UNIV_INTERN ulint log_archive_start ( void )

Starts again archiving which has been stopped.

Returns: DB_SUCCESS or DB_ERROR

UNIV_INTERN ulint log_archive_stop ( void )

Writes the log contents to the archive up to the lsn when this function was called, and stops the archiving. When archiving is started again, the archived log file numbers start from a number one higher, so that the archiving will not write again to the archived log files which exist when this function returns.

Returns: DB_SUCCESS or DB_ERROR

UNIV_INTERN void log_archived_file_name_gen	(	char *	buf,
		ulint	id,
		ulint	file_no
	)

Generates an archived log file name. in: file number

Parameters

buf	in: buffer where to write
id	in: group id

UNIV_INLINE ulint log_block_calc_checksum ( const byte * block )

Calculates the checksum for a log block.

Returns: checksum in: log block

Here is the caller graph for this function:

UNIV_INLINE ulint log_block_convert_lsn_to_no ( lsn_t lsn )

Converts a lsn to a log block number.

Returns: log block number, it is > 0 and <= 1G in: lsn of a byte within the block

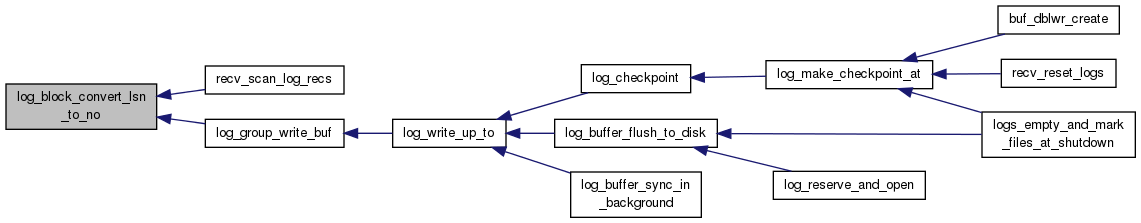

Here is the caller graph for this function:

UNIV_INLINE ulint log_block_get_checkpoint_no ( const byte * log_block )

Gets a log block checkpoint number field (4 lowest bytes).

Returns: checkpoint no (4 lowest bytes) in: log block

Here is the caller graph for this function:

UNIV_INLINE ulint log_block_get_checksum ( const byte * log_block )

Gets a log block checksum field value.

Returns: checksum in: log block

Here is the caller graph for this function:

UNIV_INLINE ulint log_block_get_data_len ( const byte * log_block )

Gets a log block data length.

Returns: log block data length measured as a byte offset from the block start in: log block

Here is the caller graph for this function:

UNIV_INLINE ulint log_block_get_first_rec_group ( const byte * log_block )

Gets a log block first mtr log record group offset.

Returns: first mtr log record group byte offset from the block start, 0 if none in: log block

Here is the caller graph for this function:

UNIV_INLINE ibool log_block_get_flush_bit ( const byte * log_block )

Gets a log block flush bit.

Returns: TRUE if this block was the first to be written in a log flush in: log block

Here is the caller graph for this function:

UNIV_INLINE ulint log_block_get_hdr_no ( const byte * log_block )

Gets a log block number stored in the header.

Returns: log block number stored in the block header in: log block

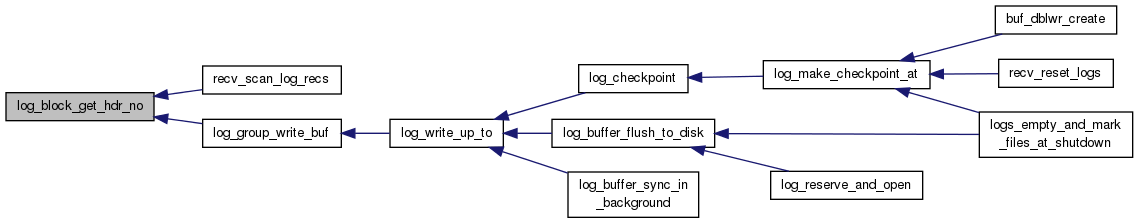

Here is the caller graph for this function:

UNIV_INLINE void log_block_init	(	byte *	log_block,
		lsn_t	lsn
	)

Initializes a log block in the log buffer. in: lsn within the log block

Parameters

log_block in: pointer to the log buffer

Here is the caller graph for this function:

UNIV_INLINE void log_block_init_in_old_format	(	byte *	log_block,
		lsn_t	lsn
	)

Initializes a log block in the log buffer in the old, < 3.23.52 format, where there was no checksum yet. in: lsn within the log block

Parameters

log_block in: pointer to the log buffer

UNIV_INLINE void log_block_set_checksum	(	byte *	log_block,
		ulint	checksum
	)

Sets a log block checksum field value. in: checksum

Parameters

log_block in/out: log block

UNIV_INLINE void log_block_set_data_len	(	byte *	log_block,
		ulint	len
	)

Sets the log block data length. in: data length

Parameters

log_block in/out: log block

Here is the caller graph for this function:

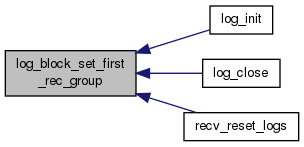

UNIV_INLINE void log_block_set_first_rec_group	(	byte *	log_block,
		ulint	offset
	)

Sets the log block first mtr log record group offset. in: offset, 0 if none

Parameters

log_block in/out: log block

Here is the caller graph for this function:

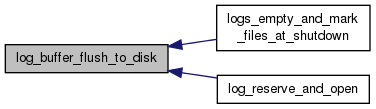

UNIV_INTERN void log_buffer_flush_to_disk ( void )

Does a syncronous flush of the log buffer to disk.

Definition at line 1549 of file log0log.cc.

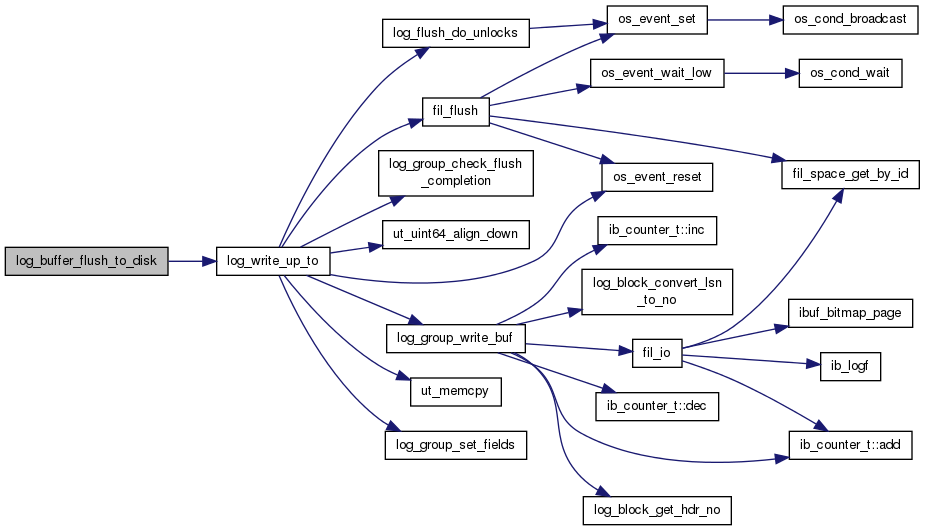

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void log_buffer_sync_in_background ( ibool flush )

This functions writes the log buffer to the log file and if 'flush' is set it forces a flush of the log file as well. This is meant to be called from background master thread only as it does not wait for the write (+ possible flush) to finish.

Parameters

flush in: flush the logs to disk

Definition at line 1571 of file log0log.cc.

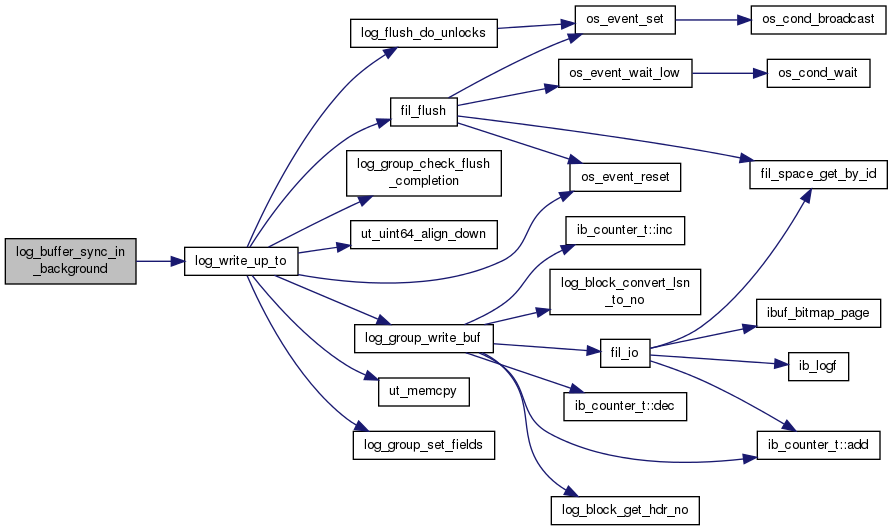

Here is the call graph for this function:

UNIV_INTERN ulint log_calc_where_lsn_is	(	ib_int64_t *	log_file_offset,
		ib_uint64_t	first_header_lsn,
		ib_uint64_t	lsn,
		ulint	n_log_files,
		ib_int64_t	log_file_size
	)

Calculates where in log files we find a specified lsn.

Returns: log file number in: log file size (including the header)

Calculates where in log files we find a specified lsn.

Returns: log file number

Parameters

log_file_offset	out: offset in that file (including the header)
first_header_lsn	in: first log file start lsn
lsn	in: lsn whose position to determine
n_log_files	in: total number of log files
log_file_size	in: log file size (including the header)

Definition at line 567 of file log0log.cc.

UNIV_INTERN void log_check_margins ( void )

Checks that there is enough free space in the log to start a new query step. Flushes the log buffer or makes a new checkpoint if necessary. NOTE: this function may only be called if the calling thread owns no synchronization objects!

Definition at line 3054 of file log0log.cc.

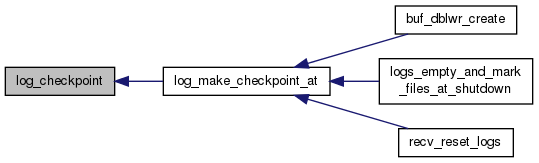

UNIV_INTERN ibool log_checkpoint	(	ibool	sync,
		ibool	write_always
	)

Makes a checkpoint. Note that this function does not flush dirty blocks from the buffer pool: it only checks what is lsn of the oldest modification in the pool, and writes information about the lsn in log files. Use log_make_checkpoint_at to flush also the pool.

Returns: TRUE if success, FALSE if a checkpoint write was already running in: the function normally checks if the the new checkpoint would have a greater lsn than the previous one: if not, then no physical write is done; by setting this parameter TRUE, a physical write will always be made to log files

Makes a checkpoint. Note that this function does not flush dirty blocks from the buffer pool: it only checks what is lsn of the oldest modification in the pool, and writes information about the lsn in log files. Use log_make_checkpoint_at to flush also the pool.

Returns: TRUE if success, FALSE if a checkpoint write was already running

Parameters

sync	in: TRUE if synchronous operation is desired
write_always	in: the function normally checks if the the new checkpoint would have a greater lsn than the previous one: if not, then no physical write is done; by setting this parameter TRUE, a physical write will always be made to log files

Definition at line 1966 of file log0log.cc.

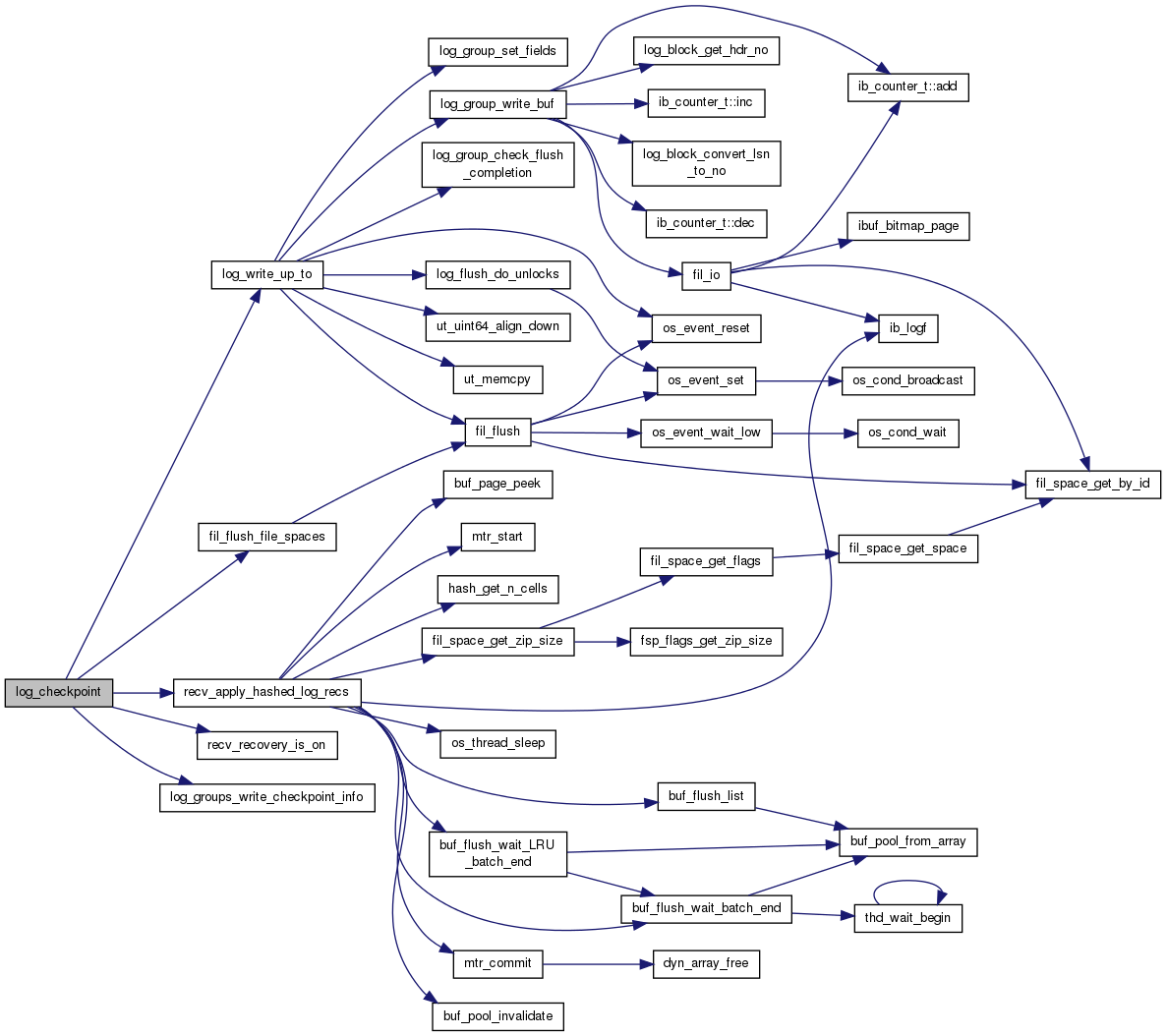

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void log_checkpoint_get_nth_group_info	(	const byte *	buf,
		ulint	n,
		ulint *	file_no,
		ulint *	offset
	)

Gets info from a checkpoint about a log group. out: archived file offset

Gets info from a checkpoint about a log group.

Parameters

buf	in: buffer containing checkpoint info
n	in: nth slot
file_no	out: archived file number
offset	out: archived file offset

Definition at line 1726 of file log0log.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN lsn_t log_close ( void )

Closes the log.

Returns: lsn

Definition at line 338 of file log0log.cc.

Here is the call graph for this function:

UNIV_INLINE void log_free_check ( void )

Checks if there is need for a log buffer flush or a new checkpoint, and does this if yes. Any database operation should call this when it has modified more than about 4 pages. NOTE that this function may only be called when the OS thread owns no synchronization objects except the dictionary mutex.

UNIV_INLINE lsn_t log_get_lsn ( void )

Gets the current lsn.

Returns: current lsn

Here is the caller graph for this function:

UNIV_INTERN void log_group_close_all ( void )

Closes all log groups.

Definition at line 3555 of file log0log.cc.

Here is the caller graph for this function:

UNIV_INTERN lsn_t log_group_get_capacity ( const log_group_t * group )

Calculates the data capacity of a log group, when the log file headers are not included.

Returns: capacity in bytes in: log group

Calculates the data capacity of a log group, when the log file headers are not included.

Returns: capacity in bytes

Parameters

group in: log group

Definition at line 467 of file log0log.cc.

Here is the caller graph for this function:

UNIV_INTERN void log_group_init	(	ulint	id,
		ulint	n_files,
		lsn_t	file_size,
		ulint	space_id,
		ulint	archive_space_id
	)

Inits a log group to the log system. in: space id of the file space which contains some archived log files for this group; currently, only for the first log group this is used

Parameters

id	in: group id
n_files	in: number of log files
file_size	in: log file size in bytes
space_id	in: space id of the file space which contains the log files of this group

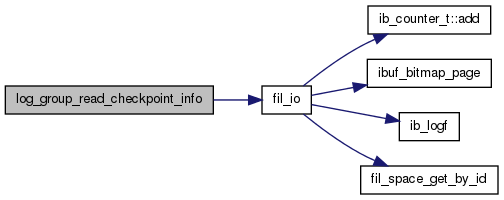

UNIV_INTERN void log_group_read_checkpoint_info	(	log_group_t *	group,
		ulint	field
	)

Reads a checkpoint info from a log group header to log_sys->checkpoint_buf. in: LOG_CHECKPOINT_1 or LOG_CHECKPOINT_2

Reads a checkpoint info from a log group header to log_sys->checkpoint_buf.

Parameters

group	in: log group
field	in: LOG_CHECKPOINT_1 or LOG_CHECKPOINT_2

Definition at line 1921 of file log0log.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void log_group_read_log_seg	(	ulint	type,
		byte *	buf,
		log_group_t *	group,
		lsn_t	start_lsn,
		lsn_t	end_lsn
	)

Reads a specified log segment to a buffer. in: read area end

Reads a specified log segment to a buffer.

Parameters

type	in: LOG_ARCHIVE or LOG_RECOVER
buf	in: buffer where to read
group	in: log group
start_lsn	in: read area start
end_lsn	in: read area end

Definition at line 2181 of file log0log.cc.

Here is the call graph for this function:

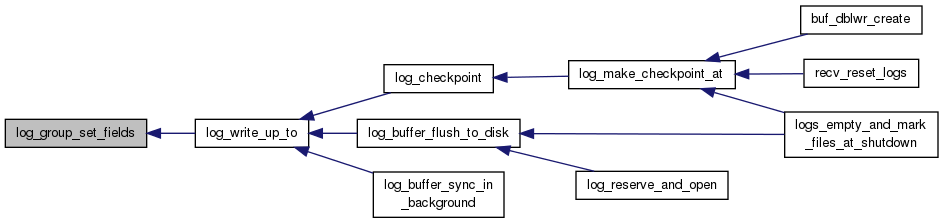

UNIV_INTERN void log_group_set_fields	(	log_group_t *	group,
		lsn_t	lsn
	)

Sets the field values in group to correspond to a given lsn. For this function to work, the values must already be correctly initialized to correspond to some lsn, for instance, a checkpoint lsn. in: lsn for which the values should be set

Sets the field values in group to correspond to a given lsn. For this function to work, the values must already be correctly initialized to correspond to some lsn, for instance, a checkpoint lsn.

Parameters

group	in/out: group
lsn	in: lsn for which the values should be set

Definition at line 609 of file log0log.cc.

Here is the caller graph for this function:

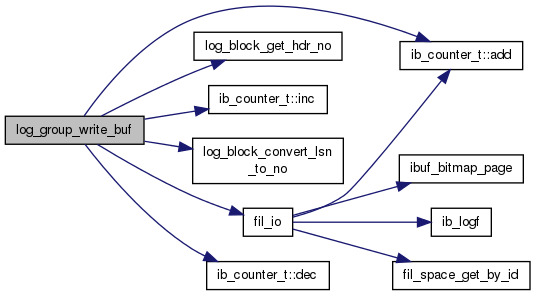

UNIV_INTERN void log_group_write_buf	(	log_group_t *	group,
		byte *	buf,
		ulint	len,
		lsn_t	start_lsn,
		ulint	new_data_offset
	)

Writes a buffer to a log file group. in: start offset of new data in buf: this parameter is used to decide if we have to write a new log file header

Writes a buffer to a log file group.

Parameters

group	in: log group
buf	in: buffer
len	in: buffer len; must be divisible by OS_FILE_LOG_BLOCK_SIZE
start_lsn	in: start lsn of the buffer; must be divisible by OS_FILE_LOG_BLOCK_SIZE
new_data_offset	in: start offset of new data in buf: this parameter is used to decide if we have to write a new log file header

Definition at line 1190 of file log0log.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void log_groups_write_checkpoint_info ( void )

Writes checkpoint info to groups.

Definition at line 1941 of file log0log.cc.

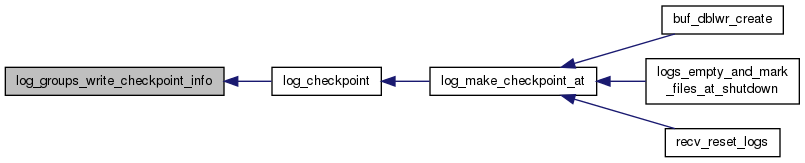

Here is the caller graph for this function:

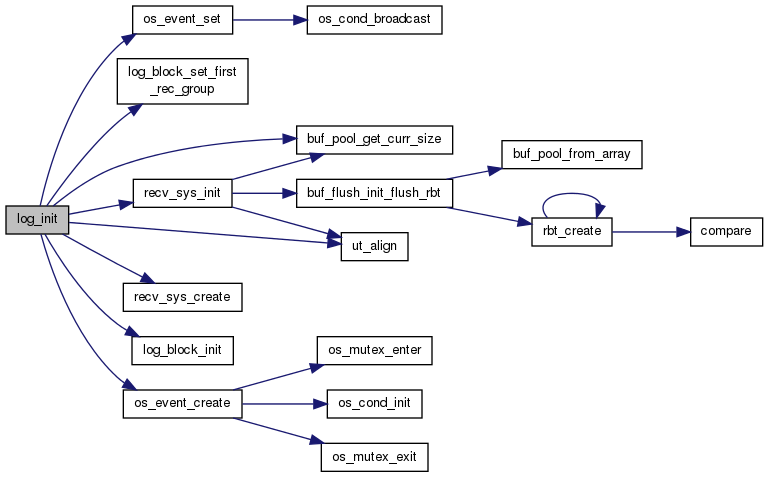

UNIV_INTERN void log_init ( void )

Initializes the log.

Definition at line 732 of file log0log.cc.

Here is the call graph for this function:

UNIV_INTERN void log_io_complete ( log_group_t * group )

Completes an i/o to a log file. in: log group

Completes an i/o to a log file.

< We currently use synchronous writing of the logs and cannot end up here!

Parameters

group in: log group or a dummy pointer

Definition at line 1054 of file log0log.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

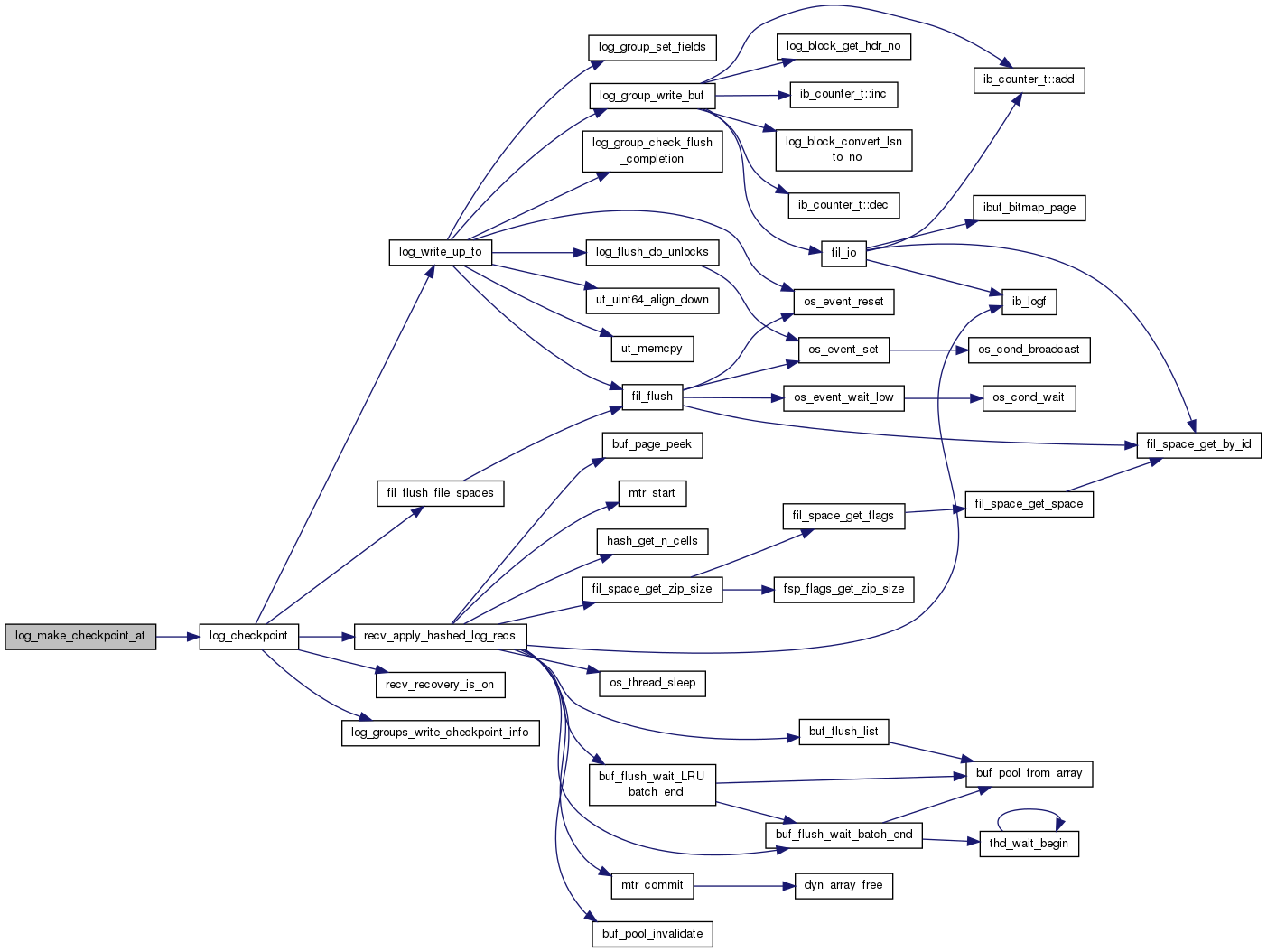

UNIV_INTERN void log_make_checkpoint_at	(	lsn_t	lsn,
		ibool	write_always
	)

Makes a checkpoint at a given lsn or later. in: the function normally checks if the new checkpoint would have a greater lsn than the previous one: if not, then no physical write is done; by setting this parameter TRUE, a physical write will always be made to log files

Makes a checkpoint at a given lsn or later.

Parameters

lsn	in: make a checkpoint at this or a later lsn, if LSN_MAX, makes a checkpoint at the latest lsn
write_always	in: the function normally checks if the new checkpoint would have a greater lsn than the previous one: if not, then no physical write is done; by setting this parameter TRUE, a physical write will always be made to log files

Definition at line 2062 of file log0log.cc.

Here is the call graph for this function:

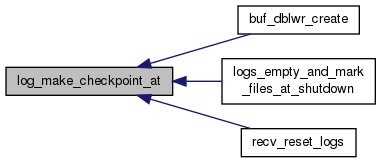

Here is the caller graph for this function:

UNIV_INTERN void log_mem_free ( void )

Free the log system data structures.

Definition at line 3611 of file log0log.cc.

Here is the call graph for this function:

UNIV_INTERN ibool log_peek_lsn ( lsn_t * lsn )

Peeks the current lsn.

Returns: TRUE if success, FALSE if could not get the log system mutex out: if returns TRUE, current lsn is here

Peeks the current lsn.

Returns: TRUE if success, FALSE if could not get the log system mutex

Parameters

lsn	out: if returns TRUE, current lsn is here

Definition at line 3448 of file log0log.cc.

Here is the caller graph for this function:

UNIV_INTERN void log_print ( FILE * file )

Prints info of the log. in: file where to print

Prints info of the log.

Parameters

file	in: file where to print

Definition at line 3467 of file log0log.cc.

Here is the caller graph for this function:

UNIV_INTERN void log_refresh_stats ( void )

Refreshes the statistics used to print per-second averages.

Definition at line 3514 of file log0log.cc.

UNIV_INLINE void log_release ( void )

Releases the log mutex.

UNIV_INTERN lsn_t log_reserve_and_open ( ulint len )

Opens the log for log_write_low. The log must be closed with log_close and released with log_release.

Returns: start lsn of the log record in: length of data to be catenated

Opens the log for log_write_low. The log must be closed with log_close and released with log_release.

Returns: start lsn of the log record

Parameters

len	in: length of data to be catenated

Definition at line 192 of file log0log.cc.

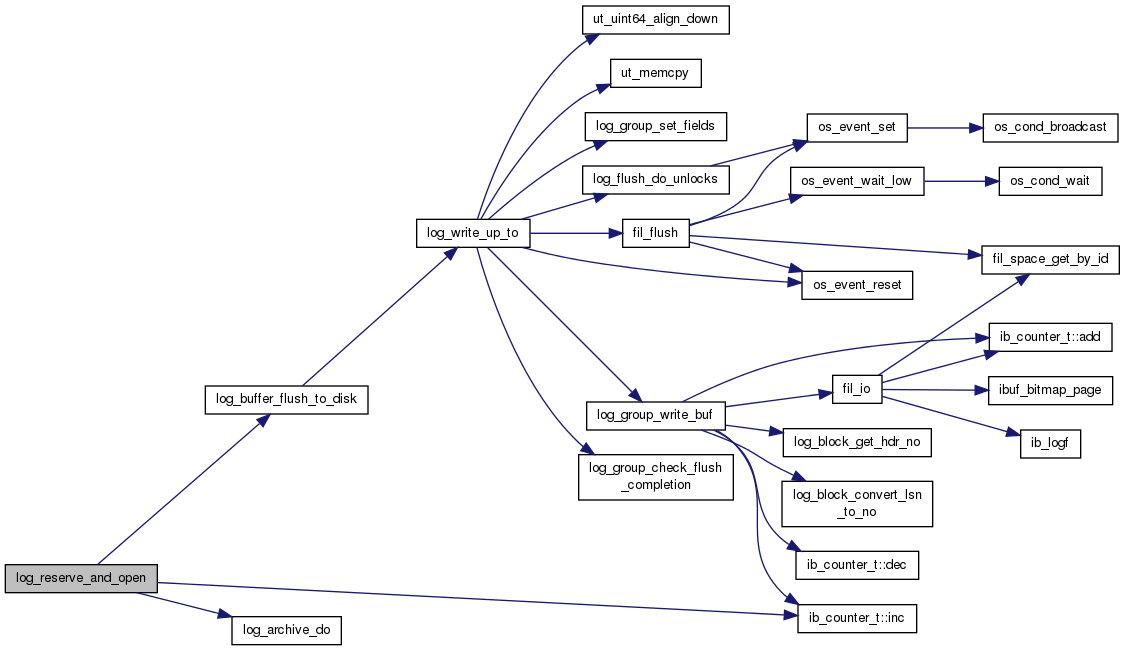

Here is the call graph for this function:

UNIV_INLINE lsn_t log_reserve_and_write_fast	(	const void *	str,
		ulint	len,
		lsn_t *	start_lsn
	)

Writes to the log the string given. The log must be released with log_release.

Returns: end lsn of the log record, zero if did not succeed out: start lsn of the log record

Parameters

str	in: string
len	in: string length

UNIV_INTERN void log_shutdown ( void )

Shutdown the log system but do not release all the memory.

Definition at line 3576 of file log0log.cc.

Here is the call graph for this function:

UNIV_INTERN void log_write_low	(	byte *	str,
		ulint	str_len
	)

Writes to the log the string given. It is assumed that the caller holds the log mutex. in: string length

Writes to the log the string given. It is assumed that the caller holds the log mutex.

Parameters

str	in: string
str_len	in: string length

Definition at line 266 of file log0log.cc.

Here is the call graph for this function:

UNIV_INTERN void log_write_up_to	(	lsn_t	lsn,
		ulint	wait,
		ibool	flush_to_disk
	)

This function is called, e.g., when a transaction wants to commit. It checks that the log has been written to the log file up to the last log entry written by the transaction. If there is a flush running, it waits and checks if the flush flushed enough. If not, starts a new flush. in: TRUE if we want the written log also to be flushed to disk

This function is called, e.g., when a transaction wants to commit. It checks that the log has been written to the log file up to the last log entry written by the transaction. If there is a flush running, it waits and checks if the flush flushed enough. If not, starts a new flush.

< We assume here that we have only one log group!

Parameters

lsn	in: log sequence number up to which the log should be written, LSN_MAX if not specified
wait	in: LOG_NO_WAIT, LOG_WAIT_ONE_GROUP, or LOG_WAIT_ALL_GROUPS
flush_to_disk	in: TRUE if we want the written log also to be flushed to disk

Definition at line 1321 of file log0log.cc.

Here is the call graph for this function:

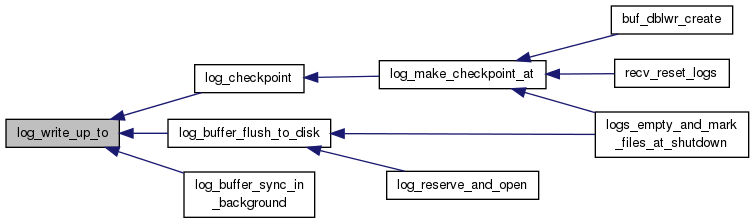

Here is the caller graph for this function:

UNIV_INTERN void logs_empty_and_mark_files_at_shutdown ( void )

Makes a checkpoint at the latest lsn and writes it to first page of each data file in the database, so that we know that the file spaces contain all modifications up to that lsn. This can only be called at database shutdown. This function also writes all log in log files to the log archive.

Definition at line 3086 of file log0log.cc.

Here is the call graph for this function:

Classes

Macros

Typedefs

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation
