#include "univ.i"
#include "buf0types.h"
#include "trx0types.h"
#include "mtr0types.h"
#include "rem0types.h"
#include "dict0types.h"
#include "que0types.h"
#include "lock0types.h"
#include "read0types.h"
#include "hash0hash.h"
#include "srv0srv.h"
#include "ut0vec.h"
#include "lock0lock.ic"

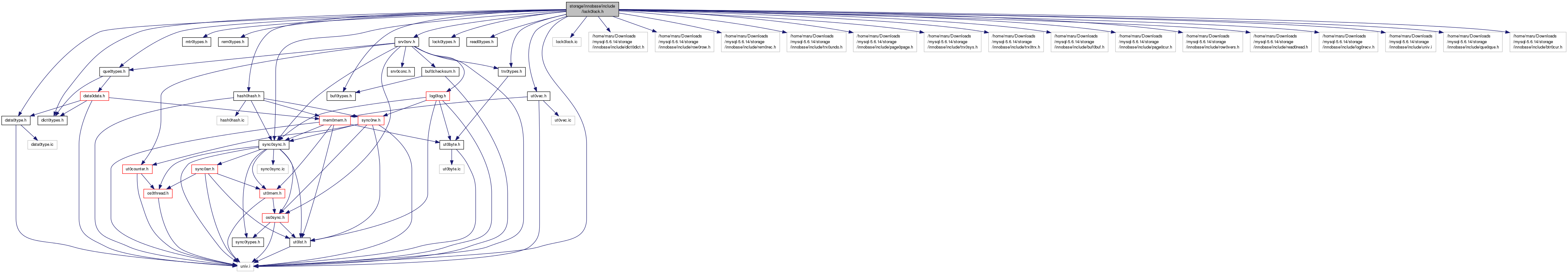

Include dependency graph for lock0lock.h:

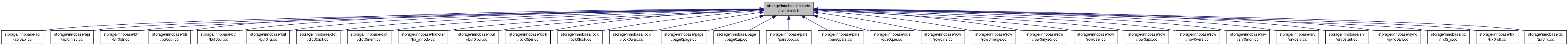

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	lock_op_t
struct	lock_sys_t

Macros
#define	lock_is_wait_not_by_other(type_mode) ((type_mode & (LOCK_CONV_BY_OTHER \| LOCK_WAIT)) == LOCK_WAIT)
#define	lock_mutex_enter_nowait() mutex_enter_nowait(&lock_sys->mutex)
#define	lock_mutex_own() mutex_own(&lock_sys->mutex)
#define	lock_mutex_enter()
#define	lock_mutex_exit()
#define	lock_wait_mutex_own() mutex_own(&lock_sys->wait_mutex)
#define	lock_wait_mutex_enter()
#define	lock_wait_mutex_exit()

#define	LOCK_MODE_MASK 0xFUL
#define	LOCK_TABLE 16
#define	LOCK_REC 32
#define	LOCK_TYPE_MASK 0xF0UL
#define	LOCK_WAIT 256
#define	LOCK_ORDINARY 0
#define	LOCK_GAP 512
#define	LOCK_REC_NOT_GAP 1024
#define	LOCK_INSERT_INTENTION 2048
#define	LOCK_CONV_BY_OTHER 4096

Functions

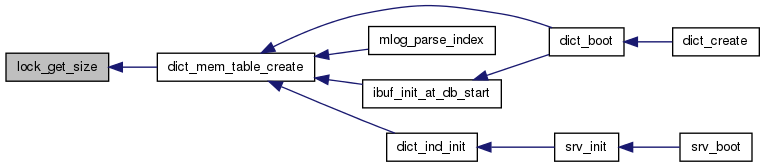

UNIV_INTERN ulint	lock_get_size (void)
UNIV_INTERN void	lock_sys_create (ulint n_cells)
UNIV_INTERN void	lock_sys_close (void)
UNIV_INLINE ulint	lock_get_min_heap_no (const buf_block_t *block)
UNIV_INTERN void	lock_move_reorganize_page (const buf_block_t block, const buf_block_t oblock)
UNIV_INTERN void	lock_move_rec_list_end (const buf_block_t new_block, const buf_block_t block, const rec_t *rec)
UNIV_INTERN void	lock_move_rec_list_start (const buf_block_t new_block, const buf_block_t block, const rec_t rec, const rec_t old_end)
UNIV_INTERN void	lock_update_split_right (const buf_block_t right_block, const buf_block_t left_block)
UNIV_INTERN void	lock_update_merge_right (const buf_block_t right_block, const rec_t orig_succ, const buf_block_t *left_block)
UNIV_INTERN void	lock_update_root_raise (const buf_block_t block, const buf_block_t root)
UNIV_INTERN void	lock_update_copy_and_discard (const buf_block_t new_block, const buf_block_t block)
UNIV_INTERN void	lock_update_split_left (const buf_block_t right_block, const buf_block_t left_block)
UNIV_INTERN void	lock_update_merge_left (const buf_block_t left_block, const rec_t orig_pred, const buf_block_t *right_block)
UNIV_INTERN void	lock_rec_reset_and_inherit_gap_locks (const buf_block_t heir_block, const buf_block_t block, ulint heir_heap_no, ulint heap_no)
UNIV_INTERN void	lock_update_discard (const buf_block_t heir_block, ulint heir_heap_no, const buf_block_t block)
UNIV_INTERN void	lock_update_insert (const buf_block_t block, const rec_t rec)

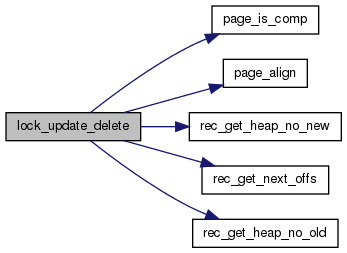

UNIV_INTERN void	lock_update_delete (const buf_block_t block, const rec_t rec)
UNIV_INTERN void	lock_rec_store_on_page_infimum (const buf_block_t block, const rec_t rec)
UNIV_INTERN void	lock_rec_restore_from_page_infimum (const buf_block_t block, const rec_t rec, const buf_block_t *donator)
UNIV_INTERN lock_t *	lock_rec_expl_exist_on_page (ulint space, ulint page_no) __attribute__((warn_unused_result))
UNIV_INTERN dberr_t	lock_rec_insert_check_and_lock (ulint flags, const rec_t rec, buf_block_t block, dict_index_t index, que_thr_t thr, mtr_t mtr, ibool inherit) __attribute__((nonnull
UNIV_INTERN dberr_t	lock_clust_rec_modify_check_and_lock (ulint flags, const buf_block_t block, const rec_t rec, dict_index_t index, const ulint offsets, que_thr_t *thr) __attribute__((warn_unused_result
UNIV_INTERN dberr_t	lock_sec_rec_modify_check_and_lock (ulint flags, buf_block_t block, const rec_t rec, dict_index_t index, que_thr_t thr, mtr_t *mtr) __attribute__((warn_unused_result
UNIV_INTERN dberr_t	nonnull (2, 3, 4, 6)))
UNIV_INTERN dberr_t	lock_sec_rec_read_check_and_lock (ulint flags, const buf_block_t block, const rec_t rec, dict_index_t index, const ulint offsets, enum lock_mode mode, ulint gap_mode, que_thr_t *thr)
UNIV_INTERN dberr_t	lock_clust_rec_read_check_and_lock (ulint flags, const buf_block_t block, const rec_t rec, dict_index_t index, const ulint offsets, enum lock_mode mode, ulint gap_mode, que_thr_t *thr)
UNIV_INTERN dberr_t	lock_clust_rec_read_check_and_lock_alt (ulint flags, const buf_block_t block, const rec_t rec, dict_index_t index, enum lock_mode mode, ulint gap_mode, que_thr_t thr) __attribute__((nonnull
UNIV_INTERN bool	lock_clust_rec_cons_read_sees (const rec_t rec, dict_index_t index, const ulint offsets, read_view_t view)
UNIV_INTERN bool	lock_sec_rec_cons_read_sees (const rec_t rec, const read_view_t view) __attribute__((nonnull
UNIV_INTERN dberr_t	lock_table (ulint flags, dict_table_t table, enum lock_mode mode, que_thr_t thr) __attribute__((nonnull

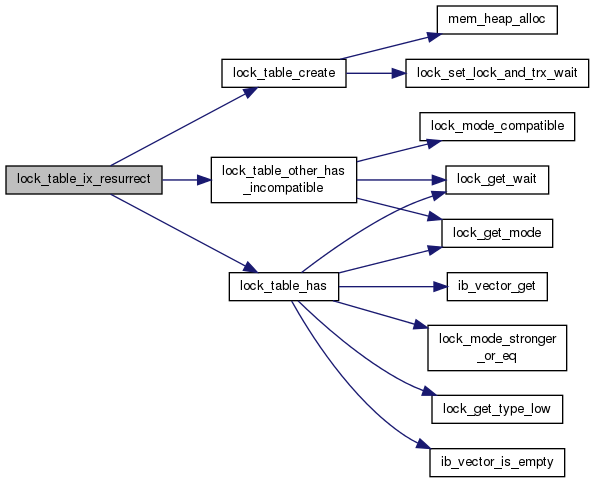

UNIV_INTERN void	lock_table_ix_resurrect (dict_table_t table, trx_t trx)
UNIV_INTERN void	lock_rec_unlock (trx_t trx, const buf_block_t block, const rec_t *rec, enum lock_mode lock_mode)
UNIV_INTERN void	lock_trx_release_locks (trx_t *trx)
UNIV_INTERN void	lock_remove_all_on_table (dict_table_t *table, ibool remove_also_table_sx_locks)
UNIV_INLINE ulint	lock_rec_fold (ulint space, ulint page_no) __attribute__((const ))

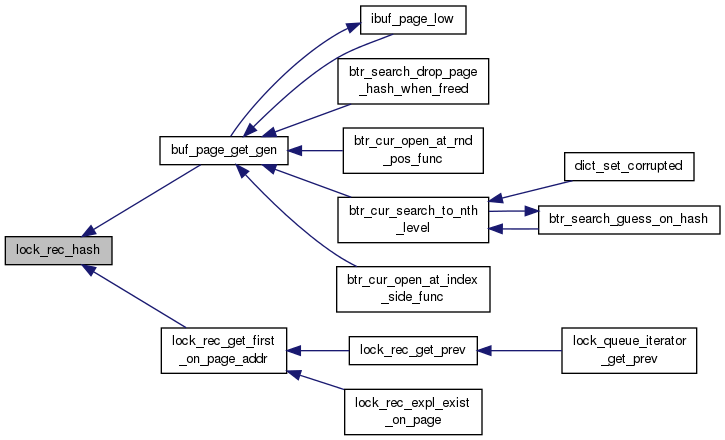

UNIV_INLINE ulint	lock_rec_hash (ulint space, ulint page_no)
UNIV_INTERN ulint	lock_rec_find_set_bit (const lock_t *lock)
UNIV_INTERN dict_table_t *	lock_get_src_table (trx_t trx, dict_table_t dest, enum lock_mode *mode)
UNIV_INTERN ibool	lock_is_table_exclusive (const dict_table_t table, const trx_t trx) __attribute__((nonnull))
UNIV_INTERN ibool	lock_has_to_wait (const lock_t lock1, const lock_t lock2)
UNIV_INTERN void	lock_report_trx_id_insanity (trx_id_t trx_id, const rec_t rec, dict_index_t index, const ulint *offsets, trx_id_t max_trx_id) __attribute__((nonnull))

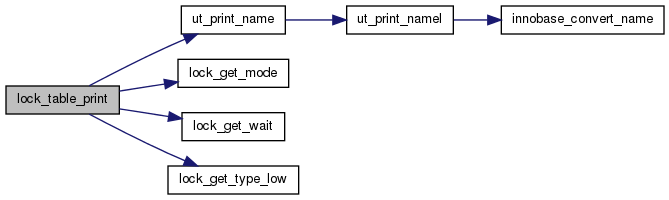

UNIV_INTERN void	lock_table_print (FILE file, const lock_t lock)
UNIV_INTERN void	lock_rec_print (FILE file, const lock_t lock)
UNIV_INTERN ibool	lock_print_info_summary (FILE *file, ibool nowait) __attribute__((nonnull

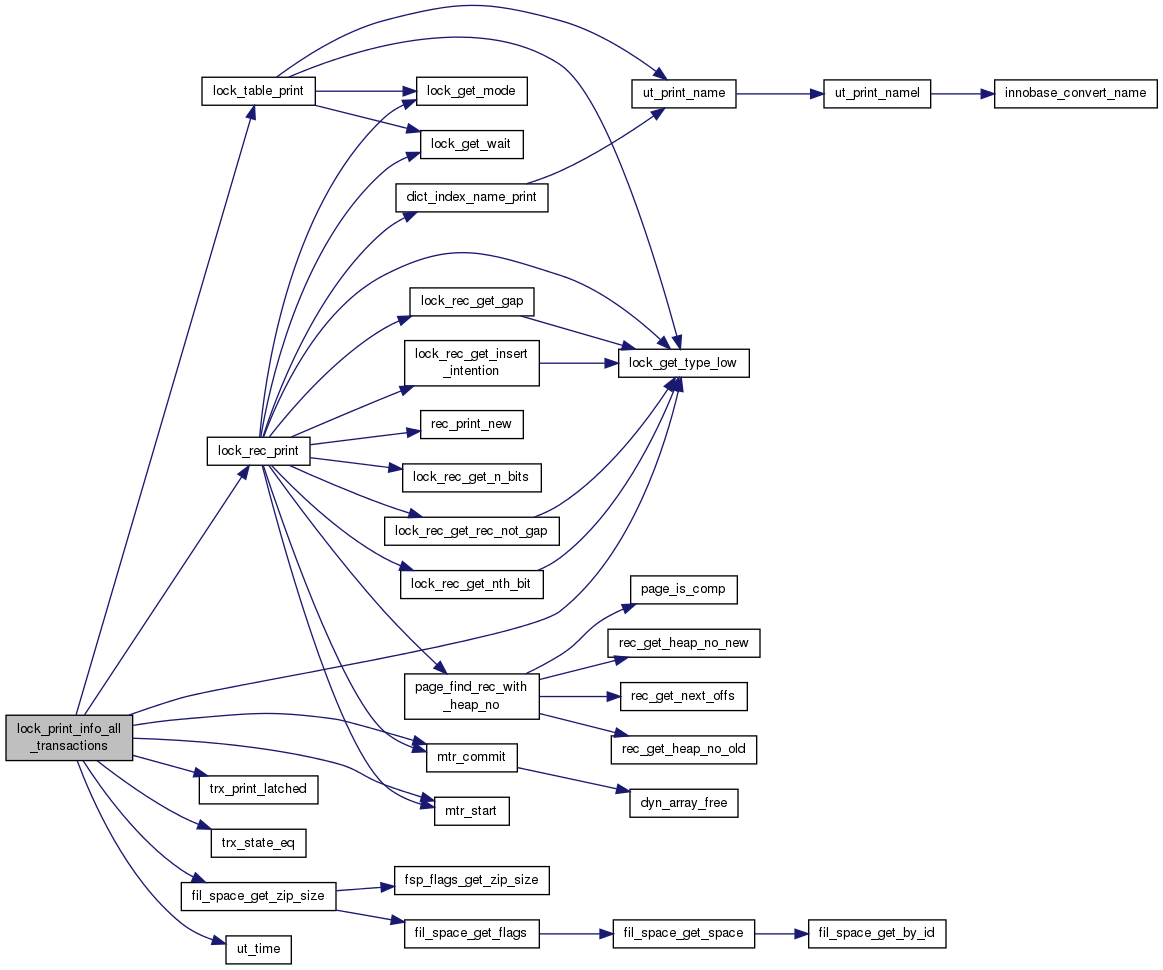

UNIV_INTERN void	lock_print_info_all_transactions (FILE *file)
UNIV_INTERN ulint	lock_number_of_rows_locked (const trx_lock_t *trx_lock) __attribute__((nonnull
UNIV_INTERN ulint	lock_get_type (const lock_t *lock)
UNIV_INTERN trx_id_t	lock_get_trx_id (const lock_t *lock)
UNIV_INTERN const char *	lock_get_mode_str (const lock_t *lock)
UNIV_INTERN const char *	lock_get_type_str (const lock_t *lock)
UNIV_INTERN table_id_t	lock_get_table_id (const lock_t *lock)
UNIV_INTERN const char *	lock_get_table_name (const lock_t *lock)
UNIV_INTERN const dict_index_t *	lock_rec_get_index (const lock_t *lock)
UNIV_INTERN const char *	lock_rec_get_index_name (const lock_t *lock)
UNIV_INTERN ulint	lock_rec_get_space_id (const lock_t *lock)
UNIV_INTERN ulint	lock_rec_get_page_no (const lock_t *lock)
UNIV_INTERN ibool	lock_table_has_locks (const dict_table_t *table)
UNIV_INTERN os_thread_ret_t DECLARE_THREAD()	lock_wait_timeout_thread (void *arg)
UNIV_INTERN void	lock_wait_release_thread_if_suspended (que_thr_t *thr)
UNIV_INTERN void	lock_wait_suspend_thread (que_thr_t *thr)
UNIV_INTERN void	lock_unlock_table_autoinc (trx_t *trx)

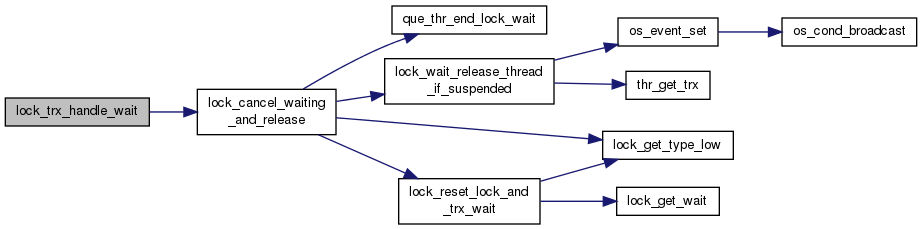

UNIV_INTERN dberr_t	lock_trx_handle_wait (trx_t *trx) __attribute__((nonnull))
UNIV_INTERN ulint	lock_table_get_n_locks (const dict_table_t *table) __attribute__((nonnull))

Variables
UNIV_INTERN dberr_t	warn_unused_result
UNIV_INTERN dberr_t	nonnull
lock_sys_t *	lock_sys

Detailed Description

The transaction lock system

Created 5/7/1996 Heikki Tuuri

Definition in file lock0lock.h.

Macro Definition Documentation

#define LOCK_CONV_BY_OTHER 4096

this bit is set when the lock is created by other transaction

Definition at line 895 of file lock0lock.h.

#define LOCK_GAP 512

when this bit is set, it means that the lock holds only on the gap before the record; for instance, an x-lock on the gap does not give permission to modify the record on which the bit is set; locks of this type are created when records are removed from the index chain of records

Definition at line 872 of file lock0lock.h.

#define LOCK_INSERT_INTENTION 2048

this bit is set when we place a waiting gap type record lock request in order to let an insert of an index record to wait until there are no conflicting locks by other transactions on the gap; note that this flag remains set when the waiting lock is granted, or if the lock is inherited to a neighboring record

Definition at line 887 of file lock0lock.h.

#define lock_is_wait_not_by_other ( type_mode ) ((type_mode & (LOCK_CONV_BY_OTHER | LOCK_WAIT)) == LOCK_WAIT)

Checks if this is a waiting lock created by lock->trx itself.

Parameters

type_mode lock->type_mode

Returns: whether it is a waiting lock belonging to lock->trx

Definition at line 908 of file lock0lock.h.

#define LOCK_MODE_MASK 0xFUL

Lock modes and types mask used to extract mode from the type_mode field in a lock

Definition at line 852 of file lock0lock.h.

#define lock_mutex_enter ( )

Value:

do {                    \
        mutex_enter(&lock_sys->mutex);          \
} while (0)

Acquire the lock_sys->mutex.

Definition at line 960 of file lock0lock.h.

#define lock_mutex_enter_nowait ( ) mutex_enter_nowait(&lock_sys->mutex)

Test if lock_sys->mutex can be acquired without waiting.

Definition at line 954 of file lock0lock.h.

#define lock_mutex_exit ( )

Value:

do {                    \
        mutex_exit(&lock_sys->mutex);           \
} while (0)

Release the lock_sys->mutex.

Definition at line 965 of file lock0lock.h.

#define lock_mutex_own ( ) mutex_own(&lock_sys->mutex)

Test if lock_sys->mutex is owned.

Definition at line 957 of file lock0lock.h.

#define LOCK_ORDINARY 0

this flag denotes an ordinary next-key lock in contrast to LOCK_GAP or LOCK_REC_NOT_GAP

Definition at line 869 of file lock0lock.h.

#define LOCK_REC 32

record lock

Definition at line 857 of file lock0lock.h.

#define LOCK_REC_NOT_GAP 1024

this bit means that the lock is only on the index record and does NOT block inserts to the gap before the index record; this is used in the case when we retrieve a record with a unique key, and is also used in locking plain SELECTs (not part of UPDATE or DELETE) when the user has set the READ COMMITTED isolation level

Definition at line 879 of file lock0lock.h.

#define LOCK_TABLE 16

Lock types table lock

Definition at line 856 of file lock0lock.h.

#define LOCK_TYPE_MASK 0xF0UL

mask used to extract lock type from the type_mode field in a lock

Definition at line 858 of file lock0lock.h.

#define LOCK_WAIT 256

Waiting lock flag; when set, it means that the lock has not yet been granted, it is just waiting for its turn in the wait queue

Definition at line 864 of file lock0lock.h.

#define lock_wait_mutex_enter ( )

Value:

do {            \
        mutex_enter(&lock_sys->wait_mutex);     \
} while (0)

Acquire the lock_sys->wait_mutex.

Definition at line 973 of file lock0lock.h.

#define lock_wait_mutex_exit ( )

Value:

do {            \
        mutex_exit(&lock_sys->wait_mutex);      \
} while (0)

Release the lock_sys->wait_mutex.

Definition at line 978 of file lock0lock.h.

#define lock_wait_mutex_own ( ) mutex_own(&lock_sys->wait_mutex)

Test if lock_sys->wait_mutex is owned.

Definition at line 970 of file lock0lock.h.

Function Documentation

UNIV_INTERN bool lock_clust_rec_cons_read_sees	(	const rec_t *	rec,
		dict_index_t *	index,
		const ulint *	offsets,
		read_view_t *	view
	)

Checks that a record is seen in a consistent read.

Returns: true if sees, or false if an earlier version of the record should be retrieved in: consistent read view

Checks that a record is seen in a consistent read.

Returns: true if sees, or false if an earlier version of the record should be retrieved

Parameters

rec	in: user record which should be read or passed over by a read cursor
index	in: clustered index
offsets	in: rec_get_offsets(rec, index)
view	in: consistent read view

Definition at line 526 of file lock0lock.cc.

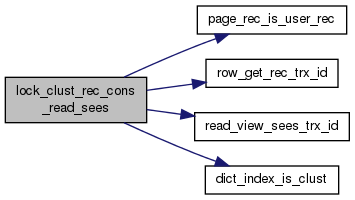

Here is the call graph for this function:

UNIV_INTERN dberr_t lock_clust_rec_modify_check_and_lock	(	ulint	flags,
		const buf_block_t *	block,
		const rec_t *	rec,
		dict_index_t *	index,
		const ulint *	offsets,
		que_thr_t *	thr
	)

Checks if locks of other transactions prevent an immediate modify (update, delete mark, or delete unmark) of a clustered index record. If they do, first tests if the query thread should anyway be suspended for some reason; if not, then puts the transaction and the query thread to the lock wait state and inserts a waiting request for a record x-lock to the lock queue.

Returns: DB_SUCCESS, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED

Parameters

flags	in: if BTR_NO_LOCKING_FLAG bit is set, does nothing
block	in: buffer block of rec
rec	in: record which should be modified
index	in: clustered index
offsets	in: rec_get_offsets(rec, index)
thr	in: query thread

UNIV_INTERN dberr_t lock_clust_rec_read_check_and_lock	(	ulint	flags,
		const buf_block_t *	block,
		const rec_t *	rec,
		dict_index_t *	index,
		const ulint *	offsets,
		enum lock_mode	mode,
		ulint	gap_mode,
		que_thr_t *	thr
	)

Checks if locks of other transactions prevent an immediate read, or passing over by a read cursor, of a clustered index record. If they do, first tests if the query thread should anyway be suspended for some reason; if not, then puts the transaction and the query thread to the lock wait state and inserts a waiting request for a record lock to the lock queue. Sets the requested mode lock on the record.

Returns: DB_SUCCESS, DB_SUCCESS_LOCKED_REC, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED in: query thread

Checks if locks of other transactions prevent an immediate read, or passing over by a read cursor, of a clustered index record. If they do, first tests if the query thread should anyway be suspended for some reason; if not, then puts the transaction and the query thread to the lock wait state and inserts a waiting request for a record lock to the lock queue. Sets the requested mode lock on the record.

Returns: DB_SUCCESS, DB_SUCCESS_LOCKED_REC, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED

Parameters

flags	in: if BTR_NO_LOCKING_FLAG bit is set, does nothing
block	in: buffer block of rec
rec	in: user record or page supremum record which should be read or passed over by a read cursor
index	in: clustered index
offsets	in: rec_get_offsets(rec, index)
mode	in: mode of the lock which the read cursor should set on records: LOCK_S or LOCK_X; the latter is possible in SELECT FOR UPDATE
gap_mode	in: LOCK_ORDINARY, LOCK_GAP, or LOCK_REC_NOT_GAP
thr	in: query thread

Definition at line 6320 of file lock0lock.cc.

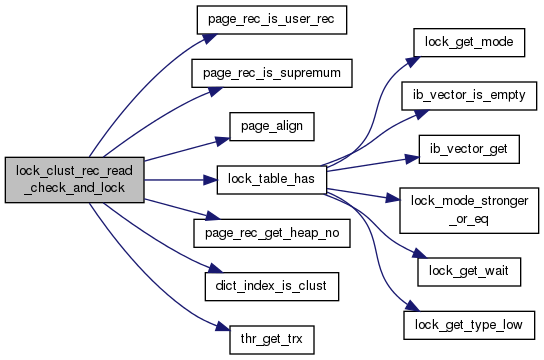

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dberr_t lock_clust_rec_read_check_and_lock_alt	(	ulint	flags,
		const buf_block_t *	block,
		const rec_t *	rec,
		dict_index_t *	index,
		enum lock_mode	mode,
		ulint	gap_mode,
		que_thr_t *	thr
	)

Checks if locks of other transactions prevent an immediate read, or passing over by a read cursor, of a clustered index record. If they do, first tests if the query thread should anyway be suspended for some reason; if not, then puts the transaction and the query thread to the lock wait state and inserts a waiting request for a record lock to the lock queue. Sets the requested mode lock on the record. This is an alternative version of lock_clust_rec_read_check_and_lock() that does not require the parameter "offsets".

Returns: DB_SUCCESS, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED

Parameters

flags	in: if BTR_NO_LOCKING_FLAG bit is set, does nothing
block	in: buffer block of rec
rec	in: user record or page supremum record which should be read or passed over by a read cursor
index	in: clustered index
mode	in: mode of the lock which the read cursor should set on records: LOCK_S or LOCK_X; the latter is possible in SELECT FOR UPDATE
gap_mode	in: LOCK_ORDINARY, LOCK_GAP, or LOCK_REC_NOT_GAP
thr	in: query thread

UNIV_INLINE ulint lock_get_min_heap_no ( const buf_block_t * block )

Gets the heap_no of the smallest user record on a page.

Returns: heap_no of smallest user record, or PAGE_HEAP_NO_SUPREMUM in: buffer block

Here is the caller graph for this function:

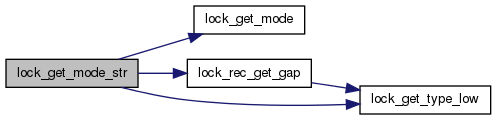

UNIV_INTERN const char* lock_get_mode_str ( const lock_t * lock )

Gets the mode of a lock in a human readable string. The string should not be free()'d or modified.

Returns: lock mode in: lock

Gets the mode of a lock in a human readable string. The string should not be free()'d or modified.

Returns: lock mode

Parameters

lock in: lock

Definition at line 6537 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN ulint lock_get_size ( void )

Gets the size of a lock struct.

Returns: size in bytes

Definition at line 653 of file lock0lock.cc.

Here is the caller graph for this function:

UNIV_INTERN dict_table_t* lock_get_src_table	(	trx_t *	trx,
		dict_table_t *	dest,
		enum lock_mode *	mode
	)

Gets the source table of an ALTER TABLE transaction. The table must be covered by an IX or IS table lock.

Returns: the source table of transaction, if it is covered by an IX or IS table lock; dest if there is no source table, and NULL if the transaction is locking more than two tables or an inconsistency is found out: lock mode of the source table

Gets the source table of an ALTER TABLE transaction. The table must be covered by an IX or IS table lock.

Returns: the source table of transaction, if it is covered by an IX or IS table lock; dest if there is no source table, and NULL if the transaction is locking more than two tables or an inconsistency is found

Parameters

trx	in: transaction
dest	in: destination of ALTER TABLE
mode	out: lock mode of the source table

Definition at line 696 of file lock0lock.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN table_id_t lock_get_table_id ( const lock_t * lock )

Gets the id of the table on which the lock is.

Returns: id of the table in: lock

Gets the id of the table on which the lock is.

Returns: id of the table

Parameters

lock in: lock

Definition at line 6625 of file lock0lock.cc.

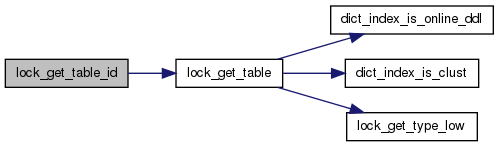

Here is the call graph for this function:

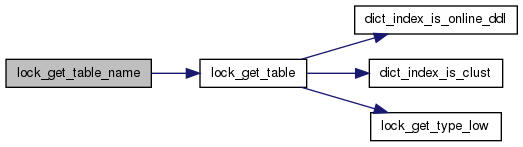

UNIV_INTERN const char* lock_get_table_name ( const lock_t * lock )

Gets the name of the table on which the lock is. The string should not be free()'d or modified.

Returns: name of the table in: lock

Gets the name of the table on which the lock is. The string should not be free()'d or modified.

Returns: name of the table

Parameters

lock in: lock

Definition at line 6642 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN trx_id_t lock_get_trx_id ( const lock_t * lock )

Gets the id of the transaction owning a lock.

Returns: transaction id in: lock

Gets the id of the transaction owning a lock.

Returns: transaction id

Parameters

lock in: lock

Definition at line 6524 of file lock0lock.cc.

UNIV_INTERN ulint lock_get_type ( const lock_t * lock )

Gets the type of a lock. Non-inline version for using outside of the lock module.

Returns: LOCK_TABLE or LOCK_REC in: lock

Gets the type of a lock. Non-inline version for using outside of the lock module.

Returns: LOCK_TABLE or LOCK_REC

Parameters

lock in: lock

Definition at line 6512 of file lock0lock.cc.

Here is the call graph for this function:

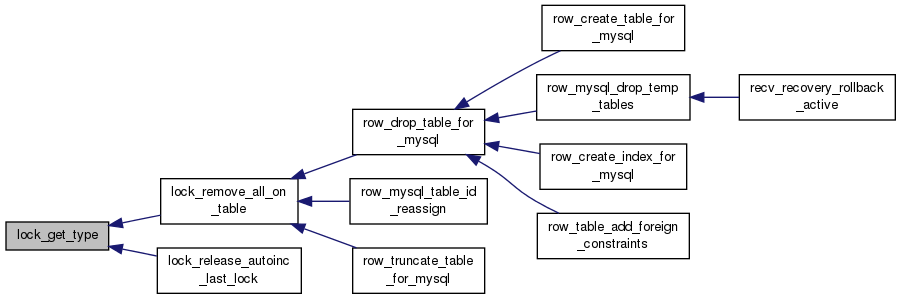

Here is the caller graph for this function:

UNIV_INTERN const char* lock_get_type_str ( const lock_t * lock )

Gets the type of a lock in a human readable string. The string should not be free()'d or modified.

Returns: lock type in: lock

Gets the type of a lock in a human readable string. The string should not be free()'d or modified.

Returns: lock type

Parameters

lock in: lock

Definition at line 6584 of file lock0lock.cc.

Here is the call graph for this function:

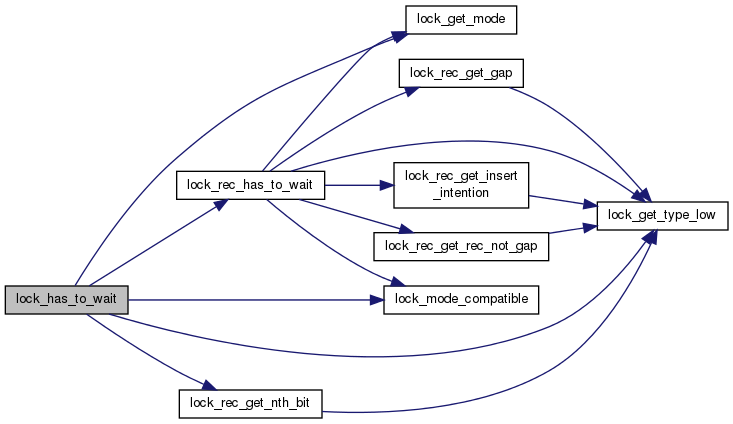

UNIV_INTERN ibool lock_has_to_wait	(	const lock_t *	lock1,
		const lock_t *	lock2
	)

Checks if a lock request lock1 has to wait for request lock2.

Returns: TRUE if lock1 has to wait for lock2 to be removed in: another lock; NOTE that it is assumed that this has a lock bit set on the same record as in lock1 if the locks are record locks

Checks if a lock request lock1 has to wait for request lock2.

Returns: TRUE if lock1 has to wait for lock2 to be removed

Parameters

lock1	in: waiting lock
lock2	in: another lock; NOTE that it is assumed that this has a lock bit set on the same record as in lock1 if the locks are record locks

Definition at line 1034 of file lock0lock.cc.

Here is the call graph for this function:

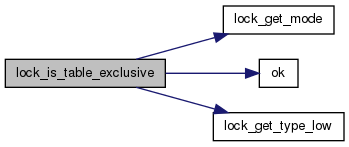

UNIV_INTERN ibool lock_is_table_exclusive	(	const dict_table_t *	table,
		const trx_t *	trx
	)

Determine if the given table is exclusively "owned" by the given transaction, i.e., transaction holds LOCK_IX and possibly LOCK_AUTO_INC on the table.

Returns: TRUE if table is only locked by trx, with LOCK_IX, and possibly LOCK_AUTO_INC

Parameters

table	in: table
trx	in: transaction

Definition at line 779 of file lock0lock.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

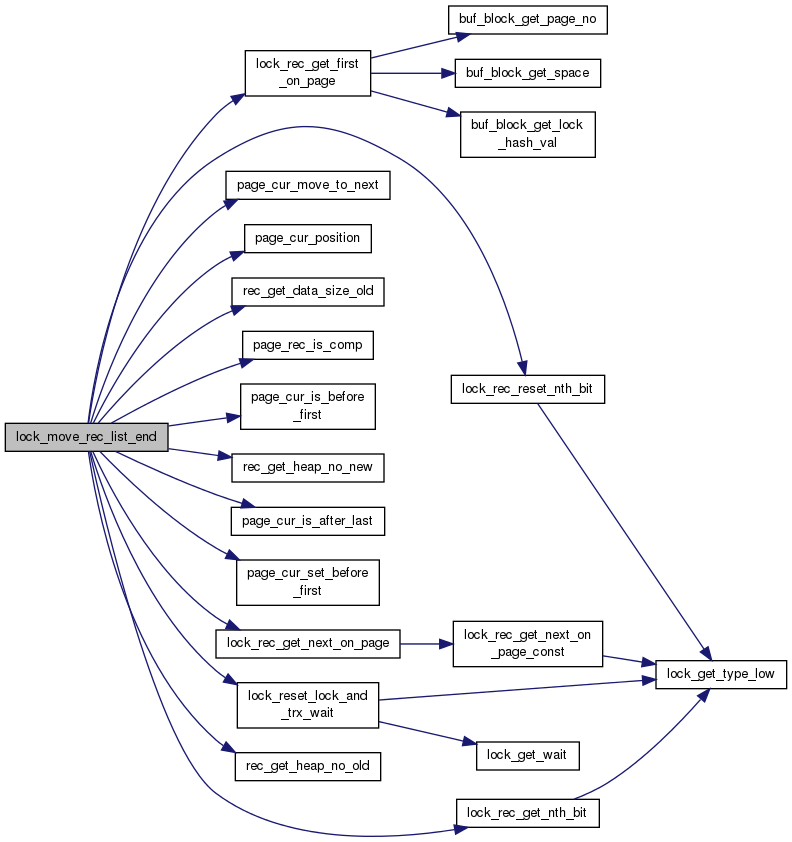

UNIV_INTERN void lock_move_rec_list_end	(	const buf_block_t *	new_block,
		const buf_block_t *	block,
		const rec_t *	rec
	)

Moves the explicit locks on user records to another page if a record list end is moved to another page. in: record on page: this is the first record moved

Moves the explicit locks on user records to another page if a record list end is moved to another page.

Parameters

new_block	in: index page to move to
block	in: index page
rec	in: record on page: this is the first record moved

Definition at line 2886 of file lock0lock.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void lock_move_rec_list_start	(	const buf_block_t *	new_block,
		const buf_block_t *	block,
		const rec_t *	rec,
		const rec_t *	old_end
	)

Moves the explicit locks on user records to another page if a record list start is moved to another page. in: old previous-to-last record on new_page before the records were copied

Moves the explicit locks on user records to another page if a record list start is moved to another page.

Parameters

new_block	in: index page to move to
block	in: index page
rec	in: record on page: this is the first record NOT copied
old_end	in: old previous-to-last record on new_page before the records were copied

Definition at line 2975 of file lock0lock.cc.

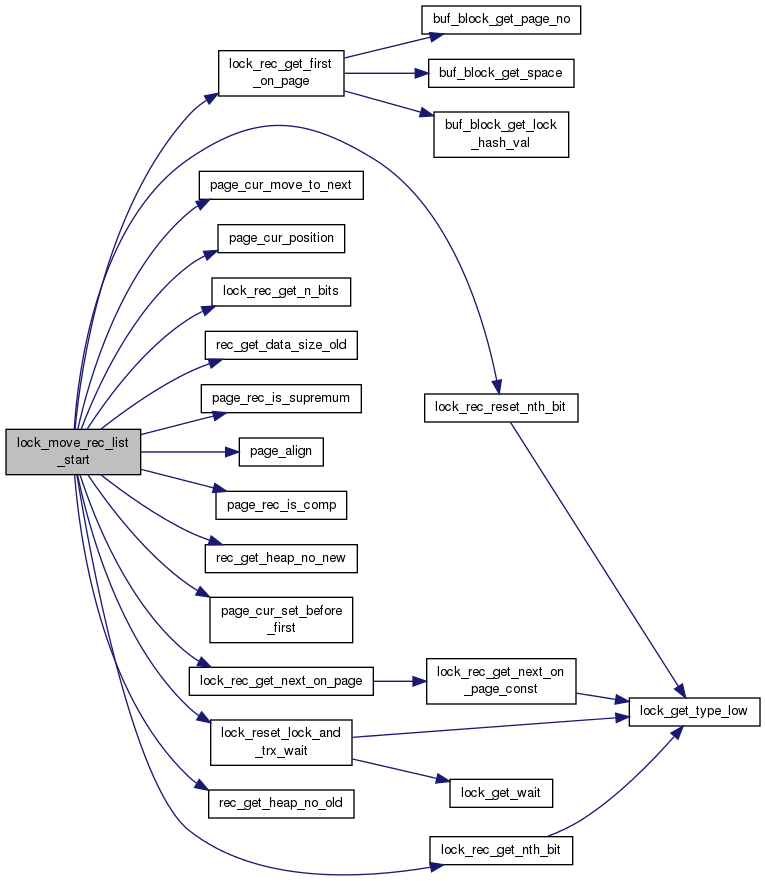

Here is the call graph for this function:

Here is the caller graph for this function:

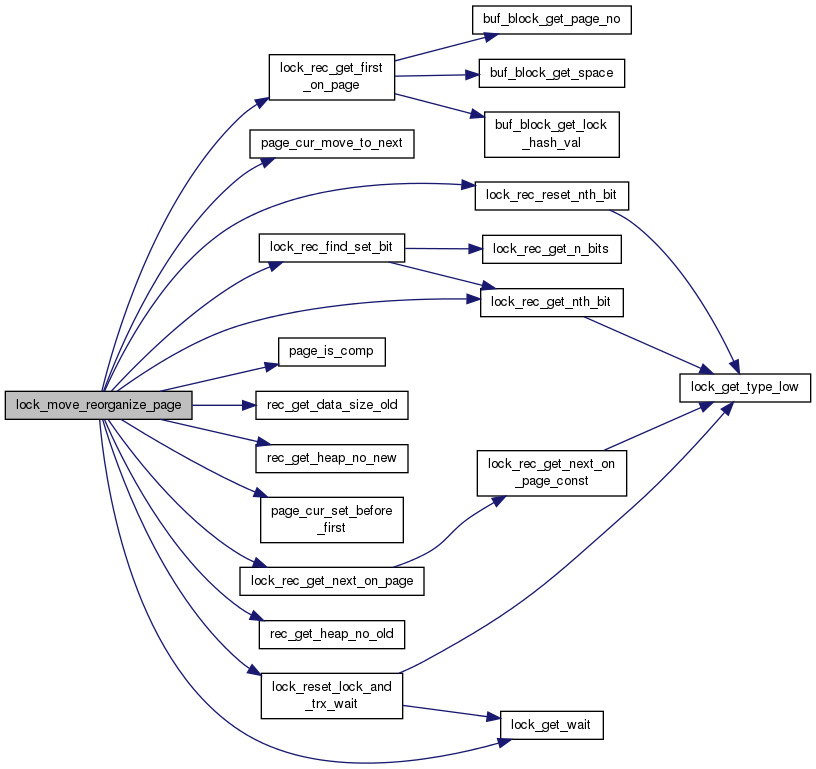

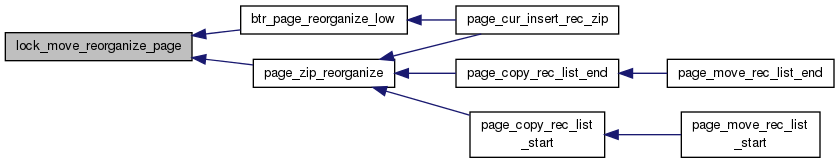

UNIV_INTERN void lock_move_reorganize_page	(	const buf_block_t *	block,
		const buf_block_t *	oblock
	)

Updates the lock table when we have reorganized a page. NOTE: we copy also the locks set on the infimum of the page; the infimum may carry locks if an update of a record is occurring on the page, and its locks were temporarily stored on the infimum. in: copy of the old, not reorganized page

Updates the lock table when we have reorganized a page. NOTE: we copy also the locks set on the infimum of the page; the infimum may carry locks if an update of a record is occurring on the page, and its locks were temporarily stored on the infimum.

Parameters

block	in: old index page, now reorganized
oblock	in: copy of the old, not reorganized page

Definition at line 2740 of file lock0lock.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ulint lock_number_of_rows_locked ( const trx_lock_t * trx_lock )

Return approximate number or record locks (bits set in the bitmap) for this transaction. Since delete-marked records may be removed, the record count will not be precise. The caller must be holding lock_sys->mutex.

Parameters

trx_lock in: transaction locks

Here is the caller graph for this function:

UNIV_INTERN void lock_print_info_all_transactions ( FILE * file )

Prints info of locks for each transaction. This function assumes that the caller holds the lock mutex and more importantly it will release the lock mutex on behalf of the caller. (This should be fixed in the future). in: file where to print

Prints info of locks for each transaction. This function assumes that the caller holds the lock mutex and more importantly it will release the lock mutex on behalf of the caller. (This should be fixed in the future).

Parameters

file	in: file where to print

Definition at line 5223 of file lock0lock.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool lock_print_info_summary	(	FILE *	file,
		ibool	nowait
	)

Prints info of locks for all transactions.

Returns: FALSE if not able to obtain lock mutex and exits without printing info

Parameters

file	in: file where to print
nowait	in: whether to wait for the lock mutex

Here is the caller graph for this function:

UNIV_INTERN lock_t* lock_rec_expl_exist_on_page	(	ulint	space,
		ulint	page_no
	)

Determines if there are explicit record locks on a page.

Returns: an explicit record lock on the page, or NULL if there are none

Parameters

space	in: space id
page_no	in: page number

Definition at line 1232 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN ulint lock_rec_find_set_bit ( const lock_t * lock )

Looks for a set bit in a record lock bitmap. Returns ULINT_UNDEFINED, if none found.

Returns: bit index == heap number of the record, or ULINT_UNDEFINED if none found in: record lock with at least one bit set

Looks for a set bit in a record lock bitmap. Returns ULINT_UNDEFINED, if none found.

Returns: bit index == heap number of the record, or ULINT_UNDEFINED if none found

Parameters

lock	in: record lock with at least one bit set

Definition at line 1108 of file lock0lock.cc.

Here is the call graph for this function:

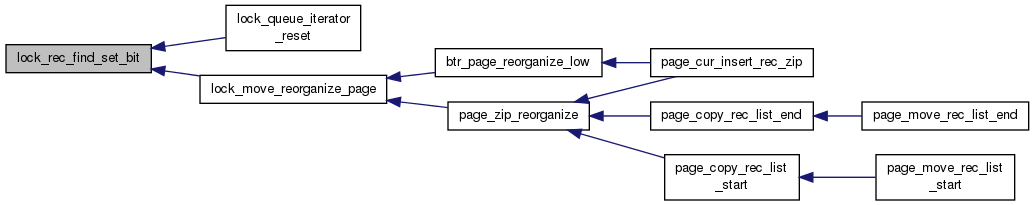

Here is the caller graph for this function:

UNIV_INLINE ulint lock_rec_fold	(	ulint	space,
		ulint	page_no
	)		const

Calculates the fold value of a page file address: used in inserting or searching for a lock in the hash table.

Returns: folded value

Parameters

space	in: space
page_no	in: page number

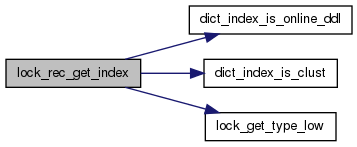

UNIV_INTERN const dict_index_t* lock_rec_get_index ( const lock_t * lock )

For a record lock, gets the index on which the lock is.

Returns: index in: lock

For a record lock, gets the index on which the lock is.

Returns: index

Parameters

lock in: lock

Definition at line 6658 of file lock0lock.cc.

Here is the call graph for this function:

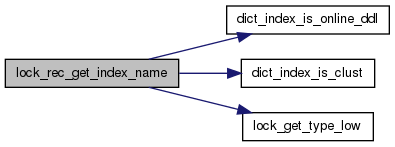

UNIV_INTERN const char* lock_rec_get_index_name ( const lock_t * lock )

For a record lock, gets the name of the index on which the lock is. The string should not be free()'d or modified.

Returns: name of the index in: lock

For a record lock, gets the name of the index on which the lock is. The string should not be free()'d or modified.

Returns: name of the index

Parameters

lock in: lock

Definition at line 6675 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN ulint lock_rec_get_page_no ( const lock_t * lock )

For a record lock, gets the page number on which the lock is.

Returns: page number in: lock

For a record lock, gets the page number on which the lock is.

Returns: page number

Parameters

lock in: lock

Definition at line 6705 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN ulint lock_rec_get_space_id ( const lock_t * lock )

For a record lock, gets the tablespace number on which the lock is.

Returns: tablespace number in: lock

For a record lock, gets the tablespace number on which the lock is.

Returns: tablespace number

Parameters

lock in: lock

Definition at line 6691 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INLINE ulint lock_rec_hash	(	ulint	space,
		ulint	page_no
	)

Calculates the hash value of a page file address: used in inserting or searching for a lock in the hash table.

Returns: hashed value in: page number

Parameters

space in: space

Here is the caller graph for this function:

UNIV_INTERN dberr_t lock_rec_insert_check_and_lock	(	ulint	flags,
		const rec_t *	rec,
		buf_block_t *	block,
		dict_index_t *	index,
		que_thr_t *	thr,
		mtr_t *	mtr,
		ibool *	inherit
	)

Checks if locks of other transactions prevent an immediate insert of a record. If they do, first tests if the query thread should anyway be suspended for some reason; if not, then puts the transaction and the query thread to the lock wait state and inserts a waiting request for a gap x-lock to the lock queue.

Returns: DB_SUCCESS, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED

Parameters

flags	in: if BTR_NO_LOCKING_FLAG bit is set, does nothing
rec	in: record after which to insert
block	in/out: buffer block of rec
index	in: index
thr	in: query thread
mtr	in/out: mini-transaction
inherit	out: set to TRUE if the new inserted record maybe should inherit LOCK_GAP type locks from the successor record

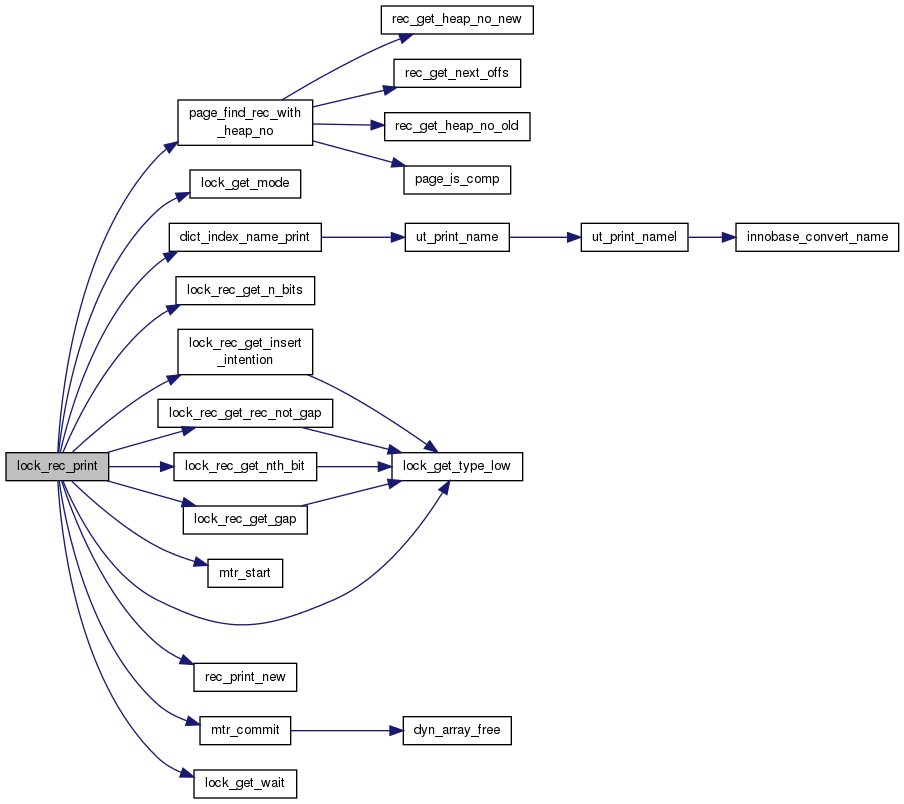

UNIV_INTERN void lock_rec_print	(	FILE *	file,
		const lock_t *	lock
	)

Prints info of a record lock. in: record type lock

Prints info of a record lock.

Parameters

file	in: file where to print
lock	in: record type lock

Definition at line 5005 of file lock0lock.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void lock_rec_reset_and_inherit_gap_locks	(	const buf_block_t *	heir_block,
		const buf_block_t *	block,
		ulint	heir_heap_no,
		ulint	heap_no
	)

Resets the original locks on heir and replaces them with gap type locks inherited from rec. in: heap_no of the donating record

Resets the original locks on heir and replaces them with gap type locks inherited from rec.

Parameters

heir_block	in: block containing the record which inherits
block	in: block containing the record from which inherited; does NOT reset the locks on this record
heir_heap_no	in: heap_no of the inheriting record
heap_no	in: heap_no of the donating record

Definition at line 3268 of file lock0lock.cc.

UNIV_INTERN void lock_rec_restore_from_page_infimum	(	const buf_block_t *	block,
		const rec_t *	rec,
		const buf_block_t *	donator
	)

Restores the state of explicit lock requests on a single record, where the state was stored on the infimum of the page. in: page (rec is not necessarily on this page) whose infimum stored the lock state; lock bits are reset on the infimum

Restores the state of explicit lock requests on a single record, where the state was stored on the infimum of the page.

Parameters

block	in: buffer block containing rec
rec	in: record whose lock state is restored
donator	in: page (rec is not necessarily on this page) whose infimum stored the lock state; lock bits are reset on the infimum

Definition at line 3458 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_rec_store_on_page_infimum	(	const buf_block_t *	block,
		const rec_t *	rec
	)

Stores on the page infimum record the explicit locks of another record. This function is used to store the lock state of a record when it is updated and the size of the record changes in the update. The record is in such an update moved, perhaps to another page. The infimum record acts as a dummy carrier record, taking care of lock releases while the actual record is being moved. in: record whose lock state is stored on the infimum record of the same page; lock bits are reset on the record

Stores on the page infimum record the explicit locks of another record. This function is used to store the lock state of a record when it is updated and the size of the record changes in the update. The record is moved in such an update, perhaps to another page. The infimum record acts as a dummy carrier record, taking care of lock releases while the actual record is being moved.

Parameters

block	in: buffer block containing rec
rec	in: record whose lock state is stored on the infimum record of the same page; lock bits are reset on the record

Definition at line 3433 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_rec_unlock	(	trx_t *	trx,
		const buf_block_t *	block,
		const rec_t *	rec,
		enum lock_mode lock_mode
	)

Removes a granted record lock of a transaction from the queue and grants locks to other transactions waiting in the queue if they now are entitled to a lock. in: LOCK_S or LOCK_X

Removes a granted record lock of a transaction from the queue and grants locks to other transactions waiting in the queue if they now are entitled to a lock.

Parameters

trx	in/out: transaction that has set a record lock
block	in: buffer block containing rec
rec	in: record

Definition at line 4541 of file lock0lock.cc.

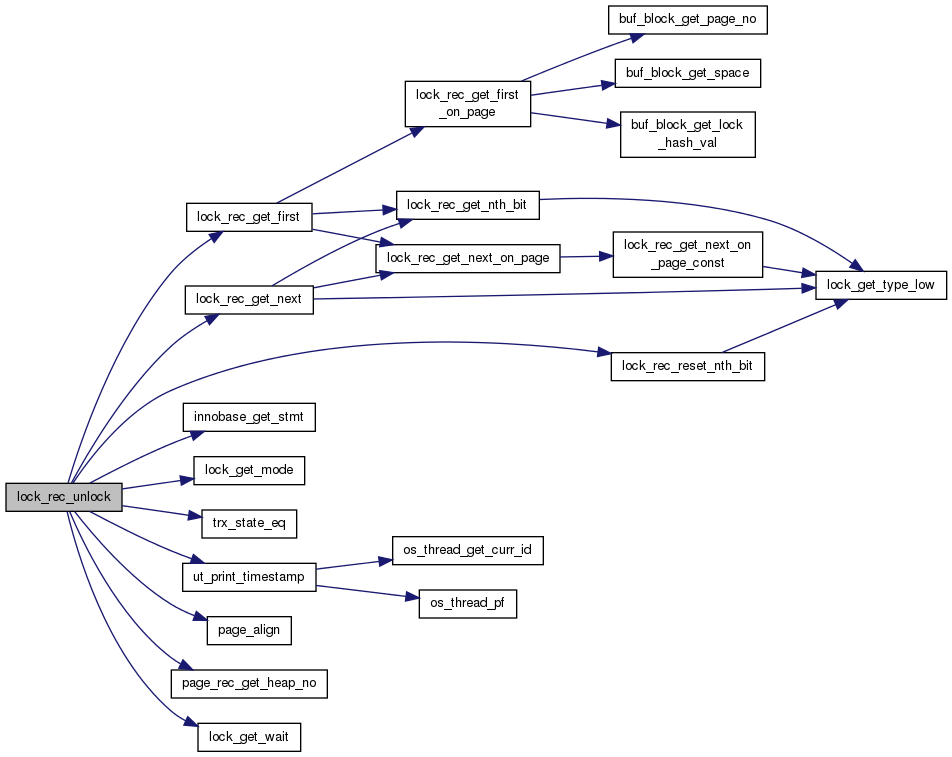

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void lock_remove_all_on_table	(	dict_table_t *	table,
		ibool	remove_also_table_sx_locks
	)

Removes locks on a table to be dropped or truncated. If remove_also_table_sx_locks is TRUE then table-level S and X locks are also removed in addition to other table-level and record-level locks. No lock, that is going to be removed, is allowed to be a wait lock. in: also removes table S and X locks

Removes locks on a table to be dropped or truncated. If remove_also_table_sx_locks is TRUE then table-level S and X locks are also removed in addition to other table-level and record-level locks. No lock, that is going to be removed, is allowed to be a wait lock.

Parameters

table	in: table to be dropped or truncated
remove_also_table_sx_locks	in: also removes table S and X locks

Definition at line 4891 of file lock0lock.cc.

Here is the call graph for this function:

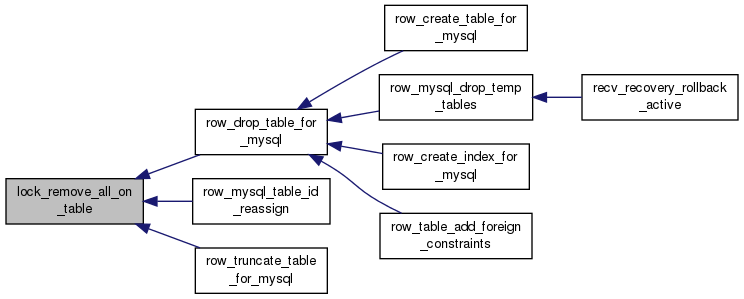

Here is the caller graph for this function:

UNIV_INTERN void lock_report_trx_id_insanity	(	trx_id_t	trx_id,
		const rec_t *	rec,
		dict_index_t *	index,
		const ulint *	offsets,
		trx_id_t	max_trx_id
	)

Reports that a transaction id is insensible, i.e., in the future.

Parameters

trx_id	in: trx id
rec	in: user record
index	in: index
offsets	in: rec_get_offsets(rec, index)
max_trx_id	in: trx_sys_get_max_trx_id()

Definition at line 466 of file lock0lock.cc.

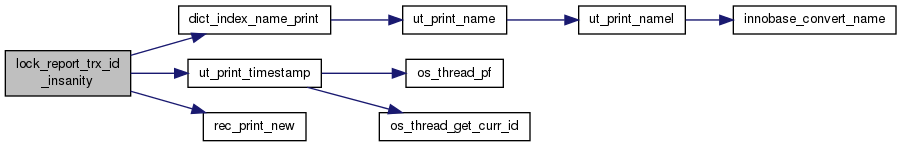

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN bool lock_sec_rec_cons_read_sees	(	const rec_t *	rec,
		const read_view_t *	view
	)

Checks that a non-clustered index record is seen in a consistent read.

NOTE that a non-clustered index page contains so little information on its modifications that also in the case false, the present version of rec may be the right, but we must check this from the clustered index record.

Returns: true if certainly sees, or false if an earlier version of the clustered index record might be needed

Parameters

rec	in: user record which should be read or passed over by a read cursor
view	in: consistent read view

UNIV_INTERN dberr_t lock_sec_rec_modify_check_and_lock	(	ulint	flags,
		buf_block_t *	block,
		const rec_t *	rec,
		dict_index_t *	index,
		que_thr_t *	thr,
		mtr_t *	mtr
	)

Checks if locks of other transactions prevent an immediate modify (delete mark or delete unmark) of a secondary index record.

Returns: DB_SUCCESS, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED

Parameters

flags	in: if BTR_NO_LOCKING_FLAG bit is set, does nothing
block	in/out: buffer block of rec
rec	in: record which should be modified; NOTE: as this is a secondary index, we always have to modify the clustered index record first: see the comment below
index	in: secondary index
thr	in: query thread (can be NULL if BTR_NO_LOCKING_FLAG)
mtr	in/out: mini-transaction

UNIV_INTERN dberr_t lock_sec_rec_read_check_and_lock	(	ulint	flags,
		const buf_block_t *	block,
		const rec_t *	rec,
		dict_index_t *	index,
		const ulint *	offsets,
		enum lock_mode	mode,
		ulint	gap_mode,
		que_thr_t *	thr
	)

Like lock_clust_rec_read_check_and_lock(), but reads a secondary index record.

Returns: DB_SUCCESS, DB_SUCCESS_LOCKED_REC, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED in: query thread

Like lock_clust_rec_read_check_and_lock(), but reads a secondary index record.

Returns: DB_SUCCESS, DB_SUCCESS_LOCKED_REC, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED

Parameters

flags	in: if BTR_NO_LOCKING_FLAG bit is set, does nothing
block	in: buffer block of rec
rec	in: user record or page supremum record which should be read or passed over by a read cursor
index	in: secondary index
offsets	in: rec_get_offsets(rec, index)
mode	in: mode of the lock which the read cursor should set on records: LOCK_S or LOCK_X; the latter is possible in SELECT FOR UPDATE
gap_mode	in: LOCK_ORDINARY, LOCK_GAP, or LOCK_REC_NOT_GAP
thr	in: query thread

Definition at line 6242 of file lock0lock.cc.

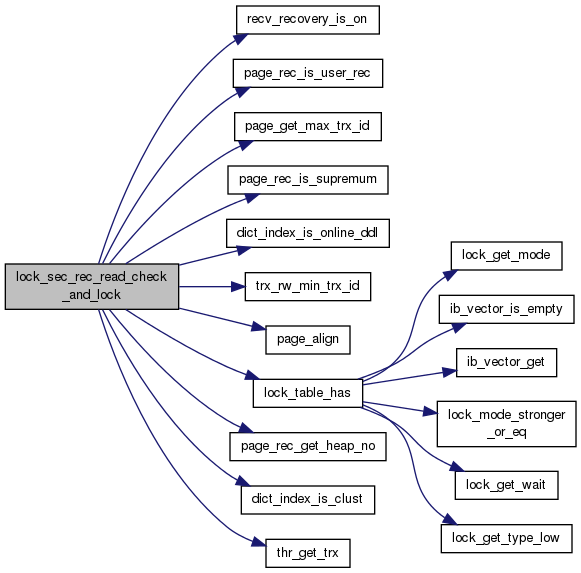

Here is the call graph for this function:

UNIV_INTERN void lock_sys_close ( void )

Closes the lock system at database shutdown.

Definition at line 628 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_sys_create ( ulint n_cells )

Creates the lock system at database start. in: number of slots in lock hash table

Creates the lock system at database start.

Parameters

n_cells in: number of slots in lock hash table

Definition at line 589 of file lock0lock.cc.

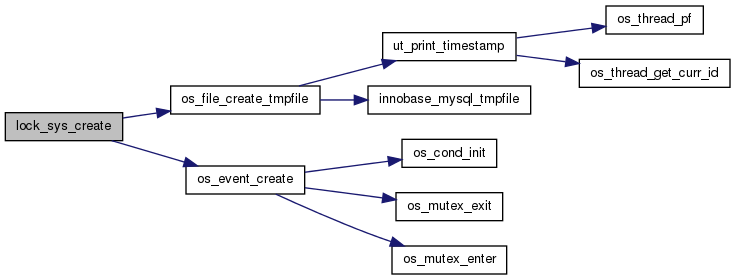

Here is the call graph for this function:

UNIV_INTERN dberr_t lock_table	(	ulint	flags,
		dict_table_t *	table,
		enum lock_mode	mode,
		que_thr_t *	thr
	)

Locks the specified database table in the mode given. If the lock cannot be granted immediately, the query thread is put to wait.

Returns: DB_SUCCESS, DB_LOCK_WAIT, DB_DEADLOCK, or DB_QUE_THR_SUSPENDED

Parameters

flags	in: if BTR_NO_LOCKING_FLAG bit is set, does nothing
table	in/out: database table in dictionary cache
mode	in: lock mode
thr	in: query thread

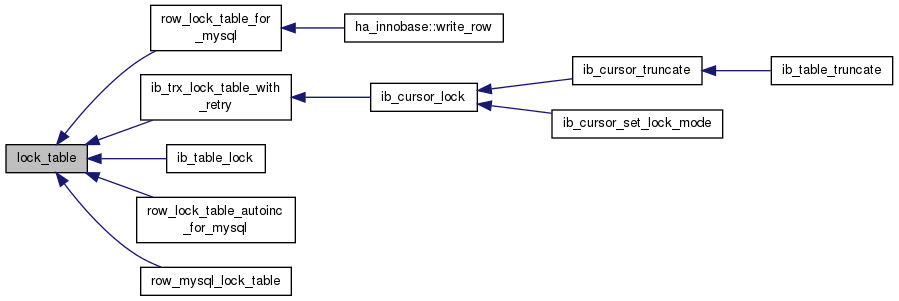

Here is the caller graph for this function:

UNIV_INTERN ulint lock_table_get_n_locks ( const dict_table_t * table )

Get the number of locks on a table.

Returns: number of locks

Parameters

table in: table

Definition at line 6897 of file lock0lock.cc.

UNIV_INTERN ibool lock_table_has_locks ( const dict_table_t * table )

Check if there are any locks (table or rec) against table.

Returns: TRUE if locks exist in: check if there are any locks held on records in this table or on the table itself

Check if there are any locks (table or rec) against table.

Returns: TRUE if table has either table or record locks.

Parameters

table in: check if there are any locks held on records in this table or on the table itself

Definition at line 6971 of file lock0lock.cc.

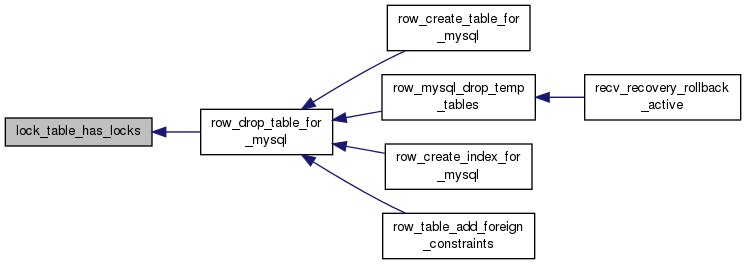

Here is the caller graph for this function:

UNIV_INTERN void lock_table_ix_resurrect	(	dict_table_t *	table,
		trx_t *	trx
	)

Creates a table IX lock object for a resurrected transaction. in/out: transaction

Creates a table IX lock object for a resurrected transaction.

Parameters

table	in/out: table
trx	in/out: transaction

Definition at line 4440 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_table_print	(	FILE *	file,
		const lock_t *	lock
	)

Prints info of a table lock. in: table type lock

Prints info of a table lock.

Parameters

file	in: file where to print
lock	in: table type lock

Definition at line 4966 of file lock0lock.cc.

Here is the call graph for this function:

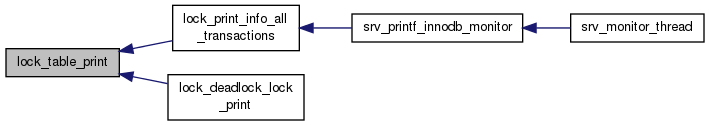

Here is the caller graph for this function:

UNIV_INTERN dberr_t lock_trx_handle_wait ( trx_t * trx )

Check whether the transaction has already been rolled back because it was selected as a deadlock victim, or if it has to wait then cancel the wait lock.

Returns: DB_DEADLOCK, DB_LOCK_WAIT or DB_SUCCESS

Parameters

trx	in/out: trx lock state

Definition at line 6866 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_trx_release_locks ( trx_t * trx )

Releases a transaction's locks, and releases possible other transactions waiting because of these locks. Change the state of the transaction to TRX_STATE_COMMITTED_IN_MEMORY. in/out: transaction

Releases a transaction's locks, and releases possible other transactions waiting because of these locks. Change the state of the transaction to TRX_STATE_COMMITTED_IN_MEMORY.

Parameters

trx	in/out: transaction

Definition at line 6797 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_unlock_table_autoinc ( trx_t * trx )

Unlocks AUTO_INC type locks that were possibly reserved by a trx. This function should be called at the the end of an SQL statement, by the connection thread that owns the transaction (trx->mysql_thd). in/out: transaction

Unlocks AUTO_INC type locks that were possibly reserved by a trx. This function should be called at the the end of an SQL statement, by the connection thread that owns the transaction (trx->mysql_thd).

Parameters

trx	in/out: transaction

Definition at line 6766 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_update_copy_and_discard	(	const buf_block_t *	new_block,
		const buf_block_t *	block
	)

Updates the lock table when a page is copied to another and the original page is removed from the chain of leaf pages, except if page is the root! in: index page; NOT the root!

Updates the lock table when a page is copied to another and the original page is removed from the chain of leaf pages, except if page is the root!

Parameters

new_block	in: index page to which copied
block	in: index page; NOT the root!

Definition at line 3173 of file lock0lock.cc.

UNIV_INTERN void lock_update_delete	(	const buf_block_t *	block,
		const rec_t *	rec
	)

Updates the lock table when a record is removed. in: the record to be removed

Updates the lock table when a record is removed.

Parameters

block	in: buffer block containing rec
rec	in: the record to be removed

Definition at line 3388 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_update_discard	(	const buf_block_t *	heir_block,
		ulint	heir_heap_no,
		const buf_block_t *	block
	)

Updates the lock table when a page is discarded. in: index page which will be discarded

Updates the lock table when a page is discarded.

Parameters

heir_block	in: index page which will inherit the locks
heir_heap_no	in: heap_no of the record which will inherit the locks
block	in: index page which will be discarded

Definition at line 3294 of file lock0lock.cc.

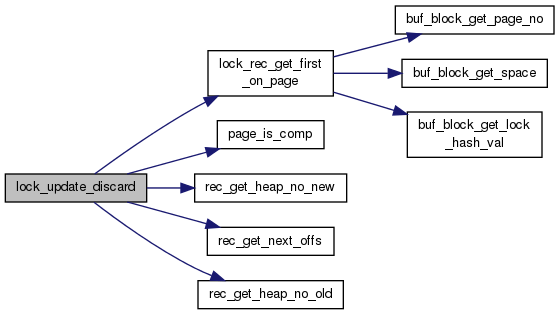

Here is the call graph for this function:

UNIV_INTERN void lock_update_insert	(	const buf_block_t *	block,
		const rec_t *	rec
	)

Updates the lock table when a new user record is inserted. in: the inserted record

Updates the lock table when a new user record is inserted.

Parameters

block	in: buffer block containing rec
rec	in: the inserted record

Definition at line 3357 of file lock0lock.cc.

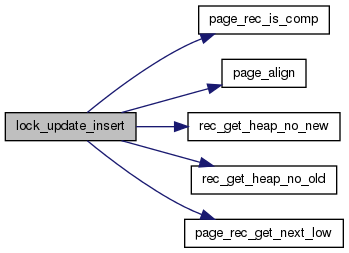

Here is the call graph for this function:

UNIV_INTERN void lock_update_merge_left	(	const buf_block_t *	left_block,
		const rec_t *	orig_pred,
		const buf_block_t *	right_block
	)

Updates the lock table when a page is merged to the left. in: merged index page which will be discarded

Updates the lock table when a page is merged to the left.

Parameters

left_block	in: left page to which merged
orig_pred	in: original predecessor of supremum on the left page before merge
right_block	in: merged index page which will be discarded

Definition at line 3218 of file lock0lock.cc.

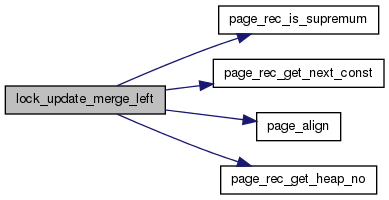

Here is the call graph for this function:

UNIV_INTERN void lock_update_merge_right	(	const buf_block_t *	right_block,
		const rec_t *	orig_succ,
		const buf_block_t *	left_block
	)

Updates the lock table when a page is merged to the right. in: merged index page which will be discarded

Updates the lock table when a page is merged to the right.

Parameters

right_block	in: right page to which merged
orig_succ	in: original successor of infimum on the right page before merge
left_block	in: merged index page which will be discarded

Definition at line 3111 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_update_root_raise	(	const buf_block_t *	block,
		const buf_block_t *	root
	)

Updates the lock table when the root page is copied to another in btr_root_raise_and_insert. Note that we leave lock structs on the root page, even though they do not make sense on other than leaf pages: the reason is that in a pessimistic update the infimum record of the root page will act as a dummy carrier of the locks of the record to be updated. in: root page

Updates the lock table when the root page is copied to another in btr_root_raise_and_insert. Note that we leave lock structs on the root page, even though they do not make sense on other than leaf pages: the reason is that in a pessimistic update the infimum record of the root page will act as a dummy carrier of the locks of the record to be updated.

Parameters

block	in: index page to which copied
root	in: root page

Definition at line 3153 of file lock0lock.cc.

UNIV_INTERN void lock_update_split_left	(	const buf_block_t *	right_block,
		const buf_block_t *	left_block
	)

Updates the lock table when a page is split to the left. in: left page

Updates the lock table when a page is split to the left.

Parameters

right_block	in: right page
left_block	in: left page

Definition at line 3196 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_update_split_right	(	const buf_block_t *	right_block,
		const buf_block_t *	left_block
	)

Updates the lock table when a page is split to the right. in: left page

Updates the lock table when a page is split to the right.

Parameters

right_block	in: right page
left_block	in: left page

Definition at line 3083 of file lock0lock.cc.

Here is the call graph for this function:

UNIV_INTERN void lock_wait_release_thread_if_suspended ( que_thr_t * thr )

Releases a user OS thread waiting for a lock to be released, if the thread is already suspended. in: query thread associated with the user OS thread

Releases a user OS thread waiting for a lock to be released, if the thread is already suspended.

Parameters

thr	in: query thread associated with the user OS thread

Definition at line 395 of file lock0wait.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void lock_wait_suspend_thread ( que_thr_t * thr )

Puts a user OS thread to wait for a lock to be released. If an error occurs during the wait trx->error_state associated with thr is != DB_SUCCESS when we return. DB_LOCK_WAIT_TIMEOUT and DB_DEADLOCK are possible errors. DB_DEADLOCK is returned if selective deadlock resolution chose this transaction as a victim. in: query thread associated with the user OS thread

Puts a user OS thread to wait for a lock to be released. If an error occurs during the wait trx->error_state associated with thr is != DB_SUCCESS when we return. DB_LOCK_WAIT_TIMEOUT and DB_DEADLOCK are possible errors. DB_DEADLOCK is returned if selective deadlock resolution chose this transaction as a victim.

Parameters

thr	in: query thread associated with the user OS thread

Definition at line 195 of file lock0wait.cc.

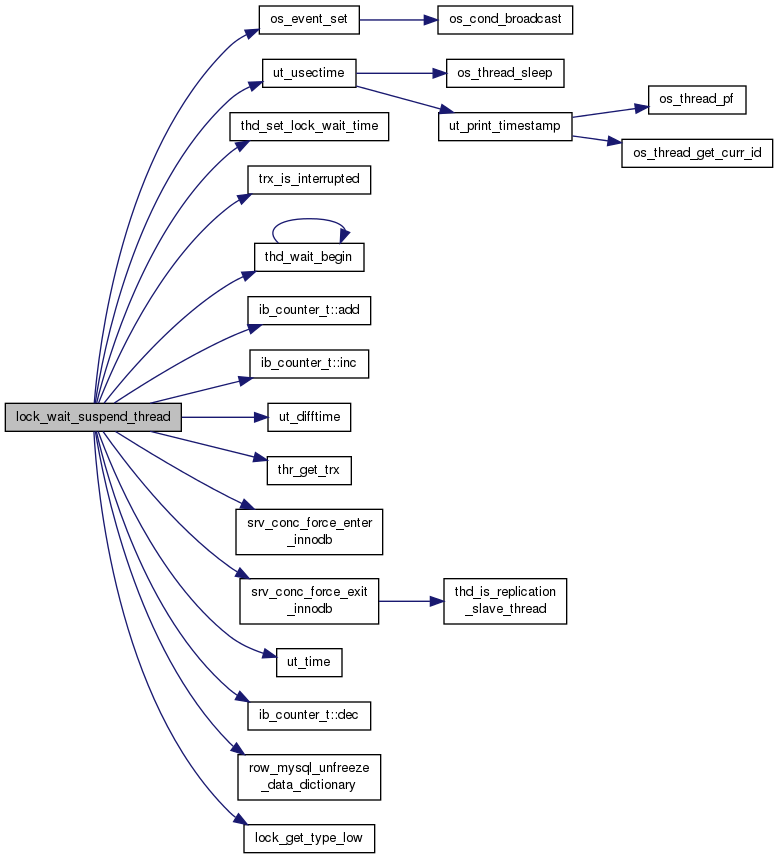

Here is the call graph for this function:

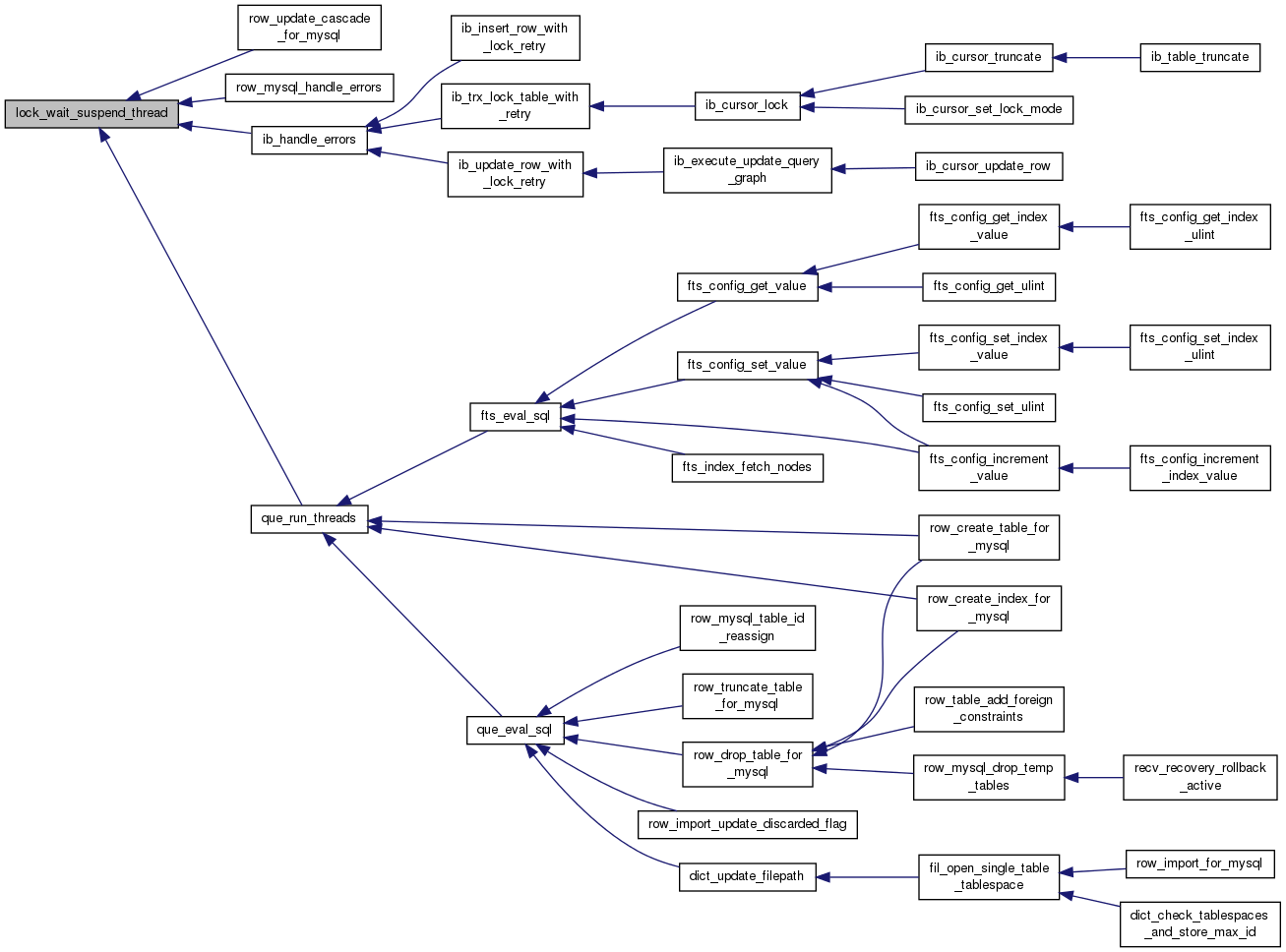

Here is the caller graph for this function:

UNIV_INTERN os_thread_ret_t DECLARE_THREAD() lock_wait_timeout_thread ( void * arg )

A thread which wakes up threads whose lock wait may have lasted too long.

Returns: a dummy parameter in: a dummy parameter required by os_thread_create

Variable Documentation

lock_sys_t* lock_sys

The lock system

Definition at line 414 of file lock0lock.cc.

Classes

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation

Variable Documentation
