Query Executor

Functions
bool	prepare_sum_aggregators (Item_sum **func_ptr, bool need_distinct)
bool	setup_sum_funcs (THD *thd, Item_sum **func_ptr)
bool	copy_funcs (Item **func_ptr, const THD *thd)
void	setup_tmptable_write_func (JOIN_TAB *tab)
	Setup write_func of QEP_tmp_table object.
Next_select_func	setup_end_select_func (JOIN *join, JOIN_TAB *tab)

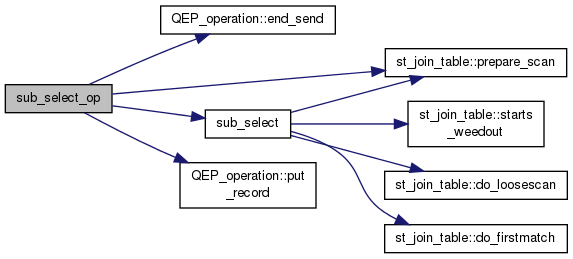

enum_nested_loop_state	sub_select_op (JOIN *join, JOIN_TAB *join_tab, bool end_of_records)
	Accumulate full or partial join result in operation and send operation's result further.
enum_nested_loop_state	sub_select (JOIN *join, JOIN_TAB *join_tab, bool end_of_records)
int	do_sj_dups_weedout (THD *thd, SJ_TMP_TABLE *sjtbl)
int	report_handler_error (TABLE *table, int error)
int	safe_index_read (JOIN_TAB *tab)
int	join_read_const_table (JOIN_TAB *tab, POSITION *pos)
void	join_read_key_unlock_row (st_join_table *tab)
int	join_read_last_key (JOIN_TAB *tab)
int	join_read_prev_same (READ_RECORD *info)
int	join_init_quick_read_record (JOIN_TAB *tab)
int	read_first_record_seq (JOIN_TAB *tab)
int	join_init_read_record (JOIN_TAB *tab)
	Prepare table for reading rows and read first record.
int	join_materialize_derived (JOIN_TAB *tab)
int	join_materialize_semijoin (JOIN_TAB *tab)
int	join_read_first (JOIN_TAB *tab)
int	join_read_last (JOIN_TAB *tab)
void	pick_table_access_method (JOIN_TAB *tab)
enum_nested_loop_state	end_send_group (JOIN *join, JOIN_TAB *join_tab __attribute__((unused)), bool end_of_records)
enum_nested_loop_state	end_write_group (JOIN *join, JOIN_TAB *join_tab, bool end_of_records)
bool	cp_buffer_from_ref (THD *thd, TABLE *table, TABLE_REF *ref)
bool	make_group_fields (JOIN *main_join, JOIN *curr_join)
bool	alloc_group_fields (JOIN *join, ORDER *group)
int	test_if_item_cache_changed (List< Cached_item > &list)
bool	setup_copy_fields (THD *thd, TMP_TABLE_PARAM *param, Ref_ptr_array ref_pointer_array, List< Item > &res_selected_fields, List< Item > &res_all_fields, uint elements, List< Item > &all_fields)
void	copy_fields (TMP_TABLE_PARAM *param)
bool	change_to_use_tmp_fields (THD *thd, Ref_ptr_array ref_pointer_array, List< Item > &res_selected_fields, List< Item > &res_all_fields, uint elements, List< Item > &all_fields)
bool	change_refs_to_tmp_fields (THD *thd, Ref_ptr_array ref_pointer_array, List< Item > &res_selected_fields, List< Item > &res_all_fields, uint elements, List< Item > &all_fields)
void	JOIN::exec ()
int	JOIN::rollup_send_data (uint idx)
int	JOIN::rollup_write_data (uint idx, TABLE *table)
bool	st_join_table::prepare_scan ()
	Prepare table to be scanned.
bool	st_join_table::use_order () const
	Use ordering provided by chosen index?
bool	st_join_table::sort_table ()
bool	st_join_table::remove_duplicates ()
enum_nested_loop_state	QEP_tmp_table::end_send ()
	Finish rnd/index scan after accumulating records, switch ref_array, and send accumulated records further.

Detailed Description

Function Documentation

bool alloc_group_fields	(	JOIN *	join,
		ORDER *	group
	)

Get a list of buffers for saveing last group.

Groups are saved in reverse order for easyer check loop.

Definition at line 3767 of file sql_executor.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

bool change_refs_to_tmp_fields	(	THD *	thd,
		Ref_ptr_array	ref_pointer_array,
		List< Item > &	res_selected_fields,
		List< Item > &	res_all_fields,
		uint	elements,
		List< Item > &	all_fields
	)

Change all sum_func refs to fields to point at fields in tmp table. Change all funcs to be fields in tmp table.

Parameters

thd	THD pointer
ref_pointer_array	array of pointers to top elements of filed list
res_selected_fields	new list of items of select item list
res_all_fields	new list of all items
elements	number of elements in select item list
all_fields	all fields list

Return values

0	ok
1	error

Definition at line 4133 of file sql_executor.cc.

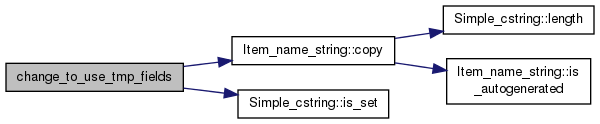

bool change_to_use_tmp_fields	(	THD *	thd,
		Ref_ptr_array	ref_pointer_array,
		List< Item > &	res_selected_fields,
		List< Item > &	res_all_fields,
		uint	elements,
		List< Item > &	all_fields
	)

Change all funcs and sum_funcs to fields in tmp table, and create new list of all items.

Parameters

thd	THD pointer
ref_pointer_array	array of pointers to top elements of filed list
res_selected_fields	new list of items of select item list
res_all_fields	new list of all items
elements	number of elements in select item list
all_fields	all fields list

Return values

0	ok
!=0	error

Definition at line 4025 of file sql_executor.cc.

Here is the call graph for this function:

void copy_fields

(

TMP_TABLE_PARAM *

param

)

Make a copy of all simple SELECT'ed items.

This is done at the start of a new group so that we can retrieve these later when the group changes.

Definition at line 3990 of file sql_executor.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

bool copy_funcs	(	Item **	func_ptr,
		const THD *	thd
	)

Copy result of functions to record in tmp_table.

Uses the thread pointer to check for errors in some of the val_xxx() methods called by the save_in_result_field() function. TODO: make the Item::val_xxx() return error code

Parameters

func_ptr	array of the function Items to copy to the tmp table
thd	pointer to the current thread for error checking

Return values

FALSE	if OK
TRUE	on error

Definition at line 545 of file sql_executor.cc.

Here is the caller graph for this function:

int do_sj_dups_weedout	(	THD *	thd,
		SJ_TMP_TABLE *	sjtbl
	)

SemiJoinDuplicateElimination: Weed out duplicate row combinations

SYNPOSIS do_sj_dups_weedout() thd Thread handle sjtbl Duplicate weedout table

DESCRIPTION Try storing current record combination of outer tables (i.e. their rowids) in the temporary table. This records the fact that we've seen this record combination and also tells us if we've seen it before.

RETURN -1 Error 1 The row combination is a duplicate (discard it) 0 The row combination is not a duplicate (continue)

Definition at line 1334 of file sql_executor.cc.

Here is the call graph for this function:

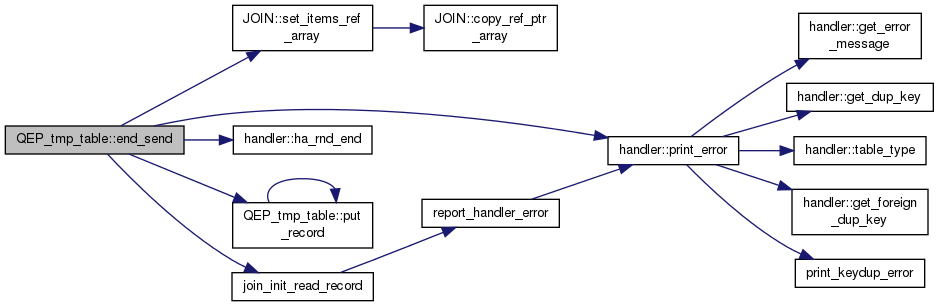

enum_nested_loop_state QEP_tmp_table::end_send ( )

virtual

Finish rnd/index scan after accumulating records, switch ref_array, and send accumulated records further.

Returns

return one of enum_nested_loop_state.

Implements QEP_operation.

Definition at line 4308 of file sql_executor.cc.

Here is the call graph for this function:

void JOIN::exec

(

)

Execute select, executor entry point.

Todo:

When can we have here thd->net.report_error not zero?

Definition at line 97 of file sql_executor.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

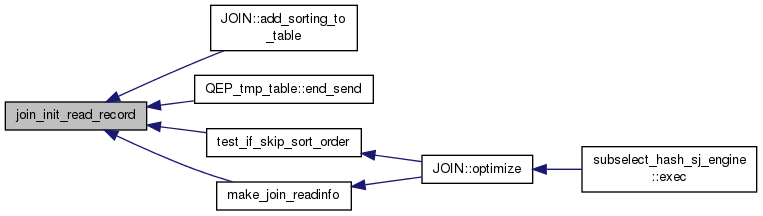

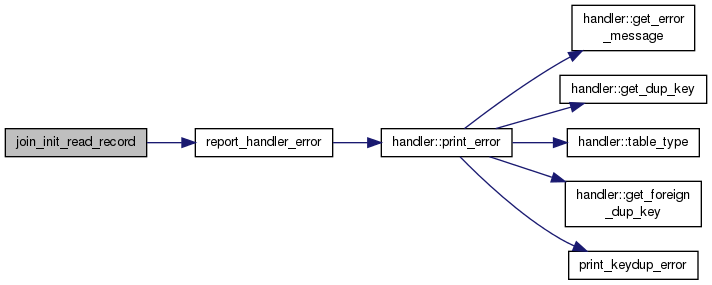

int join_init_read_record

(

JOIN_TAB *

tab

)

Prepare table for reading rows and read first record.

Prior to reading the table following tasks are done, (in the order of execution): .) derived tables are materialized .) duplicates removed (tmp tables only) .) table is sorted with filesort (both non-tmp and tmp tables) After this have been done this function resets quick select, if it's present, sets up table reading functions, and reads first record.

Return values

0	Ok
-1	End of records
1	Error

Definition at line 2373 of file sql_executor.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int join_read_const_table	(	JOIN_TAB *	tab,
		POSITION *	pos
	)

Reads content of constant table

Parameters

tab	table
pos	position of table in query plan

Return values

0	ok, one row was found or one NULL-complemented row was created
-1	ok, no row was found and no NULL-complemented row was created
1	error

Definition at line 1791 of file sql_executor.cc.

Here is the call graph for this function:

void join_read_key_unlock_row

(

st_join_table *

tab

)

Since join_read_key may buffer a record, do not unlock it if it was not used in this invocation of join_read_key(). Only count locks, thus remembering if the record was left unused, and unlock already when pruning the current value of TABLE_REF buffer.

See Also

join_read_key()

Definition at line 2071 of file sql_executor.cc.

Here is the caller graph for this function:

int join_read_last_key

(

JOIN_TAB *

tab

)

This function is used when optimizing away ORDER BY in SELECT * FROM t1 WHERE a=1 ORDER BY a DESC,b DESC.

Definition at line 2222 of file sql_executor.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

bool make_group_fields	(	JOIN *	main_join,
		JOIN *	curr_join
	)

allocate group fields or take prepared (cached).

Parameters

main_join	join of current select
curr_join	current join (join of current select or temporary copy of it)

Return values

0	ok
1	failed

Definition at line 3743 of file sql_executor.cc.

Here is the call graph for this function:

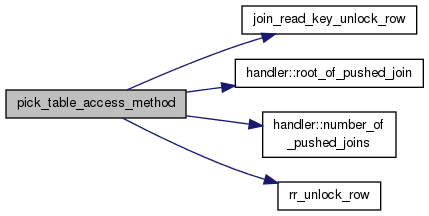

void pick_table_access_method

(

JOIN_TAB *

tab

)

Pick the appropriate access method functions

Sets the functions for the selected table access method

Parameters

tab	Table reference to put access method

Set up modified access function for pushed joins.

Already set to some non-default value in sql_select.cc TODO: Move these settings into pick_table_access_method() also

Definition at line 2657 of file sql_executor.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

bool JOIN_TAB::prepare_scan

(

)

Prepare table to be scanned.

This function is the place to do any work on the table that needs to be done before table can be scanned. Currently it only materialized derived tables and semi-joined subqueries and binds buffer for current rowid.

Returns

false - Ok, true - error

Definition at line 1295 of file sql_executor.cc.

Here is the caller graph for this function:

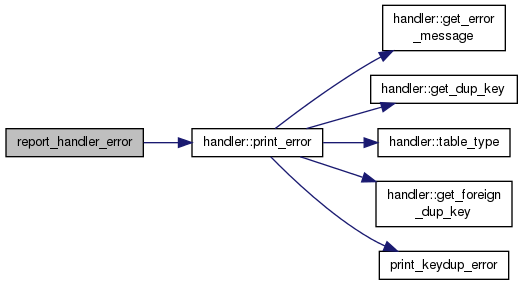

int report_handler_error	(	TABLE *	table,
		int	error
	)

Help function when we get some an error from the table handler.

Definition at line 1732 of file sql_executor.cc.

Here is the call graph for this function:

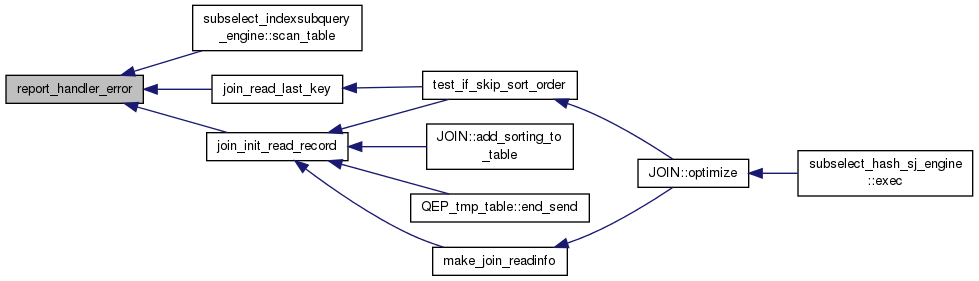

Here is the caller graph for this function:

int JOIN::rollup_send_data

(

uint

idx

)

Send all rollup levels higher than the current one to the client.

SAMPLE

SELECT a, b, c SUM(b) FROM t1 GROUP BY a,b WITH ROLLUP

Parameters

idx	Level we are on: 0 = Total sum level 1 = First group changed (a) 2 = Second group changed (a,b)

Return values

0	ok
1	If send_data_failed()

Definition at line 323 of file sql_executor.cc.

Here is the call graph for this function:

int JOIN::rollup_write_data	(	uint	idx,
		TABLE *	table_arg
	)

Write all rollup levels higher than the current one to a temp table.

SAMPLE

SELECT a, b, SUM(c) FROM t1 GROUP BY a,b WITH ROLLUP

Parameters

idx	Level we are on: 0 = Total sum level 1 = First group changed (a) 2 = Second group changed (a,b)
table	reference to temp table

Return values

0	ok
1	if write_data_failed()

Definition at line 364 of file sql_executor.cc.

Here is the call graph for this function:

bool setup_copy_fields	(	THD *	thd,
		TMP_TABLE_PARAM *	param,
		Ref_ptr_array	ref_pointer_array,
		List< Item > &	res_selected_fields,
		List< Item > &	res_all_fields,
		uint	elements,
		List< Item > &	all_fields
	)

Setup copy_fields to save fields at start of new group.

Setup copy_fields to save fields at start of new group

Only FIELD_ITEM:s and FUNC_ITEM:s needs to be saved between groups. Change old item_field to use a new field with points at saved fieldvalue This function is only called before use of send_result_set_metadata.

Parameters

thd	THD pointer
param	temporary table parameters
ref_pointer_array	array of pointers to top elements of filed list
res_selected_fields	new list of items of select item list
res_all_fields	new list of all items
elements	number of elements in select item list
all_fields	all fields list

Todo:

In most cases this result will be sent to the user. This should be changed to use copy_int or copy_real depending on how the value is to be used: In some cases this may be an argument in a group function, like: IF(ISNULL(col),0,COUNT(*))

Return values

0	ok
!=0	error

Definition at line 3843 of file sql_executor.cc.

Here is the call graph for this function:

Next_select_func setup_end_select_func	(	JOIN *	join,
		JOIN_TAB *	tab
	)

Rows produced by a join sweep may end up in a temporary table or be sent to a client. Setup the function of the nested loop join algorithm which handles final fully constructed and matched records.

Parameters

join	join to setup the function for.

Returns

end_select function to use. This function can't fail.

Definition at line 827 of file sql_executor.cc.

bool setup_sum_funcs	(	THD *	thd,
		Item_sum **	func_ptr
	)

Call ::setup for all sum functions.

Parameters

thd	thread handler
func_ptr	sum function list

Return values

FALSE	ok
TRUE	error

Definition at line 455 of file sql_executor.cc.

Here is the call graph for this function:

void setup_tmptable_write_func

(

JOIN_TAB *

tab

)

Setup write_func of QEP_tmp_table object.

Parameters

join_tab

JOIN_TAB of a tmp table

Function sets up write_func according to how QEP_tmp_table object that is attached to the given join_tab will be used in the query.

Definition at line 761 of file sql_executor.cc.

Here is the call graph for this function:

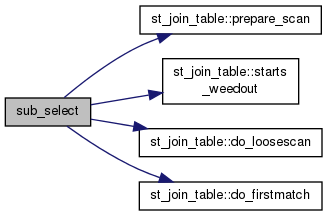

enum_nested_loop_state sub_select	(	JOIN *	join,
		JOIN_TAB *	join_tab,
		bool	end_of_records
	)

Retrieve records ends with a given beginning from the result of a join.

SYNPOSIS sub_select() join pointer to the structure providing all context info for the query join_tab the first next table of the execution plan to be retrieved end_records true when we need to perform final steps of retrival

DESCRIPTION For a given partial join record consisting of records from the tables preceding the table join_tab in the execution plan, the function retrieves all matching full records from the result set and send them to the result set stream.

Note

The function effectively implements the final (n-k) nested loops of nested loops join algorithm, where k is the ordinal number of the join_tab table and n is the total number of tables in the join query. It performs nested loops joins with all conjunctive predicates from the where condition pushed as low to the tables as possible. E.g. for the query

SELECT * FROM t1,t2,t3
WHERE t1.a=t2.a AND t2.b=t3.b AND t1.a BETWEEN 5 AND 9

the predicate (t1.a BETWEEN 5 AND 9) will be pushed to table t1, given the selected plan prescribes to nest retrievals of the joined tables in the following order: t1,t2,t3. A pushed down predicate are attached to the table which it pushed to, at the field join_tab->cond. When executing a nested loop of level k the function runs through the rows of 'join_tab' and for each row checks the pushed condition attached to the table. If it is false the function moves to the next row of the table. If the condition is true the function recursively executes (n-k-1) remaining embedded nested loops. The situation becomes more complicated if outer joins are involved in the execution plan. In this case the pushed down predicates can be checked only at certain conditions. Suppose for the query

SELECT * FROM t1 LEFT JOIN (t2,t3) ON t3.a=t1.a
WHERE t1>2 AND (t2.b>5 OR t2.b IS NULL)

the optimizer has chosen a plan with the table order t1,t2,t3. The predicate P1=t1>2 will be pushed down to the table t1, while the predicate P2=(t2.b>5 OR t2.b IS NULL) will be attached to the table t2. But the second predicate can not be unconditionally tested right after a row from t2 has been read. This can be done only after the first row with t3.a=t1.a has been encountered. Thus, the second predicate P2 is supplied with a guarded value that are stored in the field 'found' of the first inner table for the outer join (table t2). When the first row with t3.a=t1.a for the current row of table t1 appears, the value becomes true. For now on the predicate is evaluated immediately after the row of table t2 has been read. When the first row with t3.a=t1.a has been encountered all conditions attached to the inner tables t2,t3 must be evaluated. Only when all of them are true the row is sent to the output stream. If not, the function returns to the lowest nest level that has a false attached condition. The predicates from on expressions are also pushed down. If in the the above example the on expression were (t3.a=t1.a AND t2.a=t1.a), then t1.a=t2.a would be pushed down to table t2, and without any guard. If after the run through all rows of table t2, the first inner table for the outer join operation, it turns out that no matches are found for the current row of t1, then current row from table t1 is complemented by nulls for t2 and t3. Then the pushed down predicates are checked for the composed row almost in the same way as it had been done for the first row with a match. The only difference is the predicates from on expressions are not checked.

IMPLEMENTATION

The function forms output rows for a current partial join of k tables tables recursively. For each partial join record ending with a certain row from join_tab it calls sub_select that builds all possible matching tails from the result set. To be able check predicates conditionally items of the class Item_func_trig_cond are employed. An object of this class is constructed from an item of class COND and a pointer to a guarding boolean variable. When the value of the guard variable is true the value of the object is the same as the value of the predicate, otherwise it's just returns true. To carry out a return to a nested loop level of join table t the pointer to t is remembered in the field 'return_tab' of the join structure. Consider the following query:

SELECT * FROM t1,
              LEFT JOIN
              (t2, t3 LEFT JOIN (t4,t5) ON t5.a=t3.a)
              ON t4.a=t2.a
   WHERE (t2.b=5 OR t2.b IS NULL) AND (t4.b=2 OR t4.b IS NULL)

Suppose the chosen execution plan dictates the order t1,t2,t3,t4,t5 and suppose for a given joined rows from tables t1,t2,t3 there are no rows in the result set yet. When first row from t5 that satisfies the on condition t5.a=t3.a is found, the pushed down predicate t4.b=2 OR t4.b IS NULL becomes 'activated', as well the predicate t4.a=t2.a. But the predicate (t2.b=5 OR t2.b IS NULL) can not be checked until t4.a=t2.a becomes true. In order not to re-evaluate the predicates that were already evaluated as attached pushed down predicates, a pointer to the the first most inner unmatched table is maintained in join_tab->first_unmatched. Thus, when the first row from t5 with t5.a=t3.a is found this pointer for t5 is changed from t4 to t2.

STRUCTURE NOTES

join_tab->first_unmatched points always backwards to the first inner table of the embedding nested join, if any.

Parameters

join	pointer to the structure providing all context info for the query
join_tab	the first next table of the execution plan to be retrieved
end_records	true when we need to perform final steps of retrival

Returns

return one of enum_nested_loop_state, except NESTED_LOOP_NO_MORE_ROWS.

Definition at line 1198 of file sql_executor.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

enum_nested_loop_state sub_select_op	(	JOIN *	join,
		JOIN_TAB *	join_tab,
		bool	end_of_records
	)

Accumulate full or partial join result in operation and send operation's result further.

Parameters

join	pointer to the structure providing all context info for the query
join_tab	the JOIN_TAB object to which the operation is attached
end_records	TRUE <=> all records were accumulated, send them further

This function accumulates records, one by one, in QEP operation's buffer by calling op->put_record(). When there is no more records to save, in this case the end_of_records argument == true, function tells QEP operation to send records further by calling op->send_records(). When all records are sent this function passes 'end_of_records' signal further by calling sub_select() with end_of_records argument set to true. After that op->end_send() is called to tell QEP operation that it could end internal buffer scan.

Note

This function is not expected to be called when dynamic range scan is used to scan join_tab because join cache is disabled for such scan and range scans aren't used for tmp tables.

See Also

setup_join_buffering For caches the function implements the algorithmic schema for both Blocked Nested Loop Join and Batched Key Access Join. The difference can be seen only at the level of of the implementation of the put_record and send_records virtual methods for the cache object associated with the join_tab.

Returns

return one of enum_nested_loop_state.

Definition at line 1031 of file sql_executor.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

bool JOIN_TAB::use_order

(

)

const

Use ordering provided by chosen index?

Check if access to this JOIN_TAB has to retrieve rows in sorted order as defined by the ordered index used to access this table.

Definition at line 2462 of file sql_executor.cc.

Here is the caller graph for this function:
