evhttp.h File Reference

#include <event.h>

Include dependency graph for evhttp.h:

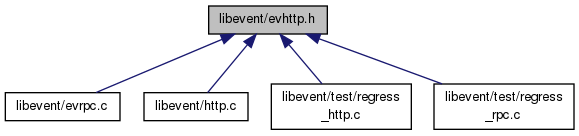

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	evhttp_request

Macros
#define	HTTP_OK   200
#define	HTTP_NOCONTENT   204
#define	HTTP_MOVEPERM   301
#define	HTTP_MOVETEMP   302
#define	HTTP_NOTMODIFIED   304
#define	HTTP_BADREQUEST   400
#define	HTTP_NOTFOUND   404
#define	HTTP_SERVUNAVAIL   503
#define	EVHTTP_REQ_OWN_CONNECTION   0x0001
#define	EVHTTP_PROXY_REQUEST   0x0002

Enumerations
enum	evhttp_cmd_type { EVHTTP_REQ_GET, EVHTTP_REQ_POST, EVHTTP_REQ_HEAD }
enum	evhttp_request_kind { EVHTTP_REQUEST, EVHTTP_RESPONSE }

Functions
struct evhttp *	evhttp_new (struct event_base *base)
int	evhttp_bind_socket (struct evhttp *http, const char *address, u_short port)
int	evhttp_accept_socket (struct evhttp *http, int fd)
void	evhttp_free (struct evhttp *http)
void	evhttp_set_cb (struct evhttp *, const char *, void(*)(struct evhttp_request *, void *), void *)
int	evhttp_del_cb (struct evhttp *, const char *)
void	evhttp_set_gencb (struct evhttp *, void(*)(struct evhttp_request *, void *), void *)
void	evhttp_set_timeout (struct evhttp *, int timeout_in_secs)
void	evhttp_send_error (struct evhttp_request *req, int error, const char *reason)
void	evhttp_send_reply (struct evhttp_request *req, int code, const char *reason, struct evbuffer *databuf)
void	evhttp_send_reply_start (struct evhttp_request *, int, const char *)
void	evhttp_send_reply_chunk (struct evhttp_request *, struct evbuffer *)
void	evhttp_send_reply_end (struct evhttp_request *)
struct evhttp *	evhttp_start (const char *address, u_short port)
struct evhttp_request *	evhttp_request_new (void(*cb)(struct evhttp_request *, void *), void *arg)
void	evhttp_request_set_chunked_cb (struct evhttp_request *, void(*cb)(struct evhttp_request *, void *))
void	evhttp_request_free (struct evhttp_request *req)
struct evhttp_connection *	evhttp_connection_new (const char *address, unsigned short port)
void	evhttp_connection_free (struct evhttp_connection *evcon)
void	evhttp_connection_set_local_address (struct evhttp_connection *evcon, const char *address)
void	evhttp_connection_set_local_port (struct evhttp_connection *evcon, unsigned short port)
void	evhttp_connection_set_timeout (struct evhttp_connection *evcon, int timeout_in_secs)
void	evhttp_connection_set_retries (struct evhttp_connection *evcon, int retry_max)
void	evhttp_connection_set_closecb (struct evhttp_connection *evcon, void(*)(struct evhttp_connection *, void *), void *)
void	evhttp_connection_set_base (struct evhttp_connection *evcon, struct event_base *base)
void	evhttp_connection_get_peer (struct evhttp_connection *evcon, char **address, u_short *port)
int	evhttp_make_request (struct evhttp_connection *evcon, struct evhttp_request *req, enum evhttp_cmd_type type, const char *uri)
const char *	evhttp_request_uri (struct evhttp_request *req)
const char *	evhttp_find_header (const struct evkeyvalq *, const char *)
int	evhttp_remove_header (struct evkeyvalq *, const char *)
int	evhttp_add_header (struct evkeyvalq *, const char *, const char *)
void	evhttp_clear_headers (struct evkeyvalq *)
char *	evhttp_encode_uri (const char *uri)
char *	evhttp_decode_uri (const char *uri)
void	evhttp_parse_query (const char *uri, struct evkeyvalq *headers)
char *	evhttp_htmlescape (const char *html)

Detailed Description

Basic support for HTTP serving.

As libevent is a library for dealing with event notification and most interesting applications are networked today, I have often found the need to write HTTP code. The following prototypes and definitions provide an application with a minimal interface for making HTTP requests and for creating a very simple HTTP server.

Definition in file evhttp.h.

Function Documentation

int evhttp_accept_socket	(	struct evhttp *	http,
		int	fd
	)

Makes an HTTP server accept connections on the specified socket

This may be useful to create a socket and then fork multiple instances of an http server, or when a socket has been communicated via file descriptor passing in situations where an http servers does not have permissions to bind to a low-numbered port.

Can be called multiple times to have the http server listen to multiple different sockets.

Parameters

http	a pointer to an evhttp object
fd	a socket fd that is ready for accepting connections

Returns

0 on success, -1 on failure.

See Also

evhttp_free(), evhttp_bind_socket()

Definition at line 2280 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

int evhttp_bind_socket	(	struct evhttp *	http,
		const char *	address,
		u_short	port
	)

Binds an HTTP server on the specified address and port.

Can be called multiple times to bind the same http server to multiple different ports.

Parameters

http	a pointer to an evhttp object
address	a string containing the IP address to listen(2) on
port	the port number to listen on

Returns

a newly allocated evhttp struct

See Also

evhttp_free()

Definition at line 2256 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_connection_free

(

struct evhttp_connection *

evcon

)

Frees an http connection

Definition at line 987 of file http.c.

Here is the call graph for this function:

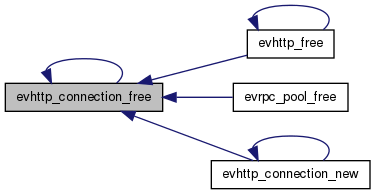

Here is the caller graph for this function:

void evhttp_connection_get_peer	(	struct evhttp_connection *	evcon,
		char **	address,
		u_short *	port
	)

Get the remote address and port associated with this connection.

Definition at line 1755 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

struct evhttp_connection* evhttp_connection_new ( const char *  address, unsigned short  port  )

read

A connection object that can be used to for making HTTP requests. The connection object tries to establish the connection when it is given an http request object.

Definition at line 1681 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_connection_set_base	(	struct evhttp_connection *	evcon,
		struct event_base *	base
	)

Associates an event base with the connection - can only be called on a freshly created connection object that has not been used yet.

Definition at line 1724 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_connection_set_closecb	(	struct evhttp_connection *	evcon,
		void(*)(struct evhttp_connection *, void *)	,
		void *
	)

Set a callback for connection close.

Definition at line 1747 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_connection_set_local_address	(	struct evhttp_connection *	evcon,
		const char *	address
	)

sets the ip address from which http connections are made

Definition at line 1033 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_connection_set_local_port	(	struct evhttp_connection *	evcon,
		unsigned short	port
	)

sets the local port from which http connections are made

Definition at line 1044 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_connection_set_retries	(	struct evhttp_connection *	evcon,
		int	retry_max
	)

Sets the retry limit for this connection - -1 repeats indefnitely

Definition at line 1740 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_connection_set_timeout	(	struct evhttp_connection *	evcon,
		int	timeout_in_secs
	)

Sets the timeout for events related to this connection

Definition at line 1733 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

char* evhttp_decode_uri

(

const char *

uri

)

Helper function to decode a URI.

The returned string must be freed by the caller.

Parameters

uri	an encoded URI

Returns

a newly allocated unencoded URI

Definition at line 2099 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

int evhttp_del_cb	(	struct evhttp *	,
		const char *
	)

Removes the callback for a specified URI

Definition at line 2410 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

char* evhttp_encode_uri

(

const char *

uri

)

Helper function to encode a URI.

The returned string must be freed by the caller.

Parameters

uri	an unencoded URI

Returns

a newly allocated URI-encoded string

Definition at line 2049 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_free

(

struct evhttp *

http

)

Free the previously created HTTP server.

Works only if no requests are currently being served.

Parameters

http	the evhttp server object to be freed

See Also

evhttp_start()

Definition at line 2355 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

char* evhttp_htmlescape

(

const char *

html

)

Escape HTML character entities in a string.

Replaces <, >, ", ' and & with <, >, ", &#039; and & correspondingly.

The returned string needs to be freed by the caller.

Parameters

html	an unescaped HTML string

Returns

an escaped HTML string

Definition at line 280 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

int evhttp_make_request	(	struct evhttp_connection *	evcon,
		struct evhttp_request *	req,
		enum evhttp_cmd_type	type,
		const char *	uri
	)

The connection gets ownership of the request

Definition at line 1803 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

struct evhttp* evhttp_new ( struct event_base *  base )

read

Create a new HTTP server

Parameters

base	(optional) the event base to receive the HTTP events

Returns

a pointer to a newly initialized evhttp server structure

Definition at line 2328 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_parse_query	(	const char *	uri,
		struct evkeyvalq *	headers
	)

Helper function to parse out arguments in a query.

Parsing a uri like

http://foo.com/?q=test&s=some+thing

will result in two entries in the key value queue.

The first entry is: key="q", value="test" The second entry is: key="s", value="some thing"

Parameters

uri	the request URI
headers	the head of the evkeyval queue

Definition at line 2119 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_request_free

(

struct evhttp_request *

req

)

Frees the request object and removes associated events.

Definition at line 2488 of file http.c.

Here is the call graph for this function:

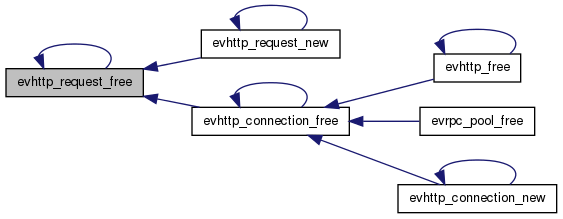

Here is the caller graph for this function:

struct evhttp_request* evhttp_request_new ( void(*)(struct evhttp_request *, void *)  cb, void *  arg  )

read

Creates a new request object that needs to be filled in with the request parameters. The callback is executed when the request completed or an error occurred.

Definition at line 2441 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_request_set_chunked_cb	(	struct evhttp_request *	,
		void(*)(struct evhttp_request *, void *)	cb
	)

enable delivery of chunks to requestor

Definition at line 2513 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_send_error	(	struct evhttp_request *	req,
		int	error,
		const char *	reason
	)

Send an HTML error message to the client.

Parameters

req	a request object
error	the HTTP error code
reason	a brief explanation of the error

Definition at line 1894 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_send_reply	(	struct evhttp_request *	req,
		int	code,
		const char *	reason,
		struct evbuffer *	databuf
	)

Send an HTML reply to the client.

Parameters

req	a request object
code	the HTTP response code to send
reason	a brief message to send with the response code
databuf	the body of the response

Definition at line 1938 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_set_cb	(	struct evhttp *	,
		const char *	,
		void(*)(struct evhttp_request *, void *)	,
		void *
	)

Set a callback for a specified URI

Definition at line 2394 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_set_gencb	(	struct evhttp *	,
		void(*)(struct evhttp_request *, void *)	,
		void *
	)

Set a callback for all requests that are not caught by specific callbacks

Definition at line 2429 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void evhttp_set_timeout	(	struct evhttp *	,
		int	timeout_in_secs
	)

Set the timeout for an HTTP request.

Parameters

http	an evhttp object
timeout_in_secs	the timeout, in seconds

Definition at line 2388 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:

struct evhttp* evhttp_start ( const char *  address, u_short  port  )

read

Start an HTTP server on the specified address and port

DEPRECATED: it does not allow an event base to be specified

Parameters

address	the address to which the HTTP server should be bound
port	the port number on which the HTTP server should listen

Returns

an struct evhttp object

Definition at line 2342 of file http.c.

Here is the call graph for this function:

Here is the caller graph for this function:
