dict0stats_bg.h File Reference

#include "univ.i"
#include "dict0types.h"
#include "os0sync.h"
#include "os0thread.h"
#include "dict0stats_bg.ic"

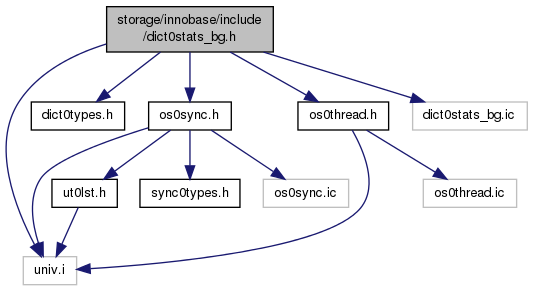

Include dependency graph for dict0stats_bg.h:

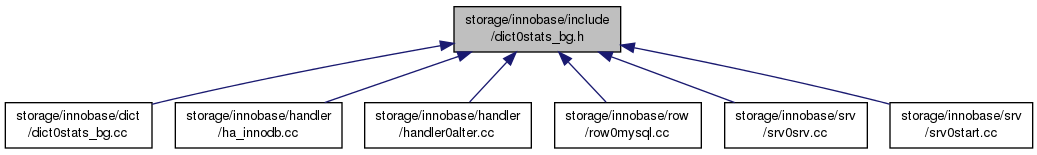

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DICT_STATS_BG_YIELD(trx)

Functions
UNIV_INTERN void	dict_stats_recalc_pool_add (const dict_table_t *table)
UNIV_INTERN void	dict_stats_recalc_pool_del (const dict_table_t *table)
UNIV_INLINE bool	dict_stats_stop_bg (dict_table_t *table) __attribute__((warn_unused_result))
UNIV_INTERN void	dict_stats_wait_bg_to_stop_using_table (dict_table_t *table, trx_t *trx)
UNIV_INTERN void	dict_stats_thread_init ()
UNIV_INTERN void	dict_stats_thread_deinit ()
UNIV_INTERN os_thread_ret_t DECLARE_THREAD()	dict_stats_thread (void *arg)

Variables
os_event_t	dict_stats_event

Detailed Description

Code used for background table and index stats gathering.

Created Apr 26, 2012 Vasil Dimov

Definition in file dict0stats_bg.h.

Macro Definition Documentation

#define DICT_STATS_BG_YIELD

(

trx

)

Value:

do {    \
        row_mysql_unlock_data_dictionary(trx);  \
        os_thread_sleep(250000);                \
        row_mysql_lock_data_dictionary(trx);    \
} while (0)

Yield the data dictionary latch when waiting

for the background thread to stop accessing a table.

Parameters

trx	transaction holding the data dictionary locks

Definition at line 62 of file dict0stats_bg.h.

Function Documentation

UNIV_INTERN void dict_stats_recalc_pool_add

(

const dict_table_t *

table

)

Add a table to the recalc pool, which is processed by the background stats gathering thread. Only the table id is added to the list, so the table can be closed after being enqueued and it will be opened when needed. If the table does not exist later (has been DROPped), then it will be removed from the pool and skipped. in: table to add

Add a table to the recalc pool, which is processed by the background stats gathering thread. Only the table id is added to the list, so the table can be closed after being enqueued and it will be opened when needed. If the table does not exist later (has been DROPped), then it will be removed from the pool and skipped.

Parameters

table

in: table to add

Definition at line 95 of file dict0stats_bg.cc.

Here is the call graph for this function:

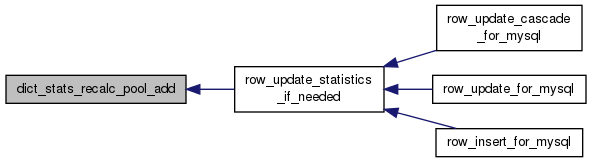

Here is the caller graph for this function:

UNIV_INTERN void dict_stats_recalc_pool_del

(

const dict_table_t *

table

)

Delete a given table from the auto recalc pool. dict_stats_recalc_pool_del() in: table to remove

Delete a given table from the auto recalc pool. dict_stats_recalc_pool_del()

Parameters

table

in: table to remove

Definition at line 155 of file dict0stats_bg.cc.

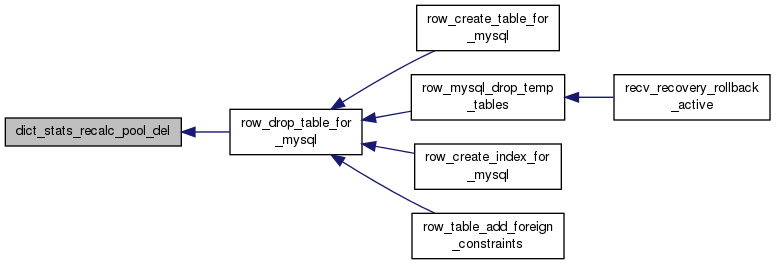

Here is the caller graph for this function:

UNIV_INLINE bool dict_stats_stop_bg

(

dict_table_t *

table

)

Request the background collection of statistics to stop for a table.

Return values

true	when no background process is active
false	when it is not safe to modify the table definition

Parameters

table

in/out: table

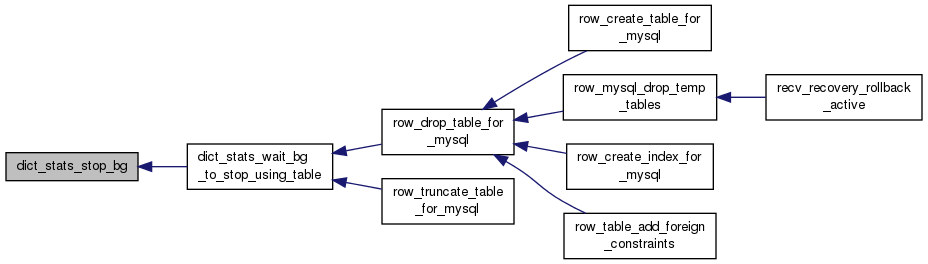

Here is the caller graph for this function:

UNIV_INTERN os_thread_ret_t DECLARE_THREAD() dict_stats_thread

(

void *

arg

)

This is the thread for background stats gathering. It pops tables, from the auto recalc list and proceeds them, eventually recalculating their statistics.

Returns

this function does not return, it calls os_thread_exit() in: a dummy parameter required by os_thread_create

UNIV_INTERN void dict_stats_thread_deinit

(

)

Free resources allocated by dict_stats_thread_init(), must be called after dict_stats_thread() has exited.

Definition at line 238 of file dict0stats_bg.cc.

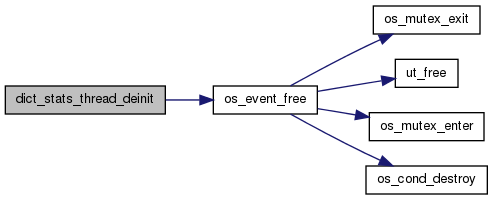

Here is the call graph for this function:

UNIV_INTERN void dict_stats_thread_init

(

)

Initialize global variables needed for the operation of dict_stats_thread(). Must be called before dict_stats_thread() is started.

Initialize global variables needed for the operation of dict_stats_thread() Must be called before dict_stats_thread() is started.

Definition at line 207 of file dict0stats_bg.cc.

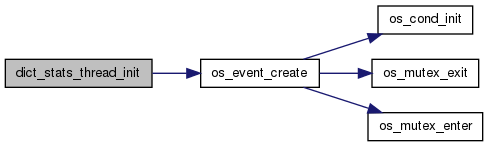

Here is the call graph for this function:

UNIV_INTERN void dict_stats_wait_bg_to_stop_using_table	(	dict_table_t *	table,
		trx_t *	trx
	)

Wait until background stats thread has stopped using the specified table. The caller must have locked the data dictionary using row_mysql_lock_data_dictionary() and this function may unlock it temporarily and restore the lock before it exits. The background stats thread is guaranteed not to start using the specified table after this function returns and before the caller unlocks the data dictionary because it sets the BG_STAT_IN_PROGRESS bit in table->stats_bg_flag under dict_sys->mutex. in/out: transaction to use for unlocking/locking the data dict

Wait until background stats thread has stopped using the specified table. The caller must have locked the data dictionary using row_mysql_lock_data_dictionary() and this function may unlock it temporarily and restore the lock before it exits. The background stats thread is guaranteed not to start using the specified table after this function returns and before the caller unlocks the data dictionary because it sets the BG_STAT_IN_PROGRESS bit in table->stats_bg_flag under dict_sys->mutex.

Parameters

table	in/out: table
trx	in/out: transaction to use for unlocking/locking the data dict

Definition at line 191 of file dict0stats_bg.cc.

Here is the call graph for this function:

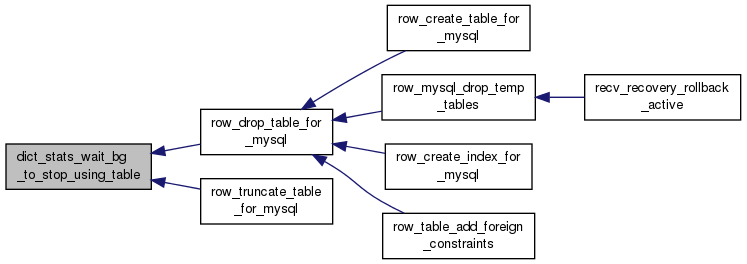

Here is the caller graph for this function:

Variable Documentation

os_event_t dict_stats_event

Event to wake up the stats thread

Definition at line 43 of file dict0stats_bg.cc.
