dict0crea.h File Reference

#include "univ.i"
#include "dict0types.h"
#include "dict0dict.h"
#include "que0types.h"
#include "row0types.h"
#include "mtr0mtr.h"
#include "dict0crea.ic"

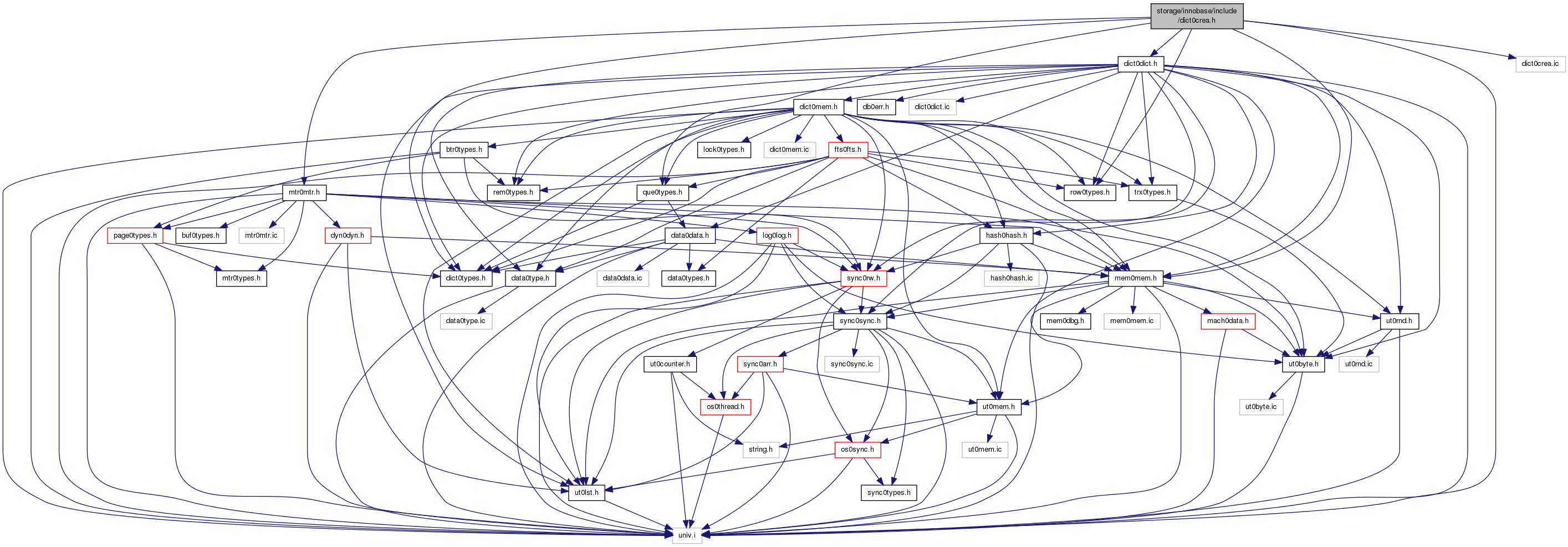

Include dependency graph for dict0crea.h:

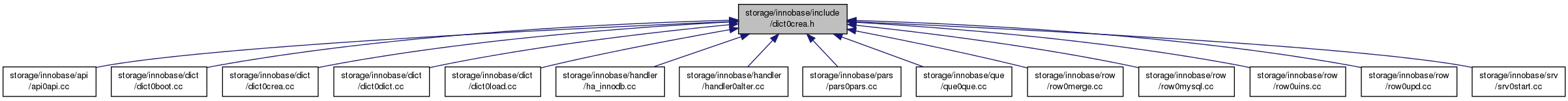

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	tab_node_t
struct	ind_node_t

Macros
#define	TABLE_BUILD_TABLE_DEF   1
#define	TABLE_BUILD_COL_DEF   2
#define	TABLE_COMMIT_WORK   3
#define	TABLE_ADD_TO_CACHE   4
#define	TABLE_COMPLETED   5
#define	INDEX_BUILD_INDEX_DEF   1
#define	INDEX_BUILD_FIELD_DEF   2
#define	INDEX_CREATE_INDEX_TREE   3
#define	INDEX_COMMIT_WORK   4
#define	INDEX_ADD_TO_CACHE   5

Functions
UNIV_INTERN tab_node_t *	tab_create_graph_create (dict_table_t *table, mem_heap_t *heap, bool commit)
UNIV_INTERN ind_node_t *	ind_create_graph_create (dict_index_t *index, mem_heap_t *heap, bool commit)
UNIV_INTERN que_thr_t *	dict_create_table_step (que_thr_t *thr)
UNIV_INTERN que_thr_t *	dict_create_index_step (que_thr_t *thr)
UNIV_INTERN ulint	dict_truncate_index_tree (dict_table_t *table, ulint space, btr_pcur_t *pcur, mtr_t *mtr)
UNIV_INTERN void	dict_drop_index_tree (rec_t *rec, mtr_t *mtr)
UNIV_INTERN dberr_t	dict_create_or_check_foreign_constraint_tables (void)
UNIV_INLINE dberr_t	dict_create_add_foreign_id (ulint *id_nr, const char *name, dict_foreign_t *foreign) __attribute__((nonnull))
UNIV_INTERN dberr_t	dict_create_add_foreigns_to_dictionary (ulint start_id, dict_table_t *table, trx_t *trx) __attribute__((nonnull
UNIV_INTERN dberr_t	dict_create_or_check_sys_tablespace (void)
UNIV_INTERN dberr_t	dict_create_add_tablespace_to_dictionary (ulint space, const char *name, ulint flags, const char *path, trx_t *trx, bool commit)
UNIV_INTERN dberr_t	dict_create_add_foreign_to_dictionary (const char *name, const dict_foreign_t *foreign, trx_t *trx) __attribute__((nonnull

Variables
UNIV_INTERN dberr_t	warn_unused_result

Detailed Description

Database object creation

Created 1/8/1996 Heikki Tuuri

Definition in file dict0crea.h.

Function Documentation

UNIV_INLINE dberr_t dict_create_add_foreign_id	(	ulint *	id_nr,
		const char *	name,
		dict_foreign_t *	foreign
	)

Generate a foreign key constraint name when it was not named by the user. A generated constraint has a name of the format dbname/tablename_ibfk_NUMBER, where the numbers start from 1, and are given locally for this table, that is, the number is not global, as it used to be before MySQL 4.0.18.

Parameters

id_nr	in/out: number to use in id generation; incremented if used
name	in: table name
foreign	in/out: foreign key

UNIV_INTERN dberr_t dict_create_add_foreign_to_dictionary	(	const char *	name,
		const dict_foreign_t *	foreign,
		trx_t *	trx
	)

Add a foreign key definition to the data dictionary tables.

Returns

error code or DB_SUCCESS

Parameters

name	in: table name
foreign	in: foreign key
trx	in/out: dictionary transaction

UNIV_INTERN dberr_t dict_create_add_foreigns_to_dictionary	(	ulint	start_id,
		dict_table_t *	table,
		trx_t *	trx
	)

Adds foreign key definitions to data dictionary tables in the database. We look at table->foreign_list, and also generate names to constraints that were not named by the user. A generated constraint has a name of the format databasename/tablename_ibfk_NUMBER, where the numbers start from 1, and are given locally for this table, that is, the number is not global, as in the old format constraints < 4.0.18 it used to be.

Returns

error code or DB_SUCCESS

Parameters

start_id	in: if we are actually doing ALTER TABLE ADD CONSTRAINT, we want to generate constraint numbers which are bigger than in the table so far; we number the constraints from start_id + 1 up; start_id should be set to 0 if we are creating a new table, or if the table so far has no constraints for which the name was generated here
table	in: table
trx	in: transaction

UNIV_INTERN dberr_t dict_create_add_tablespace_to_dictionary	(	ulint	space,
		const char *	name,
		ulint	flags,
		const char *	path,
		trx_t *	trx,
		bool	commit
	)

Add a single tablespace definition to the data dictionary tables in the database.

Returns

error code or DB_SUCCESS in: if true then commit the transaction

Parameters

space	in: tablespace id
name	in: tablespace name
flags	in: tablespace flags
path	in: tablespace path
trx	in: transaction

Here is the caller graph for this function:

UNIV_INTERN que_thr_t* dict_create_index_step

(

que_thr_t *

thr

)

Creates an index. This is a high-level function used in SQL execution graphs.

Returns

query thread to run next or NULL in: query thread

Here is the caller graph for this function:

UNIV_INTERN dberr_t dict_create_or_check_foreign_constraint_tables

(

void

)

Creates the foreign key constraints system tables inside InnoDB at server bootstrap or server start if they are not found or are not of the right form.

Returns

DB_SUCCESS or error code

UNIV_INTERN dberr_t dict_create_or_check_sys_tablespace

(

void

)

Creates the tablespaces and datafiles system tables inside InnoDB at server bootstrap or server start if they are not found or are not of the right form.

Returns

DB_SUCCESS or error code

UNIV_INTERN que_thr_t* dict_create_table_step

(

que_thr_t *

thr

)

Creates a table. This is a high-level function used in SQL execution graphs.

Returns

query thread to run next or NULL in: query thread

Here is the caller graph for this function:

UNIV_INTERN void dict_drop_index_tree	(	rec_t *	rec,
		mtr_t *	mtr
	)

Drops the index tree associated with a row in SYS_INDEXES table. in: mtr having the latch on the record page

Parameters

rec	in/out: record in the clustered index of SYS_INDEXES table

UNIV_INTERN ulint dict_truncate_index_tree	(	dict_table_t *	table,
		ulint	space,
		btr_pcur_t *	pcur,
		mtr_t *	mtr
	)

Truncates the index tree associated with a row in SYS_INDEXES table.

Returns

new root page number, or FIL_NULL on failure in: mtr having the latch on the record page. The mtr may be committed and restarted in this call.

Parameters

table	in: the table the index belongs to
space	in: 0=truncate, nonzero=create the index tree in the given tablespace
pcur	in/out: persistent cursor pointing to record in the clustered index of SYS_INDEXES table. The cursor may be repositioned in this call.

Here is the caller graph for this function:

UNIV_INTERN ind_node_t* ind_create_graph_create	(	dict_index_t *	index,
		mem_heap_t *	heap,
		bool	commit
	)

Creates an index create graph.

Returns

own: index create node in: true if the commit node should be added to the query graph

Parameters

index	in: index to create, built as a memory data structure
heap	in: heap where created

Here is the caller graph for this function:

UNIV_INTERN tab_node_t* tab_create_graph_create	(	dict_table_t *	table,
		mem_heap_t *	heap,
		bool	commit
	)

Creates a table create graph.

Returns

own: table create node in: true if the commit node should be added to the query graph

Parameters

table	in: table to create, built as a memory data structure
heap	in: heap where created

Here is the caller graph for this function:
