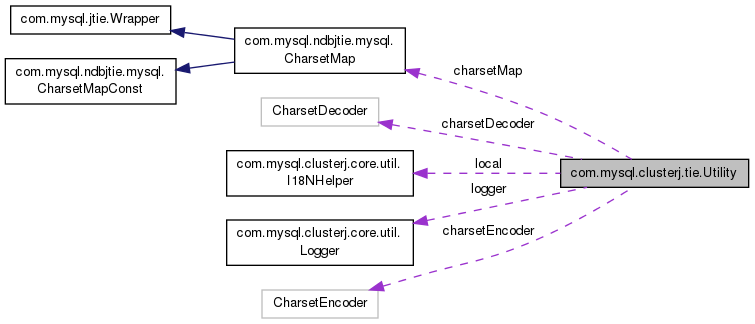

Collaboration diagram for com.mysql.clusterj.tie.Utility:

Classes
interface	CharsetConverter
interface	EndianManager
class	MultiByteCharsetConverter
class	SingleByteCharsetConverter

Static Public Member Functions
static CharsetMap	getCharsetMap ()
static boolean	isRetriable (ClusterJDatastoreException ex)
static ByteBuffer	convertValue (Column storeColumn, byte[] value)
static ByteBuffer	convertValue (Column storeColumn, BigDecimal value)
static ByteBuffer	convertValue (Column storeColumn, BigInteger value)
static ByteBuffer	convertValue (Column storeColumn, double value)
static ByteBuffer	convertValue (Column storeColumn, float value)
static ByteBuffer	convertValue (Column storeColumn, byte value)
static ByteBuffer	convertValue (Column storeColumn, short value)
static ByteBuffer	convertValue (Column storeColumn, int value)
static ByteBuffer	convertValue (Column storeColumn, long value)
static void	fixBufferPrefixLength (String columnName, ByteBuffer byteBuffer, int offset)
static String	dumpBytes (byte[] bytes)
static String	dumpBytes (ByteBuffer byteBuffer)
static BigDecimal	getDecimal (ByteBuffer byteBuffer, int length, int precision, int scale)
static BigInteger	getBigInteger (ByteBuffer byteBuffer, int length, int precision, int scale)
static String	getDecimalString (ByteBuffer byteBuffer, int length, int precision, int scale)
static long	unpackDate (int packedDate)
static long	unpackTime (int packedTime)
static String	decode (byte[] array, int collation)
static byte[]	encode (String string, int collation)
static ByteBuffer	encodeToByteBuffer (CharSequence string, int collation, int prefixLength)
static ByteBuffer	encode (String input, Column storeColumn, BufferManager bufferManager)
static String	decode (ByteBuffer inputByteBuffer, int collation, BufferManager bufferManager)
static int	getDecimalColumnSpace (int precision, int scale)
static boolean	getBoolean (Column storeColumn, NdbRecAttr ndbRecAttr)
static byte	getByte (Column storeColumn, NdbRecAttr ndbRecAttr)
static short	getShort (Column storeColumn, NdbRecAttr ndbRecAttr)
static int	getInt (Column storeColumn, NdbRecAttr ndbRecAttr)
static long	getLong (Column storeColumn, NdbRecAttr ndbRecAttr)
static long	convertLongValueForStorage (Column storeColumn, long value)
static int	convertByteValueForStorage (Column storeColumn, byte value)
static int	convertShortValueForStorage (Column storeColumn, short value)

Static Protected Member Functions
static short	swap (short value)
static int	swap (int value)
static long	swap (long value)
static void	throwError (Object returnCode, NdbErrorConst ndbError)
static void	throwError (Object returnCode, NdbErrorConst ndbError, String extra)
static ByteBuffer	convertValue (Column storeColumn, String value)
static ByteBuffer	convertValueForLikeFilter (Column storeColumn, String value)
static ByteBuffer	convertValueForLikeFilter (Column storeColumn, byte[] value)
static long	packDatetime (long value)
static long	unpackDatetime (long packedDatetime)
static String	decode (ByteBuffer inputByteBuffer, int collation)

Static Protected Attributes
static final int	collationUTF16 = charsetMap.getUTF16CharsetNumber()

Detailed Description

This class provides utility methods.

Definition at line 57 of file Utility.java.

Member Function Documentation

static int com.mysql.clusterj.tie.Utility.convertByteValueForStorage	(	Column	storeColumn,
		byte	value
	)

inlinestatic

Convert a byte value into an int for storage. The value parameter may be a bit, a bit array (BIT(1..8) needs to be stored as an int) or a byte value. The storage format depends on the type of the column and the endian-ness of the host.

Parameters

storeColumn	the column
value	the java value

Returns: the storage value

Definition at line 1881 of file Utility.java.

static long com.mysql.clusterj.tie.Utility.convertLongValueForStorage	(	Column	storeColumn,
		long	value
	)

inlinestatic

Convert a long value into a long for storage. The value parameter may be a date (milliseconds since the epoch), a bit array, or simply a long value. The storage format depends on the type of the column and the endian-ness of the host.

Parameters

storeColumn	the column
value	the java value

Returns: the storage value

Definition at line 1869 of file Utility.java.

static int com.mysql.clusterj.tie.Utility.convertShortValueForStorage	(	Column	storeColumn,
		short	value
	)

inlinestatic

Convert a short value into an int for storage. The value parameter may be a bit array (BIT(1..16) needs to be stored as an int) or a short value. The storage format depends on the type of the column and the endian-ness of the host.

Parameters

storeColumn	the column
value	the java value

Returns: the storage value

Definition at line 1893 of file Utility.java.

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		byte[]	value
	)

inlinestatic

Convert the parameter value to a ByteBuffer that can be passed to ndbjtie.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 794 of file Utility.java.

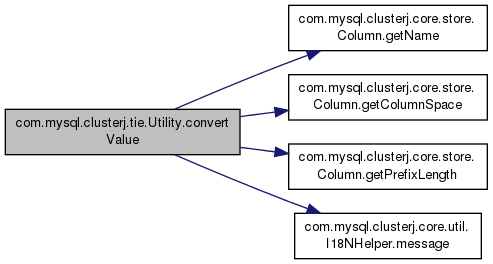

Here is the call graph for this function:

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		BigDecimal	value
	)

inlinestatic

Convert a BigDecimal value to the binary decimal form used by MySQL. Use the precision and scale of the column to convert. Values that don't fit into the column throw a ClusterJUserException.

Parameters

storeColumn	the column metadata
value	the value to be converted

Returns: the ByteBuffer

Definition at line 854 of file Utility.java.

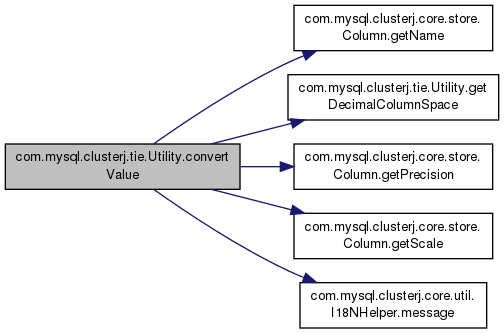

Here is the call graph for this function:

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		BigInteger	value
	)

inlinestatic

Convert a BigInteger value to the binary decimal form used by MySQL. Use the precision and scale of the column to convert. Values that don't fit into the column throw a ClusterJUserException.

Parameters

storeColumn	the column metadata
value	the value to be converted

Returns: the ByteBuffer

Definition at line 887 of file Utility.java.

Here is the call graph for this function:

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		double	value
	)

inlinestatic

Convert the parameter value to a ByteBuffer that can be passed to ndbjtie.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 916 of file Utility.java.

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		float	value
	)

inlinestatic

Convert the parameter value to a ByteBuffer that can be passed to ndbjtie.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 930 of file Utility.java.

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		byte	value
	)

inlinestatic

Convert the parameter value to a ByteBuffer that can be passed to ndbjtie.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 944 of file Utility.java.

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		short	value
	)

inlinestatic

Convert the parameter value to a ByteBuffer that can be passed to ndbjtie.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 954 of file Utility.java.

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		int	value
	)

inlinestatic

Convert the parameter value to a ByteBuffer that can be passed to ndbjtie.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 964 of file Utility.java.

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		long	value
	)

inlinestatic

Convert the parameter value to a ByteBuffer that can be passed to ndbjtie.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 974 of file Utility.java.

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValue	(	Column	storeColumn,
		String	value
	)

inlinestaticprotected

Encode a String as a ByteBuffer that can be passed to ndbjtie. Put the length information in the beginning of the buffer. Pad fixed length strings with blanks.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 985 of file Utility.java.

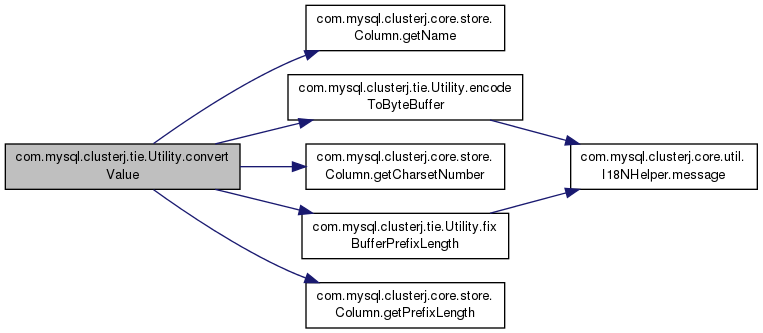

Here is the call graph for this function:

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValueForLikeFilter	(	Column	storeColumn,
		String	value
	)

inlinestaticprotected

Encode a String as a ByteBuffer that can be passed to ndbjtie in a COND_LIKE filter. There is no length information in the beginning of the buffer.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 1006 of file Utility.java.

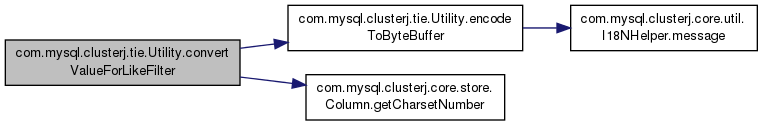

Here is the call graph for this function:

static ByteBuffer com.mysql.clusterj.tie.Utility.convertValueForLikeFilter	(	Column	storeColumn,
		byte[]	value
	)

inlinestaticprotected

Encode a byte[] as a ByteBuffer that can be passed to ndbjtie in a COND_LIKE filter. There is no length information in the beginning of the buffer.

Parameters

storeColumn	the column definition
value	the value to be converted

Returns: the ByteBuffer

Definition at line 1022 of file Utility.java.

static String com.mysql.clusterj.tie.Utility.decode	(	byte[]	array,
		int	collation
	)

inlinestatic

Decode a byte[] into a String using the charset. The return value is in UTF16 format.

Parameters

array	the byte[] to be decoded
collation	the collation

Returns: the decoded String

Definition at line 1343 of file Utility.java.

Here is the call graph for this function:

static String com.mysql.clusterj.tie.Utility.decode	(	ByteBuffer	inputByteBuffer,
		int	collation
	)

inlinestaticprotected

Decode a ByteBuffer into a String using the charset. The return value is in UTF16 format.

Parameters

inputByteBuffer	the byte buffer to be decoded
collation	the collation

Returns: the decoded String

Definition at line 1382 of file Utility.java.

Here is the call graph for this function:

static String com.mysql.clusterj.tie.Utility.decode	(	ByteBuffer	inputByteBuffer,
		int	collation,
		BufferManager	bufferManager
	)

inlinestatic

Decode a ByteBuffer into a String using the charset. The return value is in UTF16 format.

Parameters

inputByteBuffer	the byte buffer to be decoded positioned past the length prefix
collation	the collation
bufferManager	the buffer manager with shared buffers

Returns: the decoded String

Definition at line 1491 of file Utility.java.

static String com.mysql.clusterj.tie.Utility.dumpBytes ( byte[] bytes )

inlinestatic

Convert the byte[] into a String to be used for logging and debugging.

Parameters

bytes the byte[] to be dumped

Returns: the String representation

Definition at line 1160 of file Utility.java.

Here is the caller graph for this function:

static String com.mysql.clusterj.tie.Utility.dumpBytes ( ByteBuffer byteBuffer )

inlinestatic

Convert the byteBuffer into a String to be used for logging and debugging.

Parameters

byteBuffer the byteBuffer to be dumped

Returns: the String representation

Definition at line 1177 of file Utility.java.

Here is the call graph for this function:

static byte [] com.mysql.clusterj.tie.Utility.encode	(	String	string,
		int	collation
	)

inlinestatic

Encode a String into a byte[] for storage. This is used by character large objects when mapping text columns.

Parameters

string	the String to encode
collation	the collation

Returns: the encoded byte[]

Definition at line 1417 of file Utility.java.

Here is the call graph for this function:

static ByteBuffer com.mysql.clusterj.tie.Utility.encode	(	String	input,
		Column	storeColumn,
		BufferManager	bufferManager
	)

inlinestatic

Encode a String into a ByteBuffer for storage.

Parameters

input	the input String
storeColumn	the store column
bufferManager	the buffer manager with shared buffers

Returns: a byte buffer with prefix length

Definition at line 1472 of file Utility.java.

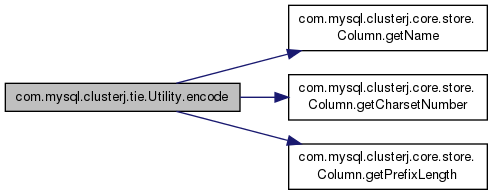

Here is the call graph for this function:

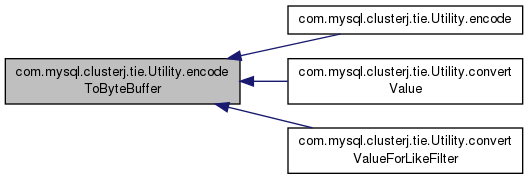

static ByteBuffer com.mysql.clusterj.tie.Utility.encodeToByteBuffer	(	CharSequence	string,
		int	collation,
		int	prefixLength
	)

inlinestatic

Encode a String into a ByteBuffer using the mysql native encoding method.

Parameters

string	the String to encode
collation	the collation
prefixLength	the length of the length prefix

Returns: the encoded ByteBuffer with position set to prefixLength and limit one past the last converted byte

Definition at line 1433 of file Utility.java.

Here is the call graph for this function:

Here is the caller graph for this function:

static void com.mysql.clusterj.tie.Utility.fixBufferPrefixLength	(	String	columnName,
		ByteBuffer	byteBuffer,
		int	offset
	)

inlinestatic

Fix the length information in a buffer based on the length prefix, either 0, 1, or 2 bytes that hold the length information.

Parameters

byteBuffer	the byte buffer to fix
offset	the size of the length prefix

Definition at line 1060 of file Utility.java.

Here is the call graph for this function:

Here is the caller graph for this function:

static boolean com.mysql.clusterj.tie.Utility.getBoolean	(	Column	storeColumn,
		NdbRecAttr	ndbRecAttr
	)

inlinestatic

Get a boolean from this ndbRecAttr.

Parameters

storeColumn	the Column
ndbRecAttr	the NdbRecAttr

Returns: the boolean

Definition at line 1817 of file Utility.java.

static byte com.mysql.clusterj.tie.Utility.getByte	(	Column	storeColumn,
		NdbRecAttr	ndbRecAttr
	)

inlinestatic

Get a byte from this ndbRecAttr.

Parameters

storeColumn	the Column
ndbRecAttr	the NdbRecAttr

Returns: the byte

Definition at line 1827 of file Utility.java.

static CharsetMap com.mysql.clusterj.tie.Utility.getCharsetMap ( )

inlinestatic

The mysql charset map

Definition at line 152 of file Utility.java.

static int com.mysql.clusterj.tie.Utility.getDecimalColumnSpace	(	int	precision,
		int	scale
	)

inlinestatic

Get the number of bytes needed in memory to represent the decimal number.

Parameters

precision	the precision of the number
scale	the scale

Returns: the number of bytes needed for the binary representation of the number

Definition at line 1804 of file Utility.java.

Here is the caller graph for this function:

static String com.mysql.clusterj.tie.Utility.getDecimalString	(	ByteBuffer	byteBuffer,
		int	length,
		int	precision,
		int	scale
	)

inlinestatic

Get a Decimal String from the byte buffer.

Parameters

byteBuffer	the byte buffer with the raw data, starting at position()
length	the length of the data
precision	the precision of the data
scale	the scale of the data

Returns: the Decimal String representation of the value

Definition at line 1232 of file Utility.java.

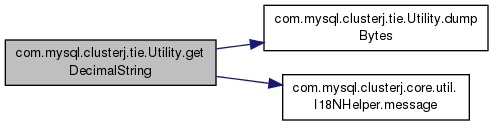

Here is the call graph for this function:

static int com.mysql.clusterj.tie.Utility.getInt	(	Column	storeColumn,
		NdbRecAttr	ndbRecAttr
	)

inlinestatic

Get an int from this ndbRecAttr.

Parameters

storeColumn	the Column
ndbRecAttr	the NdbRecAttr

Returns: the int

Definition at line 1847 of file Utility.java.

static long com.mysql.clusterj.tie.Utility.getLong	(	Column	storeColumn,
		NdbRecAttr	ndbRecAttr
	)

inlinestatic

Get a long from this ndbRecAttr.

Parameters

storeColumn	the Column
ndbRecAttr	the NdbRecAttr

Returns: the long

Definition at line 1857 of file Utility.java.

static short com.mysql.clusterj.tie.Utility.getShort	(	Column	storeColumn,
		NdbRecAttr	ndbRecAttr
	)

inlinestatic

Get a short from this ndbRecAttr.

Parameters

storeColumn	the Column
ndbRecAttr	the NdbRecAttr

Returns: the short

Definition at line 1837 of file Utility.java.

static boolean com.mysql.clusterj.tie.Utility.isRetriable ( ClusterJDatastoreException ex )

inlinestatic

Determine if the exception is retriable

Parameters

ex	the exception

Returns: if the status is retriable

Definition at line 215 of file Utility.java.

static long com.mysql.clusterj.tie.Utility.packDatetime ( long value )

inlinestaticprotected

Pack milliseconds since the Epoch into a long in database Datetime format. The Datetime contains a eight-byte date and time packed as YYYYx10000000000 + MMx100000000 + DDx1000000 + HHx10000 + MMx100 + SS Calendar month is 0 origin so add 1 to get packed month

Parameters

value milliseconds since the Epoch

Returns: the long in packed Datetime format

Definition at line 1140 of file Utility.java.

static short com.mysql.clusterj.tie.Utility.swap ( short value )

inlinestaticprotected

Swap the bytes in the value, thereby converting a big-endian value into a little-endian value (or vice versa).

Parameters

value the value to be swapped

Returns: the swapped value

Definition at line 737 of file Utility.java.

static int com.mysql.clusterj.tie.Utility.swap ( int value )

inlinestaticprotected

Swap the bytes in the value, thereby converting a big-endian value into a little-endian value (or vice versa).

Parameters

value the value to be swapped

Returns: the swapped value

Definition at line 747 of file Utility.java.

static long com.mysql.clusterj.tie.Utility.swap ( long value )

inlinestaticprotected

Swap the bytes in the value, thereby converting a big-endian value into a little-endian value (or vice versa).

Parameters

value the value to be swapped

Returns: the swapped value

Definition at line 759 of file Utility.java.

static long com.mysql.clusterj.tie.Utility.unpackDate ( int packedDate )

inlinestatic

Unpack a Date from its packed int representation. Date is a three-byte integer packed as YYYYx16x32 + MMx32 + DD

Parameters

packedDate the packed representation

Returns: the long value as milliseconds since the Epoch

Definition at line 1268 of file Utility.java.

static long com.mysql.clusterj.tie.Utility.unpackDatetime ( long packedDatetime )

inlinestaticprotected

Unpack a Datetime from its packed long representation. The Datetime contains a long packed as YYYYx10000000000 + MMx100000000 + DDx1000000 + HHx10000 + MMx100 + SS Calendar month is 0 origin so subtract 1 from packed month

Parameters

packedDatetime the packed representation

Returns: the value as milliseconds since the Epoch

Definition at line 1312 of file Utility.java.

static long com.mysql.clusterj.tie.Utility.unpackTime ( int packedTime )

inlinestatic

Unpack a Time from its packed int representation. Time is a three-byte integer packed as DDx240000 + HHx10000 + MMx100 + SS

Parameters

packedTime the packed representation

Returns: the long value as milliseconds since the Epoch

Definition at line 1284 of file Utility.java.

Here is the call graph for this function:

Member Data Documentation

final int com.mysql.clusterj.tie.Utility.collationUTF16 = charsetMap.getUTF16CharsetNumber()

staticprotected

The mysql collation number for UTF16

Definition at line 149 of file Utility.java.

The documentation for this class was generated from the following file:

storage/ndb/clusterj/clusterj-tie/src/main/java/com/mysql/clusterj/tie/Utility.java

Classes

Static Public Member Functions

Static Protected Member Functions

Static Protected Attributes

Detailed Description

Member Function Documentation

Member Data Documentation
