PFS_engine_table Class Reference

#include <pfs_engine_table.h>

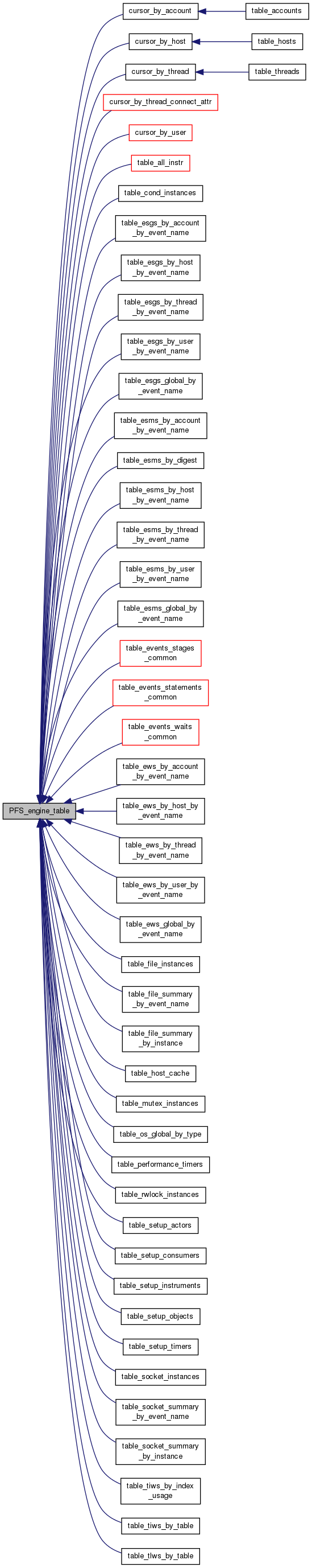

Inheritance diagram for PFS_engine_table:

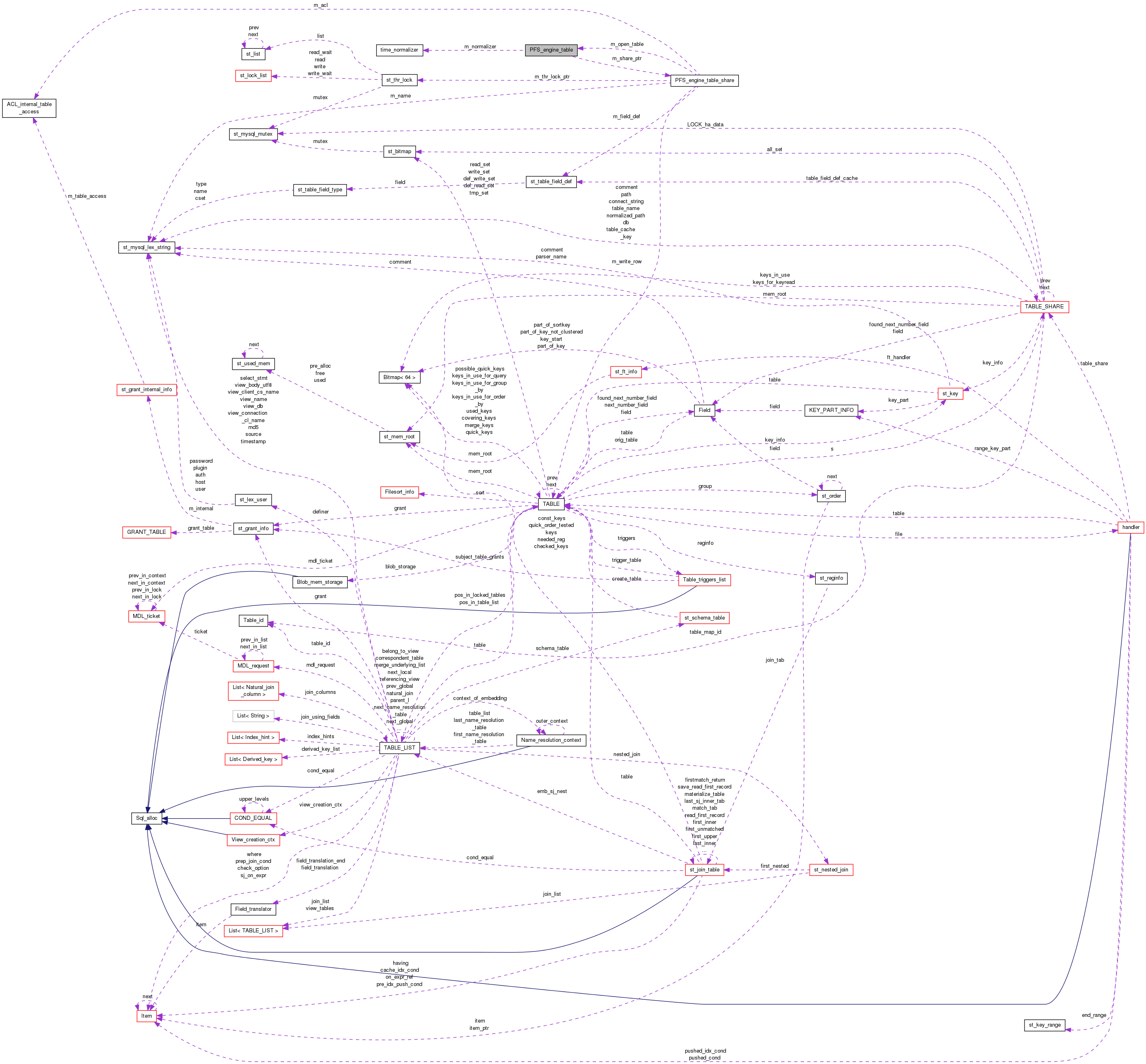

Collaboration diagram for PFS_engine_table:

Public Member Functions
int	read_row (TABLE *table, unsigned char *buf, Field **fields)
int	update_row (TABLE *table, const unsigned char *old_buf, unsigned char *new_buf, Field **fields)
int	delete_row (TABLE *table, const unsigned char *buf, Field **fields)
virtual int	rnd_init (bool scan)
virtual int	rnd_next (void)=0
virtual int	rnd_pos (const void *pos)=0
void	get_position (void *ref)
void	set_position (const void *ref)
virtual void	reset_position (void)=0
void	get_normalizer (PFS_instr_class *instr_class)
virtual	~PFS_engine_table ()

Static Public Member Functions
static const PFS_engine_table_share *	find_engine_table_share (const char *name)
static void	set_field_ulong (Field *f, ulong value)
static void	set_field_ulonglong (Field *f, ulonglong value)
static void	set_field_char_utf8 (Field *f, const char *str, uint len)
static void	set_field_varchar_utf8 (Field *f, const char *str, uint len)
static void	set_field_longtext_utf8 (Field *f, const char *str, uint len)
static void	set_field_enum (Field *f, ulonglong value)
static void	set_field_timestamp (Field *f, ulonglong value)
static ulonglong	get_field_enum (Field *f)
static String *	get_field_char_utf8 (Field *f, String *val)
static String *	get_field_varchar_utf8 (Field *f, String *val)

Protected Member Functions
virtual int	read_row_values (TABLE *table, unsigned char *buf, Field **fields, bool read_all)=0
virtual int	update_row_values (TABLE *table, const unsigned char *old_buf, unsigned char *new_buf, Field **fields)
virtual int	delete_row_values (TABLE *table, const unsigned char *buf, Field **fields)
	PFS_engine_table (const PFS_engine_table_share *share, void *pos)

Protected Attributes
const PFS_engine_table_share *	m_share_ptr
void *	m_pos_ptr
time_normalizer *	m_normalizer
enum PFS_class_type	m_class_type

Detailed Description

An abstract PERFORMANCE_SCHEMA table. Every table implemented in the performance schema schema and storage engine derives from this class.

Definition at line 40 of file pfs_engine_table.h.

Constructor & Destructor Documentation

virtual PFS_engine_table::~PFS_engine_table ( )

inlinevirtual

Destructor.

Definition at line 80 of file pfs_engine_table.h.

PFS_engine_table::PFS_engine_table ( const PFS_engine_table_share *  share, void *  pos  )

inlineprotected

Constructor.

Parameters

share	table share
pos	address of the m_pos position member

Definition at line 184 of file pfs_engine_table.h.

Member Function Documentation

virtual int PFS_engine_table::read_row_values ( TABLE *  table, unsigned char *  buf, Field **  fields, bool  read_all  )

protectedpure virtual

Read the current row values.

Parameters

table	Table handle
buf	row buffer
fields	Table fields
read_all	true if all columns are read.

Implemented in table_events_statements_common, table_events_waits_common, table_host_cache, table_ews_by_account_by_event_name, table_ews_by_host_by_event_name, table_ews_by_user_by_event_name, table_ews_by_thread_by_event_name, table_esgs_by_user_by_event_name, table_esgs_by_thread_by_event_name, table_esms_by_thread_by_event_name, table_os_global_by_type, table_esgs_by_account_by_event_name, table_esgs_by_host_by_event_name, table_esms_by_account_by_event_name, table_esms_by_host_by_event_name, table_esms_by_user_by_event_name, table_tiws_by_index_usage, table_events_stages_common, table_ews_global_by_event_name, table_setup_instruments, table_threads, table_setup_objects, table_events_waits_summary_by_instance, table_setup_actors, table_session_connect, table_esms_by_digest, table_esgs_global_by_event_name, table_esms_global_by_event_name, table_tiws_by_table, table_tlws_by_table, table_performance_timers, table_setup_consumers, table_setup_timers, table_accounts, table_hosts, and table_users.

Here is the caller graph for this function:

virtual void PFS_engine_table::reset_position ( void  )

pure virtual

Reset the cursor position to the beginning of the table.

Implemented in table_events_statements_history_long, table_events_waits_history_long, table_events_statements_history, table_events_waits_history, table_events_statements_current, table_events_stages_history_long, table_cond_instances, table_events_waits_current, table_events_stages_history, table_events_stages_current, table_rwlock_instances, table_host_cache, table_ews_by_account_by_event_name, table_ews_by_host_by_event_name, table_ews_by_user_by_event_name, table_ews_by_thread_by_event_name, table_esgs_by_user_by_event_name, table_esgs_by_thread_by_event_name, table_esms_by_thread_by_event_name, table_os_global_by_type, table_esgs_by_account_by_event_name, table_esgs_by_host_by_event_name, table_esms_by_account_by_event_name, table_esms_by_host_by_event_name, table_esms_by_user_by_event_name, table_tiws_by_index_usage, table_ews_global_by_event_name, table_setup_instruments, table_all_instr, table_socket_instances, table_setup_objects, table_file_summary_by_instance, table_setup_actors, table_socket_summary_by_instance, table_esms_by_digest, table_mutex_instances, cursor_by_thread_connect_attr, table_esgs_global_by_event_name, table_esms_global_by_event_name, table_socket_summary_by_event_name, table_tiws_by_table, table_tlws_by_table, table_file_summary_by_event_name, table_file_instances, table_performance_timers, table_setup_consumers, table_setup_timers, cursor_by_account, cursor_by_host, cursor_by_thread, and cursor_by_user.

Here is the caller graph for this function:

virtual int PFS_engine_table::rnd_init ( bool  scan )

inlinevirtual

Initialize table scan.

Reimplemented in table_events_statements_history_long, table_events_statements_history, table_events_statements_current, table_events_stages_history_long, table_events_stages_history, table_events_stages_current, table_esgs_by_user_by_event_name, table_esgs_by_thread_by_event_name, table_esms_by_thread_by_event_name, table_esgs_by_account_by_event_name, table_esgs_by_host_by_event_name, table_esms_by_account_by_event_name, table_esms_by_host_by_event_name, table_esms_by_user_by_event_name, table_tiws_by_index_usage, table_esgs_global_by_event_name, table_esms_global_by_event_name, table_tiws_by_table, and table_tlws_by_table.

Definition at line 61 of file pfs_engine_table.h.

Here is the caller graph for this function:

virtual int PFS_engine_table::rnd_next ( void  )

pure virtual

Fetch the next row in this cursor.

Implemented in table_events_statements_history_long, table_events_waits_history_long, table_events_statements_history, table_events_waits_history, table_events_statements_current, table_events_stages_history_long, table_cond_instances, table_events_waits_current, table_events_stages_history, table_events_stages_current, table_rwlock_instances, table_host_cache, table_ews_by_account_by_event_name, table_ews_by_host_by_event_name, table_ews_by_user_by_event_name, table_ews_by_thread_by_event_name, table_esgs_by_user_by_event_name, table_esgs_by_thread_by_event_name, table_esms_by_thread_by_event_name, table_os_global_by_type, table_esgs_by_account_by_event_name, table_esgs_by_host_by_event_name, table_esms_by_account_by_event_name, table_esms_by_host_by_event_name, table_esms_by_user_by_event_name, table_tiws_by_index_usage, table_ews_global_by_event_name, table_setup_instruments, table_all_instr, table_socket_instances, table_setup_objects, table_file_summary_by_instance, table_setup_actors, table_socket_summary_by_instance, table_esms_by_digest, table_mutex_instances, cursor_by_thread_connect_attr, table_esgs_global_by_event_name, table_esms_global_by_event_name, table_socket_summary_by_event_name, table_tiws_by_table, table_tlws_by_table, table_file_summary_by_event_name, table_file_instances, table_performance_timers, table_setup_consumers, table_setup_timers, cursor_by_account, cursor_by_host, cursor_by_thread, and cursor_by_user.

Here is the caller graph for this function:

virtual int PFS_engine_table::rnd_pos ( const void *  pos )

pure virtual

Fetch a row by position.

Parameters

pos	position to fetch

Implemented in table_events_statements_history_long, table_events_waits_history_long, table_events_statements_history, table_events_waits_history, table_events_statements_current, table_events_stages_history_long, table_cond_instances, table_events_waits_current, table_events_stages_history, table_events_stages_current, table_rwlock_instances, table_host_cache, table_ews_by_account_by_event_name, table_ews_by_host_by_event_name, table_ews_by_user_by_event_name, table_ews_by_thread_by_event_name, table_esgs_by_user_by_event_name, table_esgs_by_thread_by_event_name, table_esms_by_thread_by_event_name, table_os_global_by_type, table_esgs_by_account_by_event_name, table_esgs_by_host_by_event_name, table_esms_by_account_by_event_name, table_esms_by_host_by_event_name, table_esms_by_user_by_event_name, table_tiws_by_index_usage, table_ews_global_by_event_name, table_setup_instruments, table_all_instr, table_socket_instances, table_setup_objects, table_file_summary_by_instance, table_setup_actors, table_socket_summary_by_instance, table_esms_by_digest, table_mutex_instances, cursor_by_thread_connect_attr, table_esgs_global_by_event_name, table_esms_global_by_event_name, table_socket_summary_by_event_name, table_tiws_by_table, table_tlws_by_table, table_file_summary_by_event_name, table_file_instances, table_performance_timers, table_setup_consumers, table_setup_timers, cursor_by_account, cursor_by_host, cursor_by_thread, and cursor_by_user.

Here is the caller graph for this function:

Member Data Documentation

enum PFS_class_type PFS_engine_table::m_class_type

protected

Current class type

Definition at line 196 of file pfs_engine_table.h.

time_normalizer* PFS_engine_table::m_normalizer

protected

Current normalizer

Definition at line 194 of file pfs_engine_table.h.

void* PFS_engine_table::m_pos_ptr

protected

Opaque pointer to the m_pos position of this cursor.

Definition at line 192 of file pfs_engine_table.h.

const PFS_engine_table_share* PFS_engine_table::m_share_ptr

protected

Table share.

Definition at line 190 of file pfs_engine_table.h.

---

The documentation for this class was generated from the following files:

• storage/perfschema/pfs_engine_table.h
• storage/perfschema/pfs_engine_table.cc
